POWER SUPPLY ROUTING CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

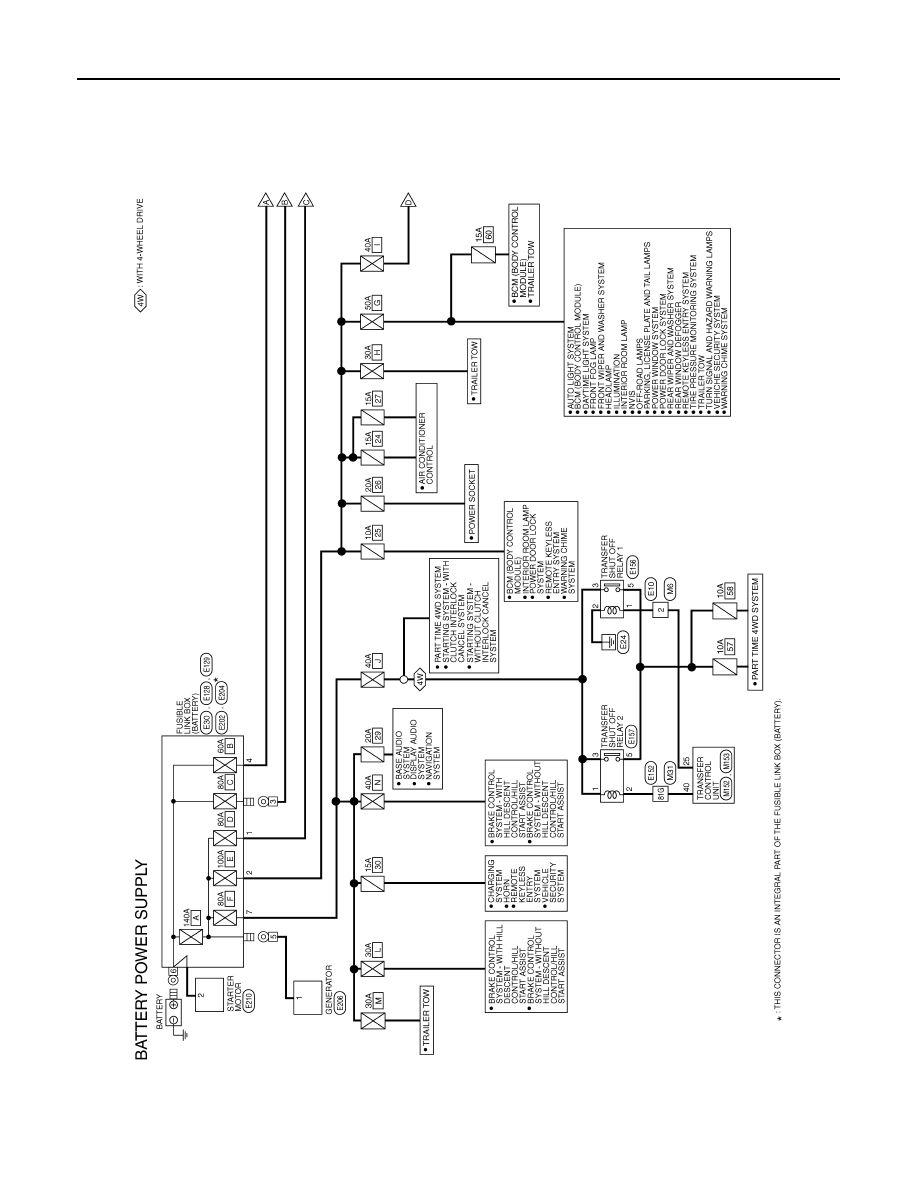

Wiring Diagram—Battery Power Supply

INFOID:0000000009484614

ABMWA2368GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-9

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA2369GB

PG-10

< DTC/CIRCUIT DIAGNOSIS >

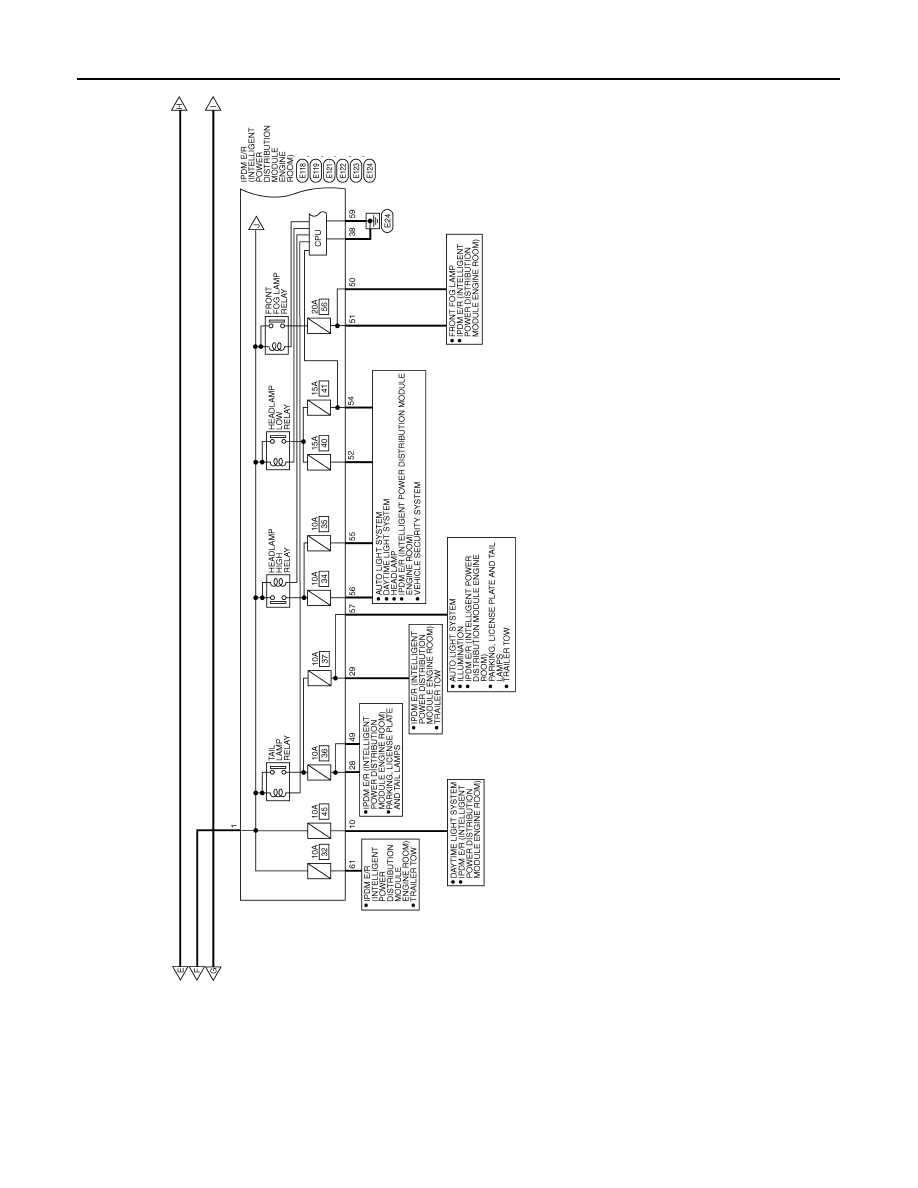

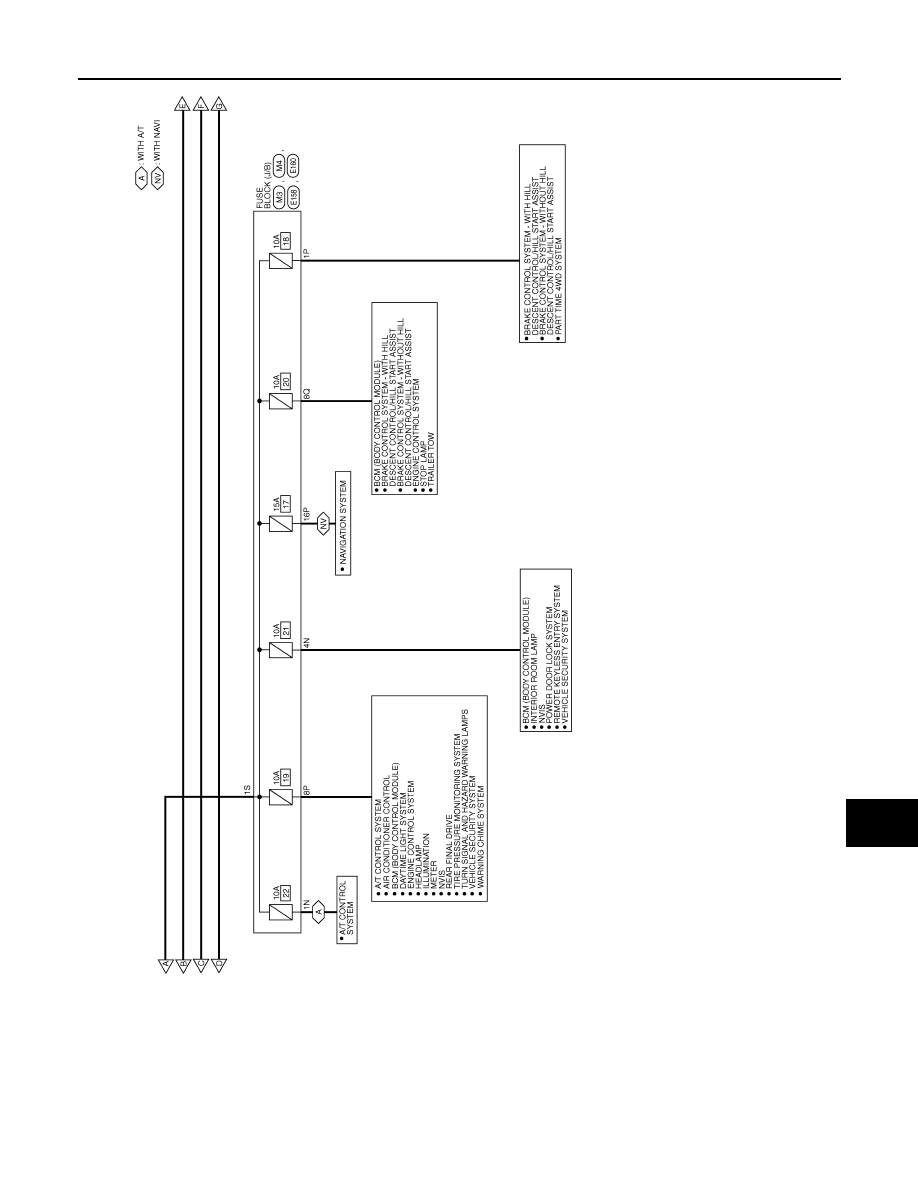

POWER SUPPLY ROUTING CIRCUIT

ABMWA2370GB

PG

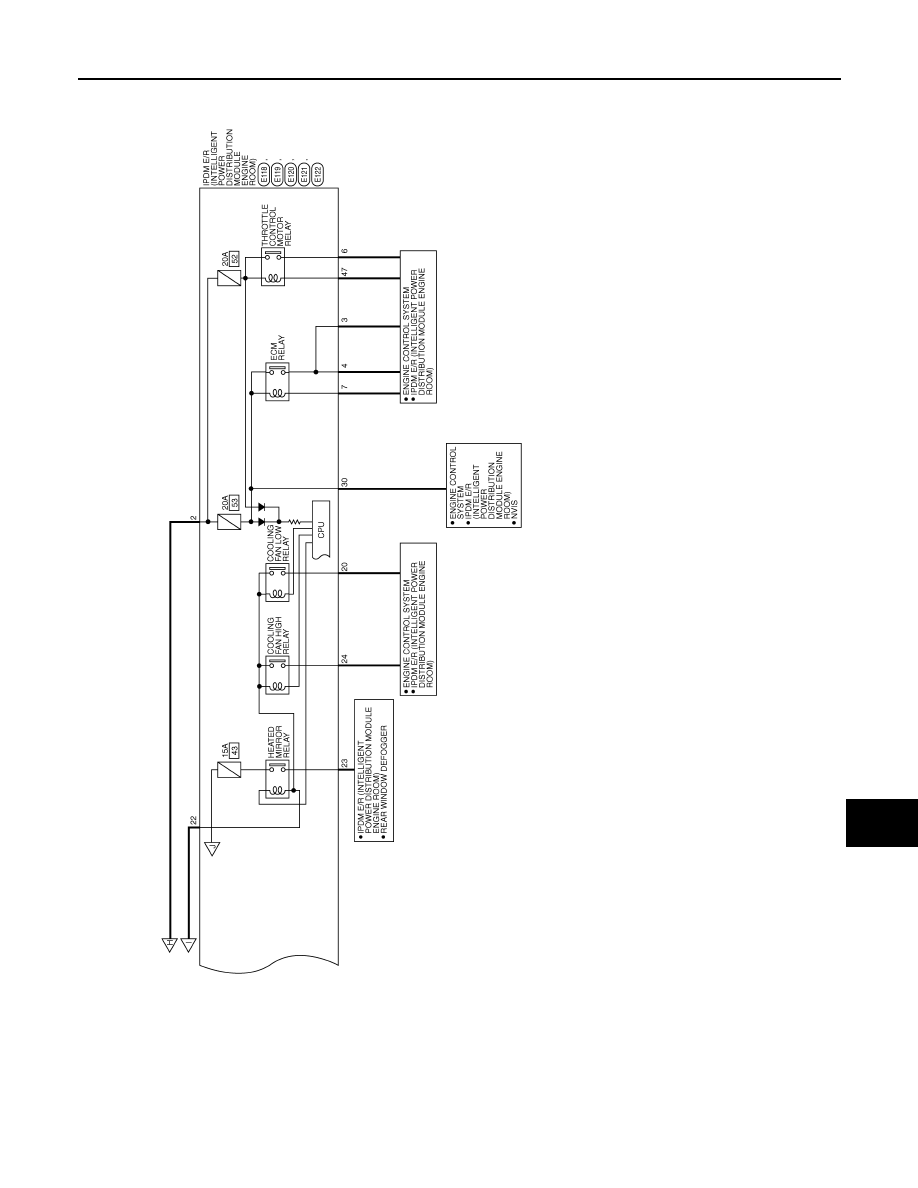

POWER SUPPLY ROUTING CIRCUIT
