VTL-4

< SYSTEM DESCRIPTION >

VENTILATION SYSTEM

SYSTEM DESCRIPTION

VENTILATION SYSTEM

System Description

INFOID:0000000006032353

OUTLINE

Ventilation system is controlled by A/C auto amp. (AUTOMATIC AIR CONDITIONER) or A/C control (MAN-
UAL AIR CONDITIONER ,MANUAL HEATER and VENTILATION). For details of air conditioner system, refer
to

HAC-13, "Air Flow Control"

 (AUTOMATIC AIR CONDITIONER),

HAC-88, "System Description"

 (MANUAL

AIR CONDITIONER),

HAC-126, "System Description"

 (HEATER and VENTILATION).

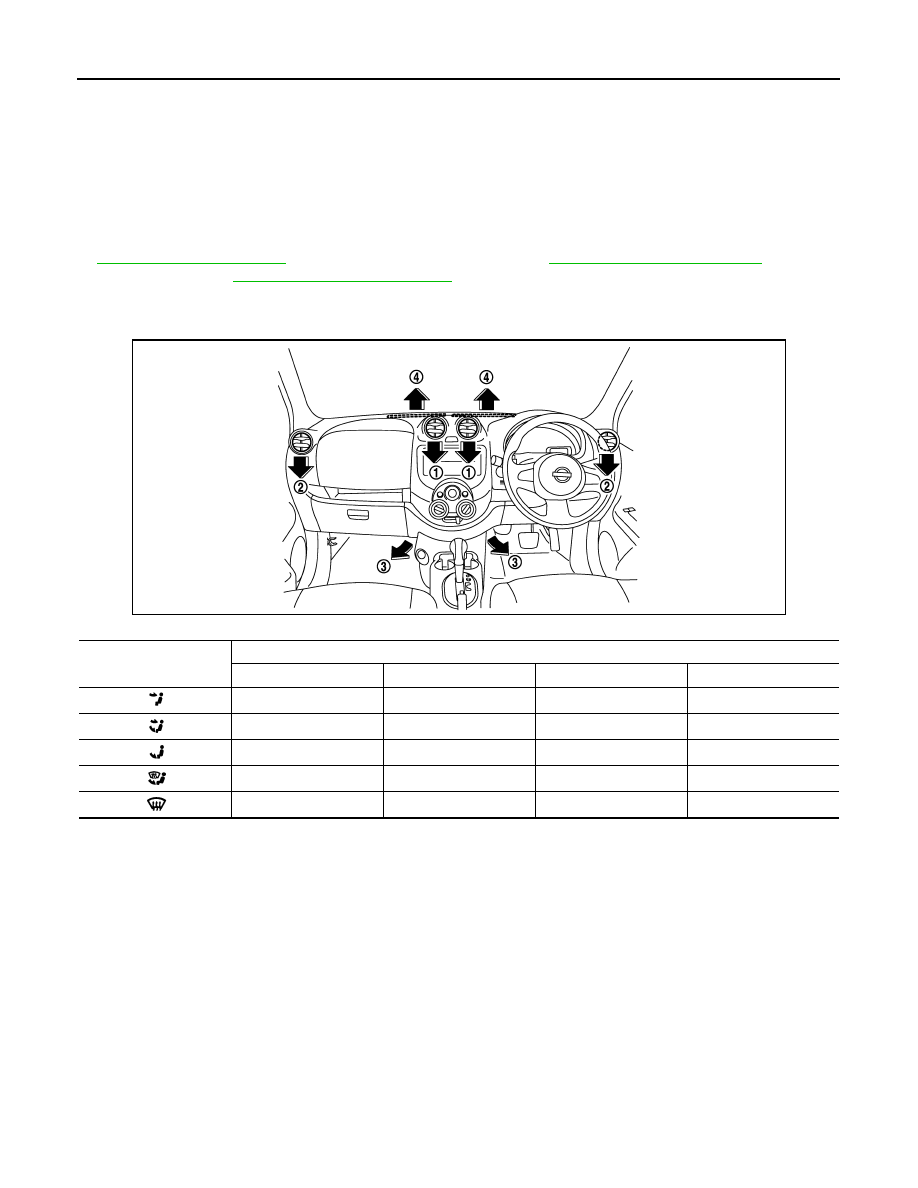

AIR FLOW

Front

×

: Applicable

JMIIA0651ZZ

MODE/DEF position in-

dication

AIR OUTLET

Ventilator (1)

Ventilator (2)

Foot (3)

Defroster (4)

×

×

—

—

×

×

×

—

—

×

×

×

—

×

×

×

—

×

—

×

DUCT AND GRILLE

VTL-5

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

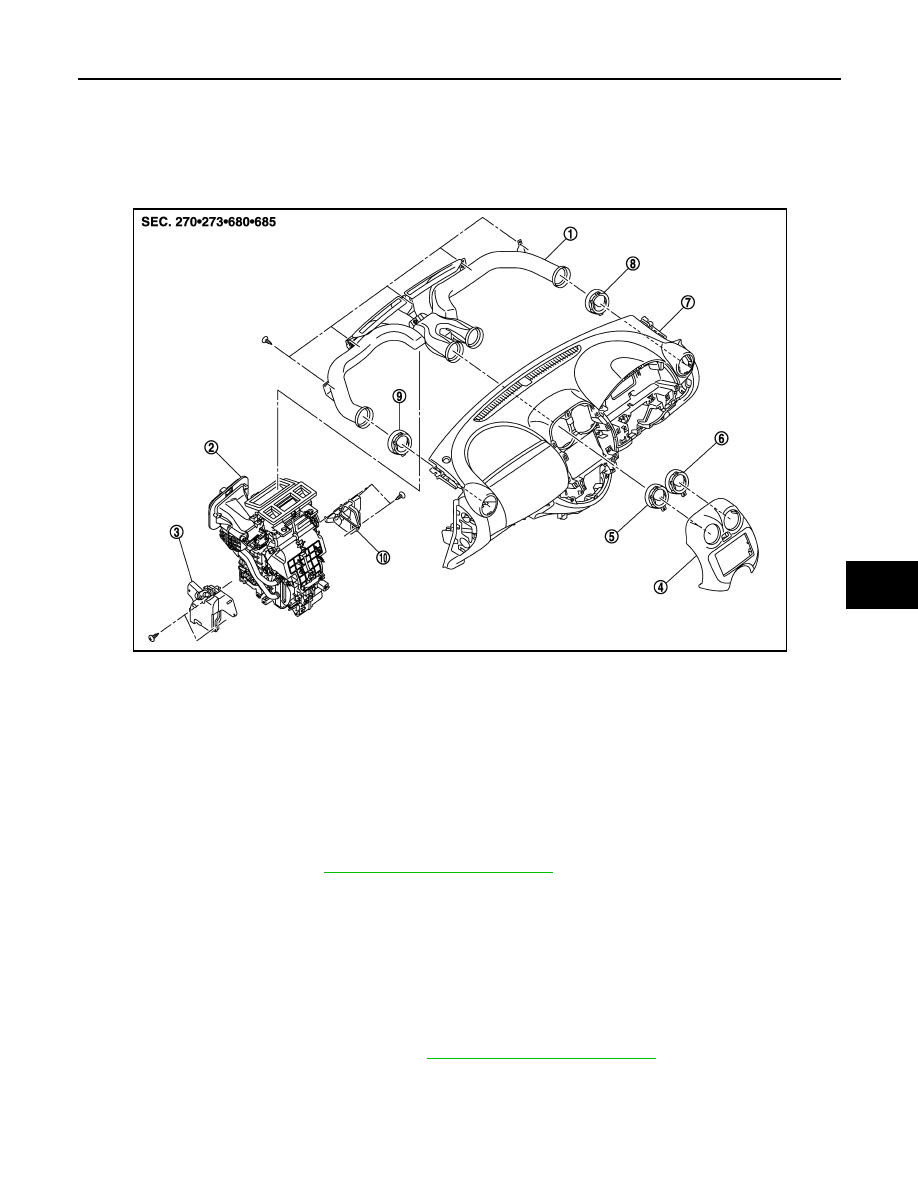

REMOVAL AND INSTALLATION

DUCT AND GRILLE

Exploded View

INFOID:0000000006032360

CENTER VENTILATOR GRILLE

CENTER VENTILATOR GRILLE : Removal and Installation

INFOID:0000000006032361

REMOVAL

1.

Remove cluster lid C. Refer to

IP-13, "Removal and Installation"

.

2.

Remove mounting screws, and then remove center ventilator grille from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

SIDE VENTILATOR GRILLE

SIDE VENTILATOR GRILLE : Removal and Installation

INFOID:0000000006032362

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove mounting screws, and then remove side ventilator grille  from instrument panel assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Center ventilator duct assembly

2.

A/C unit assembly

3.

Foot duct LH

4.

Cluster lid C

5.

Center ventilator grille LH

6.

Center ventilator grille RH

7.

Instrument panel assembly

8.

Side ventilator grille RH

9.

Side ventilator grille LH

10. Foot duct RH

JMIIA0650ZZ

VTL-6

< REMOVAL AND INSTALLATION >

DUCT AND GRILLE

CENTER VENTILATOR DUCT

CENTER VENTILATOR DUCT : Removal and Installation

INFOID:0000000006032363

REMOVAL

1.

Remove instrument panel assmebly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove mounting screws, and then remove center ventilator duct assembly from instrument panel
assembly.

INSTALLATION

Install in the reverse order of removal.

FOOT DUCT

FOOT DUCT : Removal and Installation

INFOID:0000000006032369

REMOVAL

Driver side

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Remove mounting screws, and then remove foot duct LH.

Passenger side

1.

Remove A/C unit assembly. Refer to

HA-42, "A/C UNIT ASSEMBLY : Removal and Installation"

.

2.

Remove mounting screws, and then remove foot duct RH.

INSTALLATION

Install in the reverse order of removal.

BLOWER MOTOR

VTL-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

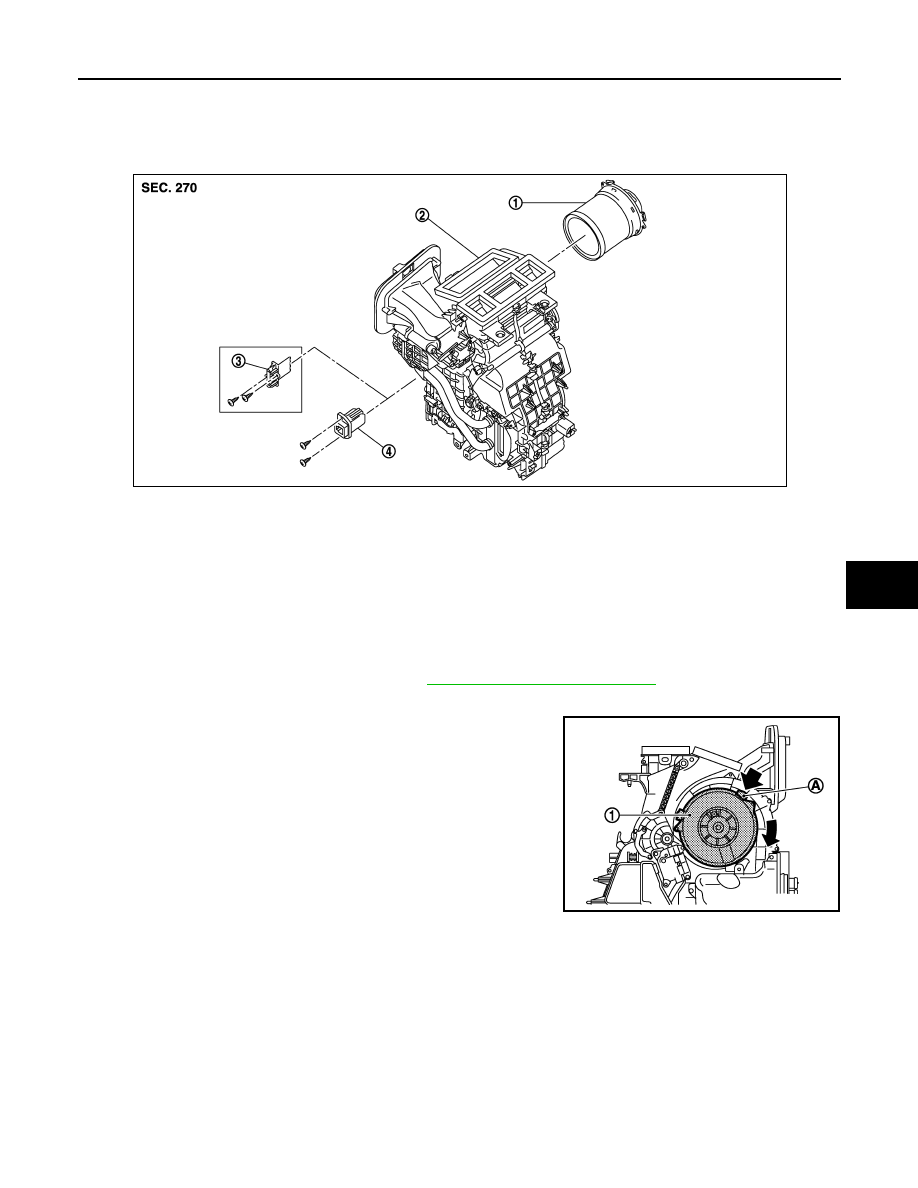

BLOWER MOTOR

Exploded View

INFOID:0000000006032370

• *1: Manual air conditioner, Manual heater or Ventilator

• *2: Automatic air conditioner

Removal and Installation

INFOID:0000000006032371

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-13, "Removal and Installation"

.

2.

Disconnect blower motor connector.

3.

Press flange holding hook (A), and then turn blower motor (1)
clockwise.

4.

Pull outside, and then remove blower motor.

INSTALLATION

Install in the reverse order of removal.

1.

Blower motor

2.

A/C unit assembly

3.

Blower fan resistor

*1

4.

Power transistor

*2

JMIIA0595ZZ

JMIIA0652ZZ
