SERVICE DATA AND SPECIFICATIONS (SDS)

TM-49

< SERVICE DATA AND SPECIFICATIONS (SDS)

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000006056595

Transaxle type

RS5F91R

Engine type

HR12DE

Model code number

1HC0C

1HC0A

Number of speed

5

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.7273

2nd

2.0476

3rd

1.3929

4th

1.0294

5th

0.8205

Reverse

3.5454

Final gear

4.0667

4.5000

Number of teeth

Input gear

1st

11

2nd

21

3rd

28

4th

34

5th

39

Reverse

11

Main gear

1st

41

2nd

43

3rd

39

4th

35

5th

32

Reverse

39

Reverse idler gear

26

Final gear

Final gear/Pinion

61/15

63/14

Side gear/Pinion
mate gear

13/9

Oil capacity (Reference)

 (Imp pt)

Approx. 2.6 (4-5/8)

SCIA0821E

VTL-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

VTL

A

B

VTL

N

O

P

CONTENTS

VENTILATION SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  .....................................

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

SYSTEM DESCRIPTION  ..............................

4

VENTILATION SYSTEM  .....................................

4

System Description  ...................................................

4

REMOVAL AND INSTALLATION ................

5

DUCT AND GRILLE ...........................................

5

Exploded View ..........................................................

5

CENTER VENTILATOR GRILLE ................................

5

CENTER VENTILATOR GRILLE : Removal and
Installation ................................................................

5

SIDE VENTILATOR GRILLE  ......................................

5

SIDE VENTILATOR GRILLE : Removal and In-
stallation ...................................................................

5

CENTER VENTILATOR DUCT  ...................................

6

CENTER VENTILATOR DUCT : Removal and In-
stallation ...................................................................

6

FOOT DUCT ................................................................

6

FOOT DUCT : Removal and Installation  ..................

6

BLOWER MOTOR  .............................................

7

Exploded View ..........................................................

7

Removal and Installation  ..........................................

7

VTL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006067223

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation after Battery Disconnect

INFOID:0000000006067224

NOTE:
• Before removing and installing any control units, first turn the push-button ignition switch to the LOCK posi-

tion, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect both

battery cables.

• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.

If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Turn the push-button ignition switch to ACC position.
(At this time, the steering lock will be released.)

3.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

4.

Perform the necessary repair operation.

5.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the push-button ignition switch from ACC position to ON position, then to LOCK position. (The steering
wheel will lock when the push-button ignition switch is turned to LOCK position.)

6.

Perform self-diagnosis check of all control units using CONSULT-III.

PREPARATION

VTL-3

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PREPARATION

PREPARATION

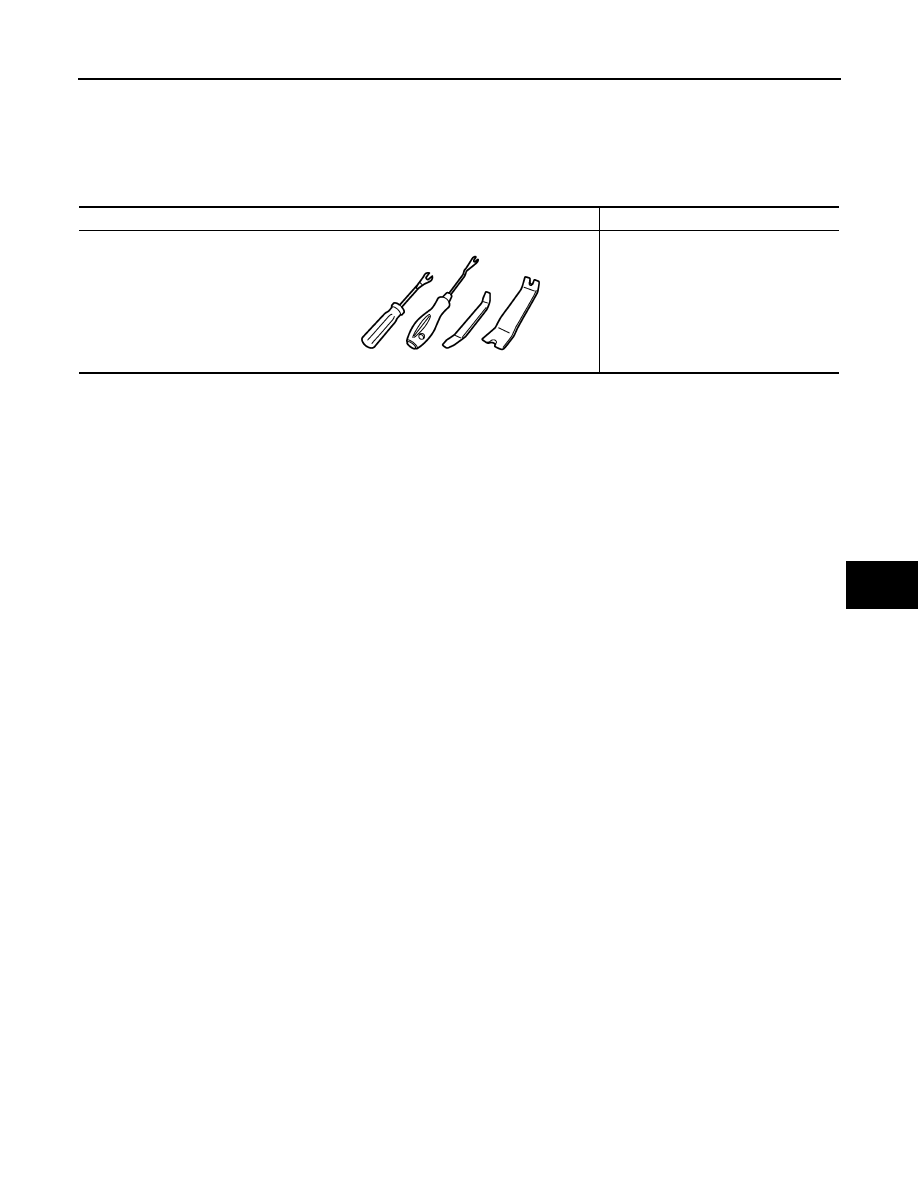

Commercial Service Tool

INFOID:0000000006032356

Tool name

Description

Remover tool

Remove clips, pawls, and metal clips

JMKIA3050ZZ
