MAINSHAFT AND GEAR

TM-45

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

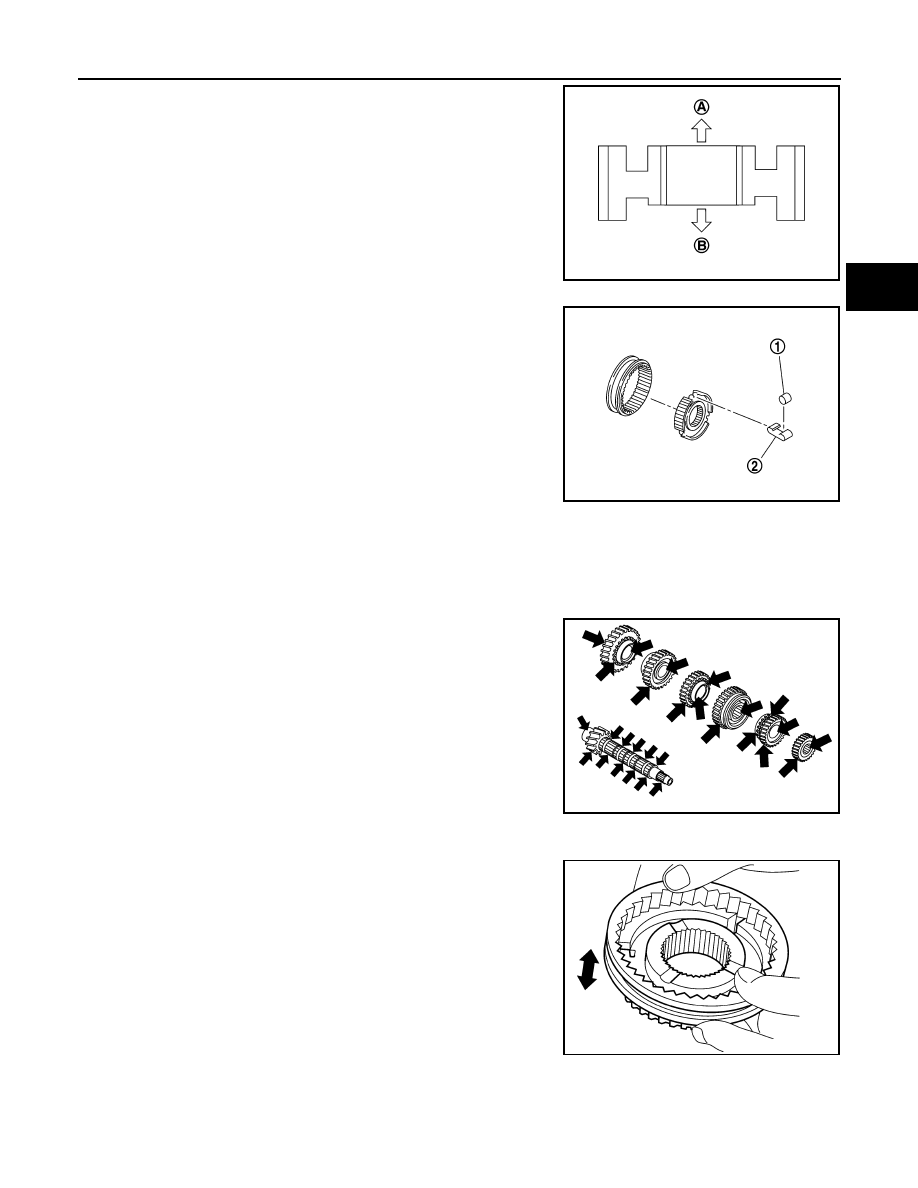

• Be careful with the orientation of 3rd-4th synchronizer hub.

• Replace 3rd-4th synchronizer hub and 3rd-4th coupling

sleeve as a set.

• Be careful with the orientation of insert key (1) and spring (2).

Inspection

INFOID:0000000006056590

INSPECTION AFTER DISASSEMBLY

Mainshaft and Gear

Check the following items and replace if necessary.
• Damage, peeling, bend, uneven wear, and distortion of shaft
• Excessive wear, damage, and peeling of gear

Synchronizer

Check the following items and replace if necessary.
• Contact surface breakage, damage, and unusual wear of coupling

sleeve, synchronizer hub, insert key, and spring.

• Coupling sleeve and synchronizer hub move smoothly.

A

: 4th main gear side

B

: 3rd main gear side

PCIB1565E

PCIB1564E

SCIA1762J

SCIA1753J

TM-46

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

MAINSHAFT AND GEAR

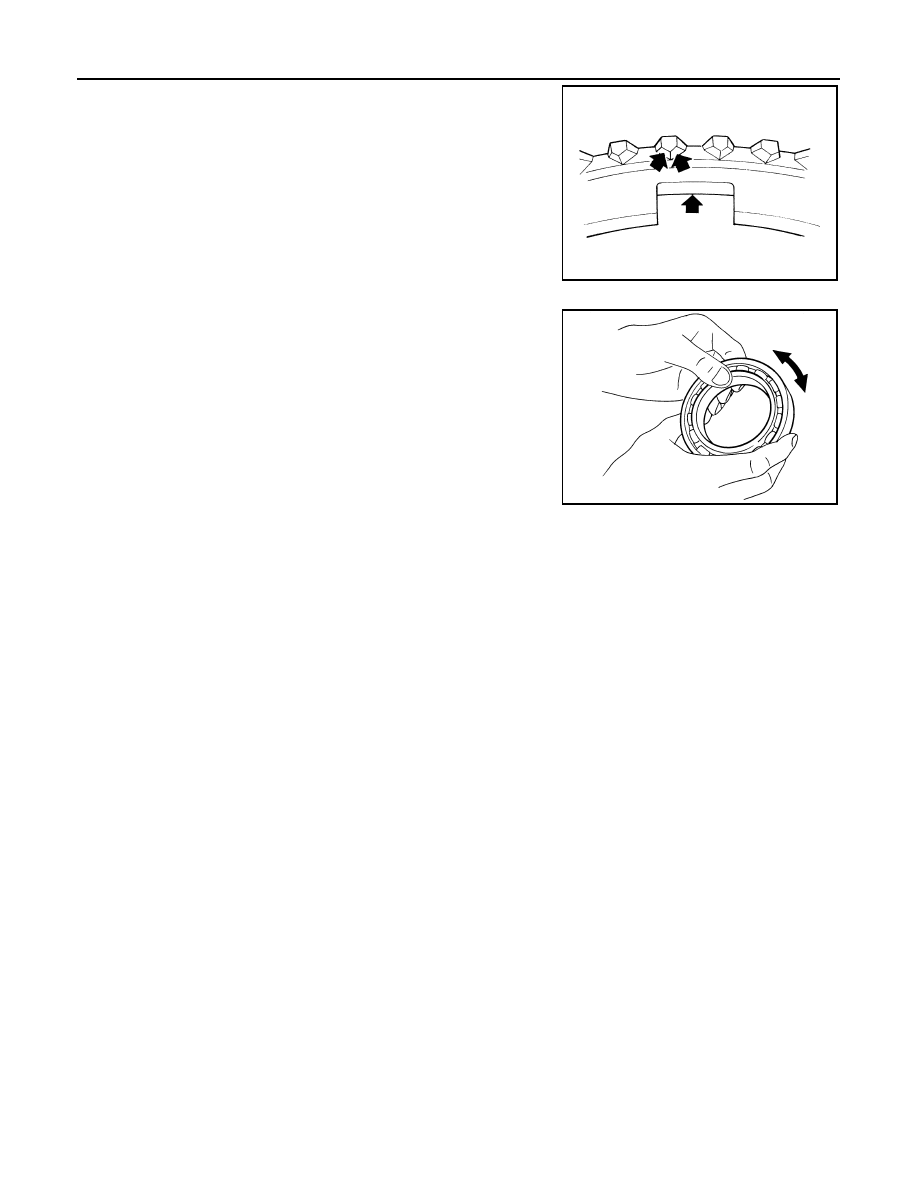

• Breakage, damage, and excessive wear of baulk ring cam surface

and insert contact surface

Bearing

Check bearing for damage and unsmooth rotation. Replace if neces-
sary.

SCIA0608J

MTF0041D

FINAL DRIVE

TM-47

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL DRIVE

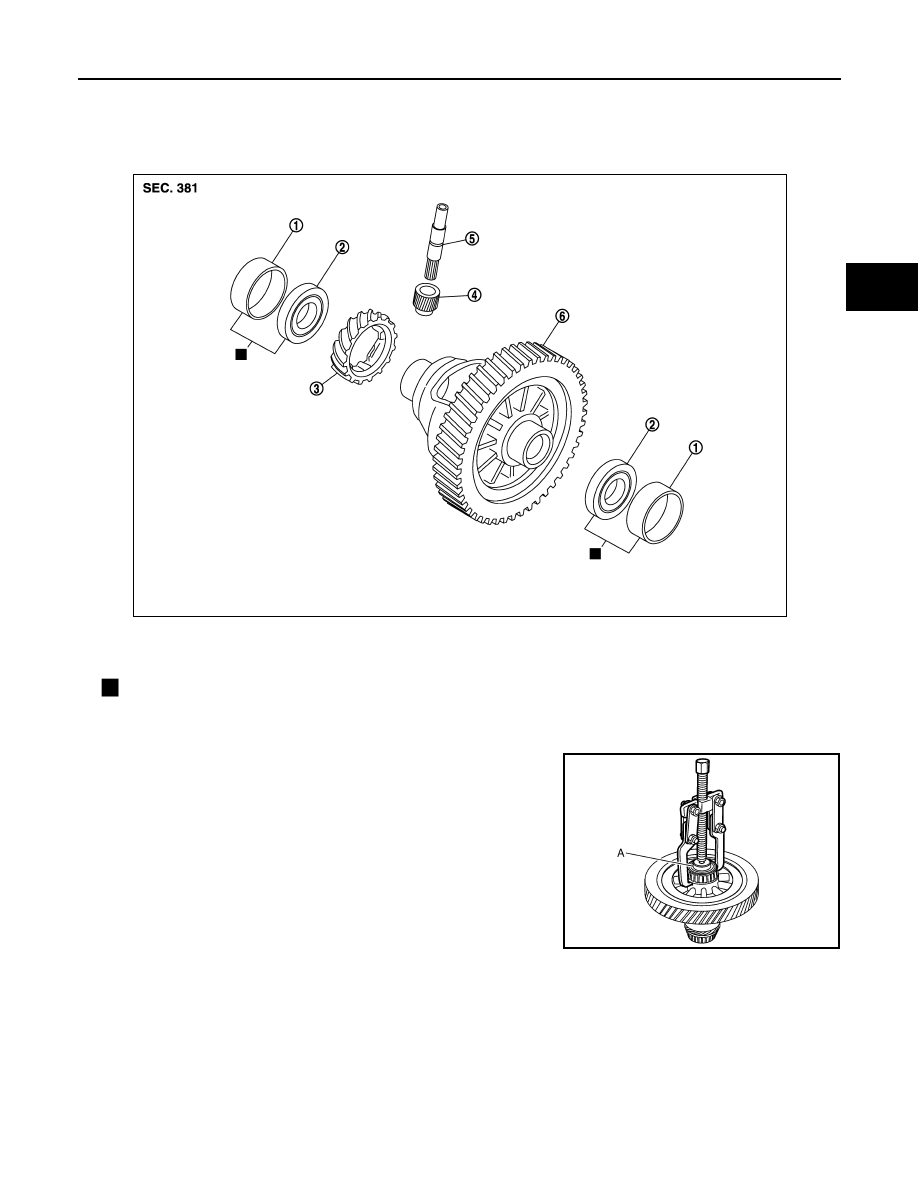

Exploded View

INFOID:0000000006056591

Disassembly

INFOID:0000000006056592

1.

Remove differential side bearings, using the drift (A) [SST:
ST33052000] and a puller [Commercial service tool].

2.

Remove speedometer drive gear.

1.

Differential side bearing outer race

2.

Differential side bearing

3.

Speedometer drive gear

4.

Pinion gear

5.

Pinion shaft

6.

Final drive assembly

: Replace the parts as a set.

JPDIC0602ZZ

PCIB1568E

TM-48

< UNIT DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

FINAL DRIVE

Assembly

INFOID:0000000006056593

1.

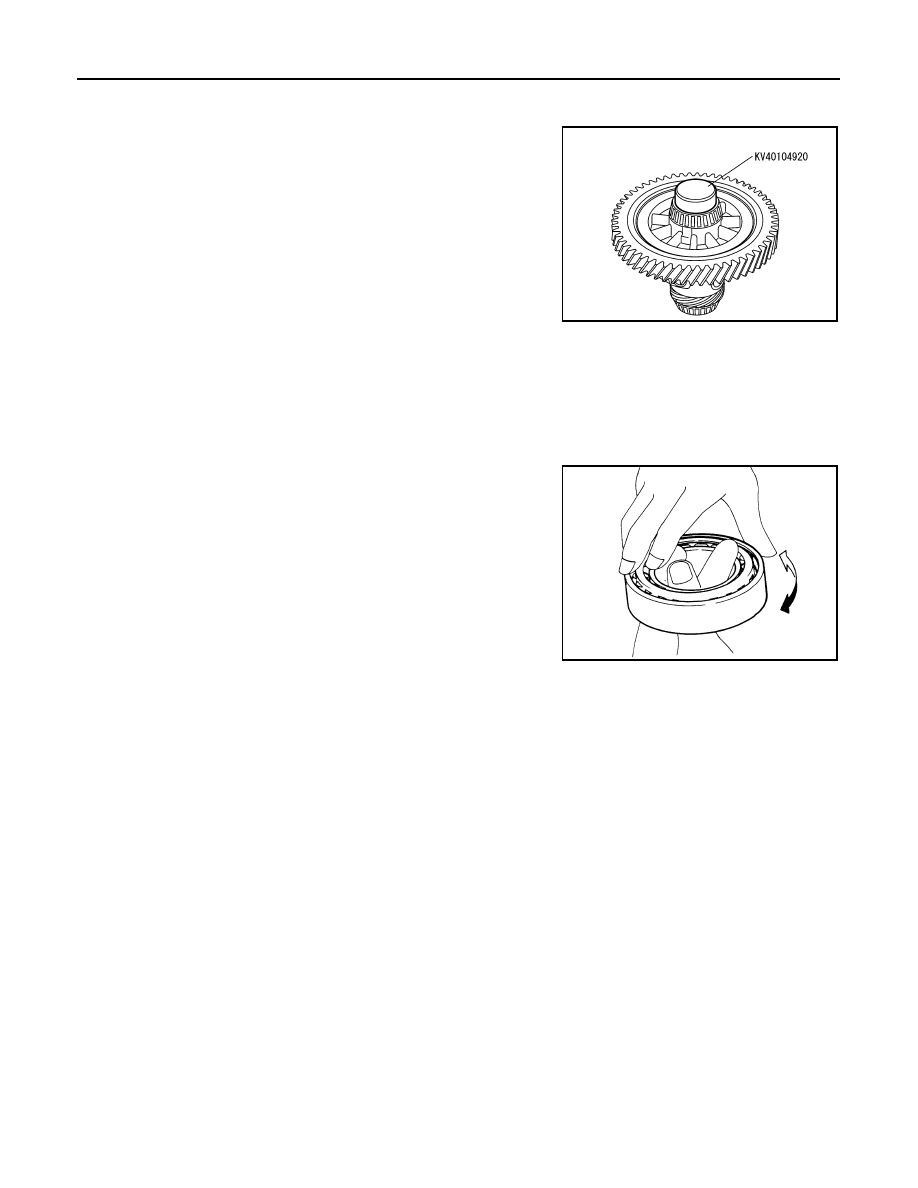

Install differential side bearings, using the drift [SST].

CAUTION:

Replace differential side bearing outer race and differential
side bearing as a set.

2.

Install speedometer drive gear.

Inspection

INFOID:0000000006056594

INSPECTION AFTER DISASSEMBLY

Case

Check differential case and replace if necessary.

Bearing

Check bearing for damage and unsmooth rotation. Replace if neces-
sary.

SCIA1765J

SPD715
