Nissan March K13. Manual - part 647





PREPARATION

TM-5

< PREPARATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PREPARATION

PREPARATION

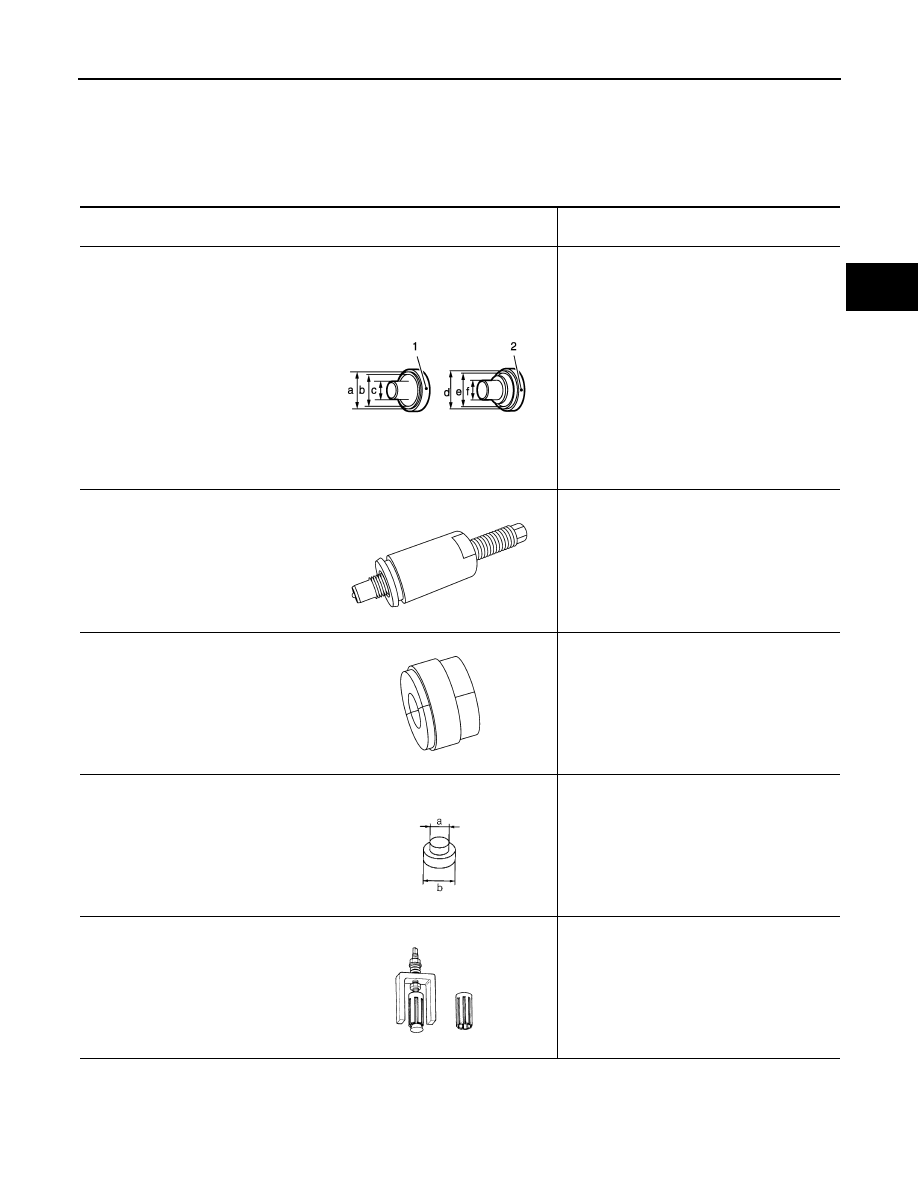

Special Service Tools

INFOID:0000000006056556

Tool number
Tool name

Description

KV32500QAA
(Renault SST: B.vi 1666)
Drift set
1.

—
(Stamping number: B.vi 1666-A)
Drift
a: 54.3 mm (2.138 in) dia.
b: 45 mm (1.77 in) dia.
c: 26.6 mm (1.047 in) dia.

2.

—
(Stamping number: B.vi 1666-B)
Drift
d: 54 mm (2.13 in) dia.
e: 48.6 mm (1.913 in) dia.
f: 26.6 mm (1.047 in) dia.

Installing differential side oil seal

KV32300QAC
(Renault SST: B.Vi 22-01)
Puller

Removing 5th main gear

KV32300QAD
(Renault SST: B.Vi 1000-01)
Puller

Removing 5th main gear

ST35300000
Drift
a: 45 mm (1.77 in) dia.
b: 59 mm (2.32 in) dia.

• Removing and installing input shaft rear

bearing

• Removing and installing mainshaft rear

bearing

KV111011S0
Valve seat remover

Removing mainshaft front bearing

JPDIC0730ZZ

SCIA1781J

SCIA1782J

ZZA0969D

ZZA0872D

TM-6

< PREPARATION >

[5MT: RS5F91R]

PREPARATION

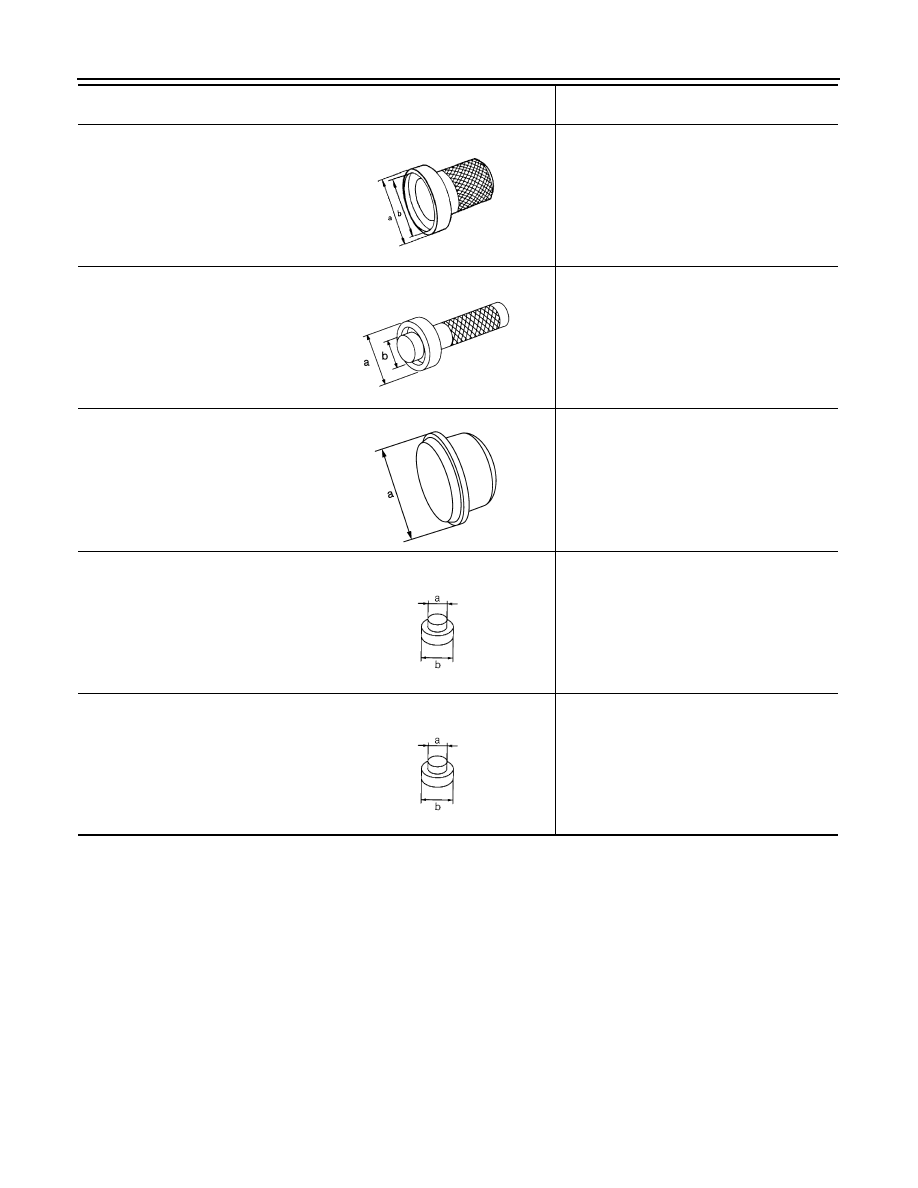

ST33400001
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

Installing mainshaft front bearing

KV40100900
Drift
a: 52 mm (2.05 in) dia.
b: 39.5 mm (1.555 in) dia.

Installing input shaft front bearing

KV32300QAE
(Renault SST: B.Vi.1554)
Drift
a: 61.5 mm (2.421 in) dia.

Installing differential side bearing outer race

ST33052000
Drift
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.

Removing differential side bearing

KV40104920
Drift
a: 21.7 mm (0.854 in) dia.
b: 44.7 mm (1.760 in) dia.

Installing differential side bearing

Tool number
Tool name

Description

ZZA0814D

NT084

JPDIC0635ZZ

ZZA0969D

ZZA0969D

PREPARATION

TM-7

< PREPARATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

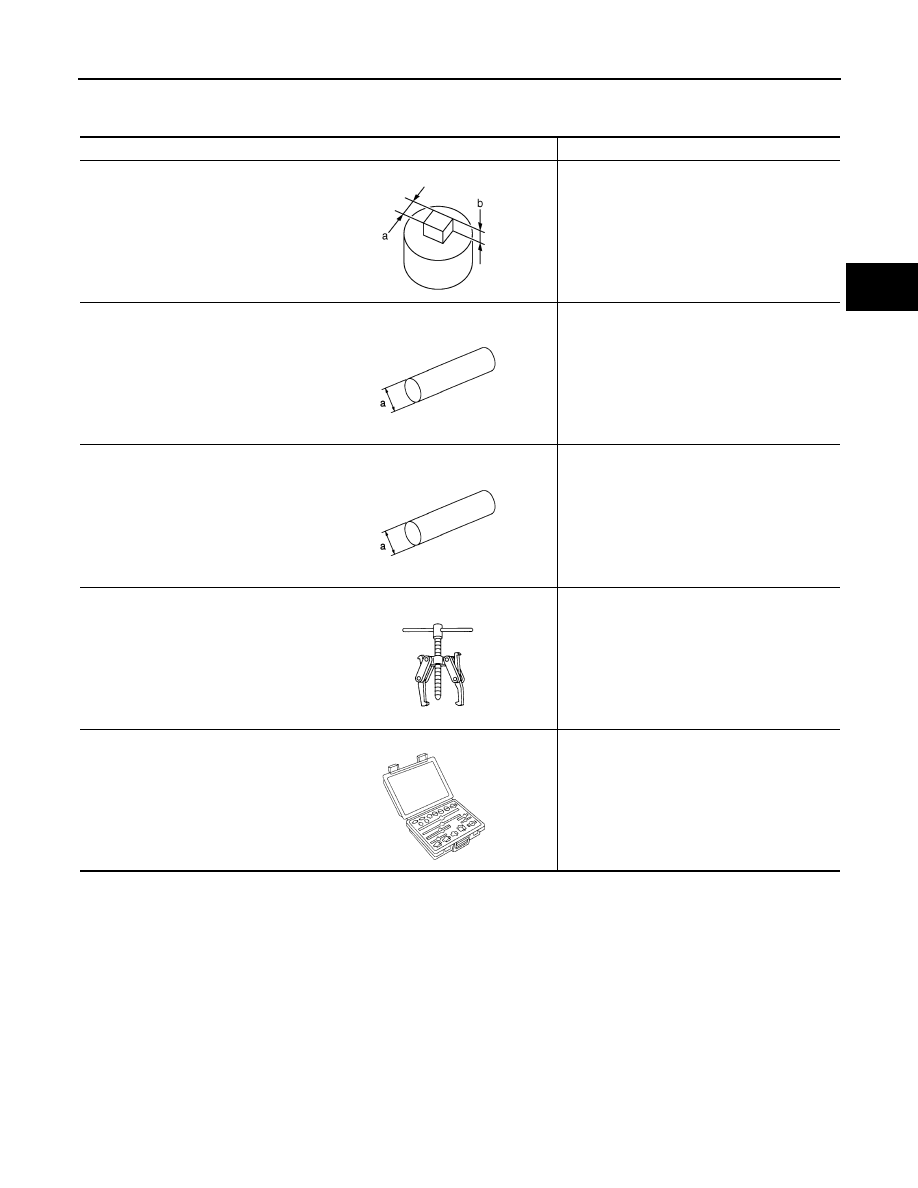

Commercial Service Tools

INFOID:0000000006056557

Tool name

Description

Socket
a: 8 mm (0.31 in)
b: 5 mm (0.20 in)

Removing and installing drain plug

Drift
a: 38 mm (1.50 in) dia.

Removing input shaft front bearing

Drift
a: 14.5 mm (0.571 in) dia.

Installing bushing

Puller

• Removing 5th-reverse synchronizer hub
• Removing differential side bearing

Bearing remover

Removing bushing

PCIB1776E

S-NT063

S-NT063

NT077

S-NT134

TM-8

< SYSTEM DESCRIPTION >

[5MT: RS5F91R]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

Component Parts Location

INFOID:0000000006056558

Position Switch

1

: Position switch

JPDIC0072ZZ
