SR-18

< REMOVAL AND INSTALLATION >

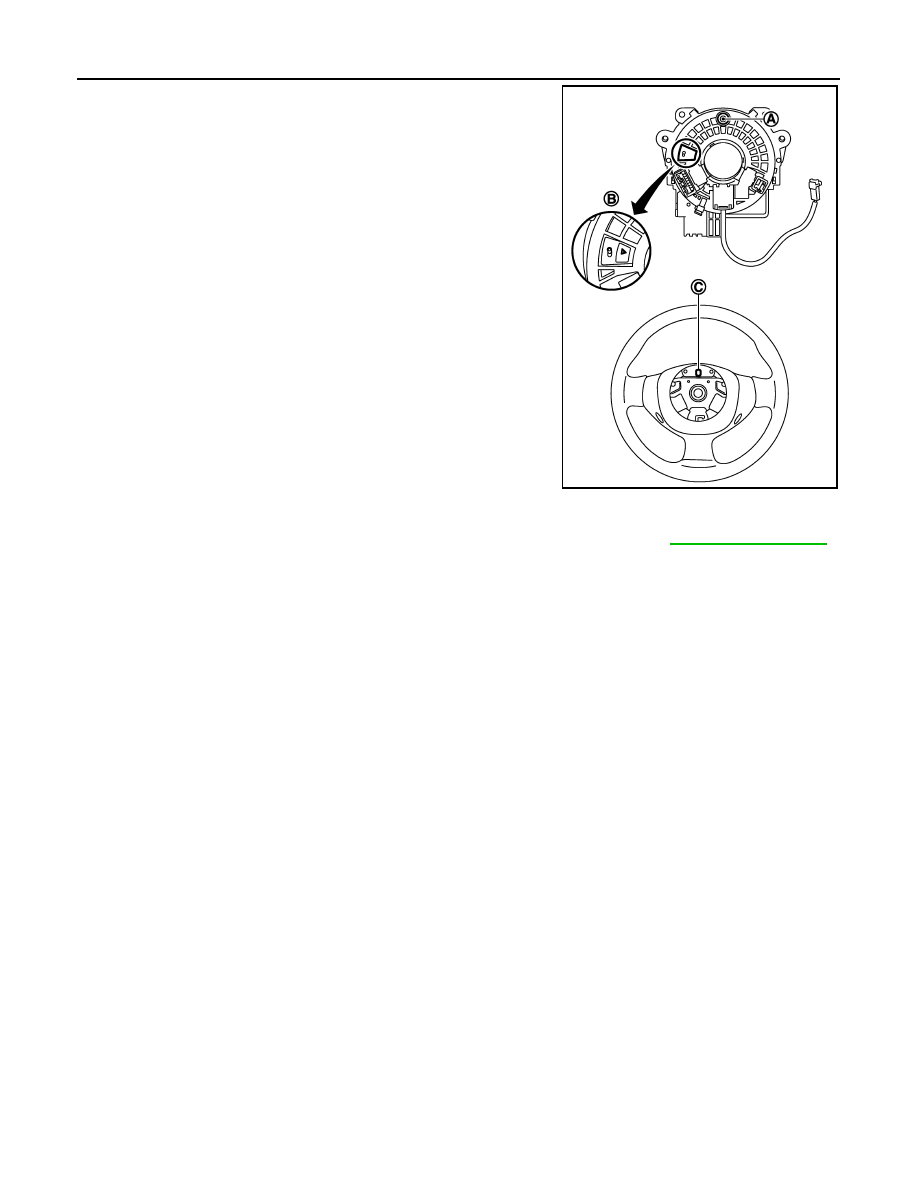

SPIRAL CABLE

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as follows.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (This will cause the cable to snap)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-7, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0879ZZ

FRONT PASSENGER AIR BAG MODULE

SR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

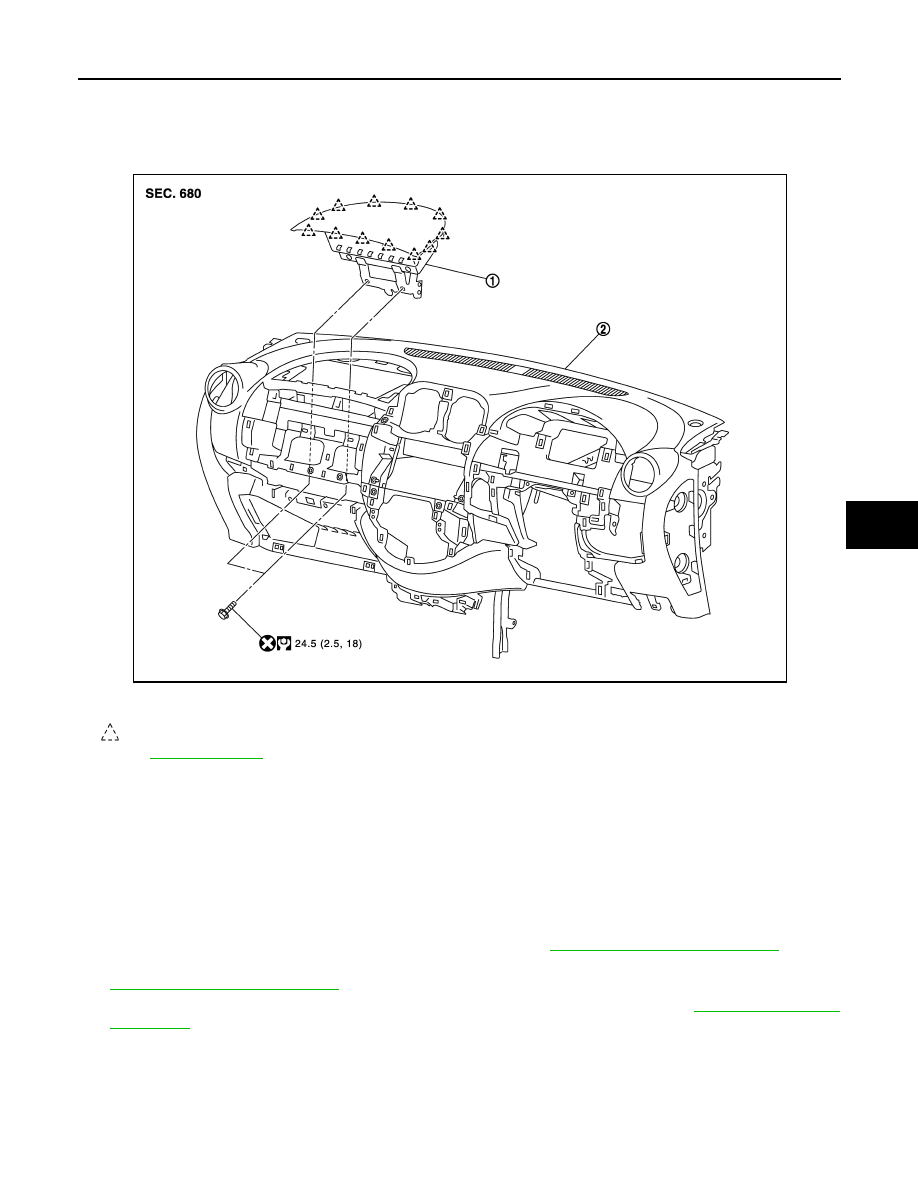

FRONT PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000006044242

Removal and Installation

INFOID:0000000006044243

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove glove box escutcheon (without glove box lid). Refer to

IP-13, "Removal and Installation"

.

2.

Remove the cluster lid C, instrument finisher B, and glove box cover (without glove upper box). Refer to

IP-13, "Removal and Installation"

.

3.

Remove the glove upper box and glove box cover (with glove upper box). Refer to

IP-13, "Removal and

Installation"

.

1.

Passenger air bag module

2.

Instrument panel assembly

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1529GB

SR-20

< REMOVAL AND INSTALLATION >

FRONT PASSENGER AIR BAG MODULE

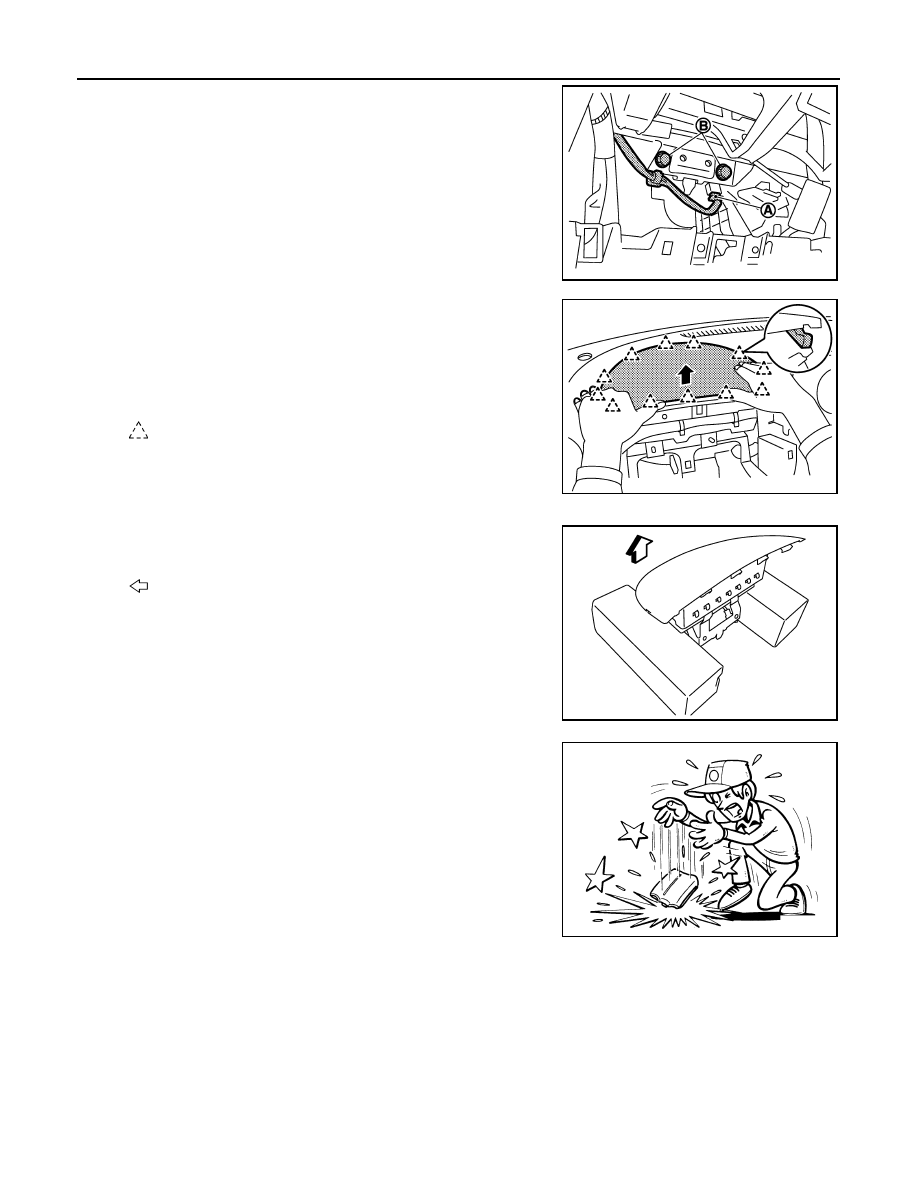

4.

Disconnect the front passenger air bag module harness connec-
tor (A) from front passenger air bag module.

5.

Remove the front passenger air bag module fixing bolts (B).

6.

Disengage front passenger air bag module fixing pawls with
hands.

CAUTION:

Never insert a remover tool between passenger air bag
module and instrument panel assembly. Doing so may
cause damage.

CAUTION:

• Always place the front passenger air bag module with pad

side facing upward.

• Never impact the front passenger air bag module.
• Replace the front passenger air bag module if it has been

dropped or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the front passenger air bag module.
• Never disassemble the front passenger air bag module.
• Never expose the front passenger air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the front passenger air bag mod-

ule.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• Never use the old fixing bolts after removal, replace with the new bolts.
• Never damage the harness while installing.

JMHIA1530ZZ

: Pawl

JMHIA1531ZZ

: Upward

JMHIA1532ZZ

JMHIA0009ZZ

FRONT PASSENGER AIR BAG MODULE

SR-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-7, "Description"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.
