SR-10

< BASIC INSPECTION >

COLLISION DIAGNOSIS

• If the door finisher assembly is damaged, the door finisher assembly and door-mounted curtain air bag

module must be replaced.

3.

Perform self-diagnosis using CONSULT-III and “AIR BAG” warning lamp. Refer to

SRC-9, "CONSULT-III

Function"

 or

SRC-7, "On Board Diagnosis Function"

 for details. Make sure entire SRS operates properly.

4.

After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-7, "Description"

.

SRS INSPECTION (FOR SIDE AND ROLLOVER COLLISION)

Part

Inspection

Side curtain air bag module LH

If the side curtain air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the center pillar on the col-
lision side.

2.

If damaged

 Remove the side curtain air bag module LH.

3.

Check for visible signs of damage (tears etc.) of the side curtain air bag module LH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall the side curtain air bag module LH with new fasteners.

6.

If damaged

 REPLACE the side curtain air bag module LH with new fasteners.

CAUTION:

Before disposing of such systems, deploy the systems.

Side curtain air bag module RH

If the side curtain air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the center pillar on the col-
lision side.

2.

If damaged

 Remove the side curtain air bag module RH.

3.

Check for visible signs of damage (tears etc.) of the side curtain air bag module RH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall the side curtain air bag module RH with new fasteners.

6.

If damaged

 REPLACE the side curtain air bag module RH with new fasteners.

CAUTION:

Before disposing of such systems, deploy the systems.

Front side air bag module LH

If the front side air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the seat back on the col-
lision side.

2.

Check harness and connectors for damage, and terminals for deformities.

3.

If damaged

 REPLACE the front seatback assembly LH.

CAUTION:

Before disposing of such systems, deploy the systems.

Front side air bag module RH

If the front side air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the seat back on the col-
lision side.

2.

Check harness and connectors for damage, and terminals for deformities.

3.

If damaged

 REPLACE the front seatback assembly RH.

CAUTION:

Before disposing of such systems, deploy the systems.

Side air bag (satellite) sensor
(LH or RH)

If none of the SRS components have been activated:
1.

Remove the side air bag (satellite) sensor (LH or RH) on the collision side. Check harness con-
nectors for damage, terminals for deformities, and harness for binding.

2.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the side air bag (satellite)
sensor (LH or RH).

3.

Install the side air bag (satellite) sensor (LH or RH) to check fit.

4.

If no damage is found, reinstall the side sir bag (satellite) sensor (LH or RH) with new fasteners.

5.

If damaged

 REPLACE the side air bag (satellite) sensor (LH or RH) with new fasteners.

Diagnosis sensor unit

If none of the SRS components have been activated:
1.

Check case and bracket for dents, cracks or deformities.

2.

Check connectors for damage, and terminals for deformities.

3.

If no damage is found, reinstall the diagnosis sensor unit with new fasteners.

4.

If damaged

 REPLACE the diagnosis sensor unit with new fasteners.

COLLISION DIAGNOSIS

SR-11

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

Seat belt pre-tensioner assem-
blies
(All applicable locations: buckle,
retractor, lap outer)

If the pre-tensioners have NOT been activated:
1.

Remove seat belt pre-tensioners.
Check harness cover and connectors for damage, terminals for deformities, and harness for
binding.

2.

Check belts for damage and anchors for loose mounting.

3.

Check retractor for smooth operation.

4.

Check seat belt adjuster for damage.

5.

Check for deformities of the center pillar inner.

6.

If the center pillar inner has no damage, REPLACE the seat belt pre-tensioner assembly.

7.

If no damage is found, reinstall seat belt pre-tensioner assembly.

8.

If damaged

 REPLACE. Install the seat belt pre-tensioners with new fasteners.

CAUTION:

Before disposing of such systems, deploy the systems.

Seat (with front side air bag)

If the front LH or front RH side air bag modules have NOT deployed:
1.

Visually check the seat on the collision side.

2.

Remove the seat on the collision side and check the following for damage and deformities.

-

Harness, connectors and terminals

-

Frame and recliner (for front and rear seat), and also adjuster and slides (for front seat)

3.

If no damage is found, reinstall the seat.

4.

If damaged

 REPLACE the damaged seat parts using new fasteners. If the front seat back is

damaged, the front seat back assembly must be replaced.

Center inner pillar

1.

Check the center inner pillar on the collision side for damage (dents, cracks, deformation, etc.).

2.

If damaged

 REPAIR the center inner pillar.

Trim/headlining

1.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the interior trim on the
collision side.

2.

If damaged

 REPLACE the damaged trim parts.

Door-mounted curtain air bag
module LH

If the door-mounted curtain air bag LH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

 REPLACE the door finisher LH with new fasteners.

3.

Check for visible signs of damaged (tears etc.) of the door-mounted curtain air bag module LH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

 REPLACE the door finisher LH and door-mounted curtain air bag module LH with

new fasteners.

CAUTION:

Before disposing of such systems, deploy the systems.

Part

Inspection

SR-12

< BASIC INSPECTION >

COLLISION DIAGNOSIS

Door-mounted curtain air bag
module RH

If the door-mounted curtain air bag RH has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the door finisher on the
collision side.

2.

If damaged

 REPLACE the door finisher RH with new fasteners.

3.

Check for visible signs of damage (tears etc.) of the door-mounted curtain air bag module RH.

4.

Check harness and connectors for damage, and terminals for deformities.

5.

If no damage is found, reinstall door finisher.

CAUTION:

When removing door-mounted curtain air bag module from door finisher, never reuse
door finisher.

6.

If damaged

 REPLACE the door finisher RH and door-mounted curtain air bag module RH with

new fasteners.

CAUTION:

Before disposing of such systems, deploy the systems.

Pop-up roll bar

If the pop-up roll bar has NOT deployed:
1.

Check for visible signs of damage (dents, tears, deformation, etc.) of the pop-up roll bar.

2.

If damaged

 REPLACE the pop-up roll bar with new fasteners.

3.

Check harness and connectors for damage, and terminals for deformities.

4.

If no damage is found, reinstall the pop-up roll bar with new fasteners.

5.

Check for visible signs of damage (dents, cracks, deformation, etc.) of the seatback support
brace assembly.

6.

If damaged

 REPAIR the seatback support brace assembly.

CAUTION:

Before disposing of such systems, deploy the systems.

Part

Inspection

DRIVER AIR BAG MODULE

SR-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

REMOVAL AND INSTALLATION

DRIVER AIR BAG MODULE

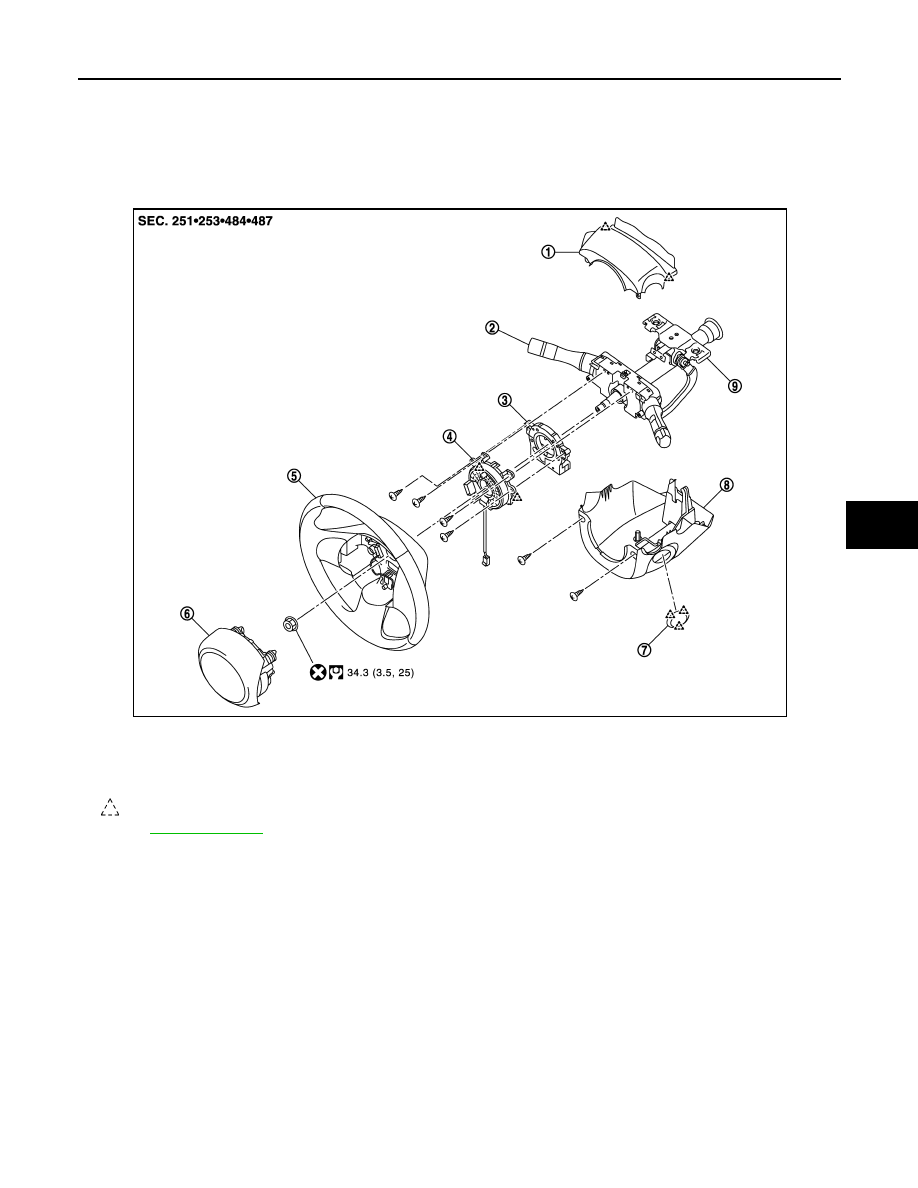

Exploded View

INFOID:0000000006044238

Removal and Installation

INFOID:0000000006044239

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Steering column upper cover

2.

Combination switch

3.

Steering angle sensor (if equipped)

4.

Spiral cable

5.

Steering wheel

6.

Driver air bag module

7.

Steering lock escutcheon

8.

Steering column lower cover

9.

Steering column assembly

: Pawl

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1524GB
