SR-22

< REMOVAL AND INSTALLATION >

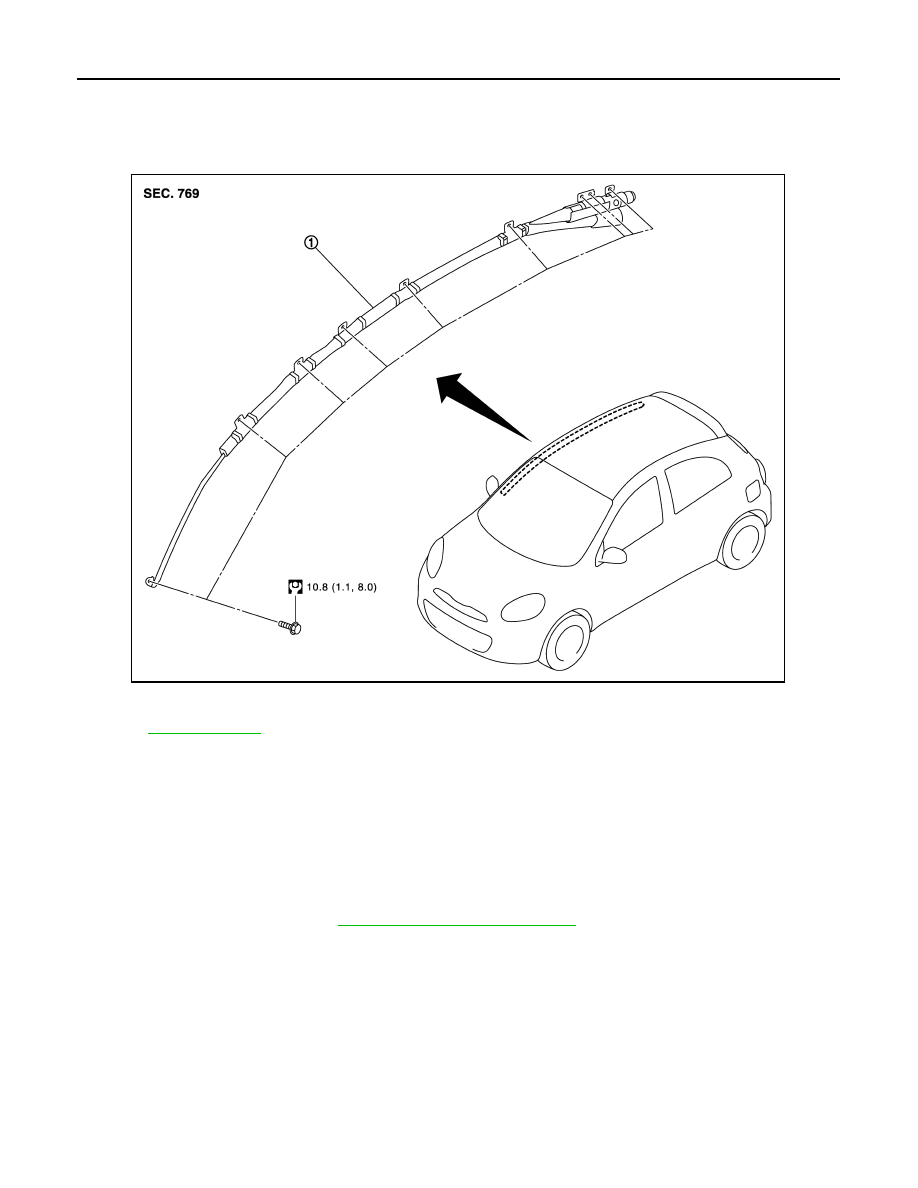

SIDE CURTAIN AIR BAG MODULE

SIDE CURTAIN AIR BAG MODULE

Exploded View

INFOID:0000000006044244

Removal and Installation

INFOID:0000000006044245

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the headlining. Refer to

INT-28, "Removal and Installation"

.

2.

Disconnect the side curtain air bag module harness connector.

CAUTION:

1.

Side curtain air bag

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1533GB

SIDE CURTAIN AIR BAG MODULE

SR-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

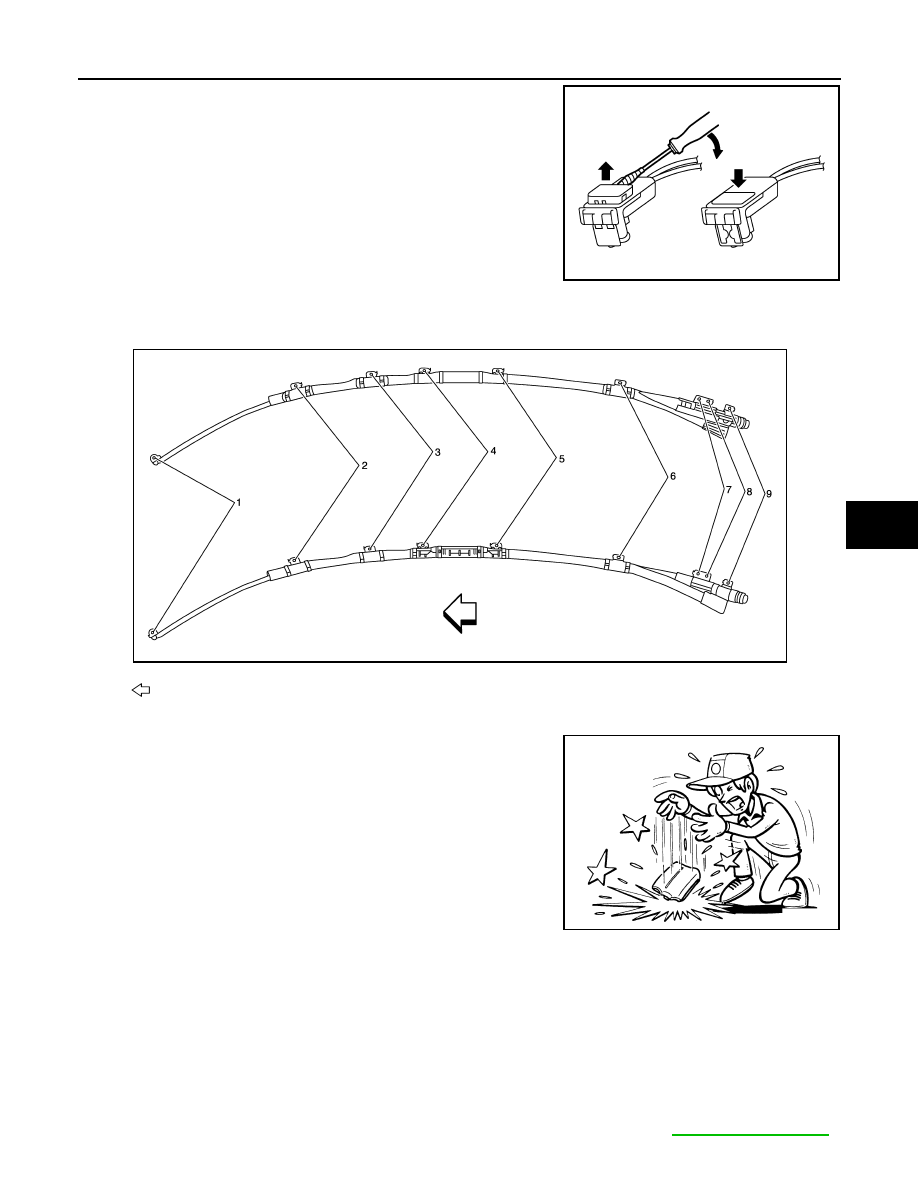

• For installing/removing the side curtain air bag module

harness connector, insert thin screwdriver wrapped in
tape into notch, lift lock and remove the connector.

• Install the connector with lock raised, and push lock into

the connector.

• After installing the connector, check that the lock is

pushed securely into it.

3.

Remove the side curtain air bag module fixing bolts, and then remove the side curtain air bag module.
NOTE:
Remove bolts according to the order as shown in the figure.

CAUTION:

• Never impact the side curtain air bag module.
• Replace the side curtain air bag module if it has been dropped

or sustained an impact.

• Never insert any foreign objects (screwdriver, etc.) into the side curtain air bag module.
• Never disassemble the side curtain air bag module.
• Never expose the side curtain air bag module to temperatures exceeding 90

°

C (194

°

F).

• Never allow oil, grease, detergent, or water to come in contact with the side curtain air bag module.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

• Never damage the harness while installing.
• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT-III. Refer to

SRC-7, "Description"

.

PHIA0953J

: Vehicle front

JMHIA1534ZZ

JMHIA0009ZZ

SR-24

< REMOVAL AND INSTALLATION >

SIDE CURTAIN AIR BAG MODULE

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

CRASH ZONE SENSOR

SR-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

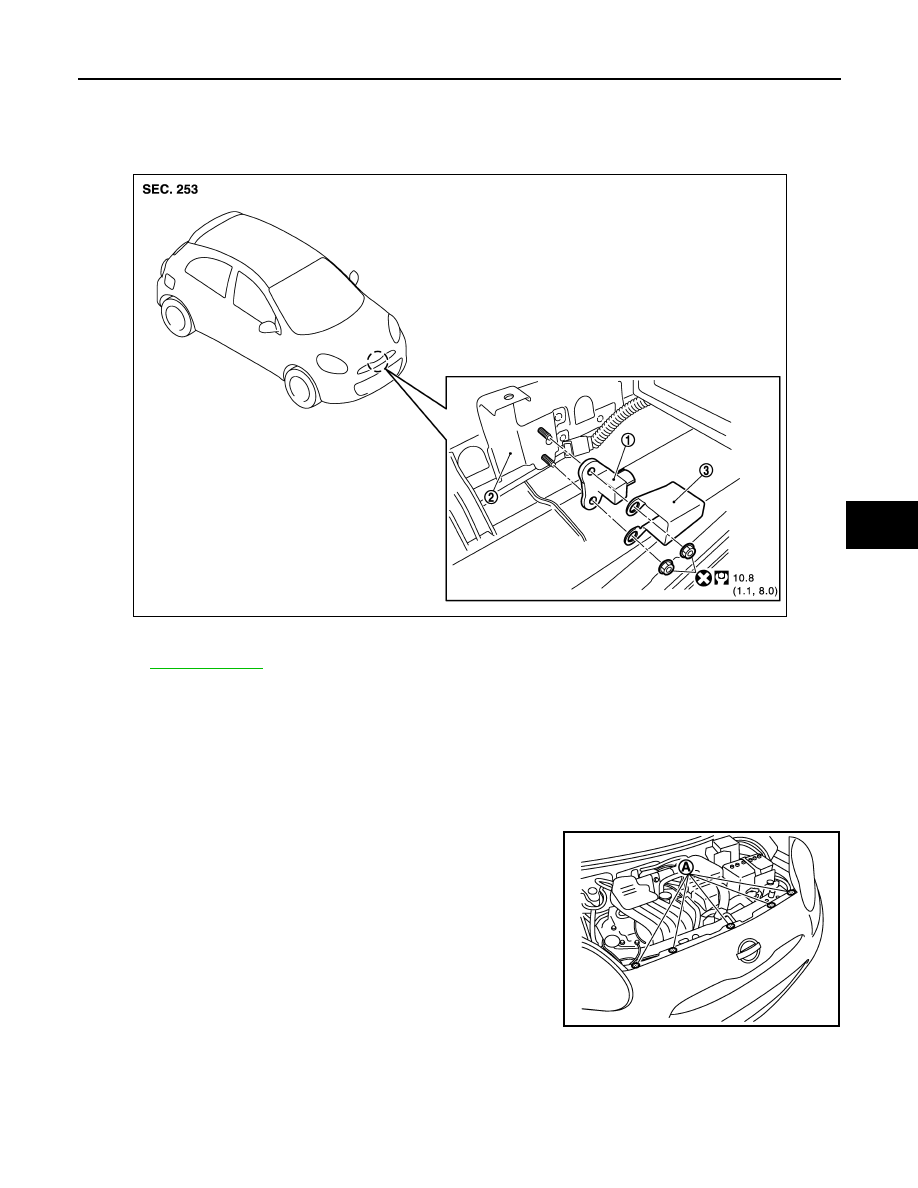

CRASH ZONE SENSOR

Exploded View

INFOID:0000000006044246

Removal and Installation

INFOID:0000000006044247

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the bumper fascia fixing clips (A).

1.

Crash zone sensor

2.

Radiator core support upper

3.

Bracket

Refer to

GI-4, "Components"

 for symbols in the figure.

JMHIA1535GB

JMHIA1543ZZ
