Nissan March K13. Manual - part 565





REAR SEAT

SE-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Remove the seat lock assembly mounting bolts.

Assembly

1.

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord
with the seatback frame.

2.

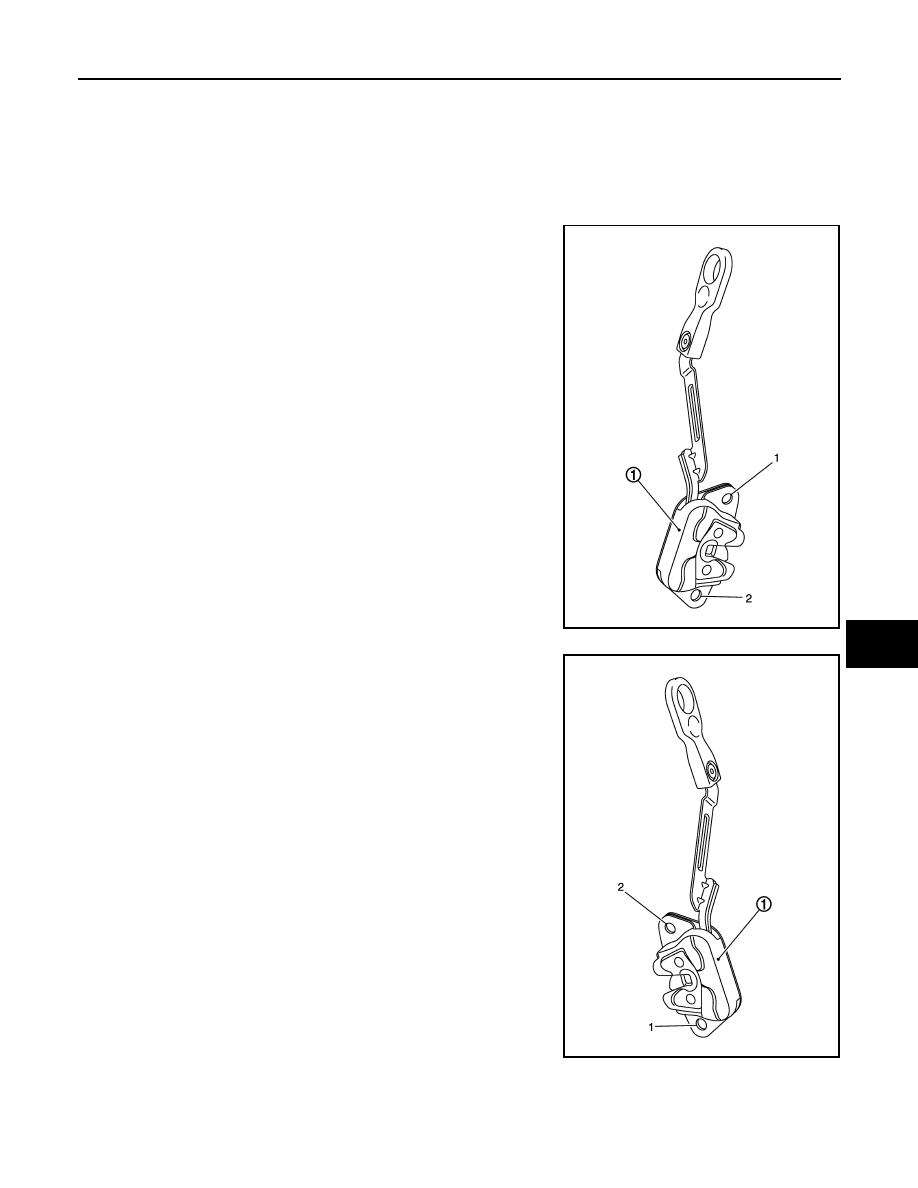

Tighten mounting bolts of seat lock assembly (1) in numerical order as per the following figure.
• LH  side

• RH side

SEAT CUSHION

Disassembly

Remove the hog rings to separate the trim and pad.

JMJIA4120ZZ

JMJIA4121ZZ

SE-22

< REMOVAL AND INSTALLATION >

REAR SEAT

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the seat cushion pad wire.

SEC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

SEC

A

B

SEC

N

O

P
