Nissan March K13. Manual - part 563

FRONT SEAT

SE-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER'S SEAT

LOW BACK SEAT

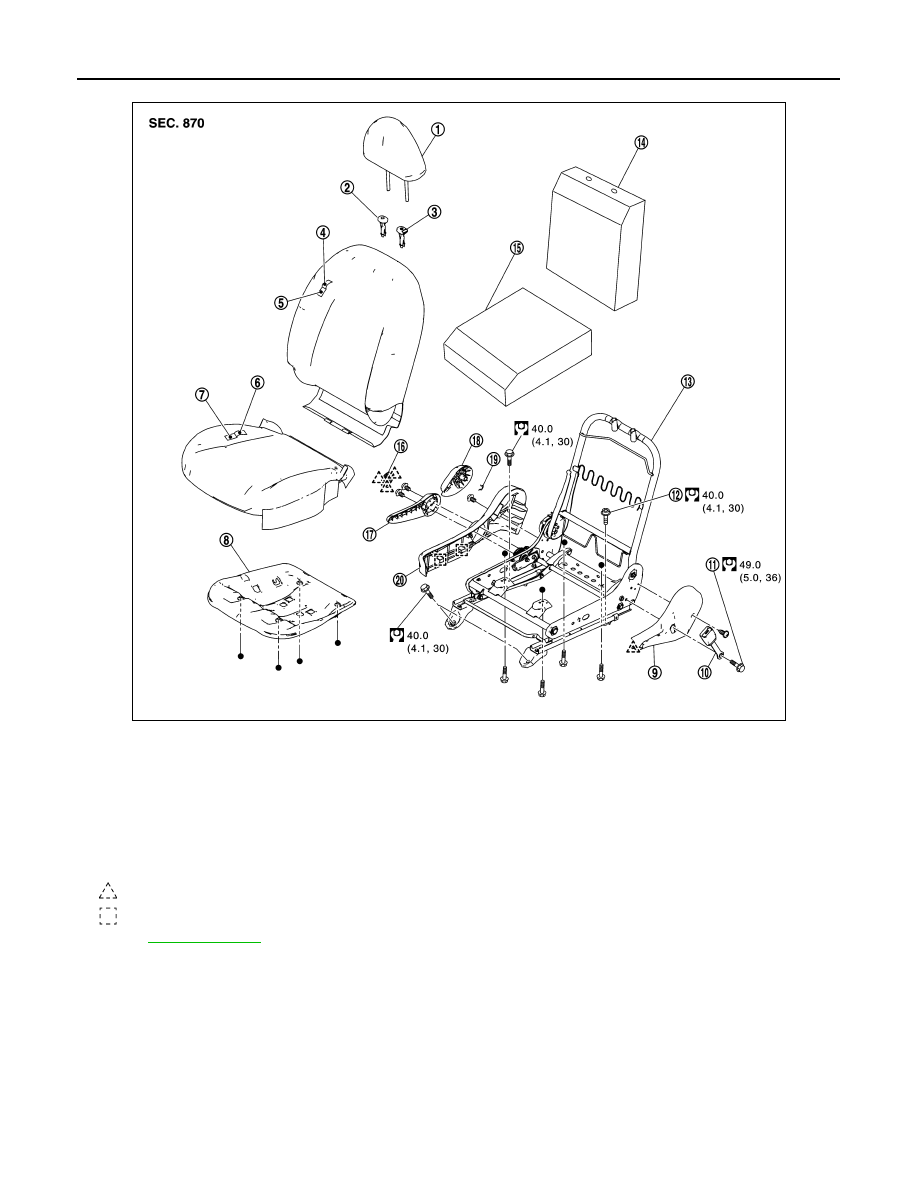

JMJIA3865GB

1.

Seatback trim

2.

Seatback pad

3.

Seat cushion trim

4.

Seat cushion pad

5.

Seat cushion silencer

6.

Seat cushion outer finisher

7.

Snap ring

8.

Reclining lever knob

9.

Seat frame assembly

10. Seatback silencer

11.

Anchor bolt

12. Seat belt buckle

13. Seat cushion inner finisher

14. TORX bolt

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-14

< REMOVAL AND INSTALLATION >

FRONT SEAT

DRIVER'S SEAT

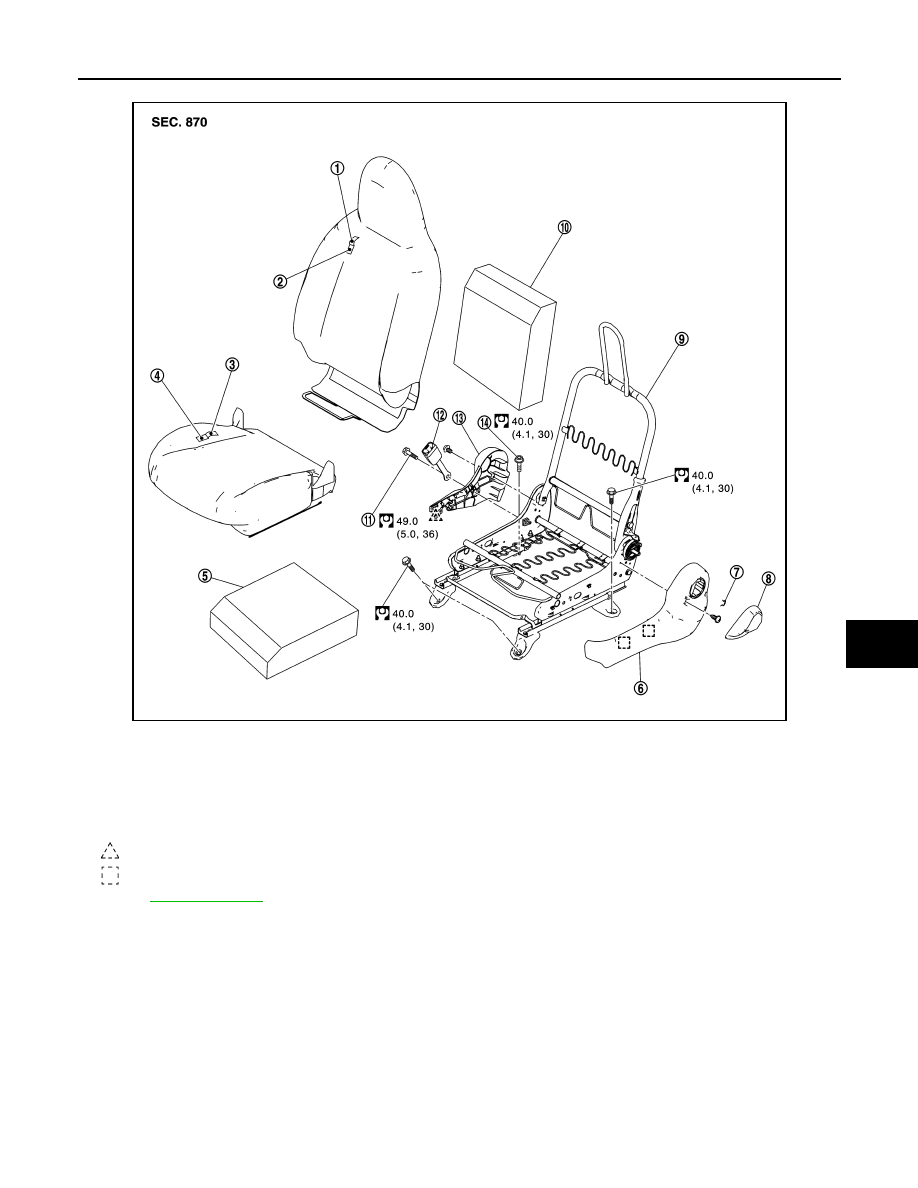

JMJIA3866GB

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat cushion frame

9.

Seat cushion inner finisher

10. Seat belt buckle

11.

Anchor bolt

12. TORX bolt

13. Seat frame assembly

14. Seatback silencer

15. Seat cushion silencer

16. Lifter lever knob cap

17. Lifter lever knob

18. Reclining lever knob

19. Snap ring

20. Seat cushion outer finisher

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

PASSENGER'S SEAT

Removal and Installation

INFOID:0000000005986015

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.
1.

Remove the headrest. (Low back seat only)

2.

Set seatback in a standing position.

3.

Slide the seat to the foremost position.

4.

Remove the mounting bolts on the rear outer side.

5.

Remove the mounting TORX bolts on the rear inner side.

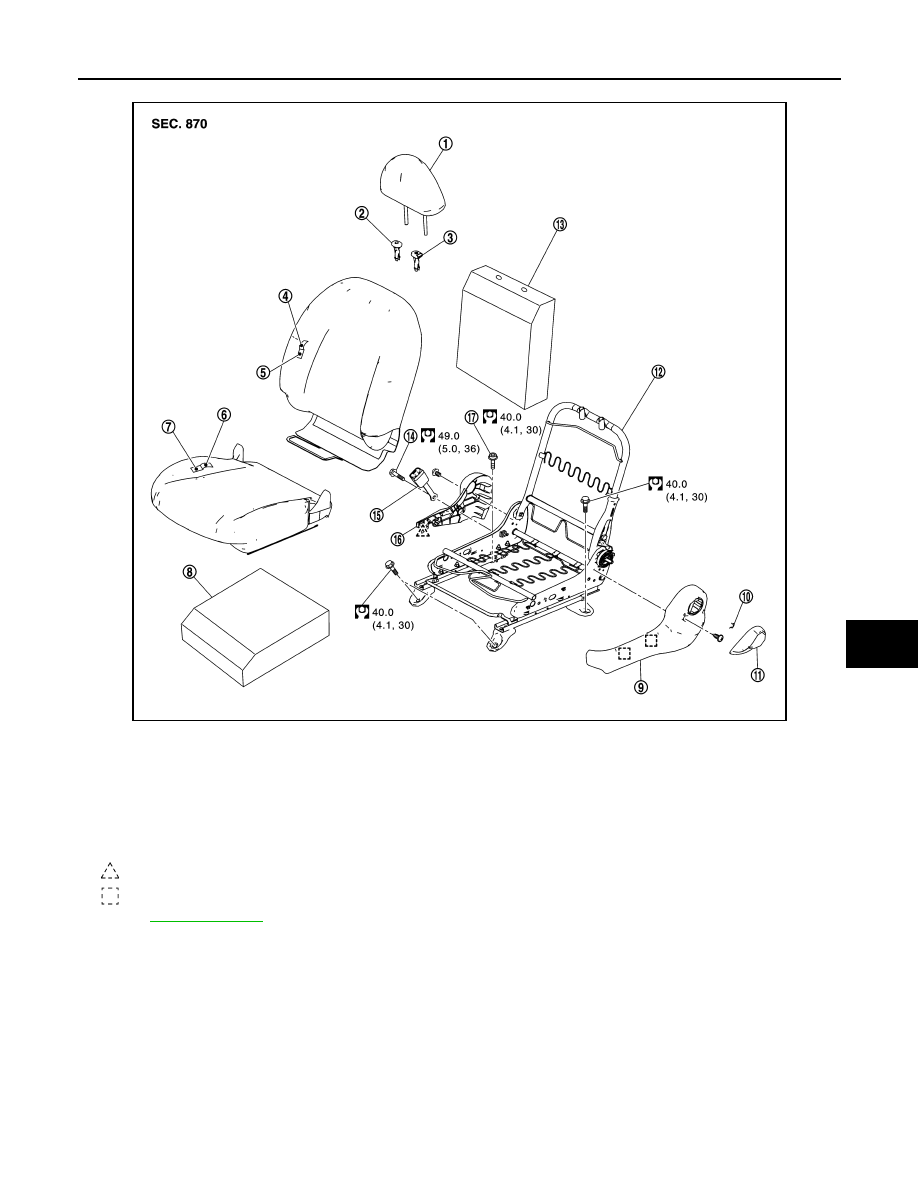

JMJIA3867GB

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat cushion silencer

9.

Seat cushion outer finisher

10. Snap ring

11.

Reclining lever knob

12. Seat frame assembly

13. Seatback silencer

14. Anchor bolt

15. Seat belt buckle

16. Seat cushion inner finisher

17. TORX bolt

: Pawl

: Metal clip

Refer to

GI-4, "Components"

 for symbols in the figure.

SE-16

< REMOVAL AND INSTALLATION >

FRONT SEAT

6.

Slide the seat to the rearmost position.

7.

Remove the mounting bolts on the front outer side.

8.

Remove the mounting bolts on the front inner side.

9.

Remove seat from the vehicle.

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• When removing and installing, 2 workers are required so as to prevent it from dropping.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

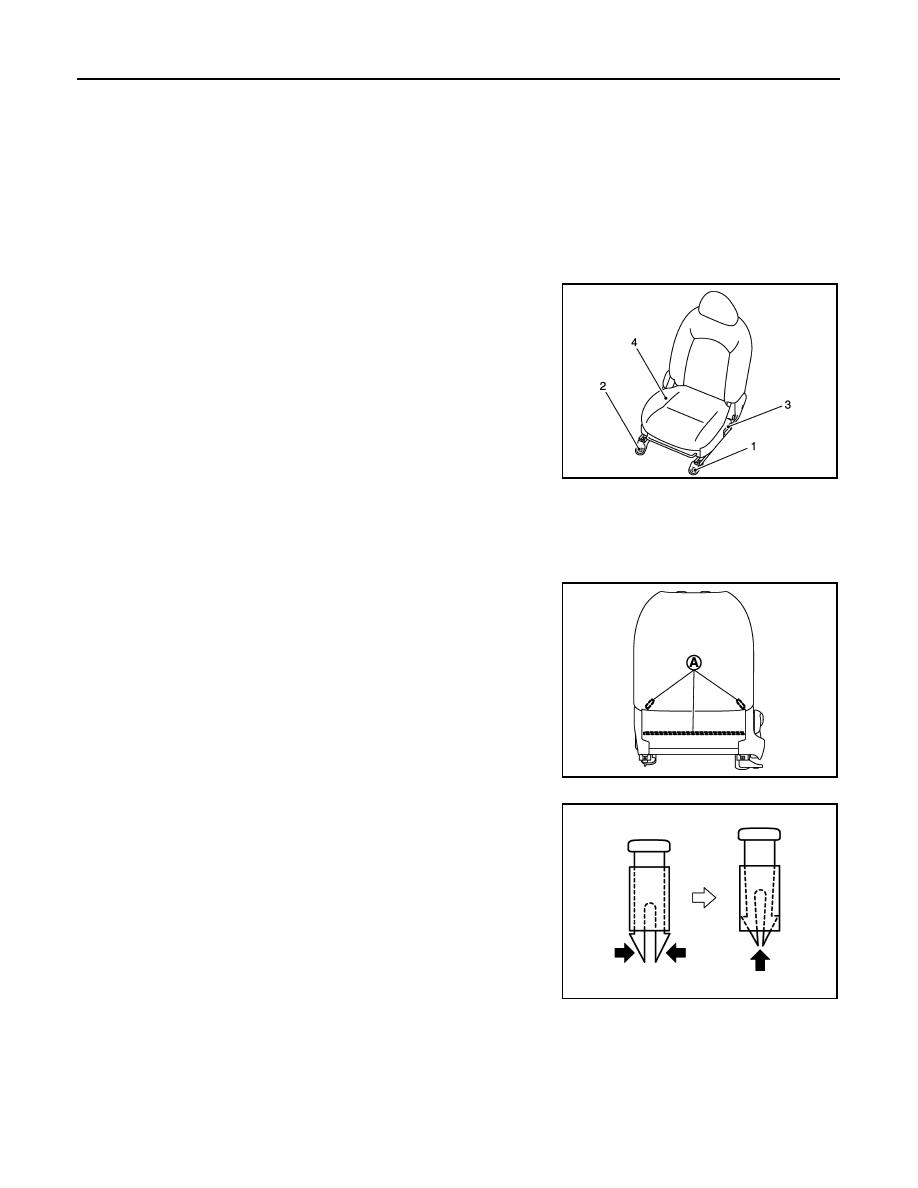

• Tighten front seat mounting bolts following the numerical

order shown in the figure.

Disassembly and Assembly

INFOID:0000000005986013

SEATBACK

Disassembly

1.

Remove the seatback retainers (A) from seatback backside.

2.

Remove the headrest holder. (Low back seat only)

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

3.

Remove the seatback trim and seatback pad from the seatback frame.

4.

Remove the hog rings, and separate the seatback trim and seatback pad.

5.

Remove the seatback silencer.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

JMJIA3937ZZ

JMJIA3943ZZ

PIIB4084J
