• When front door glass (driver side) AUTO-UP operation is performed (anti-pinch function does not operate

just before the door glass closes and is fully closed)

NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it
may lower.

Fail Safe

INFOID:0000000005981493

FAIL-SAFE CONTROL

Switches to fail-safe control when malfunction is detected in encoder signal that detects up/down speed and
direction of door glass. Switches to fail-safe control when error beyond regulation value is detected between
the fully closed position and the actual position of the glass.

It changes to condition before initialization and the following functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function

Perform initial operation to recover when switched to fail-safe mode. However, it switches back to fail-safe
control when malfunction is found in power window main switch or front power window motor (driver side).

Error

Error condition

Pulse sensor malfunction

When only one side of pulse signal is being detected for more than the specified value.

Both pulse sensors mal-
function

When both pulse signals have not been detected for more than the specified value during glass
open/close operation.

Pulse direction malfunc-
tion

When the pulse signal that is detected during glass open/close operation detects the opposite con-
dition of power window motor operating direction.

Glass recognition position
malfunction 1

When it detects the error between glass fully closed position in power window switch memory and
actual fully closed position during glass open/close operation is more than the specified value.

Glass recognition position
malfunction 2

When it detects pulse count more than the value of glass full stroke during glass open/close opera-
tion.

Malfunction of not yet up-
dated closed position of
glass

When glass open/close operation is continuously performed without fully closing more than the spec-
ified value (approximately 10 strokes).

PWC-8

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

List of ECU Reference

INFOID:0000000005979241

ECU

Reference

BCM (With Intelligent Key)

BCS-18, "Reference Value"

BCS-37, "Fail-safe"

BCS-39, "DTC Inspection Priority Chart"

BCS-40, "DTC Index"

BCM (Without Intelligent Key)

BCS-72, "Reference Value"

BCS-85, "Fail-safe"

BCS-85, "DTC Inspection Priority Chart"

BCS-86, "DTC Index"

POWER WINDOW MAIN SWITCH

PWC-9

< ECU DIAGNOSIS INFORMATION >

PWC

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000005978547

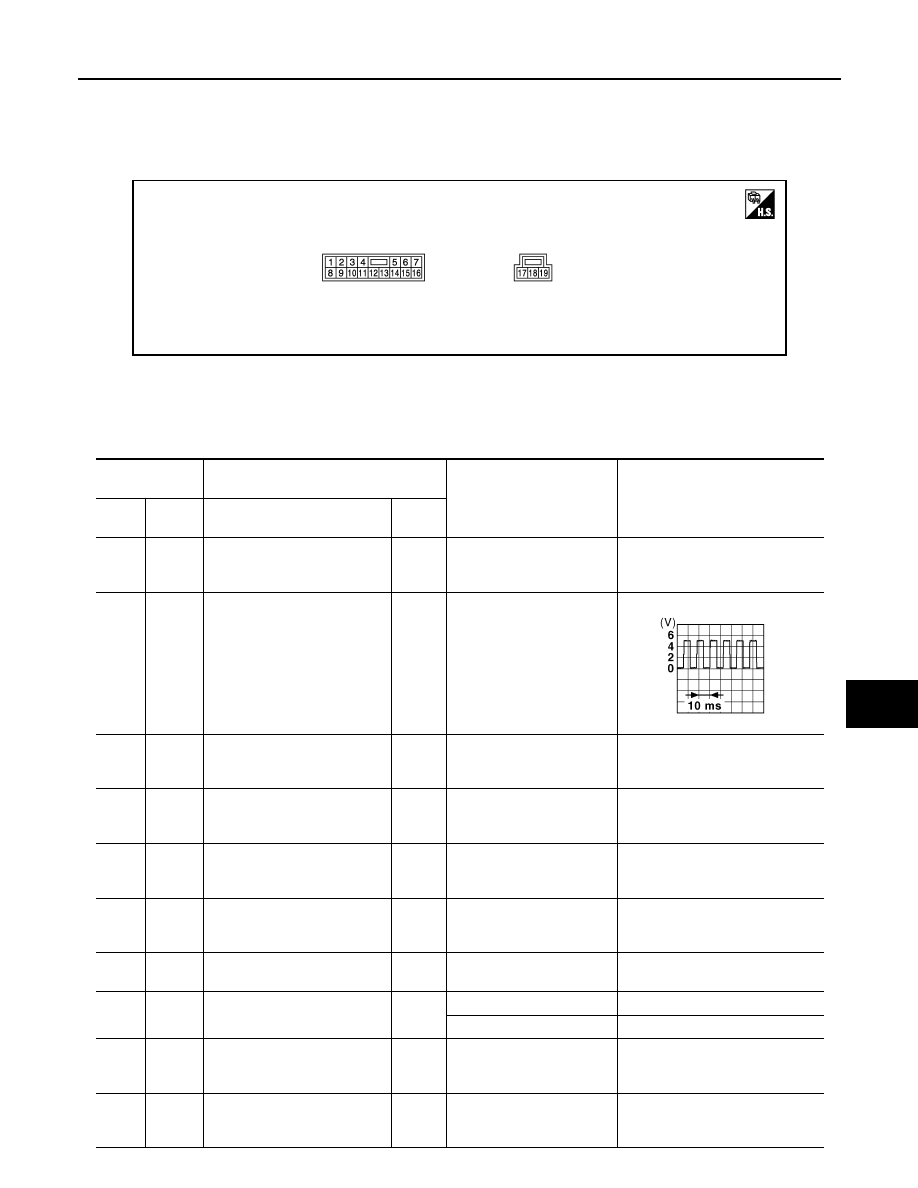

TERMINAL LAYOUT

PHYSICAL VALUES

POWER WINDOW MAIN SWITCH

JMKIA5358ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

Signal name

Input/

Output

(BR)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in pow-
er window main switch is UP
at operated.

(BG)

Ground

Encoder pulse signal 2

Input

When front power window
motor (driver side) operates.

(G)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in pow-
er window main switch is
DOWN at operated.

(Y)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is DOWN at operated.

(GR)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is UP at operated.

(W)

Ground

Front power window motor
(passenger side) UP signal

Output

When front RH switch in
power window main switch
is UP at operated.

(R)

Ground

Encoder ground

—

(L)

Ground

Ignition switch power supply

Input

Ignition switch ON

Other than above

(SB)

Ground

Front power window motor
(passenger side) DOWN
signal

Output

When front RH switch in
power window main switch
is DOWN at operated.

(LG)

Ground

Front power window motor
(driver side) UP signal

Output

When front LH switch in
power window main switch
is UP at operated.

JMKIA0070GB

PWC-10

< ECU DIAGNOSIS INFORMATION >

POWER WINDOW MAIN SWITCH

Fail Safe

INFOID:0000000006022092

FAIL-SAFE CONTROL

It changes to condition before initialization and the following functions do not operate when switched to fail-
safe control.
• Auto-up operation
• Anti-pinch function

(V)

Ground

Encoder pulse signal 1

Input

When front power window
motor (driver side) operates.

(G)

Ground

Encoder power supply

Output

Ignition switch ON.

(W)

Ground

Front power window motor
(driver side) DOWN signal

Output

When front LH switch in
power window main switch
is DOWN at operated.

(B)

Ground

—

(P)

Ground

Battery power supply

Input

—

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

Signal name

Input/

Output

JMKIA0070GB

Error

Error condition

Pulse sensor malfunction

When only one side of pulse signal is being detected for more than the specified value.

Both pulse sensors mal-
function

When both pulse signals have not been detected for more than the specified value during glass
open/close operation.

Pulse direction malfunc-
tion

When the pulse signal that is detected during glass open/close operation detects the opposite con-
dition of power window motor operating direction.

Glass recognition position
malfunction 1

When it detects the error between glass fully closed position in power window switch memory and
actual fully closed position during glass open/close operation is more than the specified value.

Glass recognition position
malfunction 2

When it detects pulse count more than the value of glass full stroke during glass open/close opera-
tion.

Malfunction of not yet up-
dated closed position of
glass

When glass open/close operation is continuously performed without fully closing more than the spec-
ified value (approximately 10 strokes).
