PG-144

< REMOVAL AND INSTALLATION >

BATTERY TERMINAL WITH FUSIBLE LINK

BATTERY TERMINAL WITH FUSIBLE LINK

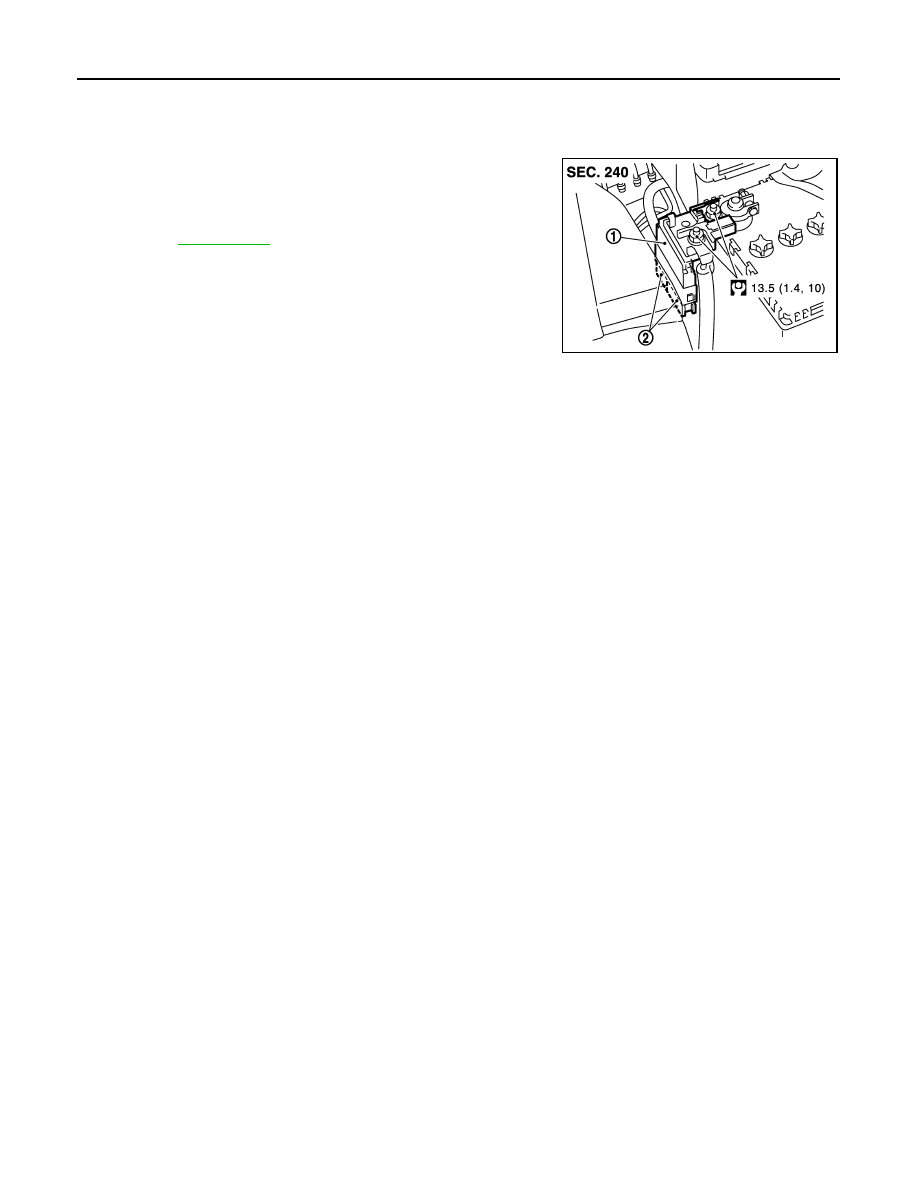

Exploded View

INFOID:0000000005911883

Removal and Installation

INFOID:0000000005911884

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove cover of battery positive terminal.

3.

Remove harness mounting nut and battery terminal with fusible link mounting nut.

4.

Disconnect harness connector and remove battery terminal with fusible link.

INSTALLATION

Install in the reverse order of removal.

1

: Battery terminal with fusible link

2

: Harness connector

Refer to

GI-3, "Contents"

 for symbols in the figure.

JSMIA0236GB

PG

SERVICE DATA AND SPECIFICATIONS (SDS)

PG-145

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000005911885

NOTE:
For the battery type application, refer to the following list.
• Type 1
- For Pakistan without rear wiper
- For Thailand (M/T models)
• Type 2
- Except for Pakistan without rear wiper
- Except for Thailand (M/T models)

Application

Type 1

Type 2

Type

34B19L

46B19L

20 hour rate capacity

[V – Ah]

12 – 30

12 – 45

Cold cranking current (For reference value)

[A]

272

325

PWC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

PWC

A

B

PWC

N

O

P

CONTENTS

POWER WINDOW CONTROL SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ......................................

4

Component Description .............................................

4

SYSTEM ..............................................................

6

POWER WINDOW SYSTEM  .......................................

6

POWER WINDOW SYSTEM : System Diagram ......

6

POWER WINDOW SYSTEM : System Descrip-
tion ............................................................................

6

Fail Safe ...................................................................

7

ECU DIAGNOSIS INFORMATION ...............

8

BCM (BODY CONTROL MODULE) ....................

8

List of ECU Reference  ..............................................

8

POWER WINDOW MAIN SWITCH  .....................

9

Reference Value  .......................................................

9

Fail Safe .................................................................

10

WIRING DIAGRAM  ......................................

11

POWER WINDOW SYSTEM ..............................

11

Wiring Diagram  .......................................................

11

BASIC INSPECTION  ...................................

12

DIAGNOSIS AND REPAIR WORK FLOW  ........

12

WorkFlow ................................................................

12

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL  ....................

13

Description ..............................................................

13

Work Procedure .......................................................

13

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT ................................................

14

Description ...............................................................

14

Work Procedure .......................................................

14

SYSTEM INITIALIZATION ................................

15

Description ...............................................................

15

Work Procedure .......................................................

15

CHECK ANTI-PINCH FUNCTION .....................

16

Description ...............................................................

16

Work Procedure .......................................................

16

DTC/CIRCUIT DIAGNOSIS  .........................

17

POWER SUPPLY AND GROUND CIRCUIT  ....

17

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM)  .............................................

17

BCM (BODY CONTROL SYSTEM) (WITH INTEL-
LIGENT KEY SYSTEM) : Diagnosis Procedure  ......

17

BCM (BODY CONTROL SYSTEM) (WITHOUT IN-
TELLIGENT KEY SYSTEM)  ......................................

17

BCM (BODY CONTROL SYSTEM) (WITHOUT
INTELLIGENT KEY SYSTEM) : Diagnosis Proce-
dure .........................................................................

17

POWER WINDOW MAIN SWITCH ............................

18

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................

18

FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE)  .................................................................

19

FRONT POWER WINDOW SWITCH (PASSEN-
GER SIDE) : Diagnosis Procedure ..........................

19

REAR POWER WINDOW SWITCH  ...........................

20

REAR POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

20

PWC-2

FRONT POWER WINDOW SWITCH (PAS-
SENGER SIDE) ..................................................

22

Component Function Check  ...................................

22

Diagnosis Procedure  ..............................................

22

Component Inspection ............................................

23

REAR POWER WINDOW SWITCH ...................

24

Component Function Check  ...................................

24

Diagnosis Procedure  ..............................................

24

Component Inspection ............................................

25

POWER WINDOW MOTOR ...............................

26

DRIVER SIDE ............................................................

26

DRIVER SIDE : Component Function Check  .........

26

DRIVER SIDE : Diagnosis Procedure  ....................

26

PASSENGER SIDE ...................................................

26

PASSENGER SIDE : Component Function Check

...

27

PASSENGER SIDE : Diagnosis Procedure  ...........

27

REAR LH ...................................................................

27

REAR LH : Component Function Check  ................

28

REAR LH : Diagnosis Procedure ............................

28

REAR RH  ..................................................................

28

REAR RH : Component Function Check  ................

28

REAR RH : Diagnosis Procedure  ...........................

29

ENCODER CIRCUIT ..........................................

30

Component Function Check  ...................................

30

Diagnosis Procedure  ..............................................

30

SYMPTOM DIAGNOSIS  .............................

33

NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH  ...................

33

Diagnosis Procedure  ..............................................

33

DRIVER SIDE POWER WINDOW DOES NOT
OPERATE ..........................................................

34

Diagnosis Procedure  ..............................................

34

FRONT PASSENGER SIDE POWER WIN-
DOW DOES NOT OPERATE  ............................

35

WITH BOTH POWER WINDOW MAIN SWITCH
AND FRONT PASSENGER SIDE POWER WIN-
DOW SWITCH ...........................................................

35

WITH BOTH POWER WINDOW MAIN SWITCH
AND FRONT PASSENGER SIDE POWER WIN-
DOW SWITCH : Diagnosis Procedure  ...................

35

WITH FRONT POWER WINDOW SWITCH ONLY ...

35

WITH FRONT POWER WINDOW SWITCH
ONLY : Diagnosis Procedure  .................................

35

WITH POWER WINDOW MAIN SWITCH  .................

35

WITH POWER WINDOW MAIN SWITCH : Diag-
nosis Procedure  ......................................................

36

REAR LH SIDE POWER WINDOW DOES
NOT OPERATE  .................................................

37

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH LH ............

37

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH LH : Di-
agnosis Procedure  ..................................................

37

WITH REAR POWER WINDOW SWITCH LH
ONLY .........................................................................

37

WITH REAR POWER WINDOW SWITCH LH
ONLY : Diagnosis Procedure ..................................

37

WITH POWER WINDOW MAIN SWITCH  .................

37

WITH POWER WINDOW MAIN SWITCH : Diag-
nosis Procedure  ......................................................

38

REAR RH SIDE POWER WINDOW DOES
NOT OPERATE  .................................................

39

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH RH  ...........

39

WITH BOTH POWER WINDOW MAIN SWITCH
AND REAR POWER WINDOW SWITCH RH : Di-
agnosis Procedure  ..................................................

39

WITH REAR POWER WINDOW SWITCH RH
ONLY .........................................................................

39

WITH REAR POWER WINDOW SWITCH RH
ONLY : Diagnosis Procedure ..................................

39

WITH POWER WINDOW MAIN SWITCH  .................

39

WITH POWER WINDOW MAIN SWITCH : Diag-
nosis Procedure  ......................................................

40

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY
(DRIVER SIDE)  ..................................................

41

Diagnosis Procedure ...............................................

41

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE)  ............................

42

Diagnosis Procedure ...............................................

42

POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION  ................................................

43

Diagnosis Procedure ...............................................

43

REMOVAL AND INSTALLATION ..............

44

POWER WINDOW MAIN SWITCH  ...................

44

Exploded View  ........................................................

44

Removal and Installation .........................................

44
