MWI-50

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000005883923

POSSIBLE DRIVING DISTANCE

The calculated possible driving distance may differ from the actual distance to empty if the refueling amount is
approximately 9   (2 Imp gal) or less. This is because the refuel control (moves the fuel gauge needle quicker
than normal judging that the driver is refueling the vehicle) is not performing.

MWI

COMBINATION METER

MWI-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

COMBINATION METER

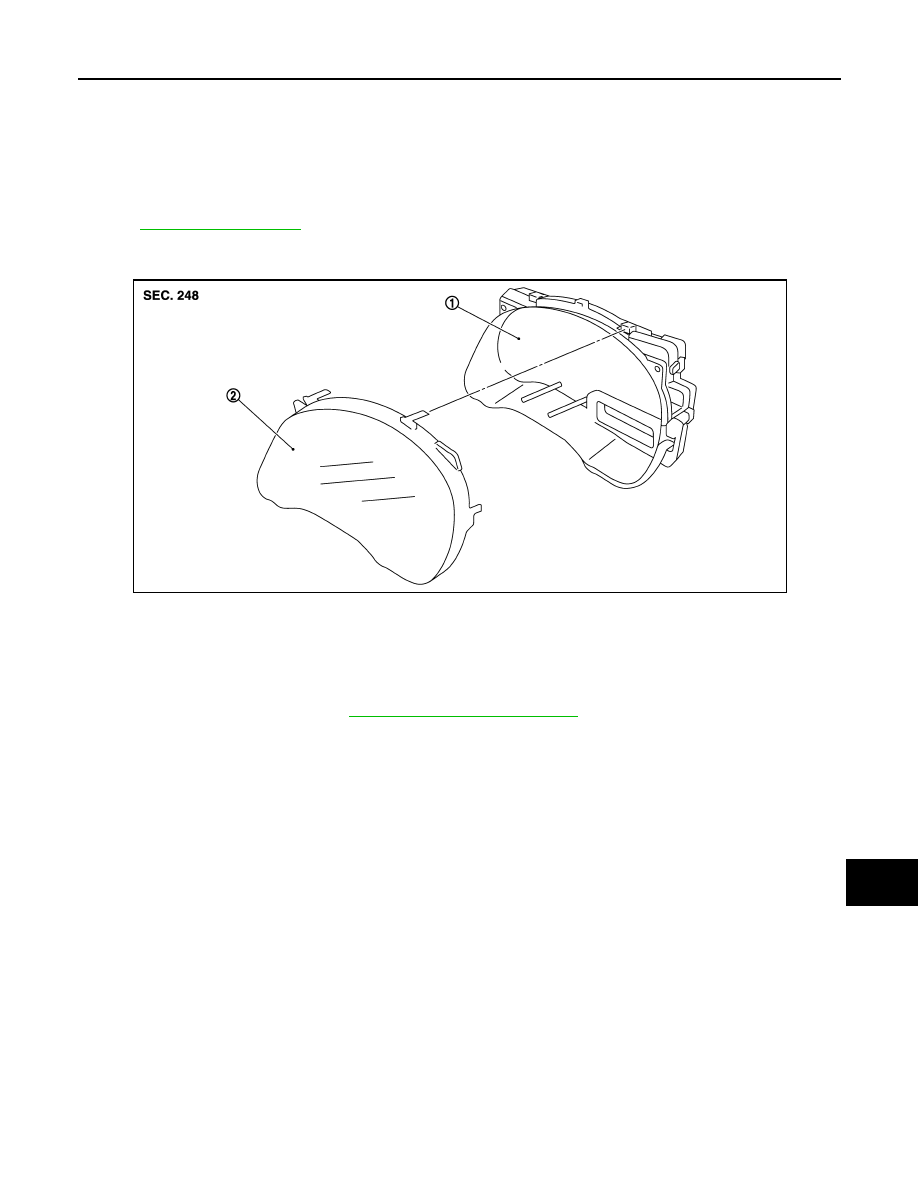

Exploded View

INFOID:0000000005883924

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005883925

REMOVAL

1.

Remove the cluster lid A. Refer to

IP-13, "Removal and Installation"

.

2.

Remove screws, connector, and clips, and then remove combination meter.

Dummy cross-reference("XX-

XX")

INSTALLATION

Install in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000005883926

DISASSEMBLY

Disengage the tabs to separate front cover.

ASSEMBLY

Assemble in the reverse order of disassembly.

1.

Unified meter control unit

2.

Front cover

JSNIA2929ZZ

PB-2

< PERIODIC MAINTENANCE >

PARKING BRAKE SYSTEM

PERIODIC MAINTENANCE

PARKING BRAKE SYSTEM

Inspection and Adjustment

INFOID:0000000006037609

INSPECTION

Lever Stroke

1.

Operate the parking brake lever with a force of 196 N (20 kg, 44 lb). Check that the lever stroke is within
the specified number of notches. (Check it by listening to the clicks of the ratchet.)

2.

When parking brake warning lamp turns ON, check that the lever stroke is within the specified number of
notches. (Check it by listening to the clicks of the ratchet.)

Inspect Components

• Check each component for installation condition such as looseness.
• Check the parking brake lever assembly for bend, damage and cracks. Replace if necessary.
• Check the cables and equalizer for wear, damage and cracks. Replace if necessary.
• Check the parking brake switch, and replace it if necessary. Refer to

BRC-5, "Component Inspection"

.

ADJUSTMENT

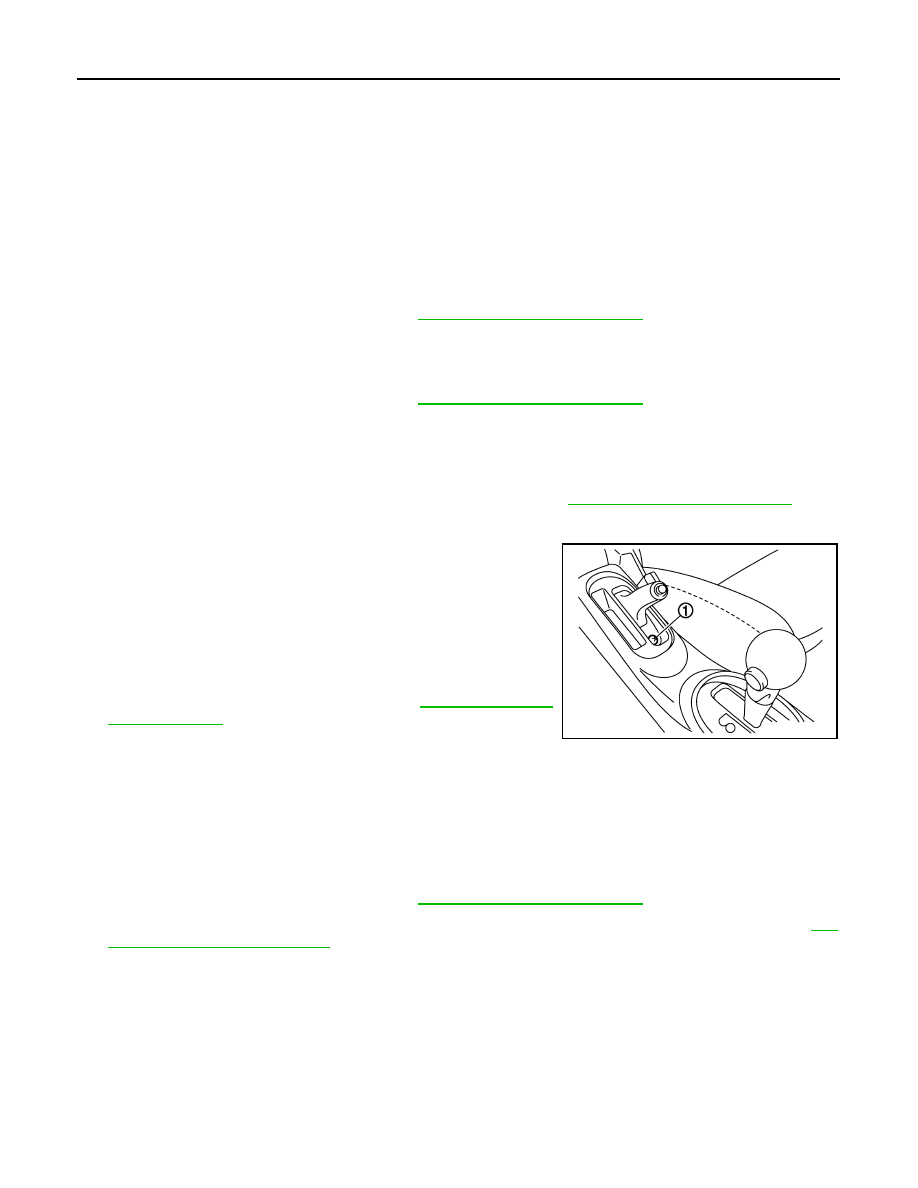

1.

Pull parking brake lever until a socket wrench can be inserted to
adjusting nut.

2.

Turning the adjusting nut with a socket wrench and loosening
the front cable.

3.

Depress the brake pedal with a force of 196 N (20 kg, 44 lb)
about 10 times and adjust the brake shoe clearance.

CAUTION:

Make sure to securely operate the brake pedal.

4.

Check a drag of rear drum brake. Refer to

BR-41, "Inspection

and Adjustment"

.

5.

Adjust the cable with the following procedure.

a.

Operate and maintain the parking brake lever with a 400 N (41 kg, 90 lb) for 30 minutes or more.

b.

Adjust the parking brake lever stroke by turning the adjusting nut with a socket wrench.

CAUTION:

Never reuse the adjusting nut if the nut is removed.

c.

Operate the parking brake lever with a force of 196 N (20 kg, 44lb). Check that the lever stroke is within
the specified number of notches. (Check it by listening to the clicks of the ratchet.)

d.

Rotate the brake drum with the parking brake lever released and check that there is no drag. Refer to

BR-

41, "Inspection and Adjustment"

.

Number of notches

: Refer to

PB-5, "Parking Brake Control"

.

Number of notches

: Refer to

PB-5, "Parking Brake Control"

.

Number of notches

: Refer to

PB-5, "Parking Brake Control"

.

JPFIB0119ZZ
