Nissan March K13. Manual - part 476





MWI-42

< DTC/CIRCUIT DIAGNOSIS >

SPEED SENSOR SIGNAL CIRCUIT (M/T MODELS)

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK VEHICLE SPEED SENSOR GROUND CIRCUIT

Check continuity between vehicle speed sensor harness connector and combination meter harness connec-
tor.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000005883942

1.

REMOVE VEHICLE SPEED SENSOR

Remove vehicle speed sensor. Refer to

XX-XX, "*****"

.

>> GO TO 2.

2.

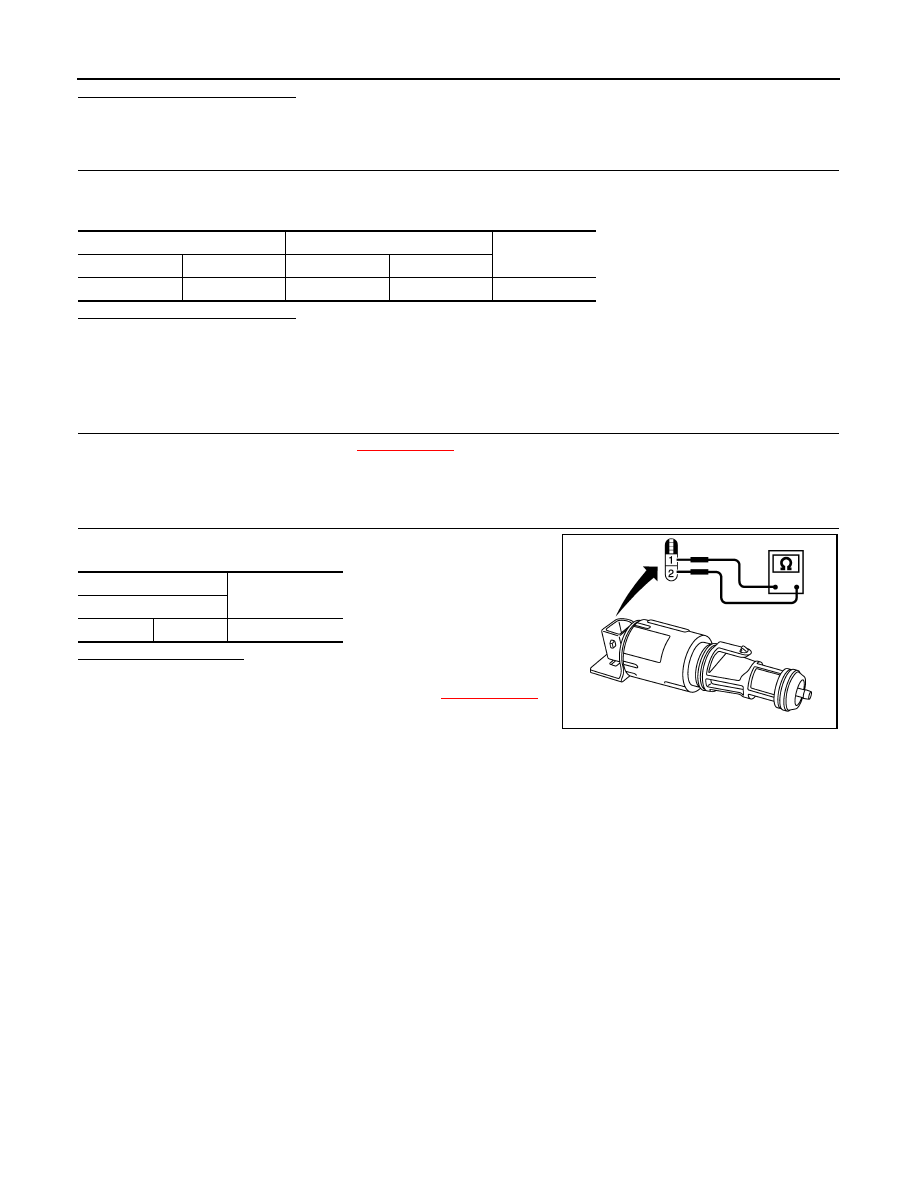

CHECK VEHICLE SPEED SENSOR

Check the resistance between vehicle speed sensor terminals.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace vehicle speed sensor. Refer to

XX-XX, "*****"

.

Vehicle speed sensor

Combination meter

Continuity

Connector

Terminal

Connector

Terminal

F55

2

M34

25

Existed

Terminals

Resistance (

)

(Approx.)

Vehicle speed sensor

1

2

280

JSNIA3087ZZ

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-43

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUEL LEVEL SENSOR SIGNAL CIRCUIT

Component Function Check

INFOID:0000000005883898

1.

CHECK COMBINATION METER OUTPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and compare the “FUEL METER” monitor value with the fuel
gauge reading on the combination meter.

Does monitor value match fuel gauge reading?

YES

>> INSPECTION END

NO

>> Replace combination meter. Refer to

MWI-51, "Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000005883899

1.

CHECK COMBINATION METER INPUT SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between combination meter harness connector and ground.

Does it match fuel gauge reading?

YES

>> GO TO 2.

NO

>> Replace the combination meter. Refer to

MWI-51, "Removal and Installation"

.

2.

CHECK FUEL LEVEL SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and fuel level sensor unit connector.

3.

Check continuity between combination meter harness connector and fuel level sensor unit harness con-
nector.

4.

Check continuity between combination meter harness connector and ground.

Fuel gauge indication position

Reference value of data monitor [L]

1

Approx. 44.8

6/8

Approx. 35.2

4/8

Approx. 22.4

2/8

Approx. 10.4

1/8

Approx. 4.8

0

Approx.  2.5

Terminals

Voltage

(Approx.)

(+)

(

)

Combination meter

Ground

Connector

Terminal

M34

4

JSNIA2927ZZ

Combination meter

Fuel level sensor unit

Continuity

Connector

Terminal

Connector

Terminal

M34

4

B40

2

Existed

MWI-44

< DTC/CIRCUIT DIAGNOSIS >

FUEL LEVEL SENSOR SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR GROUND CIRCUIT

Check continuity between fuel level sensor unit harness connector and combination meter harness connector.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000005883900

1.

REMOVE FUEL LEVEL SENSOR UNIT

Remove the fuel level sensor unit. Refer to

FL-5, "Removal and Installation"

.

>> GO TO 2.

2.

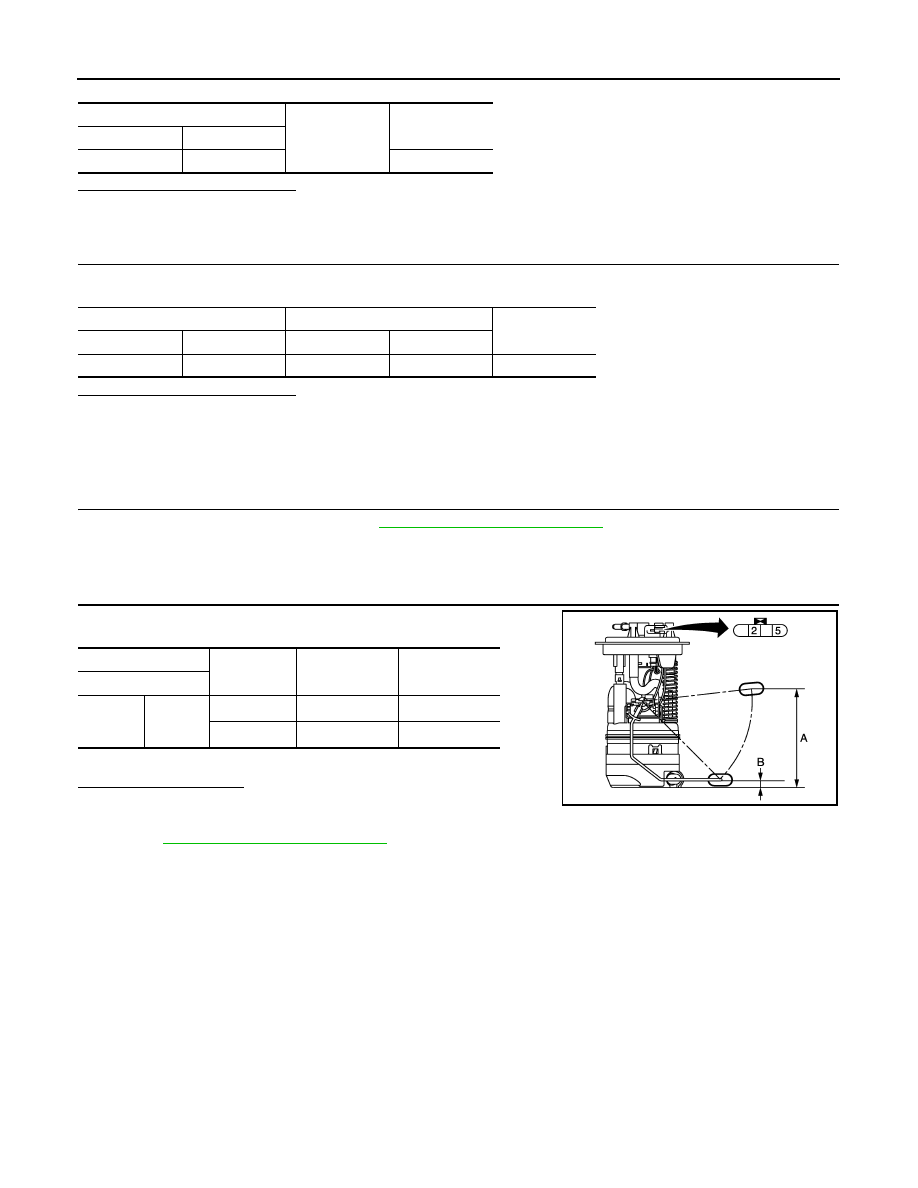

CHECK FUEL LEVEL SENSOR UNIT

Check the resistance between fuel level sensor unit and fuel pump.

*: When float rod is contact with stopper.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-5, "Removal and Installation"

.

Combination meter

Ground

Continuity

Connector

Terminal

M34

4

Not existed

Fuel level sensor unit

Combination meter

Continuity

Connector

Terminal

Connector

Terminal

B40

5

M34

24

Existed

Terminals

Condition

Resistance (

)

(Approx.)

Height [mm (in)]

Fuel level sensor unit

2

5

Full

*

 (A)

5.0

165.7 (6.5)

Empty

*

 (B)

81.5

21.1 (0.83)

JSNIA2939ZZ

MWI

OIL PRESSURE SWITCH SIGNAL CIRCUIT

MWI-45

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

OIL PRESSURE SWITCH  SIGNAL CIRCUIT

Component Function Check

INFOID:0000000005883901

1.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “OIL W/L” monitor value.

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000005883902

1.

CHECK OIL PRESSURE SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect IPDM E/R connector and oil pressure switch connector.

3.

Check continuity between IPDM E/R harness connector and oil pressure switch harness connector.

4.

Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000005883903

1.

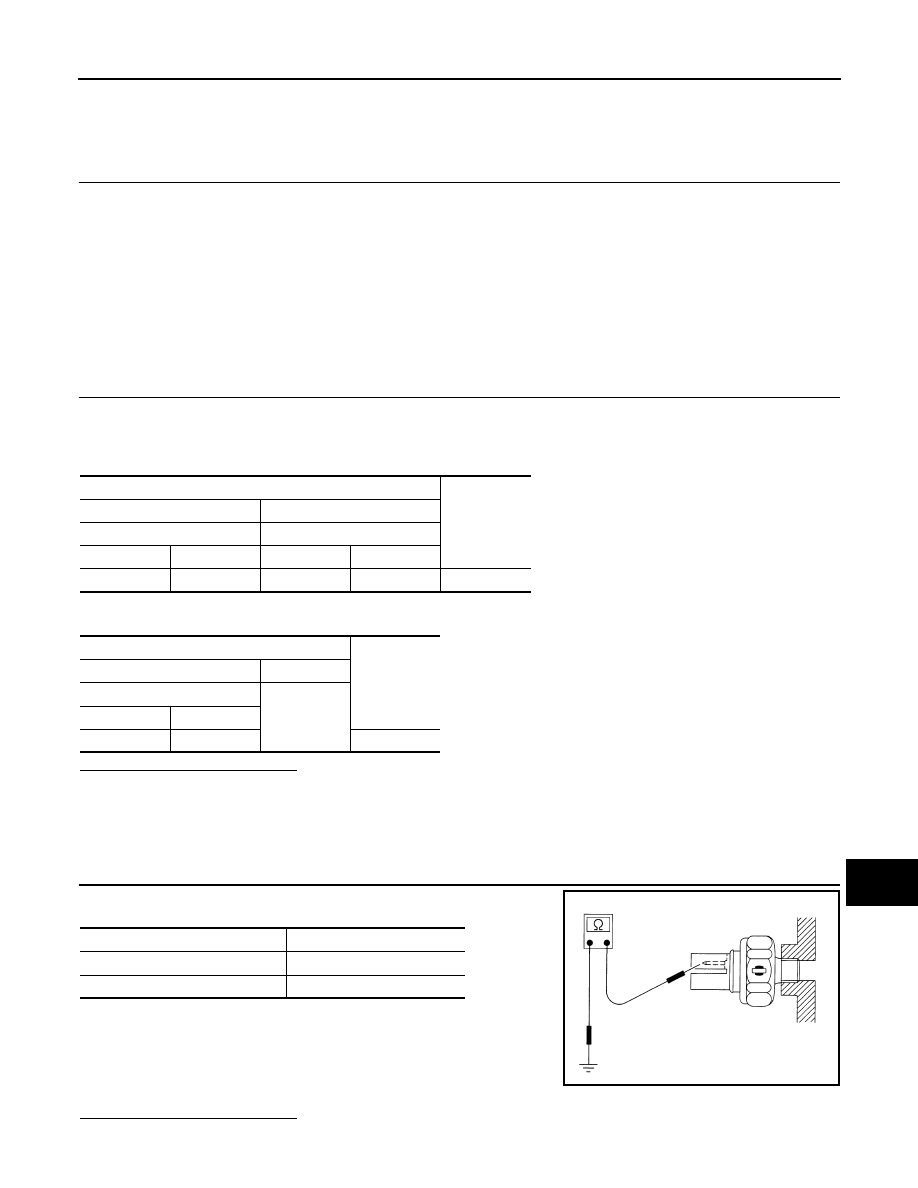

CHECK OIL PRESSURE SWITCH

Check continuity between oil pressure switch and ground.

Is the inspection result normal?

YES

>> INSPECTION END

“OIL W/L”

Ignition switch ON

: On

Engine running

: Off

Terminals

Continuity

(+)

(

)

IPDM E/R

Oil pressure switch

Connector

Terminal

Connector

Terminal

F113

42

F63

1

Existed

Terminals

Continuity

(+)

(

)

IPDM E/R

Ground

Connector

Terminal

F113

42

Not existed

Condition

Continuity

Engine stopped

Existed

Engine running

Not existed

ELF0044D
