MWI-22

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

ECU DIAGNOSIS INFORMATION

COMBINATION METER

Reference Value

INFOID:0000000005883871

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

SPEED METER
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received (A/T models)

SPEED OUTPUT
[km/h]

Ignition switch
ON

While driving

Equivalent to speedometer reading
NOTE:
655.35 is displayed when the malfunc-
tion signal is received (A/T models)

ODO OUTPUT
[km/h or mph]

Ignition switch
ON

—

Equivalent to odometer reading in
combination meter

TACHO METER
[rpm]

Ignition switch
ON

Engine running

Equivalent to tachometer reading
NOTE:
8191.875 is displayed when the mal-
function signal is received

FUEL METER
[L]

Ignition switch
ON

—

Values according to fuel level

W TEMP METER
[

°

C]

Ignition switch
ON

—

Values according to engine coolant
temperature
NOTE:
215 is displayed when the malfunction
signal is input

ABS W/L

Ignition switch
ON

ABS warning lamp ON

On

ABS warning lamp OFF

Off

BRAKE W/L

Ignition switch
ON

Brake warning lamp ON

On

Brake warning lamp OFF

Off

DOOR W/L

Ignition switch
ON

Door warning lamp ON

On

Door warning lamp OFF

Off

HI-BEAM IND

Ignition switch
ON

High-beam indicator lamp ON

On

High-beam indicator lamp OFF

Off

TURN IND

Ignition switch
ON

Turn signal indicator lamp ON

On

Turn signal indicator lamp OFF

Off

FR FOG IND

Ignition switch
ON

Front fog lamp indicator lamp ON

On

Front fog lamp indicator lamp OFF

Off

OIL W/L

Ignition switch
ON

Oil pressure warning lamp ON

On

Oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator lamp ON

On

Malfunction indicator lamp OFF

Off

GLOW IND

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

C-ENG2 W/L

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

CRUISE IND

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

MWI

COMBINATION METER

MWI-23

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SET IND

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

O/D OFF IND

Ignition switch
ON

OD OFF indicator lamp ON

On

OD OFF indicator lamp OFF

Off

FUEL W/L

Ignition switch
ON

Low fuel warning displayed

Dummy cross-reference("XX-XX")

On

Low fuel warning not displayed

Dummy cross-reference("XX-XX")

Off

KEY G/Y W/L

Ignition switch
ON

KEY warning lamp (Green/Yellow) ON

On

KEY warning lamp (Green/Yellow) OFF

Off

EPS W/L

Ignition switch
ON

EPS warning lamp ON

On

EPS warning lamp OFF

Off

e-4WD W/L

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

DPF W/L

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

FILTER W/L

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

LCD

Ignition switch
LOCK or ACC

Engine start operation indicator ON

Dummy cross-reference("XX-XX")

B&P N

Ignition switch
ON

Engine start operation indicator ON

Dummy cross-reference("XX-XX")

B&P I

Ignition switch
LOCK

Shift P warning lamp ON

SFT P

Ignition switch
ON

KEY warning lamp blinking

NO KY

SHIFT IND

Ignition switch
ON

Shift position indicator P display

P

Shift position indicator R display

R

Shift position indicator N display

N

Shift position indicator D display

D

Shift position indicator 2 display

2

Shift position indicator 1 display

1

O/D OFF SW

Ignition switch
ON

While pressing the overdrive control switch

On

Other than the above

Off

COMP F/B SIG

Ignition switch
ON

A/C compressor activation condition

On

A/C compressor deactivation condition

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Seat belt (driver side) not fastened

On

Seat belt (driver side) fastened

Off

BRAKE SW

Ignition switch
ON

This item is displayed, but cannot be moni-
tored.

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

DISTANCE
[km]

Ignition switch
ON

—

Possible driving distance calculated by
combination meter

Monitor Item

Condition

Value/Status

MWI-24

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

NOTE:

Some items are not available according to vehicle specification.

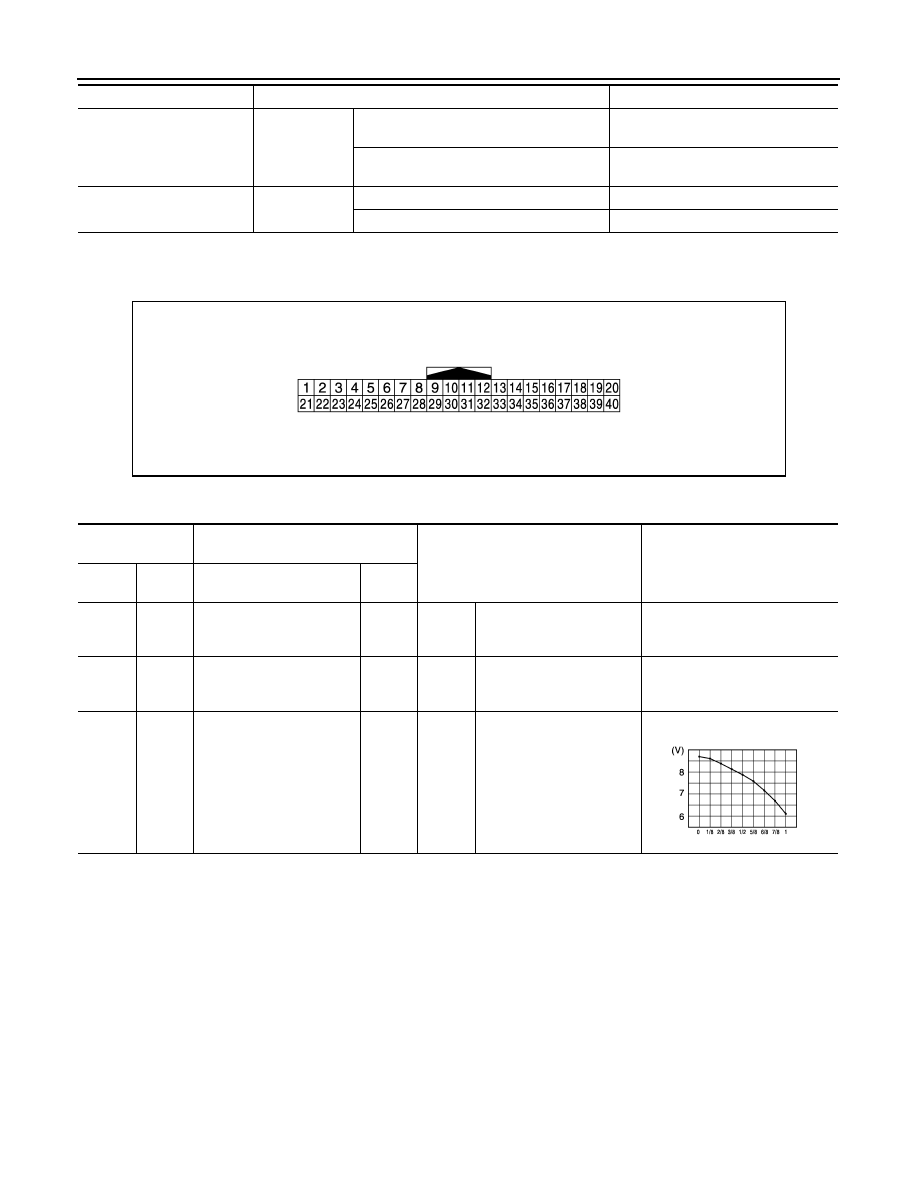

TERMINAL LAYOUT

PHYSICAL VALUES

FUEL LOW SIG

Ignition switch
ON

Low fuel warning displayed

Dummy cross-reference("XX-XX")

On

Low fuel warning not displayed

Dummy cross-reference("XX-XX")

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

Monitor Item

Condition

Value/Status

JPNIA0968GB

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

3

(GR)

Ground

Ignition signal

Input

Ignition
switch
ON

—

Battery voltage

4

(W)

26

(GR)

Fuel level sensor signal

Input

Ignition
switch
ON

—

JSNIA2927ZZ

MWI

COMBINATION METER

MWI-25

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

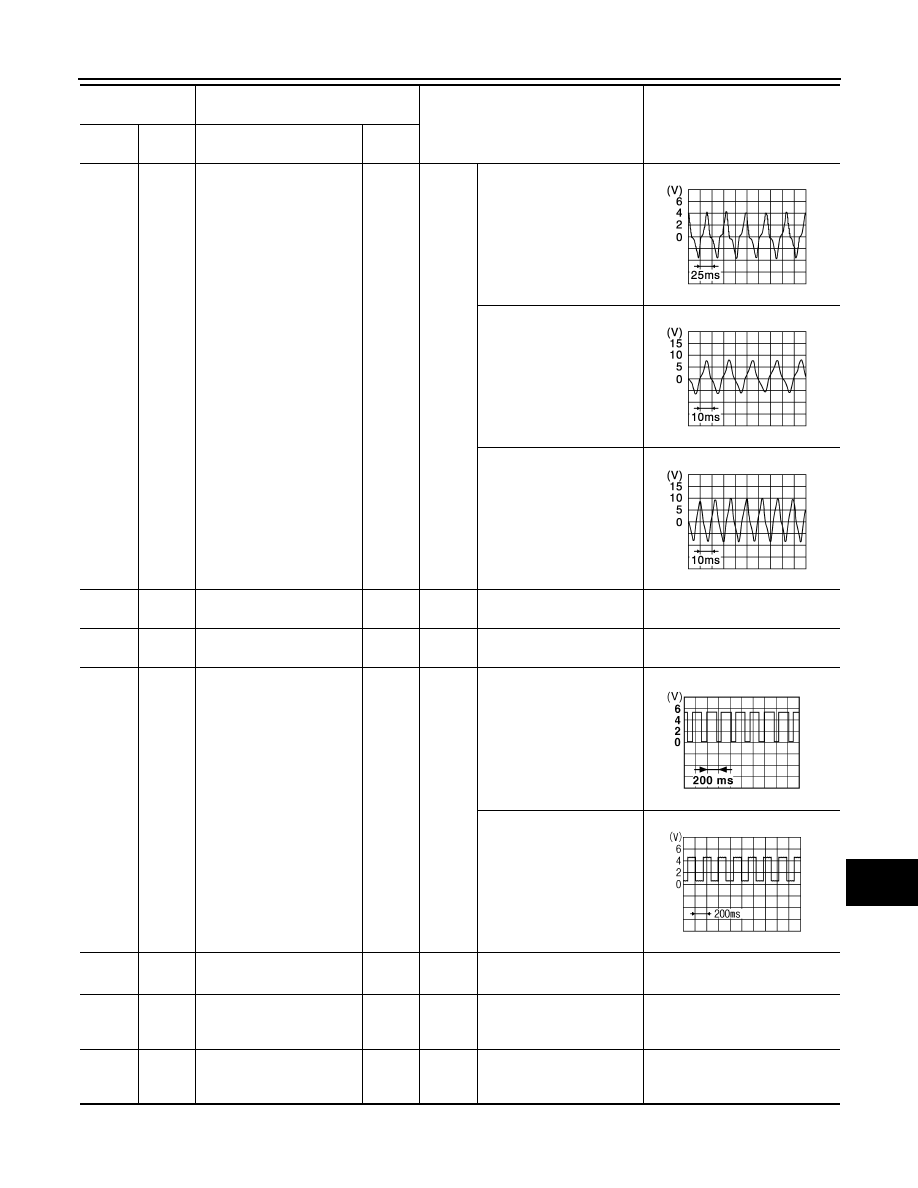

6

(L)

25

(B)

Vehicle speed sensor sig-
nal

Input

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 20 km/h (12.5 MPH)]

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

Speedometer operated
[When vehicle speed is ap-
prox. 60 km/h (37.5 MPH)]

8

(L)

—

CAN-H

—

—

—

—

10

(P)

—

CAN-L

—

—

—

—

14

(G)

Ground

Engine coolant tempera-
ture signal

Output

Ignition
switch
ON

Engine idling [Approximate-
ly 20

°

C (68

°

F)]

Engine idling [Approximate-
ly 80

°

C (176

°

F)]

0 V

15

*

(GR)

—

—

—

—

—

—

21

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

22

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA3084ZZ

JSNIA3085ZZ

JSNIA3086ZZ
