MIR-20

< DTC/CIRCUIT DIAGNOSIS >

AUTO RETRACTABLE DOOR MIRROR CIRCUIT

AUTO RETRACTABLE DOOR MIRROR CIRCUIT

Component Function Check

INFOID:0000000006059498

1.

CHECK FUNCTION

Check that auto retractable door mirror operate normally in “RETRACTABLE MIRROR” on “ACTIVE TEST” of
“BCM” using CONSULT-III.

Is the inspection result normal?

YES

>> Auto retractable door mirror system is OK.

NO

>> Refer to

MIR-20, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000006021962

1.

CHECK FUSE

Check that the following fuse are not fusing.

Is the fuse fusing?

YES

>> Replace the blown fuse after repairing the affected circuit if a fuse are blown.

NO

>> GO TO 2.

2.

CHECK DOOR MIRROR OPEN/CLOSE RELAY POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect door mirror open/close relay connector.

3.

Check voltage between door mirror open/close relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connector.

3.

CHECK AUTO RETRACTABLE DOOR MIRROR CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between door mirror open/close relay harness connector and BCM harness connector.

3.

Check continuity between BCM  harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connector.

Signal name

Fuse No.

Battery power supply

13(10A)

(+)

(

)

Voltage (V)

(Approx.)

Door mirror open/close relay

Connector

Terminal

M86

2

Ground

Battery voltage

M87

2

5

Door mirror open/close relay

BCM

Continuity

Connector

Terminal

Connector

Terminal

M86

1

M71

74

Existed

M87

1

BCM

Ground

Continuity

Connector

Terminal

M71

74

Not existed

AUTO RETRACTABLE DOOR MIRROR CIRCUIT

MIR-21

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

4.

CHECK DOOR MIRROR OPEN/CLOSE RELAY

Check door mirror open/close relay.
Refer to

MIR-21, "Component Inspection"

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connector.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-33, "Intermittent Incident"

>> INSPECTION END

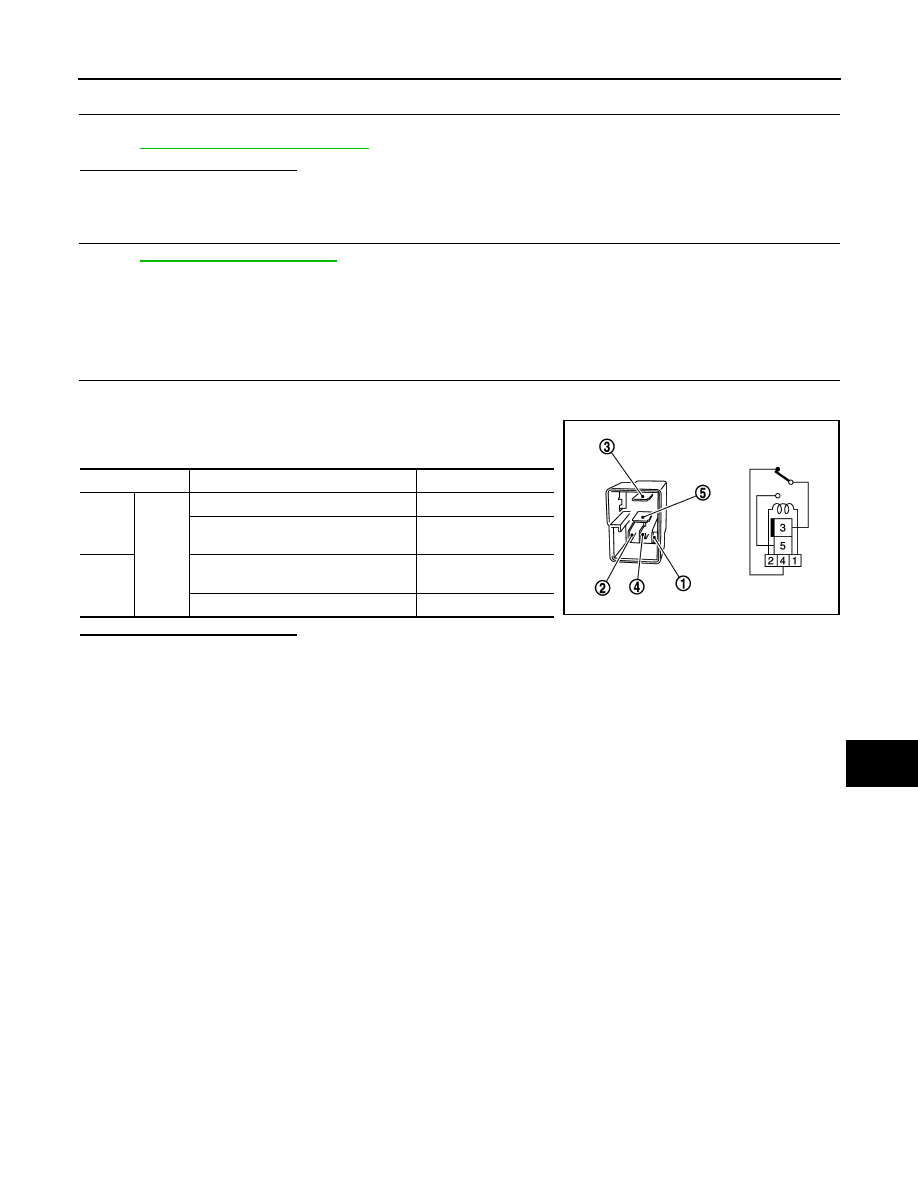

Component Inspection

INFOID:0000000006021963

1.

CHECK DOOR MIRROR OPEN/CLOSE RELAY

1.

Turn ignition switch OFF.

2.

Remove door mirror open/close relay.

3.

Check the continuity between door mirror open/close relay ter-
minals under the following conditions.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace door mirror open/close relay.

Terminal

Condition

Continuity

4

3

No current supply

Existed

12 V direct current supply between ter-
minals 1 and 2.

Not existed

5

12 V direct current supply between ter-
minals 1 and 2.

Existed

No current supply

Not existed

JMLIA0997ZZ

M

I R

- 2

2

< DTC/CIRCUIT DIAGNOSIS >

DOOR MIRROR (OPEN/CLOSE MOTOR)

DOOR MIRROR (OPEN/CLOSE MOTOR)

Component Function Check

INFOID:0000000006021971

1.

CHECK DOOR MIRROR RETRACT FUNCTION

Operate open/close switch. Check that door mirror operates normally.
Is the inspection result normal?

YES

>> Door mirror (open/close motor) circuit is OK.

NO

>> Refer to

MIR-22, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000006022700

1.

CHECK DOOR MIRROR MOTOR INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect door mirror connector.

3.

Turn ignition switch ON.

4.

Check voltage between door mirror connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK HARNESS CONTINUITY-1

1.

Turn ignition switch OFF.

2.

Disconnect door mirror (driver side) connector and door mirror (passenger side) connector and door mir-
ror open/close relay connector.

3.

Check continuity between door mirror harness connector and door mirror open/close relay harness con-
nector.

4.

Check continuity between door mirror harness connector and ground.

(+)

(–)

Condition

Voltage (V)

(Approx.)

Door mirror

Connector

Terminal

D23 (Driver side)

5

Ground

Door mirror remote
control switch
(open/close switch)

AUTO/OPEN Battery

voltage

Other than above

0

6

Close

Battery voltage

Other than above

0

D3 (Passenger side)

5

AUTO/OPEN

Battery voltage

Other than above

0

6

Close

Battery voltage

Other than above

0

door mirror

Door mirror open/close relay

Continuity

Connector

Terminal

Connector

Terminal

D23 (Driver side)

5

M86

3

Existed

6

M87

D3 (Passenger side)

5

M86

6

M87

DOOR MIRROR (OPEN/CLOSE MOTOR)

MIR-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK HARNESS CONTINUITY-2

1.

Turn ignition switch OFF.

2.

Disconnect door mirror remote control switch connector and door mirror open/close relay connector.

3.

Check continuity between door mirror remote control switch harness connector and door mirror open/
close relay harness connector.

4.

Check continuity between door mirror remote control switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK DOOR MIRROR MOTOR

Check door mirror motor.
Refer to

MIR-23, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace door mirror. Refer to

MIR-35, "DOOR MIRROR ASSEMBLY : Removal and Installation"

.

5.

CHECK DOOR MIRROR OPEN/CLOSE RELAY

Check door mirror open/close relay.
Refer to

MIR-23, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace door mirror open/close relay. Refer to

IP-13, "Removal and Installation"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-33, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000006022701

1.

CHECK DOOR MIRROR MOTOR

1.

Turn ignition switch OFF.

2.

Disconnect door mirror connector.

door mirror

Ground

Continuity

Connector

Terminal

Not existed

D23 (Driver side)

5

D3 (Passenger side)

door mirror remote control switch

Door mirror open/close relay

Continuity

Connector

Terminal

Connector

Terminal

M7

9

M86

4

Existed

11

5

M87

4

door mirror remote control switch

Ground

Continuity

Connector

Terminal

M7

9

Not existed

11
