Nissan March K13. Manual - part 433





LAN-20

< PRECAUTION >

[CAN]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005908895

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Trouble Diagnosis

INFOID:0000000005908896

CAUTION:

• Never apply 7.0 V or more to the measurement terminal.
• Use a tester with open terminal voltage of 7.0 V or less.
• Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when

checking the harness.

Precautions for Harness Repair

INFOID:0000000005908897

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

SKIB8766E

LAN

PRECAUTIONS

LAN-21

< PRECAUTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

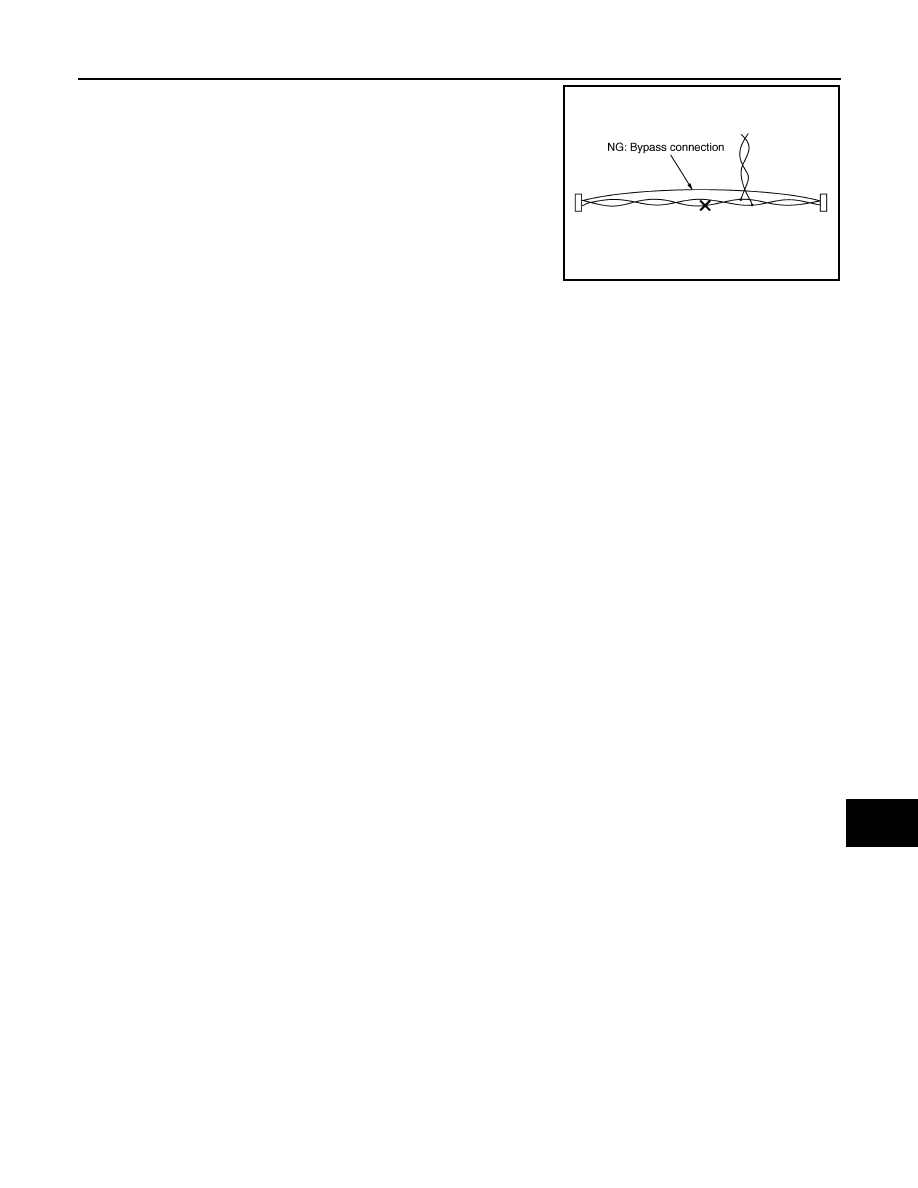

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8767E

LAN-22

< SYSTEM DESCRIPTION >

[CAN]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

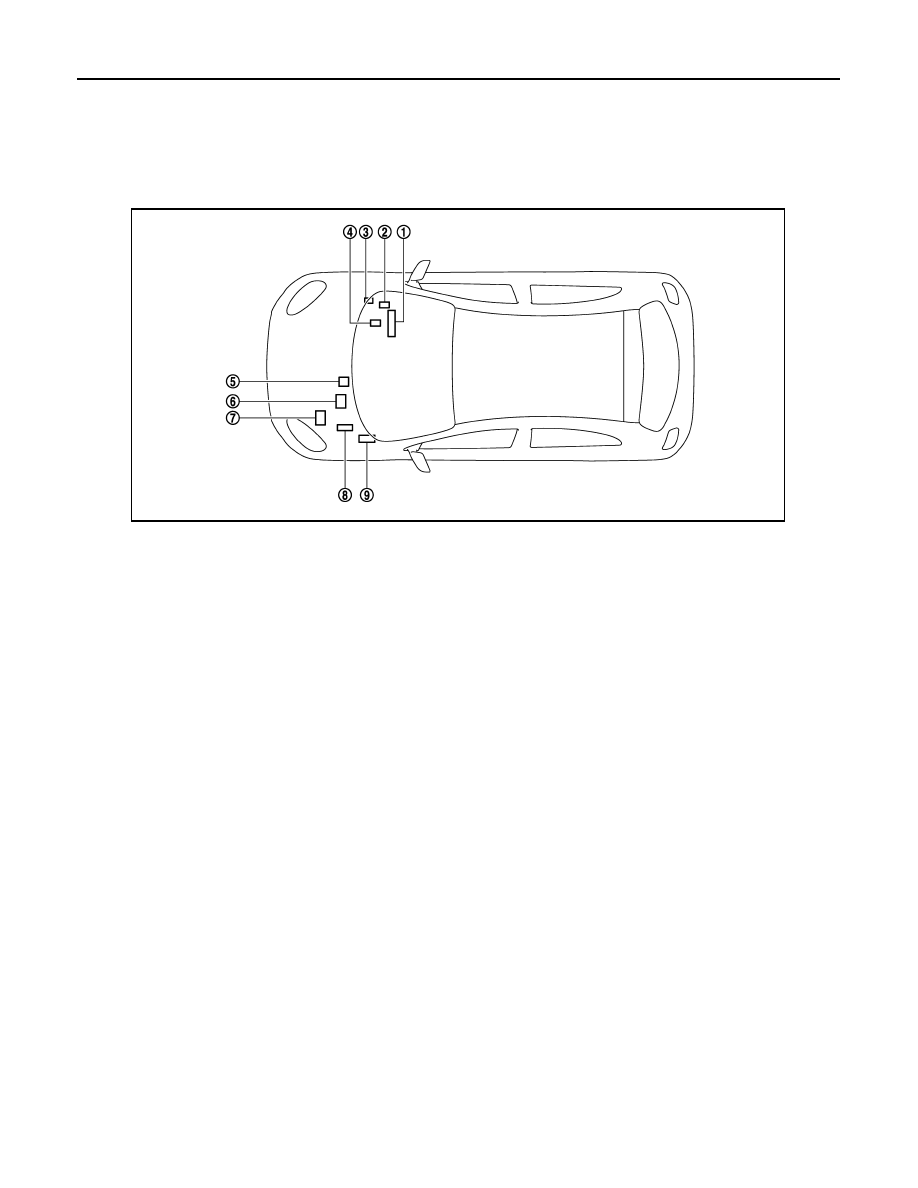

Component Parts Location

INFOID:0000000005908898

1.

Combination meter

2.

Data link connector

3.

Not applicable

4.

EPS control unit

5.

ABS actuator and electric unit (con-
trol unit)

6.

IPDM E/R

7.

TCM

8.

ECM

9.

BCM

JSMIA0211ZZ

LAN

SYSTEM

LAN-23

< SYSTEM DESCRIPTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

CAN COMMUNICATION SYSTEM

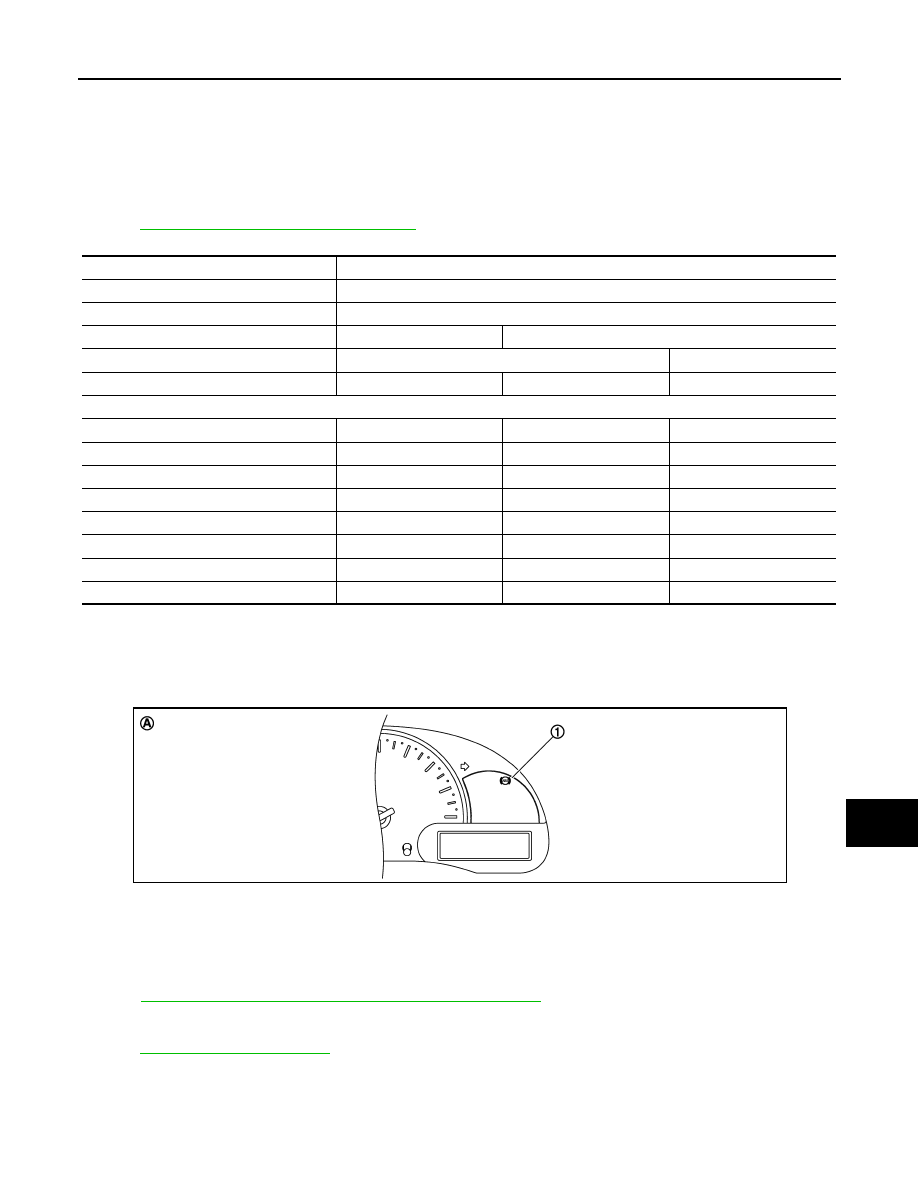

CAN COMMUNICATION SYSTEM : CAN System Specification Chart

INFOID:0000000005908899

Determine CAN system type from the following specification chart.
NOTE:
Refer to

LAN-14, "Trouble Diagnosis Procedure"

 for how to use CAN system specification chart.

×

: Applicable

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE:
Check CAN system type from the vehicle shape and equipment.

CAN COMMUNICATION SYSTEM : CAN Communication Signal Chart

INFOID:0000000005908900

Refer to

LAN-13, "How to Use CAN Communication Signal Chart"

 for how to use CAN communication signal

chart.
NOTE:
Refer to

LAN-19, "Abbreviation List"

 for the abbreviations of the connecting units.

Body type

5-door Hatchback

Axle

2WD

Engine

HR12DE

Transmission

M/T

A/T

Brake control

ABS

CAN system type

2

3

4

CAN communication unit

ECM

×

×

×

ABS actuator and electric unit (control unit)

×

IPDM E/R

×

×

×

TCM

×

×

Data link connector

×

×

×

EPS control unit

×

×

×

Combination meter

×

×

×

BCM

×

×

×

1.

ABS warning lamp

A.

With ABS

JSMIA0302ZZ
