LAN-12

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

TROUBLE DIAGNOSIS

With PAST

MONITOR ITEM (ON-BOARD DIAGNOSIS)

NOTE:
For some models, CAN communication diagnosis result is received from the vehicle monitor.

Example: Vehicle Display

Transmission diagnosis

OK

Normal at present

UNKWN

Unable to transmit signals for 2 seconds or more.

Diagnosis not performed

Control unit name

(Reception diagnosis)

OK

Normal at present

UNKWN

Unable to receive signals for 2 seconds or more.

Diagnosis not performed

No control unit for receiving signals. (No applicable optional parts)

Item

PRSNT

Description

Item

PRSNT

PAST

Description

Transmission diagnosis

OK

OK

Normal at present and in the past

1 – 39

Normal at present, but unable to transmit signals for 2 seconds or more
in the past. (The number indicates the number of ignition switch cycles
from OFF to ON.)

UNKWN

0

Unable to transmit signals for 2 seconds or more at present.

Control unit name

(Reception diagnosis)

OK

OK

Normal at present and in the past

1 – 39

Normal at present, but unable to receive signals for 2 seconds or more
in the past. (The number indicates the number of ignition switch cycles
from OFF to ON.)

UNKWN

0

Unable to receive signals for 2 seconds or more at present.

–

–

Diagnosis not performed.

No control unit for receiving signals. (No applicable optional parts)

Item

Result indi-

cated

Error counter

Description

CAN_COMM

(Initial diagnosis)

OK

0

Normal at present

NG

1 – 50

Control unit error
(The number indicates how many times diagnosis has been
run.)

CAN_CIRC_1

(Transmission diagnosis)

OK

0

Normal at present

UNKWN

1 – 50

Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)

CAN_CIRC_2 – 9

(Reception diagnosis of each unit)

OK

0

Normal at present

UNKWN

1 – 50

Unable to transmit for 2 seconds or more at present.
(The number indicates how many times diagnosis has been
run.)

Diagnosis not performed.

No control unit for receiving signals. (No applicable optional
parts)

LAN

TROUBLE DIAGNOSIS

LAN-13

< SYSTEM DESCRIPTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

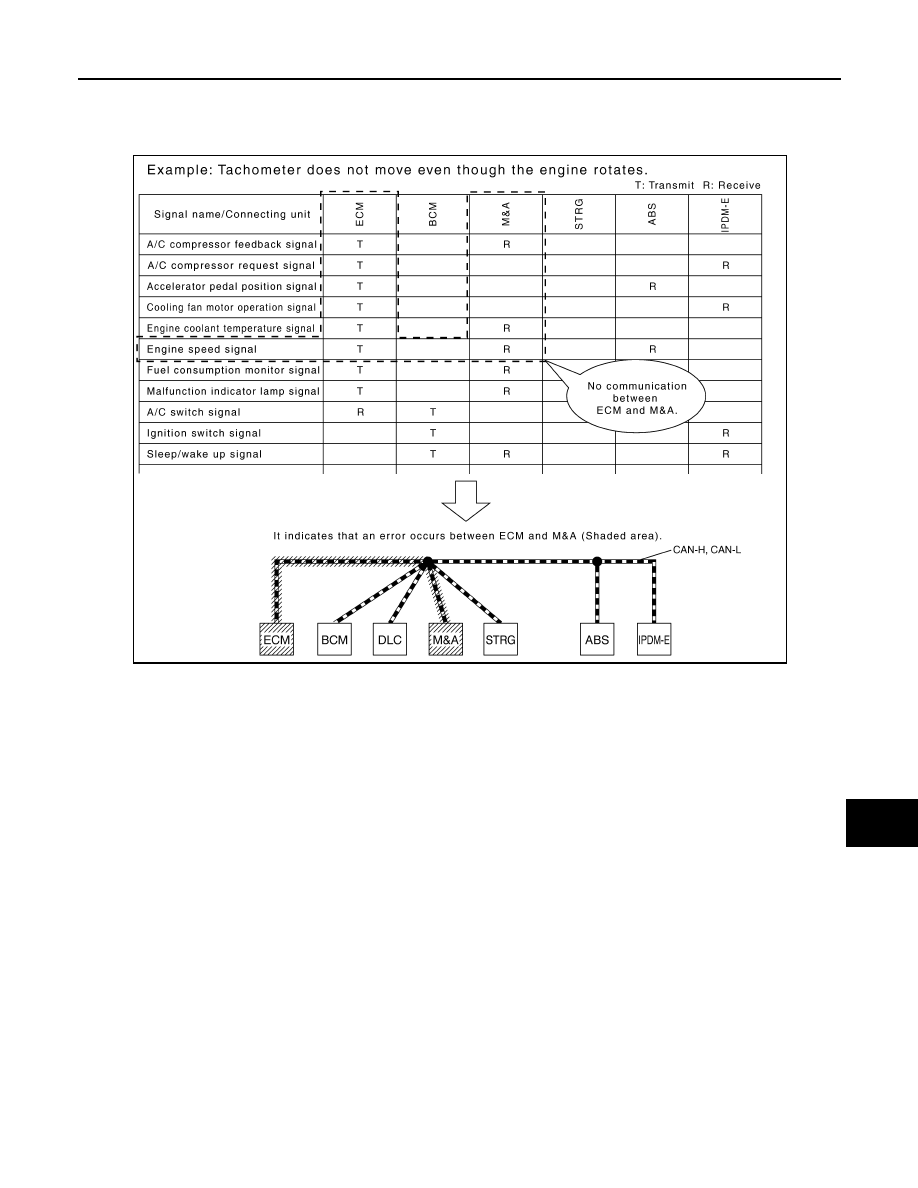

How to Use CAN Communication Signal Chart

INFOID:0000000005908889

The CAN communication signal chart lists the signals needed for trouble diagnosis. It is useful for detecting
the root cause by finding a signal related to the symptom, and by checking transmission and reception unit.

SKIB8715E

LAN-14

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

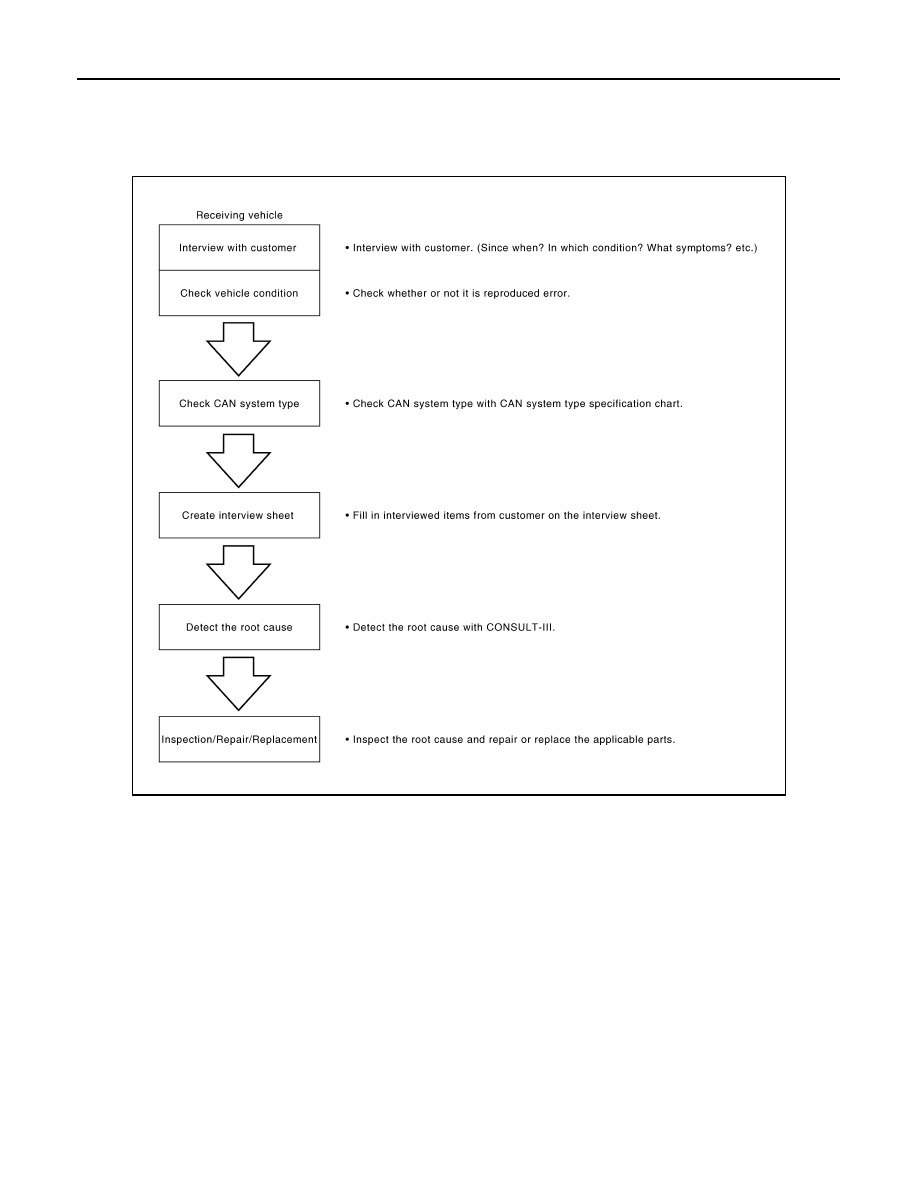

Trouble Diagnosis Flow Chart

INFOID:0000000005908890

Trouble Diagnosis Procedure

INFOID:0000000005908891

INTERVIEW WITH CUSTOMER

Interview with the customer is important to detect the root cause of CAN communication system errors and to
understand vehicle condition and symptoms for proper trouble diagnosis.

Points in interview

• What: Parts name, system name
• When: Date, Frequency
• Where: Road condition, Place
• In what condition: Driving condition/environment
• Result: Symptom
NOTE:
• Check normal units as well as error symptoms.

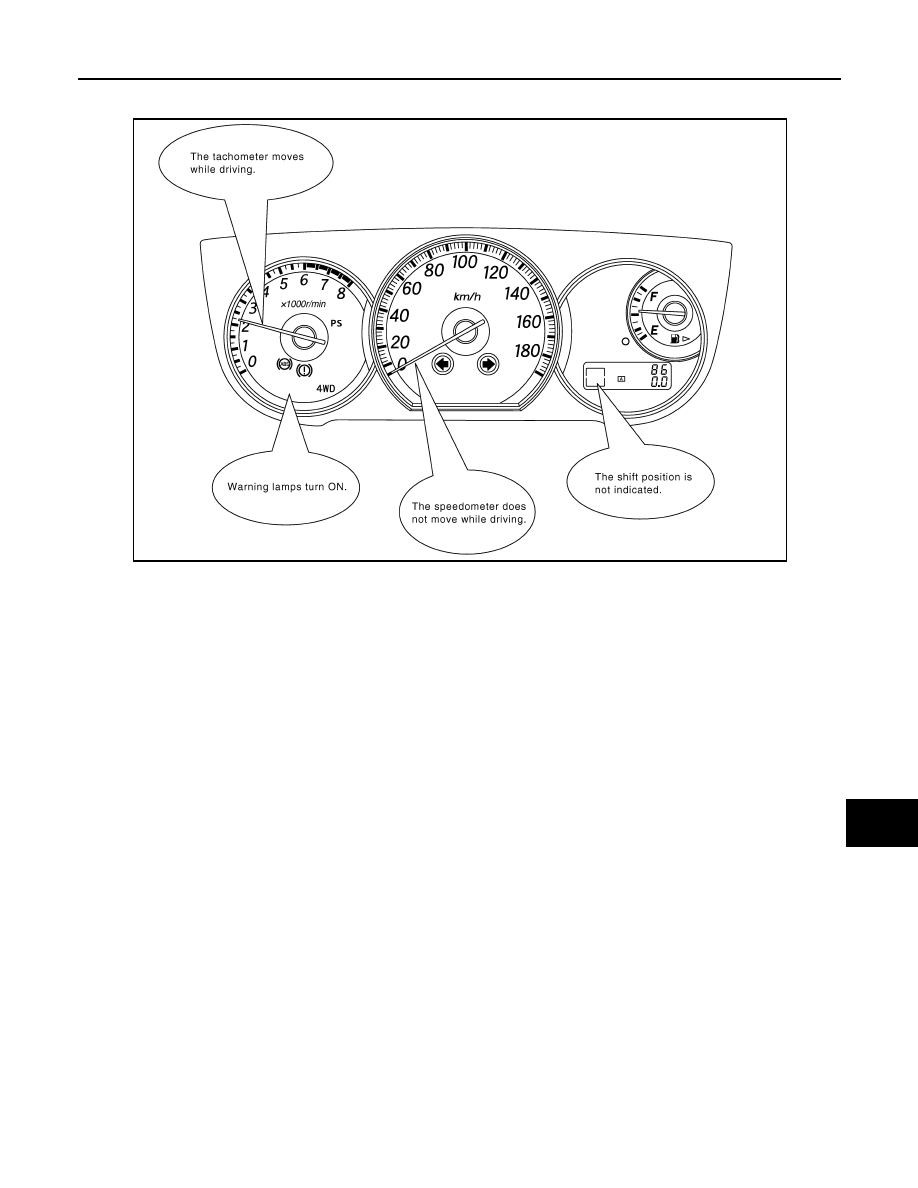

- Example: Circuit between ECM and the combination meter is judged normal if the customer indicates

tachometer functions normally.

• When a CAN communication system error is present, multiple control units may malfunction or go into fail-

safe mode.

JSMIA0016GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-15

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

• Indication of the combination meter is important to detect the root cause because it is the most obvious to

the customer, and it performs CAN communication with many units.

INSPECTION OF VEHICLE CONDITION

Check whether the symptom is reproduced or not.
NOTE:
Do not turn the ignition switch OFF or disconnect the battery cable while reproducing the error. The error may
temporarily correct itself, making it difficult to determine the root cause.

CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION CHART)

Determine CAN system type based on vehicle equipment.
NOTE:
• This chart is used if CONSULT-III does not automatically recognize CAN system type.
• There are two styles for CAN system type specification charts. Depending on the number of available sys-

tem types, either style A or style B may be used.

CAN System Type Specification Chart (Style A)

NOTE:

SKIB8717E
