INTERIOR ROOM LAMP CONTROL SYSTEM

JCLWM4034GB

ILLUMINATION

INL-25

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION

Wiring Diagram

INFOID:0000000006030911

For connector terminal arrangements, harness layouts, and alphabets in a

(option abbreviation; if not

described in wiring diagram), refer to

GI-12, "Connector Information"

.

JCLWM4035GB

INL-26

< WIRING DIAGRAM >

ILLUMINATION

JCLWM4036GB

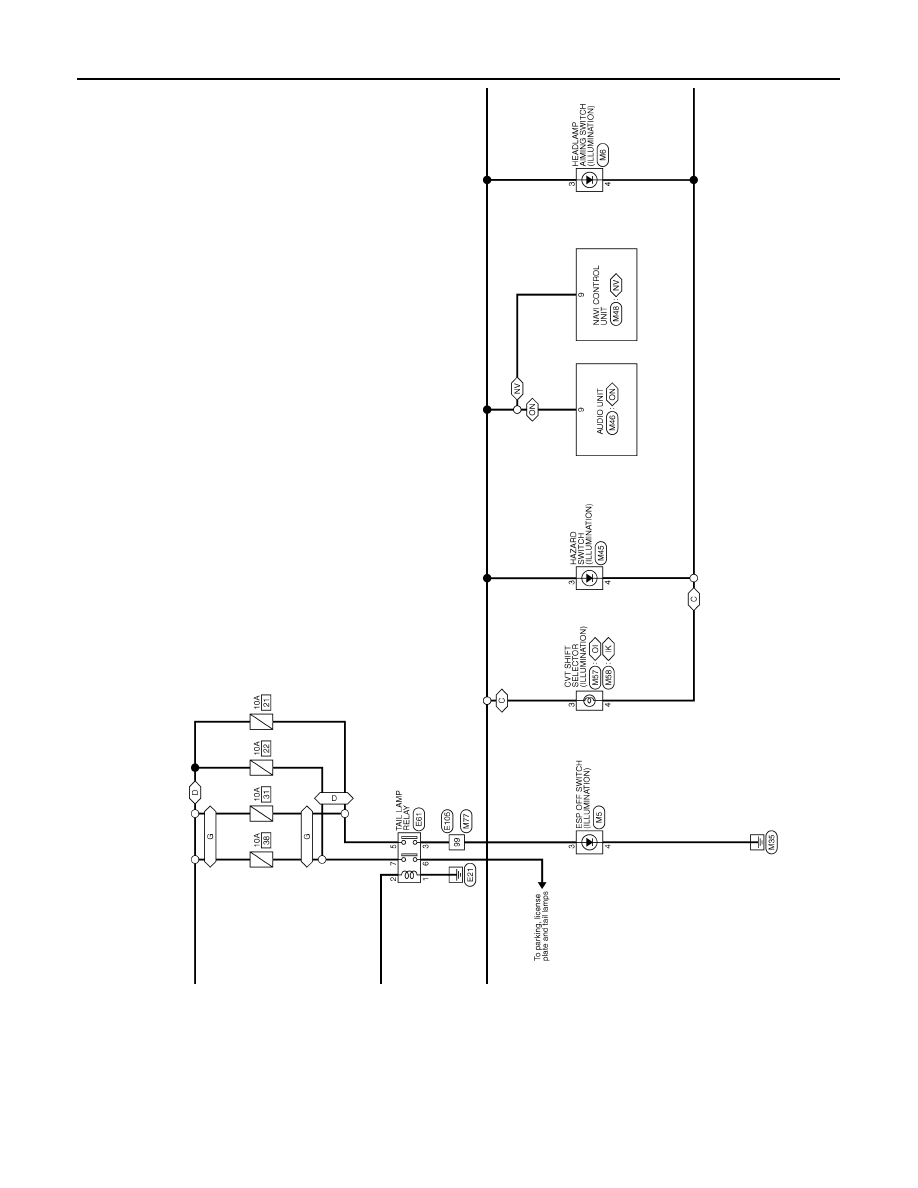

ILLUMINATION

INL-27

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

JCLWM4037GB
