Nissan March K13. Manual - part 409





INL-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)

INFOID:0000000006030905

WORK SUPPORT

*:Factory setting

DATA MONITOR

PUSH SW
[On/Off]

Push switch status received from Intelligent Key unit by CAN communication

UNLK SEN -DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs the interior room lamp control signal to turn the interior room lamps ON.
 [Map lamp, room lamp (when applicable lamps switch is in DOOR position.)]

Off

Stops the interior room lamp control signal to turn the interior room lamps.

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

*

30 min.

Sets the interior room lamp battery saver timer operating
time.

MODE 2

60 min.

BATTERY SAVER SET

On

*

With the exterior lamp battery saver function

Off

Without the exterior lamp battery saver function

ROOM LAMP BAT SAV SET

On

*

With the interior room lamp battery saver function

Off

Without the interior room lamp battery saver function

DIAGNOSIS SYSTEM (BCM) (WITH INTELLIGENT KEY SYSTEM)

INL-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

The switch status input from request switch (driver side)

REQ SW-AS
[On/Off]

The switch status input from front request switch (passenger side)

REQ SW-RR
[On/Off]

NOTE:
The item is indicated, but not monitored.

REQ SW-RL
[On/Off]

PUSH SW
[On/Off]

Push switch status received from Intelligent Key unit by CAN communication

UNLK SEN-DR
[On/Off]

Driver door unlock status input from unlock sensor

DOOR SW-DR
[On/Off]

The switch status input from front door switch (driver side)

DOOR SW-AS
[On/Off]

The switch status input from front door switch (passenger side)

DOOR SW-RR
[On/Off]

The switch status input from rear door switch RH

DOOR SW- RL
[On/Off]

The switch status input from rear door switch LH

DOOR SW- BK
[On/Off]

The switch status input from back door switch

CDL LOCK SW
[On/Off]

Lock switch status input from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Unlock switch status input from door lock and unlock switch

TRNK/HAT MNTR
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL LK-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

KEY CYL UN-SW
[On/Off]

NOTE:
The item is indicated, but not monitored

RKE-LOCK
[On/Off]

Lock signal status received from remote keyless entry receiver

RKE-UNLOCK
[On/Off]

Unlock signal status received from remote keyless entry receiver

INL-18

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006067176

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

• *1: For models without NATS this mode is not used.

• *2: This item is displayed, but is not used.

INT LAMP

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

• Automatic air conditioner
• Manual air conditioner

AIR CONDITONER

×

Combination switch

COMB SW

×

Body control system

BCM

×

NATS

IMMU

×

*

1

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

THEFT ALM*

2

×

×

RETAINED PWR*

2

Signal buffer system

SIGNAL BUFFER

×

×

Panic alarm

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)

INL-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

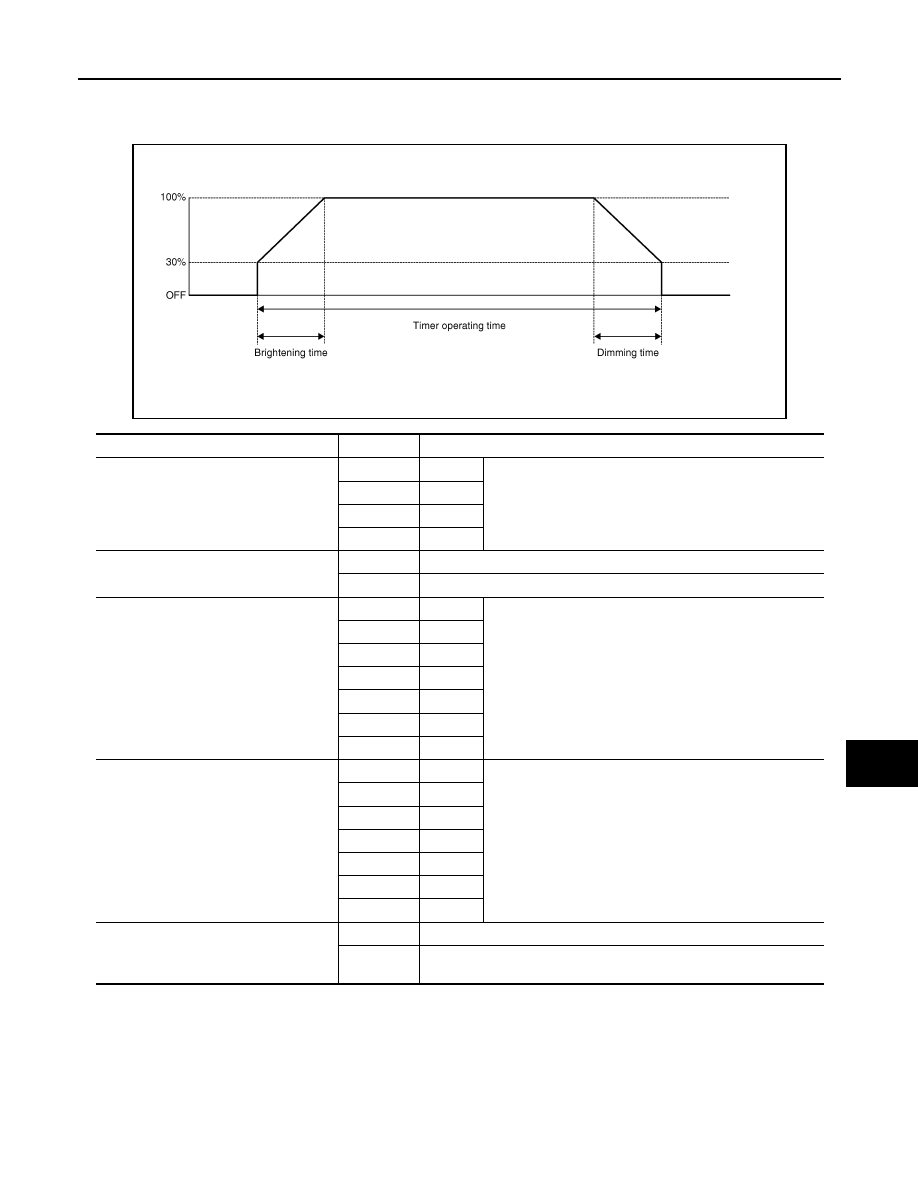

INT LAMP : CONSULT-III Function (BCM - INT LAMP)

INFOID:0000000006030907

WORK SUPPORT

*: Factory setting

DATA MONITOR

JPLIA0093GB

Service item

Setting item

Setting

ROOM LAMP TIMER SET

MODE 1

0 sec.

Sets the interior room lamp ON time. (Timer operating time)

MODE 2

7.5 sec.

MODE 3*

15 sec.

MODE 4

30 sec.

SET I/L D-UNLCK INTCON

On*

With the interior room lamp timer function

Off

Without the interior room lamp timer function

ROOM LAMP ON TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual brightening time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

ROOM LAMP OFF TIME SET

MODE 1

0.5 sec.

Sets the interior room lamp gradual dimming time.

MODE 2*

1 sec.

MODE 3

2 sec.

MODE 4

3 sec.

MODE 5

4 sec.

MODE 6

5 sec.

MODE 7

0 sec.

R LAMP TIMER LOGIC SET

MODE 1*

Interior room lamp timer activates with synchronizing all doors.

MODE 2

Interior room lamp timer activates with synchronizing the driver door
only.
