INL-20
< SYSTEM DESCRIPTION >
DIAGNOSIS SYSTEM (BCM) (WITHOUT INTELLIGENT KEY SYSTEM)
*
1
: With remote keyless entry function
*2: For Thailand
ACTIVE TEST
BATTERY SAVER
BATTERY SAVER : CONSULT-III Function (BCM - BATTERY SAVER)
INFOID:0000000006030908
WORK SUPPORT
Monitor item
[Unit]
Description
IGN ON SW
[On/Off]
The switch status input from request switch (driver side)
KEY ON SW
[On/Off]
The switch status input from request switch (passenger side)
DOOR SW-DR
[On/Off]
The switch status input from front door switch (driver side)
DOOR SW-AS
[On/Off]
The switch status input from front door switch (passenger side)
DOOR SW-RR
[On/Off]
The switch status input from rear door switch RH
DOOR SW- RL
[On/Off]
The switch status input from rear door switch LH
BACK DOOR SW
[On/Off]
The switch status input from back door switch
LOCK STATUS
[On/Off]
The switch status input from door lock status switch (driver side)
CDL LOCK SW
[On/Off]
Lock switch status input from door lock and unlock switch
CDL UNLOCK SW
[On/Off]
Unlock switch status input from door lock and unlock switch
KEYLESS LOCK*
1
[On/Off]
Lock signal status received from remote keyless entry receiver
KEYLESS UNLOCK*
1
[On/Off]
Unlock signal status received from remote keyless entry receiver
TRNK/HAT MNTR
[On/Off]
NOTE:
The item is indicated, but not monitored
KEY CYL LK-SW*
2
[On/Off]
Lock signal status input from door key cylinder switch
KEY CYL UN-SW*
2
[On/Off]
Unlock signal status input from door key cylinder switch
ACC SW
[On/Off]
Ignition switch (ACC) status judges from ACC signal (ACC power supply)
Test item
Operation
Description

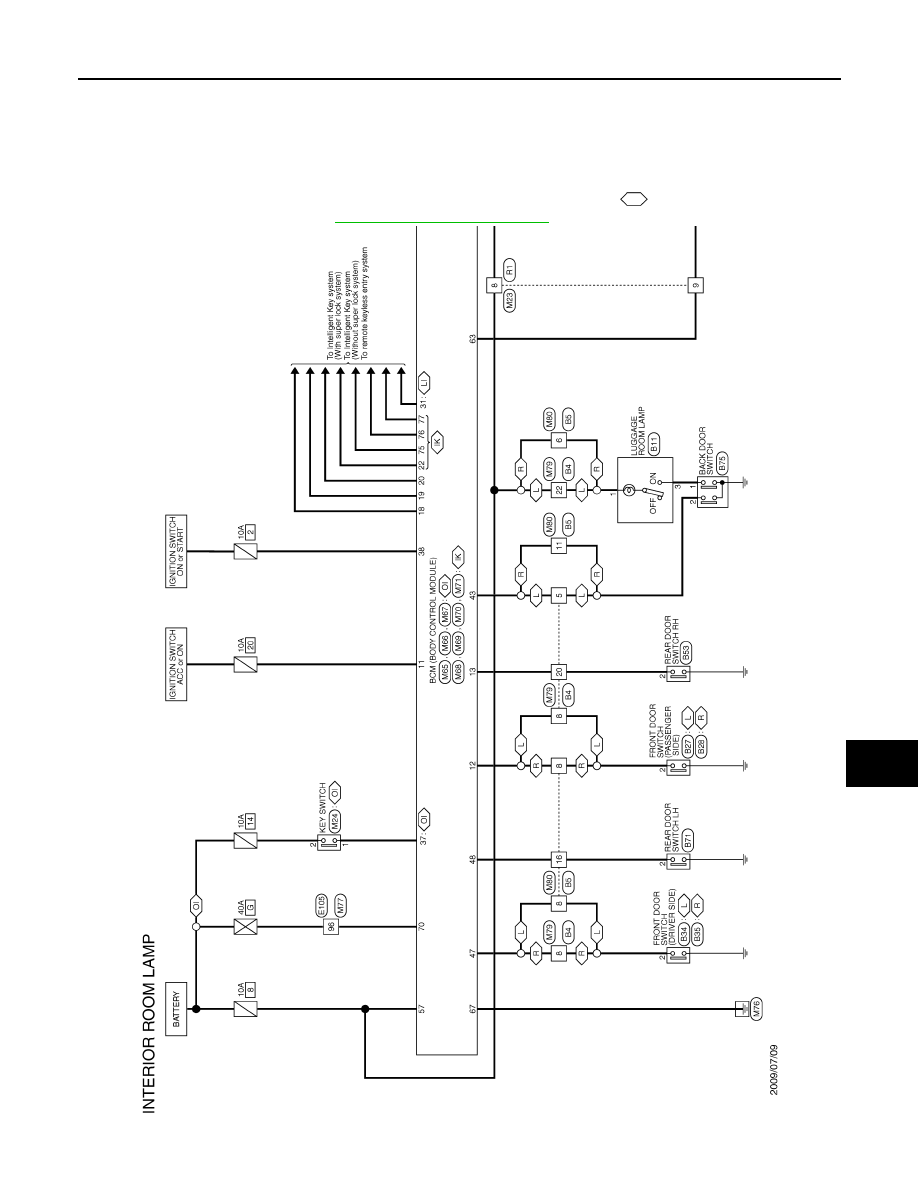

INT LAMP
On
Outputs the interior room lamp control signal to turn the interior room lamps ON.
[Map lamp, room lamp (when applicable lamps switch is in DOOR position.)]
Off
Stops the interior room lamp control signal to turn the interior room lamps.
Service item
Setting item
Setting
ROOM LAMP TIMER SET
MODE 1
*
30 min.
Sets the interior room lamp battery saver timer operating
time.
MODE 2
60 min.
