HAC-90

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

SYSTEM

AIR DISTRIBUTION

1.

Intake door

2.

Blower motor

3.

Evaporator

4.

Air mix door

5.

Heater core

6.

Foot door

7.

Ventilator and defroster door

Fresh air intake

Recirculation air

Defroster

Center ventilator

Side ventilator

Foot

Switch/Dial

position

Door position

V

e

n

til

ato

r an

def

ros

ter do

or

F

o

ot

 do

or

In

ta

ke

 do

or

A

ir m

ix

 do

or

MODE dial

B

A

A – B

A

B

A – B

A

Air intake lever

B

A

Temperature control dial

Full cold

A

Full hot

B

Discharge air flow

Mode position indication

Air outlet/distribution

Center ventilator

Side ventilator

Foot

Defroster

50%

50%

30%

30%

40%

7%

7%

66%

20%

7%

7%

51%

35%

22%

78%

OPERATION

HAC-91

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

OPERATION

Switch Name and Function

INFOID:0000000006043971

CONTROLLER

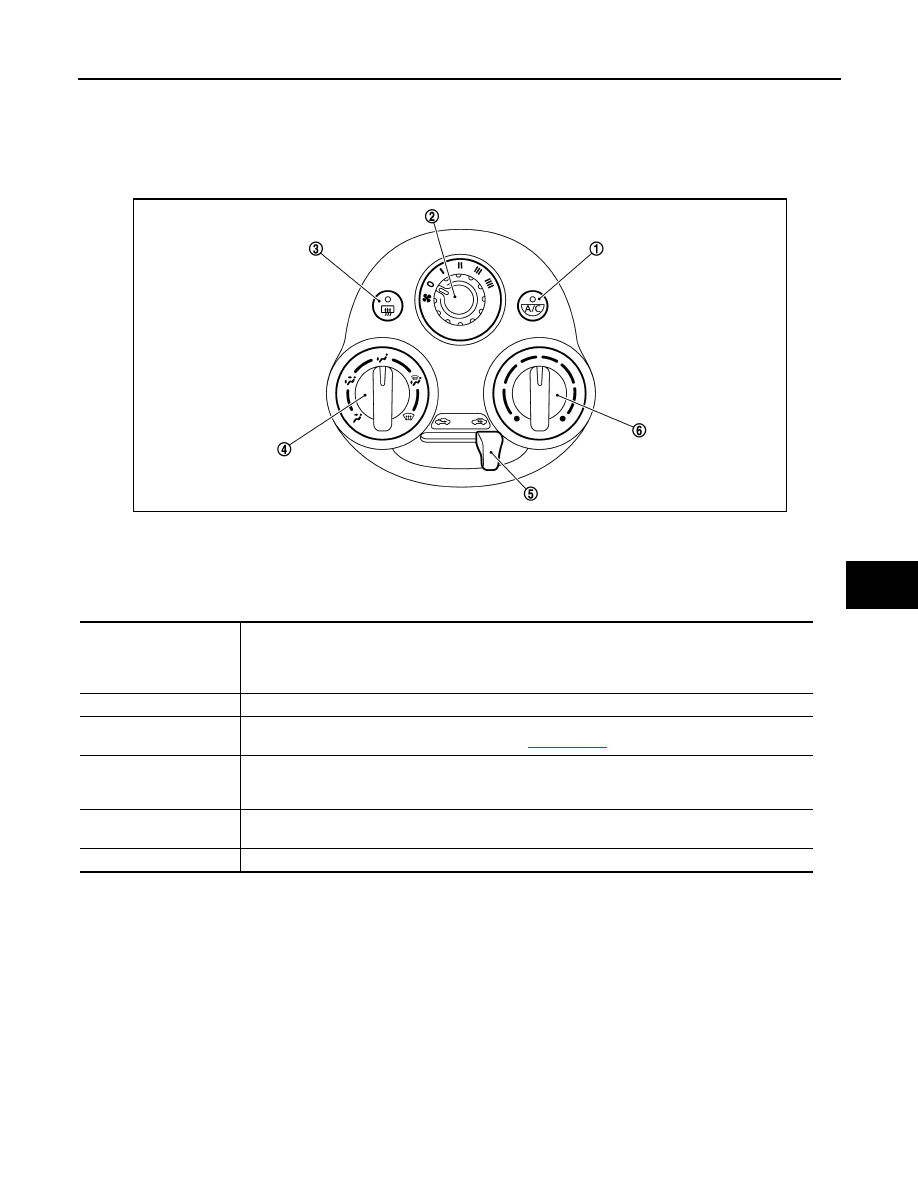

SWITCH OPERATION

1.

A/C switch

2.

Fan control dial

3.

Rear window defogger switch

4.

MODE dial

5.

Air intake lever

6.

Temperature control dial

JMIIA0702ZZ

A/C switch

The compressor control (switch indicator) is turned ON

 OFF each time by pressing this switch

while the blower motor is activated.
NOTE:
when mode position is D/F or DEF, A/C switch is turned ON forcibly.

Fan control dial

Fan speed can be adjusted within a range from 1st to 4th.

Rear window defogger
switch

• Rear window defogger (switch indicator) is turned ON

 OFF each time by pressing this switch.

• Rear window defogger system details, Refer to

XX-XX, "*****"

.

MODE dial

• Mode position is selected to an optimal position by operating this dial.
• When DEF or D/F is selected while blower motor is activated, the air conditioner will automatically

turn on and the air inlet becomes fresh air intake.

Air intake lever

• Recirculation (REC) position: Interior air is recirculated inside the vehicle.
• Fresh (FRE) position: Outside air is drawn into the passenger compartment.

Temperature control dial

The setting temperature can be selected to an optimum temperature by operating this dial.

HAC-92

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006024110

APPLICATION ITEM

CONSULT-III can display each diagnostic item using the diagnostic test modes shown following.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

*: This item is displayed, but is not function.

AIR CONDITIONER

Diagnosis mode

Function description

ECU Identification

BCM part number is displayed.

Self-Diagnostic Result

Displays the diagnosis results judged by BCM. Refer to

XX-XX, "*****"

.

Data Monitor

BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Work Support

Changes the setting for each system function.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

System

CONSULT-III

sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

INTELLIGENT KEY*

Combination switch

COMB SW

×

BCM

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door open

TRUNK

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

FUEL LID*

TPMS*

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

HAC-93

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

AIR CONDITIONER : CONSULT-III Function

INFOID:0000000006024111

DATA MONITOR

Display Item List

Monitor Item [Unit]

Contents

IGN SW

[On/Off]

Displays ignition switch position status as judged form ignition switch signal.

FAN ON SIG

[On/Off]

Displays the blower fan status as judged form blower fan motor switch signal.

AIR COND SW

[On/Off]

Displays [COMP (On)/COMP (Off)] status as judged form air conditioner switch signal.

THERMO AMP

[On/Off]

Displays the thermo control amp. status as judged form thermo control amp. signal.

FR DEF SW

[On/Off]

Displays the DEF status as judged from defroster position switch signal.
