DOOR MOTOR

DOOR MOTOR

Exploded View

INFOID:0000000006024097

INTAKE DOOR MOTOR

INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000006024098

REMOVAL

1.

Remove front passenger air bag module or instrument finisher D. Refer to

IP-13, "Removal and Installa-

tion"

.

2.

Remove mounting screws, and then remove intake door motor.

3.

Disconnect intake door motor connector.

INSTALLATION

Install in the reverse order of removal.

MODE DOOR MOTOR

MODE DOOR MOTOR : Removal and Installation

INFOID:0000000006024099

REMOVAL

1.

Remove A/C unit assembly. Refer to

HA-42, "A/C UNIT ASSEMBLY : Removal and Installation"

.

2.

Remove mounting screws, and then remove mode door motor.

3.

Disconnect mode door motor connector.

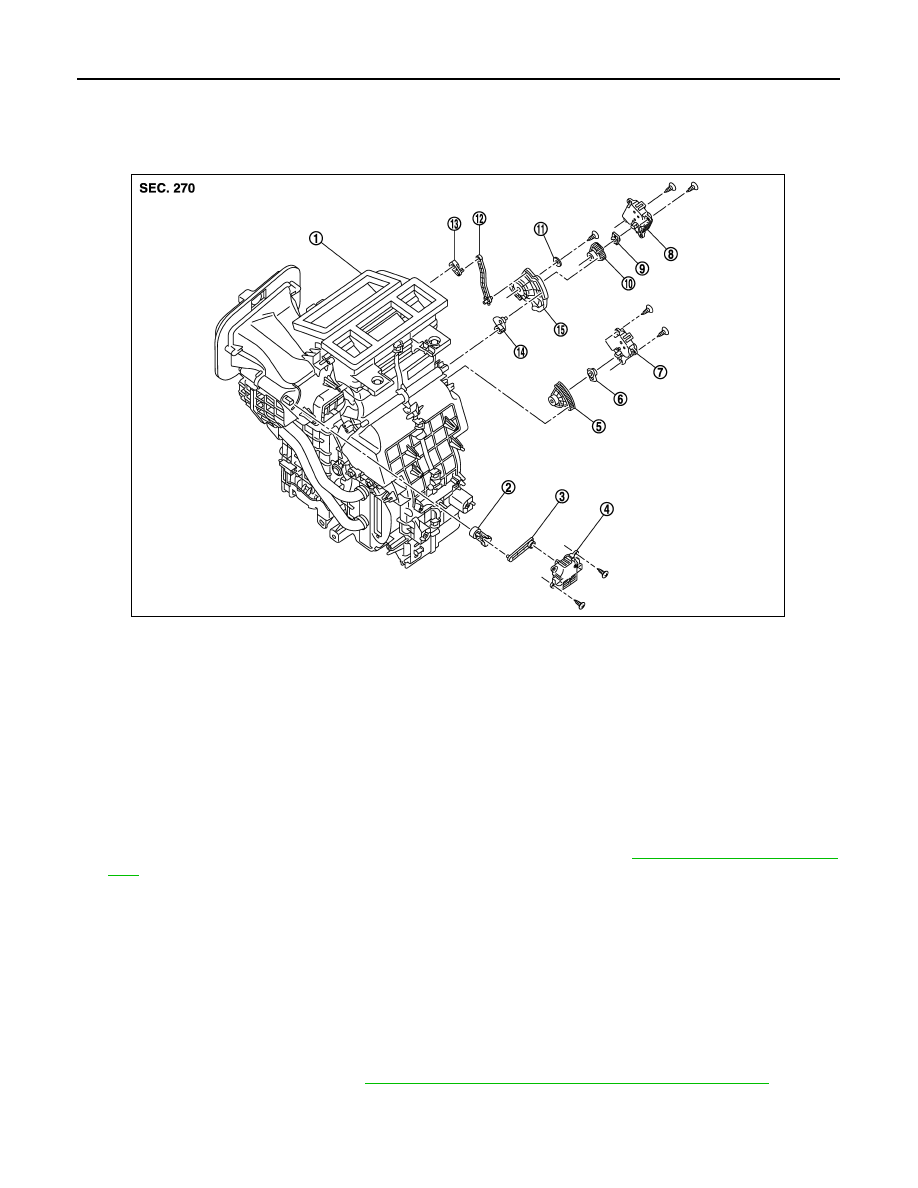

1.

A/C unit assembly

2.

Intake door lever

3.

Intake door motor lever

4.

Intake door motor

5.

Air mix door link

6.

Air mix door lever

7.

Air mix door motor

8.

Mode door motor

9.

Mode door lever

10. Mode door link

11.

Plate

12. Ventilator door rod

13. Ventilator door lever

14.

Foot door lever

15. Main link

JMIIA0593ZZ

DOOR MOTOR

HAC-83

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INSTALLATION

Install in the reverse order of removal.

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR : Removal and Installation

INFOID:0000000006024100

REMOVAL

1.

Remove foot duct LH. Refer to

VTL-6, "FOOT DUCT : Removal and Installation"

.

2.

Remove mounting screws, and then remove air mix door motor.

3.

Disconnect air mix door motor connector.

INSTALLATION

Install in the reverse order of removal.
