PERIODIC MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Inspection

INFOID:0000000006044459

COMPONENT PART

Check that the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

WHEEL HUB AND WHEEL BEARING

Check the following items, and replace the part if necessary.
• Move wheel hub and wheel bearing in the axial direction by hand. Check there is no looseness of wheel

bearing.

• Rotate wheel hub and wheel bearing and check there is no unusual noise or other irregular conditions. If

there is any of irregular conditions, replace wheel hub and wheel bearing.

Axial end play

: Refer to

XX-XX, "*****"

.

FAX-8

< PERIODIC MAINTENANCE >

FRONT DRIVE SHAFT

FRONT DRIVE SHAFT

Inspection

INFOID:0000000006044460

Check the following items, and replace the part if necessary.
• Check drive shaft mounting point and joint for looseness and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occurs from drive shaft.

• Check boot for cracks and other damage.

FRONT WHEEL HUB AND KNUCKLE

FAX-9

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

REMOVAL AND INSTALLATION

FRONT WHEEL HUB AND KNUCKLE

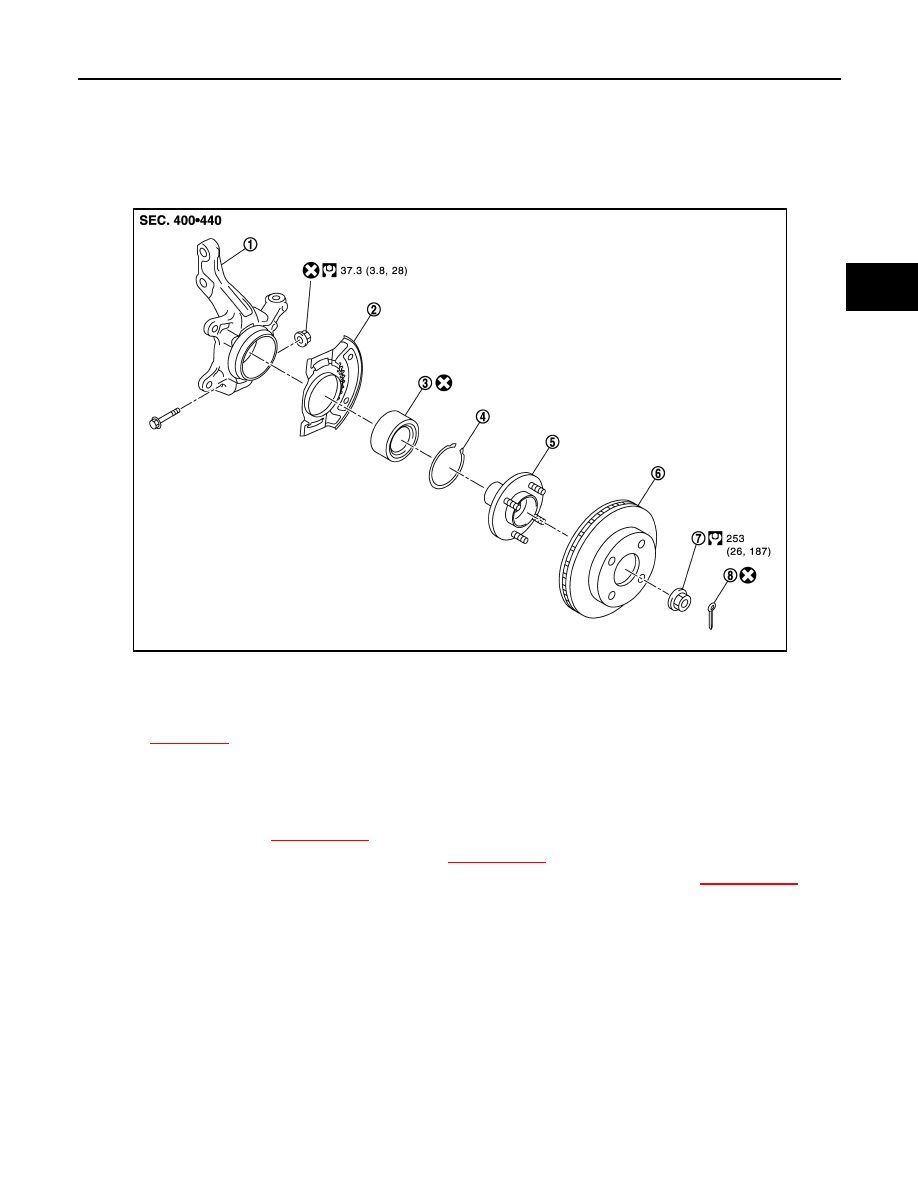

Exploded View

INFOID:0000000006044461

Removal and Installation

INFOID:0000000006044462

REMOVAL

1.

Remove tires. Refer to

XX-XX, "*****"

.

2.

Remove lock plate from strut assembly. Refer to

XX-XX, "*****"

.

3.

Remove caliper assembly. Hang caliper assembly not to interfere with work. Refer to

XX-XX, "*****"

.

CAUTION:

Never depress brake pedal while brake caliper is removed.

4.

Remove disc rotor.

5.

Remove cotter pin, and then loosen wheel hub lock nut.

6.

Patch wheel hub lock nut with a piece of wood. Hammer the wood to disengage wheel hub from drive
shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.
• Never allow drive shaft to hang down without support for joint sub-assembly, shaft and the other

parts.

NOTE:
Use suitable puller, if wheel hub and drive shaft cannot be separated even after performing the above pro-
cedure.

7.

Remove wheel hub lock nut.

1.

Steering knuckle

2.

Splash guard

3.

Wheel bearing

4.

Snap ring

5.

Wheel hub

6.

Disc rotor

7.

Wheel hub lock nut

8.

Cotter pin

Refer to

XX-XX, "*****"

 for symbols in the figure.

JPDIF0281GB

FAX-10

< REMOVAL AND INSTALLATION >

FRONT WHEEL HUB AND KNUCKLE

8.

Suspend the drive shaft with suitable wire.

9.

Remove steering outer socket from steering knuckle. Refer to

XX-XX, "*****"

.

10. Remove steering knuckle from transverse link.

11. Remove steering knuckle from strut assembly. Refer to

XX-XX, "*****"

.

INSTALLATION

Note the following, and install in the reverse order of the removal.
• Clean the matching surface of wheel hub lock nut and wheel hub.

CAUTION:

Never apply lubricating oil to these matching surface.

• Tighten the wheel hub lock nut to the specified torque. Refer to

FAX-9, "Exploded View"

.

CAUTION:

Never use a power tool to tighten the wheel hub lock nut.

• Perform the final tightening of each of parts under unladen conditions, which were removed when removing

wheel hub and axle housing.

• Never reuse cotter pin.

Disassembly and Assembly

INFOID:0000000006044496

DISASSEMBLY

1.

Remove wheel hub, using the drift (SST).

2.

Remove snap ring from steering knuckle, using a suitable tool.

CAUTION:

Never damage steering knuckle.

3.

Remove wheel bearing using the drift (SST).

ASSEMBLY

1.

Install wheel bearing, using the drift (A) (SST: ST35271000) and
suitable drift (B).

CAUTION:

• Be sure that wheel bearing is completely press-fit until

sensor housing contacts the body tightly.

• Never reuse wheel bearing.

2.

Install snap ring to steering knuckle.

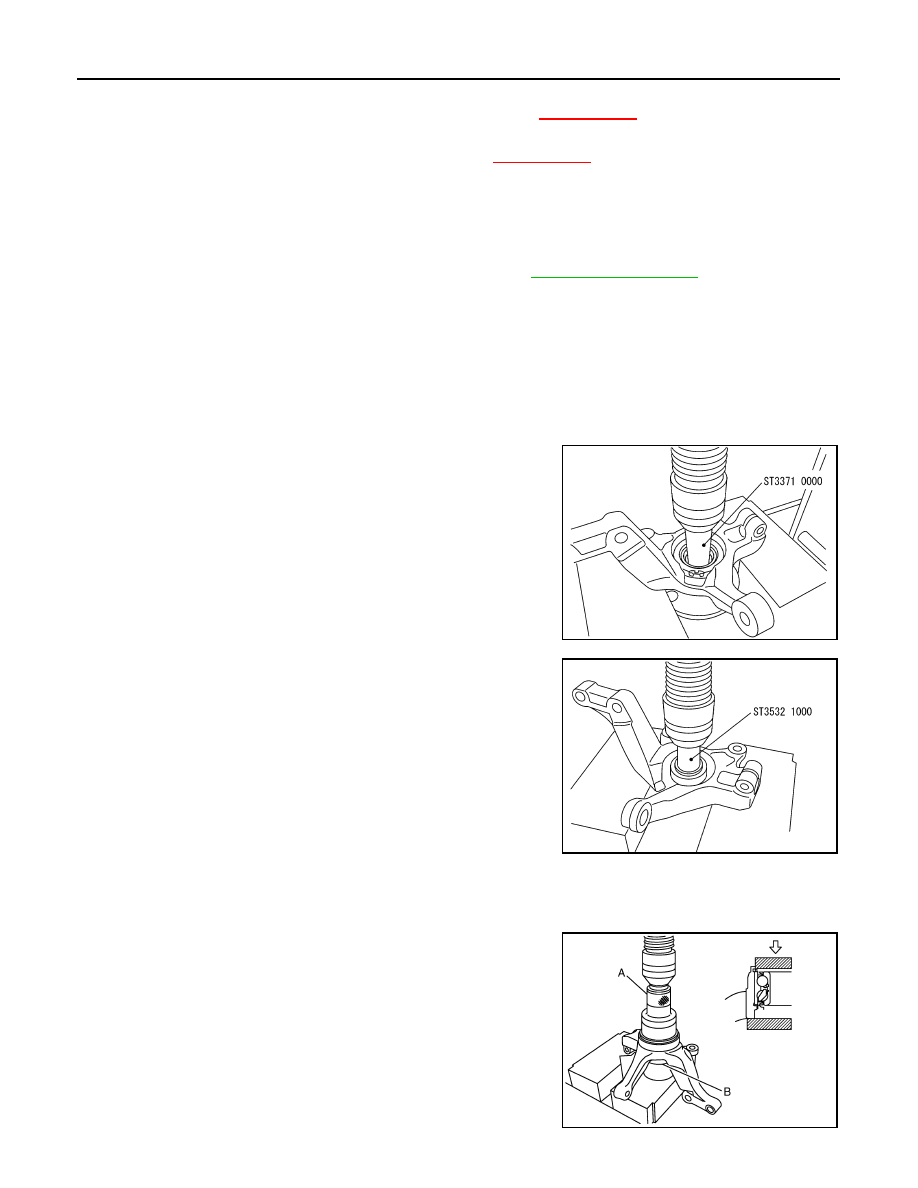

SDIA0758J

SDIA0760J

JPDIF0138ZZ
