Precautions for Drive Shaft

INFOID:0000000006044456

Observe the following precautions when disassembling and assembling drive shaft.
• Never disassemble joint sub-assembly because it is non-overhaul parts.
• Perform work in a location which is as dust-free as possible.
• Clean the parts, before disassembling and assembling.
• Prevent the entry of foreign objects during disassembly of the service location.
• Reassemble disassembled parts carefully in the correct order. If work is interrupted, a clean cover must be

placed over parts.

• Use paper waste. Fabric shop cloths must not be used because of the danger of lint adhering to parts.
• Clean disassembled parts (except for rubber parts) with kerosene which shall be removed by blowing with

air or wiping with paper waste.

FAX-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

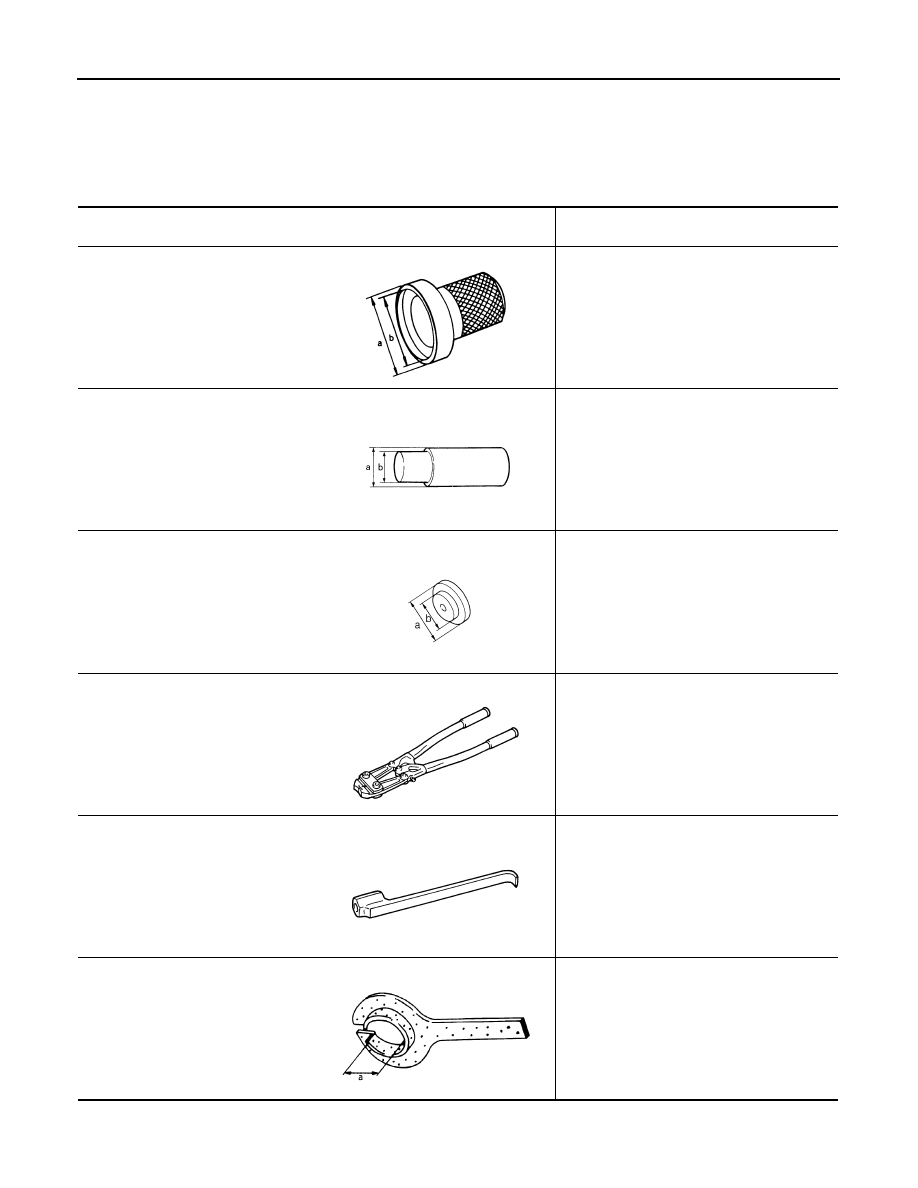

Special Service Tool

INFOID:0000000006044457

Tool number
Tool name

Description

ST35271000
Drift
a:

φ

72 mm (2.83 in) dia.

b:

φ

63 mm (2.48 in) dia.

Installing wheel bearing

ST33710000
Drift
a:

φ

30 mm (1.18 in) dia.

b:

φ

23 mm (0.91 in) dia.

Removing wheel hub

ST35321000
Drift
a:

φ

49 mm (1.93 in) dia.

b:

φ

41 mm (1.61 in) dia.

• Removing wheel bearing
• Installing wheel hub

KV40107300
Boot band crimping tool

Installing boot band

KV40107500
Drive shaft attachment

Removing drive shaft

KV38107900
Protector
a:

φ

32 mm (1.26 in) dia.

Installing drive shaft

ZZA0837D

ZZA1233D

ZZA1051D

ZZA1229D

ZZA1230D

PDIA1183J

PREPARATION

FAX-5

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

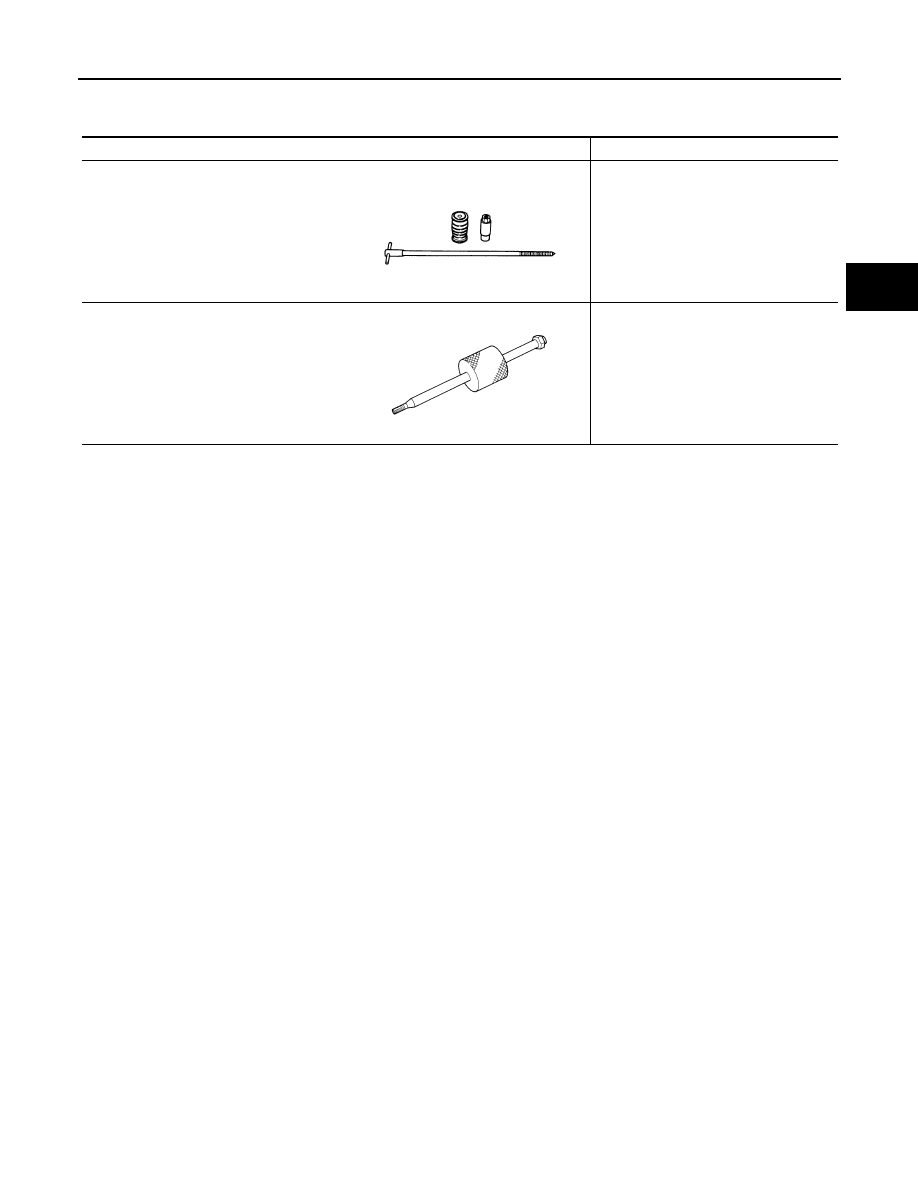

Commercial Service Tool

INFOID:0000000006044458

Tool name

Description

Drive shaft puller

Remove drive shaft joint sub assembly

Sliding hummer

Remove drive shaft

JPDIG0152ZZ

ZZA0023D
