Nissan March K13. Manual - part 319





EXL-102

< REMOVAL AND INSTALLATION >

HIGH-MOUNTED STOP LAMP

3.

Disconnect the high-mounted stop lamp harness connector, and then remove high-mounted stop lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000005912504

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

HIGH-MOUNTED STOP LAMP BULB

1.

Remove the high-mounted stop lamp.

2.

Rotate the bulb socket counterclockwise, and unlock it.

3.

Remove the bulb from the bulb socket.

LICENSE PLATE LAMP

EXL-103

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

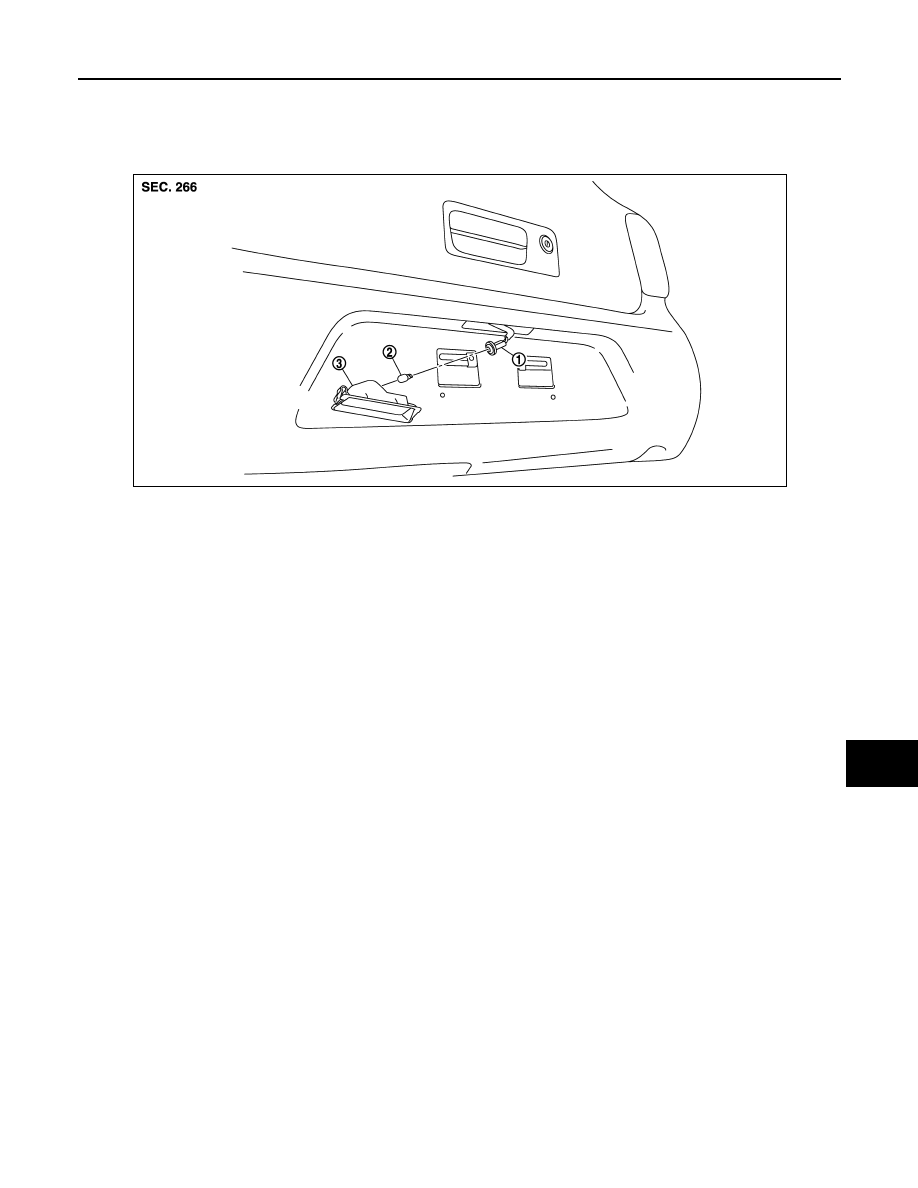

LICENSE PLATE LAMP

Exploded View

INFOID:0000000005912505

Removal and Installation

INFOID:0000000005912506

CAUTION:

Disconnect the battery negative terminal or remove the fuse.

REMOVAL

1.

While pressing the license plate lamp fixing pawl to direction right side, pull it to direction lower side and
then remove it.

2.

Rotate the bulb socket counterclockwise, and then remove bulb socket.

3.

Remove the license plate lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000005912507

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

LICENSE PLATE LAMP BULB

1.

Remove the license plate lamp.

2.

Remove the bulb from the socket.

1.

License plate lamp

JMLIA1037ZZ

EXL-104

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000005912508

Item

Type

Wattage (W)

Front combination lamp

Headlamp (HI/LO)

H4

60/55

Front turn signal lamp

PY21W (Amber)

21

Parking lamp

W5W

5

Front fog lamp

H11

55

Side turn signal lamp

WY5W (Amber)

5

Rear combination lamp

Stop lamp/Tail lamp

P21W

21/5

Rear turn signal lamp

PY21W (Amber)

21

Back-up lamp

P21W

21

License plate lamp

W5W

5

High-mounted stop lamp

W16W

18

EXT-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

EXT

A

B

EXT

N

O

P

CONTENTS

EXTERIOR

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

2

Precaution for Procedure without Cowl Top Cover

......

3

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tools .......................................

4

SYMPTOM DIAGNOSIS  ...............................

5

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

5

Work Flow  .................................................................

5

Inspection Procedure  ................................................

7

Diagnostic Worksheet  ...............................................

9

REMOVAL AND INSTALLATION ...............

11

FRONT BUMPER  ...............................................

11

Exploded View  ........................................................

11

Removal and Installation  .........................................

11

REAR BUMPER  ................................................

13

Exploded View .........................................................

13

Removal and Installation  .........................................

13

COWL TOP  .......................................................

15

Exploded View .........................................................

15

Removal and Installation  .........................................

15

FENDER PROTECTOR  ....................................

17

FENDER PROTECTOR  .............................................

17

FENDER PROTECTOR : Exploded View  ...............

17

FENDER PROTECTOR : Removal and Installa-
tion ...........................................................................

17

ROOF SIDE MOLDING  .....................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

DOOR OUTSIDE MOLDING  .............................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

REAR SPOILER ................................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

22
