EXL-94

< REMOVAL AND INSTALLATION >

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Exploded View

INFOID:0000000005912490

The lighting & turn switch is integrated in the combination switch. Refer to

XX-XX, "*****"

.

SIDE TURN SIGNAL LAMP

EXL-95

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

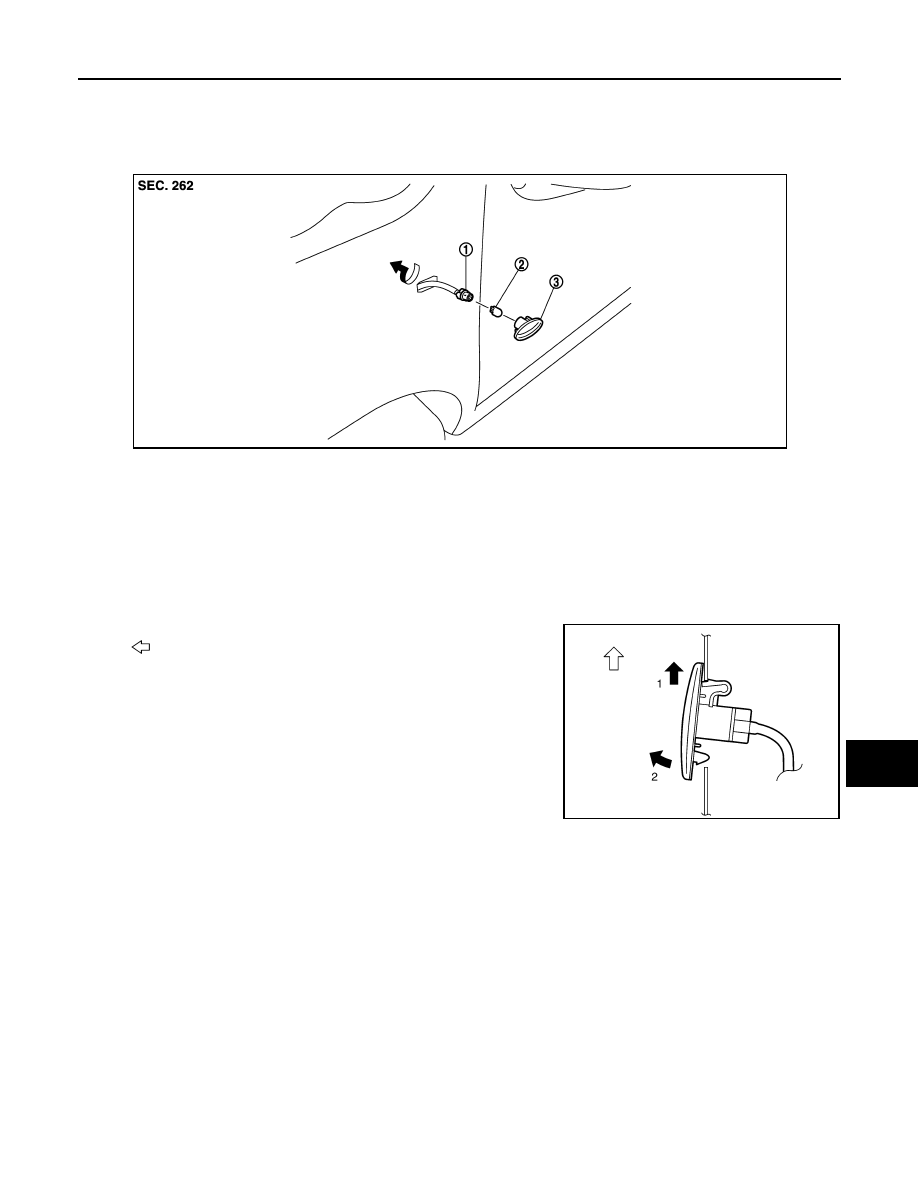

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000005912491

Removal and Installation

INFOID:0000000005912492

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Remove the side turn signal lamp in numerical order shown in the figure.

2.

Rotate the bulb socket counterclockwise and unlock it.
NOTE:
Support side turn signal lamp harness with tape so that it won't
fall into the front fender.

INSTALLATION

1.

Rotate the bulb socket clockwise and lock it.

2.

Fix the pawl-side behind the side turn signal lamp housing first, then push the resin clip-side.

Replacement

INFOID:0000000005912493

CAUTION:

• Disconnect battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

SIDE TURN SIGNAL LAMP BULB

1.

Remove the side turn signal lamp.

2.

Rotate the bulb socket counterclockwise and unlock it.
NOTE:

1.

Side turn signal lamp bulb socket

2.

Side turn signal lamp bulb

3.

Side turn signal lamp housing

JPLIA1809ZZ

: Installable both direction

JSLIA0057ZZ

EXL-96

< REMOVAL AND INSTALLATION >

SIDE TURN SIGNAL LAMP

Support the vehicle-side harness of the side turn signal lamp with tape so that it does not drop inside the
front fender.

3.

Remove the bulb from the bulb socket.

HAZARD SWITCH

EXL-97

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

Exploded View

INFOID:0000000005912494

Removal and Installation

INFOID:0000000005912495

REMOVAL

1.

Remove the cluster lid C. Refer to

XX-XX, "*****"

.

2.

While pressing pawls, push the hazard switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Cluster lid C

2.

Hazard switch

Pawl

JMLIA1042ZZ
