EXL-98

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

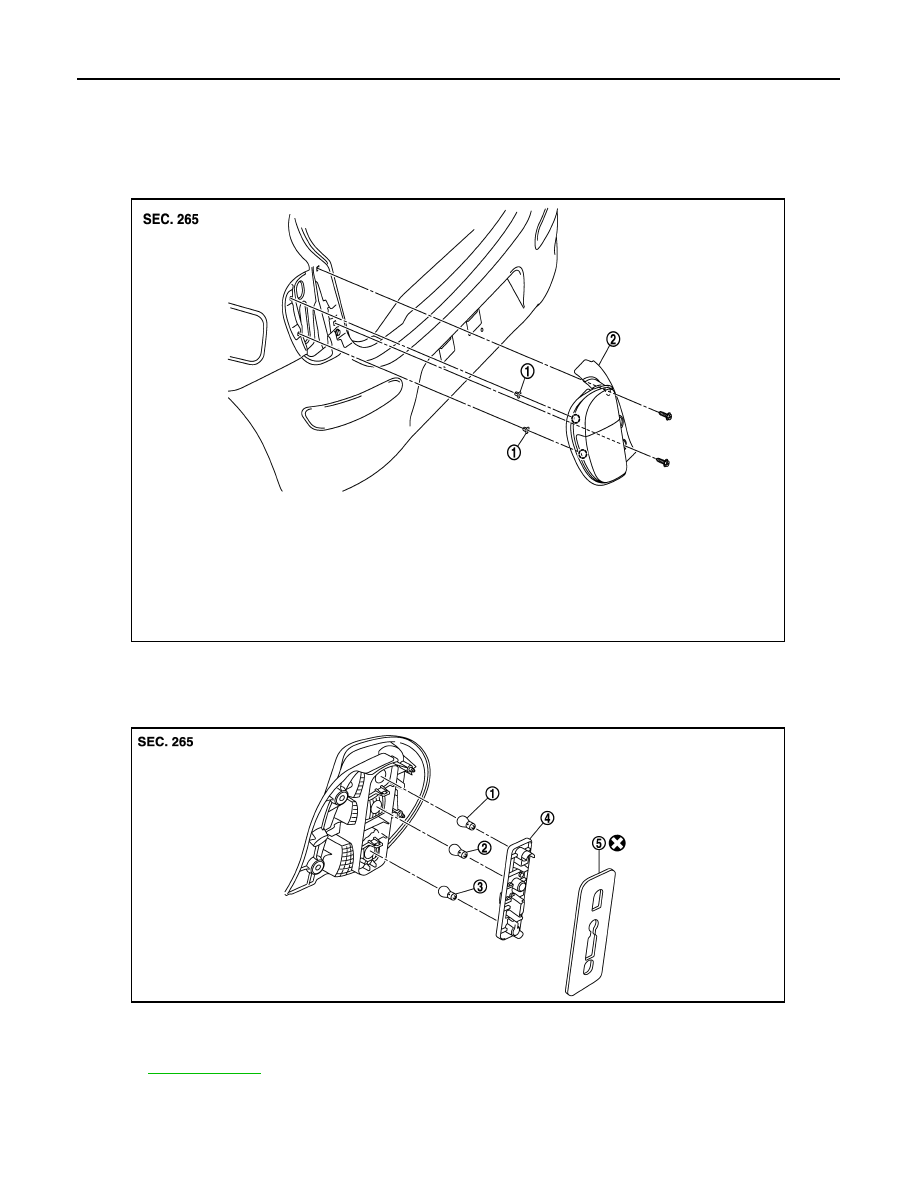

Exploded View

INFOID:0000000005912496

REMOVAL

DISASSEMBLY

Removal and Installation

INFOID:0000000005912497

CAUTION:

1.

Grommet

2.

Rear combination lamp

JMLIA1034ZZ

1.

Stop/tail lamp bulb

2.

Rear turn signal lamp bulb

3.

Reverse lamp bulb

4.

Bulb holder

5.

Seal packing

Refer to

GI-4, "Components"

 for symbols in the figure.

JMLIA1035ZZ

REAR COMBINATION LAMP

EXL-99

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

• Disconnect the battery negative terminal or the fuse.
• Wrap the tip of remover tool with a cloth to protect the body from damage.

REMOVAL

1.

Remove rear combination lamp mounting bolts.

2.

Pull rear combination lamp toward rear of the vehicle.

3.

Disconnect rear combination lamp connector, and then remove rear combination lamp.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000005912498

CAUTION:

• Disconnect the battery negative terminal or the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned off.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

STOP/TAIL LAMP BULB

1.

Remove rear combination lamp assembly.

2.

Disengage fixing pawls, and then remove bulb holder.

3.

Rotate stop/tail lamp bulb counterclockwise, and then remove stop/tail lamp bulb.

REAR TURN SIGNAL LAMP BULB

1.

Remove rear combination lamp assembly.

2.

Disengage fixing pawls, and then remove bulb holder.

3.

Rotate rear turn signal lamp bulb counterclockwise, and then remove rear turn signal lamp bulb.

BACK-UP LAMP BULB

1.

Remove rear combination lamp assembly.

JMLIA1041ZZ

JMLIA1041ZZ

EXL-100

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

2.

Disengage fixing pawls, and then remove bulb holder.

3.

Rotate back-up lamp bulb counterclockwise, and then remove back-up lamp bulb.

JMLIA1041ZZ

HIGH-MOUNTED STOP LAMP

EXL-101

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HIGH-MOUNTED STOP LAMP

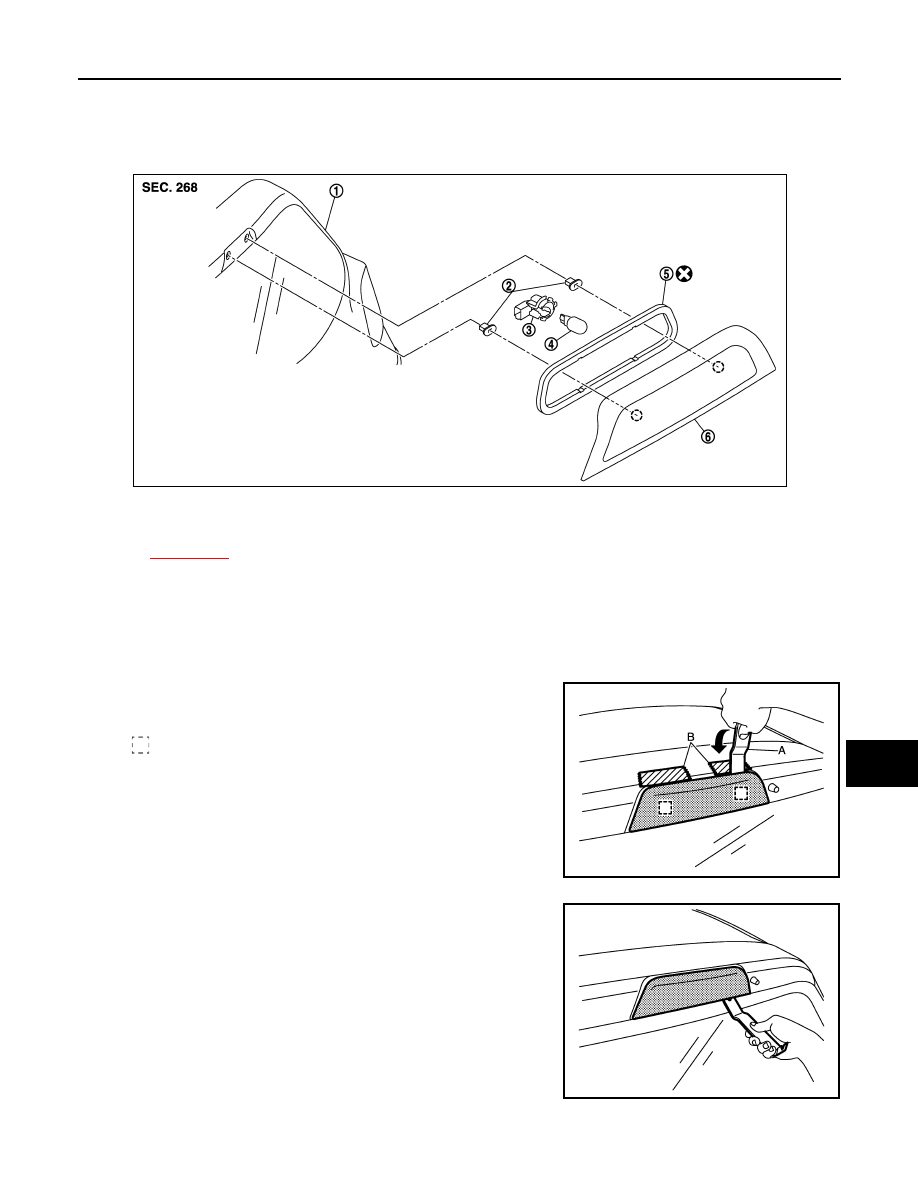

Exploded View

INFOID:0000000005912502

Removal and Installation

INFOID:0000000005912503

CAUTION:

Disconnect battery negative terminal or remove the fuse.

REMOVAL

1.

Disengage high-mounted stop lamp fixing pawls with remover
tool (A).

CAUTION:

• Apply protect tape (B) on back door to protect the painted

surface from damage.

• Never insert remover tool in the back door glass side to

prevent damage of back door glass.

2.

Pull the high-mounted stop lamp toward rear of the vehicle.

1.

Back door

2.

Grommet

3.

High-mounted stop lamp socket

4.

High-mounted stop lamp bulb

5.

Seal packing

6.

High-mounted stop lamp

Refer to

XX-XX, "*****"

 for symbols in the figure.

JMLIA1036ZZ

: Metal clip

JMLIA1021ZZ

JMLIA1022ZZ
