Nissan March K13. Manual - part 315





EXL-86

< PERIODIC MAINTENANCE >

HEADLAMP AIMING ADJUSTMENT

Unit: mm (in)

C.

Vertical center line of headlamp

H.

Horizontal center line of headlamp

L.

Distance from headlamp center to
screen

X.

Aiming adjustment area
(lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10 m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right side from headlamp center line)

Highest light axis

100 (3.94)

0 - 100 (0 - 3.94)

Target light axis

100 (3.94)

Lowest light axis

150 (5.91)

FRONT FOG LAMP AIMING ADJUSTMENT

EXL-87

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP AIMING ADJUSTMENT

Description

INFOID:0000000006056702

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the lug-

gage room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.)

• Ride alone on the driver seat.

AIMING ADJUSTMENT SCREW

• Turn the aiming adjusting screw for adjustment.

• For the position and direction of the adjusting screw, refer to the

figure.
NOTE:
A screwdriver or hexagonal wrench [6 mm (0.24 in)] can be used
for adjustment.

Aiming Adjustment Procedure

INFOID:0000000006056703

1.

Place the screen.
NOTE:
• Stop the vehicle facing the wall.
• Place the board on a plain road vertically.

2.

Face the vehicle with the screen. Maintain 10 m (32.8 ft) between the front fog lamp center and the
screen.

3.

Start the engine. Illuminate the front fog lamp.

CAUTION:

Never cover the lens surface with a tape etc. The lens is made of resin.
NOTE:
Shut off the headlamp light with the board to prevent from illuminating the adjustment screen.

4.

Adjust the cutoff line height (A) with the aiming adjustment screw so that the distance (X) between the hor-
izontal center line of front fog lamp (H) and (A) becomes 200 mm (7.87 in).

Front fog lamp light distribution on the screen

A: UP

B: DOWN

JMLIA1040ZZ

JPLIA0008ZZ

EXL-88

< PERIODIC MAINTENANCE >

FRONT FOG LAMP AIMING ADJUSTMENT

A

: Cutoff line

B

: High illuminance area

H

: Horizontal center line of front fog lamp

V

: Vertical center line of front fog lamp

X

: Cutoff line height

FRONT COMBINATION LAMP

EXL-89

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

FRONT COMBINATION LAMP

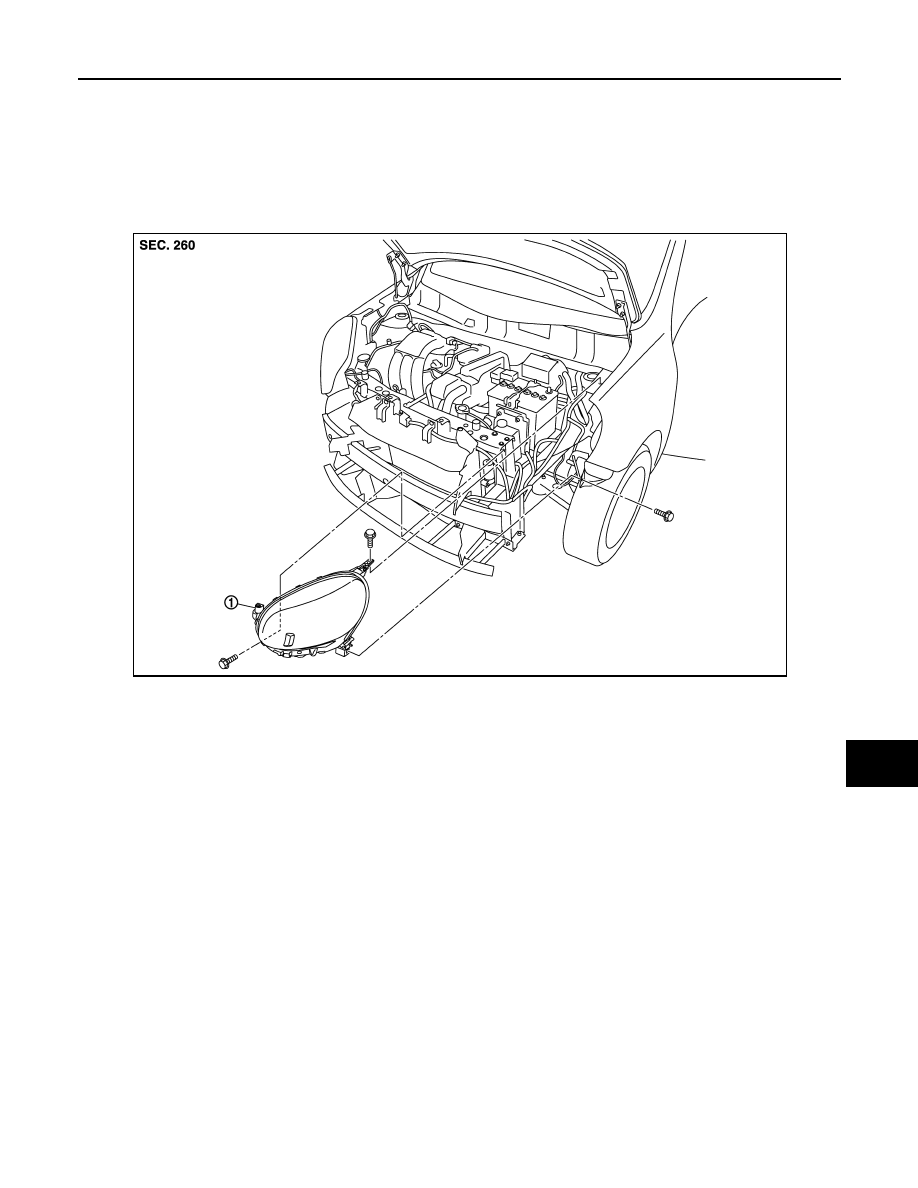

Exploded View

INFOID:0000000005912481

REMOVAL

DISASSEMBLY

1.

Front combination lamp

A.

Air duct clip(only left)

JMLIA1031ZZ
