Nissan March K13. Manual - part 270
EM-14
< BASIC INSPECTION >
[HR12DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
Inspection
INFOID:0000000005988166
1.
Warm up engine thoroughly. Then, stop it.
2.
Release fuel pressure. Refer to following.
• HR12DE (TYPE 1):
• HR12DE (TYPE 2):
3.
Remove ignition coil and spark plug from each cylinder. Refer to
EM-41, "Removal and Installation"
.
4.
Connect engine tachometer (not required in use of CONSULT-III).
5.

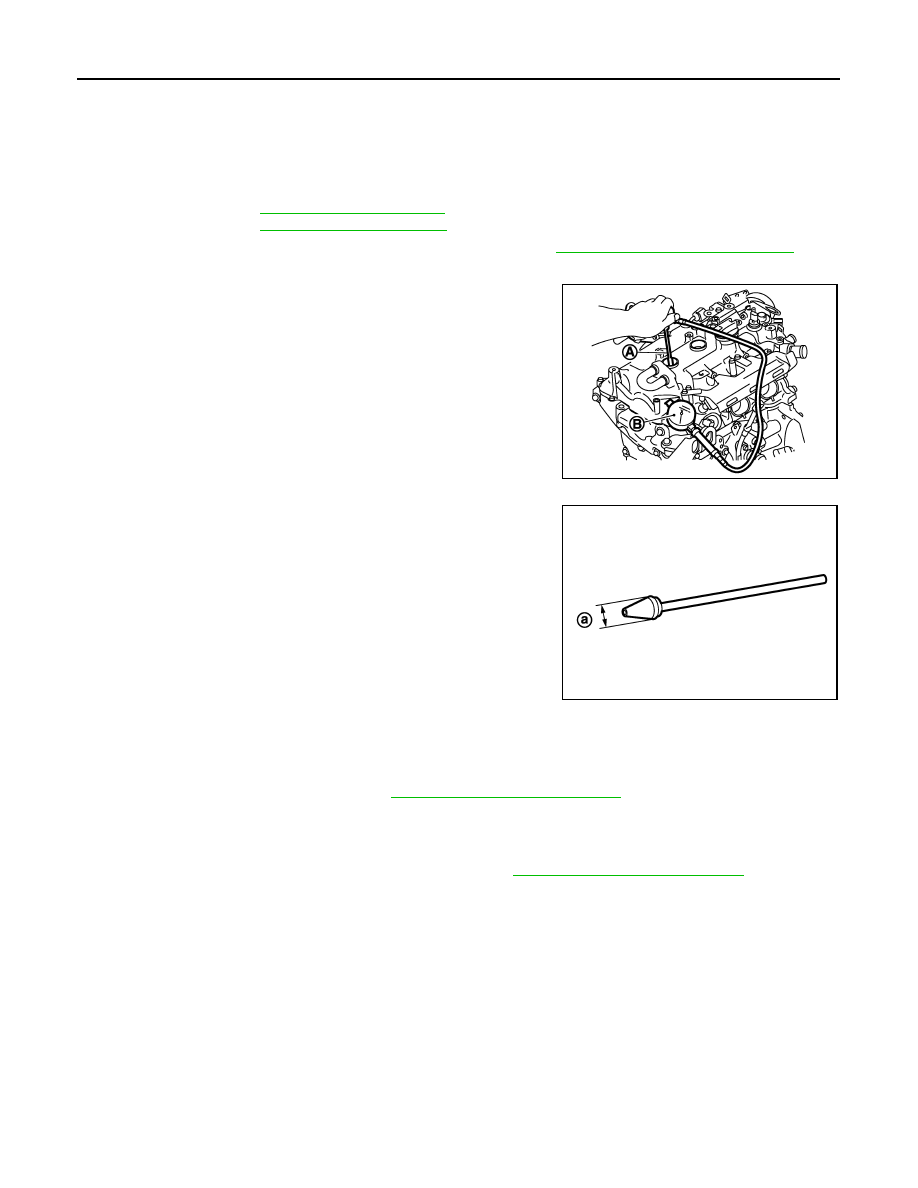

Install compression gauge (B) with an adapter (A) (commercial
service tool) onto spark plug hole.
• Use the adapter whose picking up end inserted to spark plug
hole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.
6.
With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.
CAUTION:
Always use a fully charged battery to obtain the specified engine speed.
• If the engine speed is out of the specified range, check battery liquid for proper gravity. Check the
engine speed again with normal battery gravity. Refer to
PG-130, "How to Handle Battery"
.
• If compression pressure is below minimum value, check valve clearances, and parts associated with
combustion chamber (valve, valve seat, piston, piston ring, cylinder bore, cylinder head, and cylinder
head gasket). After the checking, measure compression pressure again.
• If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole
of the cylinder to recheck it for compression.
- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-
ton rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.
• If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, cylinder head gaskets are leaking. In such a case, replace cyl-
inder head gaskets.
7.
After inspection is completed, install removed parts.
8.
Start the engine, and check that the engine runs smoothly.
JPBIA3440ZZ
a
: 20 mm (0.79 in)
JPBIA0171ZZ
Compression pressure
: Refer to
