EM-6

< PRECAUTION >

[HR12DE]

PRECAUTIONS

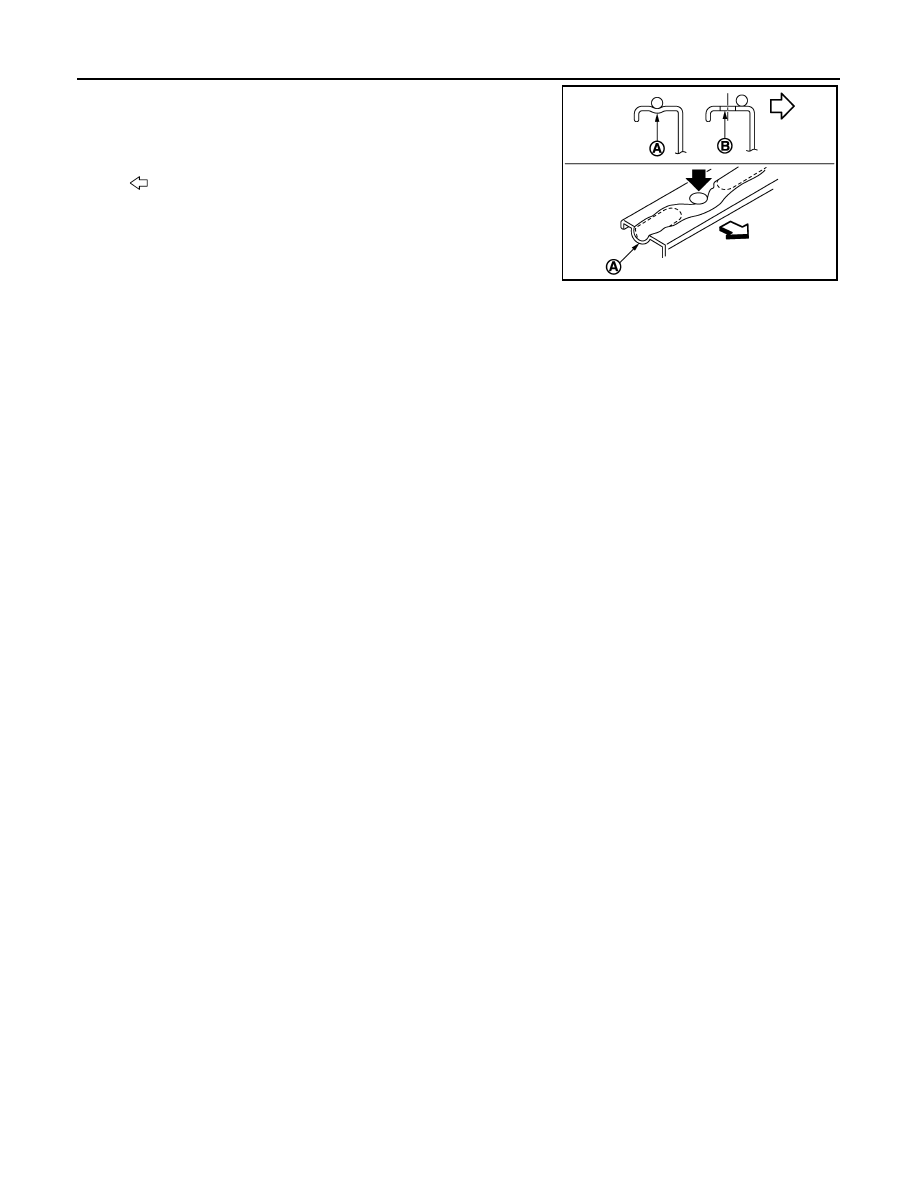

• As for bolt holes (B), normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.
Check to read the text of this manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.
• Do not retighten mounting bolts or nuts after the installation.
• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are specific instructions in this manual, observe them.

A

:  Groove

: Inside

JPBIA0010ZZ

PREPARATION

EM-7

< PREPARATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

PREPARATION

PREPARATION

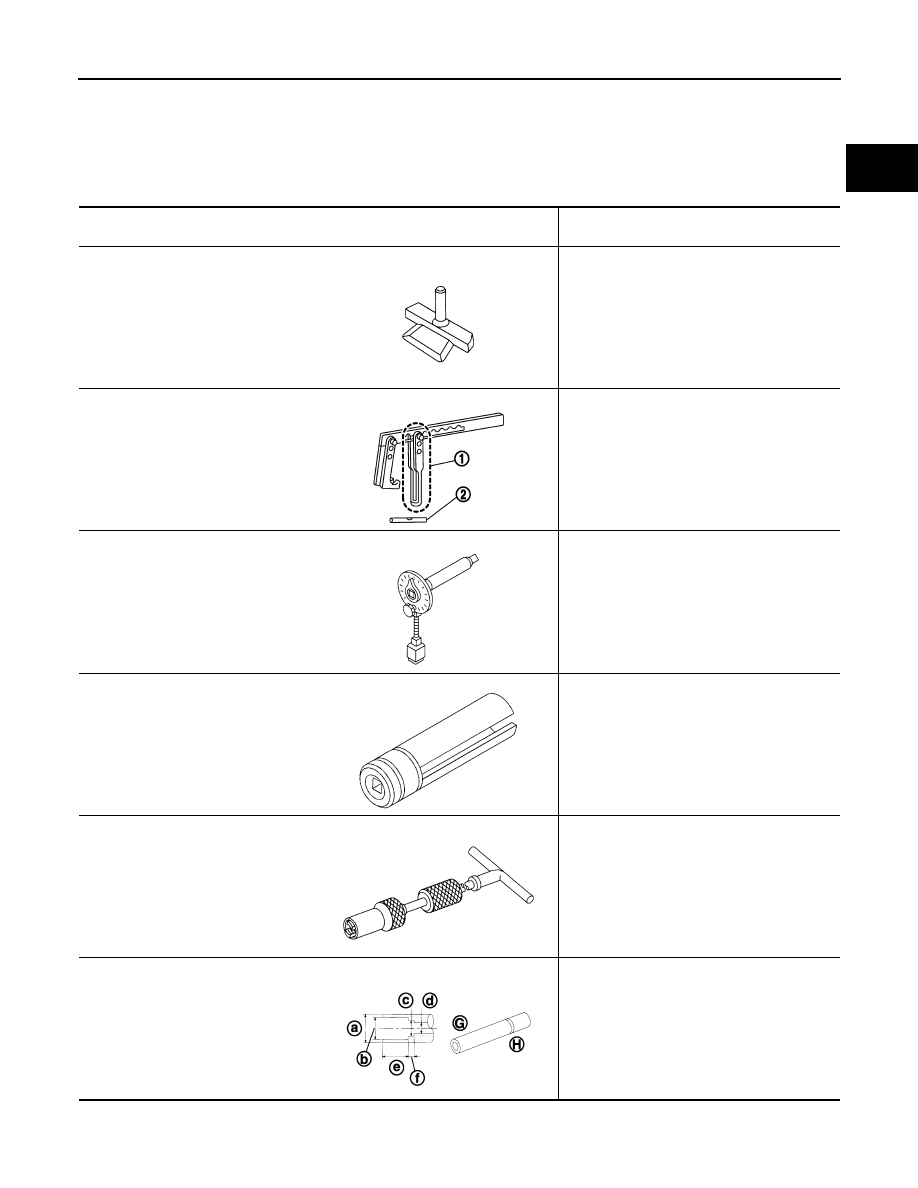

Special Service Tools

INFOID:0000000005988163

Tool number
Tool name

Description

KV10111100
Seal cutter

Removing oil pan (upper and lower) etc.

KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
Adapter

Disassembling and assembling valve mecha-
nism
Part (1) is a component of KV10116200, but
Part (2) is not so.

KV10112100
Angle wrench

Tightening bolts for main bearing cap, cylinder
head, etc.

KV10117100
Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor 1
For 22 mm (0.87 in) width hexagon nut

KV10107902
Valve oil seal puller

Removing valve oil seal

KV10115600
Valve oil seal drift

Installing valve oil seal
Use side A (G).
a: 20 (0.79) dia.             d: 8 (0.31) dia.
b: 13 (0.51) dia.             e: 10.7 (0.421)
c: 10.3 (0.406) dia.         f: 5 (0.20)
H: Side B
                                                   Unit: mm (in)

S-NT046

PBIC1650E

S-NT014

NT379

NT011

JPBIA0396ZZ

EM-8

< PREPARATION >

[HR12DE]

PREPARATION

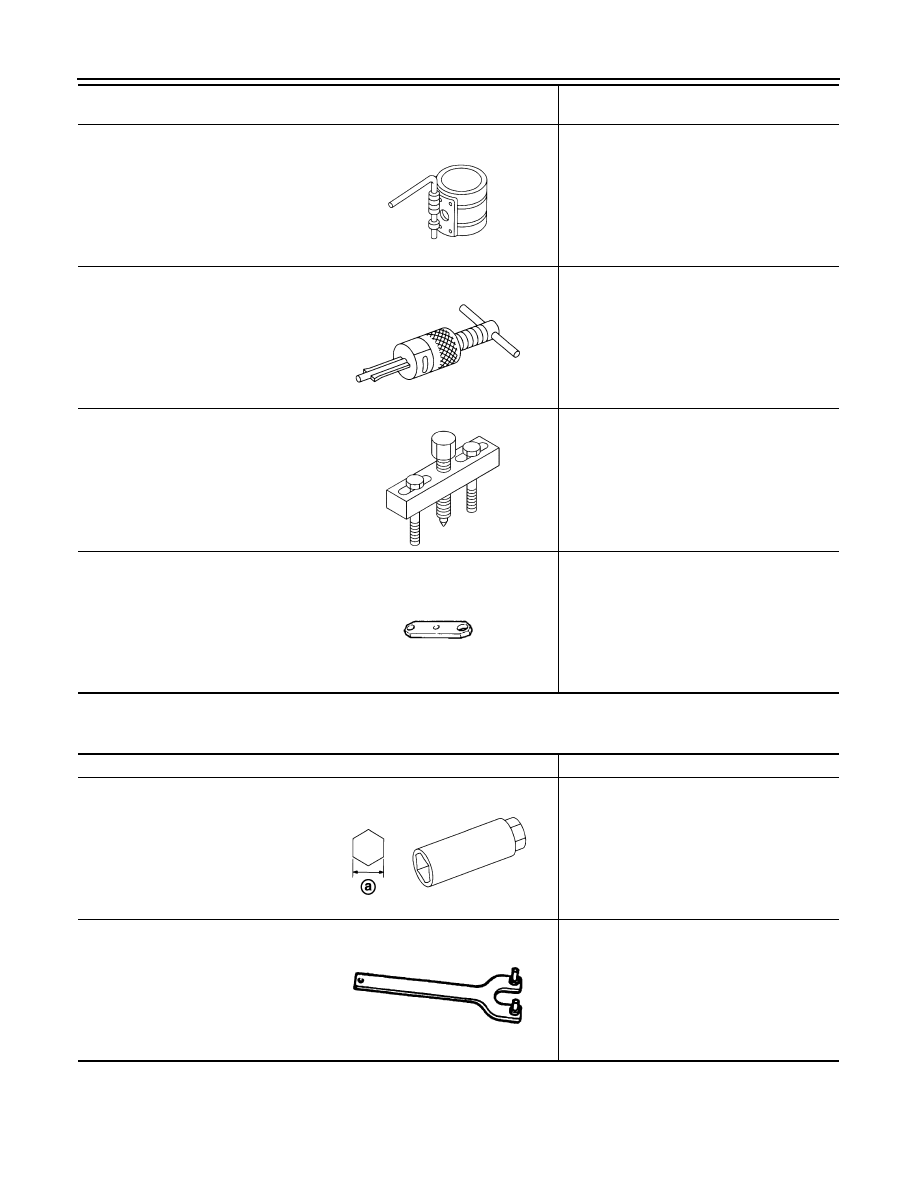

Commercial Service Tools

INFOID:0000000005988164

EM03470000
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
Pilot bushing puller

Removing pilot converter

KV11103000
Pulley puller

Removing crankshaft pulley

KV11105210
Stopper plate

Fixing drive plate

Tool number
Tool name

Description

S-NT044

S-NT045

NT676

ZZA0009D

Tool name

Description

Spark plug wrench

Removing and installing spark plug
a: 14 mm (0.55 in)

Pulley holder

Crankshaft pulley removing and installing

JPBIA0399ZZ

ZZA1010D

PREPARATION

EM-9

< PREPARATION >

[HR12DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

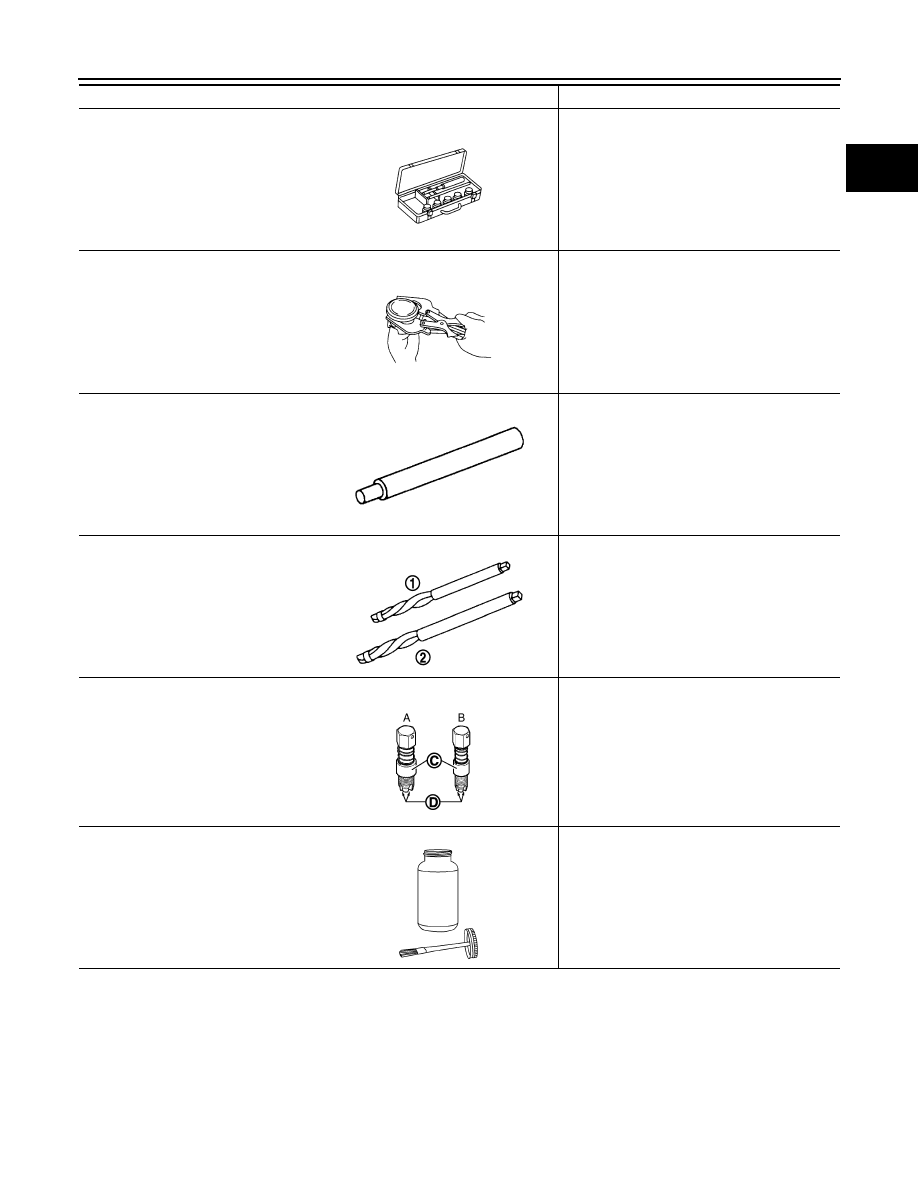

Valve seat cutter set

Finishing valve seat dimensions

Piston ring expander

Removing and installing piston ring

Valve guide drift

Removing and installing valve guide

Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide

Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new air fuel ratio sensor
(Use with anti-seize lubricant shown below.)
A: [18 mm (0.71 in) dia.] for zirconia heated
oxygen sensor
B: [12 mm (0.47 in) dia.] for titania heated
oxygen sensor
C: Mating surface shave cylinder
D: Flutes

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Tool name

Description

S-NT048

S-NT030

PBIC4012E

PBIC4013E

JPBIA0238ZZ

AEM489
