EVAP CANISTER

EC-525

< REMOVAL AND INSTALLATION >

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

EVAP CANISTER

Hydraulic Layout

INFOID:0000000006037493

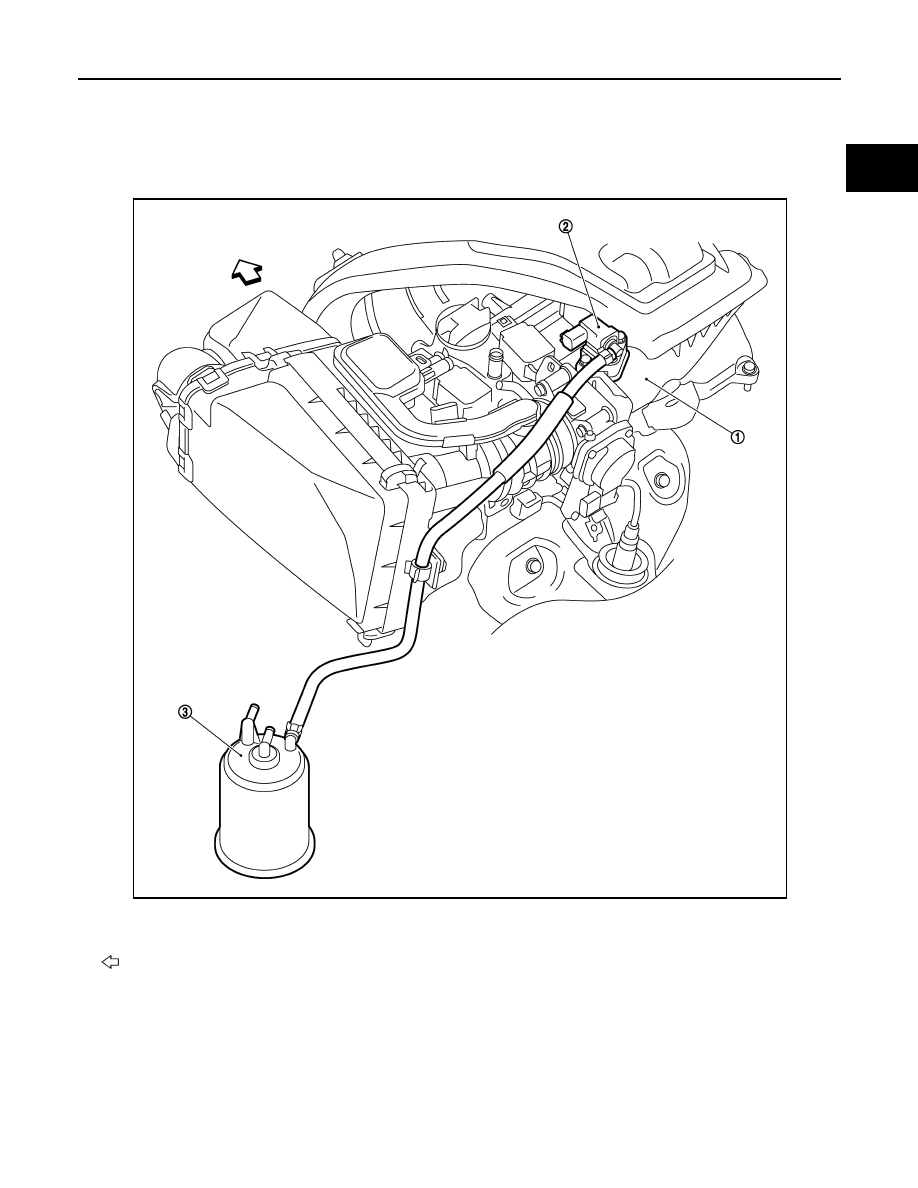

EVAPORATIVE EMISSION LINE DRAWING

NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

1.

Intake manifold collector

2.

EVAP canister purge volume control
solenoid valve

3.

EVAP canister

: Vehicle front

JPBIA3282ZZ

EC-526

< REMOVAL AND INSTALLATION >

[HR12DE (TYPE 2)]

FUEL PUMP CONTROL MODULE

FUEL PUMP CONTROL MODULE

Removal and Installation

INFOID:0000000006037494

REMOVAL

1.

Pull up passenger side floor carpet. Refer to

XX-XX, "*****"

.

2.

Disconnect fuel pump control module (FPCM) connector.

3.

Remove fuel pump control module (FPCM) fixing bolts.

4.

Remove fuel pump control module (FPCM).

INSTALLATION

Install in the reverse order of removal.

SERVICE DATA AND SPECIFICATIONS (SDS)

EC-527

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HR12DE (TYPE 2)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000006037495

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Ignition Timing

INFOID:0000000006037496

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Condition

Specification

No load* (in Neutral position)

750

±

 50 rpm

Condition

Specification

No load* (in Neutral position)

12

±

2

°

BTDC

EM-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

EM

A

EM

N

O

P

CONTENTS

ENGINE MECHANICAL

HR12DE

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Procedure without Cowl Top Cover

......

3

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  .....................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

3

Draining Engine Coolant  ...........................................

4

Disconnecting Fuel Piping .........................................

4

Removal and Disassembly ........................................

4

Inspection, Repair and Replacement  ........................

4

Assembly and Installation  .........................................

4

Parts Requiring Angle Tightening  .............................

4

Liquid Gasket  ............................................................

5

PREPARATION ............................................

7

PREPARATION ...................................................

7

Special Service Tools ................................................

7

Commercial Service Tools  ........................................

8

BASIC INSPECTION  ...................................

11

CAMSHAFT VALVE CLEARANCE  ...................

11

Inspection and Adjustment ......................................

11

COMPRESSION PRESSURE  ............................

14

Inspection ................................................................

14

SYMPTOM DIAGNOSIS  ..............................

16

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

16

NVH troubleshooting Chart  .....................................

16

PERIODIC MAINTENANCE .........................

18

DRIVE BELT .......................................................

18

Checking ..................................................................

18

Tension Adjustment .................................................

18

Removal and Installation  .........................................

19

AIR CLEANER FILTER .....................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

SPARK PLUG  ...................................................

22

Removal and Installation  .........................................

22

Inspection ................................................................

22

REMOVAL AND INSTALLATION  ...............

23

DRIVE BELT IDLER PULLEY  ..........................

23

Removal and Installation  .........................................

23

AIR CLEANER AND AIR DUCT  .......................

24

Exploded View .........................................................

24

Removal and Installation  .........................................

24

Inspection ................................................................

25

EGR SYSTEM  ...................................................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

INTAKE MANIFOLD  .........................................

28

WITHOUT EGR CONTROL VALVE  ..........................

28

WITHOUT EGR CONTROL VALVE : Exploded
View .........................................................................

28

WITHOUT EGR CONTROL VALVE : Removal
and Installation  ........................................................

28

WITH EGR CONTROL VALVE  ..................................

29

WITH EGR CONTROL VALVE : Exploded View .....

29

WITH EGR CONTROL VALVE : Removal and In-
stallation ..................................................................

30

EXHAUST MANIFOLD ......................................

32

Exploded View .........................................................

32

Removal and Installation  .........................................

32

Inspection ................................................................

33
