FRONT DOOR LOCK

DLK-239

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSIDE HANDLE

INSIDE HANDLE : Removal and Installation

INFOID:0000000006067058

REMOVAL

1.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

2.

Remove upper side of sealing screen.
NOTE:
Cut the butyl tape so that some parts of the butyl tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove inside handle mounting bolts, slide handle toward rear of vehicle, disengage handle from door
panel, and remove inside handle.

4.

Remove the lock and inside handle cable from inside handle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000006067059

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-14, "Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

Disconnect key rod (driver side).

5.

Disconnect door antenna and door request switch connector and remove harness clamp (with Intelligent
Key system) on outside handle bracket.

6.

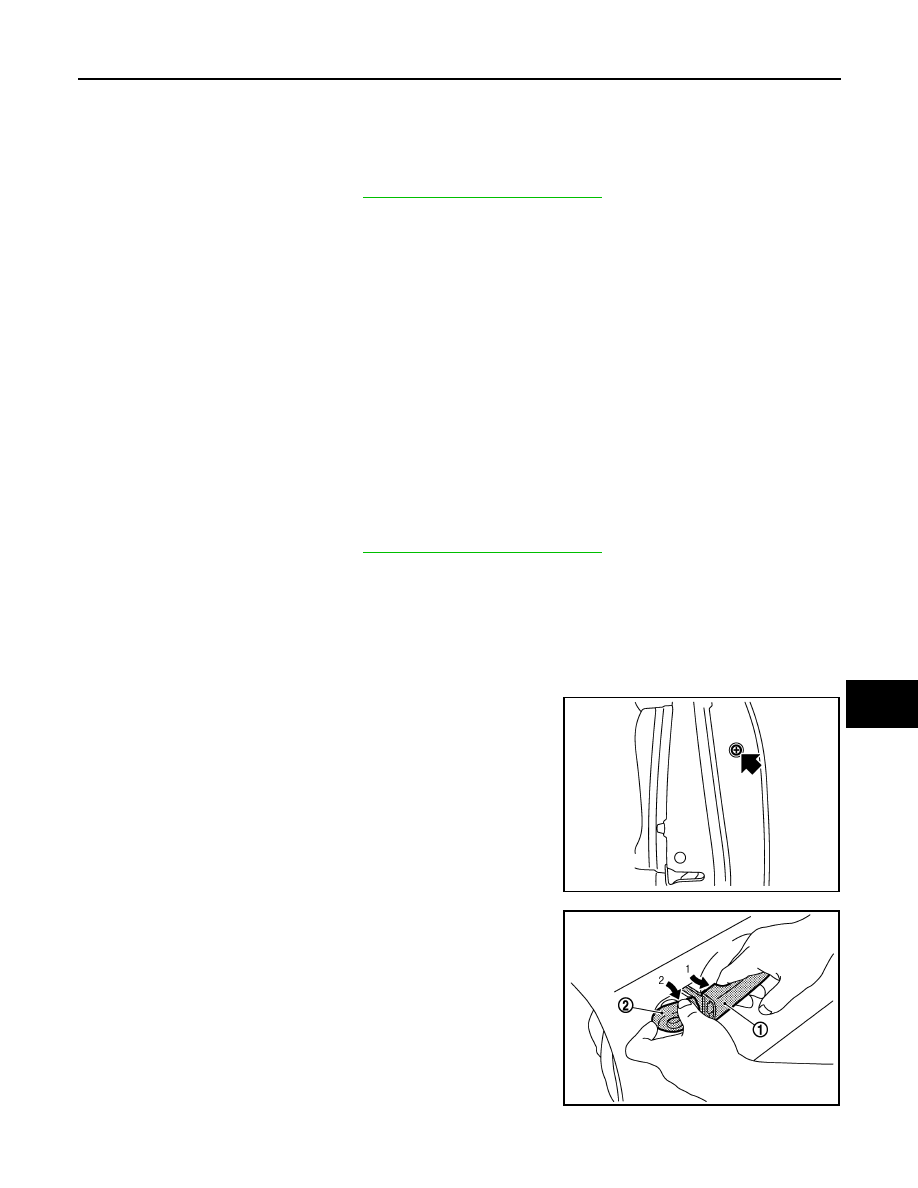

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

7.

While pulling outside handle (1), remove door key cylinder
assembly (diver side) (2) or outside handle escutcheon (passen-
ger side) (2).

JMKIA1464ZZ

JMKIA0441ZZ

DLK-240

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

8.

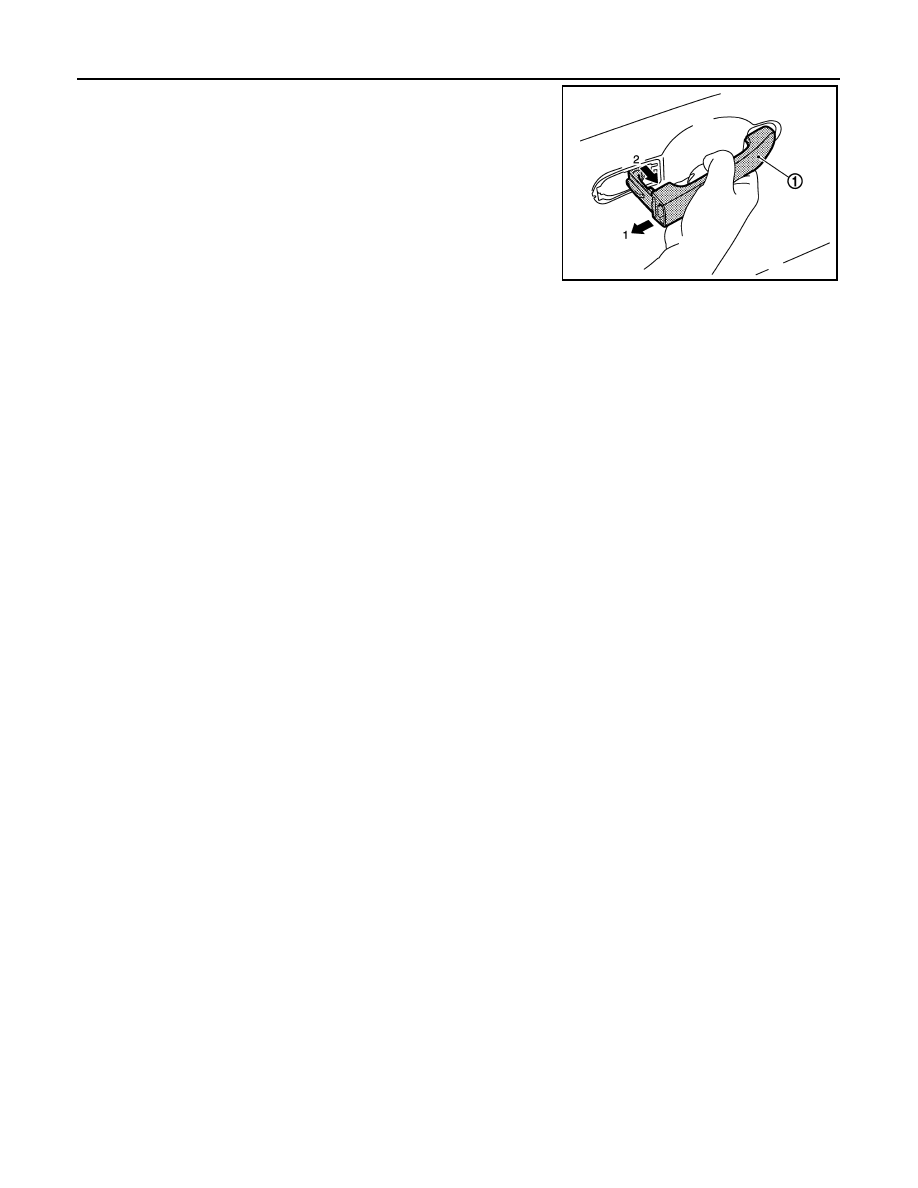

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

9.

Remove front gasket and rear gasket.

10. While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.

11. Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• When installing key rod, rotate key rod holder until a click is felt.
• Check that door lock cables are normally engaged with inside handle and outside handle.
• After installation, check door open/close, and lock/unlock operation.

JMKIA2948ZZ

REAR DOOR LOCK

DLK-241

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

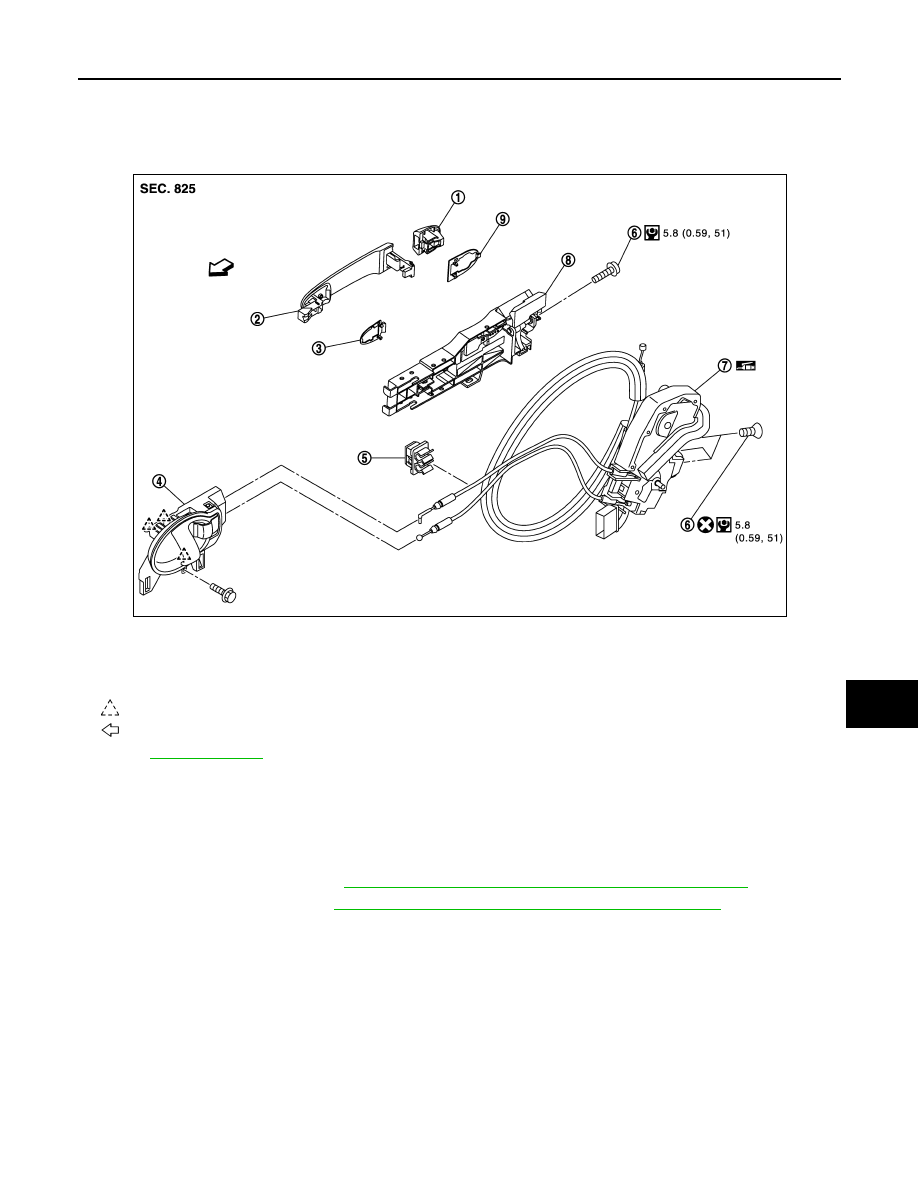

REAR DOOR LOCK

Exploded View

INFOID:0000000006067060

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000006067061

REMOVAL

1.

Remove outside handle. Refer to

DLK-242, "OUTSIDE HANDLE : Removal and Installation"

.

2.

Remove inside handle. Refer to

DLK-242, "INSIDE HANDLE : Removal and Installation"

.

3.

Remove door lock assembly TORX bolts.

4.

Disconnect door lock actuator connector, and then remove door lock assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

INSIDE HANDLE

1.

Outside handle escutcheon

2.

Outside handle

3.

Front gasket

4.

Inside handle

5.

Clip

6.

TORX bolt

7.

Door lock assembly

8.

Outside handle bracket

9.

Rear gasket

: Pawl

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5354GB

DLK-242

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR LOCK

INSIDE HANDLE : Removal and Installation

INFOID:0000000006067062

REMOVAL

1.

Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

2.

Remove upper side of sealing screen.
NOTE:
Cut the butyl tape so that some parts of the butyl tape do not remain on the sealing screen, if the sealing
screen is reused.

3.

Remove inside handle mounting bolts, slide handle toward rear of vehicle, disengage handle from door
panel, and remove inside handle.

4.

Remove the lock and inside handle cable from inside handle.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Check door open/close, lock/unlock operation after installation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000006067063

REMOVAL

1.

Fully close rear door glass.

2.

Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

3.

Remove sealing screen.
NOTE:
Cut the butyl-tape so that some parts of the butyl-tape do not remain on the sealing screen, if the sealing
screen is reused.

4.

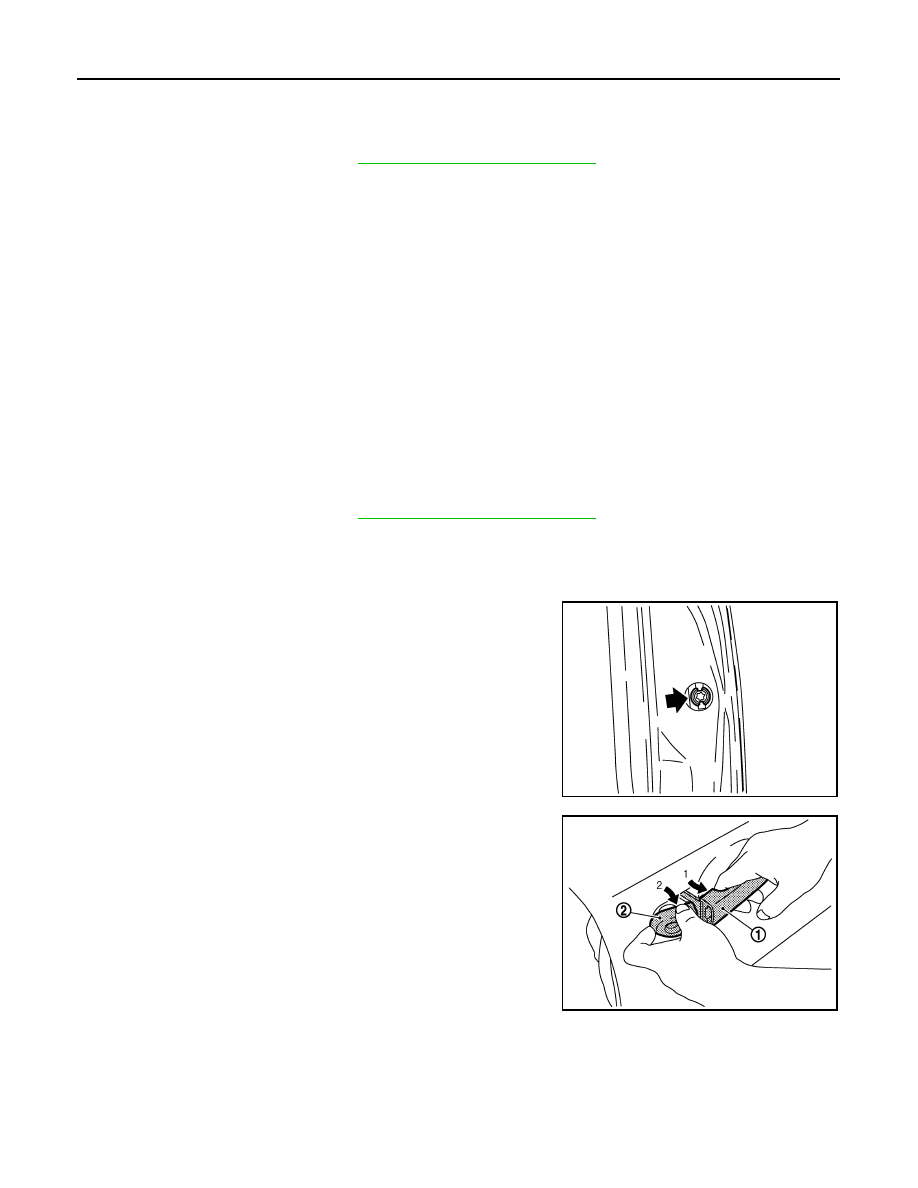

Remove door side grommet, and loosen TORX bolt from grom-
met hole.

5.

While pulling outside handle (1), remove outside handle
escutcheon (2).
