Nissan March K13. Manual - part 133





REAR DOOR LOCK

DLK-243

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

6.

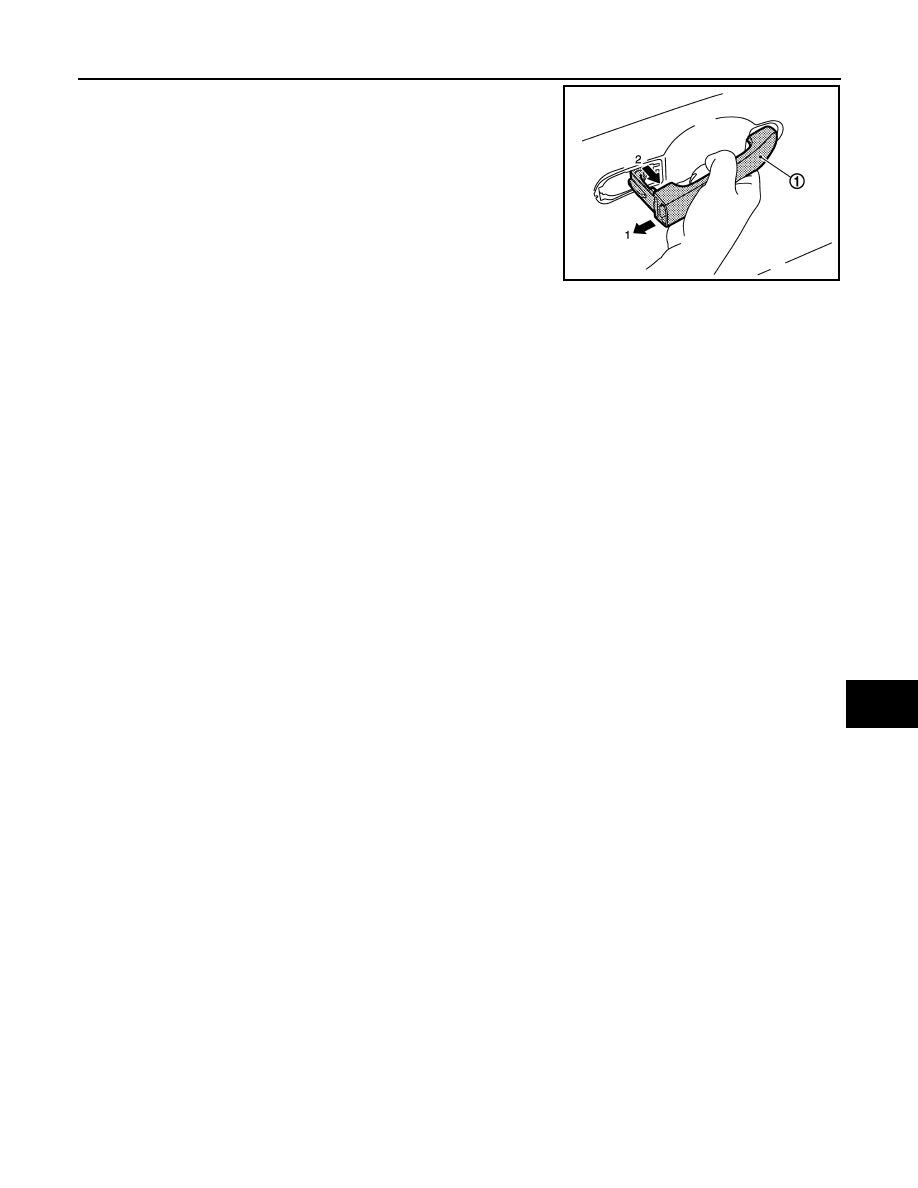

While pulling outside handle (1), slide toward rear of vehicle to
remove outside handle.

7.

Remove front gasket and rear gasket.

8.

While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.

9.

Reach in to separate outside handle cable connection on outside handle bracket.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check door open/close, lock/unlock operation after installation.
• Check door lock cable is properly engaged with outside handle bracket.

JMKIA2948ZZ

DLK-244

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR LOCK

BACK DOOR LOCK

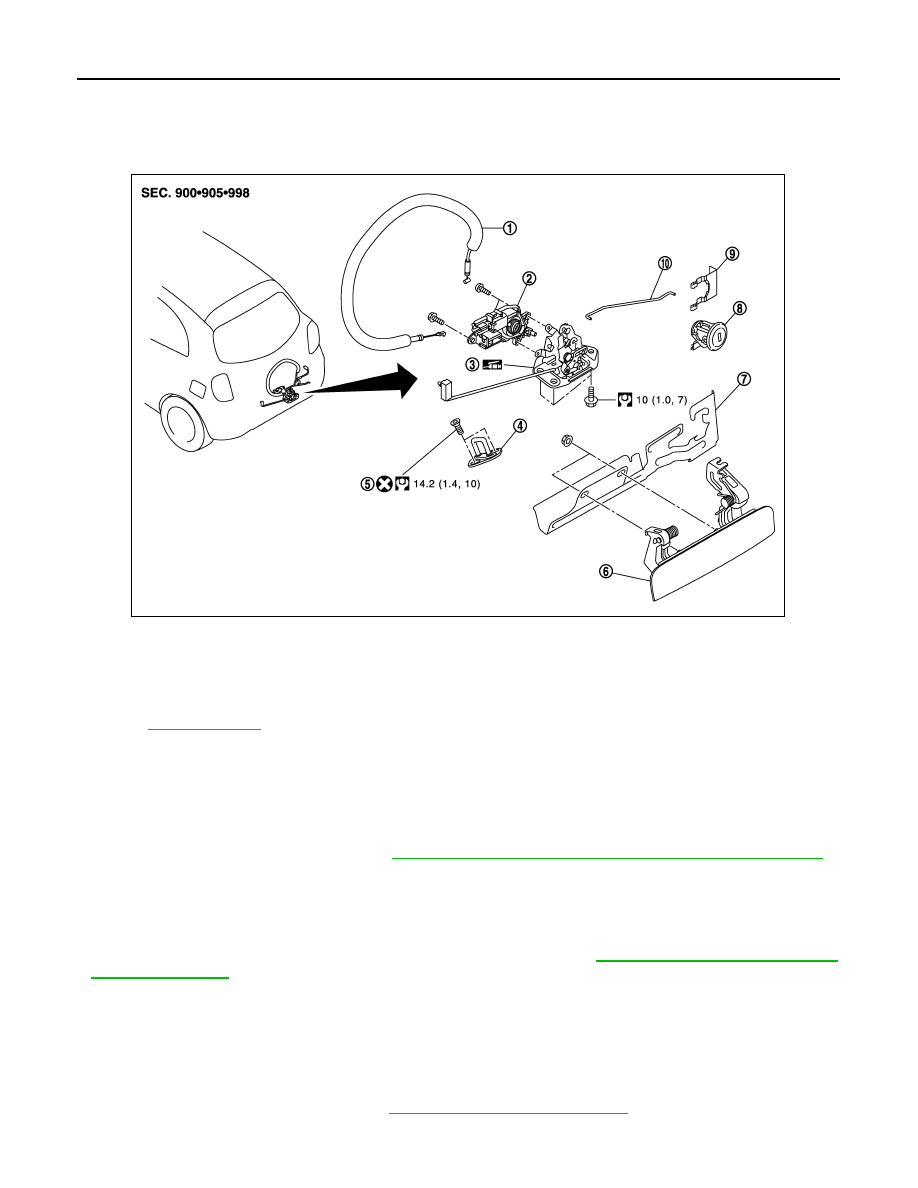

Exploded View

INFOID:0000000006067064

BACK DOOR STRIKER

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000006067065

REMOVAL

1.

Remove the luggage rear plate. Refer to

INT-30, "LUGGAGE REAR PLATE : Removal and Installation"

.

2.

Remove the back door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, perform the back door fitting adjustment. Refer to

DLK-232, "BACK DOOR ASSEM-

BLY : Adjustment"

.

• After installation, check back door open/close, and lock/unlock operation.

DOOR LOCK

DOOR LOCK : Removal and Installation

INFOID:0000000006067066

REMOVAL

1.

Remove the back door finisher. Refer to

INT-33, "Removal and Installation"

.

1.

Back door opener cable

2.

Back door lock actuator

3.

Back door lock assembly

4.

Back door striker

5.

TORX bolt

6.

Outside handle

7.

Back door handle bracket

8.

Back door lock cylinder

9.

Retainer clip

10. Key rod

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5355GB

BACK DOOR LOCK

DLK-245

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Remove back door lock switch harness connector clip from back door panel, and then disconnect back
door lock switch harness connector.

3.

Disconnect back door lock actuator connector.

4.

Disconnect key rod.

5.

Remove back door lock assembly mounting bolts.

6.

Disconnect back door opener cable, and remove back door lock assembly.

CAUTION:

Never damage the outside handle cable.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

After installation, check back door open/close, and lock/unlock operation.

OUTSIDE HANDLE

OUTSIDE HANDLE : Removal and Installation

INFOID:0000000006067067

REMOVAL

1.

Remove the back door finisher.

INT-33, "Removal and Installation"

.

2.

Remove back door opener cable from outside handle.

CAUTION:

Never damage the outside handle cable.

3.

Remove the mounting nuts, and then remove the outside handle assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check that back door lock cables are normally engaged with outside handle.
• After installation, check back door open/close, and lock/unlock operation.

EMERGENCY LEVER

EMERGENCY LEVER : Unlock procedures

INFOID:0000000006067068

UNLOCK PROCEDURES

NOTE:
If back door lock cannot be unlocked due to a malfunction or battery discharge, follow the procedures to
unlock back door.

1.

Remove the back door finisher. Refer to

INT-33, "Removal and Installation"

.

2.

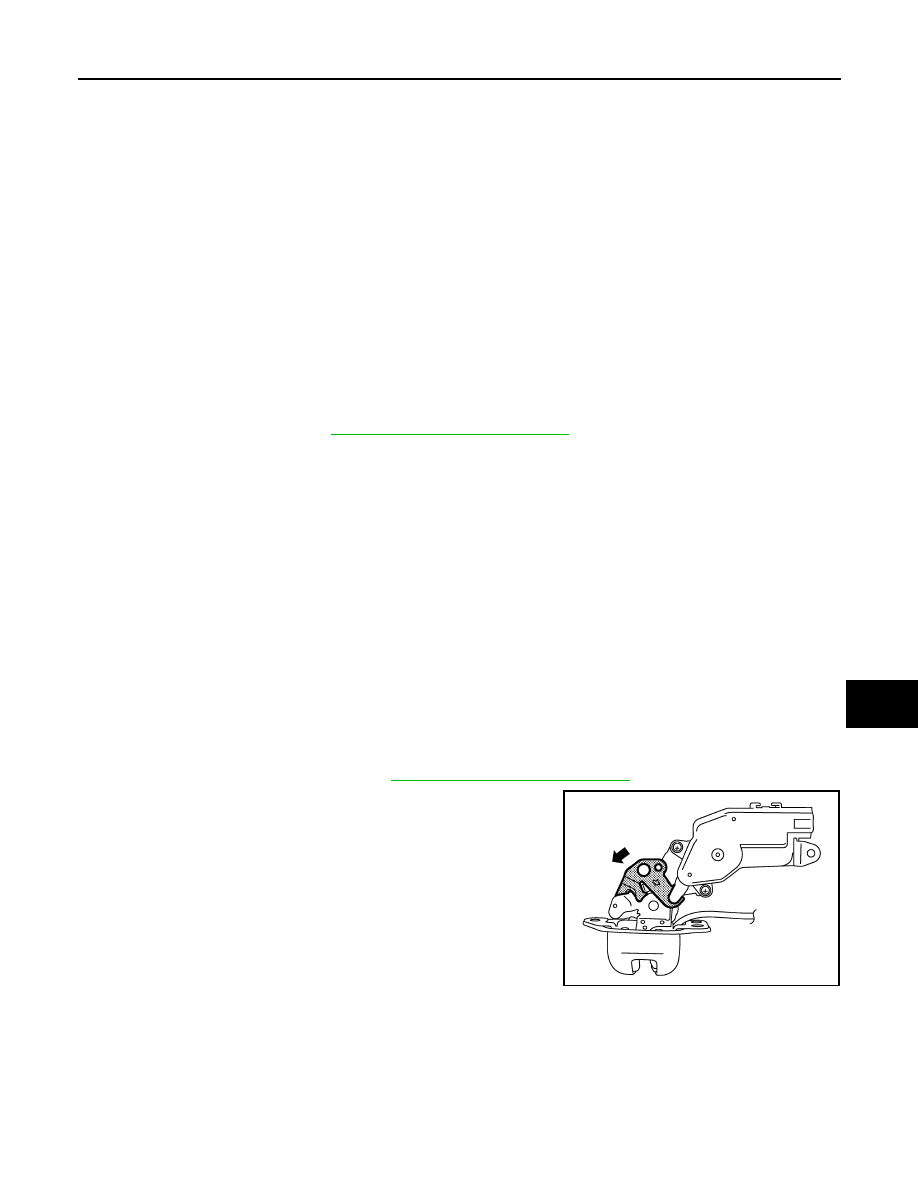

From inside the vehicle, rotate emergency lever toward lower
direction and unlock.

JMKIA5356ZZ

DLK-246

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

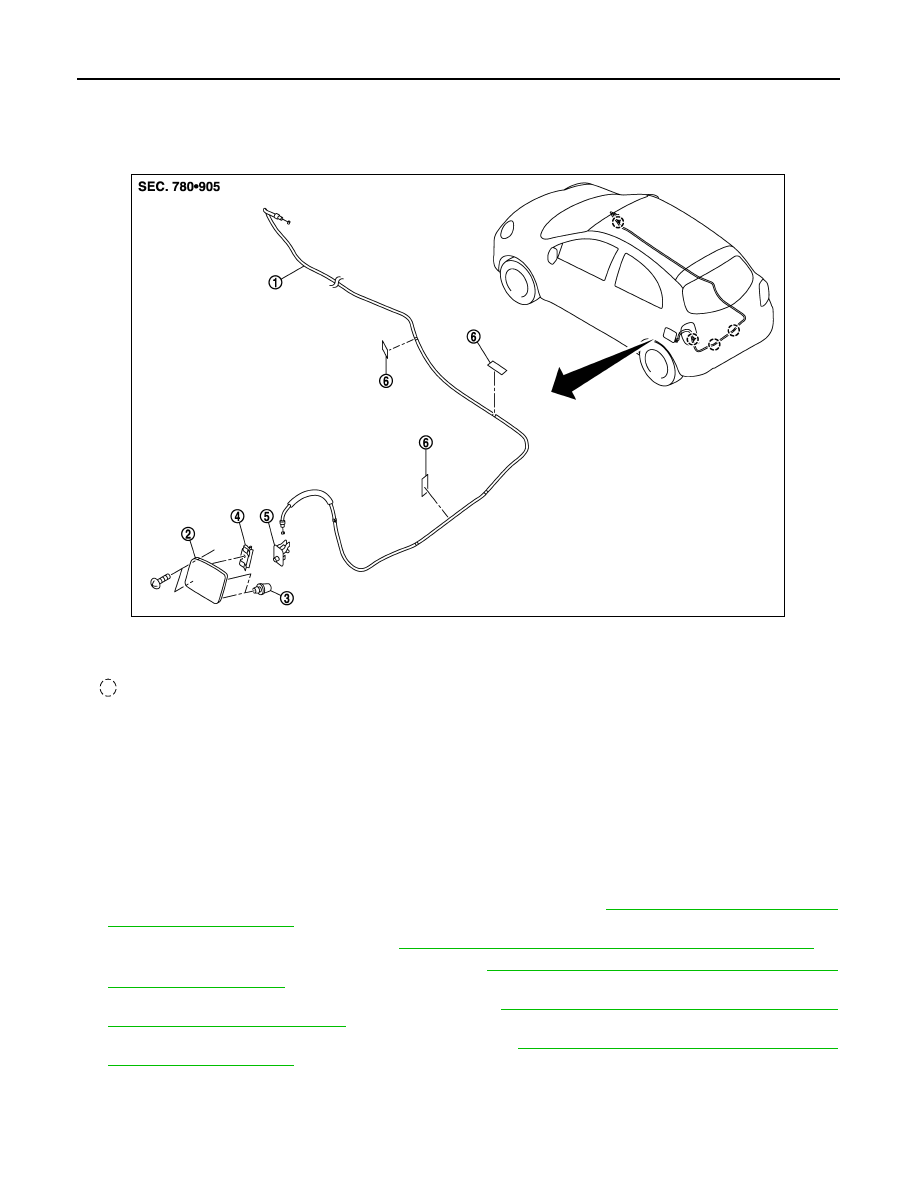

Exploded View

INFOID:0000000006067069

Removal and Installation

INFOID:0000000006067070

REMOVAL

Fuel Filler Lid

1.

Fully open fuel filler lid.

2.

Remove mounting screws, and then remove fuel filler lid.

Fuel Filler Lid Opener Cable

1.

Fully open fuel filler lid.

2.

Remove front kicking plate inner (RH) and rear kicking plate inner (RH).

INT-22, "KICKING PLATE INNER

: Removal and Installation"

.

3.

Remove dash side finisher (RH). Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installation"

.

4.

Remove center pillar lower garnish (RH). Refer to

INT-23, "CENTER PILLAR LOWER GARNISH :

Removal and Installation"

.

5.

Remove luggage side lower front finisher (RH). Refer to

INT-31, "LUGGAGE SIDE LOWER FRONT FIN-

ISHER : Removal and Installation"

.

6.

Remove luggage side lower finisher (LH and RH). Refer to

INT-32, "LUGGAGE SIDE LOWER FINISHER

: Removal and Installation"

.

7.

Remove mounting bolts, and then remove fuel filler lid opener handle.

8.

Remove fuel filler lid opener cable from fuel filler lid opener handle.

1.

Fuel filler lid opener cable

2.

Fuel filler lid assembly

3.

Bumper rubber

4.

Spring

5.

Fuel filler lid lock assembly

6.

Cable protector

: Clip

JMKIA5359ZZ
