BACK DOOR

DLK-231

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

Disconnect rear window defogger connector (LH), and then remove terminal from connector.

5.

Remove back door finisher. Refer to

INT-33, "Removal and Installation"

.

6.

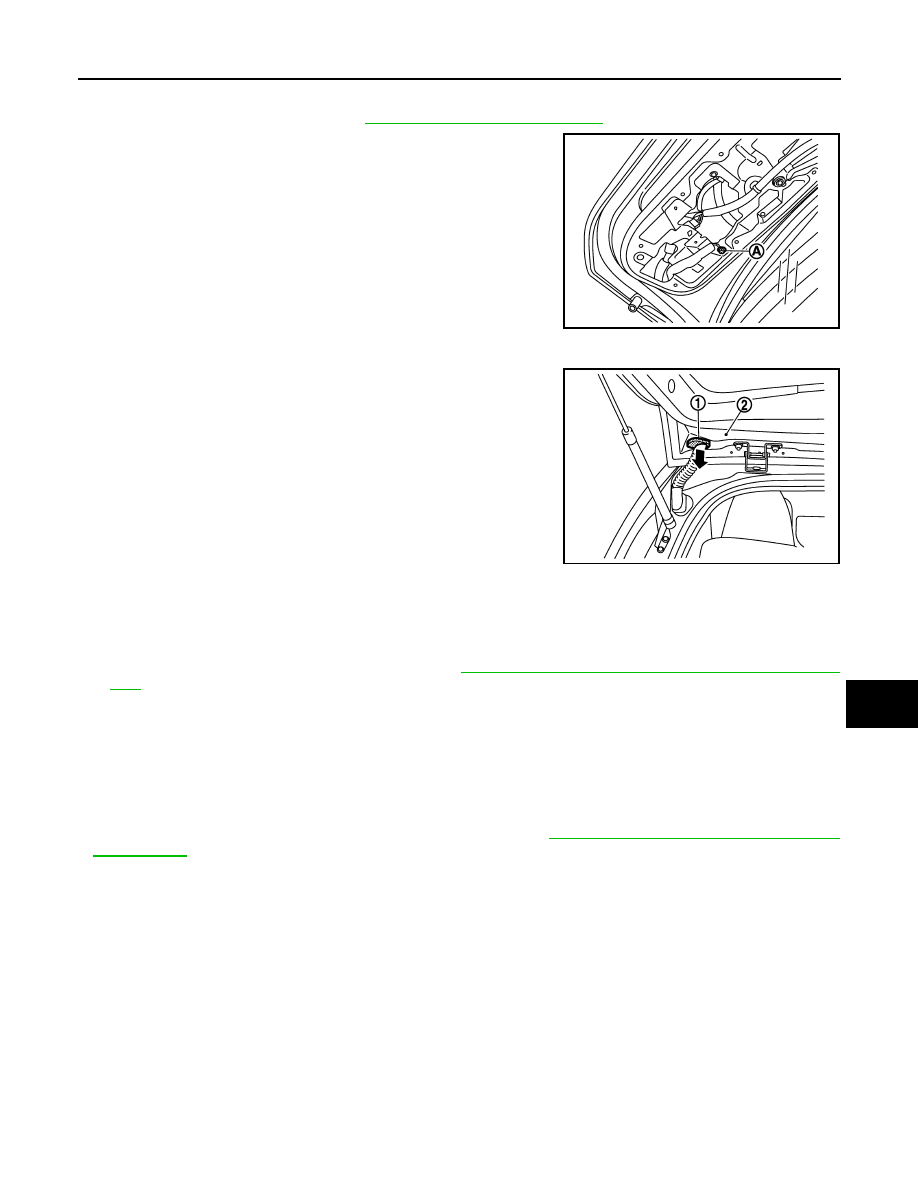

Remove ground mounting bolt (A).

7.

Disconnect connectors of back door harness.

8.

Remove harness grommet (1), and then pull out harness from
back door assembly (2).

9.

Support back door lock with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

10. Remove back door stay (back door side). Refer to

DLK-234, "BACK DOOR STAY : Removal and Installa-

tion"

.

11. Remove back door hinge mounting bolts on back door and remove back door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, check back door open/close, lock/unlock operation.
• After installation, perform the fitting adjustment. Refer to

DLK-232, "BACK DOOR ASSEMBLY :

Adjustment"

.

JMKIA5328ZZ

JMKIA5329ZZ

DLK-232

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000006067047

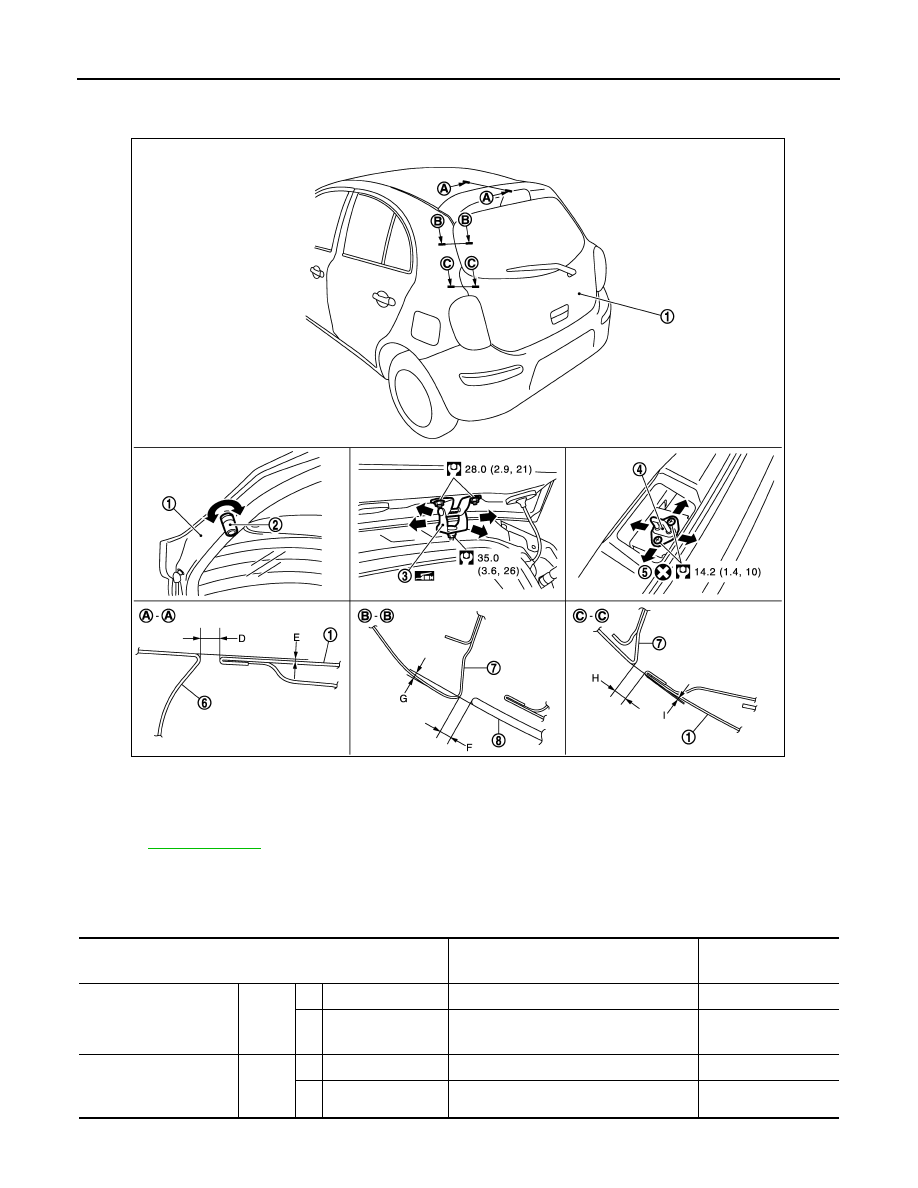

Check the clearance and the surface height between back door and each part by seeing and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm (in)

1.

Back door assembly

2.

Bumper rubber

3.

Back door hinge

4.

Back door striker

5.

TORX bolt

6.

Roof

7.

Body side outer panel

8.

Back door glass

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5326GB

Portion

Standard

Difference

(LH/RH, MAX)

Roof – Back door

A – A

D

Clearance

5.0 – 7.0 (0.197 – 0.276)

—

E

Surface height

(-1.5) – (+0.5) [(-0.059) –

(+0.020)]

—

Body side outer
panel – Back door
glass

B – B

F

Clearance

2.4 – 7.0 (0.094 – 0.276)

<3.0 (0.118)

G

Surface height

(-0.5) – (-0.4) [(-0.197) – (-0.016)]

—

BACK DOOR

DLK-233

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

Remove back door weather-strip. Refer to

DLK-234, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

2.

Remove the luggage side upper finisher. Refer to

INT-31, "LUGGAGE SIDE UPPER FINISHER :

Removal and Installation"

.

3.

Using remover tool, remove the headlining clip at the rear side of the headlining.

4.

Remove the rear side of the headlining.

5.

Install back door weather-strip. Refer to

DLK-234, "BACK DOOR WEATHER-STRIP : Removal and Instal-

lation"

.

6.

Loosen the back door striker mounting bolts, back door hinge mounting nuts and bumper rubber.

7.

Adjust back door using back door striker, back door hinge, and bumper rubber to the specified value, as
shown in the following table.

8.

After adjustment tighten back door striker and back door hinge to the specified torque.

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that it becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000006067048

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-30, "LUGGAGE REAR PLATE : Removal and Installation"

.

2.

Remove mounting bolts, and then remove back door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check back door open/close, lock/unlock operation.
• After installation, perform the fitting adjustment. Refer to

DLK-232, "BACK DOOR ASSEMBLY :

Adjustment"

.

BACK DOOR HINGE

BACK DOOR HINGE : Removal and Installation

INFOID:0000000006067049

REMOVAL

1.

Remove back door assembly. Refer to

DLK-230, "BACK DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove back door weather-strip. Refer to

DLK-234, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

3.

Remove luggage side upper finisher. Refer to

INT-31, "LUGGAGE SIDE UPPER FINISHER : Removal

and Installation"

.

4.

Using a remover tool, remove headlining clip at the rear side of headlining, and then remove rear side of
headlining. Refer to

INT-28, "Exploded View"

.

5.

Remove back door hinge mounting nuts (body side), and then remove back door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check back door hinge rotating part for poor lubrication. If necessary, apply body grease.
• After installation, check back door open/close, lock/unlock operation.
• After installation, perform the fitting adjustment. Refer to

DLK-232, "BACK DOOR ASSEMBLY :

Adjustment"

.

BACK DOOR STAY

Body side outer
panel – Back door

C – C

H

Clearance

3.6 – 6.0 (0.142 – 0.236)

<1.5 (0.059)

I

Surface height

(-1.5) – (+0.5) [(0.059) – (+0.059)]

—

Portion

Standard

Difference

(LH/RH, MAX)

DLK-234

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR STAY : Removal and Installation

INFOID:0000000006067050

REMOVAL

1.

Support the back door with the suitable material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

2.

Remove the back door stay mounting bolt (body side).

3.

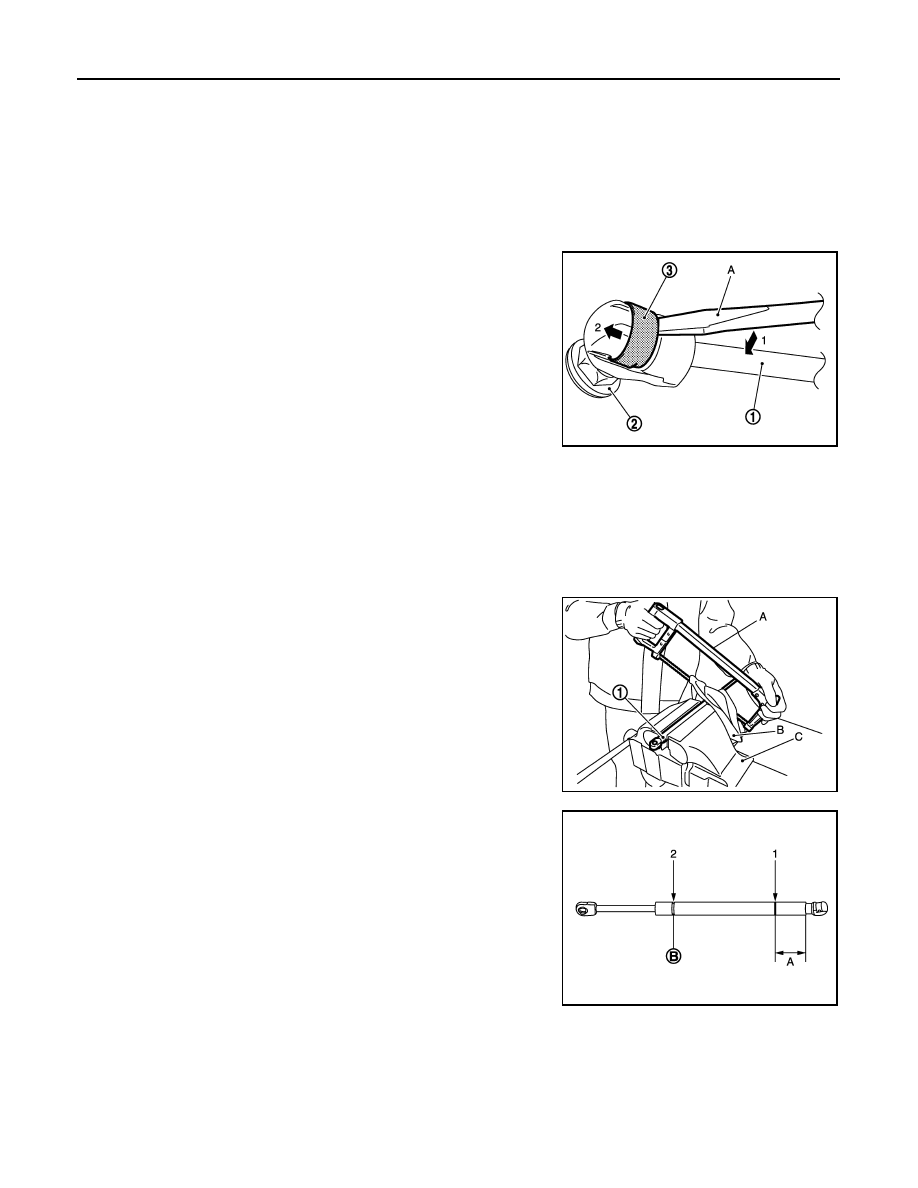

Remove the metal clip (3) located on the connection between
the back door stay (1) and the stud ball (2) (back door side) by
using a flat-bladed screwdriver (A).

CAUTION:

Be careful not to damage painted surface.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, check back door open/close, lock/unlock operation.

BACK DOOR STAY : Disposal

INFOID:0000000006067051

1.

Fix back door stay (1) using a vise (C).

2.

Using hacksaw (A) slowly make 2 holes in the back door stay, in
numerical order as shown in the figure.

CAUTION:

• When cutting a hole on back door stay, always cover a

hacksaw using a shop cloth (B) to avoid scattering metal
fragments or oil.

• Wear eye protection (safety glasses).
• Wear gloves.

BACK DOOR WEATHER-STRIP

BACK DOOR WEATHER-STRIP : Removal and Installation

INFOID:0000000006067052

REMOVAL

Pull up and remove engagement with body from weather-strip joint.

CAUTION:

JMKIA2255ZZ

JMKIA3336ZZ

A:

20 mm (0.787 in)

B:

Cut at the groove

JMKIA3609ZZ
