Nissan March K13. Manual - part 129





REAR DOOR

DLK-227

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

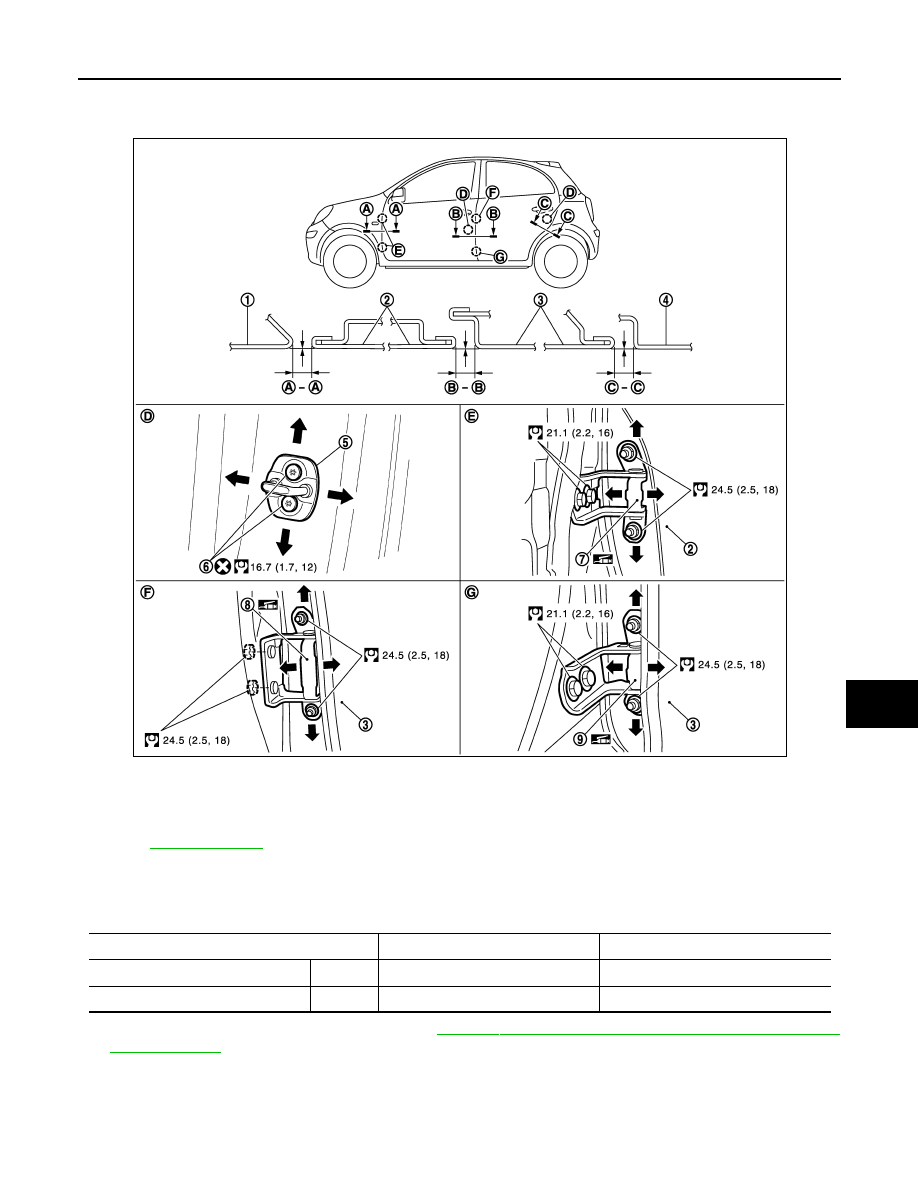

DOOR ASSEMBLY : Adjustment

INFOID:0000000006067041

Check the clearance and surface height between rear door and each part by visually and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

Unit: mm (in)

1.

Remove center pillar garnish (lower). Refer to

INT-23, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

2.

Loosen door hinge mounting nuts on door side.

3.

Adjust the surface height of rear door according to the fitting standard dimension.

4.

Temporarily tighten door hinge mounting nuts on door side.

5.

Loosen door hinge mounting nuts and bolts on body side.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

Refer to

GI-4, "Components"

 for symbols in the figure.

Portion

Clearance

Surface height

Front door – Rear door

B – B

3.7 – 5.7 (0.146 – 0.224)

-1.0 – 1.0 (-0.039 – 0.039)

Rear door – Body side outer

C – C

3.3 – 5.3 (0.130 – 0.209)

-1.0 – 1.0 (-0.039 – 0.039)

JMKIA5318GB

DLK-228

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REAR DOOR

6.

Raise rear door at rear end to adjust clearance of rear door according to the fitting standard dimension.

7.

After adjustment tighten bolts and nuts to the specified torque.

CAUTION:

• After installation, apply touch-up paint (the body color) onto the head of hinge mounting bolts

and nuts.

• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.

8.

Install center pillar garnish (lower). Refer to

INT-23, "CENTER PILLAR LOWER GARNISH : Removal and

Installation"

.

DOOR STRIKER ADJUSTMENT

Adjust door striker so that it becomes parallel with door lock insertion direction.

DOOR STRIKER

DOOR STRIKER : Removal and Installation

INFOID:0000000006067042

REMOVAL

Remove TORX bolts, and then remove door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check rear door open/close, lock/unlock operation after installation.
• After installation, be sure to perform the fitting adjustment. Refer to

DLK-227, "DOOR ASSEMBLY :

Adjustment"

.

DOOR HINGE

DOOR HINGE : Removal and Installation

INFOID:0000000006067043

CAUTION:

• Perform work with 2 workers, because of it’s heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door assembly. Refer to

DLK-226, "DOOR ASSEMBLY : Removal and Installation"

.

2.

Remove center pillar lower garnish. Refer to

INT-23, "CENTER PILLAR LOWER GARNISH : Removal

and Installation"

.

3.

Remove rear door hinge mounting bolts and nuts (body side), and then remove door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check rear door open/close operation after installation.
• Check door hinge rotating part for poor lubrication. If necessary, apply body grease.
• When removing and installing rear door assembly, perform the fitting adjustment. Refer to

DLK-227,

"DOOR ASSEMBLY : Adjustment"

.

• After installing, apply the touch-up paint (the body color) onto the head of door hinge mounting nuts.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000006067044

REMOVAL

1.

Fully close the rear door window.

2.

Remove rear door finisher. Refer to

INT-18, "Removal and Installation"

.

3.

Remove sealing screen (lower). (Without door speaker)

4.

Remove rear door speaker mounting bolts.

5.

Disconnect connector and remove rear door speaker.

REAR DOOR

DLK-229

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

6.

Remove mounting bolts of the check link on the vehicle.

7.

Remove mounting bolts of the check link on door panel.

8.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:

Check rear door open/close operation after installation.

DLK-230

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

BACK DOOR

BACK DOOR

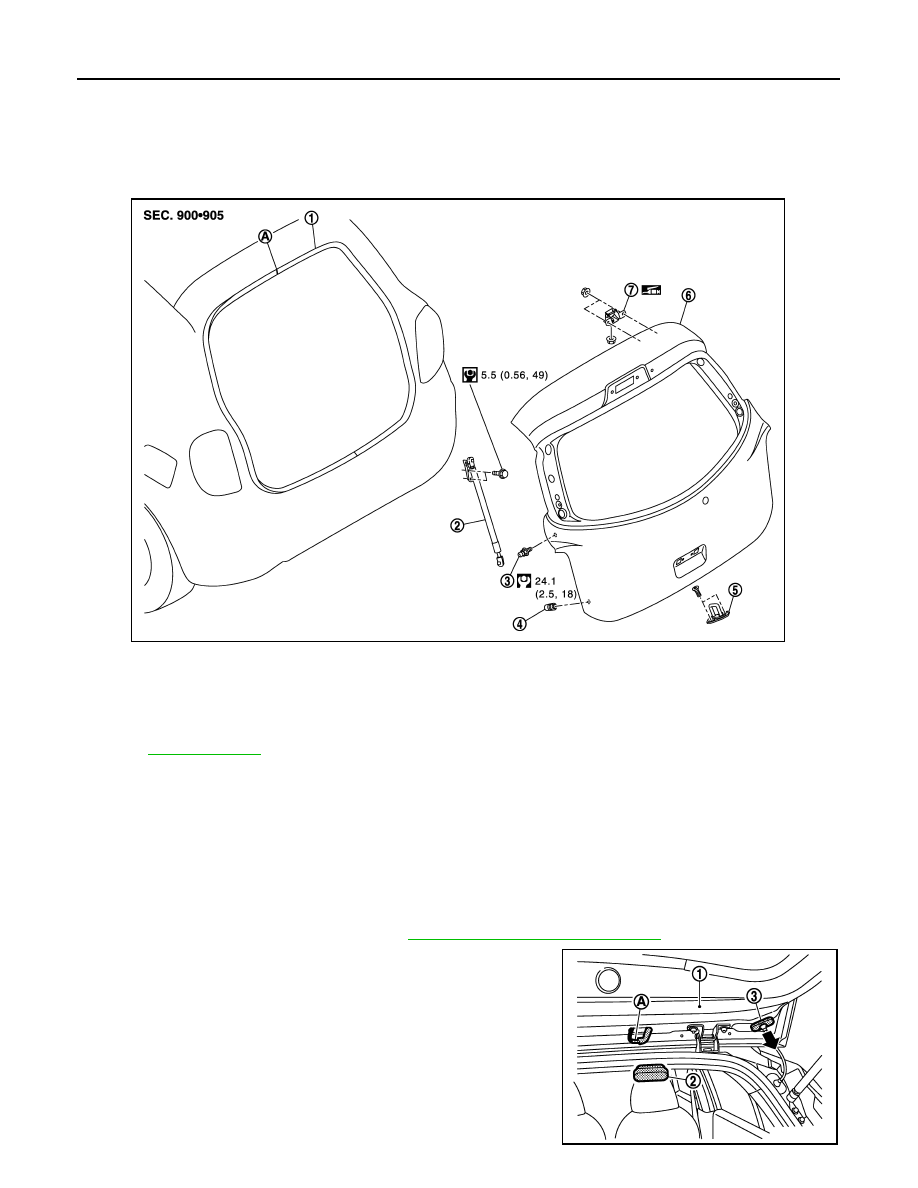

Exploded View

INFOID:0000000006067045

REMOVAL

BACK DOOR ASSEMBLY

BACK DOOR ASSEMBLY : Removal and Installation

INFOID:0000000006067046

CAUTION:

• Operate with two workers, because of its heavy weight.
• Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Remove high-mounted stop lamp. Refer to

EXL-101, "Removal and Installation"

.

2.

Remove grommet (2), and then disconnect washer tube (A).

3.

Remove grommet (3), and then pull out washer tube from back
door assembly (1).

1.

Back door weather-strip

2.

Back door stay

3.

Stud ball

4.

Bumper rubber

5.

Back door striker

6.

Back door assembly

7.

Back door hinge

A

: Center mark

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA5325GB

JMKIA5327ZZ
