DIAGNOSIS SYSTEM (BCM)

DLK-159

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DATA MONITOR

ACTIVE TEST

TRUNK

TRUNK : CONSULT-III Function (BCM - TRUNK)

INFOID:0000000005949053

DATA MONITOR

AUTO LOCK SET

Auto door lock time can be changed in this mode
• MODE 1: Non-operation
• MODE 2: 30 sec.
• MODE 3: 1 minute
• MODE 4: 2 minute
• MODE 5: 3 minute
• MODE 6: 4 minute
• MODE 7: 5 minute

PANIC ALARM SET

Panic alarm button pressing time on keyfob remote control button can be selected from the
following with this mode
• MODE1: 0.5 sec.
• MODE2: Non-operation
• MODE3: 1.5 sec.

TRUNK OPEN SET

NOTE:
This item is indicated, but not operated

Test item

Description

Monitor Item

Condition

IGN ON SW

Indicates [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicates [On/Off] condition of key switch

ACC ON SW

Indicates [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicates [On/Off] condition of lock signal from keyfob

KEYLESS UNLOCK

Indicates [On/Off] condition of unlock signal from keyfob

KYLS TRNK/HAT

NOTE:
This item is indicated, but not monitored

DOOR SW-DR

Indicates [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicates [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicates [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicates [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicates [On/Off] condition of back door switch

TRNK/HAT MNTR

NOTE:
This item is indicated, but not monitored

CDL LOCK SW

Indicates [On/Off] condition of door lock and unlock switch

CDL UNLOCK SW

Indicates [On/Off] condition of door lock and unlock switch

KEYLESS PANIC

Indicates [On/Off] condition of PANIC button of keyfob

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT-III screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT-III screen is

touched

INT LAMP

This test is able to check interior room lamp operation
• On: Operate
• Off: Non-operation

FLASHER

This test is able to check flasher operation [LH/RH/Off]

DLK-160

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

PANIC ALARM

PANIC ALARM : CONSULT-III Function (BCM - PANIC ALARM)

INFOID:0000000006044846

ACTIVE TEST

Monitor Item

Contents

KEY ON SW

Indicates [On/Off] condition of key switch.

KYLS TRNK/HAT

NOTE:
This item is indicated, but not  monitored.

TRNK OPNR SW

NOTE:
This item is indicated, but not  monitored.

LOCK STATUS

NOTE:
This item is indicated, but not  monitored.

IGN ON SW

Indicates [On/Off] condition of ignition switch.

VEHICLE SPEED

Indicates [Km/h] condition of vehicle speed signal from combination meter.

Test item

Description

VEHICLE SECURITY HORN

This test is able to check horn operation. Horn is activated for 0.5 seconds after “ON”
on CONSULT-III screen touched.

HEAD LAMP (HI)

NOTE:
This item is indicated, but not tested

BCM, IPDM E/R

DLK-161

< ECU DIAGNOSIS INFORMATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ECU DIAGNOSIS INFORMATION

BCM, IPDM E/R

List of ECU Reference

INFOID:0000000006038732

ECU

Reference

BCM

BCS-72, "Reference Value"

BCS-85, "Fail-safe"

BCS-85, "DTC Inspection Priority Chart"

BCS-86, "DTC Index"

IPDM

PCS-40, "Reference Value"

PCS-44, "Fail-Safe"

PCS-45, "DTC Index"

DLK-162

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

DOOR & LOCK SYSTEM

WIRING DIAGRAM

DOOR & LOCK SYSTEM

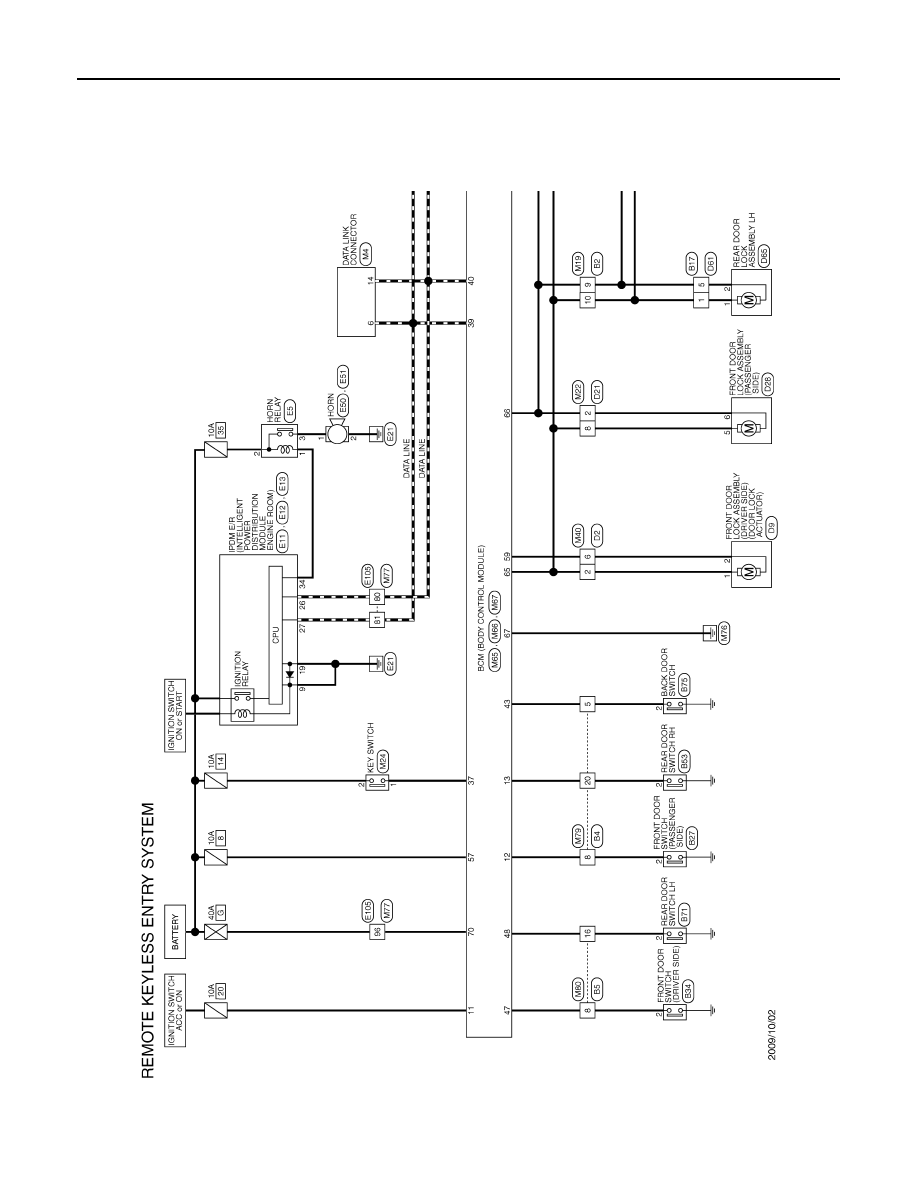

Wiring Diagram - DOOR LOCK SYSTEM (WITHOUT INTELLIGENT KEY) -

INFOID:0000000005949103

JCKWM3586GB
