PREPARATION

DLK-151

< PREPARATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

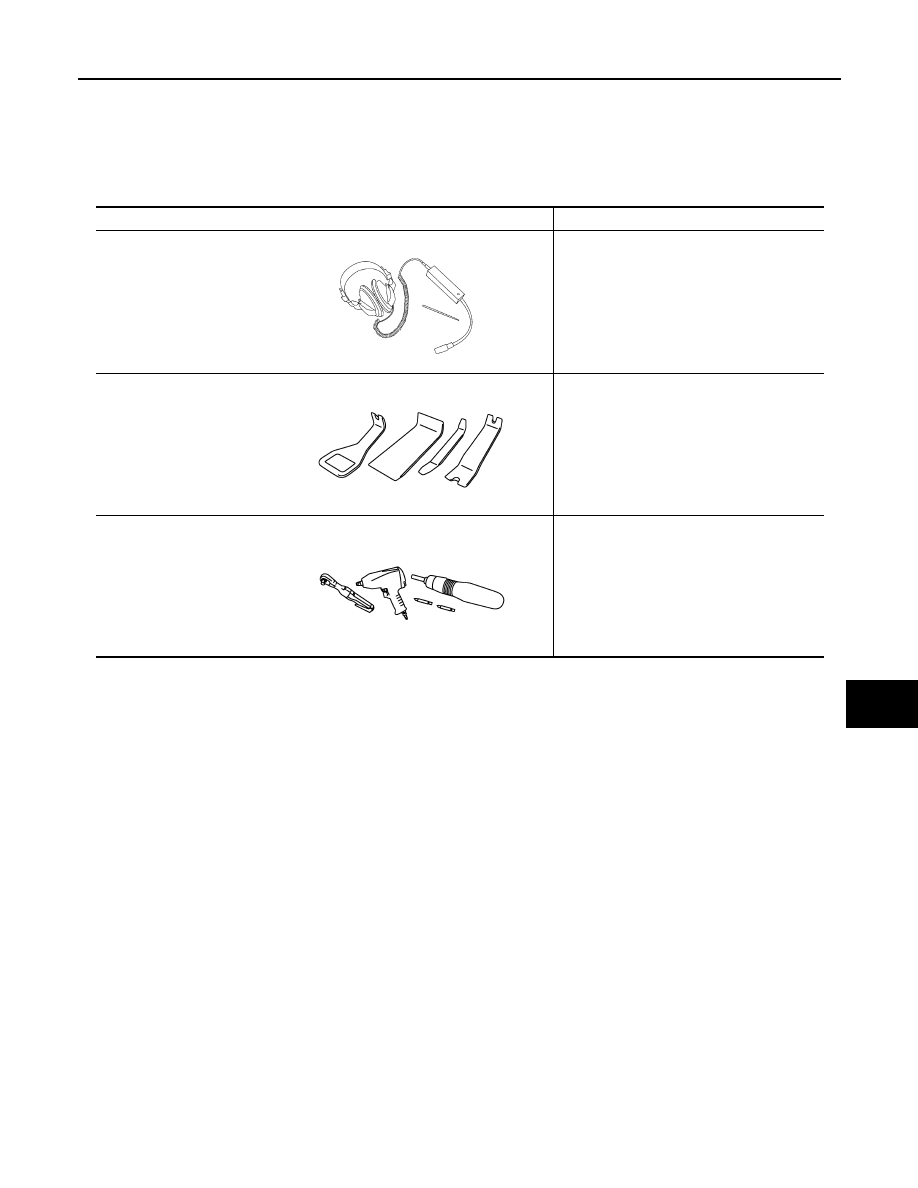

Commercial Service Tools

INFOID:0000000005949138

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-152

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

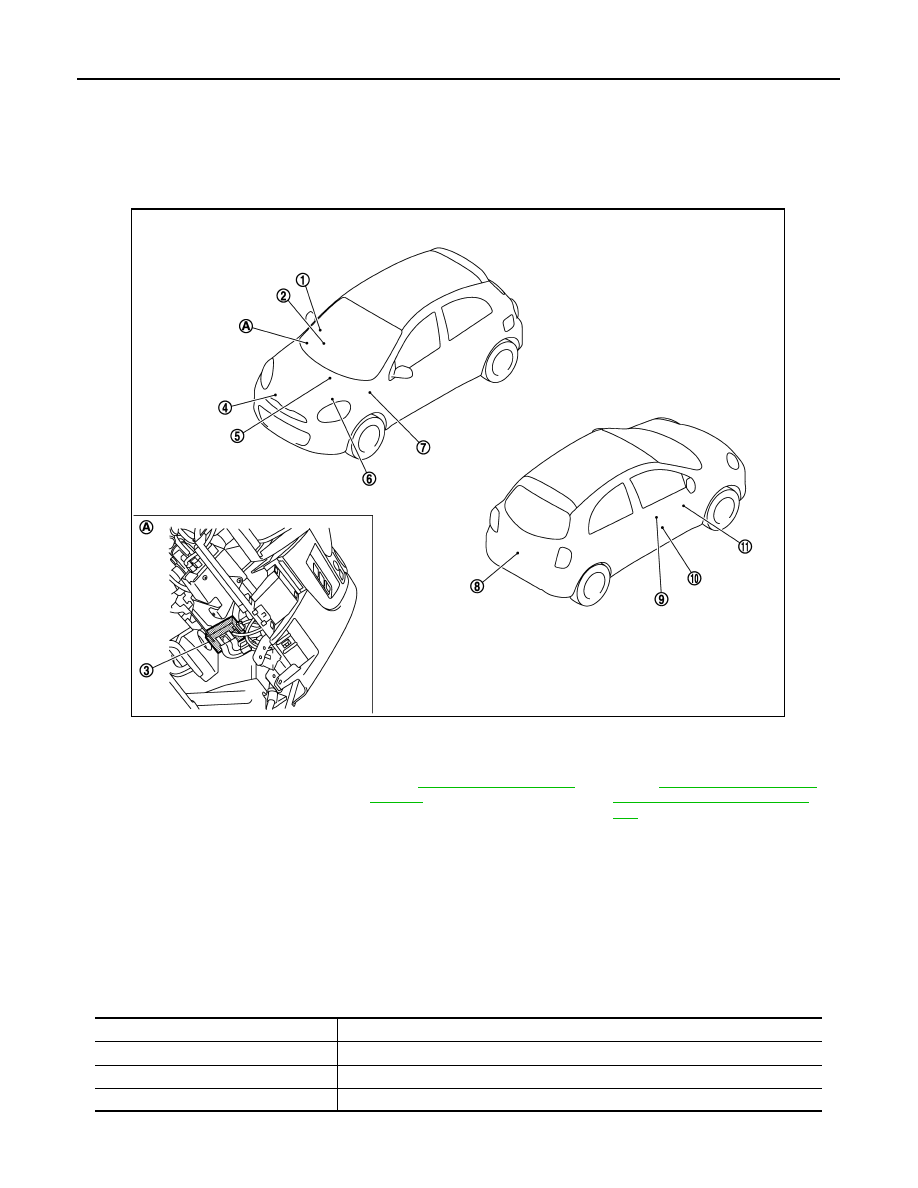

Component Parts Location

INFOID:0000000005949044

*1

: With remote keyless entry system models

*2

: With power window system

Component Description

INFOID:0000000005949045

1.

Key switch

2.

Combination meter

3.

Remote keyless entry receiver

*1

4.

Horn

5.

IPDM E/R
Refer to

PCS-30, "Component Parts

Location"

6.

BCM
Refer to

BCS-60, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

7.

Back door lock assembly

8.

Front door lock assembly

9.

Front door switch (driver side)

10. Door lock and unlcok switch

*2

A.

View with instrument lower panel RH
removed

JMKIA5377ZZ

Item

Function

BCM

Controls the door lock function and room lamp function

IPDM E/R

Sounds horn via CAN communication between BCM

Remote keyless entry receiver

Receives lock/unlock signal from the key fob, and then transmits to BCM

COMPONENT PARTS

DLK-153

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Door key cylinder switch

Built-in driver side door lock assembly
• Input lock or unlock signal to BCM

Door lock and unlock switch

Input lock or unlock signal to BCM

Door switch

Input door open/close condition to BCM

Key switch

Input ignition switch ON/OFF condition to BCM

Unlock sensor

Built-in driver side door lock assembly
• Detects door lock condition of driver door

Door lock actuator

Built-in door lock assembly
• Input lock/unlock signal from BCM and locks/unlocks each door

Item

Function

DLK-154

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

POWER DOOR LOCK SYSTEM

POWER DOOR LOCK SYSTEM

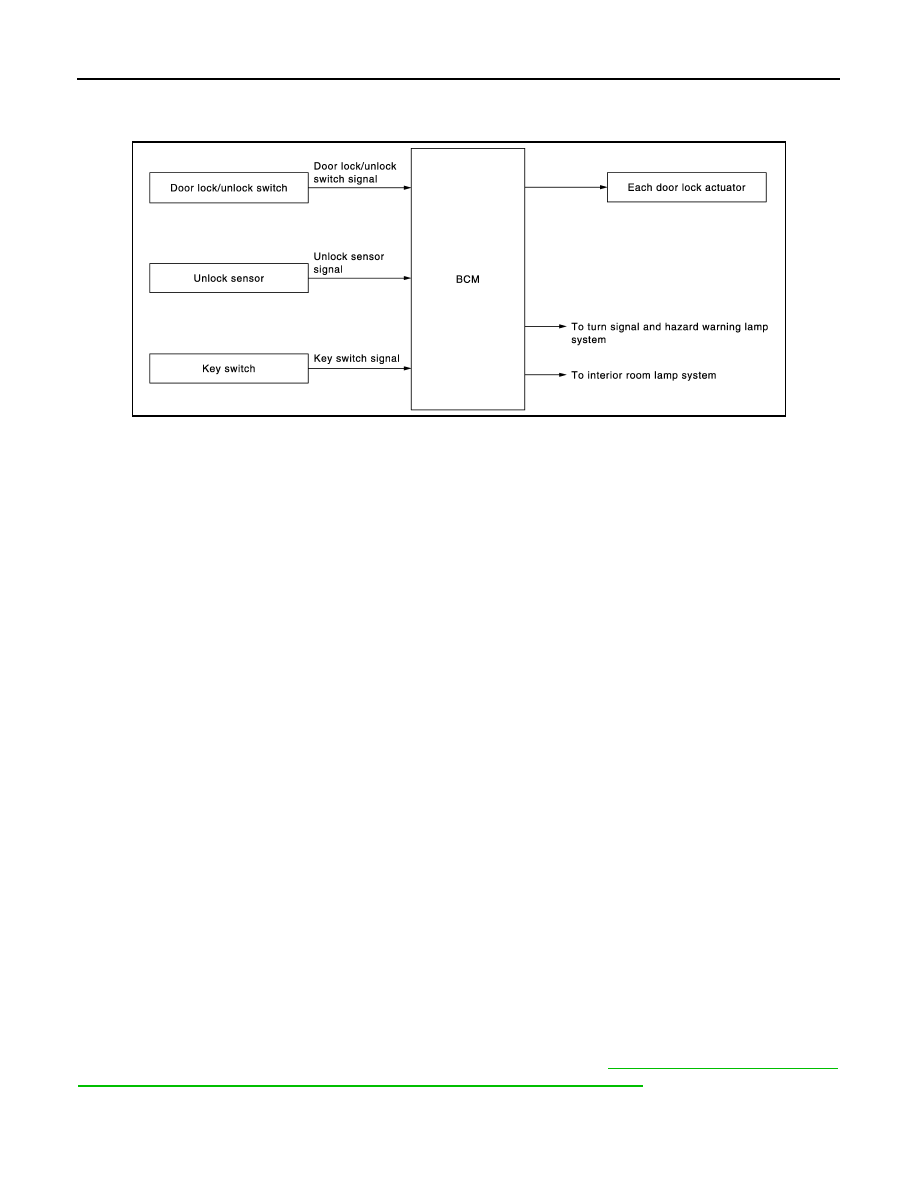

System Diagram

INFOID:0000000005949042

System Description

INFOID:0000000005949043

DOOR LOCK FUNCTION (EXCEPT FOR THAILAND)

Door lock/unlock switch (with power window system)

• The door lock and unlock switch is build into power window main switch.
• BCM locks all doors or unlocks all doors, when door lock/unlock switch is operated.

Unlock sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the ignition key inserted in the door key cylinder on driver side, turning it to lock position, locks door lock

actuator of all doors.

• With the ignition key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

DOOR LOCK FUNCTION (FOR THAILAND)

Door lock/unlock switch

• The door lock and unlock switch is build into power window main switch.
• BCM locks all doors or unlocks all doors, when door lock/unlock switch is operated.

Door key cylinder switch

• With the ignition key inserted in the door key cylinder on driver side, turning it to lock position, locks door lock

actuator of all doors.

• With the ignition key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

KEY REMINDER FUNCTION (EXCEPT FOR THAILAND)

When door lock and unlock switch and driver door lock knob are operated while key is inserted into key switch
and driver side door is open, door locks once but immediately unlocks. This operation prevents keyfob from
being left in the vehicle.

KEY REMINDER FUNCTION (FOR THAILAND)

When door lock and unlock switch and are operated while key is inserted into key switch and driver side door
is open, door locks once but immediately unlocks. This operation prevents keyfob from being left in the vehi-
cle.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-7, "INTERIOR ROOM LAMP

CONTROL SYSTEM (WITH INTELLIGENT KEY SYSTEM) : System Description"

JMKIA5391GB
