REMOTE KEYLESS ENTRY SYSTEM

DLK-155

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY SYSTEM

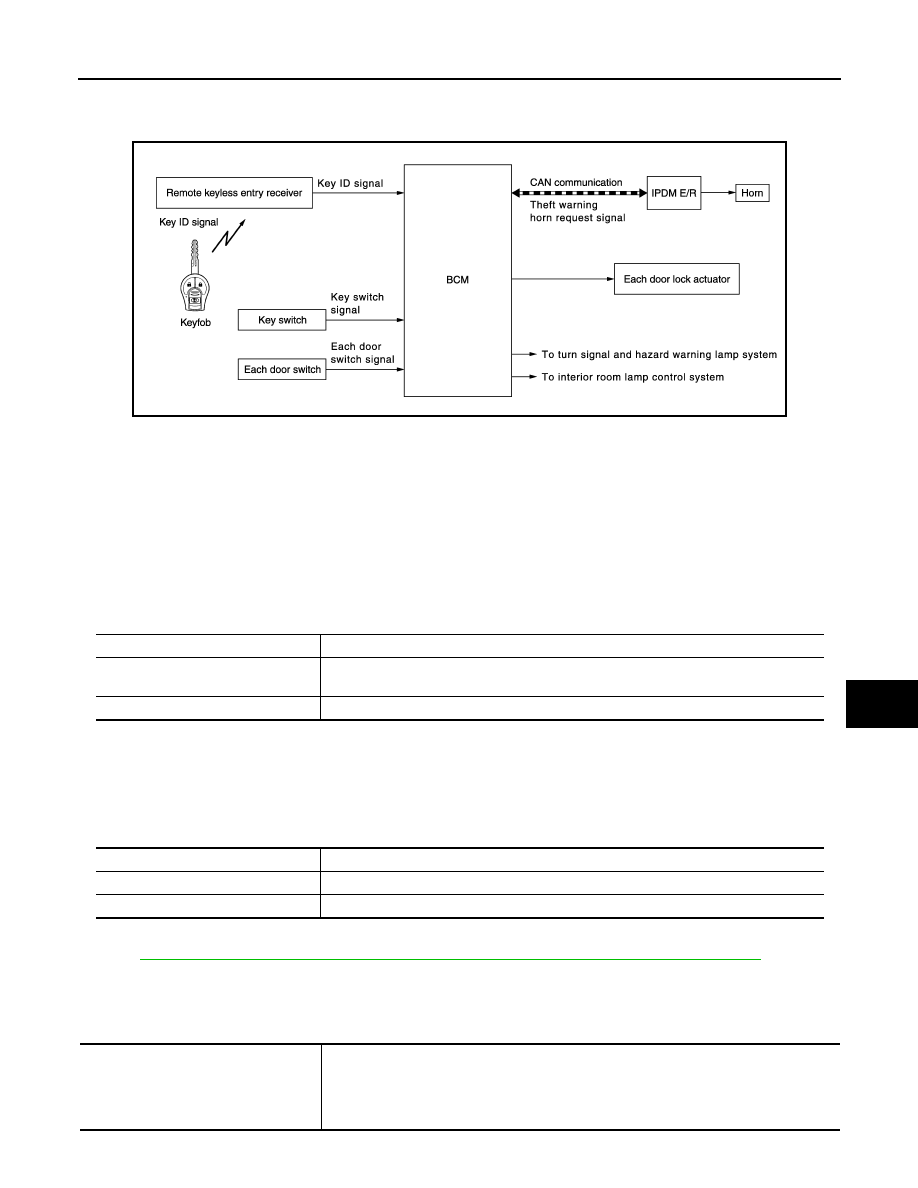

System Diagram

INFOID:0000000005949046

System Description

INFOID:0000000005949047

DOOR LOCK AND UNLOCK OPERATION

• When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to

BCM via remote keyless entry receiver.

• When BCM receives the door lock and unlock signal, it operates door lock actuator, brinks the hazard lamp

at the same time as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the keyfob is operated.

OPERATION AREA

To ensure that the keyfob works effectively, use within 100 cm (3 ft) range of each door, however the operable
range may differ according to surroundings.

HAZARD REMINDER OPERATION

When door is locked or unlocked by keyfob, then BCM blinks hazard warning lamp as a reminder.

How to Change Hazard Reminder Mode

Refer to

DLK-158, "MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)"

.

AUTO DOOR LOCK FUNCTION

After door is unlocked by keyfob button operation and if 30 seconds or more passes without performing the fol-
lowing operation, all doors are automatically locked. However, operation check function does not activate.

JMKIA5392GB

Remote controller operation

Operation condition

Lock

• Key switch is off
• All doors are closed

Unlock

Key switch is off

Remote controller operation

Hazard lamp

Lock

Blinks 1 time

Unlock

Blinks 2 times

Operating condition

• Door switch is ON (door is open)
• Ignition key is inserted in key cylinder
• Door lock/unlock switch is operated
• Keyfob is operated
• Door lock knob is operated

DLK-156

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

REMOTE KEYLESS ENTRY SYSTEM

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

158, "MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)"

.

PANIC ALARM FUNCTION

When key switch in the OFF position, BCM transmits horn reminder signal to IPDM E/R. Then, IPDM E/R
turns on and off horn intermittently.
The horn sounds intermittently.
The alarm automatically turns off.
• After 25 seconds
• When BCM receives any signal from Intelligent Key

How to Change Panic Alarm Operation Mode

Refer to

DLK-158, "MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)"

.

INTERIOR ROOM LAMP CONTROL FUNCTION

Interior room lamp is controlled according to door lock/unlock state, refer to

INL-9, "INTERIOR ROOM LAMP

CONTROL SYSTEM (WITHOUT INTELLIGENT KEY SYSTEM) : System Description"

.

DIAGNOSIS SYSTEM (BCM)

DLK-157

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000006062297

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

• *1: For models without NATS this mode is not used.

• *2: This item is displayed, but is not used.

DOOR LOCK

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp control

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

• Automatic air conditioner
• Manual air conditioner

AIR CONDITONER

×

Combination switch

COMB SW

×

Body control system

BCM

×

NATS

IMMU

×

*

1

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Back door

TRUNK

×

—

THEFT ALM*

2

×

×

—

RETAINED PWR*

2

Signal buffer system

SIGNAL BUFFER

×

×

Panic alarm

PANIC ALARM

×

DLK-158

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000005949051

NOTE:
This function is not displayed for models without power door lock system.

DATA MONITOR

ACTIVE TEST

MULTI REMOTE ENT

MULTI REMOTE ENT : CONSULT-III Function (BCM - MULTI REMOTE ENT)

INFOID:0000000005949052

NOTE:
This function is not displayed for models without remote keyless entry system.

WORK SUPPORT

Monitor Item

Contents

IGN ON SW

Indicated [On/Off] condition of ignition switch in ON position

KEY ON SW

Indicated [On/Off] condition of key switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

BACK DOOR SW

Indicated [On/Off] condition of back door switch

LOCK STATUS

Indicated [On/Off] condition of driver side door

ACC ON SW

Indicated [On/Off] condition of ignition switch in ACC position

KEYLESS LOCK

Indicated [On/Off] condition of lock signal from key fob

KEYLESS UNLOCK

Indicated [On/Off] condition of unlock signal from key fob

SHOCK SENSOR

NOTE:
This item is indicated, but not monitored

KEY CYL LK-SW

Indicated [On/Off] condition of lock signal from door key cylinder

KEY CYL UN-SW

Indicated [On/Off] condition of unlock signal from door key cylinder

VEHICLE SPEED

Display the vehicle speed signal received from combination meter by numerical value [Km/h]

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT-III screen is touched
• The all door lock actuators are unlocked when “ALL UNLK” on CONSULT-III screen is touched

Test item

Description

REMO CONT ID REGIST

Keyfob ID code can be registered

REMO CONT ID ERASUR

Keyfob ID code can be erased

REMO CONT ID CONFIR

It can be checked whether Intelligent Key ID code is registered or not in this mode

HAZARD LAMP SET

Hazard reminder function (hazard operation) mode can be changed in this mode
• MODE1: Non-operation
• MODE2: Unlock operation only
• MODE3: Lock operation only
• MODE4: Lock and unlock operation
