BRAKE BOOSTER

BR-29

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

Never spill or splash brake fluid on painted surfaces. Brake fluid may seriously damage paint. Wipe it
off immediately and wash with water if it gets on a painted surface.
Note the following, and install in the reverse order of removal.
• Be careful not to damage brake booster stud bolt threads. If brake booster is tilted during installation, the

dash panel may damage the threads.

• Never deform or bend the brake tubes.
• Always use a new gasket between the brake booster and the dash panel.
• Replace the clevis pin if it is damaged. Refer to

BR-17, "Inspection and Adjustment"

.

• Never allow foreign matter (e.g. dust) and oils other than brake fluid to enter the reservoir tank.
• After installation, perform the air bleeding. Refer to

BR-10, "Bleeding Brake System"

.

CAUTION:

Never reuse drained brake fluid.

• Check each item of brake pedal. Adjust it if the measurement value is not the standard. Refer to

BR-7,

"Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000005986595

INSPECTION BEFORE REMOVAL

Air Tight

CAUTION:

Check the air tight condition when the master cylinder and the brake booster is installed.
1.

With a handy vacuum pump, apply vacuum pressure of

66.7 kPa (

500 mmHg,

19.70 inHg,

0.667 bar)

to the brake booster.

2.

If the air tight condition cannot be maintained, perform the following operation.

a.

Check the no dirt and dust are present on the brake booster and brake master cylinder mating faces.
Clean it if necessary.

b.

Check the O-ring on the master cylinder. If anything is found, replace the O-ring.

c.

Check the air tight condition again. If the condition still cannot be maintained, replace the brake booster.

INSPECTION AFTER REMOVAL

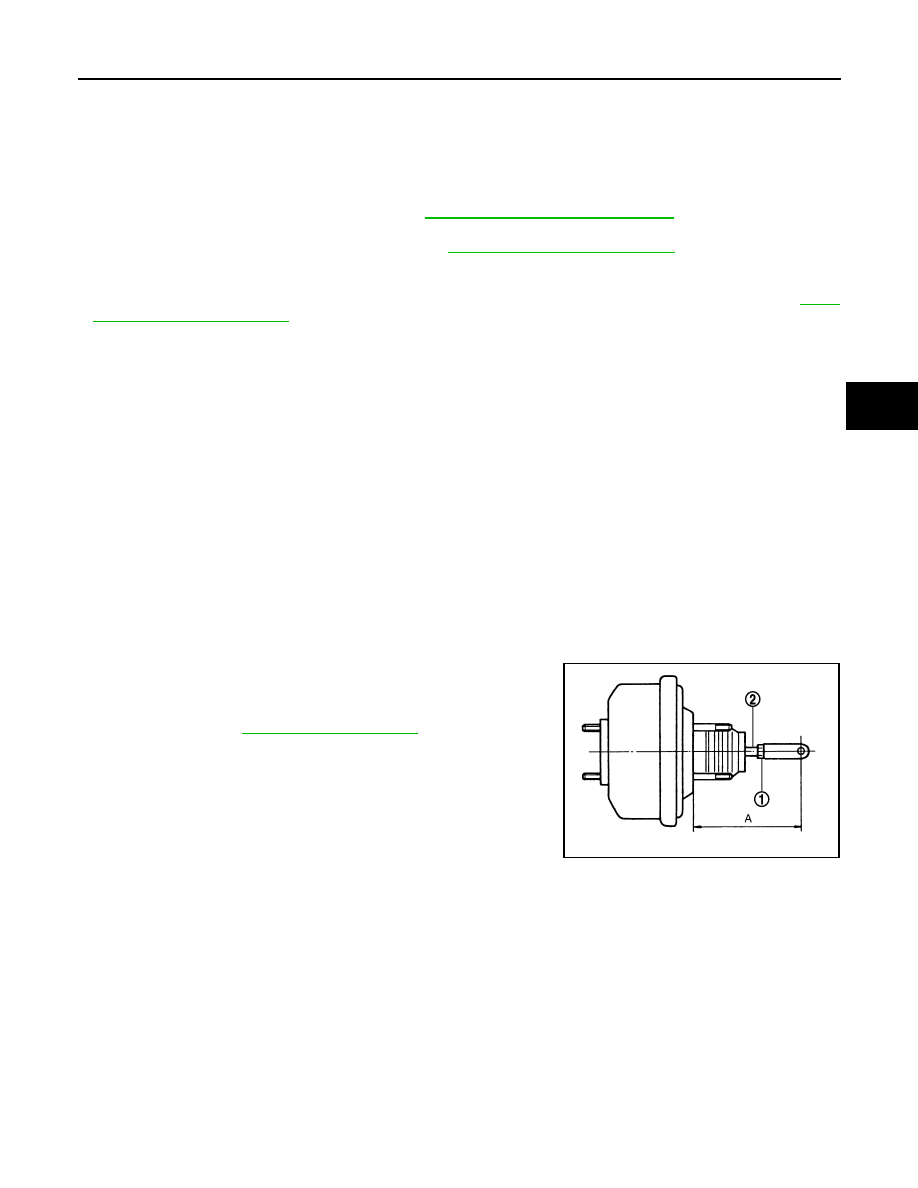

Input Rod Length Inspection

1.

Loosen the lock nut (1) and adjust the input rod (2) to the speci-
fied length (A).

2.

Tighten the lock nut to the specified torque.

INSPECTION AFTER INSTALLATION

Operation

Depress the brake pedal several times at 5-second intervals with the engine stopped. Start the engine with the
brake pedal fully depressed. Check that the clearance between brake pedal and dash lower pane decreases.

Air Tight

1.

Run the engine for 1 minute to apply vacuum to the brake booster, and stop the engine. Then depress the
brake pedal several times at 5-second intervals until the accumulated vacuum is released to atmospheric
pressure. Check that the clearance between brake pedal and dash lower panel gradually increases each
time the brake pedal is depressed when performing this operation.

2.

Depress the brake pedal with the engine running. Then stop the engine while holding down the brake
pedal. Check that the brake pedal stroke does not change after holding down the brake pedal for 30 sec-
onds or more.

ADJUSTMENT AFTER INSTALLATION

A

:  Refer  to

BR-42, "Brake Booster"

.

JPFIA0238ZZ

BR-30

< REMOVAL AND INSTALLATION >

BRAKE BOOSTER

Perform the brake pedal adjustment after installing the brake pedal assembly. Refer to

BR-7, "Inspection and

Adjustment"

.

VACUUM LINES

BR-31

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

VACUUM LINES

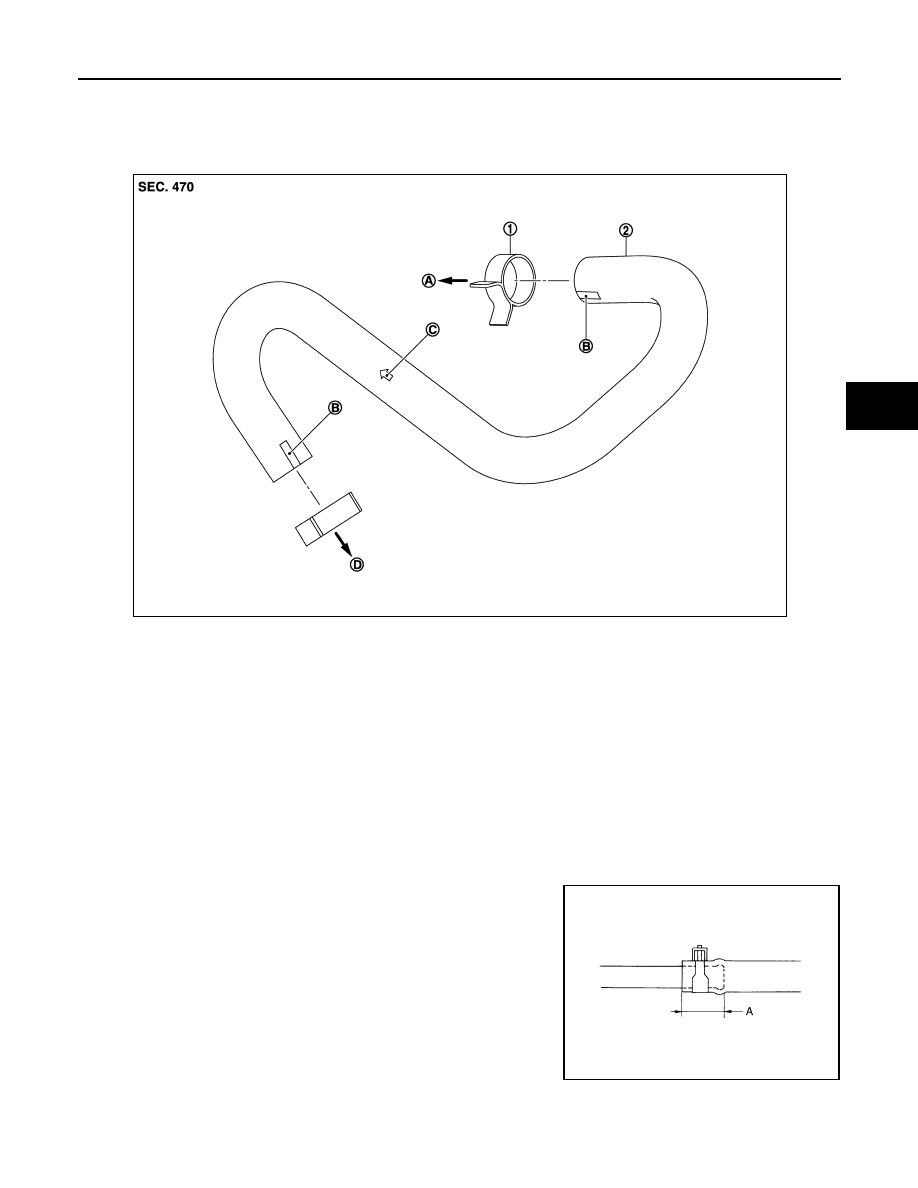

Exploded View

INFOID:0000000005986596

Removal and Installation

INFOID:0000000005986597

REMOVAL

Remove the vacuum hose.

INSTALLATION

Note the following, install the vacuum hose.
• Because vacuum hose contains a check valve, it must be installed in the correct position. Refer to the stamp

to confirm correct installation. Brake booster will not operate normally if the hose is installed in the wrong
direction.

• When installing vacuum hose, insert it until its tip reaches the

back-end of length (A) or further as shown in the figure.

- Face the paint marks of vacuum hose (built-in check valve) (brake

booster side) to vehicle front side to assemble.

CAUTION:

Never use lubricating oil during assembly.

- Face the paint marks of vacuum hose (built-in check valve) (intake

manifold side) to the upward to assemble.

CAUTION:

Never use lubricating oil during assembly.

1.

Clamp

2.

Vacuum hose (built-in check valve)

A.

To brake booster

B.

Paint mark

C.

Stamp indicating engine direction

D.

To intake manifold

JPFIA0762ZZ

A

: 24 mm (0.95 in) or more

JPFIA0023ZZ

BR-32

< REMOVAL AND INSTALLATION >

VACUUM LINES

Inspection

INFOID:0000000005986598

INSPECTION AFTER REMOVAL

Appearance

Check for correct assembly, damage and deterioration.

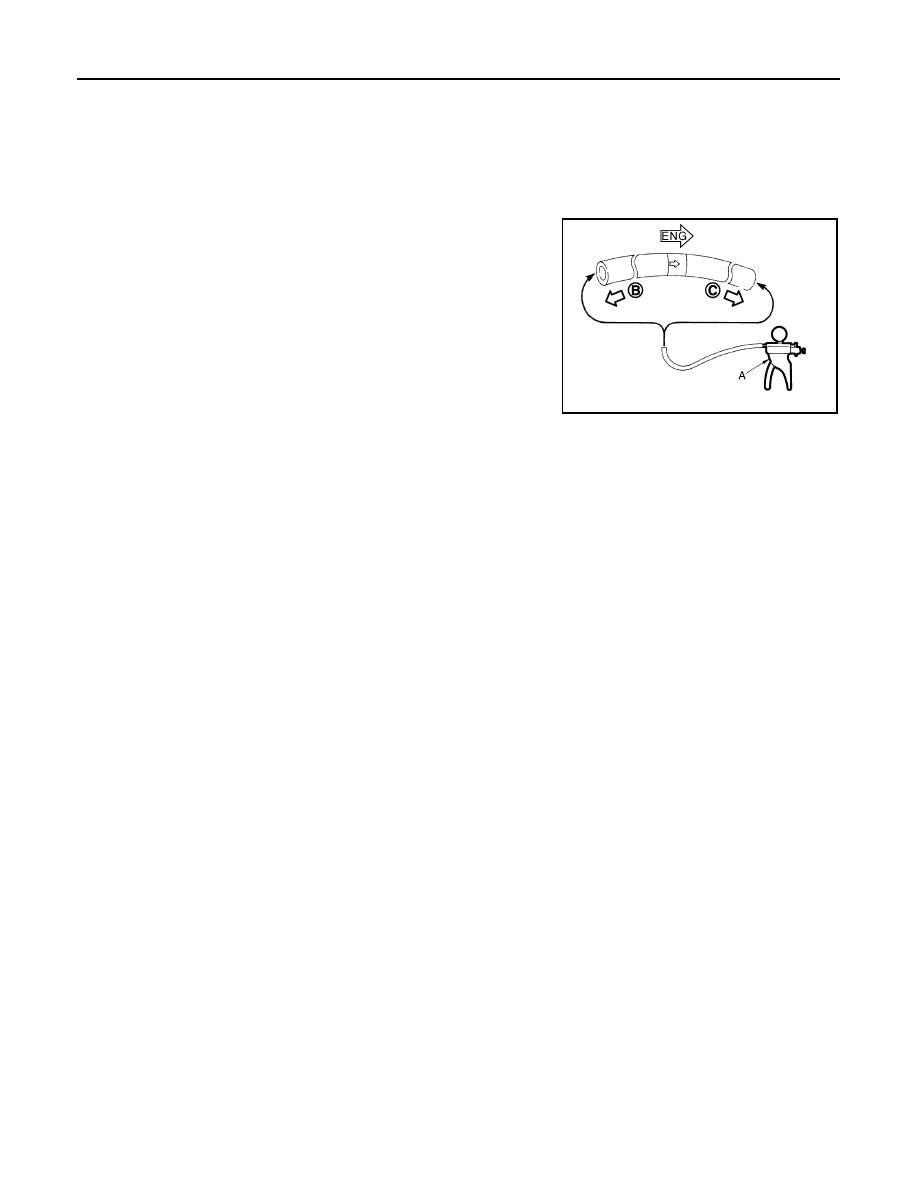

Check Valve Airtightness

• Use a handy vacuum pump (A) to check.

• Replace vacuum hose assembly if vacuum hose and check valve

are malfunctioning.

When connected to the booster side (B):

Vacuum should decrease within 1.3 kPa (9.8 mmHg,
0.38 inHg, 0.013 bar) for 15 seconds under a vacuum
of

66.7 kPa (

500 mmHg,

19.69 inHg,

0.067 bar).

When connected to the engine side (C):

Vacuum should not exist.

JPFIA0024ZZ
