Nissan March K13. Manual - part 12
BCS
BCM
BCS-21
< ECU DIAGNOSIS INFORMATION >
[WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G
H
I
J
K
L
B
A
O
P
N
S/L LOCK-IPDM
Steering is locked
Off
Steering is unlocked
On
S/L UNLK-IPDM
Steering is unlocked
Off
Steering is locked
On
S/L RELAY-REQ
Steering is unlocked
Off
Steering is locked
On
VEH SPEED 1
While driving
Equivalent to speed-
ometer reading
VEH SPEED 2
While driving
Equivalent to speed-
ometer reading
DOOR STAT-DR
Driver door is locked
LOCK
Wait with selective UNLOCK operation (5 seconds)
READY
Driver door is unlocked
UNLOCK
DOOR STAT-AS
Passenger door is locked
LOCK
Wait with selective UNLOCK operation (5 seconds)
READY
Passenger door is unlocked
UNLOCK
ID OK FLAG
Steering is locked
Reset
Steering is unlocked
Set
PRMT ENG STRT
The engine start is prohibited
Reset
The engine start is permitted
Set
PRMT RKE STRT
NOTE:
The item is indicated, but not monitored.
Reset
RKE OPE COUN1
During the operation of the Intelligent Key
Operation frequency
of the Intelligent Key
RKE OPE COUN2
NOTE:
The item is indicated, but not monitored.
—
CONFRM ID ALL
The key ID that the key slot receives is not recognized by any key ID reg-
istered to BCM.
Yet
The key ID that the key slot receives is recognized by any key ID regis-
tered to BCM.
Done
CONFIRM ID4
The key ID that the key slot receives is not recognized by the fourth key ID
registered to BCM.
Yet
The key ID that the key slot receives is recognized by the fourth key ID reg-
istered to BCM.
Done
CONFIRM ID3
The key ID that the key slot receives is not recognized by the third key ID
registered to BCM.
Yet
The key ID that the key slot receives is recognized by the third key ID reg-
istered to BCM.
Done
CONFIRM ID2
The key ID that the key slot receives is not recognized by the second key
ID registered to BCM.
Yet
The key ID that the key slot receives is recognized by the second key ID
registered to BCM.
Done
CONFIRM ID1
The key ID that the key slot receives is not recognized by the first key ID
registered to BCM.
Yet
The key ID that the key slot receives is recognized by the first key ID reg-
istered to BCM.
Done
NOT REGISTERED
BCM detects registered key ID, or BCM does not detect key ID.
ID OK
BCM detects non-registration key ID.
ID NG

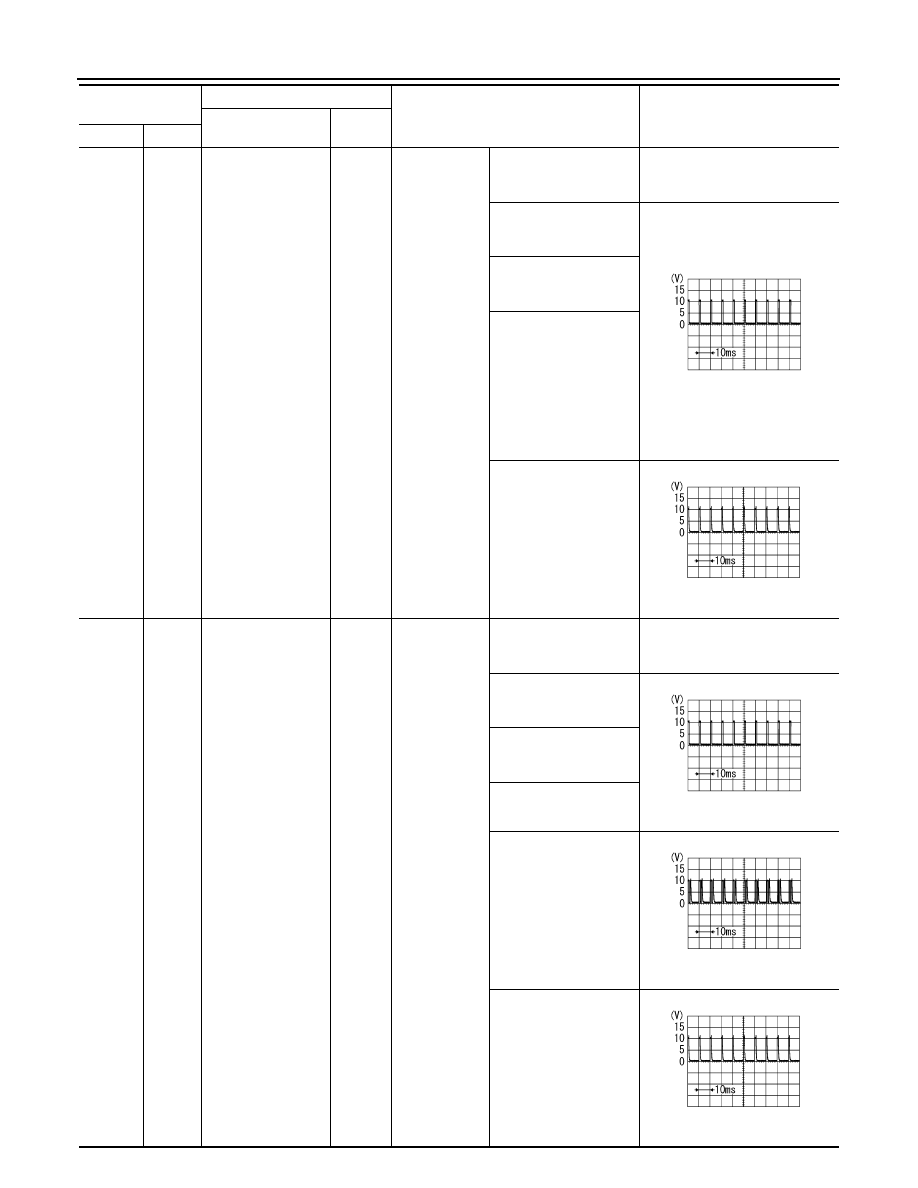

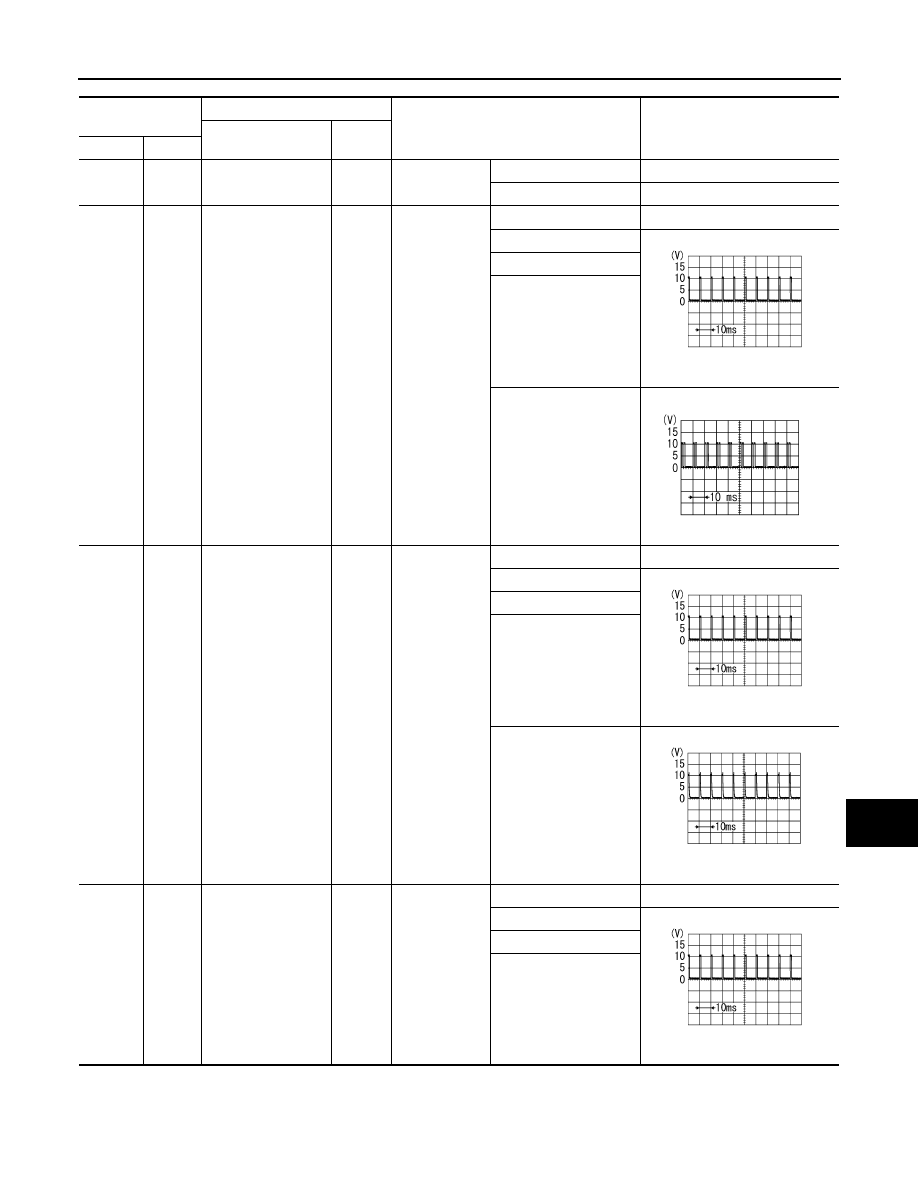

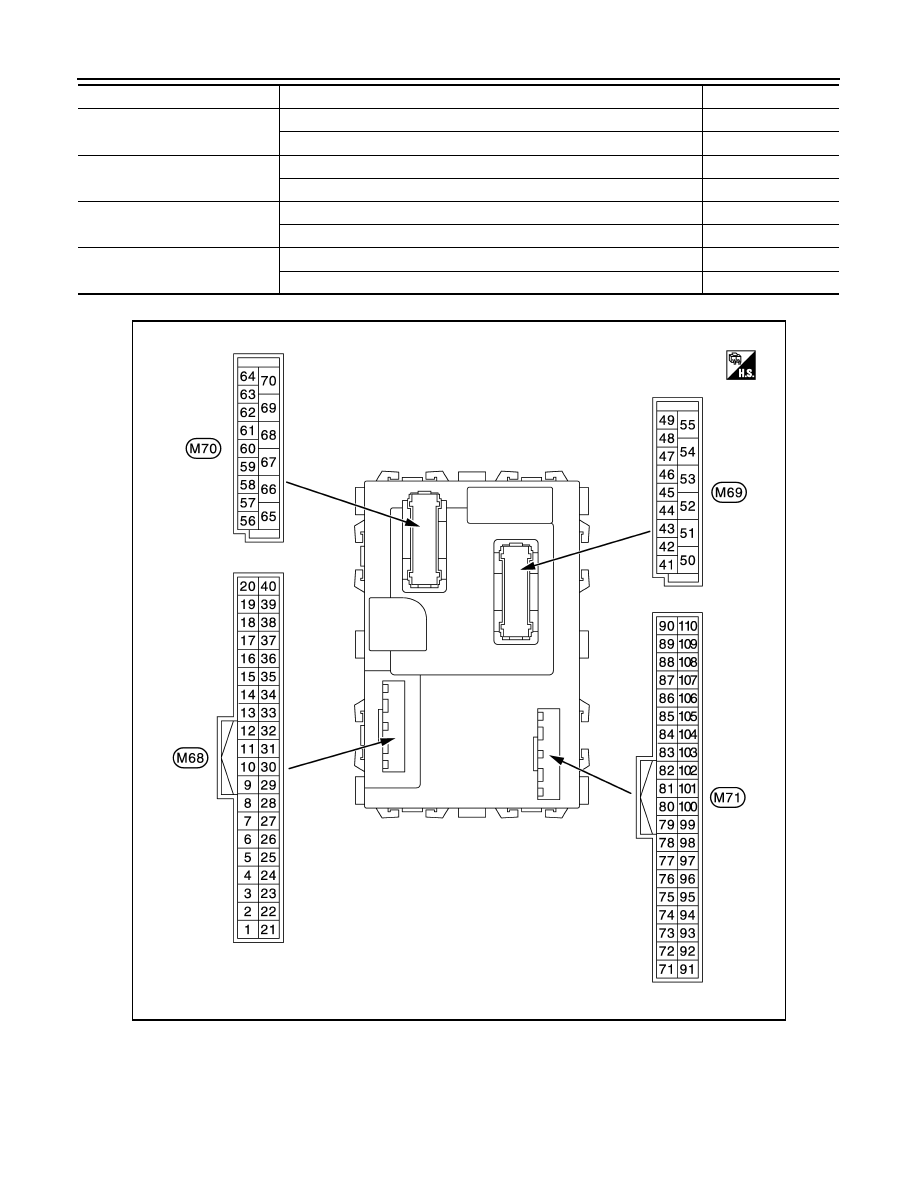

Monitor Item
Condition
Value/Status
