Almera Tino V10 (2003 year). Manual - part 236

Collision Diagnosis

=NLRS0033

FOR FRONTAL COLLISION

NLRS0033S07

To repair the SRS, perform the following steps.
When SRS (except the side air bag modules) is activated in a collision:
1) Replace the diagnosis sensor unit.
2) Remove the air bag modules (except the side air bag modules) and front seat belt pre-tensioner assem-

blies.

3) Check the SRS components using the table shown below:

Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

4) Install new air bag modules (except the side air bag module) and front seat belt pre-tensioner assemblies.
5) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-43). Ensure entire SRS operation properly.

When SRS is not activated in a collision:
1) Check the SRS components using the table shown below:

Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

2) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-43). Ensure entire SRS operation properly.

SRS Inspection (For frontal collision)

NLRS0033S0701

Part

SRS is activated

SRS is NOT activated

Air bag module (driver
or front passenger
side)

REPLACE
Install with new spe-
cial bolts coated with
bonding agent.

1. Remove air bag module. Check harness cover and connectors for damage,

terminals for deformities, and harness for binding.

2.
a. Install driver air bag module into the steering wheel to check fit and alignment

with the wheel.

b. Install front passenger air bag module into the instrument panel to check fit

with the instrument panel.

3. No damage found, reinstall with new bolts coated with bonding agent.
4. If damaged—REPLACE. Install air bag modules with new special bolts coated

with bonding agent. Air bag must be deployed before disposal.

Front seat belt pre-
tensioner assembly

REPLACE
Install seat belt pre-
tensioner with new
bolts.

1. Remove front seat belt pre-tensioners.

Check harness cover and connectors for damage, terminals for deformities,
and harness for binding.

2. Check belts for damage and anchors for loose mounting.
3. Check retractor for smooth operation.
4. If no damage is found, reinstall front seat belt pre-tensioner assembly.
5. If damaged—REPLACE. Install the front seat belt pre-tensioners with new bolts

coated with bonding agent. Front seat belt pre-tensioners must be deployed
before disposal.

Diagnosis sensor unit

REPLACE
Install with new bolts
coated with bonding
agent.

1. Check case for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall with new special bolts and ground bolt coated

with bonding agent.

4. If damaged—REPLACE. Install diagnosis sensor unit with new special bolts

and ground bolt coated with bonding agent.

Steering wheel

1. Visually check steering wheel for deformities.
2. Check harness (built into steering wheel) and connectors for damage, and terminals for deformities.
3. Install driver air bag module to check fit or alignment with steering wheel.
4. Check steering wheel for excessive free play.
5. If damaged—REPLACE.

Spiral cable

1. Visually check spiral cable and combination switch for damage.
2. Check connectors and protective tape for damage.
3. Check steering wheel for noise, binding or heavy operation.
4. If damaged—REPLACE.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis

RS-64

Part

SRS is activated

SRS is NOT activated

Harness and Connec-
tors

1. Check connectors for poor connection, damage, and terminals for deformities.
2. Check harness for binding, chafing, cuts, or deformities.
3. If no damage is found, reinstall the harness and connectors.
4. Damaged—REPLACE damaged section of harness. Do not attempt to repair, splice or modify any SRS

harness.

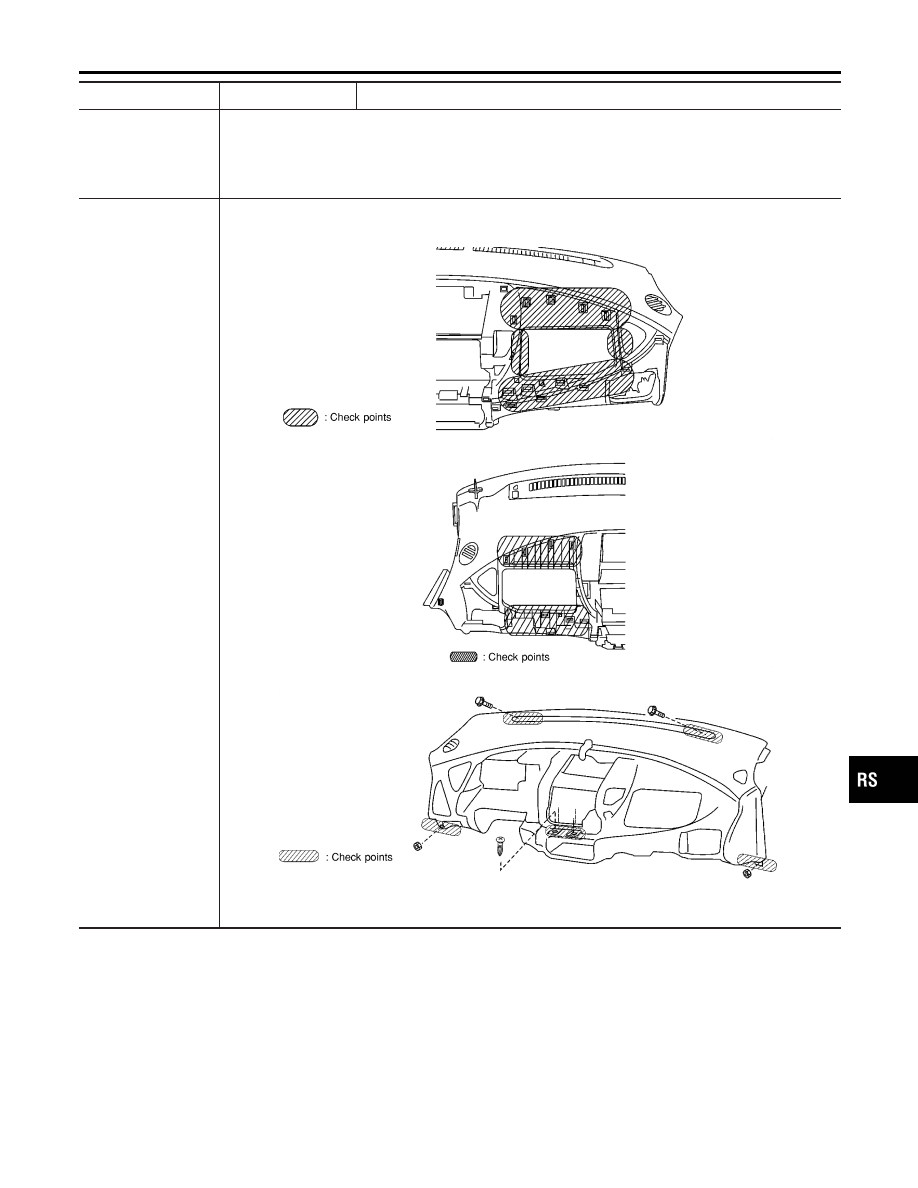

Instrument panel

1. When passenger air bag inflates, check the following points for bending, deformities or cracks.

Opening portion for front passenger air bag

NRS118

Front passenger air bag module brackets

NRS119

The portions securing the instrument panel

NRS120

2. If no damage is found, reinstall the instrument panel.
3. If damaged—REPLACE the instrument panel with bolts.

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis (Cont’d)

RS-65

FOR SIDE COLLISION

=NLRS0033S08

To repair the SRS for a side collision, perform the following steps.
When the side air bag is activated in the side collision:
1) Replace the following component:
−

All parts of front seatback (including front seatback frame) with side air bag module (on the side on which
side air bag is activated)

−

Diagnosis sensor unit

−

Side air bag (satellite) sensor (on the side on which side air bag is activated)

2) Check the SRS components and the related parts using the table shown below.

Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).

3) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-43). Ensure entire SRS operation properly.

When SRS is not activated in the side collision:
1) Check the SRS components and the related parts using the table shown below.

Replace any SRS components and the related parts showing visible signs of damage (dents, cracks,
deformation).

2) Conduct self-diagnosis using CONSULT-II or “AIR BAG” warning lamp. Refer to “SRS Operation Check”

for details (RS-43). Ensure entire SRS operation properly.

SRS Inspection (For side collision)

NLRS0033S0801

Part

Side air bag is acti-

vated

SRS is NOT activated

Front (LH or RH) side
air bag module

REPLACE all parts of
front seatback with
deployed front side
air bag module.

1. Check for visible signs of damage (dents, tears, deformation) of the seat back

on the collision side.

2. If damaged—REPLACE the damaged seat parts with new bolts and remove the

front side air bag module.

3. Check for visible signs of damage (tears etc.) of the side air bag module.
4. Check harness and connectors for damage, and terminals for deformities.
5. If no damaged is found, reinstall the front side air bag module with new nuts.
6. If damaged—REPLACE the front side air bag module with new nuts. Air bag

must be deployed before disposal.

(LH or RH) side air
bag (satellite) sensor

REPLACE the side
air bag (satellite) sen-
sor on the collision
side with new nuts
coated with bonding
agent.
(Repair the center
pillar inner, etc.
before installing new
one if damaged.)

1. Remove the satellite sensor on the collision side. Check harness connectors for

damage, terminals for deformities, and harness for binding.

2. Check for visible signs of damage (dents, cracks, deformation) of the satellite

sensor.

3. Install the side air bag (satellite) sensor to check fit.
4. If no damage is found, reinstall the side air bag (satellite) sensor with new nuts.
5. If damaged—REPLACE the side air bag sensor with new nuts coated with

bonding agent.

Diagnosis sensor unit

REPLACE the diag-
nosis sensor unit with
the new bolts.

1. Check case and bracket for dents, cracks or deformities.
2. Check connectors for damage, and terminals for deformities.
3. If no damage is found, reinstall the diagnosis sensor unit with new special bolts

and ground bolt.

4. If damaged—REPLACE. Install the diagnosis sensor unit with new special bolts

and ground bolt.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis (Cont’d)

RS-66

Part

Side air bag is acti-

vated

SRS is NOT activated

Front seat belt pre-
tensioner assembly

1. Check if the seat belt can be extended smoothly.

If the seat belt cannot be extended smoothly.

–

Check for deformities of the center pillar inner.

–

If the center pillar inner has no damage, REPLACE the front seat belt pre-tensioner assembly.

2. Remove the front seat belt pre-tensioner assembly on the collision side. Check harness cover and con-

nectors for damage, terminals for deformities, and harness for binding.

3. Check for visible signs of damage (dents, cracks, deformation) of the front seat belt pre-tensioner

assembly.

4. If no damage is found, reinstall the front seat belt pre-tensioner assembly.
5. If damaged—REPLACE the front seat belt pre-tensioner assembly with new bolts coated with bonding

agent. The front seat belt pre-tensioner assembly must be deployed before disposal.

Seat with built-in side
air bag

REPLACE all parts of
front seatback
(including front seat-
back frame)

1. Visually check the seat on the collision side.
2. Remove the seat on the collision side and check the following for damage and

deformities.

Harness, connectors and terminals

Frame and recliner (for front and rear seat), and also adjuster and slides (for
front seat)

3. If no damage is found, reinstall the seat.
4. If damaged—REPLACE the damaged seat parts with new bolts.

Center pillar inner

1. Check the center pillar inner on the collision side for damage (dents, cracks, deformation).
2. If damaged—REPAIR the center pillar inner.

Trim

1. Check for visible signs of damage (dents, cracks, deformation) of the interior trim on the collision side.
2. If damaged—REPLACE the damaged trim parts.

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Collision Diagnosis (Cont’d)

RS-67

NOTES

STARTING & CHARGING SYSTEM

SECTION

CONTENTS

PRECAUTIONS ...............................................................2

Supplemental Restraint System (SRS)

SEAT BELT PRE-TENSIONER

″

...............2

Wiring Diagrams and Trouble Diagnoses....................2

BATTERY.........................................................................3

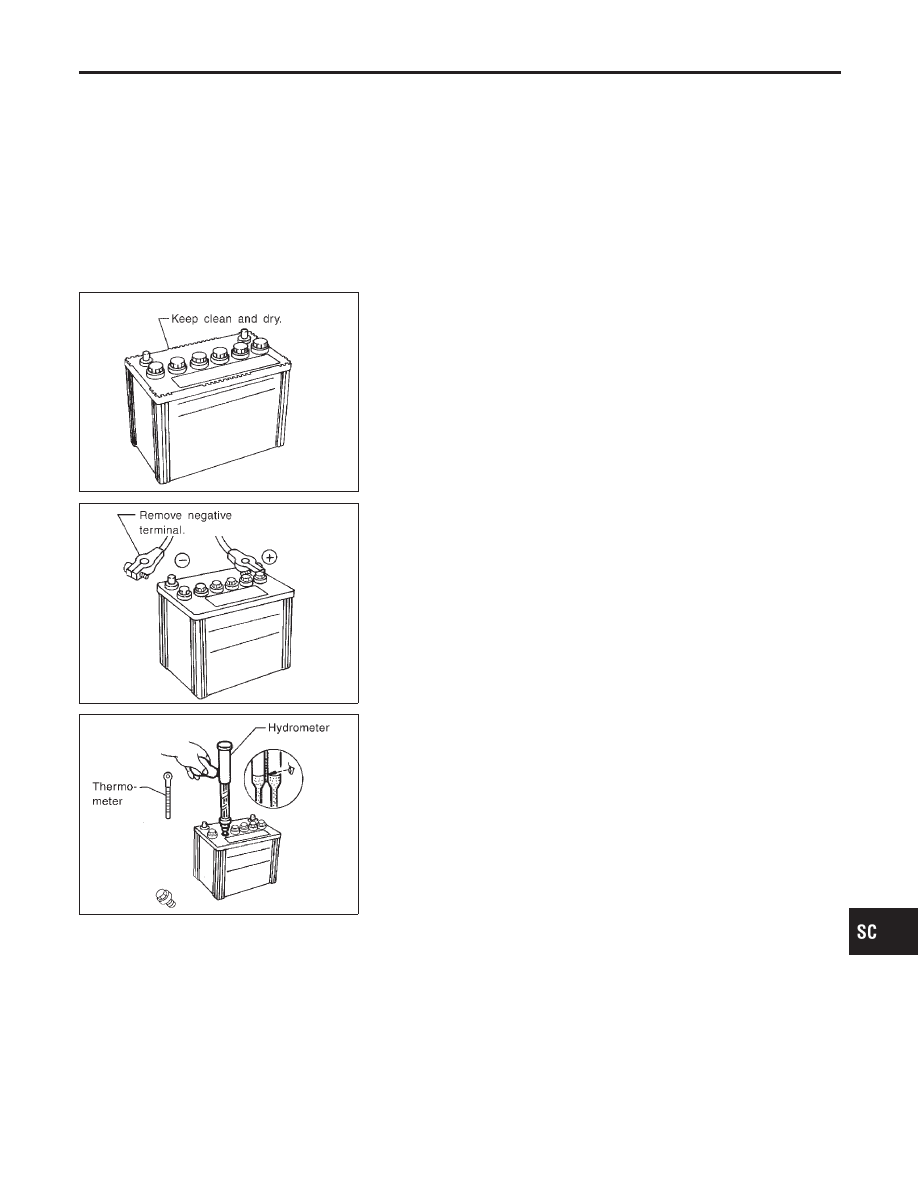

How to Handle Battery ................................................3

METHODS OF PREVENTING OVER-DISCHARGE

......3

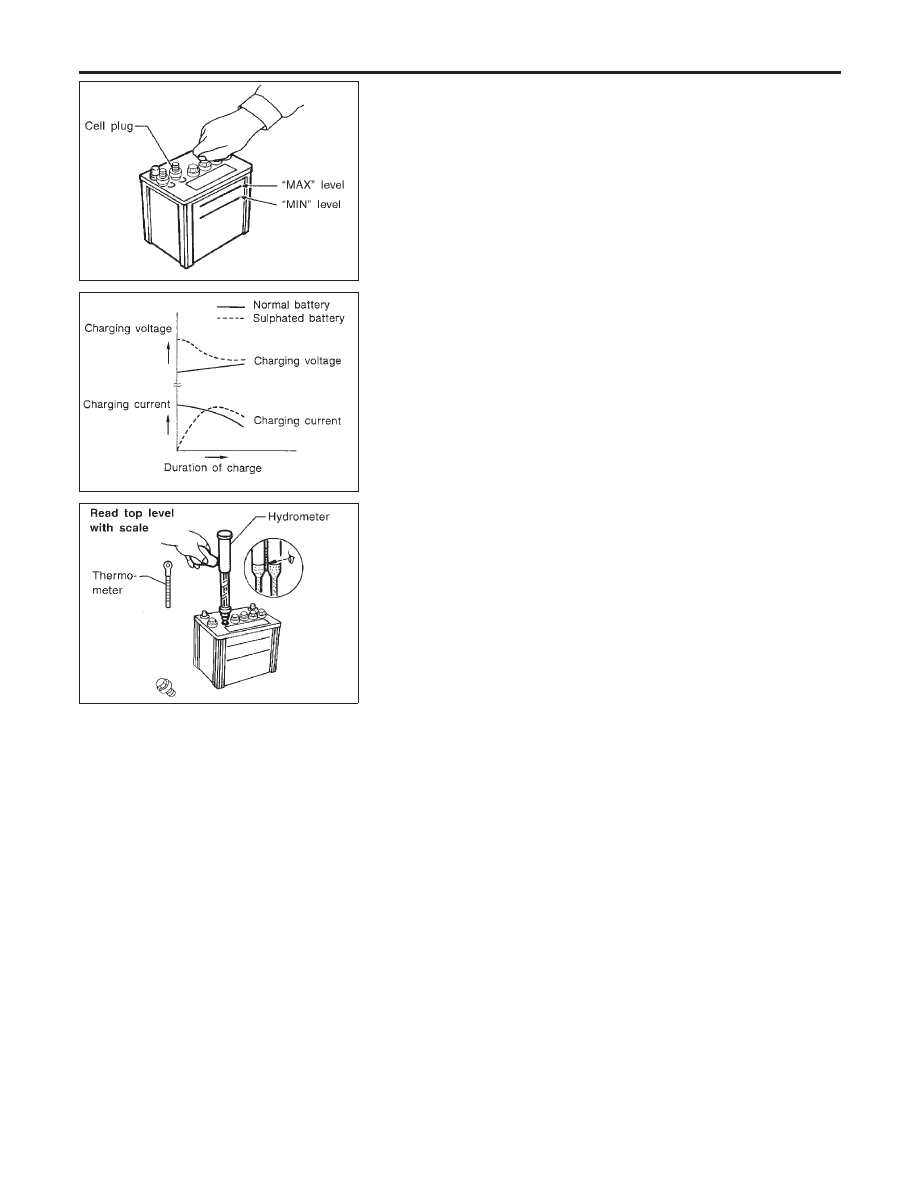

CHECKING ELECTROLYTE LEVEL

............................3

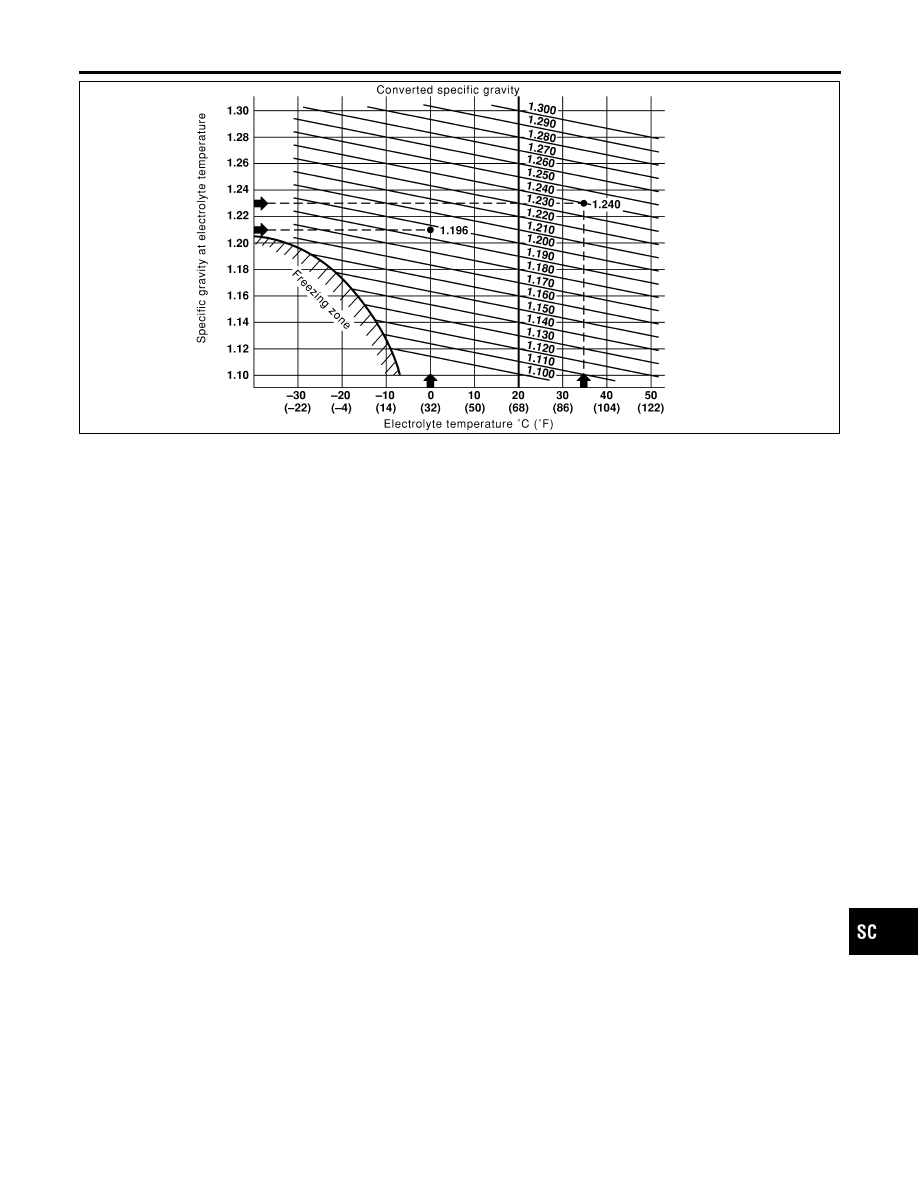

SPECIFIC GRAVITY CHECK

......................................4

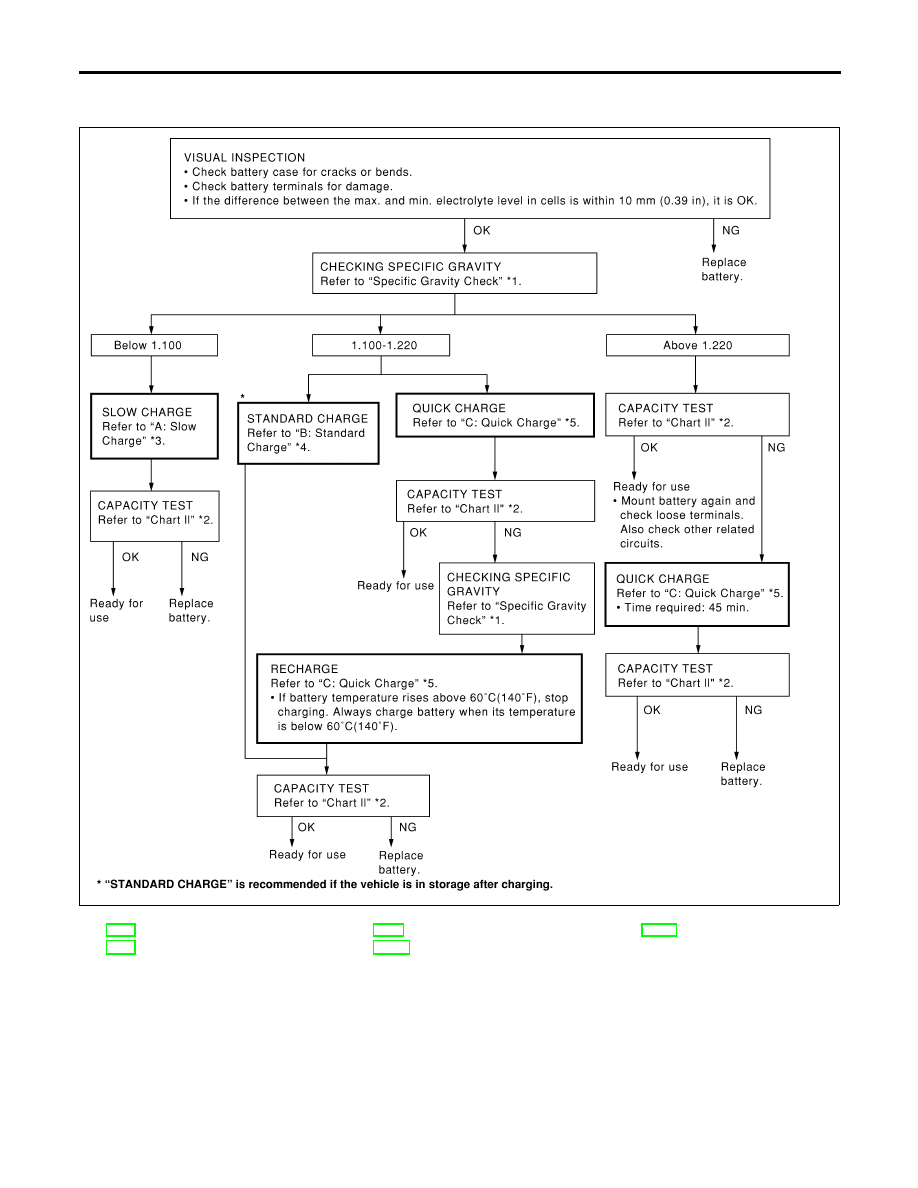

Battery Test and Charging Chart.................................6

CHART I

...................................................................6

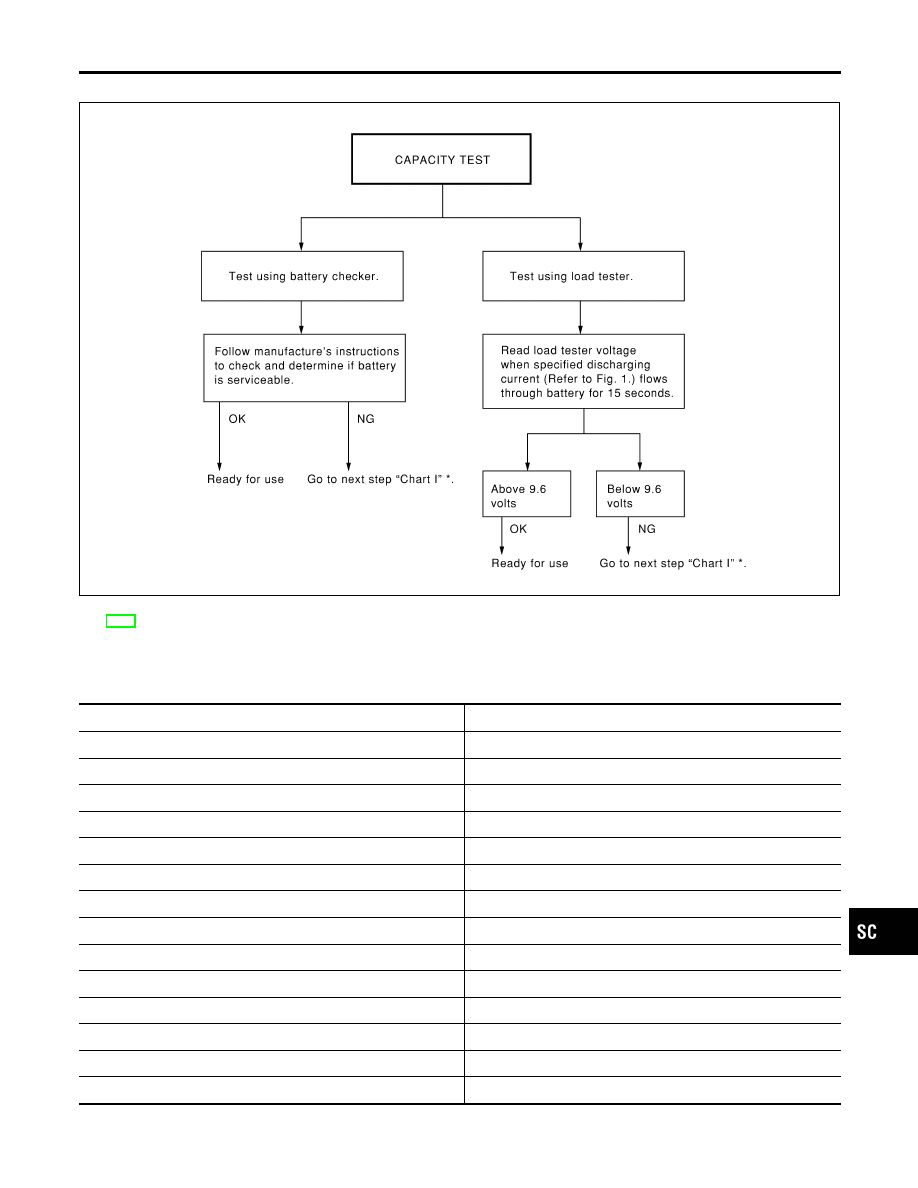

CHART II

..................................................................7

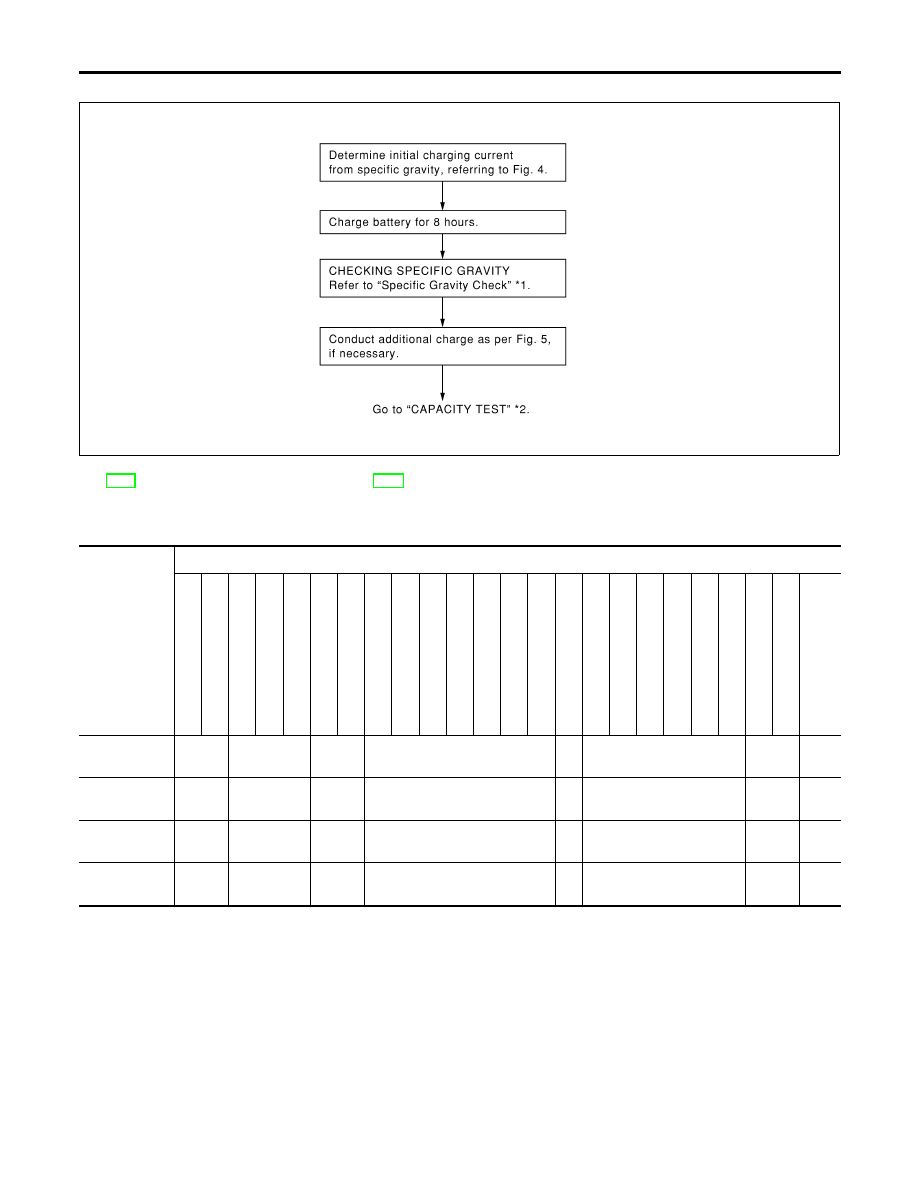

A: SLOW CHARGE

....................................................8

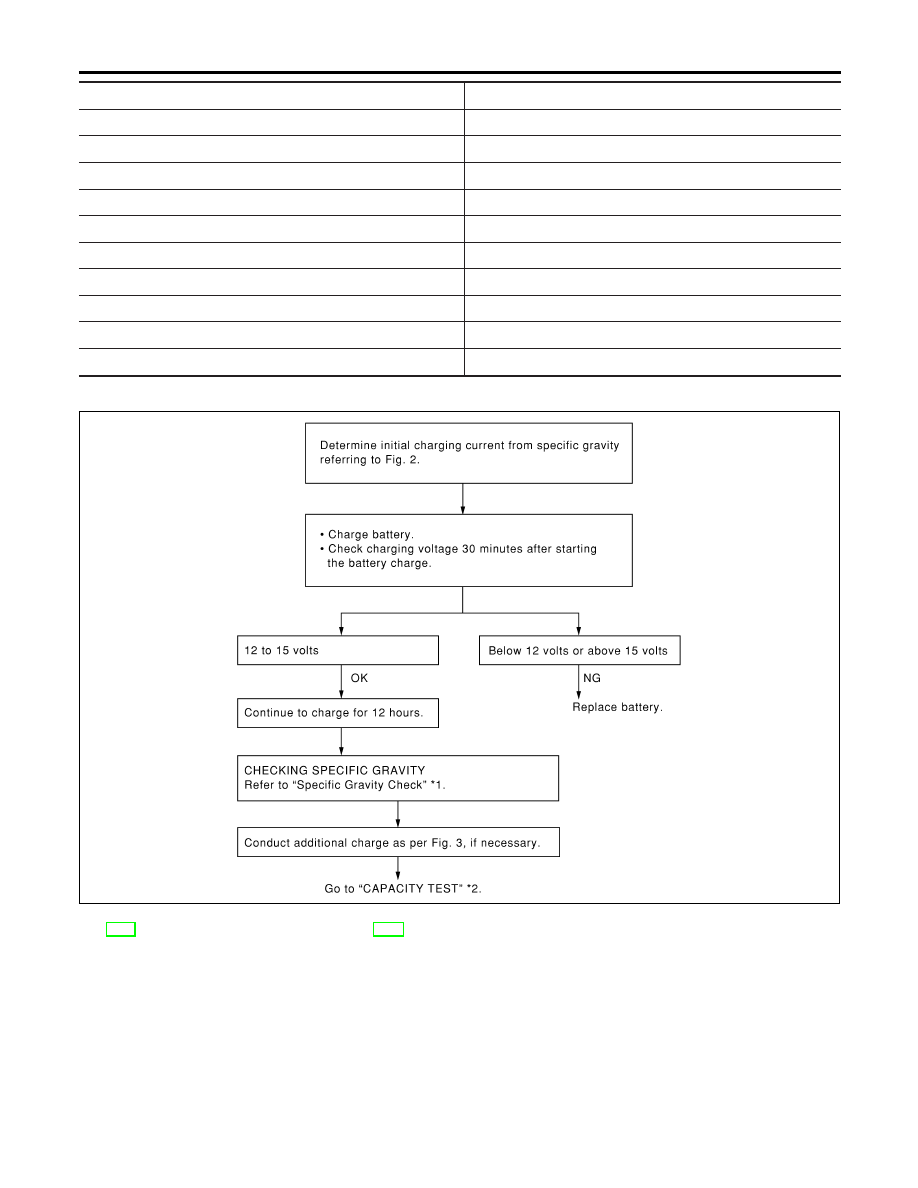

B: STANDARD CHARGE

..........................................10

C: QUICK CHARGE

................................................. 11

STARTING SYSTEM .....................................................13

System Description....................................................13

M/T MODELS

..........................................................13

A/T MODELS

...........................................................13

Wiring Diagram - START -.........................................14

M/T MODELS

..........................................................14

A/T MODELS

...........................................................15

Trouble Diagnoses.....................................................16
Construction...............................................................17
Removal and Installation ...........................................19

REMOVAL

...............................................................19

INSTALLATION

........................................................19

Inspection...................................................................19

MAGNETIC SWITCH CHECK

...................................19

PINION/CLUTCH CHECK

.........................................20

BRUSH CHECK

.......................................................20

YOKE CHECK

.........................................................21

ARMATURE CHECK

................................................21

Assembly ...................................................................22

PINION PROTRUSION LENGTH ADJUSTMENT

........22

CHARGING SYSTEM ....................................................24

System Description....................................................24
Wiring Diagram - CHARGE -.....................................25
Trouble Diagnoses.....................................................26

WITH IC REGULATOR

.............................................26

MALFUNCTION INDICATOR

....................................26

Construction...............................................................27
Removal and Installation ...........................................28

REMOVAL (QG ENGINE)

.........................................28

REMOVAL (YD ENGINE)

..........................................28

INSTALLATION

........................................................28

Disassembly...............................................................28

REAR COVER

.........................................................28

REAR BEARING

......................................................28

Inspection...................................................................29

ROTOR CHECK

......................................................29

BRUSH CHECK

.......................................................29

STATOR CHECK

.....................................................30

Assembly ...................................................................30

RING FITTING IN REAR BEARING

...........................30

REAR COVER INSTALLATION

.................................30

SERVICE DATA AND SPECIFICATIONS (SDS) .........31

Battery........................................................................31
Starter ........................................................................31
Alternator ...................................................................31

IDX

Supplemental Restraint System (SRS) “AIR
BAG” and “SEAT BELT PRE-TENSIONER”

NLSC0001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER” used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL V10 is as follows (The compo-
sition varies according to the destination and optional equipment.):

For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.

For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).

Information necessary to service the system safely is included in the RS section of this Service Manual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by intentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the RS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.

Wiring Diagrams and Trouble Diagnoses

NLSC0002

When you read wiring diagrams, refer to the following:

GI-11, “HOW TO READ WIRING DIAGRAMS”

EL-12, “POWER SUPPLY ROUTING” for power distribution circuit

When you perform trouble diagnoses, refer to the following:

GI-32, “HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSES”

GI-21, “HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT”

PRECAUTIONS

Supplemental Restraint System (SRS) “AIR BAG” and “SEAT BELT PRE-TENSIONER”

SC-2

How to Handle Battery

NLSC0003

CAUTION:

If it becomes necessary to start the engine with a booster
battery and jumper cables,
1)

Use a 12-volt booster battery.

After connecting battery cables, ensure that they are
tightly clamped to battery terminals for good contact.

Never add distilled water through the hole used to check
specific gravity.

MEL040F

METHODS OF PREVENTING OVER-DISCHARGE

NLSC0003S01

The following precautions must be taken to prevent over-discharg-
ing a battery.

The battery surface (particularly its top) should always be kept
clean and dry.

The terminal connections should be clean and tight.

At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as “low maintenance”
and “maintenance-free”.

MEL041F

When the vehicle is not going to be used over a long period of
time, disconnect the negative battery terminal.

MEL042F

Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep
a close check on charge condition to prevent over-discharge.

CHECKING ELECTROLYTE LEVEL

NLSC0003S02

WARNING:

Do not allow battery fluid to come in contact with skin, eyes,
fabrics, or painted surfaces. After touching a battery, do not
touch or rub your eyes until you have thoroughly washed your
hands. If acid contacts eyes, skin or clothing, immediately
flush with water for 15 minutes and seek medical attention.

IDX

BATTERY

How to Handle Battery

SC-3

MEL043F

Remove the cell plug using a suitable tool.

Add distilled water up to the MAX level.

SEL709E

Sulphation

NLSC0003S0201

A battery will be completely discharged if it is left unattended
for a long time and the specific gravity will become less than
1.100. This may result in sulphation on the cell plates.
To determine if a battery has been “sulphated”, note its volt-
age and current when charging it. As shown in the figure, less
current and higher voltage are observed in the initial stage of
charging sulphated batteries.
A sulphated battery may sometimes be brought back into ser-
vice by means of a long, slow charge, 12 hours or more, fol-
lowed by a battery capacity test.

MEL042FA

SPECIFIC GRAVITY CHECK

NLSC0003S03

Read hydrometer and thermometer indications at eye level.

Convert into specific gravity at 20°C (68°F).

Example:

When electrolyte temperature is 35°C (95°F) and specific grav-
ity of electrolyte is 1.230, converted specific gravity at 20°C
(68°F) is 1.240.

When electrolyte temperature is 0°C (32°F) and specific grav-
ity of electrolyte is 1.210, converted specific gravity at 20°C
(68°F) is 1.196.

BATTERY

How to Handle Battery (Cont’d)

SC-4

SEL007Z

IDX

BATTERY

How to Handle Battery (Cont’d)

SC-5

Battery Test and Charging Chart

NLSC0017

CHART I

NLSC0017S01

SEL754W

*1: SC-4
*2: SC-7

*3: SC-8
*4: SC-10

*5: SC-11

BATTERY

Battery Test and Charging Chart

SC-6

CHART II

NLSC0017S02

SEL755W

SC-6

Check battery type and determine the specified current using the following table.

Fig. 1 DISCHARGING CURRENT (Load Tester)

Type

Current (A)

28B19R(L)

34B19R(L)

46B24R(L)

135

55B24R(L)

135

079 [YUASA type code]

135

50D23R(L)

150

55D23R(L)

180

65D26R(L)

195

80D26R(L)

195

75D31R(L)

210

063 [YUASA type code]

210

95D31R(L)

240

115D31R(L)

240

025 [YUASA type code]

240

IDX

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-7

Type

Current (A)

065 [YUASA type code]

255

027 [YUASA type code]

285

075 [YUASA type code]

300

110D26R(L)

300

95E41R(L)

300

067 [YUASA type code]

325

130E41R(L)

330

096 [YUASA type code]

375

096L [YUASA type code]

375

010S [YUASA type code]

360

A: SLOW CHARGE

NLSC0017S03

SEL756W

*1: SC-4

*2: SC-7

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-8

Fig. 2 INITIAL CHARGING CURRENT SETTING (Slow charge)

CON-
VERTED
SPECIFIC
GRAVITY

BATTERY TYPE

28B19R(L)

34B19R(L)

46B24R(L)

55B24R(L)

079

[YUASA

type

code]

50D23R(L)

55D23R(L)

025

[YUASA

type

code]

027

[YUASA

type

code]

65D26R(L)

80D26R(L)

063

[YUASA

type

code]

067

[YUASA

type

code]

096

[YUASA

type

code]

75D31R(L)

065

[YUASA

type

code]

075

[YUASA

type

code]

95D31R(L)

15D31R(L)

10D26R(L)

95E41R(L)

096L

[YUASA

type

code]

010S

[YUASA

type

code]

130E41R(L)

Below 1.100

4.0 (A)

5.0 (A)

7.0 (A)

8.0 (A)

8.5
(A)

9.0
(A)

10.0 (A)

11.0

(A)

14.0

(A)

Check battery type and determine the specified current using the table shown above.

After starting charging, adjustment of charging current is not necessary.

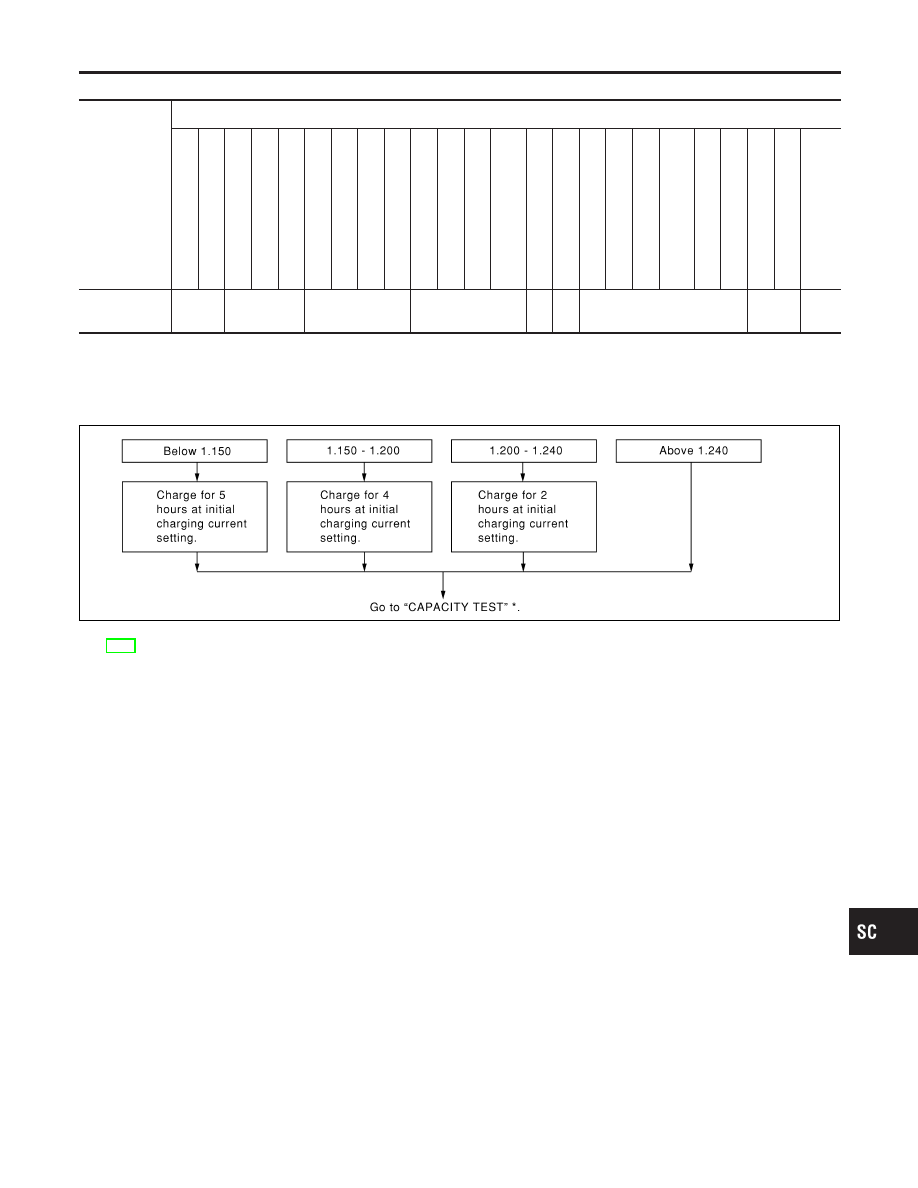

Fig. 3 ADDITIONAL CHARGE (Slow charge)

SEL757W

SC-7

CAUTION:

Set charging current to value specified in Fig. 2. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

IDX

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-9

B: STANDARD CHARGE

NLSC0017S04

SEL758W

*1: SC-4

*2: SC-7

Fig. 4 INITIAL CHARGING CURRENT SETTING (Standard charge)

CONVERTED
SPECIFIC
GRAVITY

BATTERY TYPE

28B19R(L)

34B19R(L)

46B24R(L)

55B24R(L)

079

[YUASA

type

code]

50D23R(L)

55D23R(L)

65D26R(L)

80D26R(L)

025

[YUASA

type

code]

027

[YUASA

type

code]

063

[YUASA

type

code]

067

[YUASA

type

code]

096

[YUASA

type

code]

75D31R(L)

065

[YUASA

type

code]

075

[YUASA

type

code]

95D31R(L)

15D31R(L)

10D26R(L)

95E41R(L)

096L

[YUASA

type

code]

010S

[YUASA

type

code]

130E41R(L)

1.100 - 1.130

4.0 (A)

5.0 (A)

6.0 (A)

7.0 (A)

8.0
(A)

9.0 (A)

10.0

(A)

13.0

(A)

1.130 - 1.160

3.0 (A)

4.0 (A)

5.0 (A)

6.0 (A)

7.0
(A)

8.0 (A)

9.0 (A)

11.0

(A)

1.160 - 1.190

2.0 (A)

3.0 (A)

4.0 (A)

5.0 (A)

6.0
(A)

7.0 (A)

8.0 (A)

9.0
(A)

1.190 - 1.220

2.0 (A)

3.0 (A)

4.0 (A)

5.0
(A)

5.0 (A)

6.0 (A)

7.0
(A)

Check battery type and determine the specified current using the table shown above.

After starting charging, adjustment of charging current is not necessary.

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-10

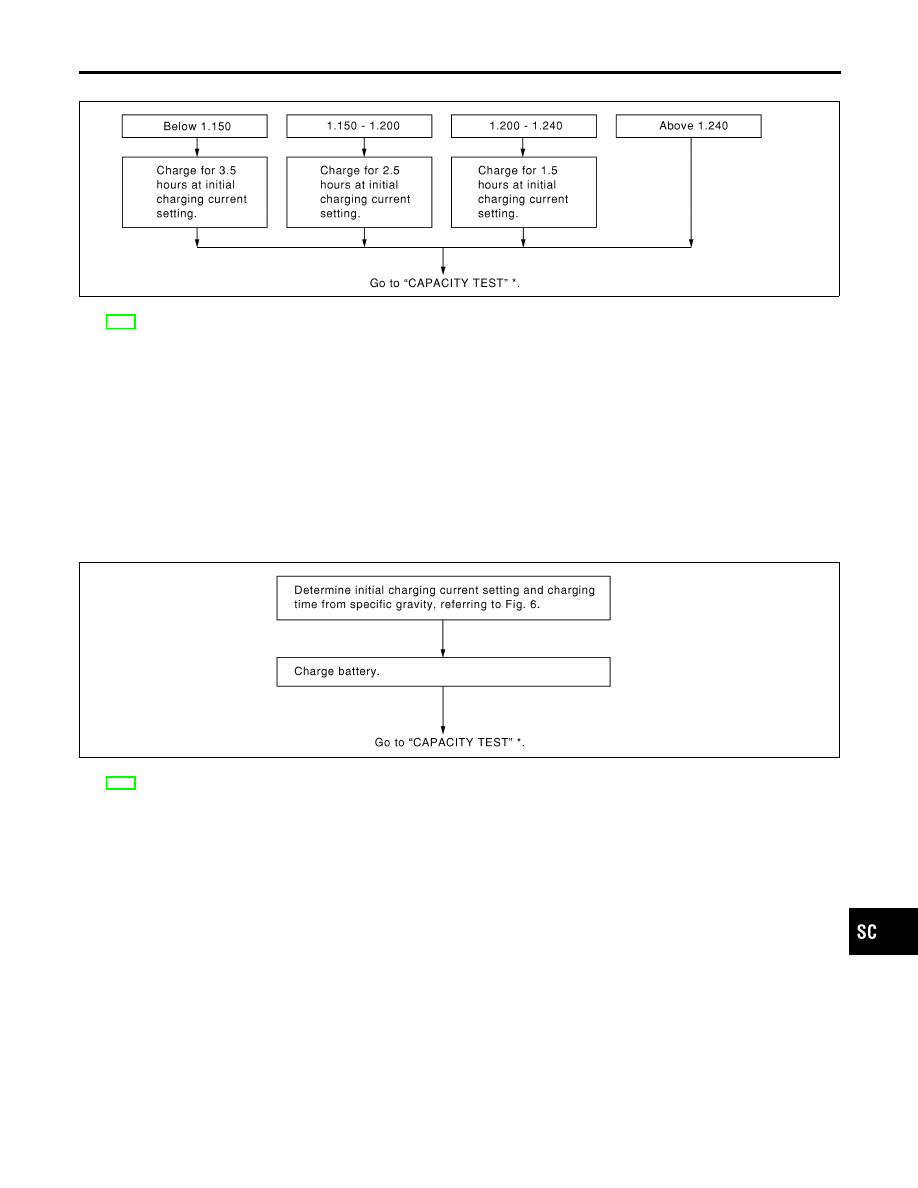

Fig. 5 ADDITIONAL CHARGE (Standard charge)

SEL759W

SC-7

CAUTION:

Do not use standard charge method on a battery whose specific gravity is less than 1.100.

Set charging current to value specified in Fig. 4. If charger is not capable of producing specified
current value, set its charging current as close to that value as possible.

Keep battery away from open flame while it is being charged.

When connecting charger, connect leads first, then turn on charger. Do not turn on charger first,
as this may cause a spark.

If battery temperature rises above 60°C (140°F), stop charging. Always charge battery when its
temperature is below 60°C (140°F).

C: QUICK CHARGE

NLSC0017S05

SEL760W

SC-7

IDX

BATTERY

Battery Test and Charging Chart (Cont’d)

SC-11

Content .. 234 235 236 237 ..
