Almera Tino V10 (2003 year). Manual - part 216

NLGI0008

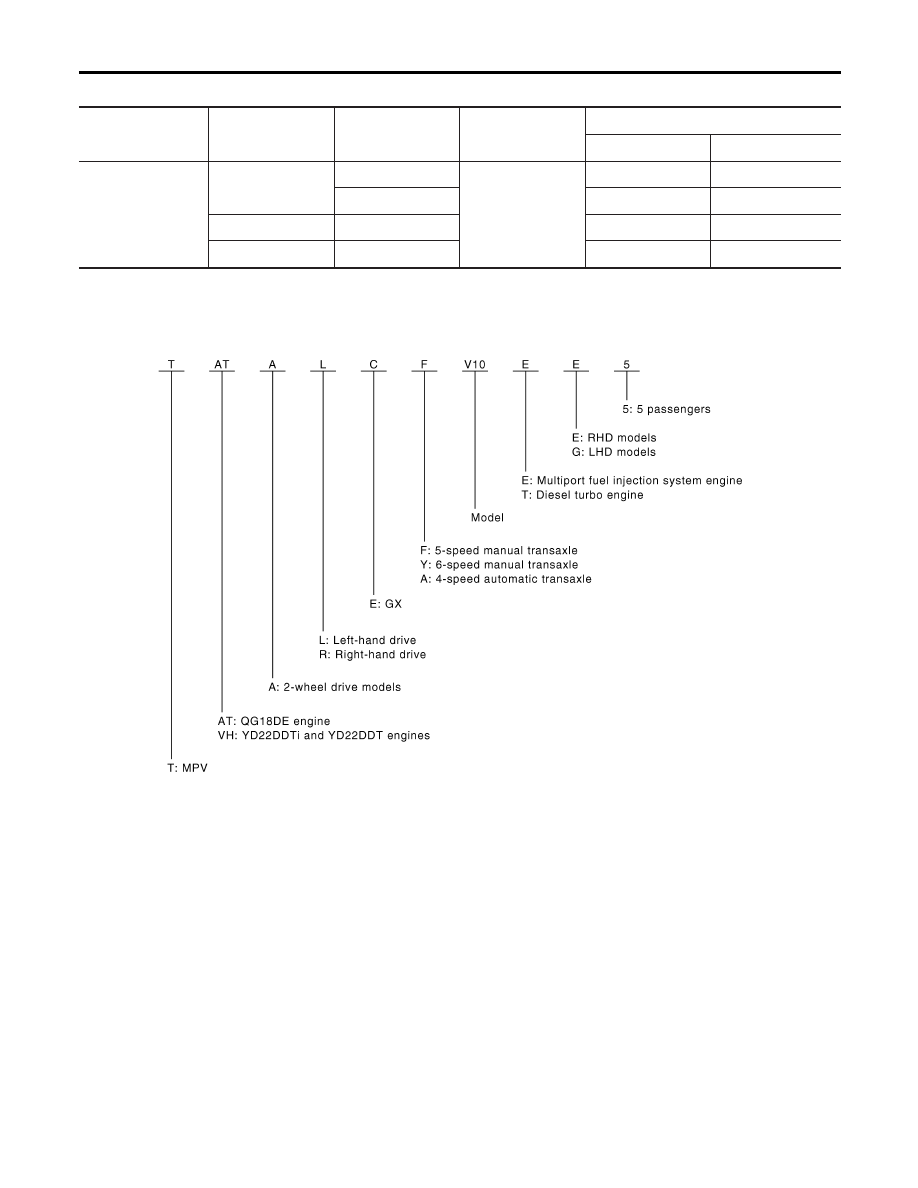

Model Variation

NLGI0008S01

Body

Engine

Transaxle

Grade

Destination

RHD

LHD

MPV

QG18DE

RF5F70A

TATAREF-EE5

TATALEF-EG5

RE4F03B

TATAREA-EE5

TATALEA-EG5

YD22DDT*1

RS5F50A

TVHAREF-TE5

TVHALEF-TG5

YD22DDTi*2

RS6F51R

TVHAREY-TE5

TVHALEY-TG5

*1: Without intercooler
*2: With intercooler

PREFIX AND SUFFIX DESIGNATIONS

NLGI0008S0112

YGI011

IDENTIFICATION INFORMATION

Model Variation

GI-38

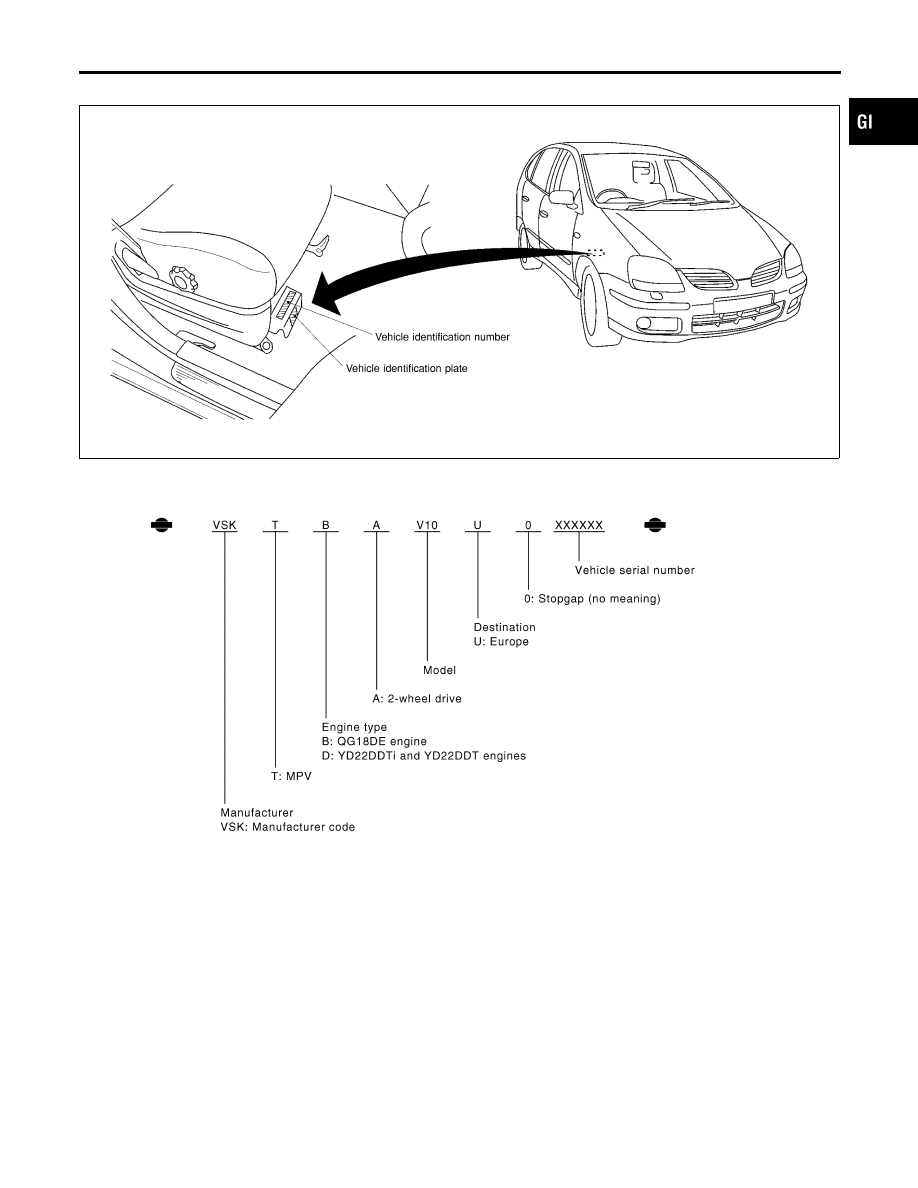

Identification Number

NLGI0008S02

NGI054

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

NLGI0008S0201

YGI012

IDX

IDENTIFICATION INFORMATION

Identification Number

GI-39

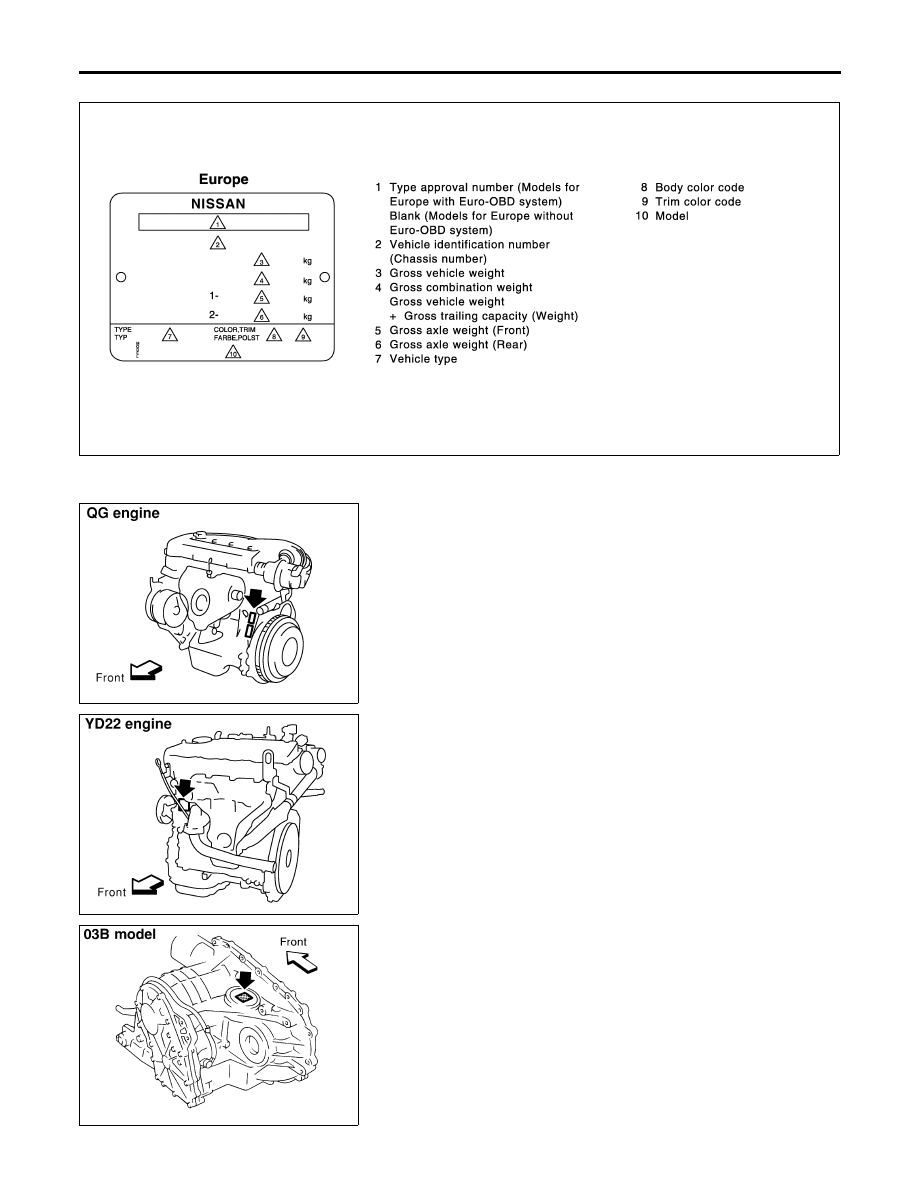

IDENTIFICATION PLATE

NLGI0008S0202

PAIA0148E

SGI117A

SGI118A

ENGINE SERIAL NUMBER

NLGI0008S0203

SGI113A

AUTOMATIC TRANSAXLE NUMBER

NLGI0008S0204

IDENTIFICATION INFORMATION

Identification Number (Cont’d)

GI-40

SGI115A

SGI116A

YGI013

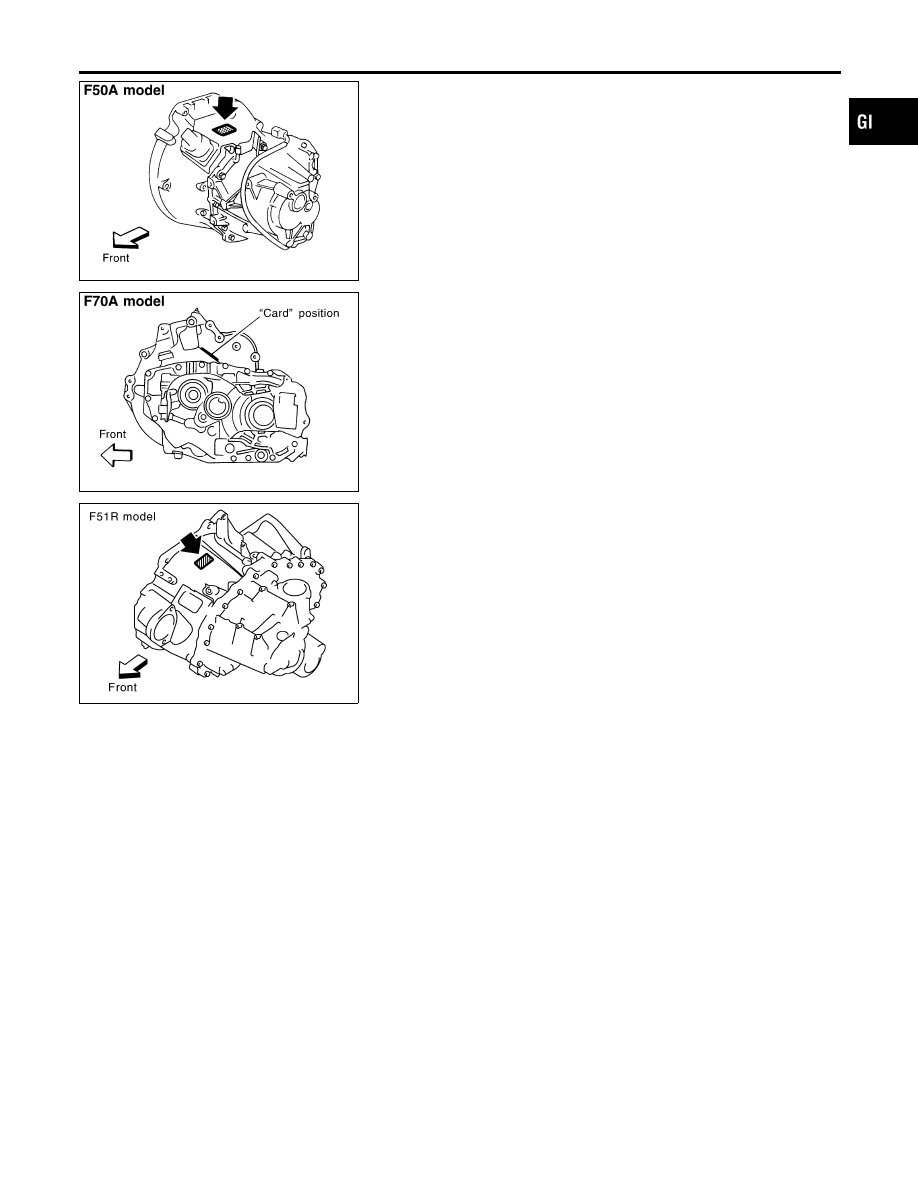

MANUAL TRANSAXLE NUMBER

NLGI0008S0205

IDX

IDENTIFICATION INFORMATION

Identification Number (Cont’d)

GI-41

Dimensions

=NLGI0008S03

Unit: mm (in)

Item

Overall length

4,270 (168.1)

Overall width

1,760 (69.3)

Overall height

1,610 (63.4)

Front tread

1,535 (60.4)

Rear tread

1,510 (59.4)

Wheelbase

2,535 (99.8)

Wheels and Tires

NLGI0008S04

Road
wheel

Steel

—

Offset

mm (in)

40 (1.57)

Aluminium

6.5JJ

Offset

mm (in)

40 (1.57)

45 (1.77)

Tire size

Conventional

185/65R15

(*1)

195/65R15

(*2)

205/55R16

Spare

Conven-

tional*3

Conven-

tional*4

Conven-

tional*4

*1: For QG engine models
*2: For YD engine models
*3: 185/65R15
*4: 195/65R15

IDENTIFICATION INFORMATION

Dimensions

GI-42

NLGI0009

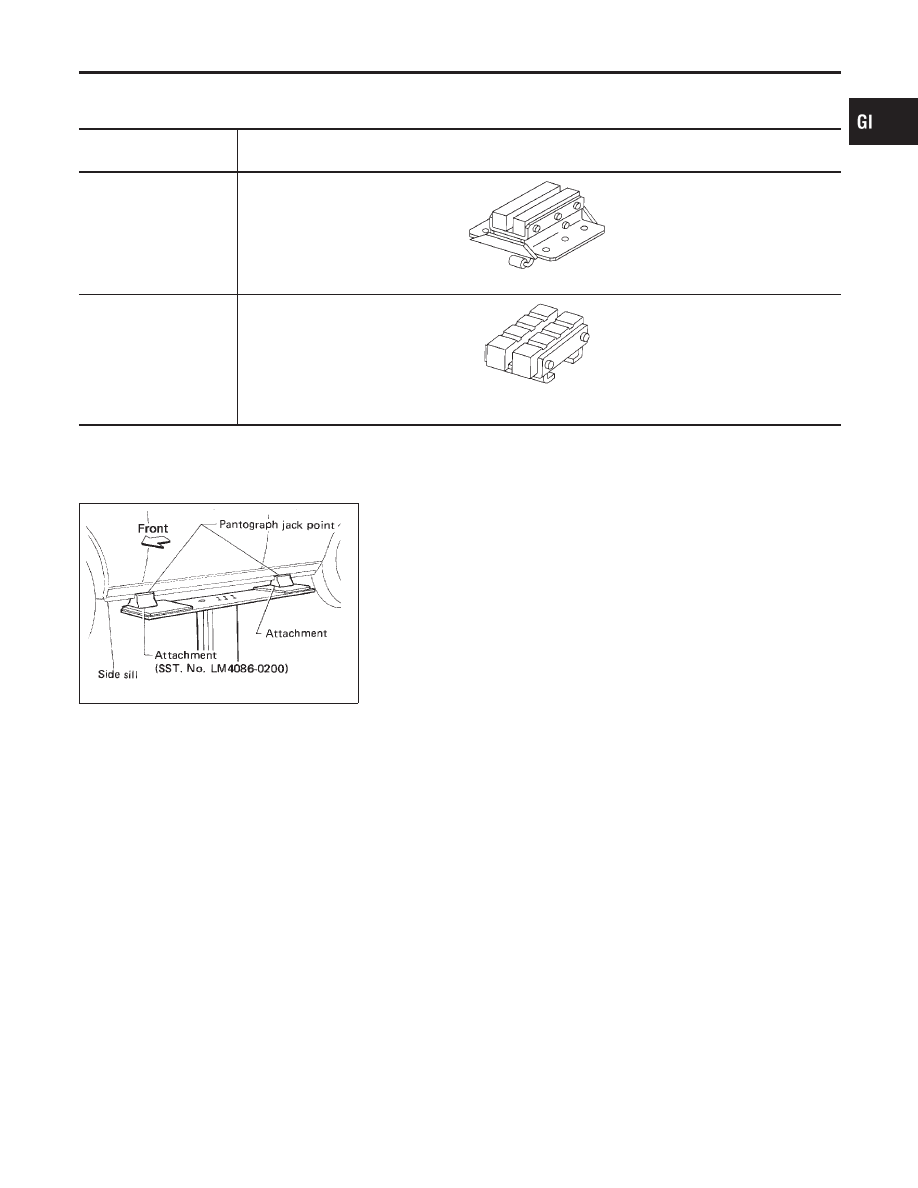

Preparation

NLGI0009S01

SPECIAL SERVICE TOOLS

NLGI0009S0101

Tool number
Tool name

Description

LM4086-0200
Board on attachment

NT001

LM4519-0000
Safety stand attachment

NT002

AGI016

Board-on Lift

NLGI0009S02

CAUTION:

Make sure vehicle is empty when lifting.

The board-on lift attachment (LM4086-0200) set at front
end of vehicle should be set on the front of the sill under
the front door opening.

Position attachments at front and rear ends of board-on
lift.

IDX

LIFTING POINTS AND TOW TRUCK TOWING

Preparation

GI-43

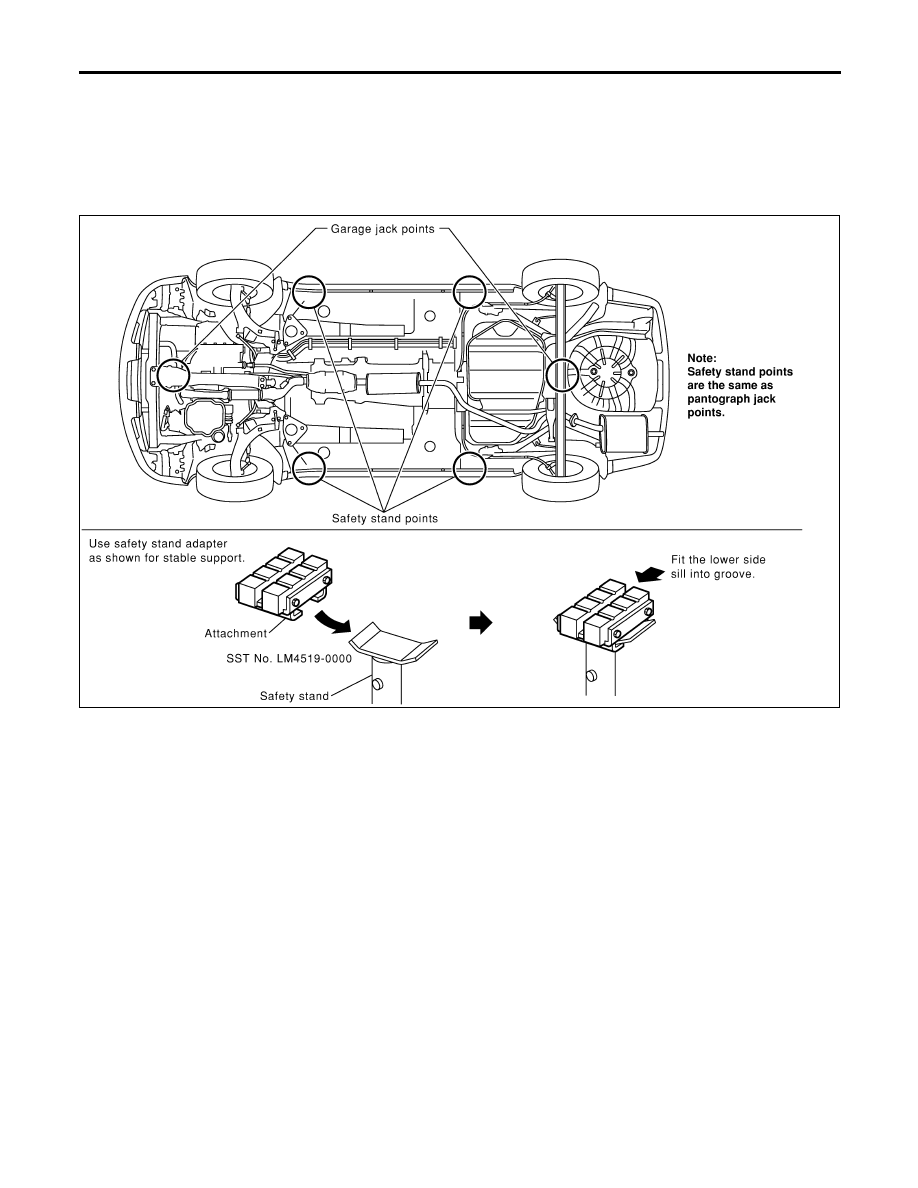

Garage Jack and Safety Stand

=NLGI0009S03

WARNING:

Never get under the vehicle while it is supported only by
the jack. Always use safety stands when you have to get
under the vehicle.

Place wheel chocks at both front and back of the wheels
on the ground.

SGI110A

LIFTING POINTS AND TOW TRUCK TOWING

Garage Jack and Safety Stand

GI-44

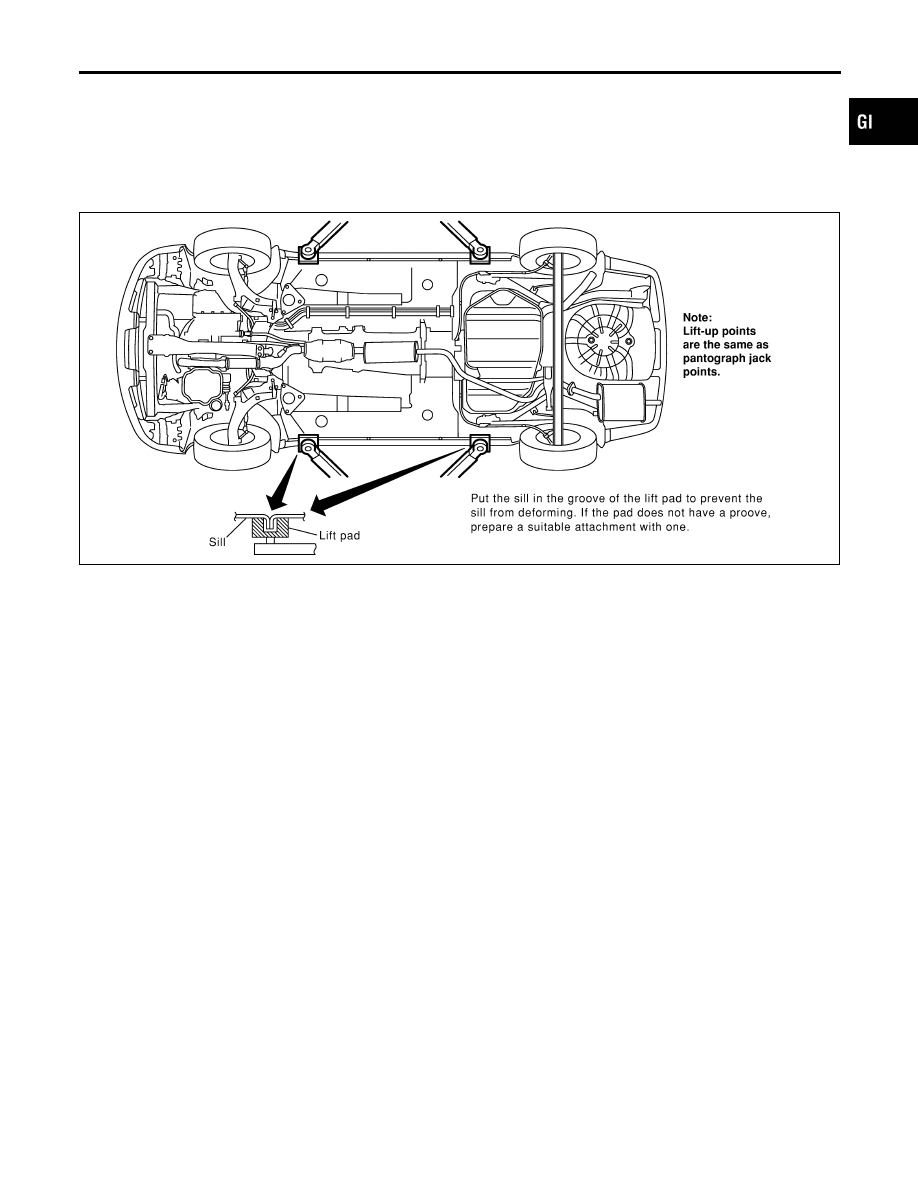

2-pole Lift

=NLGI0009S04

WARNING:

When lifting the vehicle, open the lift arms as wide as possible
and ensure that the front and rear of the vehicle are well bal-
anced.
When setting the lift arm, do not allow the arm to contact the
brake tubes, brake cable, fuel lines and sill spoiler.

SGI111A

IDX

LIFTING POINTS AND TOW TRUCK TOWING

2-pole Lift

GI-45

SGI805

NGI058

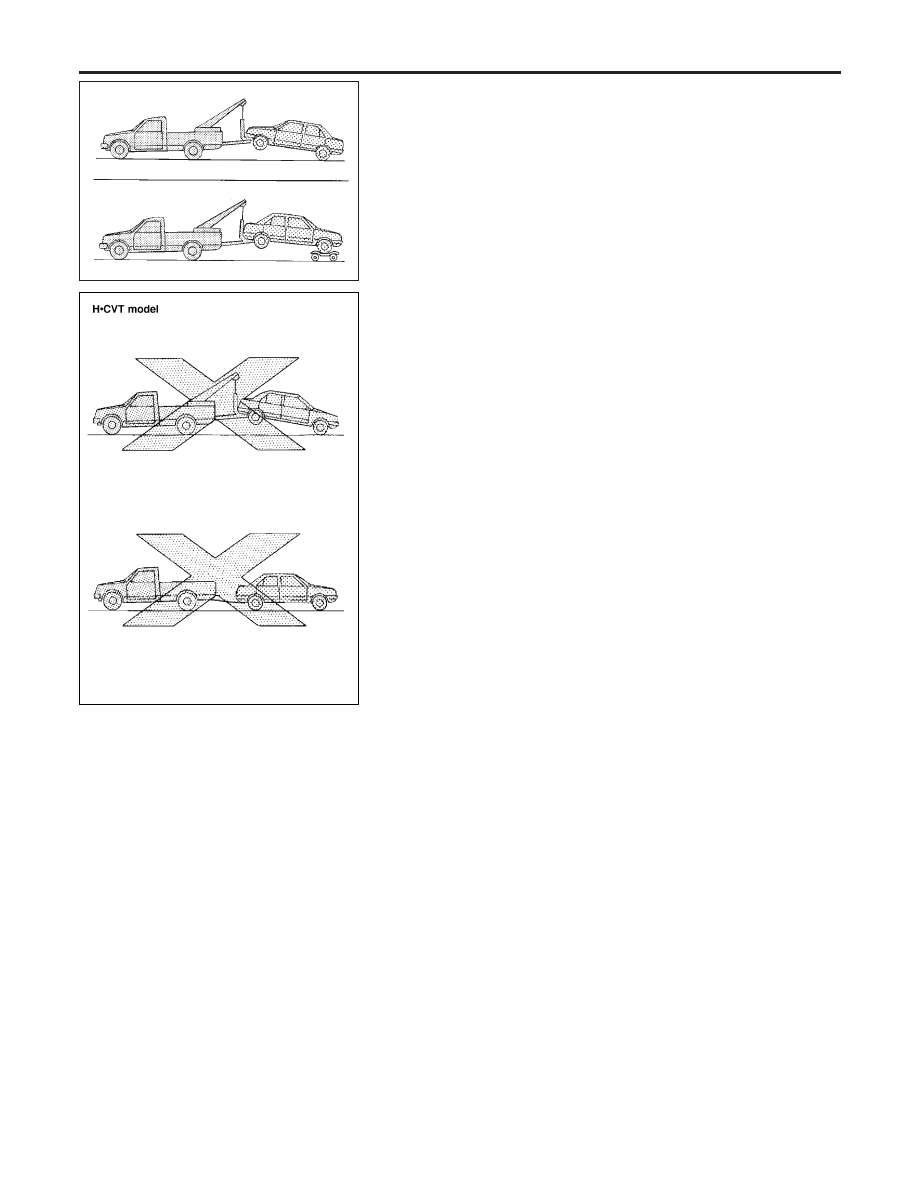

Tow Truck Towing

NLGI0009S05

CAUTION:

All applicable local laws regarding the towing operation
must be obeyed.

It is necessary to use proper towing equipment to avoid
possible damage to the vehicle during towing operation.
Towing is in accordance with Towing Procedure Manual at
dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering
system and power train are in good order. If any unit is
damaged, dollies must be used.

NISSAN recommends that the vehicle be towed with the driving
(front) wheels off the ground as illustrated.

TOWING A H·CVT MODEL WITH FOUR WHEELS ON
GROUND

NLGI0009S0502

Observe the following restricted towing speeds and distances.

Speed:

Below 50 km/h (30 MPH)

Distance:

Less than 65 km (40 miles)

CAUTION:

Never tow a H·CVT model from the rear (i.e., backward) with
four wheels on the ground as this may cause serious and
expensive damage to the transaxle.

TOWING A H·CVT MODEL WITH REAR WHEELS
RAISED (WITH FRONT WHEELS ON GROUND)

NLGI0009S0503

Never tow a H·CVT model with rear wheels raised (with front
wheels on ground) as this may cause serious and expensive dam-
age to the transaxle. If it is necessary to tow it with rear wheels
raised, always use a towing dolly under the front wheels.

LIFTING POINTS AND TOW TRUCK TOWING

Tow Truck Towing

GI-46

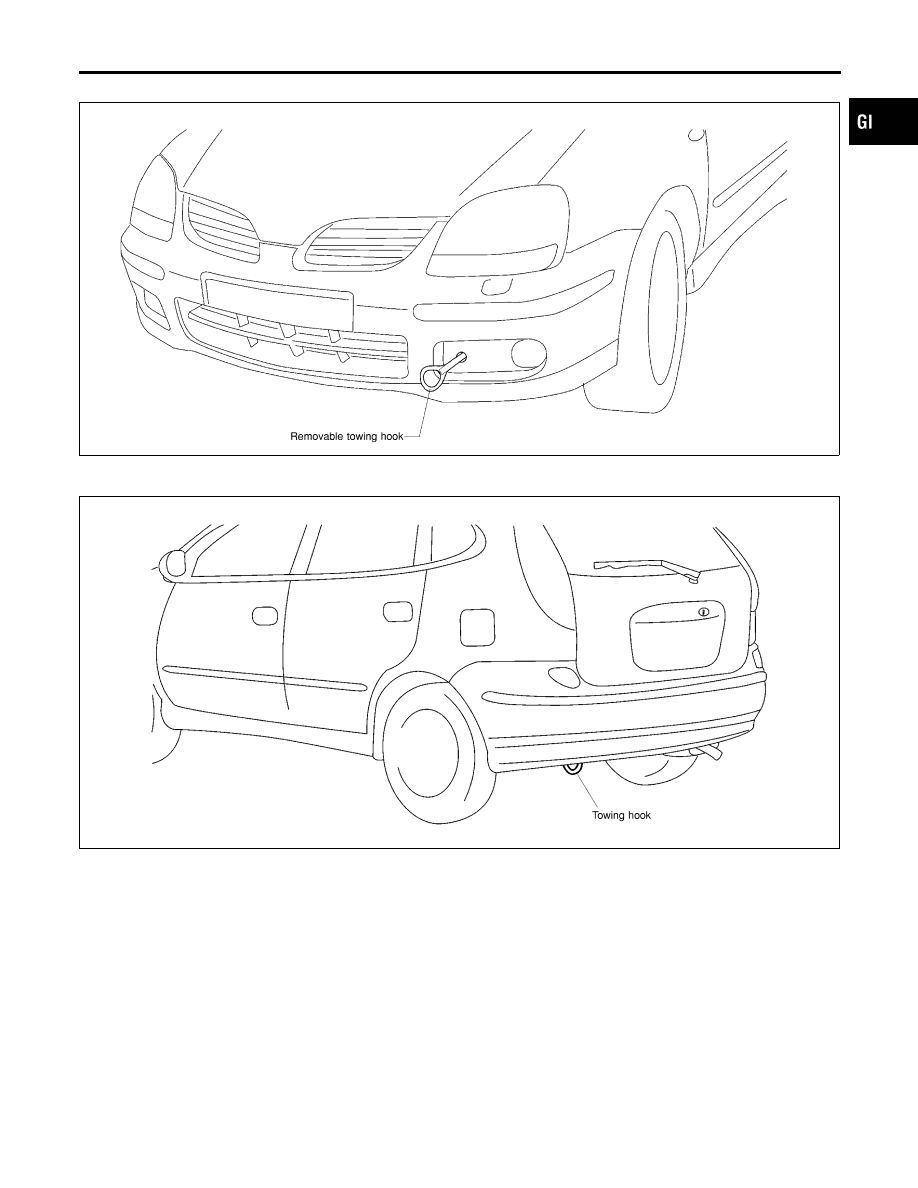

TOWING POINT

=NLGI0009S0501

NGI056

NGI057

Always pull the cable straight out from the vehicle. Never pull
on the hook at a sideways angle.

IDX

LIFTING POINTS AND TOW TRUCK TOWING

Tow Truck Towing (Cont’d)

GI-47

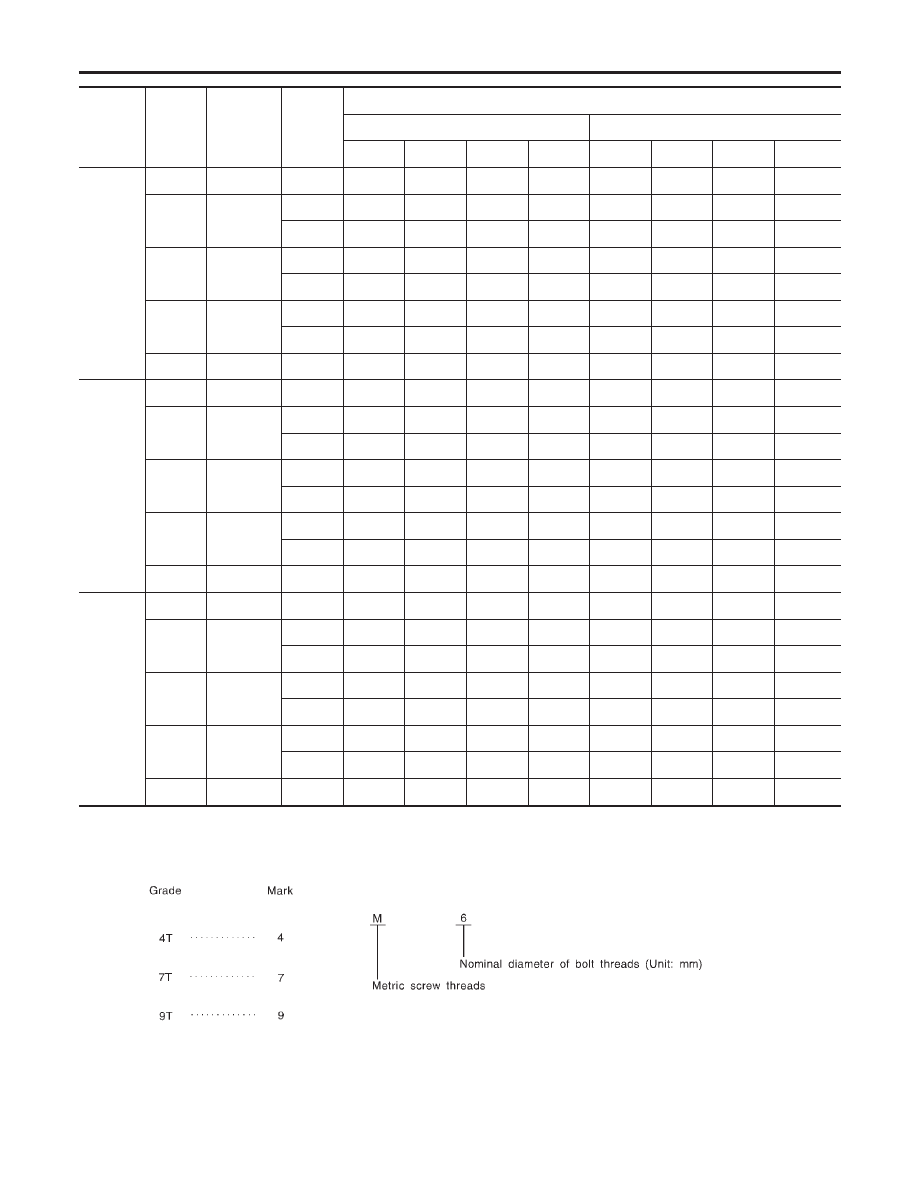

NLGI0010

Grade

Bolt size

Bolt diam-

eter *

Pitch

Tightening torque (Without lubricant)

Hexagon head bolt

Hexagon flange bolt

N·m

kg-m

ft-lb

in-lb

N·m

kg-m

ft-lb

in-lb

6.0

1.0

5.1

0.52

3.8

45.1

6.1

0.62

4.5

53.8

8.0

1.25

1.3

—

1.5

—

1.0

1.3

—

1.6

—

M10

10.0

1.5

2.5

—

3.0

—

1.25

2.6

—

3.1

—

M12

12.0

1.75

4.3

—

5.2

—

1.25

4.7

—

5.7

—

M14

14.0

1.5

7.5

—

9.0

—

6.0

1.0

8.4

0.86

6.2

74.6

1.0

8.0

1.25

2.1

—

2.5

—

1.0

2.2

—

2.7

—

M10

10.0

1.5

4.2

—

4.9

—

1.25

4.4

—

5.2

—

M12

12.0

1.75

7.2

—

8.6

—

1.25

7.9

—

9.4

—

M14

14.0

1.5

127

13.0

—

147

15.0

108

—

6.0

1.0

1.2

—

1.5

—

8.0

1.25

3.0

—

3.6

—

1.0

3.2

—

3.8

—

M10

10.0

1.5

6.0

—

7.1

—

1.25

6.3

—

7.5

—

M12

12.0

1.75

10.0

—

118

12.0

—

1.25

108

11.0

—

137

14.0

101

—

M14

14.0

1.5

177

18.0

130

—

206

21.0

152

—

*: Nominal diameter
1)

Special parts are excluded.

This standard is applicable to bolts having the following marks embossed on the bolt head.

MGI044A

TIGHTENING TORQUE OF STANDARD BOLTS

GI-48

NLGI0011

ISO 15031–2 Terminology List

NLGI0011S01

All emission related terms used in this publication in accordance with ISO 15031-2 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.

***: Not applicable

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

Absolute pressure sensor

***

Air cleaner

ACL

Air cleaner

Barometric pressure

BARO

***

Barometric pressure sensor-BCDD

BAROS-BCDD

BCDD

Camshaft position

CMP

***

Camshaft position sensor

CMPS

Crank angle sensor

Carburetor

CARB

Carburetor

Charge air cooler

CAC

Intercooler

Closed loop

Closed throttle position switch

CTP switch

Idle switch

Clutch pedal position switch

CPP switch

Clutch switch

Continuous fuel injection system

CFI system

***

Continuous trap oxidizer system

CTOX system

***

Crankshaft position

CKP

***

Crankshaft position sensor

CKPS

***

Data link connector

DLC

***

Data link connector for CONSULT-II

DLC for CONSULT-II

Diagnostic connector for CONSULT-II

Diagnostic test mode

DTM

Diagnostic mode

Diagnostic test mode selector

DTM selector

Diagnostic mode selector

Diagnostic test mode I

DTM I

Mode I

Diagnostic test mode II

DTM II

Mode II

Diagnostic trouble code

DTC

Malfunction code

Direct fuel injection system

DFI system

***

Distributor ignition system

DI system

Ignition timing control

Early fuel evaporation-mixture heater

EFE-mixture heater

Mixture heater

Early fuel evaporation system

EFE system

Mixture heater control

Electrically erasable programmable read
only memory

EEPROM

***

Electronic ignition system

EI system

Ignition timing control

Engine control module

ECM

Engine control unit

Engine coolant temperature

ECT

Engine temperature

Engine coolant temperature sensor

ECTS

Engine temperature sensor

Engine modification

***

Engine speed

RPM

Engine speed

IDX

ISO 15031–2 TERMINOLOGY LIST

ISO 15031–2 Terminology List

GI-49

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

Erasable programmable read only
memory

EPROM

***

Evaporative emission canister or Canister

EVAP canister or Canister

Canister

Evaporative emission canister purge con-
trol solenoid valve

EVAP canister purge control solenoid
valve

Canister control solenoid valve

Evaporative emission canister purge con-
trol valve

EVAP canister purge control valve

Canister purge cut valve

Evaporative emission canister vent control
valve

EVAP canister vent control valve

***

Evaporative emission canister purge vol-
ume control valve

EVAP canister purge volume control valve Canister purge control valve

Evaporative emission control system pres-
sure sensor

EVAP control system pressure sensor

***

Evaportavie emission shut valve

EVAP shut valve

Shutoff valve

Evaporative emission system

EVAP system

Evaporative emission control system

Exhaust gas recirculation valve

EGR valve

Exhaust gas recirculation control-BPT
valve

EGRC-BPT valve

BPT valve

Exhaust gas recirculation control-solenoid
valve

EGRC-solenoid valve

EGR control solenoid valve

Exhaust gas recirculation temperature
sensor

EGR temperature sensor

Exhaust gas temperature sensor

Flash electrically erasable programmable
read only memory

FEEPROM

***

Flash erasable programmable read only
memory

FEPROM

***

Flexible fuel sensor

FFS

***

Heated oxygen sensor

HO2S

Exhaust gas sensor

Idle air control system

IAC system

Idle speed control

Idle air control valve-air regulator

IACV-air regulator

Air regulator

Idle air control valve-auxiliary air control
valve

IACV-AAC valve

Auxiliary air control (AAC) valve

Idle air control valve-FICD solenoid valve

IACV-FICD solenoid valve

FICD solenoid valve

Idle air control valve-idle up control sole-
noid valve

IACV-idle up control solenoid valve

Idle up control solenoid valve

Idle speed control-FI pot

ISC-FI pot

FI pot

Idle speed control system

ISC system

***

Ignition control module

ICM

***

Indirect fuel injection system

IFI system

***

Intake air temperature sensor

IATS sensor

Air temperature sensor

Knock

***

Detonation

Knock sensor

Detonation sensor

Malfunction indicator lamp

Check engine light

ISO 15031–2 TERMINOLOGY LIST

ISO 15031–2 Terminology List (Cont’d)

GI-50

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

Manifold absolute pressure

MAP

***

Manifold absolute pressure/Barometric
pressure switch solenoid valve

MAP/BARO switch solenoid valve

***

Manifold absolute pressure sensor

MAPS

***

Manifold differential pressure

MDP

***

Manifold differential pressure sensor

MDPS

***

Manifold surface temperature

MST

***

Manifold surface temperature sensor

MSTS

***

Manifold vacuum zone

MVZ

***

Manifold vacuum zone sensor

MVZS

***

Mass air flow sensor

MAFS

Air flow meter

Mixture control solenoid valve

MC solenoid valve

Air-fuel ratio control solenoid valve

Multiport fuel injection system

MFI system

Fuel injection control

Neutral position switch

***

Neutral switch

Nonvolatile random access memory

NVRAM

***

On board diagnostic system

OBD system

Self-diagnoses

Open loop

Oxidation catalyst

Catalyst

Oxidation catalytic converter system

OC system

***

Oxygen sensor

O2S

Exhaust gas sensor

Park position switch

***

Park switch

Park/neutral position switch

PNP switch

Park/neutral switch

Periodic trap oxidizer system

PTOX system

***

Powertrain control module

PCM

***

Programmable read only memory

PROM

***

Pulsed secondary air injection control
solenoid valve

PAIRC solenoid valve

AIV control solenoid valve

Pulsed secondary air injection system

PAIR system

Air induction valve (AIV) control

Pulsed secondary air injection valve

PAIR valve

Air induction valve

Random access memory

RAM

***

Read only memory

ROM

***

Scan tool

***

Secondary air injection pump

AIR pump

***

Secondary air injection system

AIR system

***

Sequential multiport fuel injection system

SFI system

Sequential fuel injection

Service reminder indicator

SRI

***

Simultaneous multiport fuel injection sys-
tem

***

Simultaneous fuel injection

IDX

ISO 15031–2 TERMINOLOGY LIST

ISO 15031–2 Terminology List (Cont’d)

GI-51

NEW TERM

NEW ACRONYM /

ABBREVIATION

OLD TERM

Smoke puff limiter system

SPL system

***

Supercharger

***

Supercharger bypass

SCB

***

System readiness test

SRT

***

Thermal vacuum valve

TVV

Thermal vacuum valve

Three way catalyst

TWC

Catalyst

Three way catalytic converter system

TWC system

***

Three way + oxidation catalyst

TWC + OC

Catalyst

Three way + oxidation catalytic converter
system

TWC + OC system

***

Throttle body

Throttle chamber
SPI body

Throttle body fuel injection system

TBI system

Fuel injection control

Throttle position

Throttle position sensor

TPS

Throttle sensor

Throttle position switch

TP switch

Throttle switch

Torque converter clutch solenoid valve

TCC solenoid valve

Lock-up cancel solenoid
Lock-up solenoid

Turbocharger

Vacuum cut valve

***

Vacuum control valve

Vacuum cut valve bypass valve

***

Vehicle speed sensor

VSS

Vehicle speed sensor

Volume air flow sensor

VAFS

Air flow meter

Warm up oxidation catalyst

WU-OC

Catalyst

Warm up oxidation catalytic converter sys-
tem

WU-OC system

***

Warm up three way catalyst

WU-TWC

Catalyst

Warm up three way catalytic converter
system

WU-TWC system

***

Wide open throttle position switch

WOTP switch

Full switch
