CD CHANGER CIRCUIT CHECK

1. Disconnect CD auto changer connector.

MKIB0133E

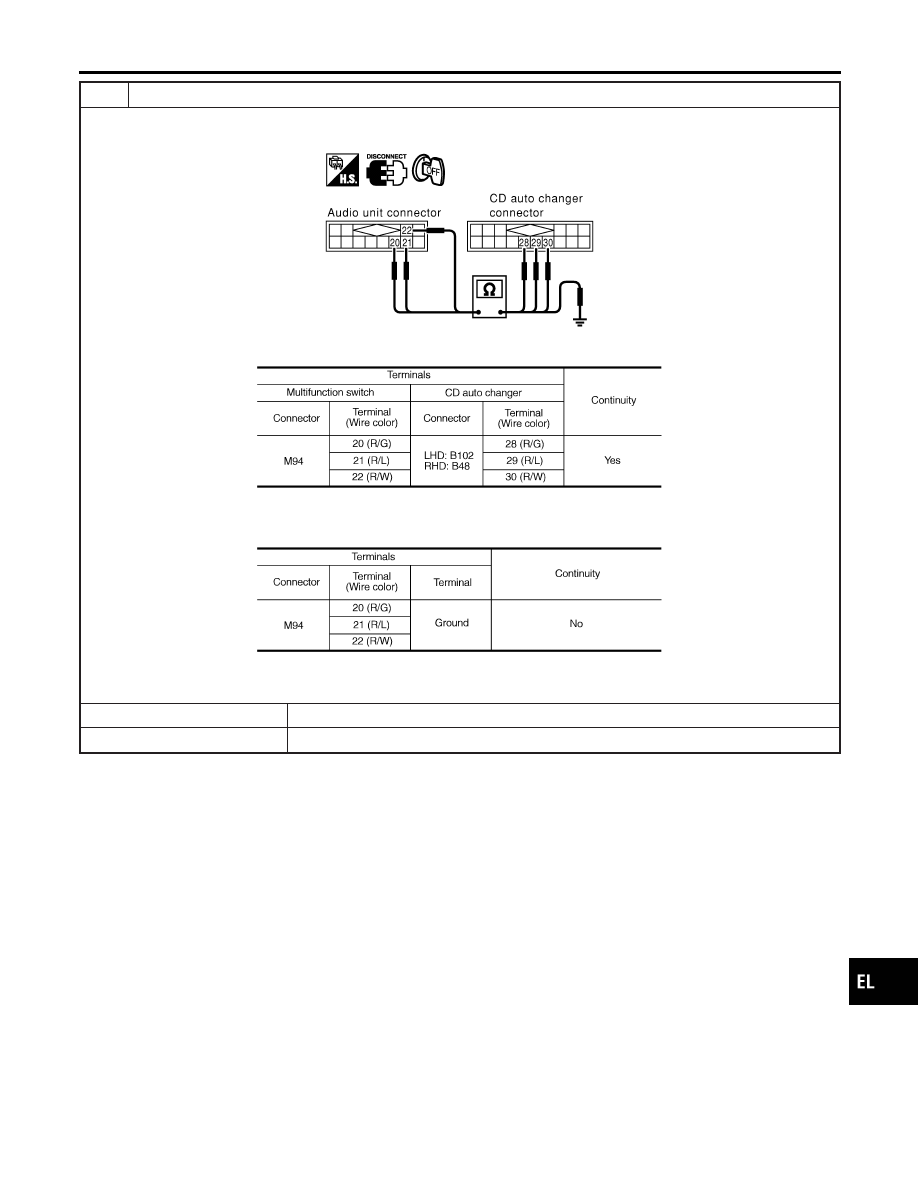

2. Check continuity between audio unit and CD auto changer.

MTBL1664

3. Check continuity between multifunction switch and ground.

MTBL1665

OK or NG

OK

©

Replace display unit.

NG

©

Replace harness or connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-241

SELF-DIAGNOSIS DOES NOT PERFORM

=NLEL0689S09

1

MULTIFUNCTION SWITCH CHECK

Check multifunction switch power and ground circuit. Refer to EL-232.

©

GO TO 2.

2

DISPLAY UNIT CHECK

Check display unit power and ground circuit. Refer to EL-230.

©

GO TO 3.

3

SELF-DIAGNOSIS CHECK

1. Disconnect audio unit connector M95.
2. Perform self-diagnosis mode.

Can self-diagnosis mode be activated?

Yes

©

GO TO 4.

No

©

AV communication line check. Refer to EL-239.

4

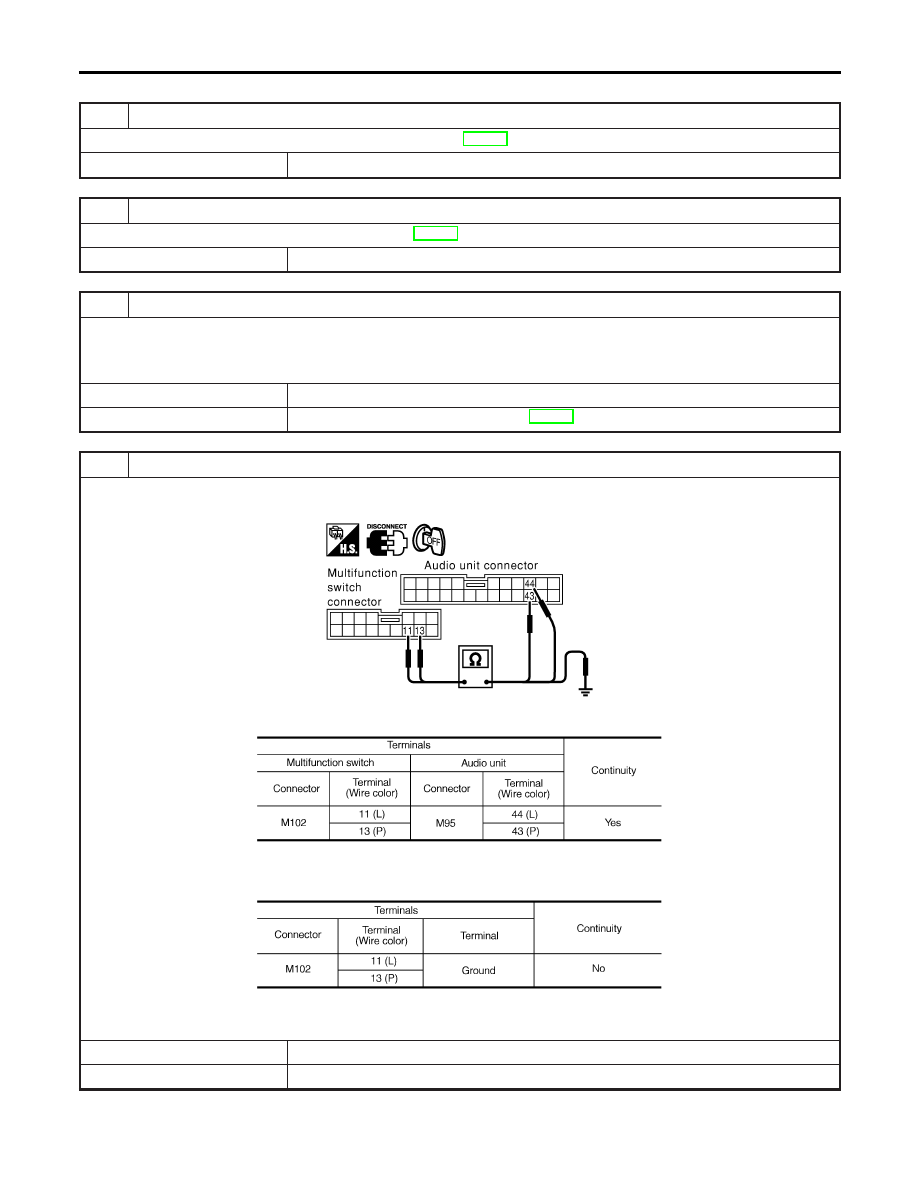

MULTIFUNCTION SWITCH CIRCUIT CHECK

1. Disconnect multifunction switch connector.
2. Check continuity between multifunction switch and audio unit.

MKIB0132E

MTBL1666

3. Check continuity between multifunction switch and ground.

MTBL1667

OK or NG

OK

©

GO TO 5.

NG

©

Replace harness or connector.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-242

5

AUDIO UNIT CIRCUIT CHECK

1. Disconnect CD auto changer connector.

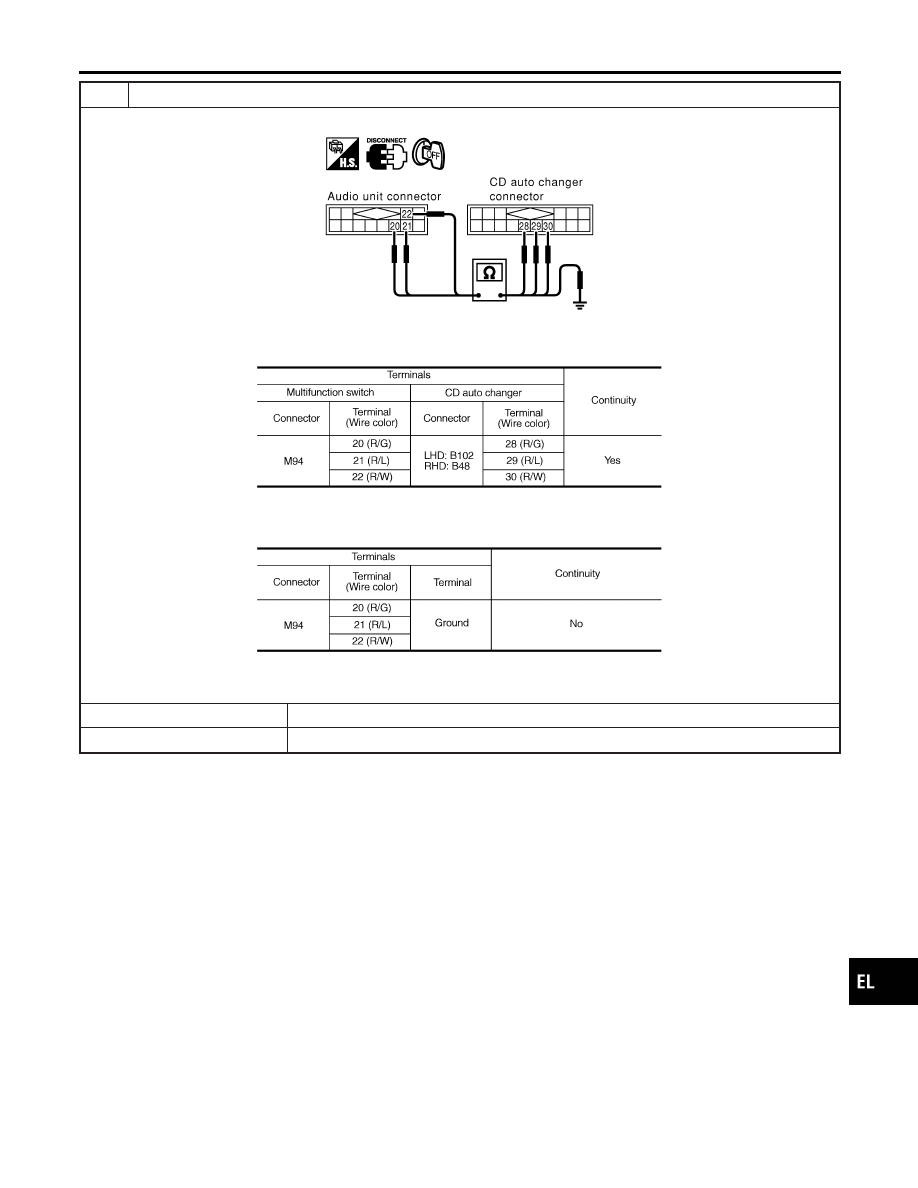

2. Check continuity between audio unit and CD auto changer.

MKIB0133E

MTBL1668

3. Check continuity between audio unit and ground.

MTBL1669

OK or NG

OK

©

Inspection end.

NG

©

Replace harness or connector.

RGB SCREEN IS NOT SHOWN

NLEL0689S10

Replace display unit.

COLOR OF RGB IMAGE IS NOT PROPER

NLEL0689S11

Replace display unit.

RGB SCREEN IS ROLLING

NLEL0689S12

Replace display unit.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-243

AIR CONDITIONING CONTROLS (ONLY) ARE
INEFFECTIVE (REAR DEFOGGER CONTROL
EXCLUDED).

NLEL0689S13

1

A/C AUTO AMP. AND DISPLAY UNIT CIRCUIT CHECK

1. Turn the ignition switch OFF.
2. Disconnect A/C auto amp. connector and display unit connector.

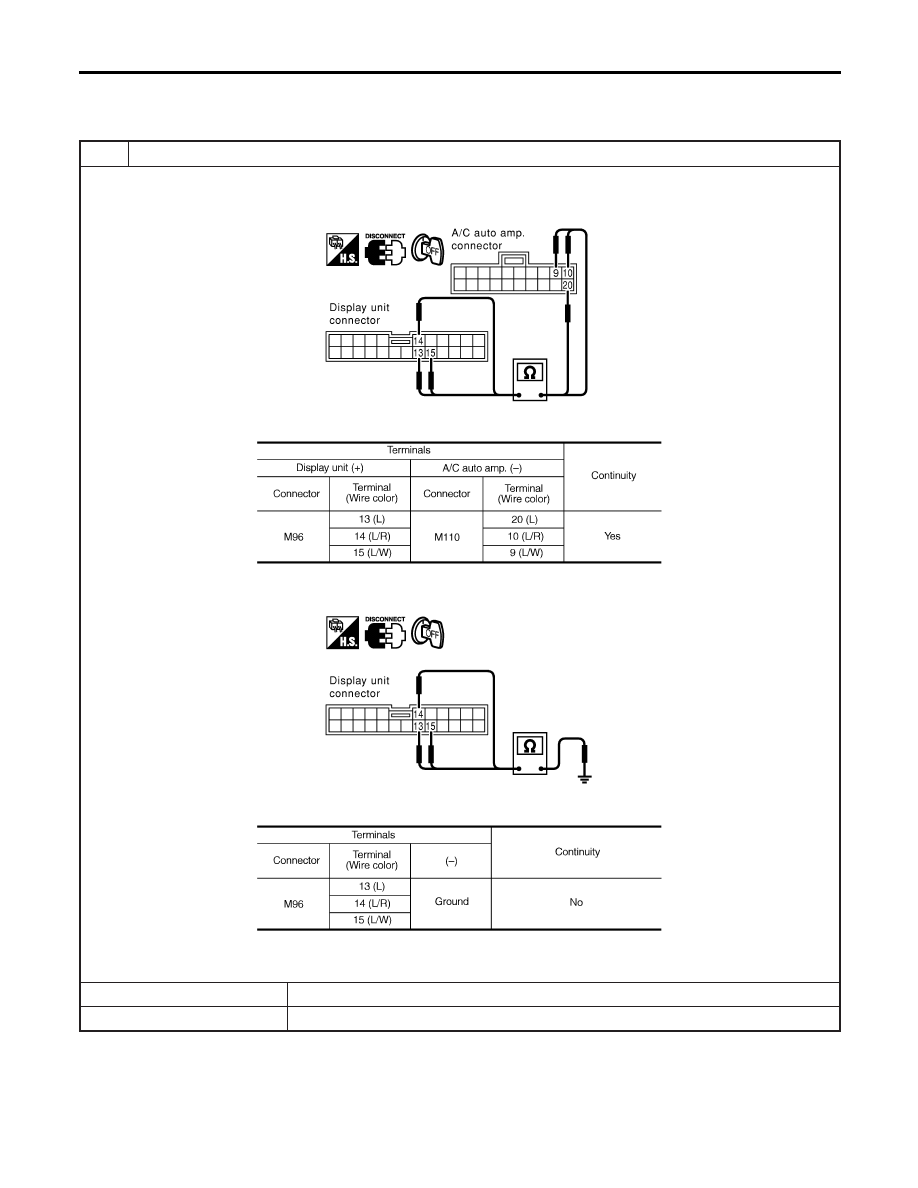

3. Check continuity between display unit and A/C auto amp.

MKIB0149E

MTBL1670

4. Check continuity between display unit and ground.

MKIB0150E

MTBL1671

OK or NG

OK

©

GO TO 2.

NG

©

Replace harness or connector.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-244

2

A/C-AV, AV-AC, AC-CLK COMMUNICATION SIGNAL CHECK

1. Connect A/C auto amp. connector.
2. Turn the ignition switch ON.

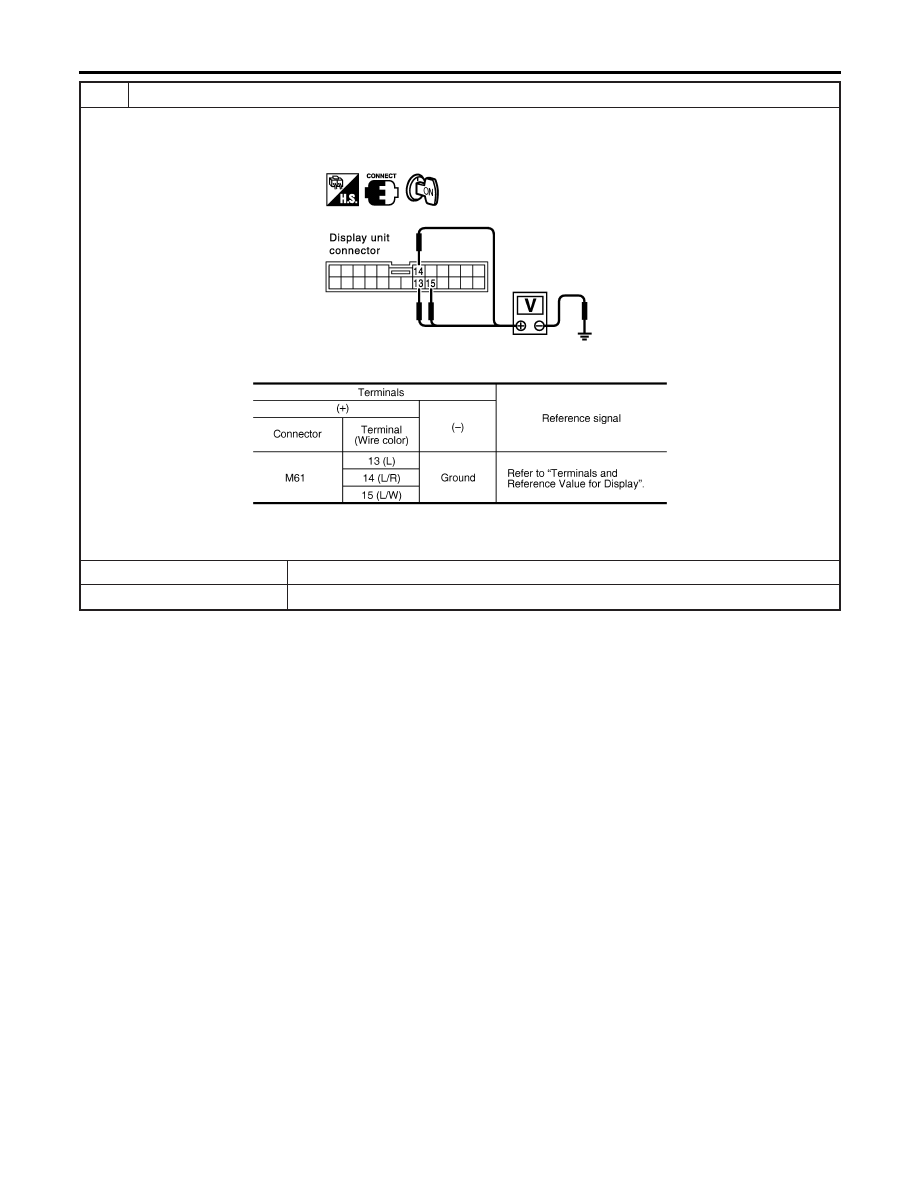

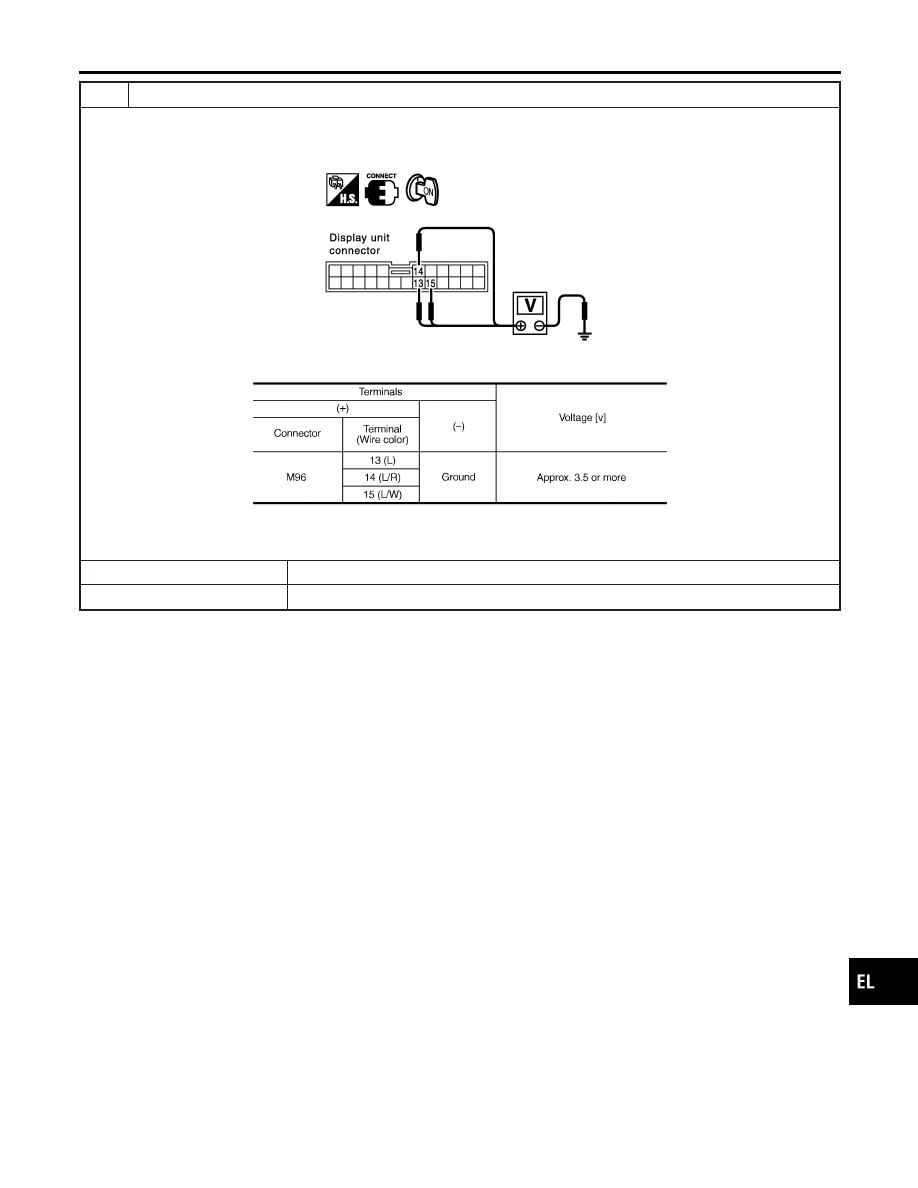

3. Check voltage between display unit and ground.

MKIB0203E

MTBL1672

OK or NG

OK

©

GO TO 3.

NG

©

Replace A/C auto amp.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-245

3

A/C-AV, AV-AC, AC-CLK COMMUNICATION SIGNAL CHECK

1. Connect display unit connector.
2. Turn the ignition switch ON.
3. Check voltage signal between display unit and ground with oscilloscope or CONSULT-II.

MKIB0203E

MTBL1673

OK or NG

OK

©

Replace A/C auto amp.

NG

©

Replace display unit.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-246

NO FUEL INFORMATION IS DISPLAYED/NO WARNING
MESSAGE IS DISPLAYED

NLEL0689S14

1

COMMUNICATION LINE (MA-AV, AV-ME) CIRCUIT CHECK

1. Disconnect the display unit connector and combination meter connector.

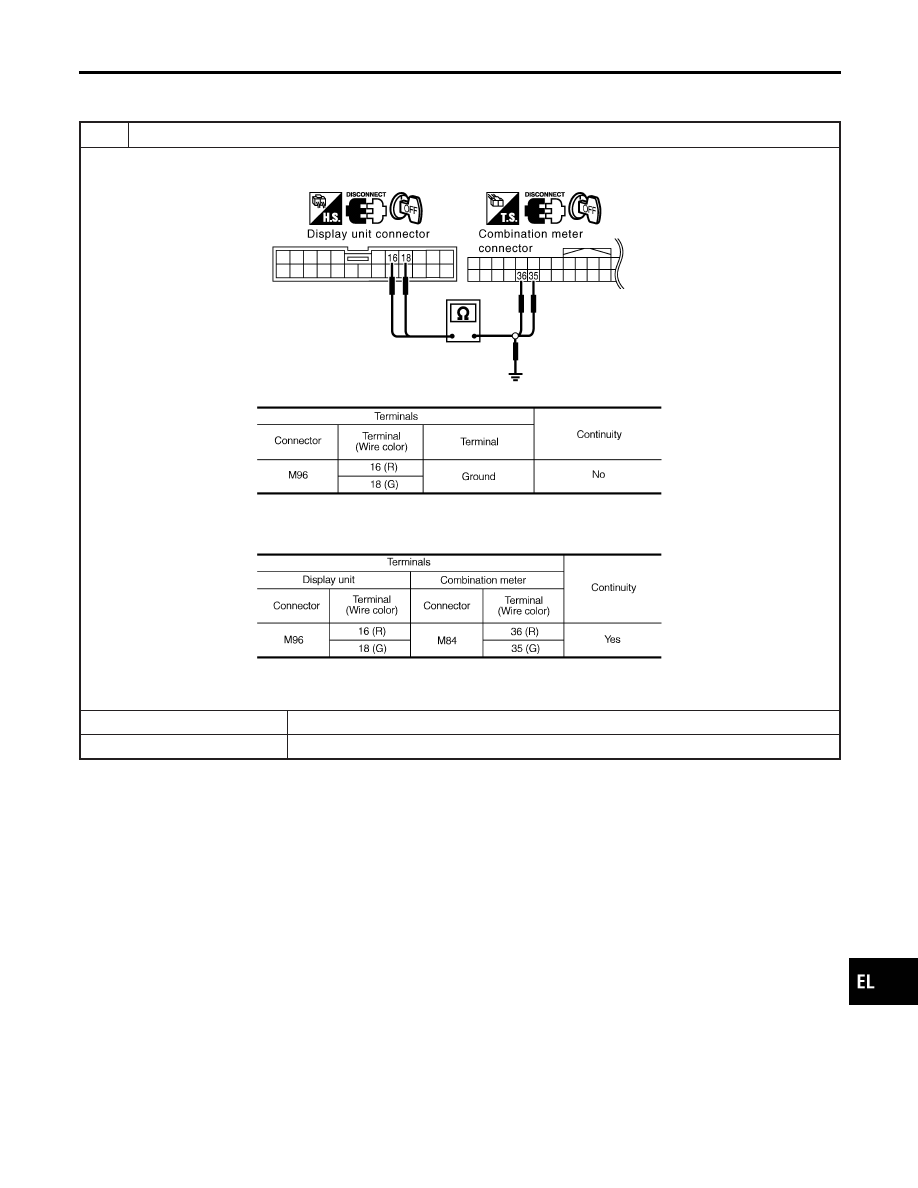

2. Check continuity between display unit and ground.

YEL405E

MTBL1674

3. Check continuity between display unit and combination meter.

MTBL1675

OK or NG

OK

©

GO TO 2.

NG

©

Replace harness or connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-247

2

COMMUNICATION SIGNAL (AV-ME) CHECK

1. Connect display unit connector and combination meter connector.
2. Turn ignition switch ON.

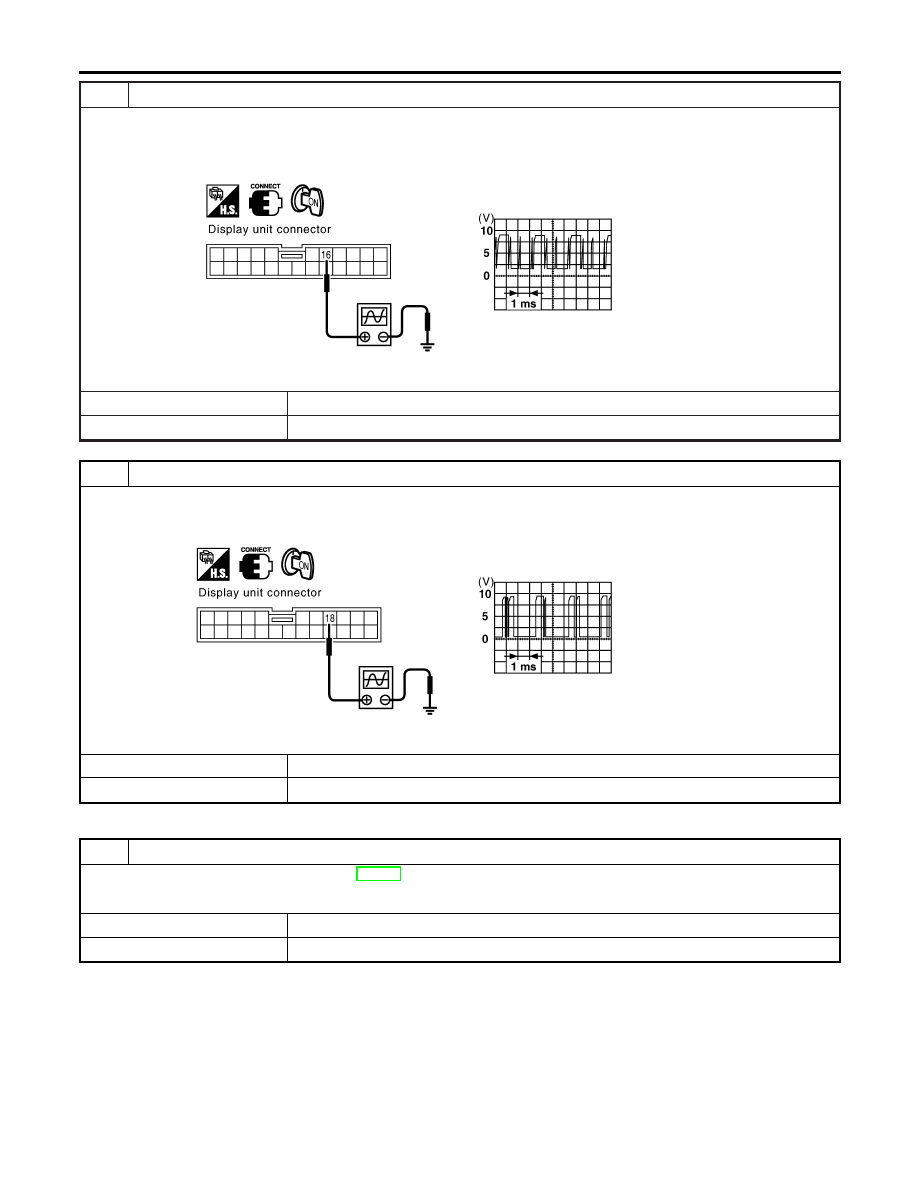

3. Check voltage signal between display unit terminal 16 (R) and ground with oscilloscope or CONSULT-II.

YEL406E

OK or NG

OK

©

GO TO 3.

NG

©

Replace display unit.

3

COMMUNICATION SIGNAL (ME-AV) CHECK

1. Turn ignition switch to ON and display.
2. Check voltage signal between display unit connector terminal 18 (G) and ground with oscilloscope or CONSULT-II.

YEL407E

OK or NG

OK

©

Replace display unit.

NG

©

Replace combination meter.

MULTIFUNCTION SWITCH DOES NOT OPERATE.

NLEL0689S15

1

POWER AND GROUND CIRCUIT CHECK

I

Check power and ground circuit. Refer to EL-230.

OK or NG

OK

©

Replace multifunction switch.

NG

©

Repair or replace harness.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-248

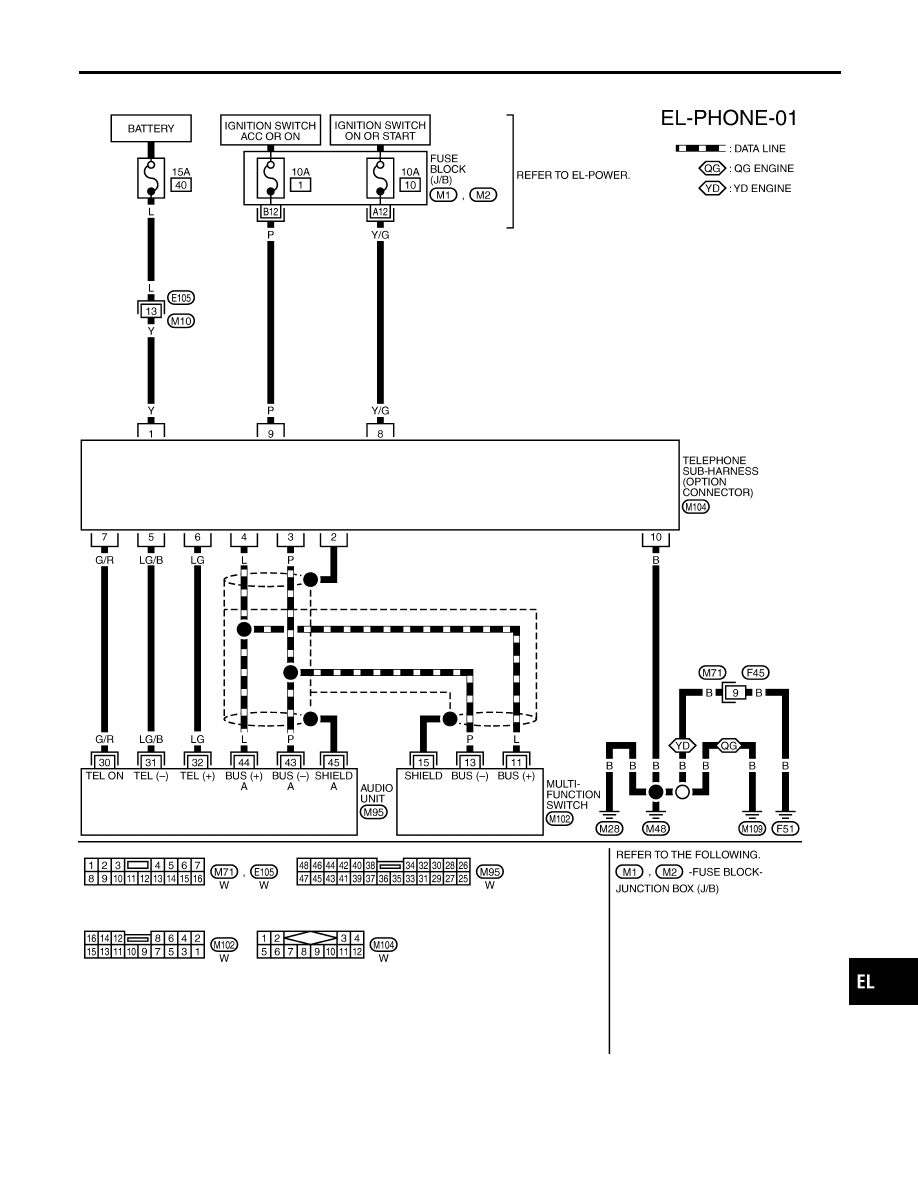

Wiring Diagram — PHONE —

NLEL0571

YEL034E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

TELEPHONE (PRE WIRE)

Wiring Diagram — PHONE —

EL-249

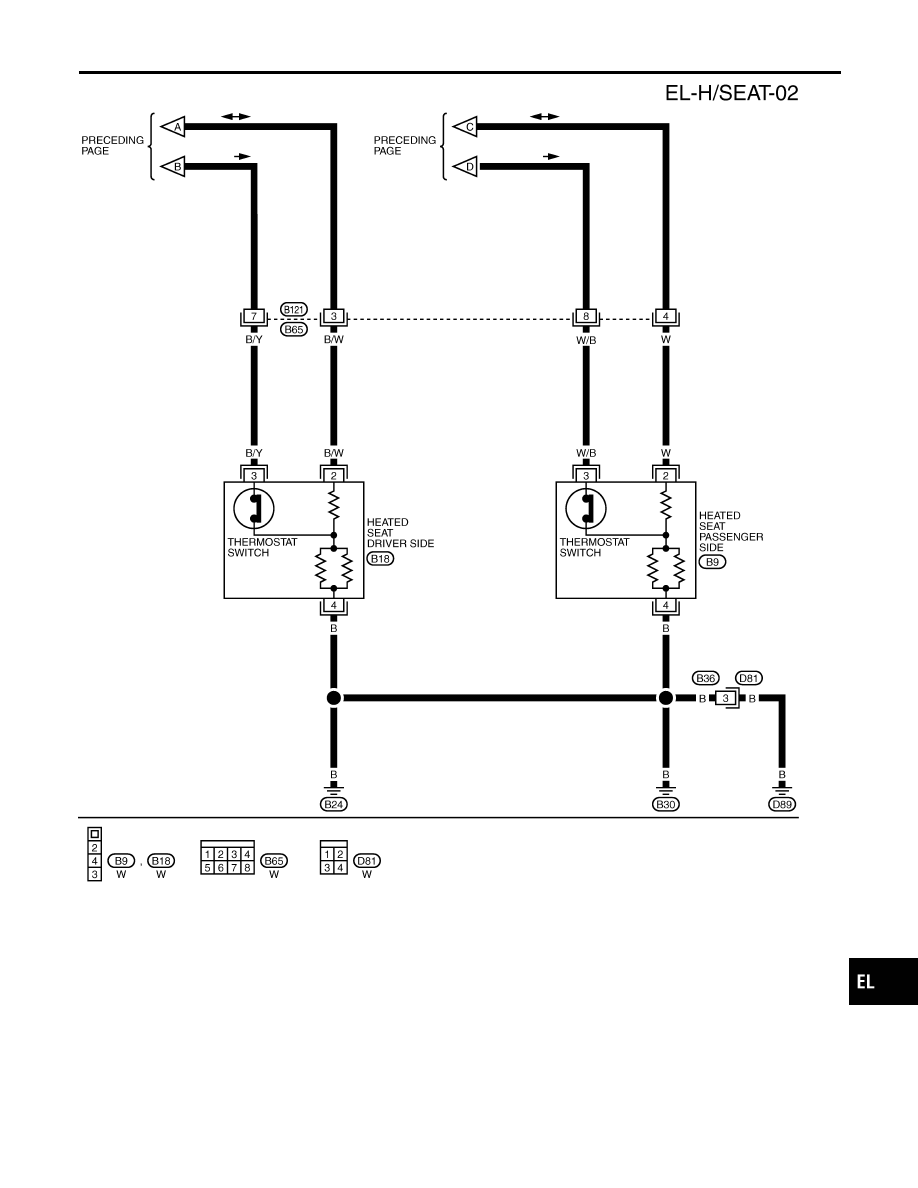

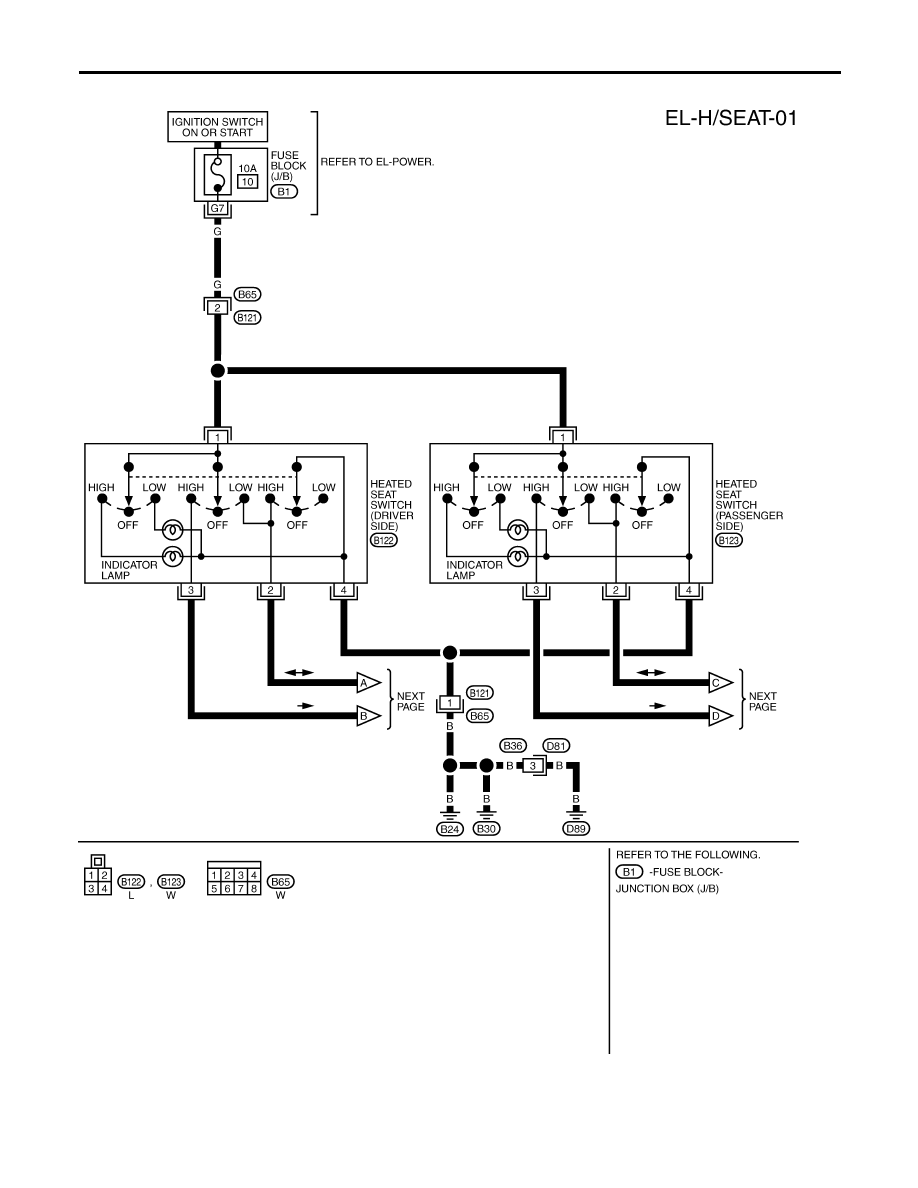

Wiring Diagram — H/SEAT —

NLEL0471

YEL991D

HEATED SEAT

Wiring Diagram — H/SEAT —

EL-250

YEL992D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HEATED SEAT

Wiring Diagram — H/SEAT — (Cont’d)

EL-251

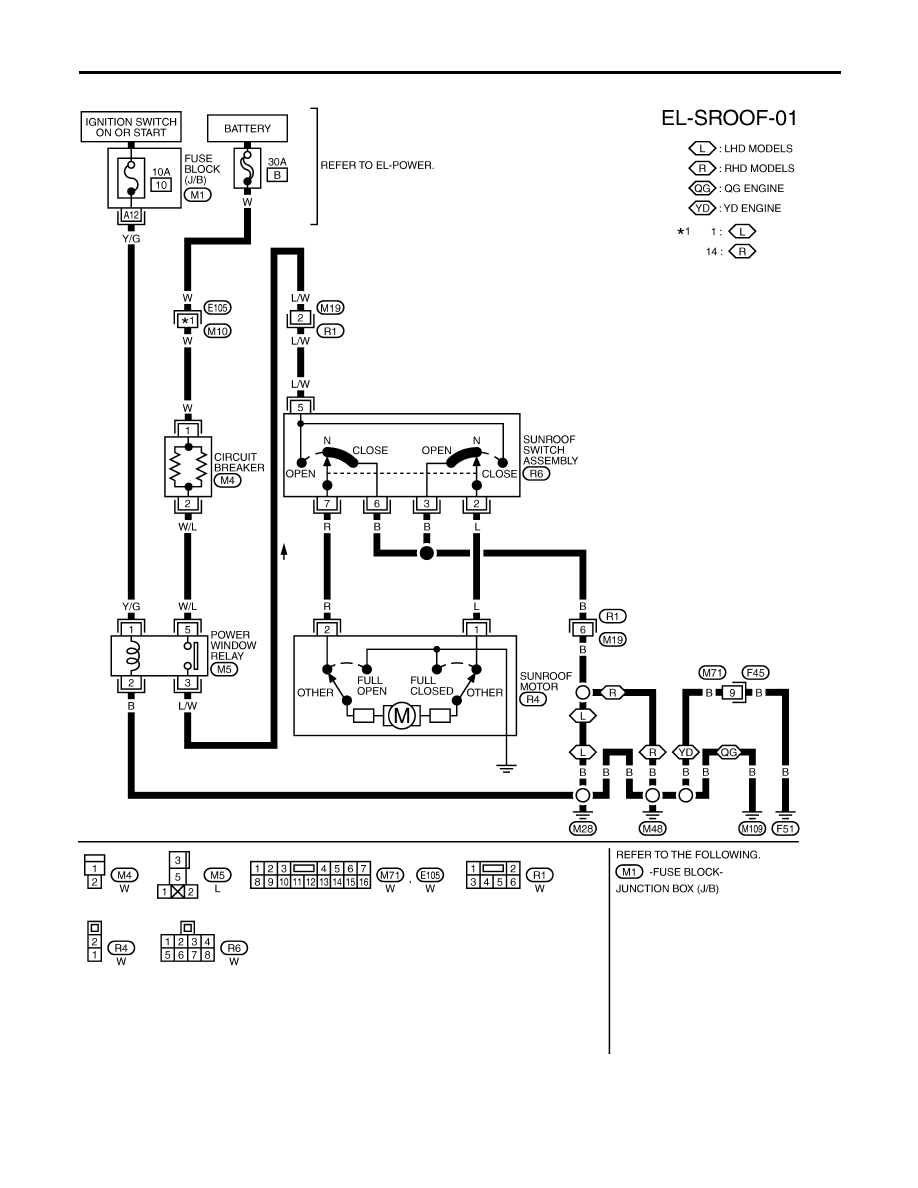

Wiring Diagram — SROOF —

NLEL0089

YEL995D

POWER SUNROOF

Wiring Diagram — SROOF —

EL-252

Trouble Diagnoses

NLEL0225

Symptom

Possible cause

Repair order

Power sunroof cannot be operated
using any switch.

1. 10A fuse, 30A fusible link and

M4 circuit breaker

2. Sunroof switch ground circuit
3. Sunroof switch
4. Sunroof switch circuit
5. Sunroof motor

1. Check 10A fuse [No. 10, located in fuse block

(J/B)], 30A fusible link and M4 circuit breaker. Verify
battery positive voltage is present at terminal 5 of
power window relay. And then turn ignition switch
“ON” and verify battery positive voltage is present at
terminal 5 of sunroof switch assembly.

2. Check sunroof switch ground circuit.
3. Check sunroof switch.
4. Check harness between sunroof switch and sunroof

motor.

5. Check sunroof motor.

Power sunroof cannot be operated
using one of the sunroof switches.

1. Sunroof switch
2. Sunroof switch circuit

1. Check sunroof switch.
2. Check the harness between sunroof motor and sun-

roof switch.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

POWER SUNROOF

Trouble Diagnoses

EL-253

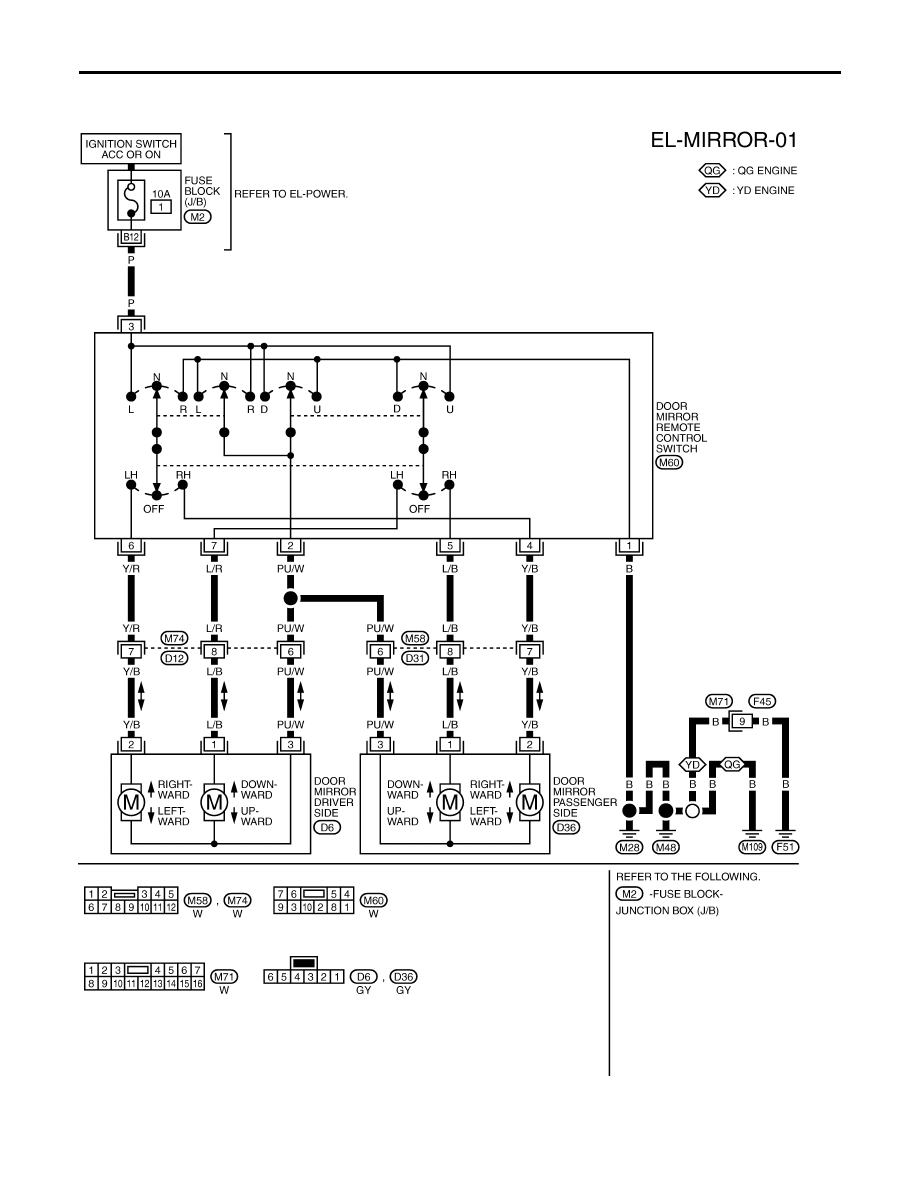

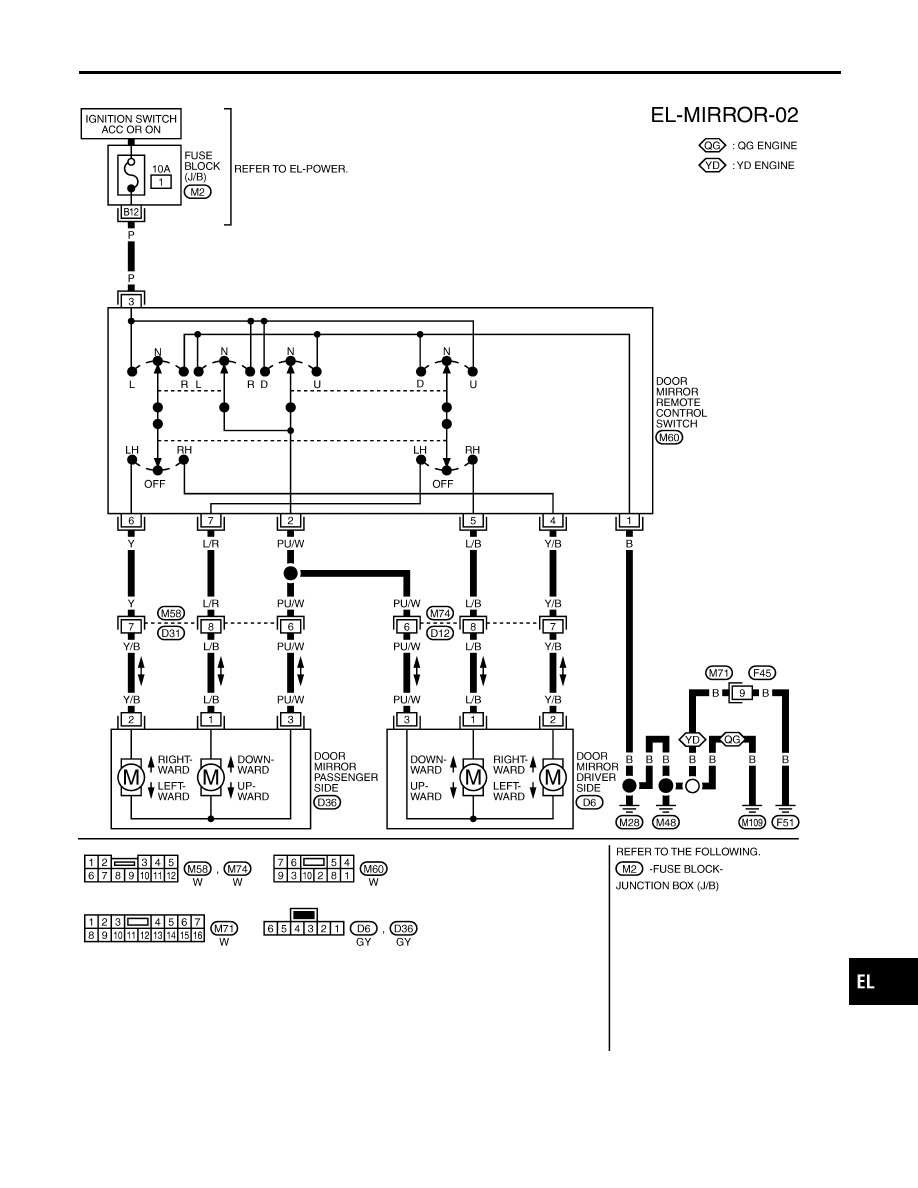

Wiring Diagram — MIRROR —

NLEL0472

LHD MODELS

NLEL0472S03

YEL993D

DOOR MIRROR

Wiring Diagram — MIRROR —

EL-254

RHD MODELS

NLEL0472S04

YEL994D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

DOOR MIRROR

Wiring Diagram — MIRROR — (Cont’d)

EL-255

System Description

=NLEL0498

Power is supplied at all times

I

from 30A fusible link (letter B, located in fuse and fusible link box)

I

to circuit breaker terminal 1

I

through circuit breaker terminal 2

I

to power window relay terminal 5.

With ignition switch in ON or START position, power is supplied

I

through 10A fuse [No. 10, located in the fuse block (J/B)]

I

to power window relay terminal 1

Ground is supplied to power window relay terminal 2

I

through body grounds M28 and M48.

The power window relay is energized and power is supplied

I

through power window relay terminal 3

I

to power window main switch terminal 1,

I

to power window sub-switch front passenger side terminal 5,

I

to power window sub-switch rear LH and RH terminals 5 (models with rear power window).

MANUAL OPERATION

NLEL0498S01

Front Door (Driver Side)

NLEL0498S0101

Ground is supplied

I

to power window main switch terminal 3

I

through body grounds B24, B30 or D89 (LHD models).

WINDOW UP
When the driver’s window switch in the power window main switch is pressed in the up position, power is
supplied

I

through power window main switch terminal 9

I

to driver side power window regulator terminal 2.

Ground is supplied

I

through power window main switch terminal 1

I

to driver side power window regulator terminal 8.

Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver’s window switch in the power window main switch is pressed in the down position, power is
supplied

I

through power window main switch terminal 8

I

to driver side power window regulator terminal 1.

Ground is supplied

I

to driver side power window regulator terminal 2

I

through power window main switch terminal 9.

Then, the motor lowers the window until the switch is released.

Front Door (Passenger Side)

NLEL0498S0102

Ground is supplied

I

to power window main switch terminal 3

I

through body grounds B24, B30 or D89 (LHD models).

NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied

I

through power window main switch (5, 6)

I

to power window sub-switch front passenger side (3, 4).

POWER WINDOW

System Description

EL-256
