Almera Tino V10 (2003 year). Manual - part 171





YEL832D

Self-diagnosis Mode

NLEL0552

OPERATION PROCEDURES

=NLEL0552S01

1.

Start the engine.

2.

Turn the audio system off.

3.

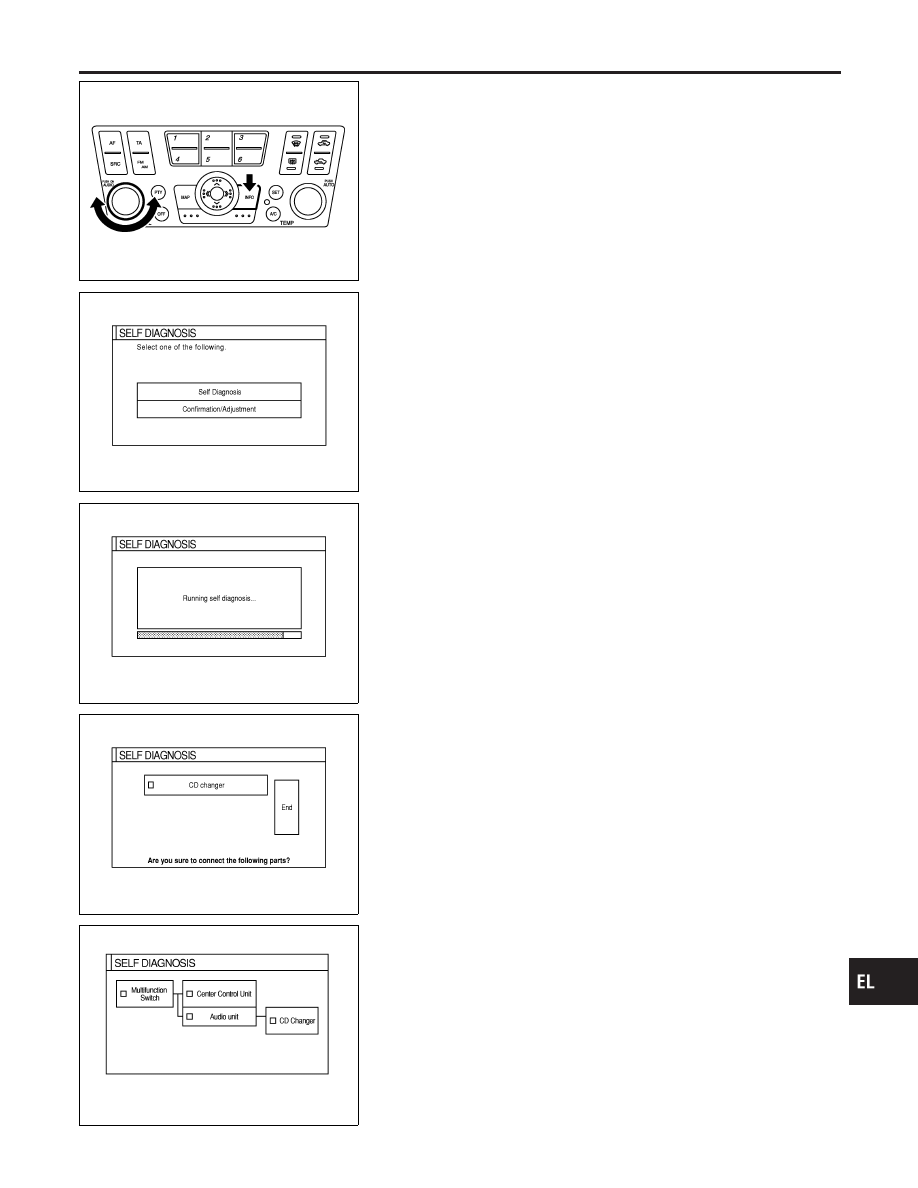

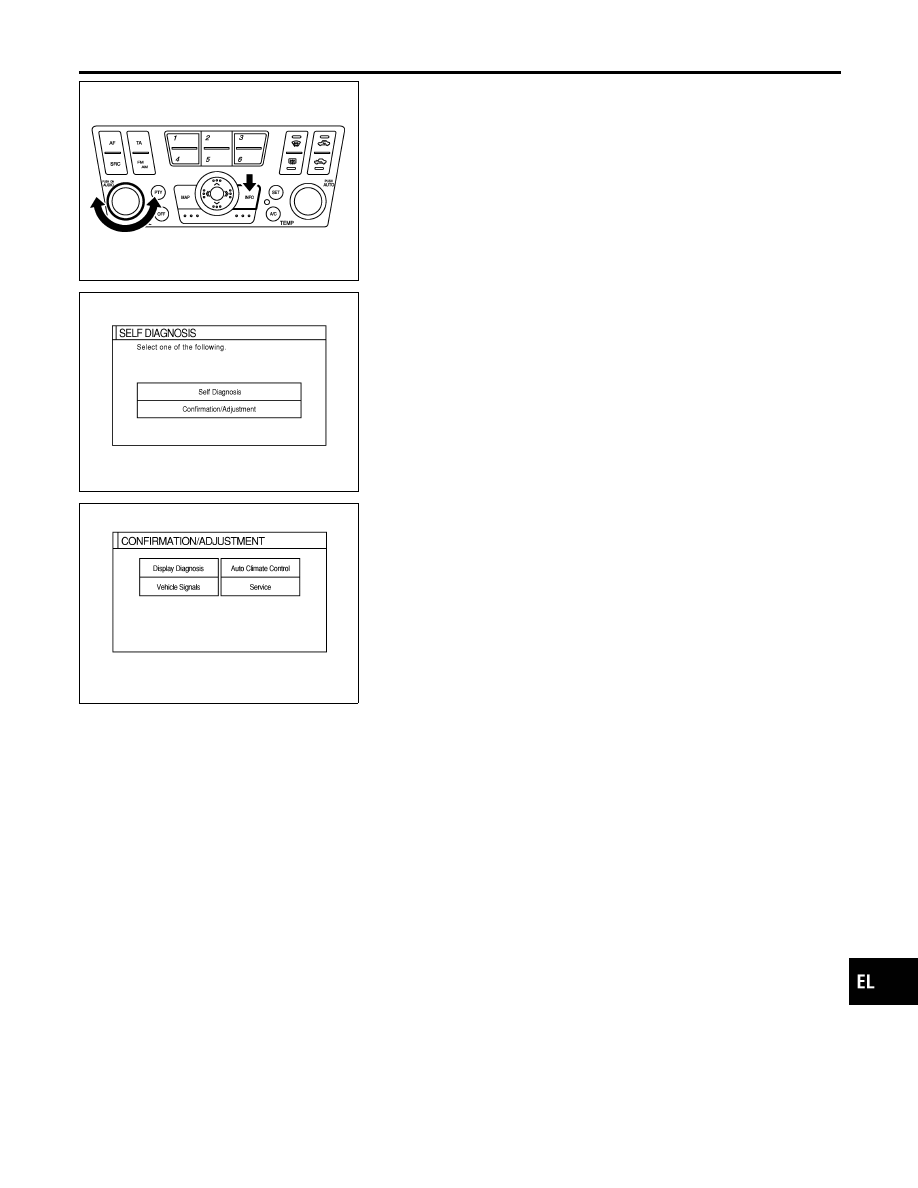

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)

I

Shifting from current screen to previous screen is performed by
pressing “BACK” switch.

SKIA0381E

4.

The initial trouble diagnosis screen will be shown, and items
“SELF-DIAGNOSIS” and “CONFIRMATION/ADJUSTMENT”
will become selective.

SKIA0382E

5.

Perform self-diagnosis by selecting the “SELF-DIAGNOSIS”.

I

Self-diagnosis subdivision screen will be shown and the opera-
tion enters the self-diagnosis mode.

I

A bar graph shown below the self-diagnosis subdivision screen
indicates progress of the diagnosis.

SKIA0383E

6.

When the self-diagnosis completes, optional part confirmation
screen will be shown.

I

When connection of an optional part is judged malfunction, a
screen to check if the optional part is fitted on the vehicle or
not will be shown. When fitted, select the switch of the part on
the screen and press “END”. Then the “Self-diagnosis” screen
will be shown.

I

When the optional part is connected normally, the switch for
the part will not appear on the screen.

MKIB0135E

7.

On the “Self-diagnosis” screen, each unit name will be colored
according to the diagnosis result, as follows.

Green: No malfunctioning.
Yellow: Cannot be judged by self-diagnosis results.
Red: Unit is malfunctioning.

I

If several malfunctions are present in a unit, color of its switch
on the screen will be either red, yellow, or gray, determined by
the malfunction of the highest priority.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Self-diagnosis Mode

EL-225

SKIA0385E

8.

Select a switch on the “Self-diagnosis” screen and comments
for the diagnosis results will be shown.

I

When the switch is green, the following comment will be
shown. “Self-diagnosis was successful. Further diagnosis and
adjustments are recommended. Follow the “confirmation and
adjustments” menu or refer to the service manual”.

I

When the switch is yellow, the following comment will be
shown. “Connection to the following unit is abnormal. See the
service manual for further details”.

I

When the switch is red, the following comment will be shown.
“Center Control Unit is abnormal”.

CAUTION:

If self-diagnosis cannot activated, refer to EL-242.

SELF-DIAGNOSIS RESULT

NLEL0552S02

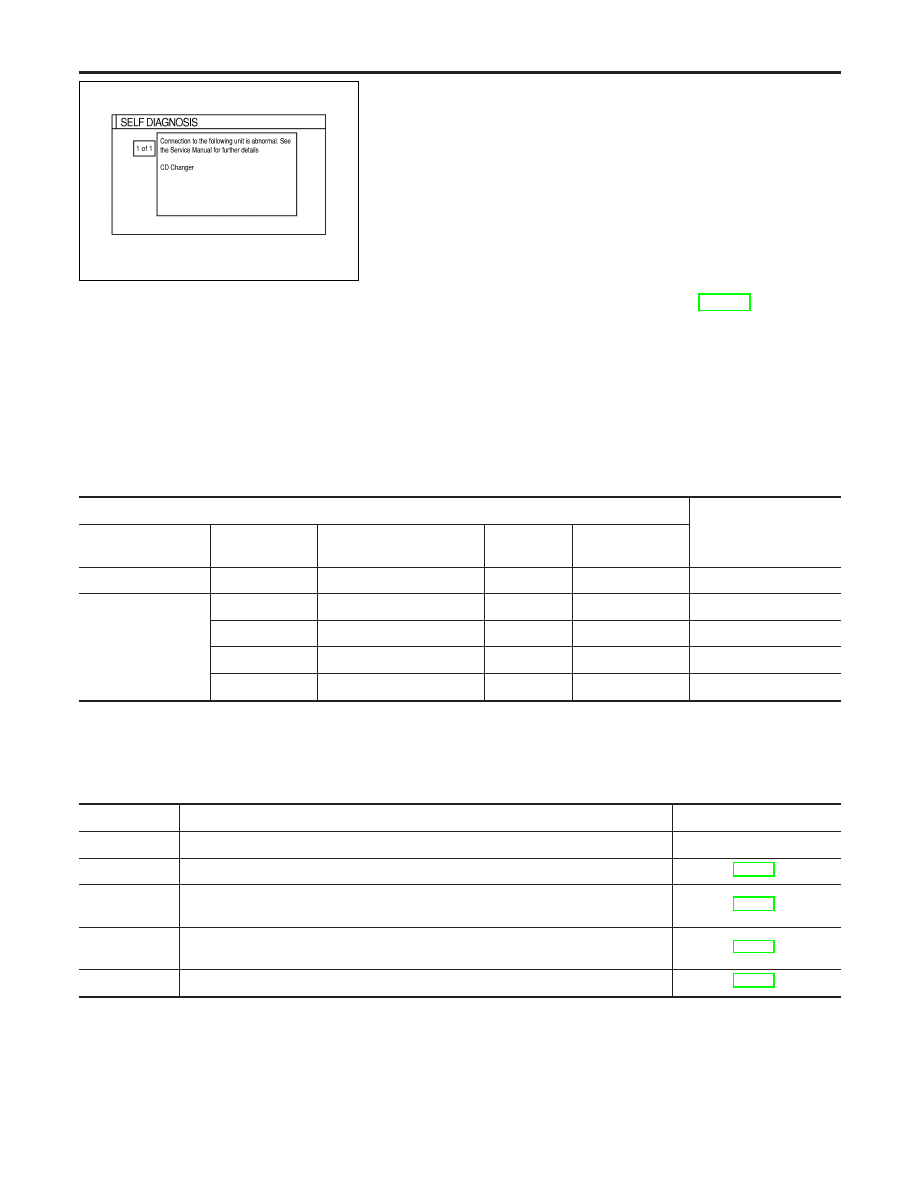

Quick reference table
1.

Select an applicable diagnosis No. in the diagnosis result quick
reference table.

2.

Find estimated malfunctioning system in the diagnosis No.
table and perform check by referring to the AV communication
line circuit diagram.

3.

Turn the ignition switch to OFF and perform self-diagnosis
again.

Screen switch

Diagnosis No.

Switch color

Center control

unit *

Multifunction switch

Audio unit

CD auto changer

Red

×

1

Yellow

×

×

2

×

×

×

3

×

×

4

×

×

×

×

5

*: Center control unit = Display unit

CAUTION:

When an error is in the AV communication line, it cannot be
detected on the screen because self-diagnosis is inoperative.
SELF-DIAGNOSIS CODES

Diagnosis No.

Possible cause

Reference page

1

Display unit malfunction.

2

Multifunction switch power supply and ground circuit.

EL-232

3

Audio unit power supply and ground circuit. AV communication line between multi-
function switch and the display unit. Audio unit internal communication circuit.

EL-210

4

CD auto changer power supply and ground circuit. AV communication line between
CD auto changer and audio unit.

EL-210

5

AV communication line circuit malfunction.

EL-242

LCD (LIQUID CRYSTAL DISPLAY)

Self-diagnosis Mode (Cont’d)

EL-226

YEL832D

Confirmation/Adjustment Mode

=NLEL0553

OPERATION PROCEDURE

NLEL0553S01

1.

Start the engine.

2.

Turn the audio system off.

3.

While pressing the “INFO” switch, turn the volume control dial
clockwise or counterclockwise for 30 clicks or more. (When the
self-diagnosis mode is started, a short beep will be heard.)

I

Shifting from current screen to previous screen is performed by
pressing “BACK” switch.

SKIA0381E

4.

The initial trouble diagnosis screen will be shown, and items
“SELF-DIAGNOSIS” and “CONFIRMATION/ADJUSTMENT”
will become selective.

MKIB0137E

5.

When “CONFIRMATION/ADJUSTMENT” is selected on the
initial trouble diagnosis screen, the operation will enter the
CONFIRMATION/ADJUSTMENT mode. In this mode, check
and adjustment of each item will become possible.

6.

Select each switch on “CONFIRMATION/ADJUSTMENT”
screen to display the relevant diagnosis screen.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Confirmation/Adjustment Mode

EL-227

DISPLAY DIAGNOSIS

=NLEL0553S02

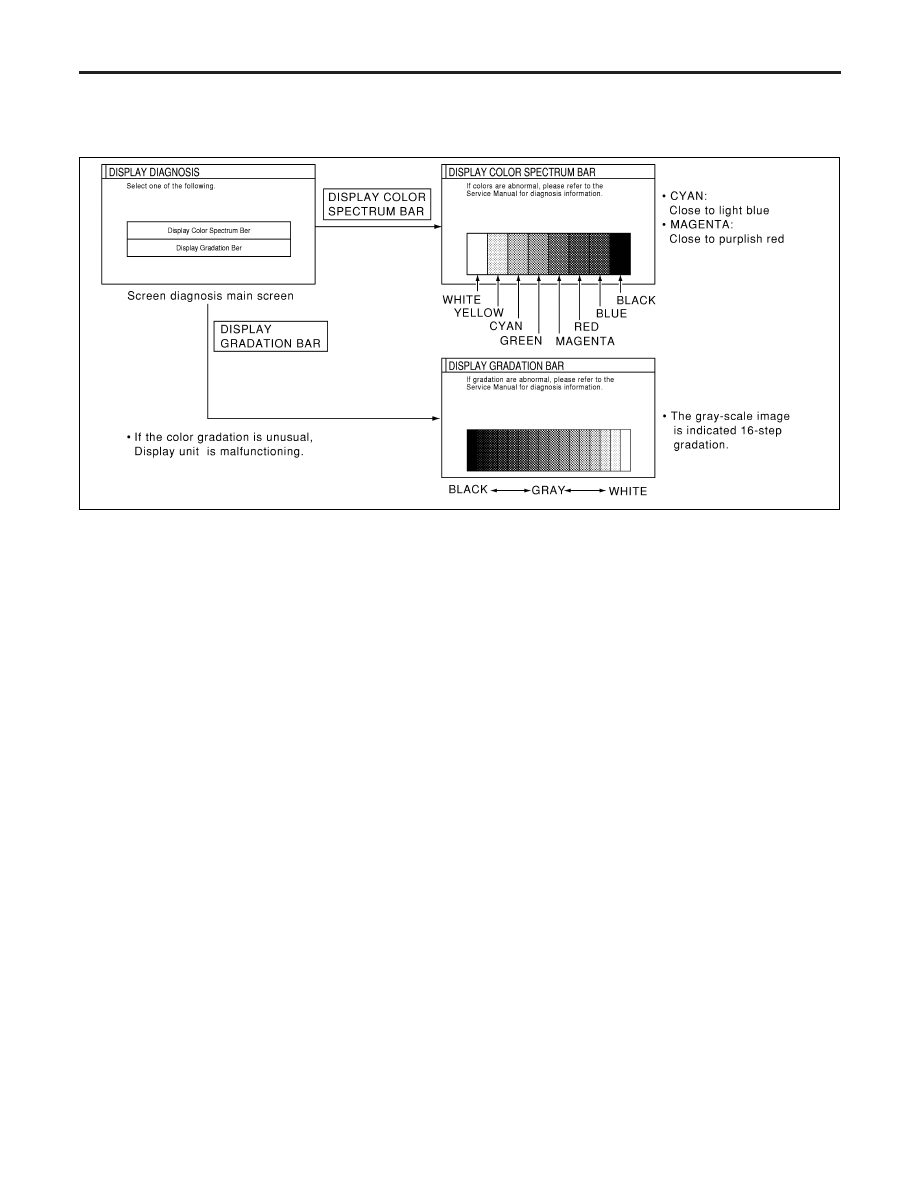

Use this mode to check the display color brightness and setting.
The display unit must be replaced if the color brightness and shad-
ing are unusual.

MKIB0134E

CAUTION:

When Display Color Spectrum Bar screen is completed after
“BACK” switch is pressed, the screen color changes once.
This is normal.

LCD (LIQUID CRYSTAL DISPLAY)

Confirmation/Adjustment Mode (Cont’d)

EL-228

MKIB0136E

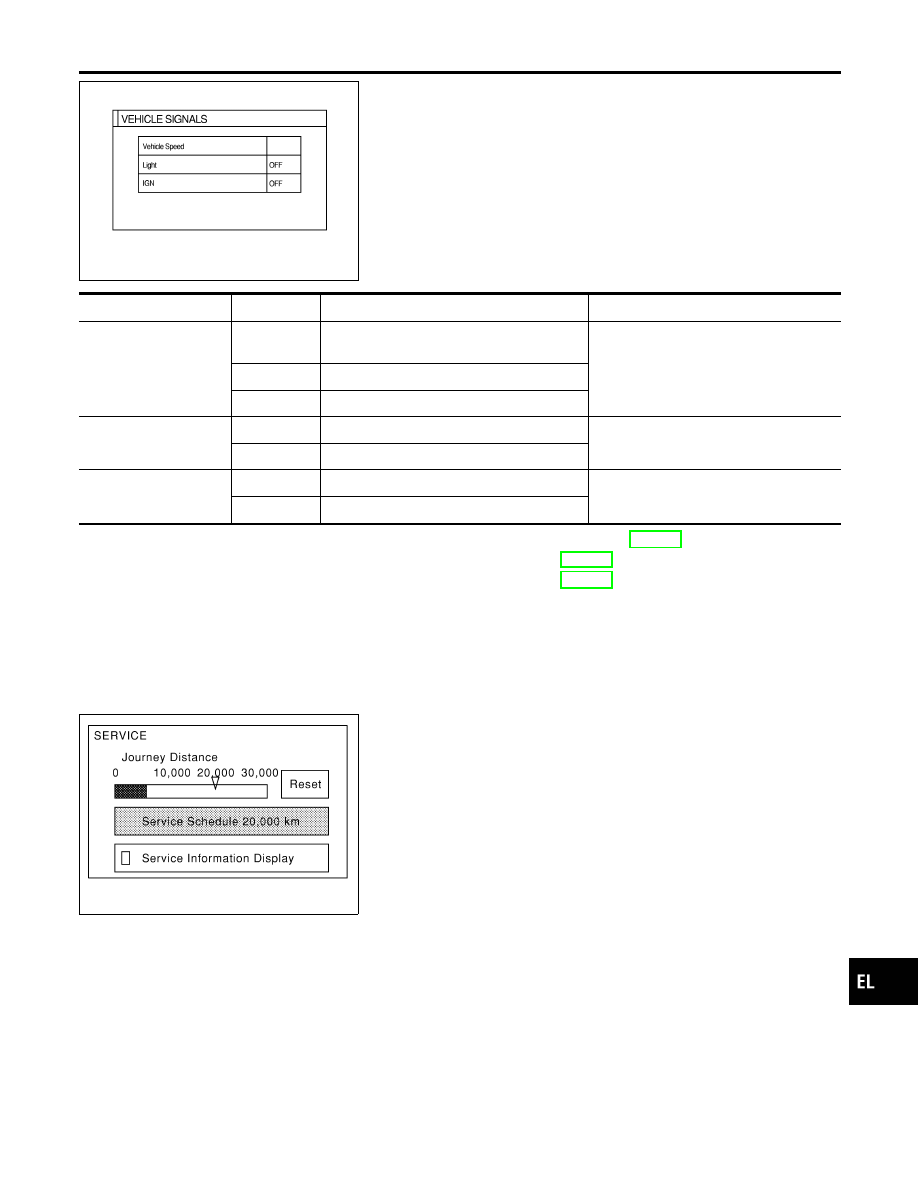

VEHICLE SIGNALS

=NLEL0553S03

I

In this mode, following input signals to the display unit can be
checked on the display.

Diagnosis item

Display

Condition

Remarks

Vehicle speed

ON

Vehicle speed is greater than 0 km/h (0
MPH).

Changes in indication may be delayed by
approx. 1.5 seconds. This is normal.

OFF

Vehicle speed is 0 km /h (0 MPH).

Ignition switch is in “ACC” position.

Light

ON

Lighting switch is 1st or 2nd position.

OFF

Lighting switch is “OFF” position.

IGN

ON

Ignition switch is in “ON” position.

OFF

Ignition switch is in “ACC” or “OFF” position.

I

If vehicle speed is NG, refer to EL-234.

I

If light is NG, refer to EL-236.

I

If IGN is NG, refer to EL-236.

MKIB0148E

SERVICE

NLEL0553S04

I

In this mode, service schedule can be set on this display.

NOTE:

I

To set service schedule, change journey distance.

I

When the indicator of “Service Information Display” is set
green, the color of the journey distance marker will be red. And
automatically service information screen will be displayed
when journey distance is reached on service schedule.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Confirmation/Adjustment Mode (Cont’d)

EL-229

Trouble Diagnoses

=NLEL0689

POWER SUPPLY AND GROUND CIRCUIT CHECK FOR
DISPLAY UNIT

NLEL0689S01

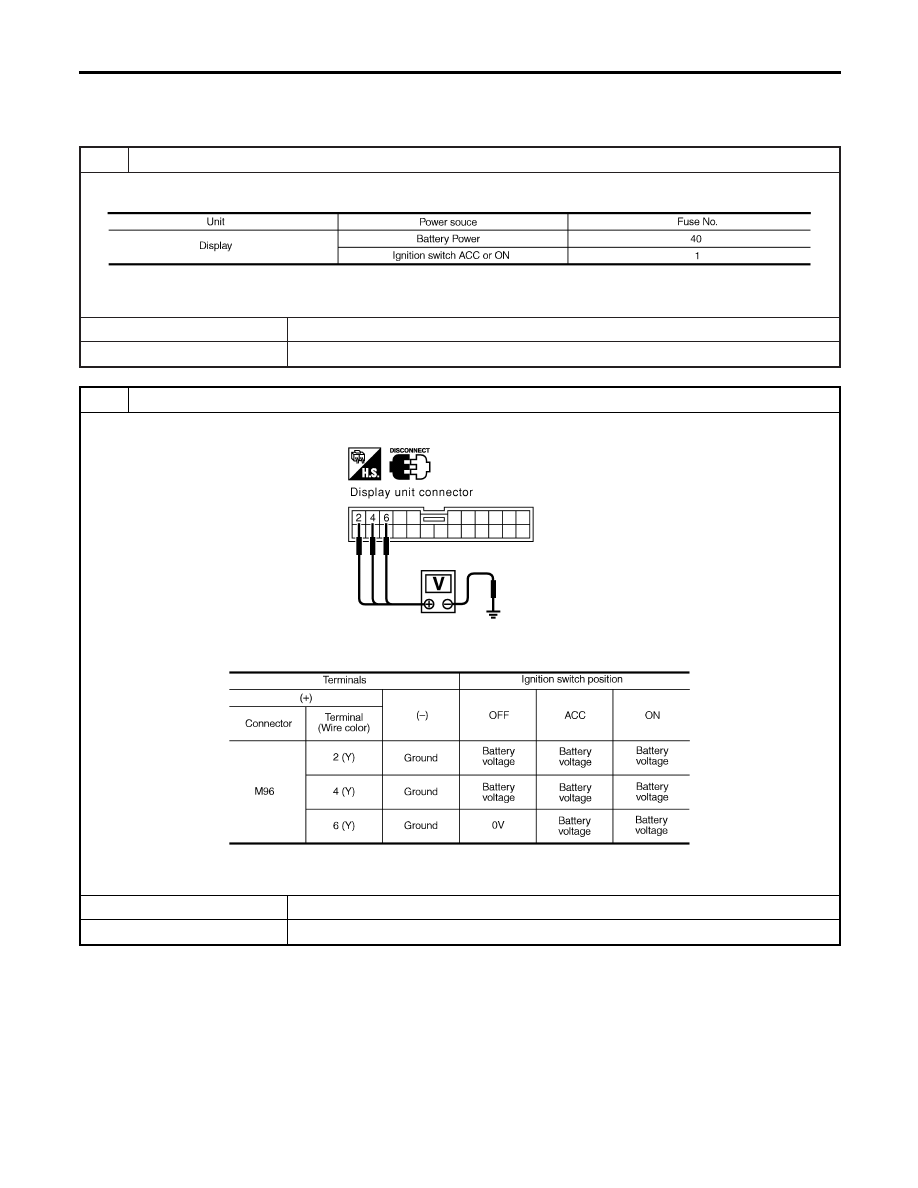

1

CHECK FUSE

Check that the following fuses in display are blown.

MTBL1650

OK or NG

OK

©

GO TO 2.

NG

©

If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2

POWER SUPPLY CIRCUIT CHECK

1. Disconnect display connector.

MKIB0101E

2. Check voltage between display unit connector and ground.

MTBL1651

OK or NG

OK

©

GO TO 3.

NG

©

Check harness for open or short between display and fuse.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses

EL-230

3

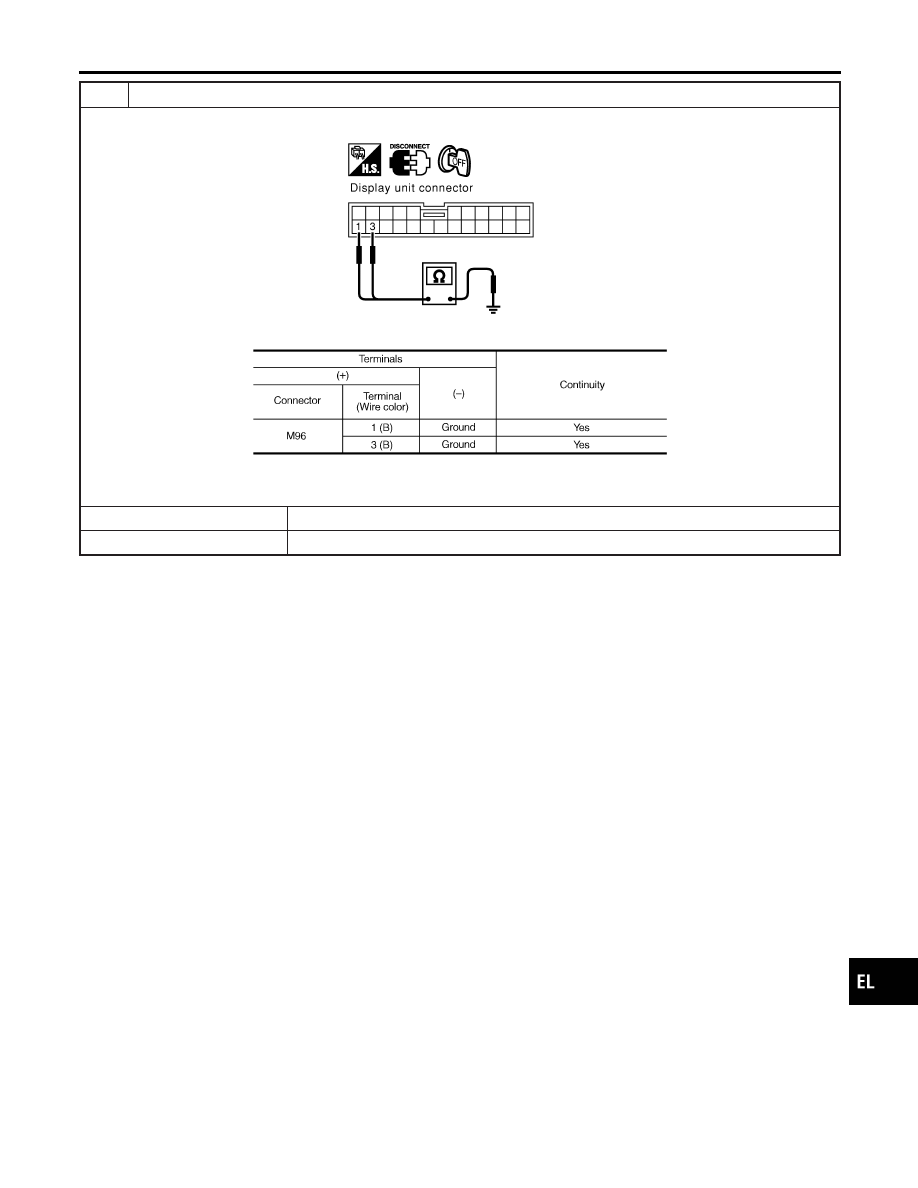

GROUND CIRCUIT CHECK

Check continuity between display unit and ground.

MKIB0102E

MTBL1652

OK or NG

OK

©

INSPECTION END

NG

©

Check ground harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-231

POWER SUPPLY AND GROUND CIRCUIT CHECK FOR
MULTIFUNCTION SWITCH

=NLEL0689S02

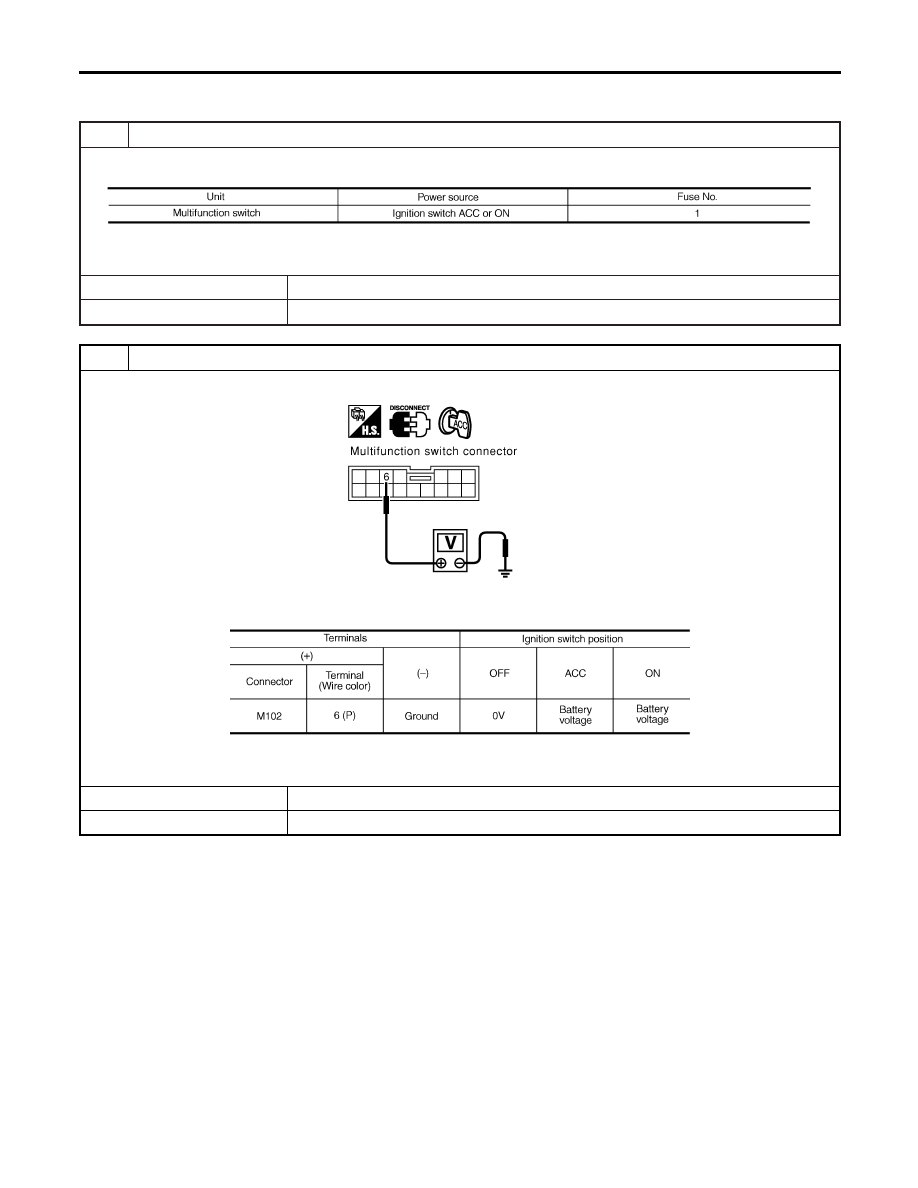

1

CHECK FUSES

Check the fuse below.

MTBL1653

OK or NG

OK

©

GO TO 2.

NG

©

If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse.

2

POWER SUPPLY CIRCUIT CHECK

1. Disconnect multifunction switch connector.

MKIB0103E

2. Check voltage between multifunction switch and ground.

MTBL1654

OK or NG

OK

©

GO TO 3.

NG

©

Check harness for open or short between multifunction switch and fuse.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-232

3

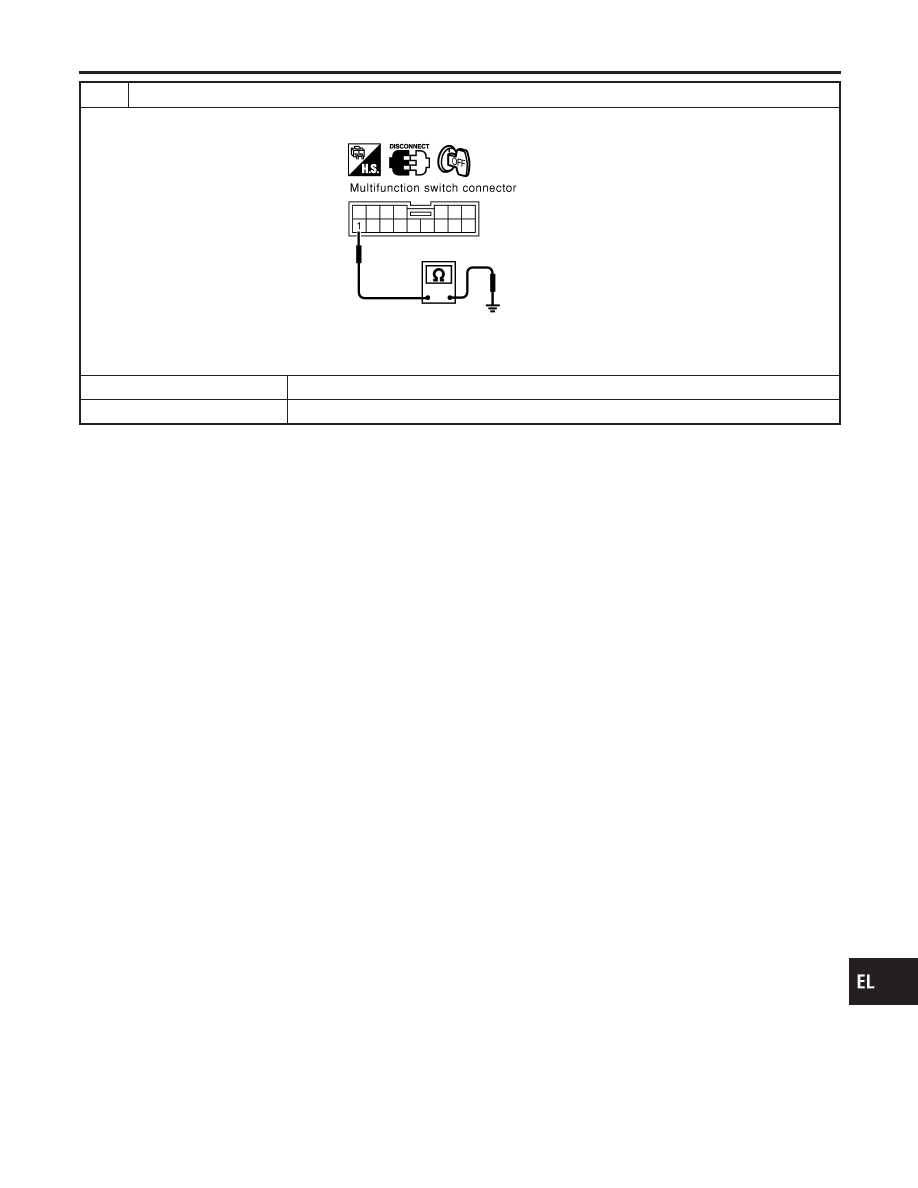

GROUND CIRCUIT CHECK

Check continuity between multifunction switch harness connector M102 terminal 1 (B) and ground.

MKIB0104E

Continuity should exist.

OK or NG

OK

©

INSPECTION END

NG

©

Check ground harness.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-233

VEHICLE SPEED SIGNAL CHECK

=NLEL0689S03

1

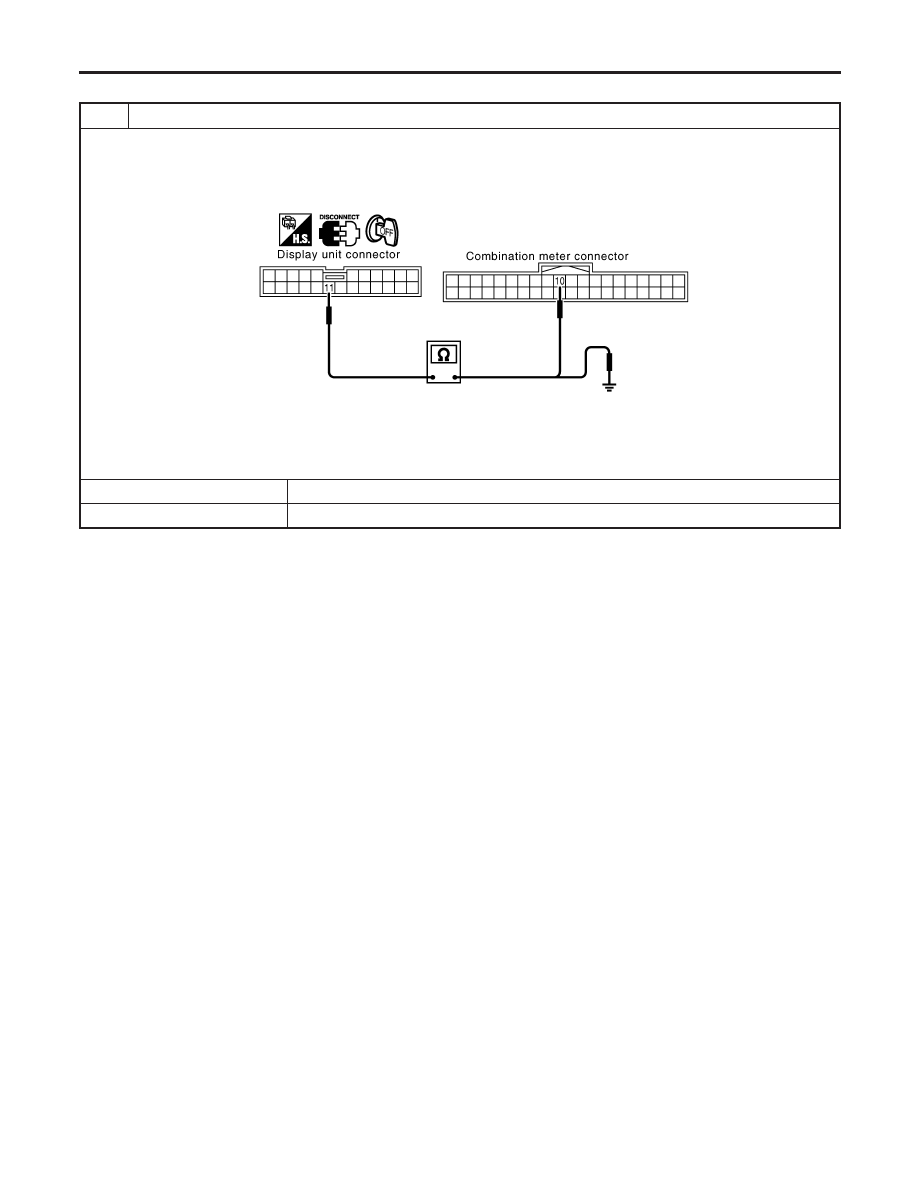

HARNESS CHECK

1. Disconnect display unit connector and combination meter.
2. Check the following.

Continuity between display unit connector M96 terminal 11 (L/B) and combination meter connector M84 terminal 10
(L/B).

YEL404E

Continuity should exist.

Continuity between display unit connector M96 terminal 11 (L/B) and ground.

Continuity should not exist.

OK or NG

OK

©

GO TO 2.

NG

©

Replace harness or connector.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-234

2

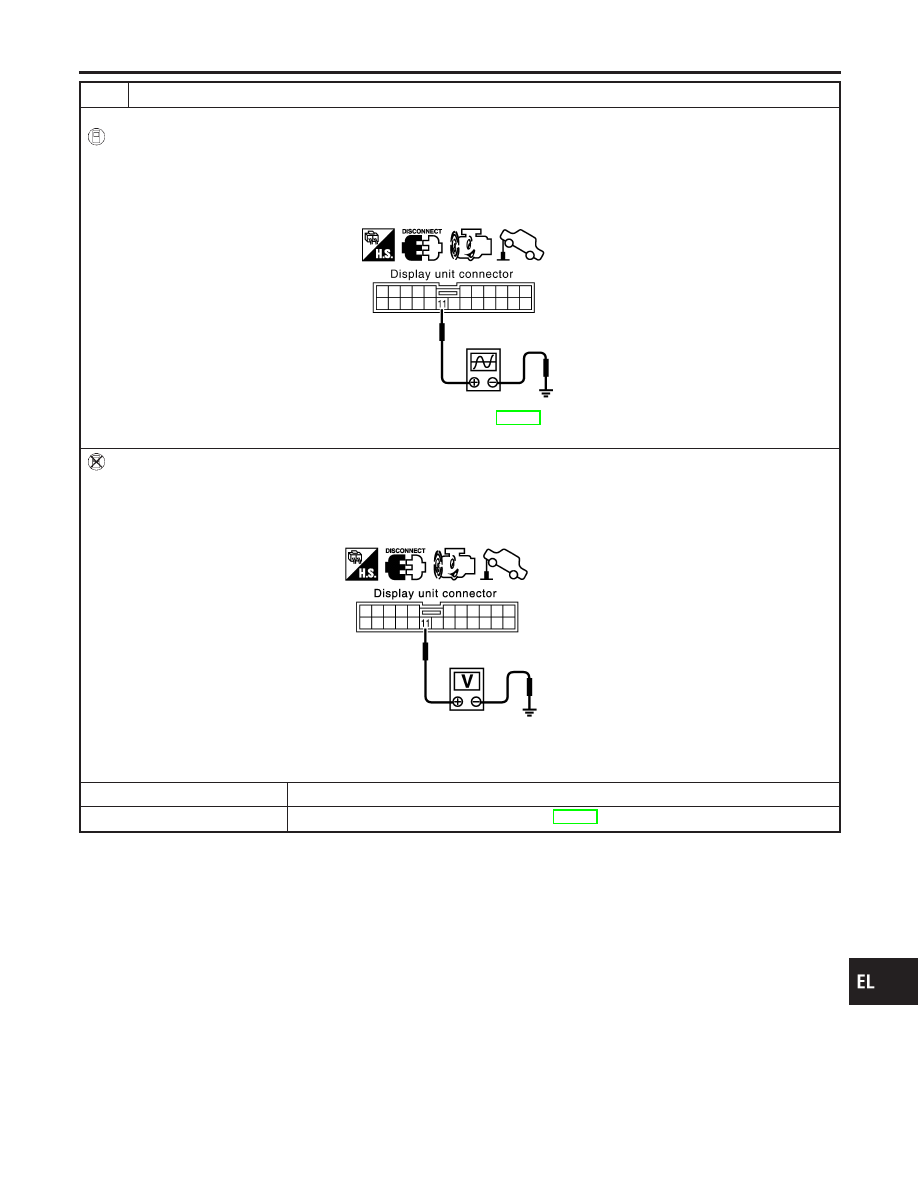

VEHICLE SPEED SIGNAL CHECK

Connect combination meter connector and display unit connector.

With CONSULT-II

1. Lift up drive wheels.
2. Start engine and drive vehicle at more than 20 km/h (12 MPH).
3. Check signal between display unit connector M96 terminal 11 (L/B) and ground when rotating wheels with engine at

idle. (Use “SIMPLE OSCILLOSCOPE” in “SUB MODE” with CONSULT-II.)

YEL573E

11 - Ground: “Terminal and Reference Value for Display” EL-221

Without CONSULT-II

1. Lift up drive wheels.
2. Start engine and drive vehicle at more than 20 km/h (12 MPH).
3. Check voltage between display unit connector M96 terminal 11 (L/B) and ground when rotating wheels with engine at

idle.

MKIB0208E

Voltage: Approximately 0 - 5V

OK or NG

OK

©

Replace display unit.

NG

©

Check combination meter system. Refer to EL-107, “Combination Meter Self-Diagnoses”.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-235

ILLUMINATION CONTROL SIGNAL CHECK

=NLEL0689S04

1

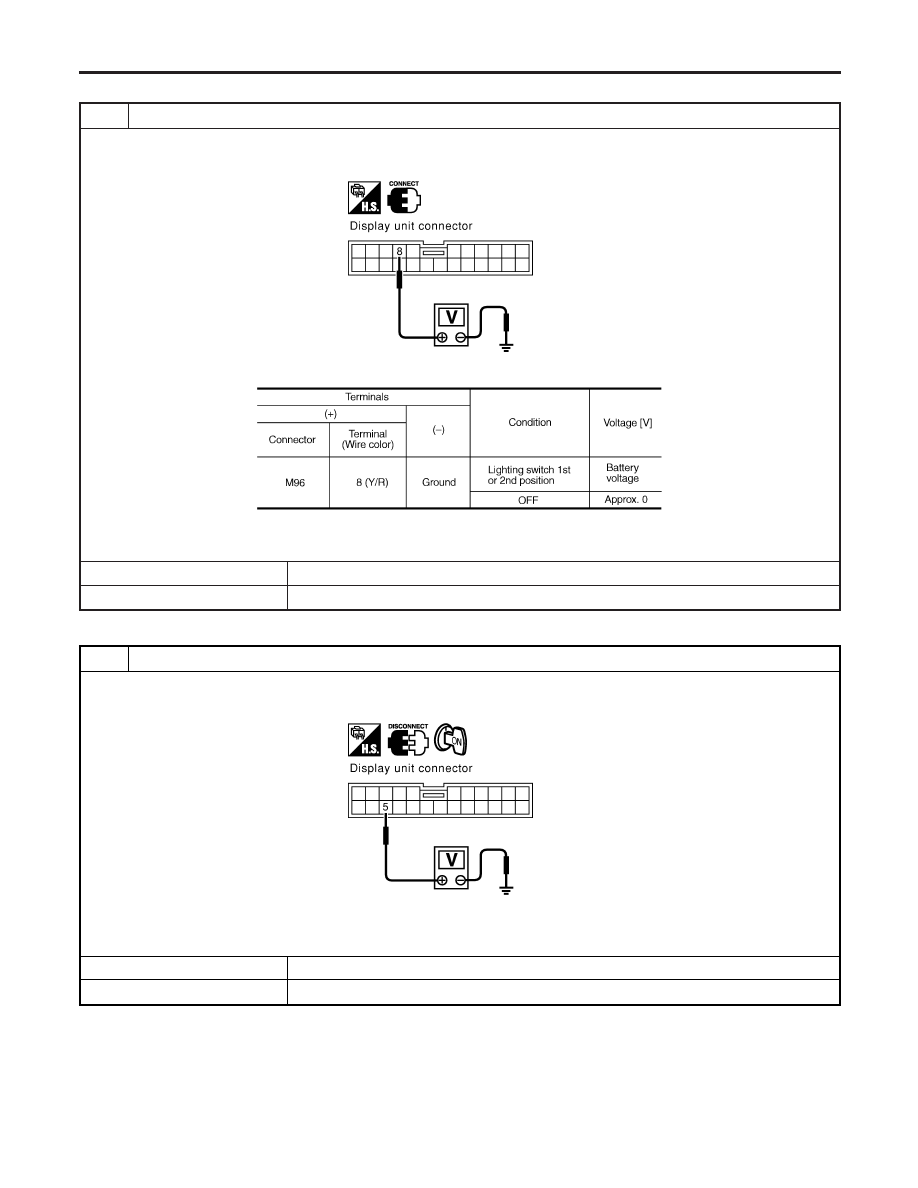

ILLUMINATION CONTROL SIGNAL CHECK

1. Turn ignition switch ON.
2. Check voltage between display unit and ground.

MKIB0105E

MTBL1655

OK or NG

OK

©

Replace display unit.

NG

©

Check harness for open or short between display unit and lighting switch.

IGNITION SIGNAL CHECK

NLEL0689S05

1

IGNITION SIGNAL CHECK

1. Disconnect the display unit connector.
2. Check voltage between display unit harness connector M96 terminal 5 (Y/G) and ground.

MKIB0106E

Battery voltage should exist.

OK or NG

OK

©

Replace display unit.

NG

©

Check harness for open or short between display unit and fuse.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-236

AUDIO CIRCUIT CHECK

NLEL0689S06

1

AUDIO UNIT CIRCUIT CHECK

1. Turn ignition switch OFF.
2. Disconnect audio unit connector.

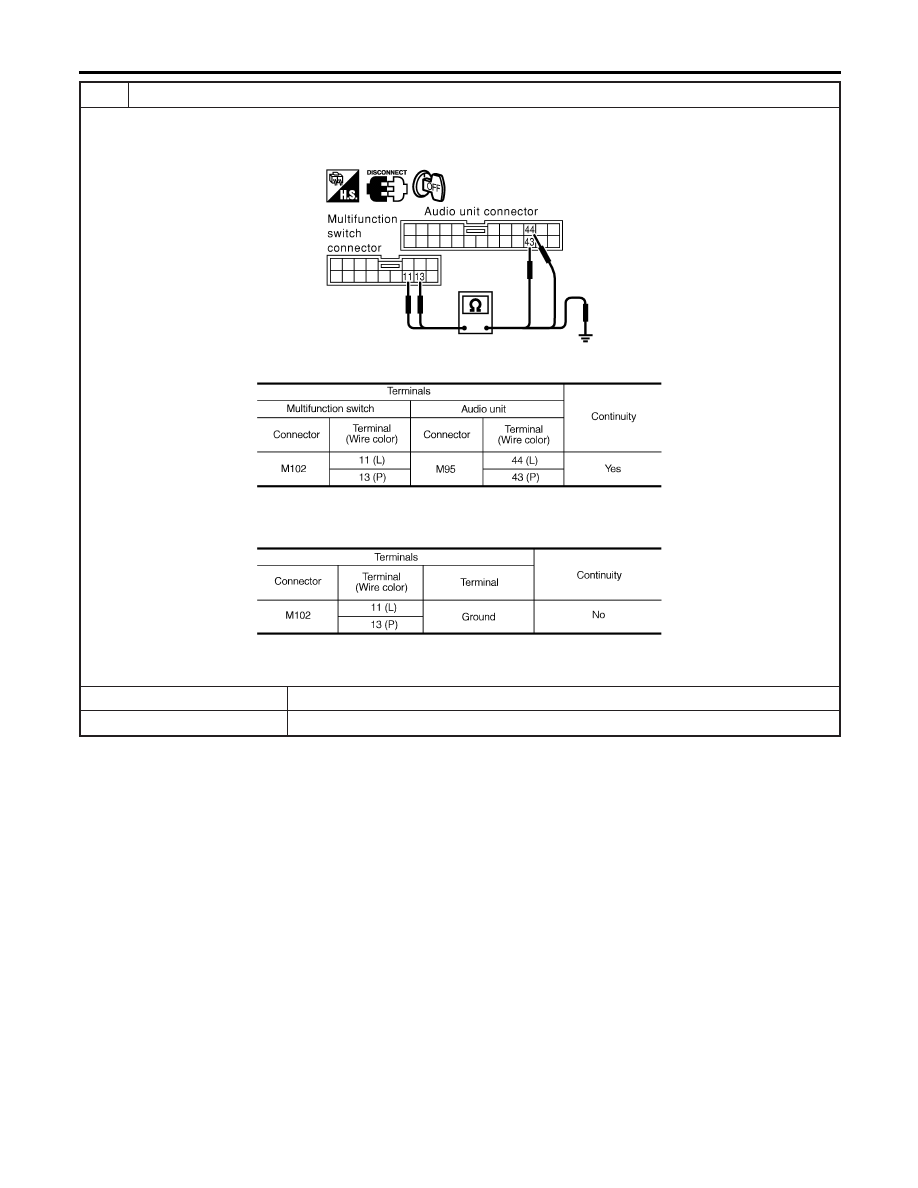

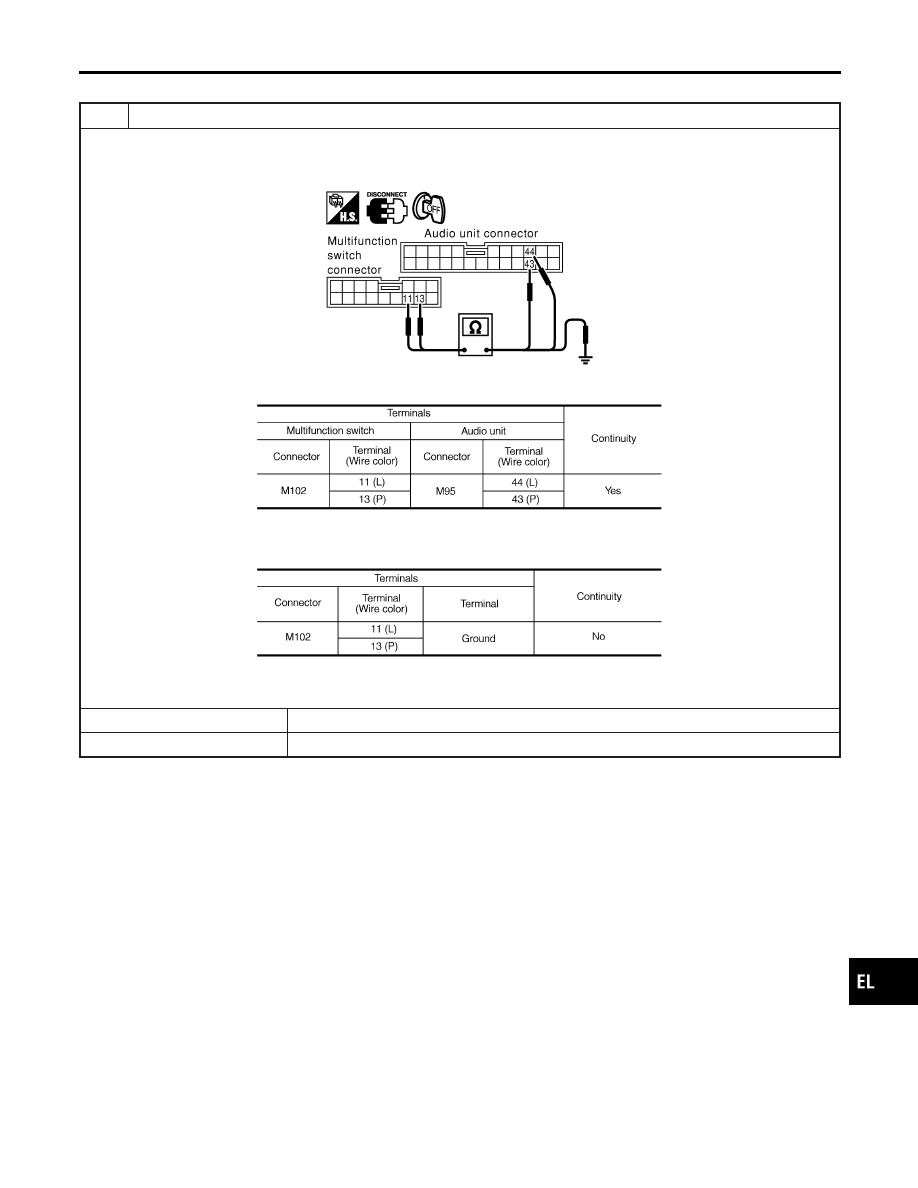

3. Check continuity between multifunction switch and audio unit.

MKIB0132E

MTBL1656

4. Check continuity between multifunction switch and ground.

MTBL1657

OK or NG

OK

©

Replace audio unit.

NG

©

Replace harness or connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-237

CD AUTO CHANGER CIRCUIT CHECK

NLEL0689S07

1

CD AUTO CHANGER CIRCUIT CHECK

1. Disconnect CD auto changer connector.

MKIB0133E

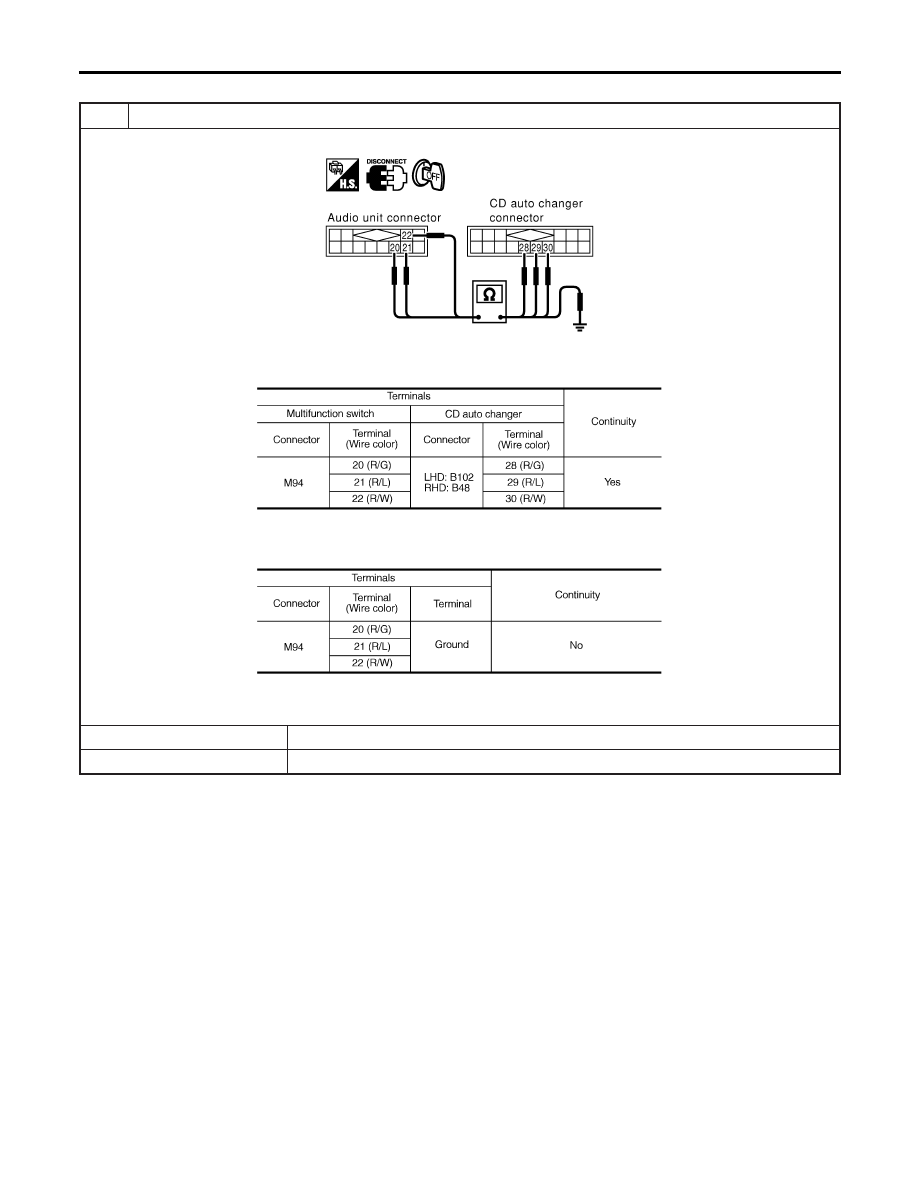

2. Check continuity between audio unit and CD auto changer.

MTBL1658

3. Check continuity between audio unit and ground.

MTBL1659

OK or NG

OK

©

Replace CD auto changer.

NG

©

Replace harness or connector.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-238

AV COMMUNICATION LINE CHECK

NLEL0689S08

1

MULTIFUNCTION SWITCH CIRCUIT CHECK

1. Turn ignition switch OFF.
2. Disconnect display unit connector and multifunction switch connector.
3. Check continuity between display unit and multifunction switch.

MKIB0131E

MTBL1660

4. Check continuity between display unit and ground.

MTBL1661

OK or NG

OK

©

GO TO 2.

NG

©

Replace harness or connector.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-239

2

AUDIO UNIT CIRCUIT CHECK

1. Turn ignition switch OFF.
2. Disconnect audio unit connector.
3. Check continuity between multifunction switch and audio unit.

MKIB0132E

MTBL1662

4. Check continuity between multifunction switch and ground.

MTBL1663

OK or NG

OK

©

GO TO 3.

NG

©

Replace harness or connector.

LCD (LIQUID CRYSTAL DISPLAY)

Trouble Diagnoses (Cont’d)

EL-240















Content      ..     169      170      171      172     ..
