CONSULT-II Inspection Procedure “KEY
REMINDER”, “LIGHT ON RIMINDER”

NLEL0683

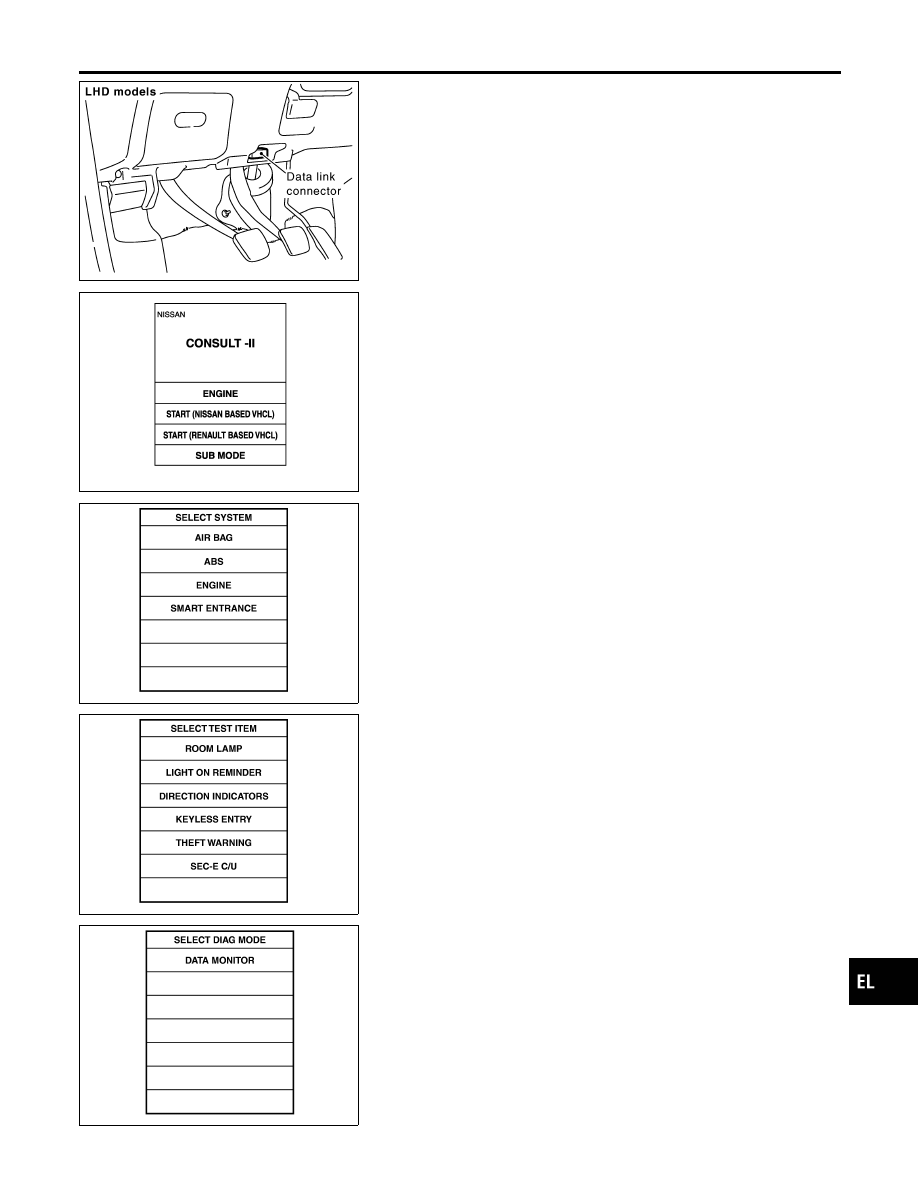

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to data link connector.

MBIB0233E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

YEL322E

5.

Touch “SMART ENTRANCE”.

YEL324E

6.

Touch “LIGHT ON REMINDER” or “KEY REMINDER” (RHD
models).

SEL788W

7.

Select diagnosis mode.
“DATA MONITOR” is available for “LIGHT ON REMINDER”.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

CONSULT-II Inspection Procedure “KEY REMINDER”, “LIGHT ON RIMINDER”

EL-129

CONSULT-II Apprication Items

NLEL0684

DATA MONITOR ITEM (KEY REMINDER)

NLEL0684S01

Monitored item

Description

IGNITION SW

Indicates [ON/OFF] condition of ignition switch.

KEY IN DETECT

Indicates [ON/OFF] condition of electronic key switch.

DR DOOR SW

Indicates [ON/OFF] condition of front door switch (driver side).

CDL LOCK SW

Indicates [ON/OFF] condition of door lock/unlock switch.

RKE LOCK

Indicates [ON/OFF] condition of lock signal from remote controller.

DATA MONITOR ITEM (LIGHT ON RIMINDER)

NLEL0684S02

Monitored item

Description

IGN ON SW

Indicates [ON/OFF] condition of ignition switch.

DR DOOR SW

Indicates [ON/OFF] condition of front door switch (driver side).

TAIL LAMP ON

Indicates [ON/OFF] condition of lighting switch.

Trouble Diagnoses

NLEL0455

SYMPTOM CHART

NLEL0455S01

REFERENCE PAGE (EL-

)

131

132

135

138

SYMPTOM

POWER

SUPPL

Y

AND

GROUND

CIRCUIT

CHECK

DIAGNOSTIC

PROCEDURE

1

(LIGHTING

SWITCH

INPUT

SIGNAL

CHECK)

DIAGNOSTIC

PROCEDURE

2

(KEY

SWITCH

INSER

T

SIGNAL

CHECK)

DIAGNOSTIC

PROCEDURE

3

Light warning chime does not activate.

X

X

X

Ignition key warning chime does not acti-
vate.

X

X

X

All warning chimes do not activate.

X

X

WARNING CHIME

CONSULT-II Apprication Items

EL-130

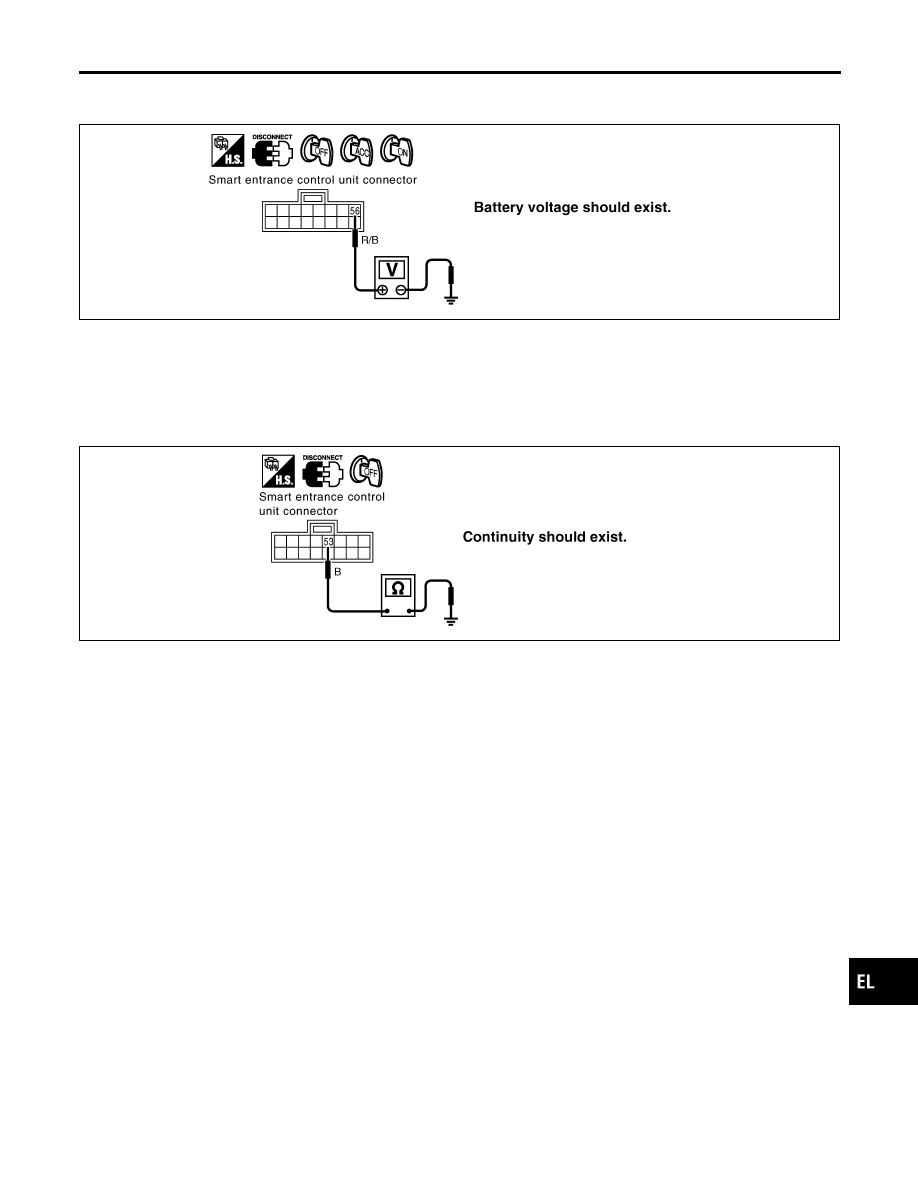

POWER SUPPLY AND GROUND CIRCUIT CHECK

=NLEL0455S02

Power Supply Circuit Check

NLEL0455S0201

YEL335E

If NG, check the following.

I

15A fuse [No. 5, located in fuse block]

I

Harness for open or short between smart entrance control unit
and fuse

Ground Circuit Check

NLEL0455S0202

YEL336E

If NG, check ground circuit for open or short.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-131

DIAGNOSTIC PROCEDURE 1 (LIGHTING SWITCH
INPUT SIGNAL CHECK)

=NLEL0455S03

1

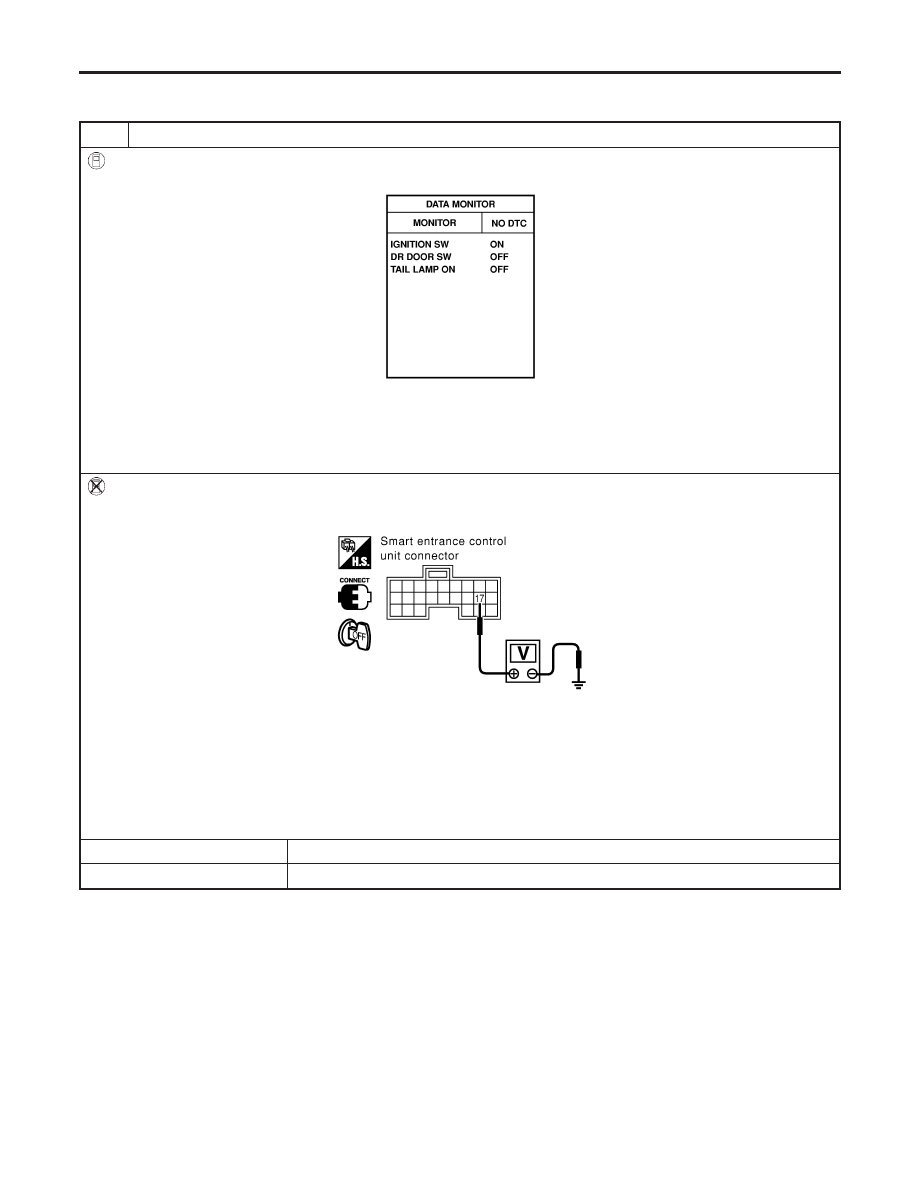

CHECK LIGHTING SWITCH INPUT SIGNAL

With CONSULT-II

Check lighting switch (“TAIL LAMP ON”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0192E

When lighting switch is in 1st or 2nd position:

TAIL LAMP ON ON

When lighting switch is in OFF position:

TAIL LAMP ON OFF

Without CONSULT-II

Check voltage between smart entrance control unit harness connector M193 terminal 17 (R/G) and ground.

MKIB0015E

Condition of switch

Voltage [V]

Lighting switch: 1st or 2nd

Approx. 12V

Lighting switch: OFF

0V

OK or NG

OK

©

Lighting switch is OK.

NG

©

GO TO 2.

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-132

2

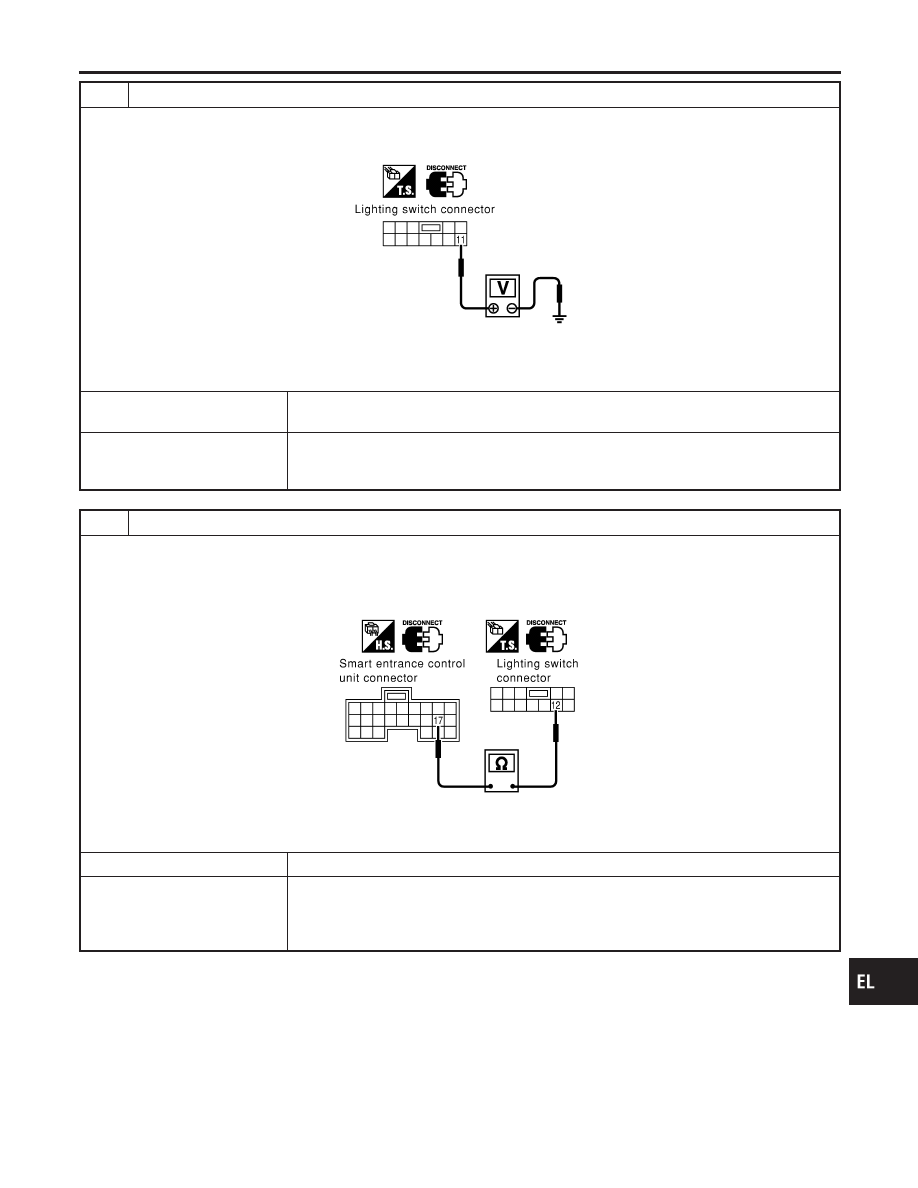

CHECK LIGHTING SWITCH POWER SUPPLY CIRCUIT FOR OPEN OR SHORT

1. Disconnect lighting switch harness connector.
2. Check voltage between lighting switch harness connector E126 terminal 11 (B/R) and ground.

MKIB0029E

Battery voltage should exist.

OK or NG

OK

©

GO TO 3. (Without daytime light system)
GO TO 4. (With daytime light system)

NG

©

Check the following.

I

10A fuse (No. 38 located in the fuse and fusible link box)

I

Harness for open or short between lighting switch and fuse

3

CHECK LIGHTING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1. Turn ignition switch OFF.
2. Disconnect smart entrance control unit.
3. Check harness continuity between lighting switch harness connector E126 terminal 12 (W/R) and smart entrance con-

trol unit harness connector M99 terminal 17 (R/G).

MKIB0030E

Continuity should exist.

OK or NG

OK

©

GO TO 5.

NG

©

Check the following.

I

Harness for open or short between smart entrance control unit and lighting switch.

I

Harness for open or short between smart entrance control unit and lighting switch/
daytime light control unit (with daytime light control unit).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-133

4

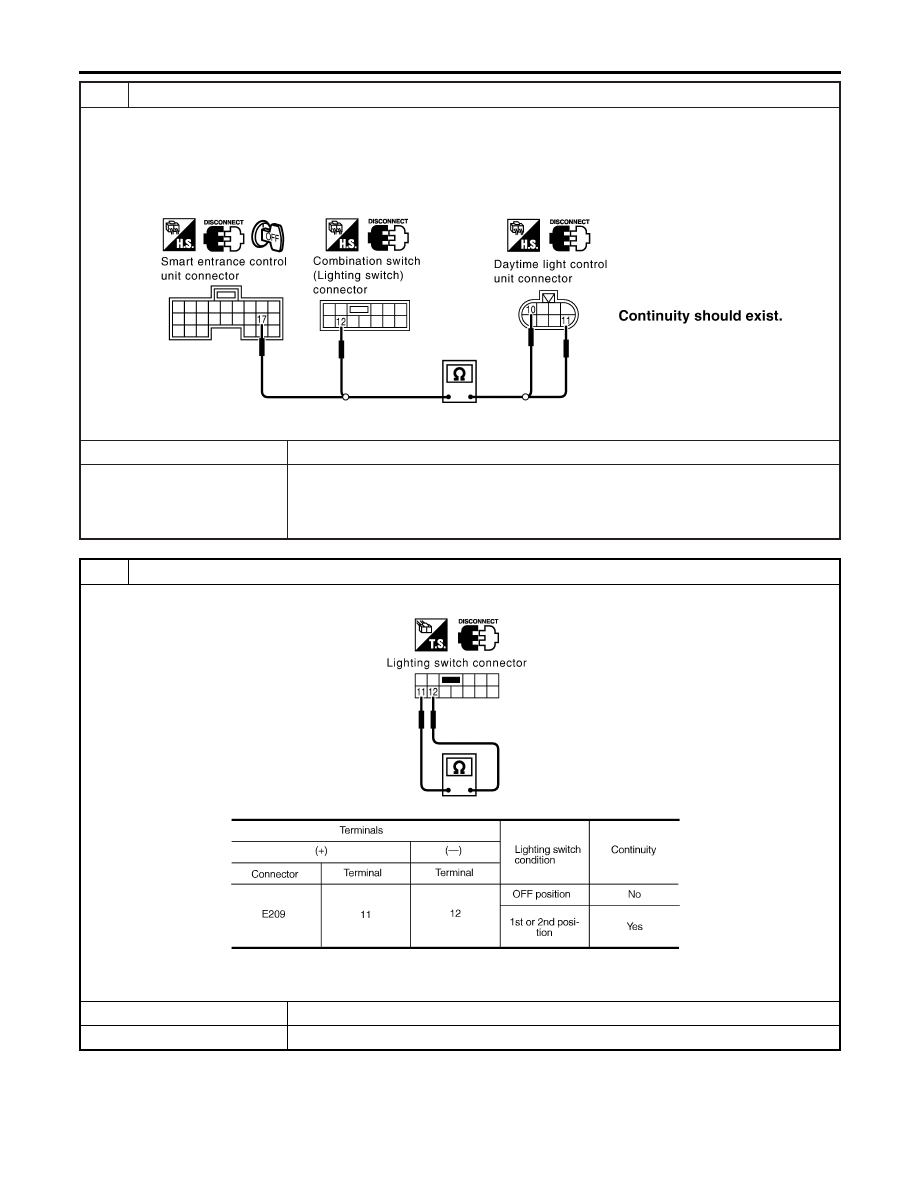

CHECK DAYTIME LIGHT CIRCUIT

1. Disconnect smart entrance control unit connector and daytime light control unit connector.
2. Check the following.

I

Continuity between combination switch harness connector E126 terminal 12 (W/R) and daytime light control unit har-
ness connector E102 terminal 11 (W/R)

I

Continuity between daytime light control unit harness connector E102 terminal 10 (R/L) and smart entrance control unit
harness connector M99 terminal 17 (R/G)

YEL607E

OK or NG

OK

©

GO TO 5.

NG

©

Check the following.

I

Harness for open or short between smart entrance control unit and daytime light con-
trol unit

I

Harness for open or short between daytime light control unit and combination switch

5

CHECK LIGHTING SWITCH

Check continuity between lighting switch harness connector E126 terminals 11 and 12.

MKIB0031E

MTBL1640

OK or NG

OK

©

Lighting switch is OK.

NG

©

Replace lighting switch.

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-134

DIAGNOSTIC PROCEDURE 2 (KEY SWITCH INSERT
SIGNAL CHECK)/FOR RHD MODELS

=NLEL0455S04

1

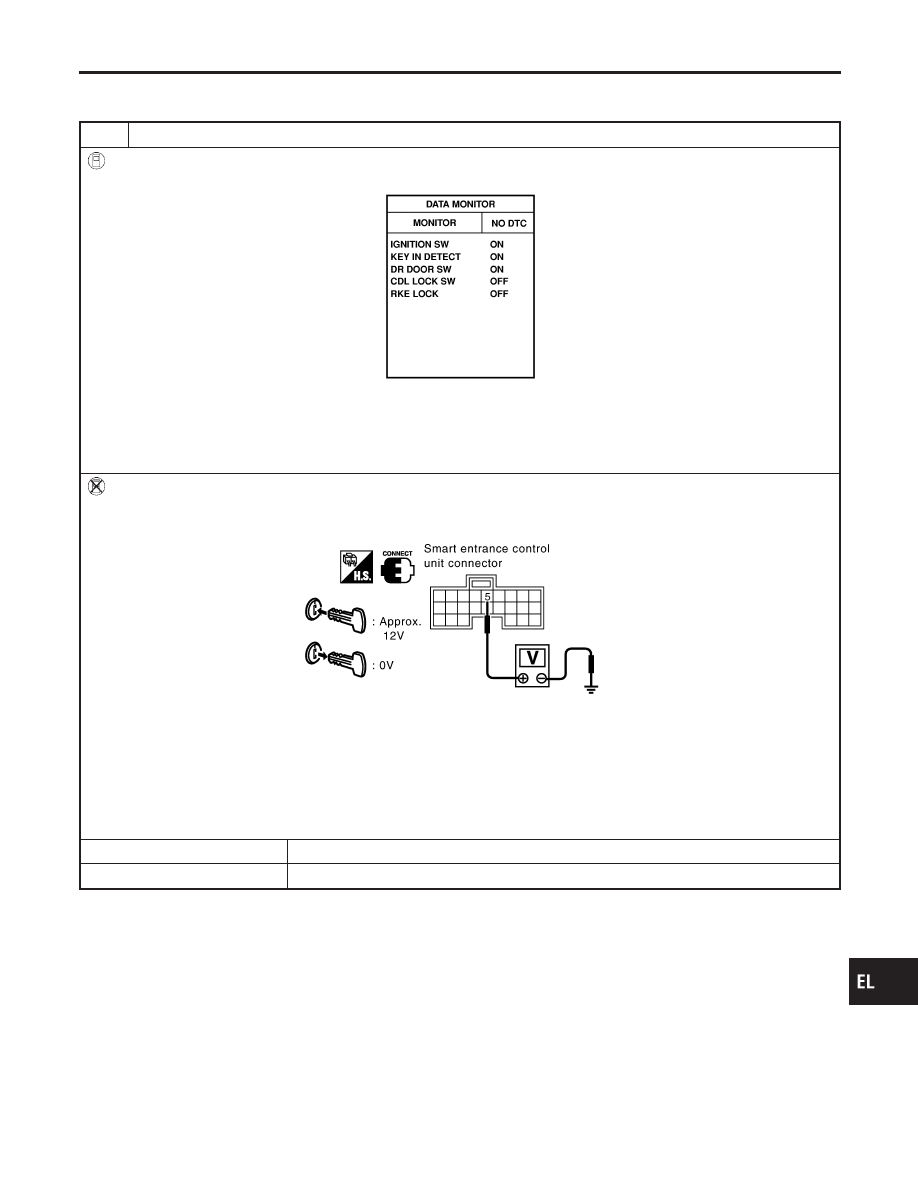

CHECK KEY SWITCH INPUT SIGNAL

With CONSULT-II

Check key switch (“KEY IN DETECT”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0193E

When key is inserted to ignition key cylinder:

KEY IN DETECT ON

When key is removed from ignition key cylinder:

KEY IN DETECT OFF

Without CONSULT-II

Check voltage between smart entrance control unit harness connector M118 terminal 5 (B/R) and ground.

YEL337E

Condition of key switch

Voltage [V]

When key is inserted to ignition key cylinder:

Approx. 12V

When key is removed from ignition key cylinder:

0V

OK or NG

OK

©

Key switch is OK.

NG

©

GO TO 2.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-135

2

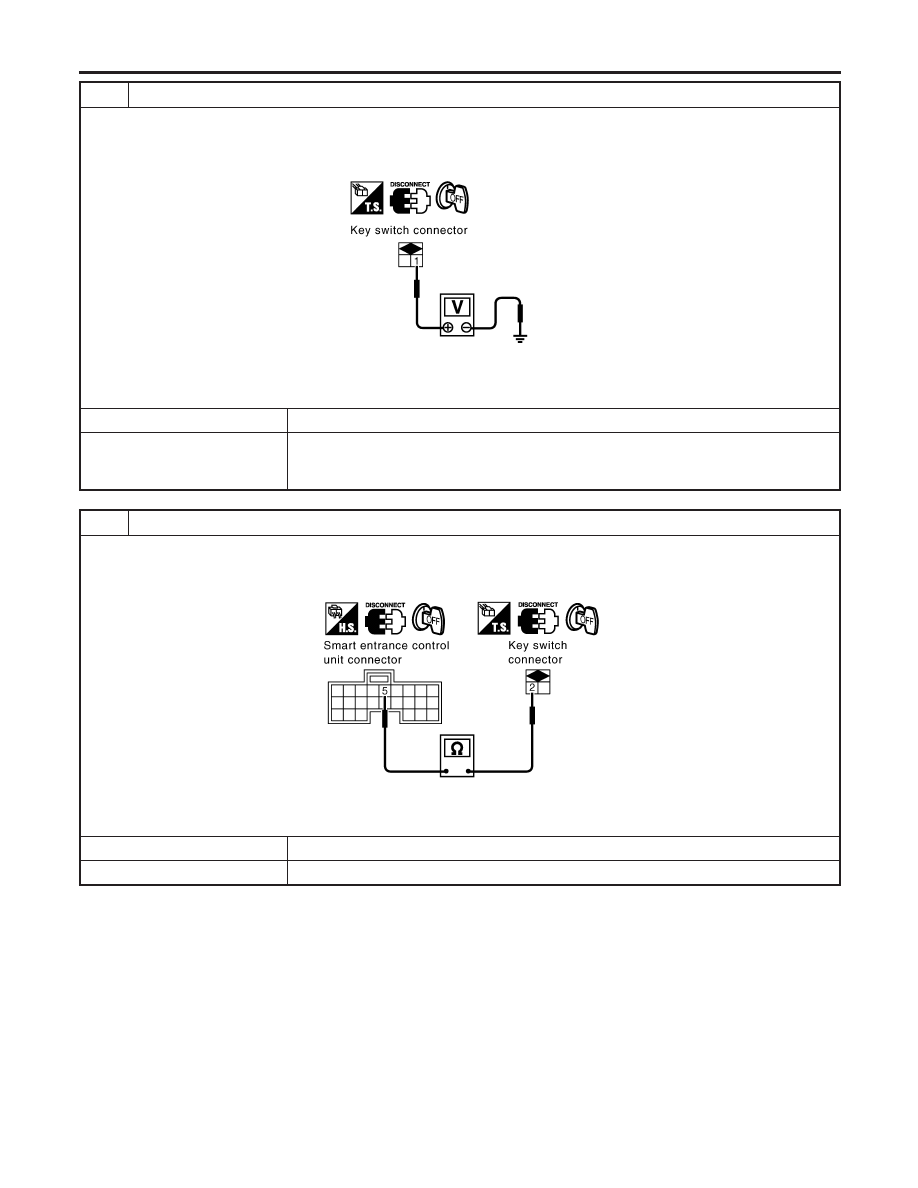

CHECK KEY SWITCH POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect key switch harness connector.
3. Check voltage between key switch harness connector E118 terminal 1 (R) and ground.

YEL256E

Battery voltage should exist.

OK or NG

OK

©

GO TO 3.

NG

©

Check the following.

I

10A fuse [No. 12 located in fuse block (J/B)]

I

Harness for open or short between key switch and fuse

3

CHECK KEY SWITCH INPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1. Disconnect smart entrance control unit.
2. Check harness continuity between key switch harness connector E118 terminal 2 (L/W) and smart entrance control unit

harness connector M99 terminal 5 (B/R).

YEL257E

Continuity should exist.

OK or NG

OK

©

GO TO 4.

NG

©

Repair or replace harness.

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-136

4

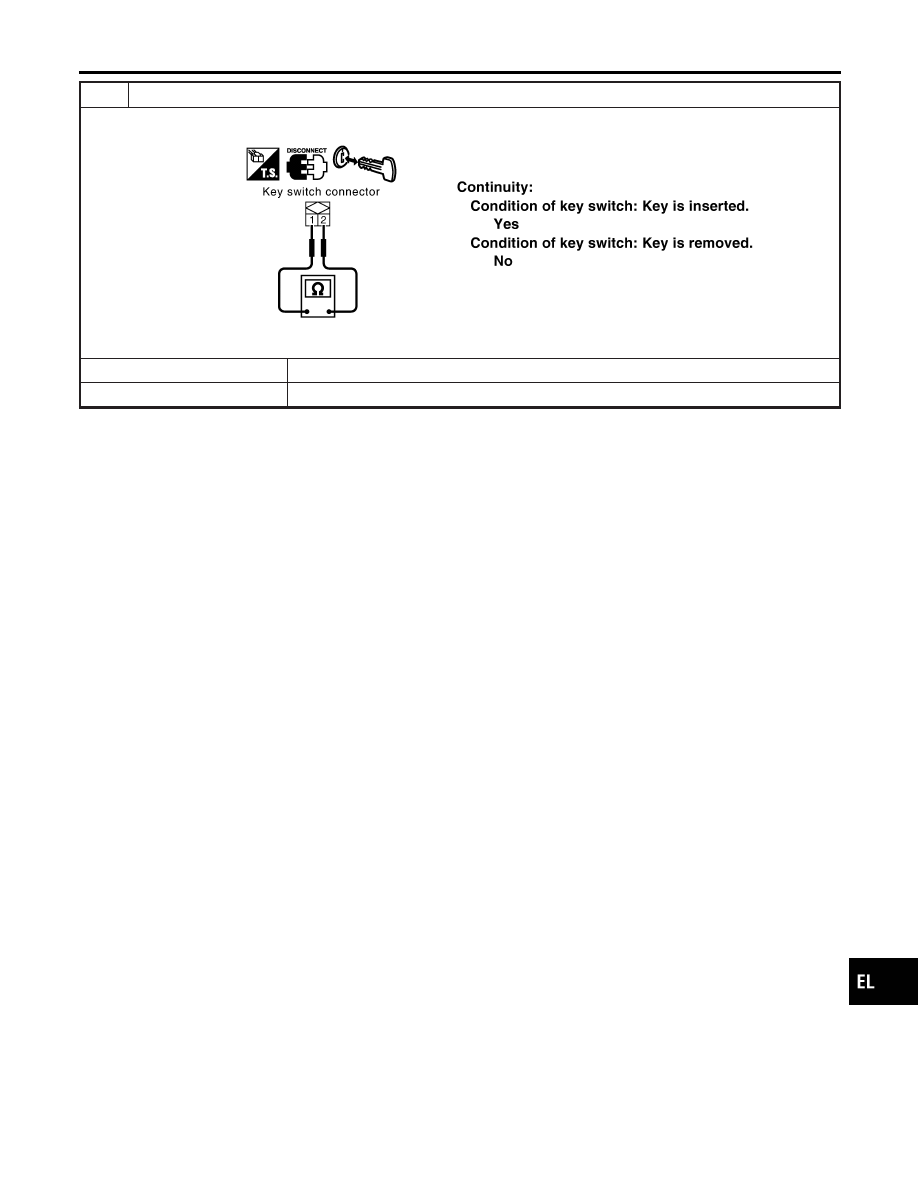

CHECK KEY SWITCH

Check continuity between key switch harness connector E118 terminals 1 and 2.

YEL574E

OK or NG

OK

©

Key switch is OK.

NG

©

Replace key switch.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-137

DIAGNOSTIC PROCEDURE 3

=NLEL0455S05

1

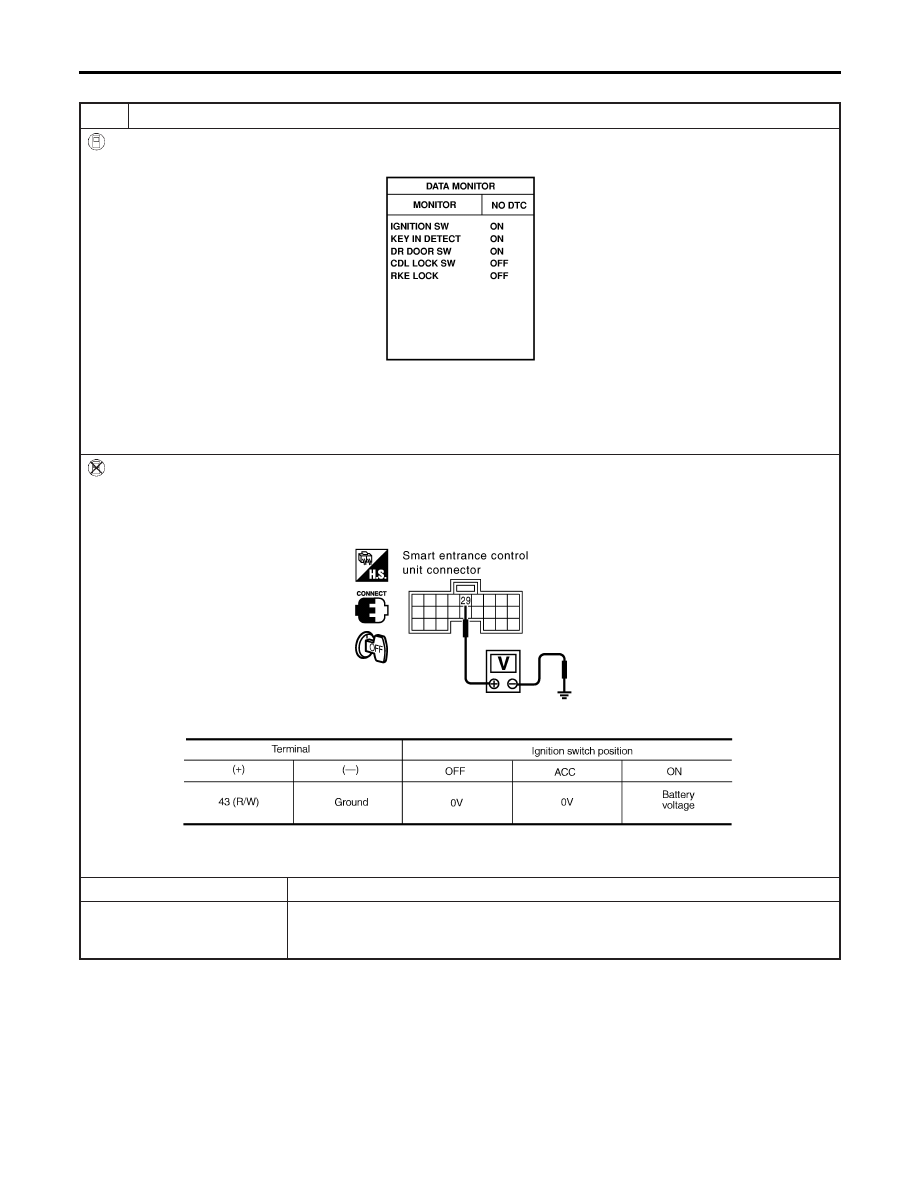

CHECK IGNITION ON SIGNAL

With CONSULT-II

I

Check ignition switch (“IGNITION SW”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0193E

When turning ignition switch ON:

IGNITION SW ON

When turning ignition switch OFF:

IGNITION SW OFF

Without CONSULT-II

1. Turn ignition switch OFF.
2. Disconnect smart entrance control unit.
3. Check voltage between smart entrance control unit harness connector M100 terminal 29 (Y/G) and ground.

YEL339E

MTBL1642

OK or NG

OK

©

GO TO 2.

NG

©

Check the following.

I

10A fuse [No. 10, located in fuse block (J/B)]

I

Harness for open or short between smart entrance control unit and fuse

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-138

2

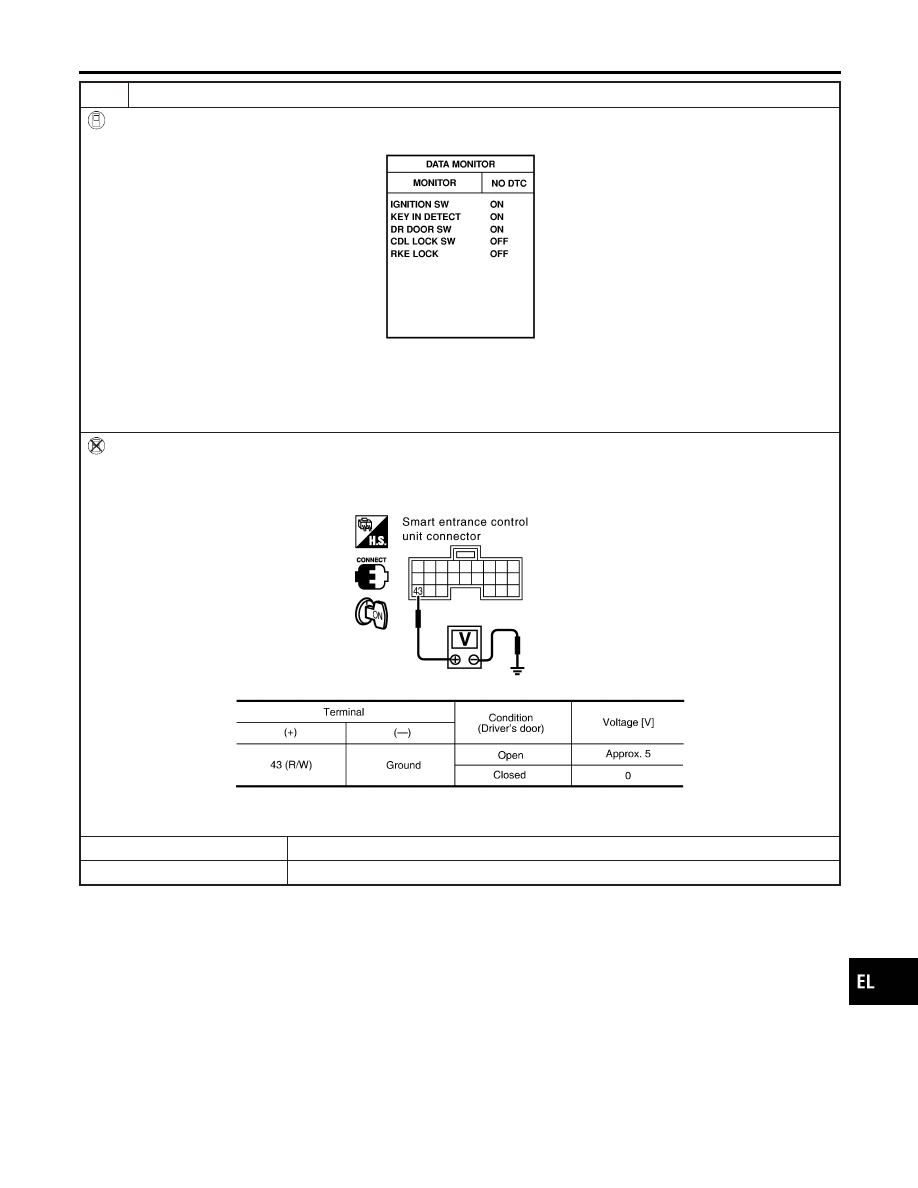

CHECK DOOR SWITCH DRIVER SIDE INPUT SIGNAL

With CONSULT-II

Check door switch driver side (“DR DOOR SW”) in “DATA MONITOR” mode with CONSULT-II.

MKIB0193E

When driver’s door is open:

DR DOOR SW ON

When driver’s door is closed:

DR DOOR SW OFF

Without CONSULT-II

1. Turn ignition switch ON.
2. Check voltage between smart entrance control unit harness connector M100 terminal 43 (R/W) and ground.

YEL338E

MTBL1441

OK or NG

OK

©

INSPECTION END

NG

©

GO TO 3.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-139

3

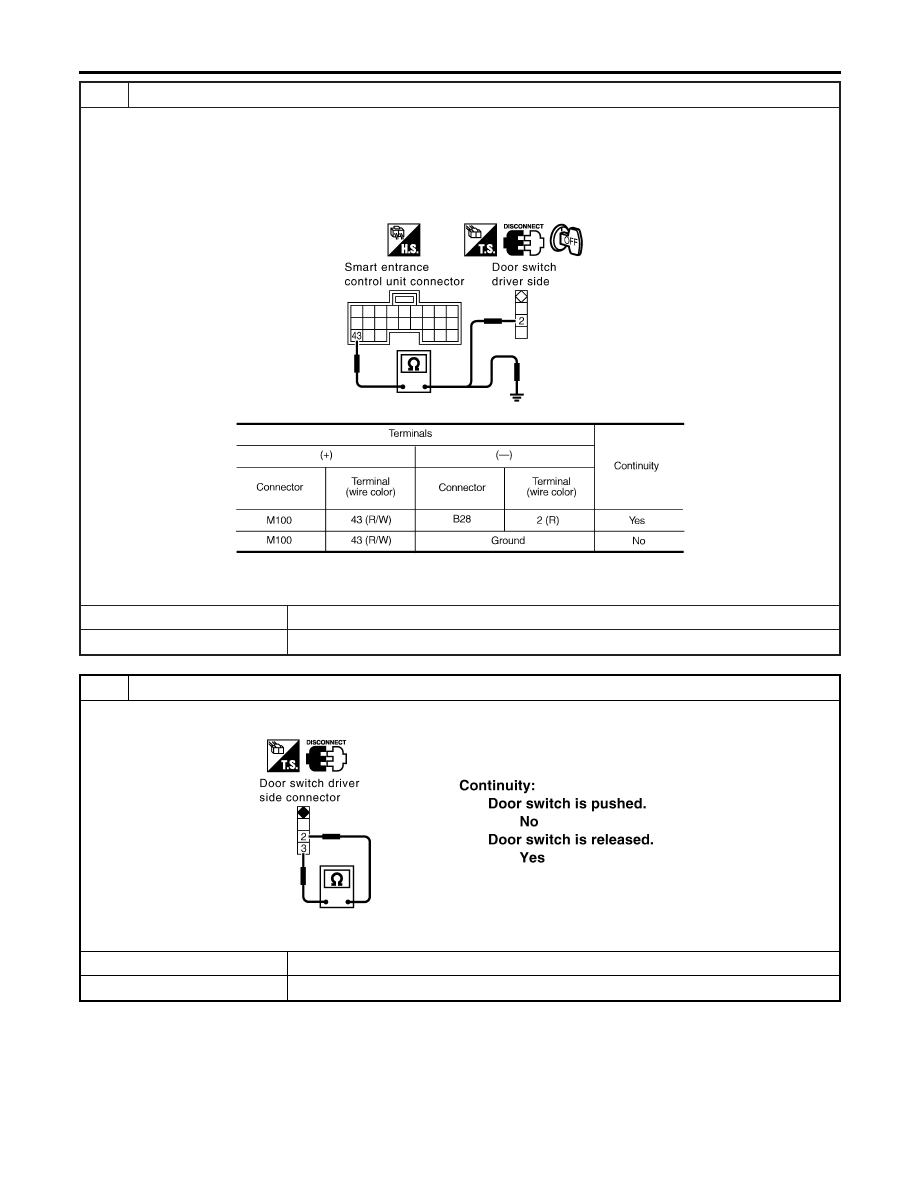

CHECK DOOR SWITCH OPEN OR SHORT CIRCUIT

1. Turn ignition switch OFF.
2. Disconnect smart entrance control unit harness connector and door switch driver side connector.
3. Check the following.

Harness continuity between smart entrance control unit harness connector M100 terminal 43 (R/W) and door switch
driver side connector B28 terminal 2 (R).

Harness continuity between smart entrance control unit harness connector M100 terminal 43 (R/W) and body ground.

YEL350E

MTBL1643

OK or NG

OK

©

GO TO 4.

NG

©

Repair or replace harness.

4

CHECK DRIVER SIDE DOOR SWITCH

Check continuity between door switch driver side harness connector B28 terminals 2 and 3.

YEL348E

OK or NG

OK

©

Door switch driver side is OK.

NG

©

Replace door switch driver side.

WARNING CHIME

Trouble Diagnoses (Cont’d)

EL-140

System Description

NLEL0456

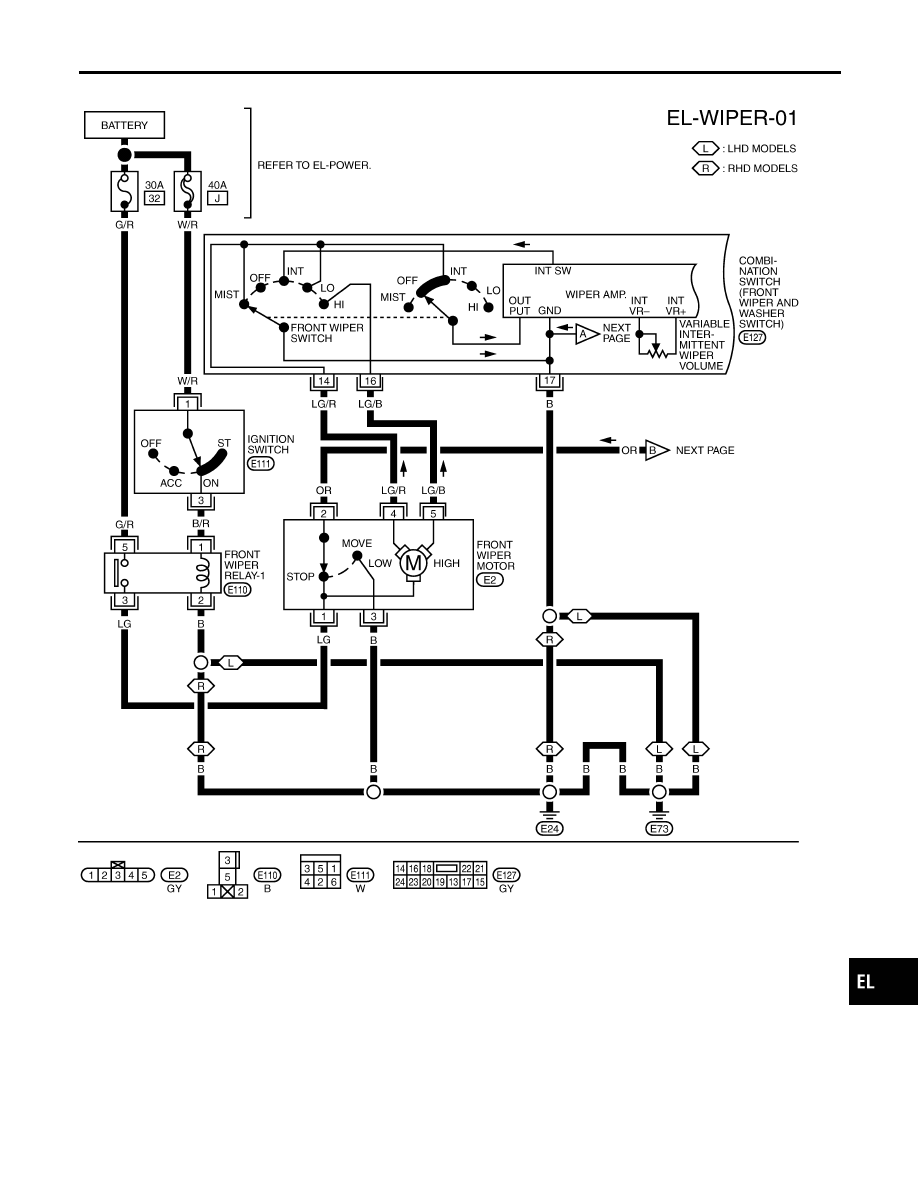

WIPER OPERATION

NLEL0456S01

The wiper switch is controlled by a lever built into the combination switch.
There are four wiper switch positions:

I

LO speed

I

HI speed

I

INT (Intermittent)

I

MIST

Power is supplied at all time

I

through 30A fuse (No. 32, located in fuse and fusible link box)

I

to front wiper relay-1 terminal 5, and

I

through 40A fusible link (letter J, located in fuse and fusible link box)

I

through ignition switch terminal 1 and 3 when the switch is in the ON or START position

I

to front wiper relay-1 terminal 1.

Ground is supplied

I

to front wiper relay-1 terminal 2

I

through body grounds E24 and E73

With power and ground supplied, the front wiper relay-1 is energized.

Low and High Speed Wiper Operation

NLEL0456S0101

Ground is supplied to wiper and washer switch terminal 17 through body grounds E24 and E73.
When the wiper switch is placed in the LO position, ground is supplied

I

through terminal 14 of the front wiper and washer switch

I

to front wiper motor terminal 4.

With power and ground supplied, the wiper motor operates at low speed.
When the wiper switch is placed in the HI position, ground is supplied

I

through terminal 16 of the front wiper and washer switch

I

to wiper motor terminal 5.

With power and ground supplied, the wiper motor operates at high speed.

Auto Stop Operation

NLEL0456S0102

With wiper switch turned OFF, wiper motor will continue to operate until wiper arms reach windshield base.
When wiper arms are not located at base of windshield with wiper switch OFF, ground is provided

I

from terminal 14 of the front wiper and washer switch

I

to front wiper motor terminal 4, in order to continue wiper motor operation at low speed.

Ground is also supplied

I

through terminal 13 of the front wiper and washer switch

I

to front wiper motor terminal 2

I

through terminal 3 of front wiper motor

I

through body grounds E24 and E73.

When wiper arms reach base of windshield, front wiper motor terminals 2 and 3 are connected instead of ter-
minals 2 and 1. Wiper motor will then stop wiper arms at the STOP position.

Intermittent Operation

NLEL0456S0103

The front wiper motor operates the wiper arms one time at low speed at a set interval of approximately 1 to
13 seconds. This feature is controlled by the wiper amplifier (INT SW) combined with front wiper switch.
When the wiper switch is placed in the INT position, ground is supplied to wiper amplifier (WIPER SW INT).
The desired interval time is input to wiper amplifier (INT VR) from wiper volume switch combined with front
wiper and washer switch.
Then intermittent ground is supplied

I

through wiper amplifier (OUTPUT) and

I

through terminal 14 of front wiper and washer switch

I

to terminal 4 of front wiper motor.

The wiper motor operates at low speed at the desired interval.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

FRONT WIPER AND WASHER

System Description

EL-141

MIST Operation

NLEL0456S0104

When the wiper switch is turned to the MIST position, wiper low speed operation cycles once and then stops.
If the switch is held in the MIST position, low speed operation continues.

WASHER OPERATION

NLEL0456S02

With the ignition switch in the ON or START position and the lever is pulled to the WASH/FR position, power
is supplied

I

through 10A fuse [No. 27, located in the fuse block (J/B)]

I

to front wiper switch terminal 5.

I

through front wiper and washer switch terminal 18

I

to front washer motor terminal 1.

When the lever is pulled to the WASH/FR position, ground is supplied

I

from body grounds E24 and E73

I

through terminal 17 of the front wiper and washer switch

I

through terminal 22 of the front wiper and washer switch

I

to front washer motor terminal 2.

With power and ground supplied, the washer motor operates.
When the lever is pulled to the WASH position for one second or more, the wiper motor operates at low speed
for approximately 3 seconds to clean windshield. This feature is controlled by the wiper amplifier in the same
manner as the intermittent operation.

FRONT WIPER AND WASHER

System Description (Cont’d)

EL-142

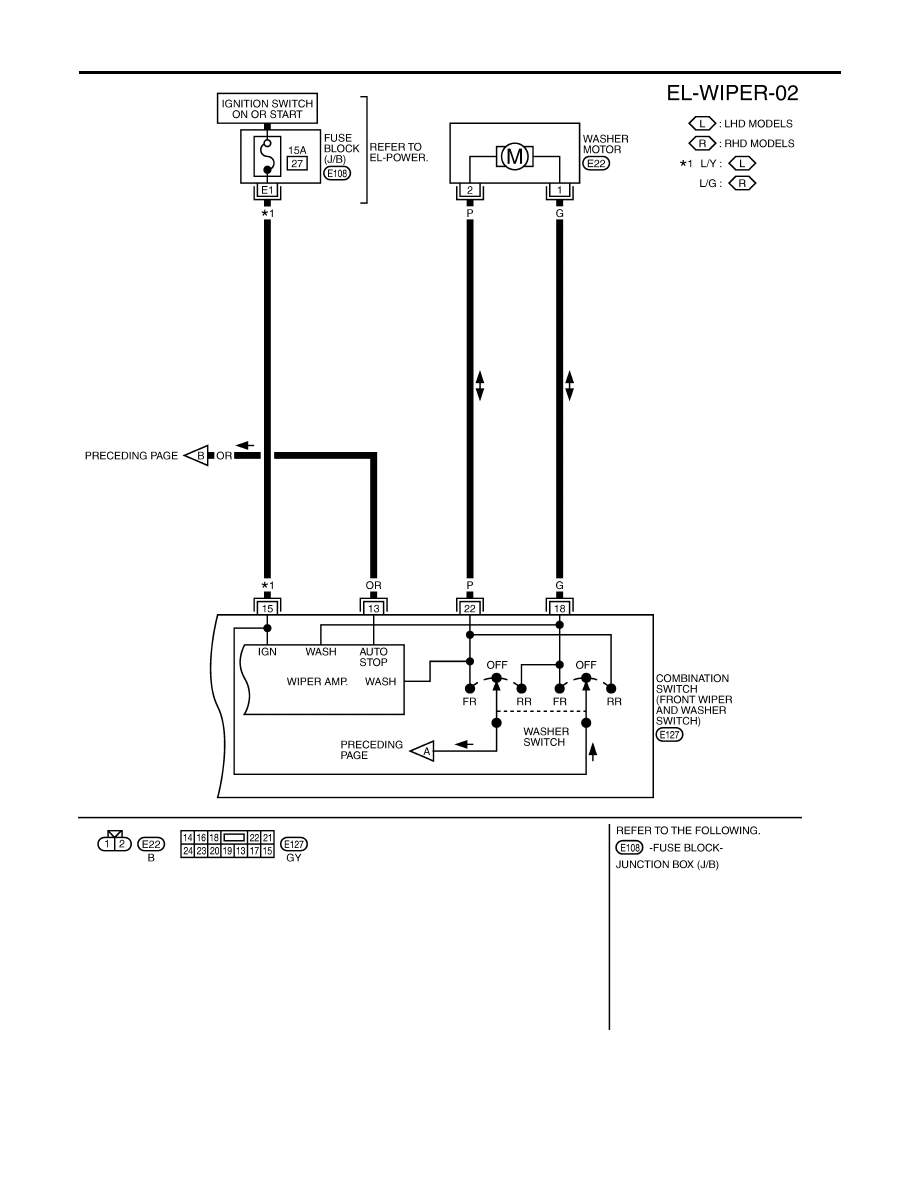

Wiring Diagram — WIPER —

NLEL0457

YEL964D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

FRONT WIPER AND WASHER

Wiring Diagram — WIPER —

EL-143

YEL965D

FRONT WIPER AND WASHER

Wiring Diagram — WIPER — (Cont’d)

EL-144















Content      ..     163      164      165      166     ..
