Almera Tino V10 (2003 year). Manual - part 166





SEL543TA

Removal and Installation

NLEL0060

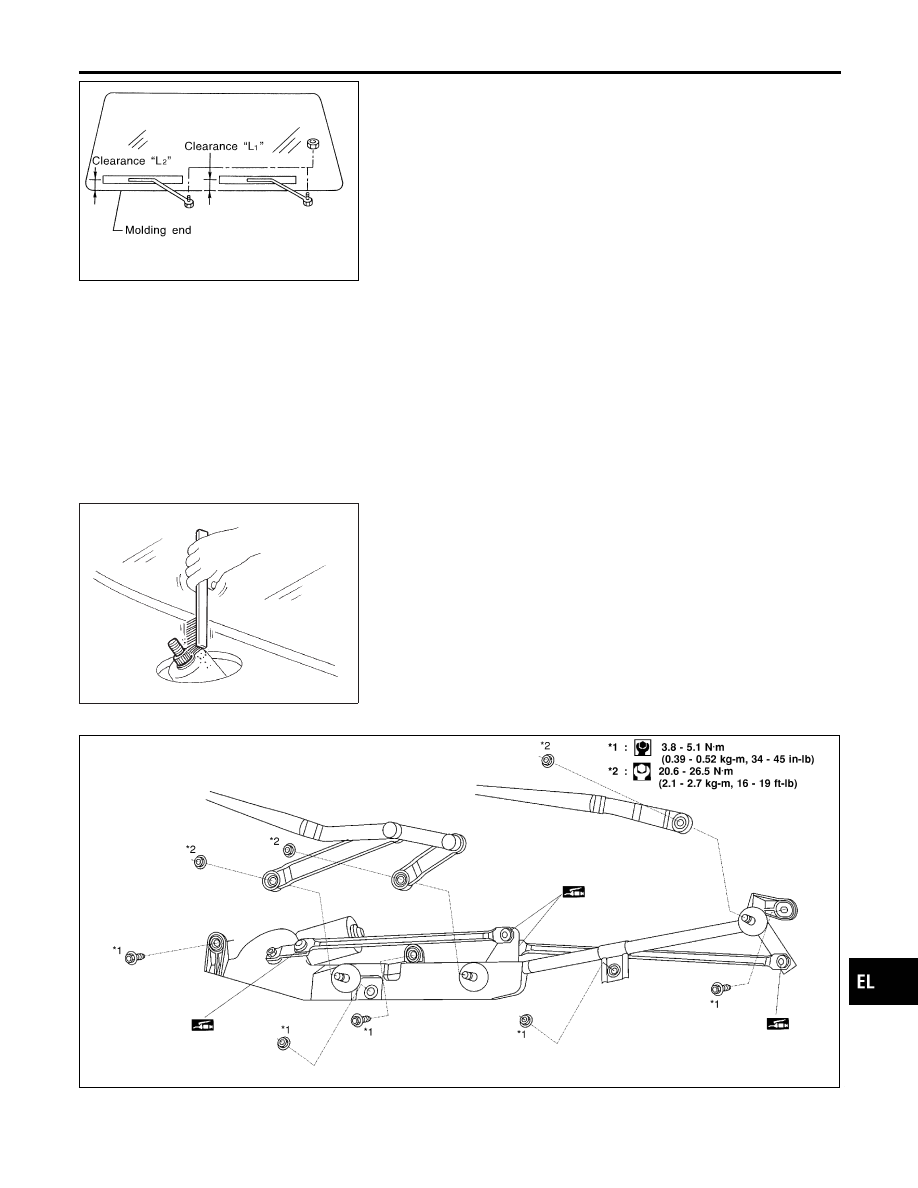

WIPER ARMS

NLEL0060S01

1.

Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).

2.

Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L

1

” & “L

2

” immediately before

tightening nut.

3.

Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.

4.

Ensure that wiper blades stop within clearance “L

1

” & “L

2

”.

Clearance “L

1

”: 20.4 - 34.4 mm (0.803 - 1.354 in)

Clearance “L

2

”: 61.8 - 75.8 mm (2.433 - 2.984 in)

I

Tighten wiper arm nuts to specified torque.

Front wiper: 21 - 26 N·m (2.1 - 2.7 kg-m, 16 - 19 ft-lb)

SEL024J

I

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.

WIPER LINKAGE

NLEL0060S02

NEL719

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

FRONT WIPER AND WASHER

Removal and Installation

EL-145

Removal

NLEL0060S0201

1.

Remove wiper arms and cowl top cover.

2.

Remove wiper motor connector.

3.

Remove 5 screws and 3 nuts.

4.

Remove wiper linkage.

Be careful not to break ball joint rubber boot.

Installation

NLEL0060S0202

I

Grease ball joint portion before installation.

1.

Installation is the reverse order of removal.

GEL013-A

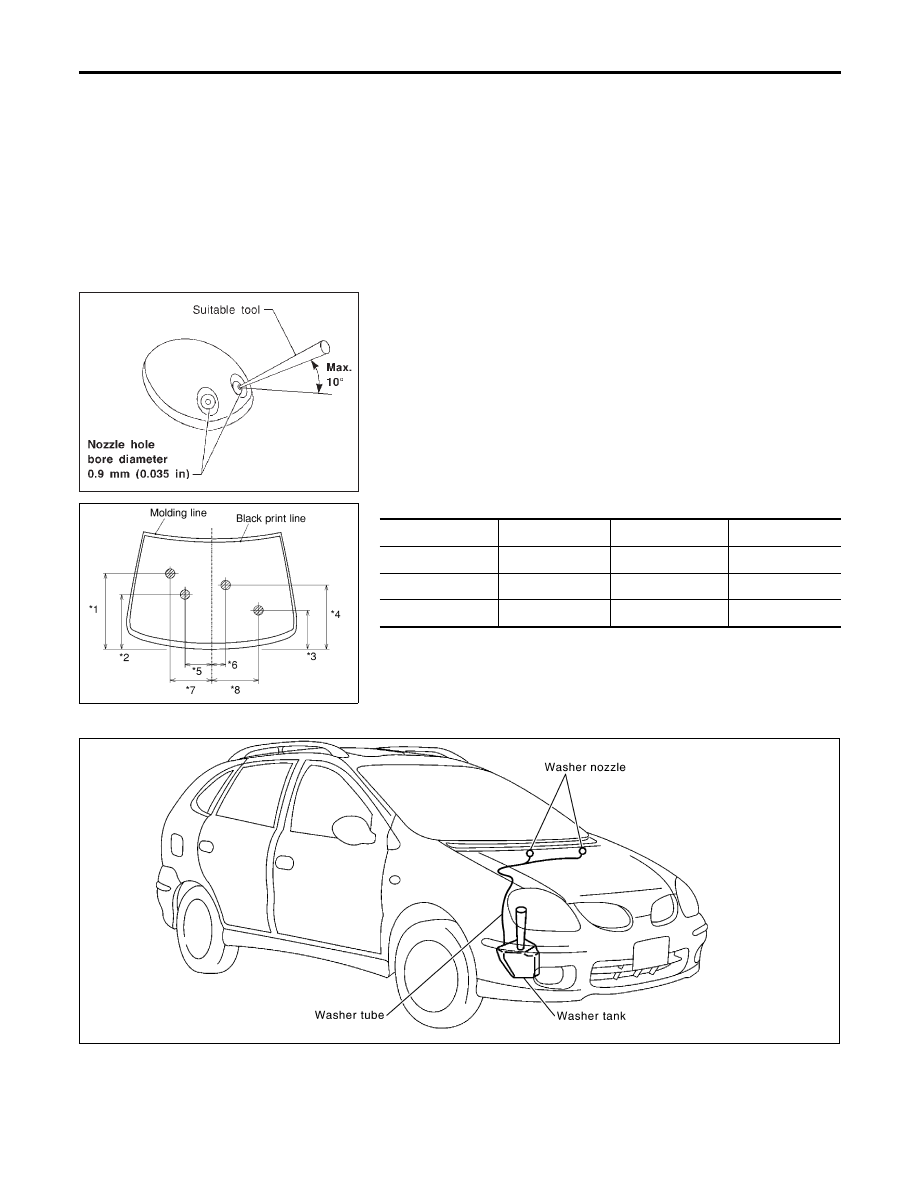

Washer Nozzle Adjustment

NLEL0061

I

Adjust washer nozzle with suitable tool as shown in the figure
at left.

Adjustable range:

±

10° (In any direction)

NEL720

Unit: mm (in)

*1

646.9 (25.47)

*5

230.1 (9.06)

*2

470.2 (18.51)

*6

16.8 (0.66)

*3

332.9 (13.11)

*7

356.5 (14.04)

*4

550.9 (21.69)

*8

394.8 (15.54)

*: The diameters of these circles are less than 80 mm (3.15 in).

Washer Tube Layout

NLEL0062

YEL340E

FRONT WIPER AND WASHER

Removal and Installation (Cont’d)

EL-146

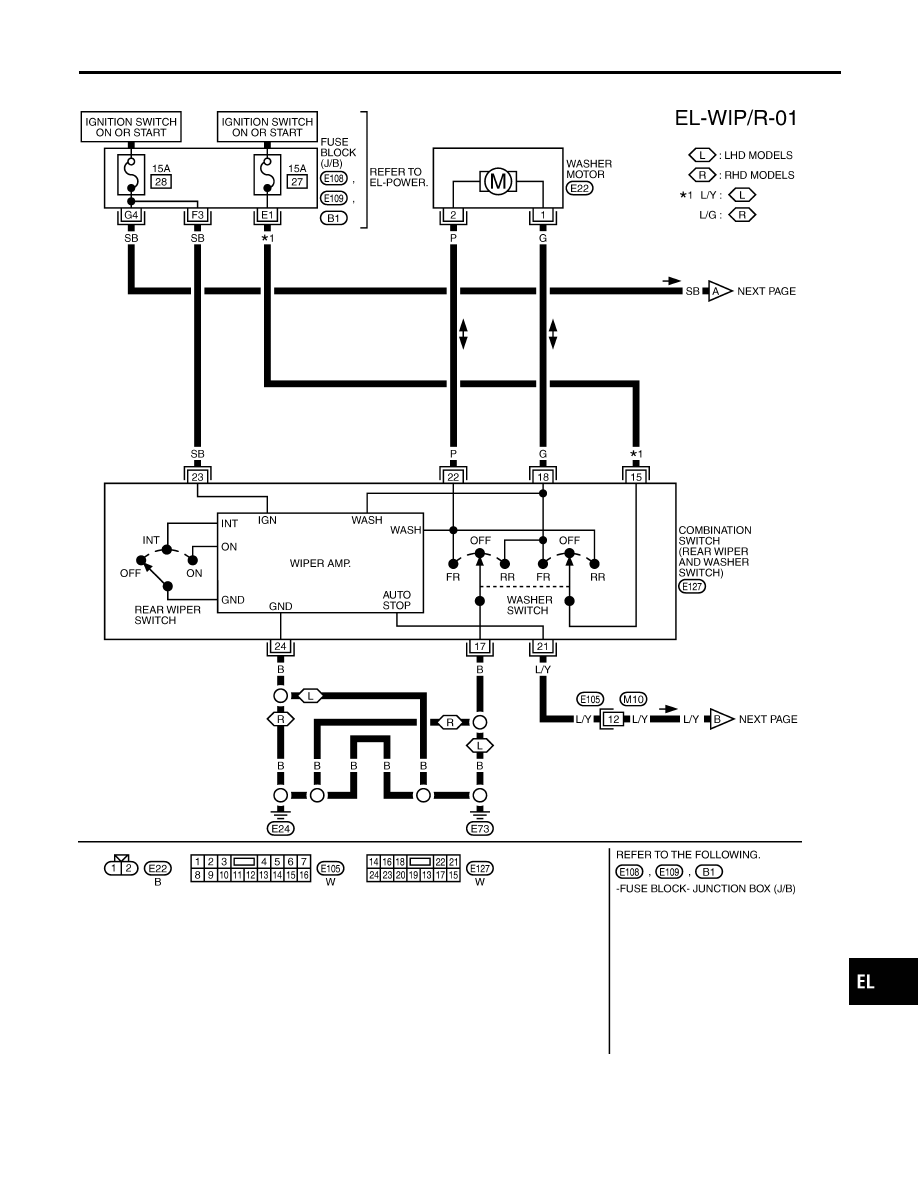

Wiring Diagram — WIP/R —

NLEL0458

YEL966D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REAR WIPER AND WASHER

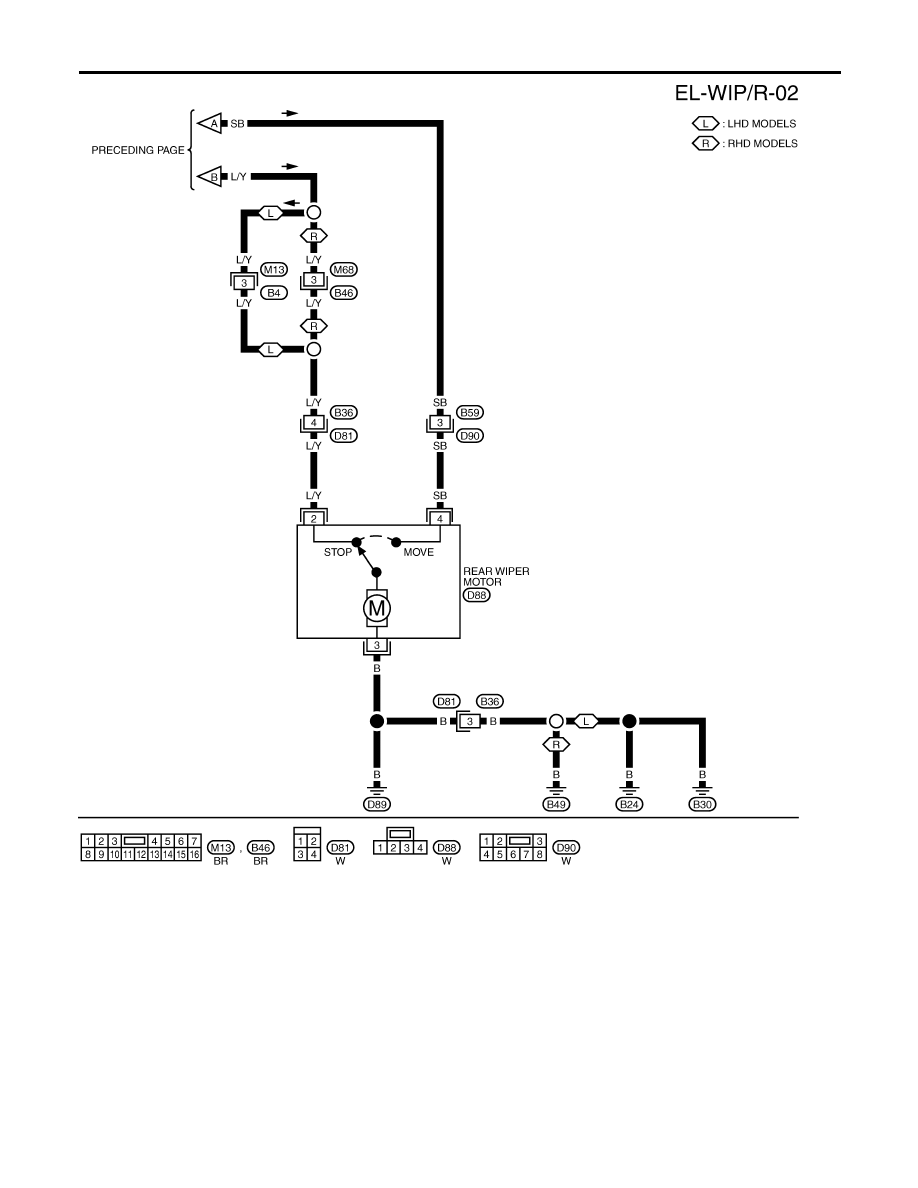

Wiring Diagram — WIP/R —

EL-147

YEL967D

REAR WIPER AND WASHER

Wiring Diagram — WIP/R — (Cont’d)

EL-148

NEL722

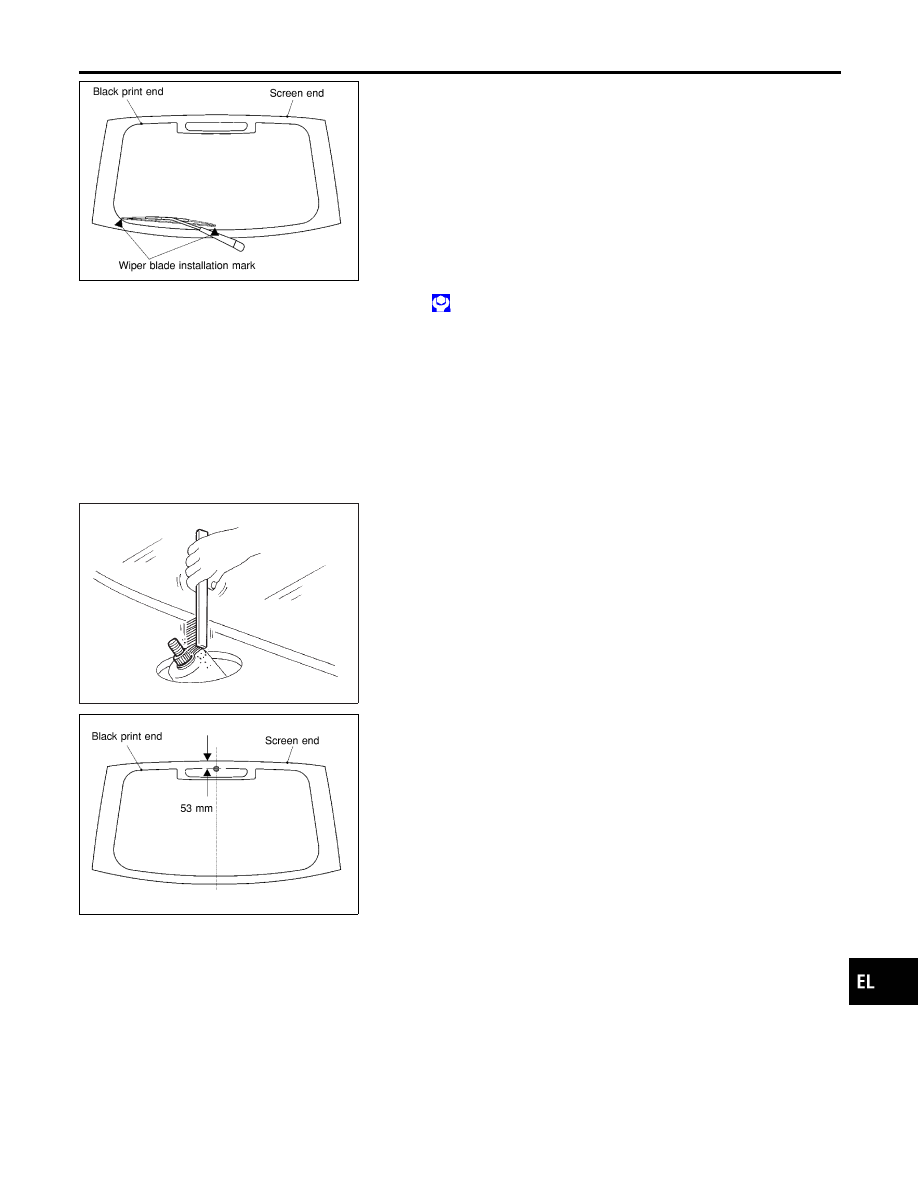

Removal and Installation

NLEL0301

WIPER ARMS

NLEL0301S01

1.

Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it “OFF” (Auto Stop).

2.

Lift the blade up and then set it down onto glass surface. Set
the black center to clearance “E” immediately before tighten-
ing the nut.

3.

Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.

4.

Ensure that wiper blades stop on the lowest heat wire.

I

Tighten windshield wiper arm nuts to specified torque.

: 12.7 - 17.6 N·m (1.3 - 1.8 kg-m, 10 - 13 ft-lb)

SEL024J

I

Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm loose-
ness.

NEL721

Washer Nozzle Adjustment

NLEL0302

The diameter of the washer spit circle is less than 30 mm (1.18 in).

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REAR WIPER AND WASHER

Removal and Installation

EL-149

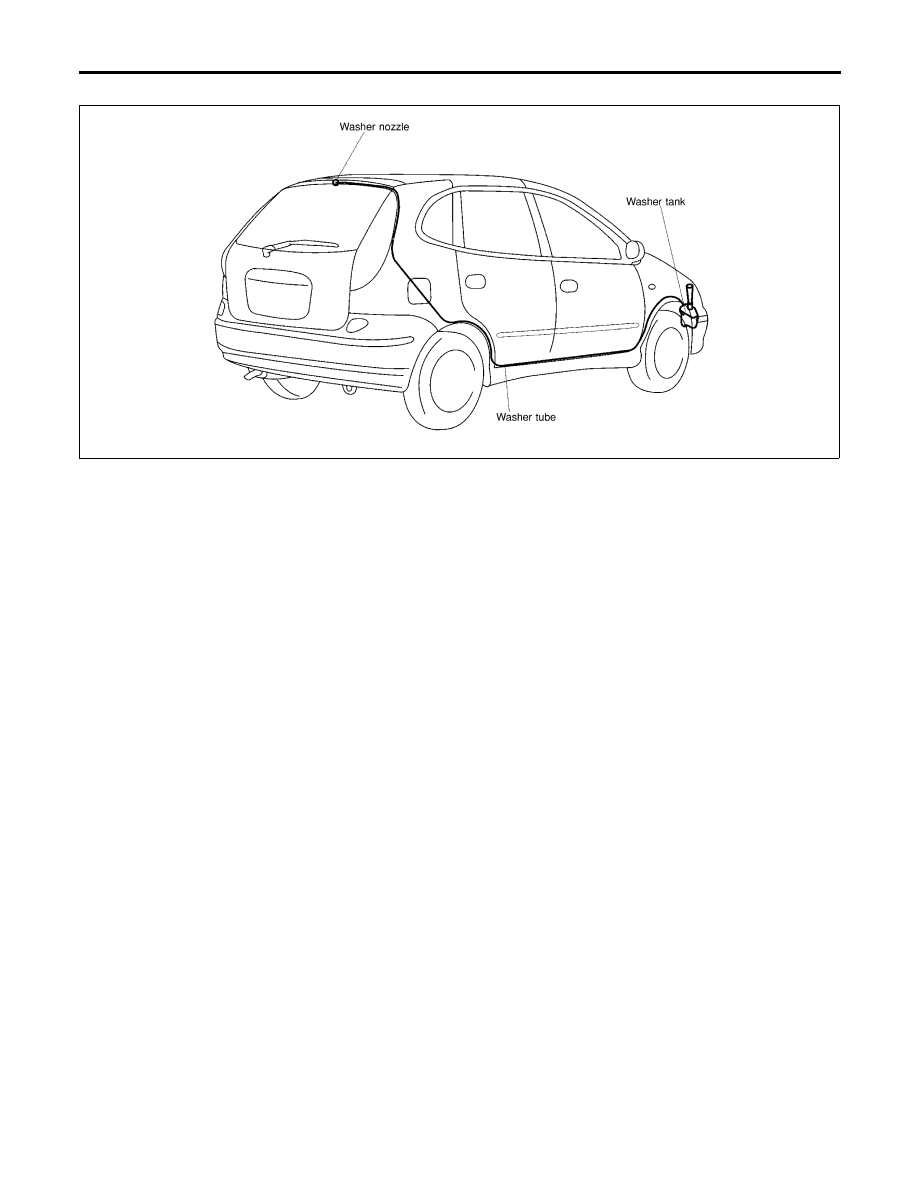

Washer Tube Layout

NLEL0303

NEL723

REAR WIPER AND WASHER

Washer Tube Layout

EL-150

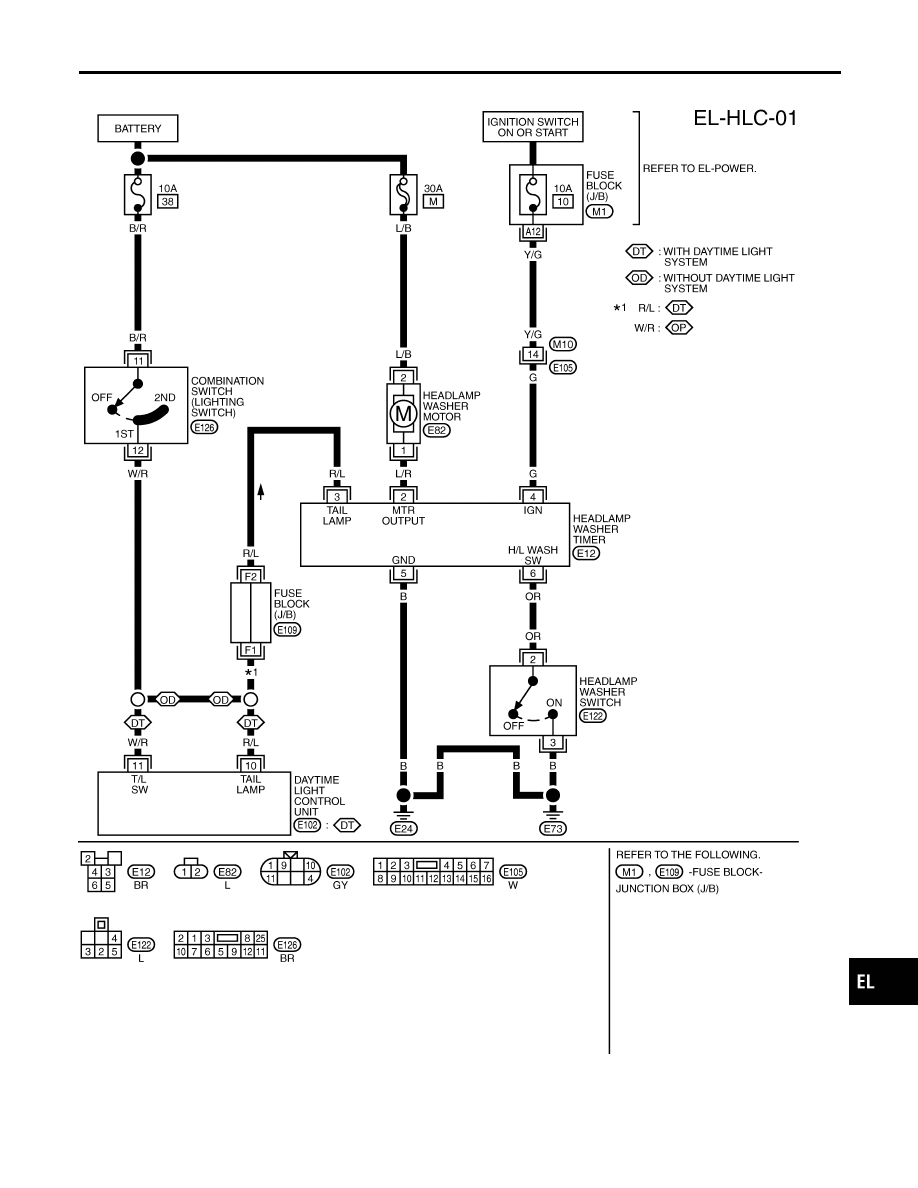

Wiring Diagram — HLC —

NLEL0459

YEL968D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HEADLAMP WASHER

Wiring Diagram — HLC —

EL-151

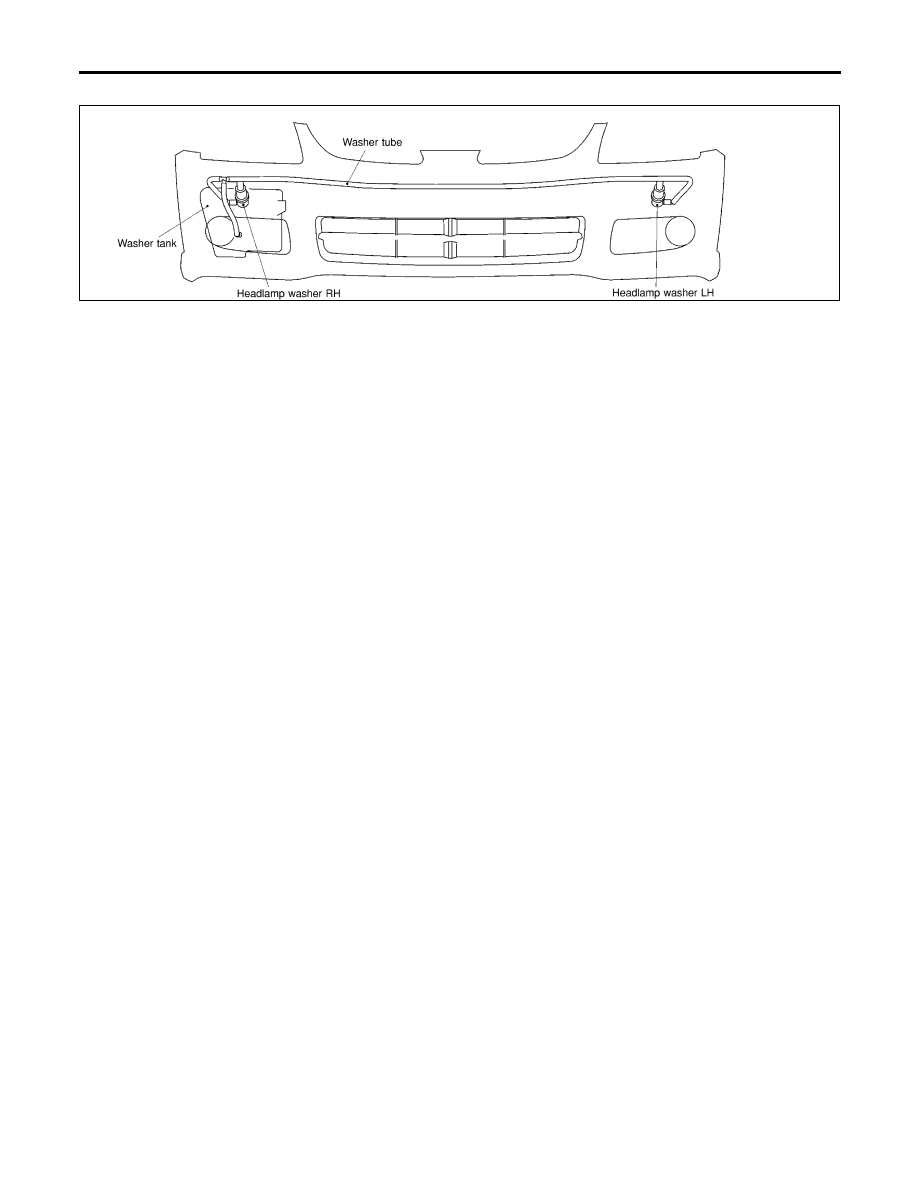

Washer Tube Layout

NLEL0376

NEL724

HEADLAMP WASHER

Washer Tube Layout

EL-152

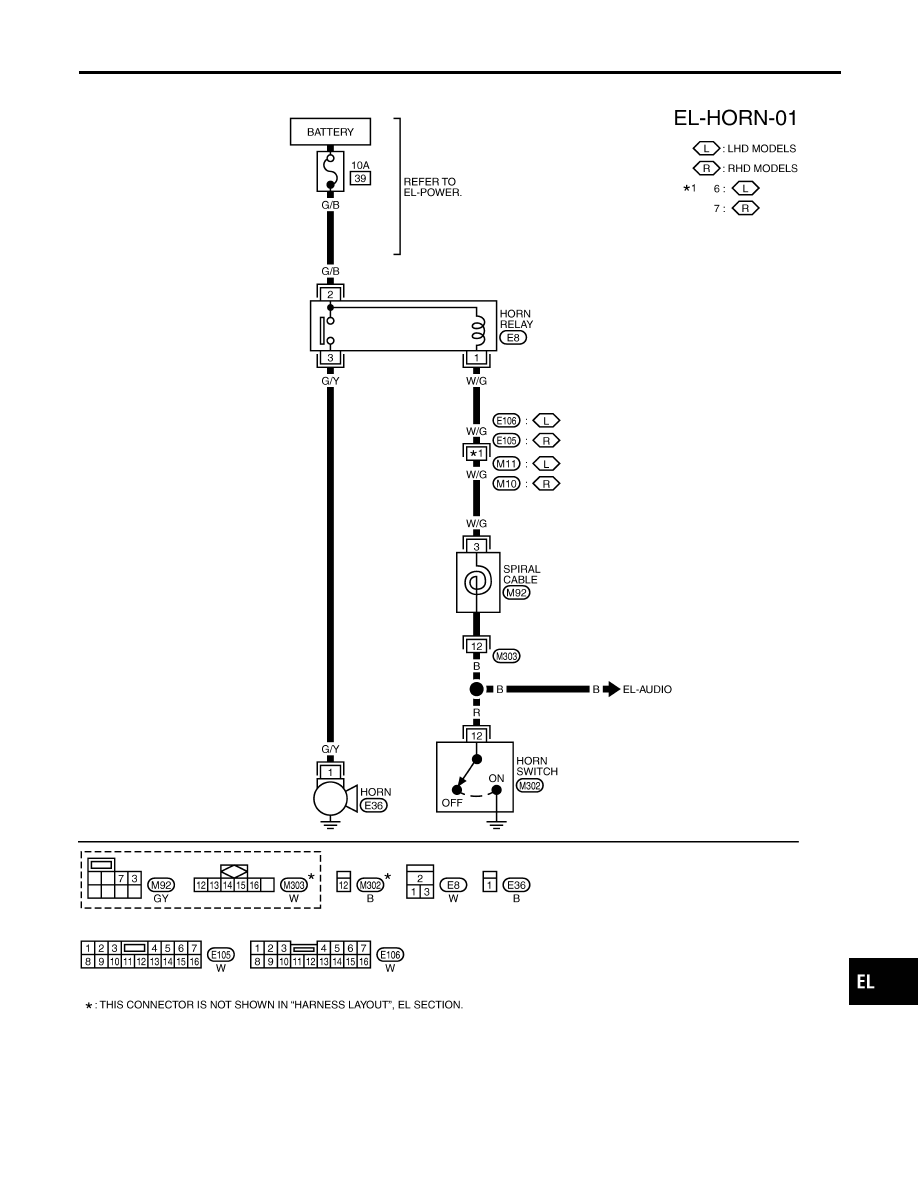

Wiring Diagram — HORN —

NLEL0460

YEL969D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

HORN

Wiring Diagram — HORN —

EL-153

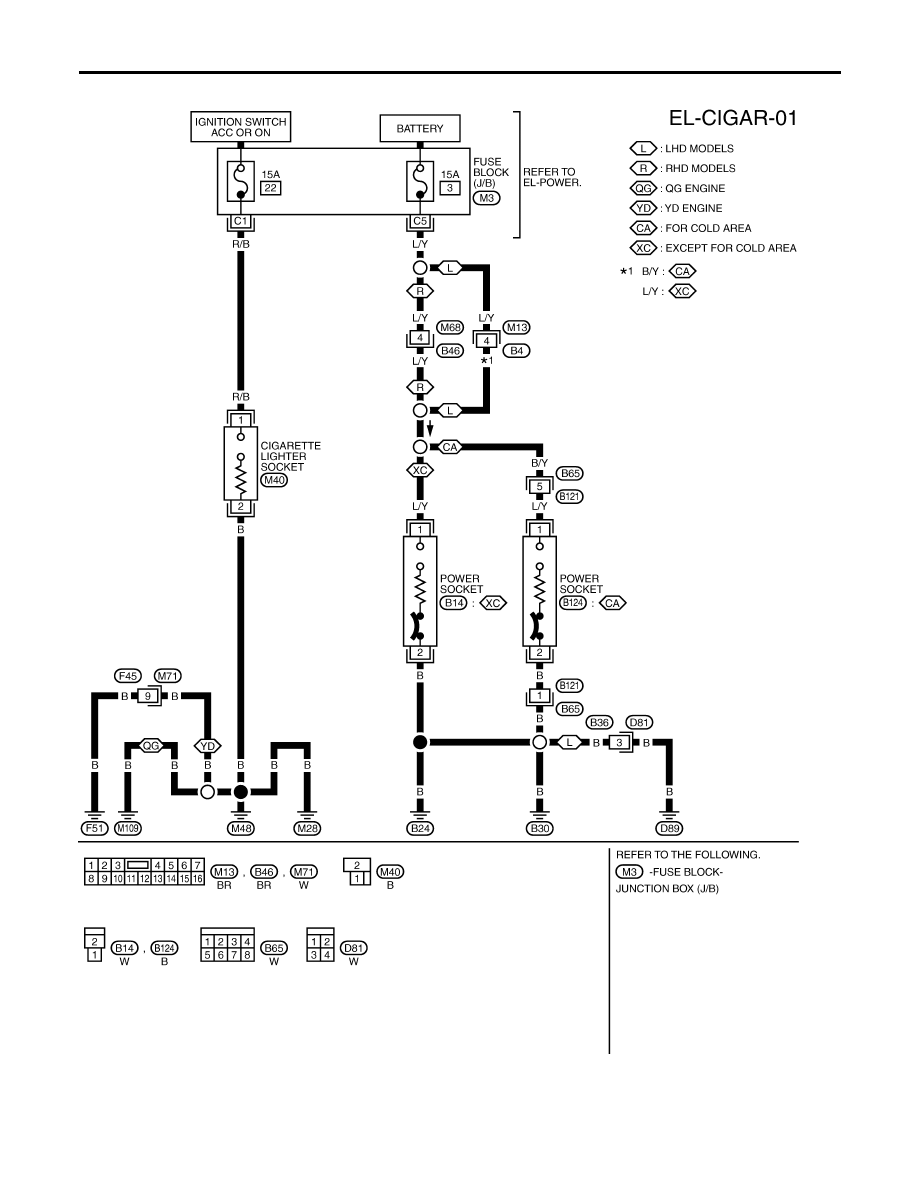

Wiring Diagram — CIGAR —

NLEL0461

YEL970D

CIGARETTE LIGHTER

Wiring Diagram — CIGAR —

EL-154

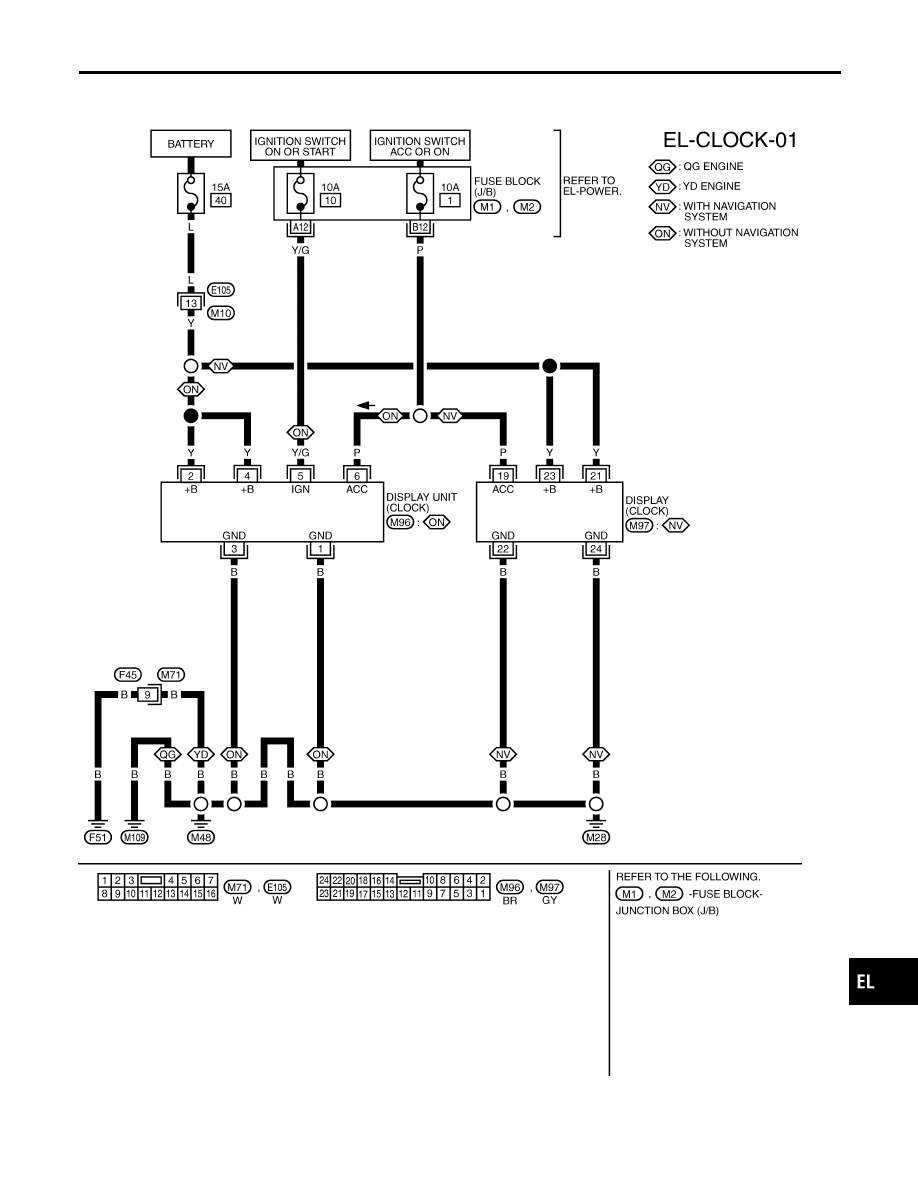

Wiring Diagram — CLOCK —

NLEL0462

LHD MODELS

NLEL0462S01

YEL971D

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

CLOCK

Wiring Diagram — CLOCK —

EL-155

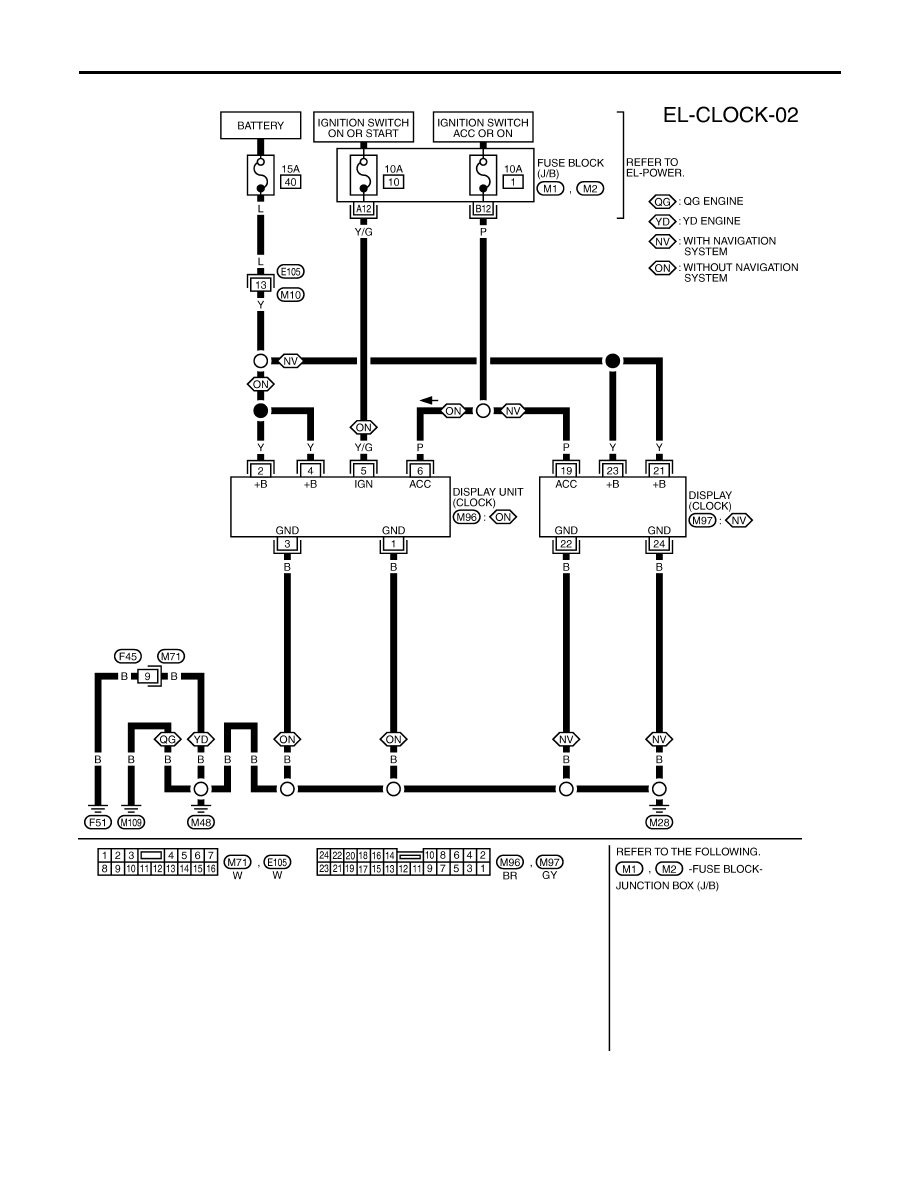

RHD MODELS

NLEL0462S02

YEL972D

CLOCK

Wiring Diagram — CLOCK — (Cont’d)

EL-156

System Description

NLEL0534

I

The rearview monitor is equipped to check the rearward of the vehicle with display when the selector lever
is in R position.

I

The lines of vehicle sides and the distance from the rear end of the vehicle are provided on display as a
guide. It allows the driver to know the distance between the vehicle and a rearward object, and the width
of the vehicle much easier.

POWER SUPPLY AND GROUND

NLEL0534S01

Power is supplied at all time

I

through 15A fuse (No. 40, located in fuse and fusible link box)

I

to rearview camera control unit terminal 7.

When ignition switch is ACC or ON position, power is supplied

I

through 10A fuse [No. 1, located in fuse block (J/B)]

I

to rearview camera control unit terminal 6.

When ignition switch is ON or START position, power is supplied

I

through 10A fuse [No. 30, located in fuse block (J/B)]

I

to back−up lamp switch terminal 1 (M/T models) or

I

to park/neutral position switch terminal 3 (A/T model).

Ground is supplied
LHD models

I

to rearview camera control unit terminal 16 and

I

to rearview camera terminal 3

I

through body ground B24, B30, and D89

RHD models

I

to rearview camera control unit terminal 16

I

through body ground M28, M48, M109 (QG engine) or F51 (YD engine)

I

to rearview camera terminal 3

I

through body ground D89 and B49.

REARVIEW CAMERA OPERATION

NLEL0534S02

When A/T selector lever or gear position is reverse position

I

through back-up lamp switch terminal 2 in (QG and YD22DDTi engines) or

I

through park/neutral position switch terminal 3 (YD22DDT engine)

I

through park/neutral position switch terminal 8 (A/T model)

I

to rearview camera control unit terminal 14, and

I

to AV and NAVI control unit terminal 32 (with navigation system) or

I

to display unit terminal 7 (without navigation system).

Then, camera ON signal is sent

I

through rearview camera control unit terminal 5

I

to rearview camera terminal 4.

An image taken by rearview camera is sent

I

through rearview camera terminal 2

I

to rearview camera control unit terminal 3.

Then an image is sent

I

through rearview camera control unit terminal 2 and 13

I

to display terminal 9 and 10 (with navigation system) or

I

to display unit terminal 23 and 24 (without navigation system).

An image of rearview will be projected on the display.

Rearview Camera Guide Line (With Navigation System)

NLEL0534S0201

I

from AV and NAVI control unit terminal 37

I

to rearview camera control unit terminal 15.

Rearview guideline will be projected on the display.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REARVIEW MONITOR

System Description

EL-157

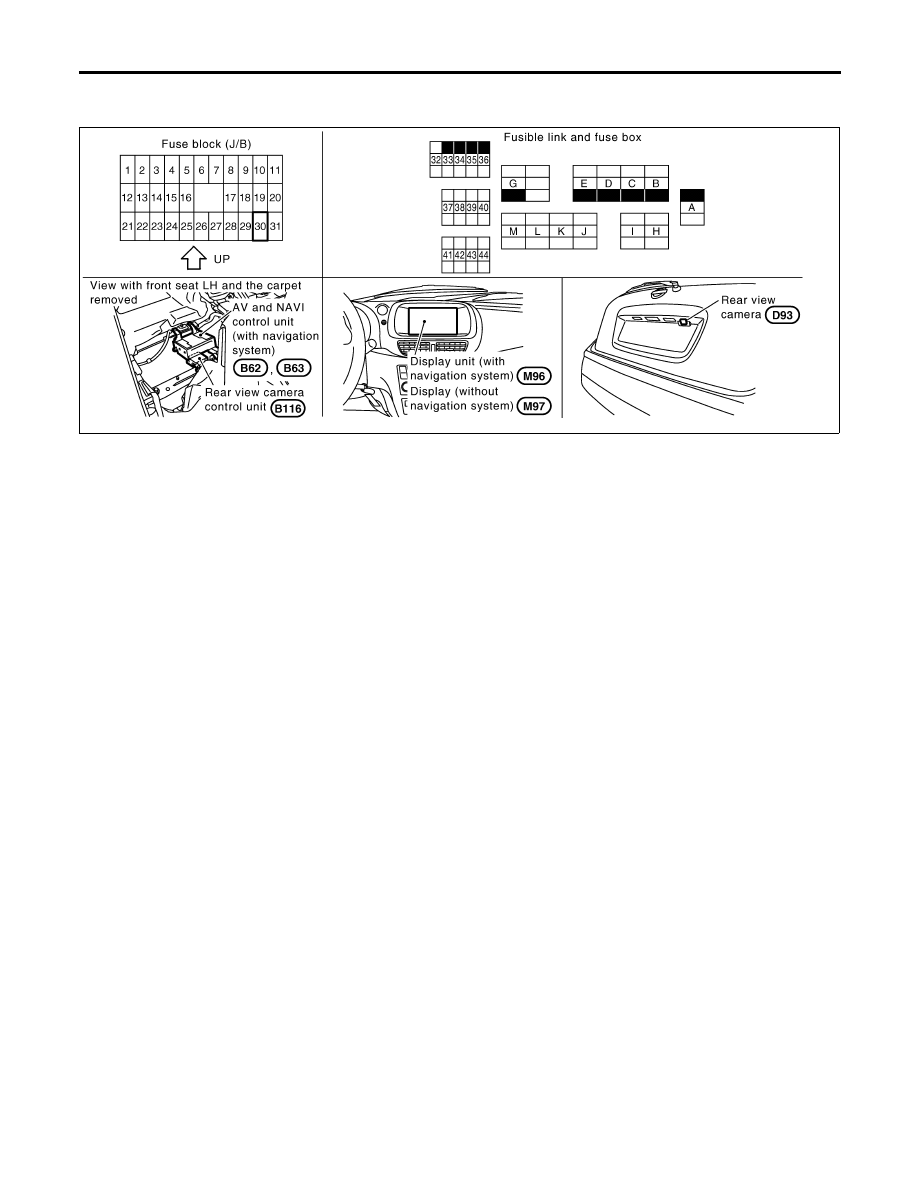

Component Parts and Harness Connector
Location

NLEL0538

YEL572E

REARVIEW MONITOR

Component Parts and Harness Connector Location

EL-158

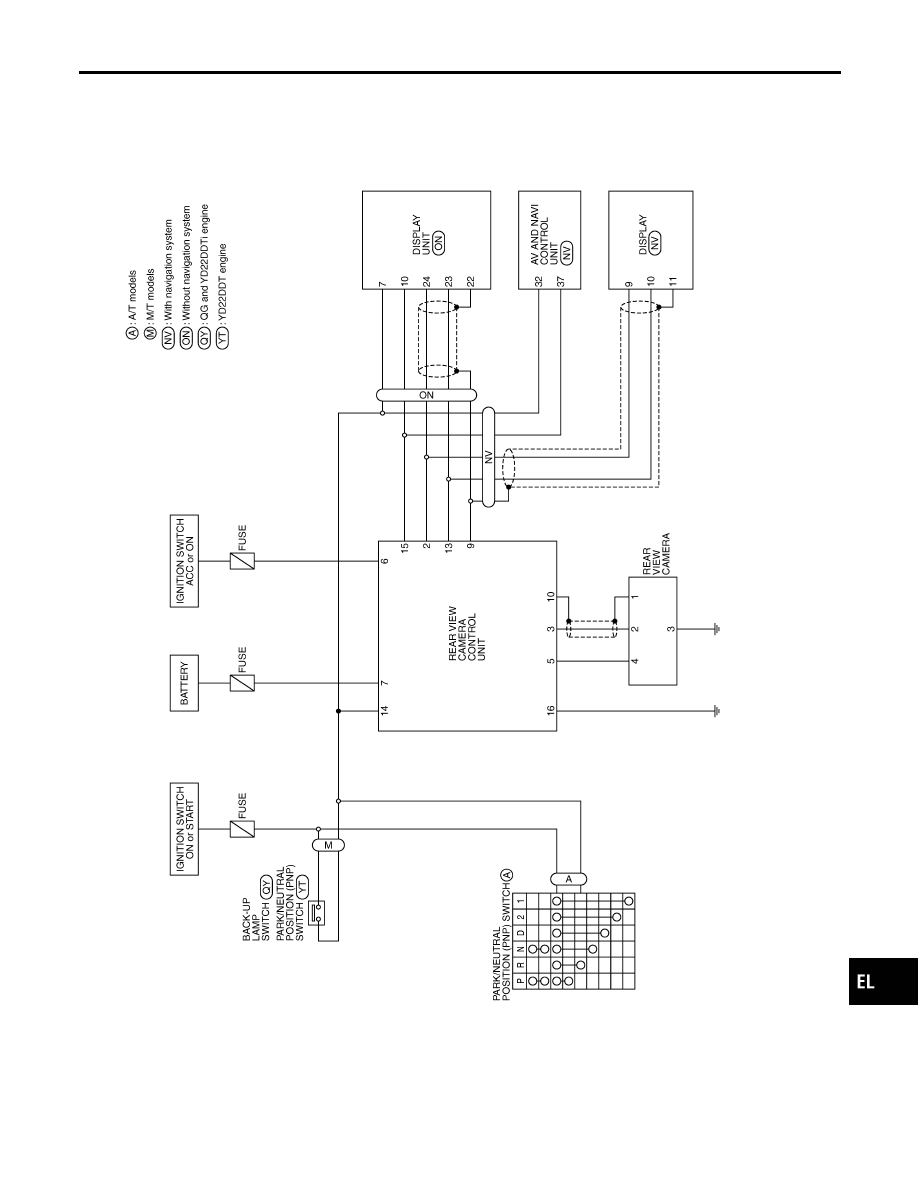

Schematic

NLEL0539

YEL036E

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

BT

HA

SC

IDX

REARVIEW MONITOR

Schematic

EL-159

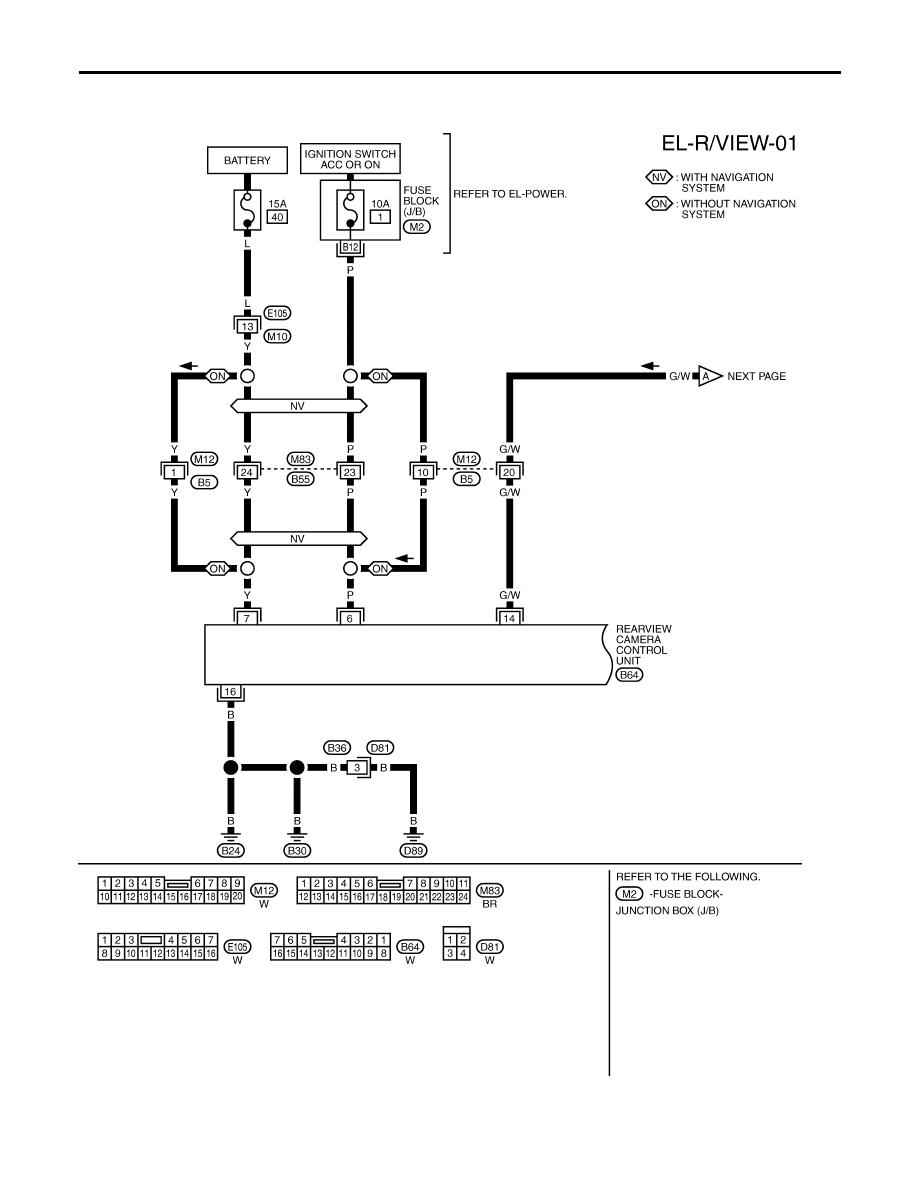

Wiring Diagram — R/VIEW —

NLEL0540

LHD MODELS

NLEL0540S01

YEL037E

REARVIEW MONITOR

Wiring Diagram — R/VIEW —

EL-160
