TROUBLE DIAGNOSIS

EC-971

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Basic Inspection

EBS01389

Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;

●

Headlamp switch is OFF.

●

On vehicles equipped with daytime light systems, set lighting switch to the 1st position to light
only small lamps.

●

Air conditioner switch is OFF.

●

Rear defogger switch is OFF.

●

Steering wheel is in the straight-ahead position, etc.

Priority

Detected items (DTC)

1

●

U1000 CAN communication line

●

P0016 Crankshaft position - camshaft position correlation

●

P0101 P0102 P0103 Mass air flow sensor

●

P0112 P0113 Intake air temperature sensor

●

P0117 P0118 Engine coolant temperature sensor

●

P0122 P0123 P0222 P0223 P2135 Accelerator pedal position sensor

●

P0182 P0183 Fuel pump temperature sensor

●

P0192 P0193 Fuel rail pressure sensor

●

P0237 P0238 Turbocharger boost sensor

●

P0335 P0336 Crankshaft position sensor

●

P0340 P0341 Camshaft position sensor

●

P0563 Battery voltage

●

P0605 P0606 ECM

●

P0642 P0643 P0652 P0653 Sensor power supply

●

P1260 - P1267 Fuel injector adjustment resistor

●

P1610 - P1617 NATS

●

P2228 P2229 Barometric pressure sensor

2

●

P0045 Turbocharger boost control solenoid valve

●

P0089 P0628 P0629 P1272 - P1275 Fuel pump

●

P0200 - P0204 P1268 - P1271 P2146 - P2149 Fuel injector

●

P0380 Glow relay

●

P0404 EGR volume control valve

●

P0686 ECM relay

●

P1212 TCS communication line

3

●

P0088 P0093 Fuel system

●

P0217 Engine over temperature (OVERHEAT)

●

P0234 Turbocharger system

●

P0401 EGR function

●

P1211 TCS control unit

EC-972

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

1.

INSPECTION START

1.

Check service records for any recent repairs that may indicate a related incident.

2.

Check the current need for scheduled maintenance, especially for fuel filter and air cleaner filter. Refer to
MA-8, “PERIODIC MAINTENANCE (FOR EUROPE)”.

3.

Open engine hood and check the following:

–

Harness connectors for improper connections

–

Vacuum hoses for splits, kinks, or improper connections

–

Wiring for improper connections, pinches, or cuts

4.

Start engine and warm it up to the normal operating tempera-
ture.

>> GO TO 2.

2.

PREPARATION FOR CHECKING IDLE SPEED

With CONSULT-II

Connect CONSULT-II to the data link connector.

>> GO TO 3.

3.

CHECK IDLE SPEED

With CONSULT-II

1.

Select “CKPS·RPM (TDC)” in “DATA MONITOR” mode with CONSULT-II.

2.

Read idle speed.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

4.

CHECK FOR INTAKE AIR LEAK

Listen for an intake air leak after the mass air flow sensor.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace.

SEF142I

725

±

25 rpm

SEF817Y

TROUBLE DIAGNOSIS

EC-973

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

5.

BLEED AIR FROM FUEL SYSTEM

1.

Stop engine.

2.

Use priming pump to bleed air from fuel system. Refer to

EC-956, "AIR BLEEDING"

.

>> GO TO 6.

6.

CHECK IDLE SPEED AGAIN

With CONSULT-II

1.

Start engine and let it idle.

2.

Select “CKPS·RPM (TDC)” in “DATA MONITOR” mode with CONSULT-II.

3.

Read idle speed.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 7.

7.

DRAIN WATER FROM FUEL FILTER

Drain water from fuel filter. Refer to

EC-956, "WATER DRAINING"

.

>> GO TO 8.

8.

CHECK IDLE SPEED AGAIN

With CONSULT-II

1.

Start engine and let it idle.

2.

Select “CKPS·RPM (TDC)” in “DATA MONITOR” mode with CONSULT-II.

3.

Read idle speed.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 9.

9.

CHECK AIR CLEANER FILTER

Check air cleaner filter for clogging or breaks.

OK or NG

OK

>> GO TO 10.

NG

>> Replace air cleaner filter.

725

±

25 rpm

SEF817Y

725

±

25 rpm

SEF817Y

EC-974

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

10.

CHECK BATTERY VOLTAGE

Check battery voltage.

OK or NG

OK

>> GO TO 12.

NG

>> GO TO 11.

11.

CHECK BATTERY

Refer to SC-3, “BATTERY”.

OK or NG

OK

>> Check charging system. Refer to SC-24, “CHARGING SYSTEM”.

NG

>> Repair or replace.

12.

CHECK COMPRESSION PRESSURE

Check compression pressure. Refer to

EM-186, "CHECKING COMPRESSION PRESSURE"

.

OK or NG

OK

>> GO TO 11.

NG

>> Follow the instruction of “CHECKING COMPRESSION PRESSURE”.

13.

CHECK IDLE SPEED AGAIN

With CONSULT-II

1.

Start engine and let it idle.

2.

Select “CKPS·RPM (TDC)” in “DATA MONITOR” mode with CONSULT-II.

3.

Read idle speed.

OK or NG

OK

>> INSPECTION END

NG

>> 1. Replace fuel injector.

2. GO TO 3.

Voltage:

More than 12.13V

725

±

25 rpm

SEF817Y

TROUBLE DIAGNOSIS

EC-975

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

Symptom Matrix Chart

EBS0138A

SYSTEM — Basic engine control system

SYMPTOM

Reference
page

HARD/NO

ST

AR

T/REST

AR

T

(EXCP

.

HA)

ENGINE

S

T

A

L

L

HESI

T

A

TION/

S

URGING/

FL

A

T

SPOT

KNO

C

K

/DET

O

NA

TI

ON

LAC

K

O

F

PO

W

E

R

POO

R

ACCEL

E

RA

TION

HI

ID

L

E

LO

W

ID

L

E

NO

ST

AR

T

(wit

h

fi

rs

t

fir

in

g

)

NO

ST

AR

T

(wit

h

o

u

t

fi

rs

t

fir

in

g

)

HARD

T

O

S

T

A

R

T

W

HEN

E

NGINE

IS

C

OL

D

HARD

T

O

S

T

A

R

T

W

HEN

E

NGINE

IS

H

OT

AT

ID

L

E

DU

RING

D

R

IVING

W

H

EN

DECEL

E

RA

TING

Warranty symptom code

AA

AB

AC

AD

AE

AF

Fuel pump

5

5

5

5

5

5

5

5

5

5

5

—

Fuel injector

3

3

3

3

3

3

3

3

3

4

4

3

3

EC-1066

Glow control system

1

1

1

1

1

EC-1227

Engine body

3

3

3

3

3

3

3

3

4

4

3

EM-197

EGR system

3

3

EC-1133

Air cleaner and duct

3

3

EM-119

Fuel rail pressure relief valve

EC-1026

ENGI

NE

CONTROL

Fuel pump circuit

4

4

4

4

4

4

4

4

4

4

4

EC-1157

Fuel injector circuit

1

1

1

1

1

1

1

1

1

1

1

1

1

EC-1066

Mass air flow sensor circuit

1

1

1

EC-1037

Engine coolant temperature circuit

1

1

1

1

EC-1046

Vehicle speed signal circuit

1

EL-110

Accelerator pedal position sensor circuit

1

1

1

EC-

1050

,

EC-

1088

,

EC-

1209

Fuel rail pressure sensor circuit

EC-1059

EC-976

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

1 - 5: The numbers refer to the order of inspection.
(continued on next page)

ENGINE

C

ONTROL

Crankshaft position sensor circuit

1

1

1

1

1

1

1

1

1

1

EC-1106

Camshaft position sensor circuit

3

3

EC-1117

Turbocharger boost sensor circuit

1

1

1

EC-1101

Turbocharger boost control solenoid
valve circuit

1

1

1

EC-1016

Start signal circuit

1

1

1

1

1

1

1

1

1

EC-1247

Ignition switch circuit

1

1

1

1

EC-1003

Power supply for ECM circuit

1

1

1

1

EC-1003

Cooling fan relay circuit

EC-1072

EGR volume control valve circuit

1

1

1

EC-1142

Glow relay circuit

1

1

1

1

EC-1129

ECM relay (Self-shutoff) circuit

1

1

1

1

EC-1172

ECM, connector circuit

2

2

2

2

2

2

2

2

2

2

2

2

2

EC-1153

,

EC-1155

NATS (Nissan Anti-theft System)

1

EC-962

SYSTEM — Basic engine control system

SYMPTOM

Reference
page

HARD/NO

ST

AR

T/REST

AR

T

(EXCP

.

HA)

ENGINE

S

T

A

L

L

HESI

T

A

TION/

S

URGING/

FL

A

T

SPOT

KNOCK/

DET

O

NA

TIO

N

LAC

K

O

F

PO

W

E

R

POOR

ACCEL

E

RA

TION

HI

ID

L

E

LO

W

ID

L

E

NO

ST

AR

T

(wit

h

fi

rs

t

fi

ri

n

g

)

NO

ST

AR

T

(wit

h

o

u

t

fir

s

t

fir

in

g

)

HARD

T

O

ST

AR

T

W

HEN

E

NGINE

IS

C

OL

D

HARD

T

O

ST

AR

T

W

HEN

E

NGINE

IS

H

OT

AT

ID

L

E

DURI

NG

DRI

VING

W

H

EN

DECEL

E

RA

TING

Warranty symptom code

AA

AB

AC

AD

AE

AF

TROUBLE DIAGNOSIS

EC-977

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

SYSTEM — Basic engine control system

SYMPTOM

Reference
page

ROU

G

H

IDL

E/

HUNTING

ID

LING

VI

BRA

T

ION

SLOW

/N

O

R

ETURN

T

O

ID

LE

OVERHEA

T

/H

IGH

ENGINE

C

O

O

L

A

NT

TE

M

PERA

T

URE

EXCESSIVE

F

U

E

L

CONSUM

P

T

IO

N

EXCESSIVE

OIL

CONSUM

P

T

ION

A

B

N

ORMA

L

S

MO

K

E

COL

O

R

DEAD

BA

TT

ER

Y

(UNDER

CHARGE)

Ma

lf

unc

ti

on

indi

cat

o

r

ill

u

m

in

a

tes

.

C

a

n

b

e

det

ect

e

d

b

y

C

O

N

SU

L

T

-I

I?

BLACK

S

M

O

K

E

WH

IT

E

S

M

O

K

E

Warranty symptom code

AG

AH

AJ

AK

AL

AM

AP

HA

Fuel pump

5

5

5

5

1

1

—

Fuel injector

3

3

3

4

4

4

1

1

EC-1066

Glow control system

1

EC-1227

Engine body

3

3

3

3

1

3

EM-197

EGR system

3

EC-1133

Air cleaner and duct

3

EM-119

Fuel rail pressure relief valve

EC-1026

ENGINE

C

ONTROL

Fuel pump circuit

4

4

4

4

1

1

EC-1194

Fuel injector circuit

1

1

1

1

1

1

1

1

EC-1066

Mass air flow sensor circuit

1

1

1

EC-1037

Engine coolant temperature circuit

1

1

1

1

1

EC-1046

Vehicle speed signal circuit

1

1

EL-110

Accelerator pedal position sensor circuit

1

1

1

EC-

1050

,

EC-

1088

,

EC-

1209

Fuel rail pressure sensor circuit

1

1

EC-1059

EC-978

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

1 - 5: The numbers refer to the order of inspection.

ENGINE

C

ONTROL

Crankshaft position sensor circuit

1

1

1

1

EC-1106

Camshaft position sensor circuit

1

1

EC-1117

Turbocharger boost sensor circuit

1

1

EC-1101

Turbocharger boost control solenoid valve cir-
cuit

1

1

EC-1016

Start signal circuit

EC-1247

Ignition switch circuit

EC-1003

Power supply for ECM circuit

1

1

EC-1003

Cooling fan relay circuit

2

EC-1072

EGR volume control valve circuit

1

EC-1142

Glow relay circuit

1

EC-1129

ECM relay (Self-shutoff) circuit

1

EC-1172

ECM, connector circuit

2

2

2

2

2

2

2

2

2

2

2

EC-

1153

,

EC-

1225

NATS (Nissan Anti-theft System)

1

EC-962

SYSTEM — Basic engine control system

SYMPTOM

Reference
page

ROUGH

IDL

E

/HUNTING

IDLING

VIBRA

T

IO

N

SL

OW

/NO

R

ETURN

T

O

IDL

E

OVERHEA

T

/HIG

H

E

NGINE

C

OOL

ANT

T

EMPERA

T

URE

EXCE

SSI

VE

FUEL

CONSUM

P

T

IO

N

EXCE

SSI

VE

OIL

CONSUM

P

T

ION

ABNORM

A

L

S

M

O

KE

COLOR

DEAD

BA

TTER

Y

(UNDER

CHARG

E

)

M

a

lf

unct

ion

in

di

cat

o

r

ill

um

inat

es.

Ca

n

b

e

d

e

te

c

te

d

b

y

C

ONSUL

T

-I

I?

BL

ACK

S

M

O

KE

WH

IT

E

S

MOK

E

Warranty symptom code

AG

AH

AJ

AK

AL

AM

AP

HA

TROUBLE DIAGNOSIS

EC-979

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

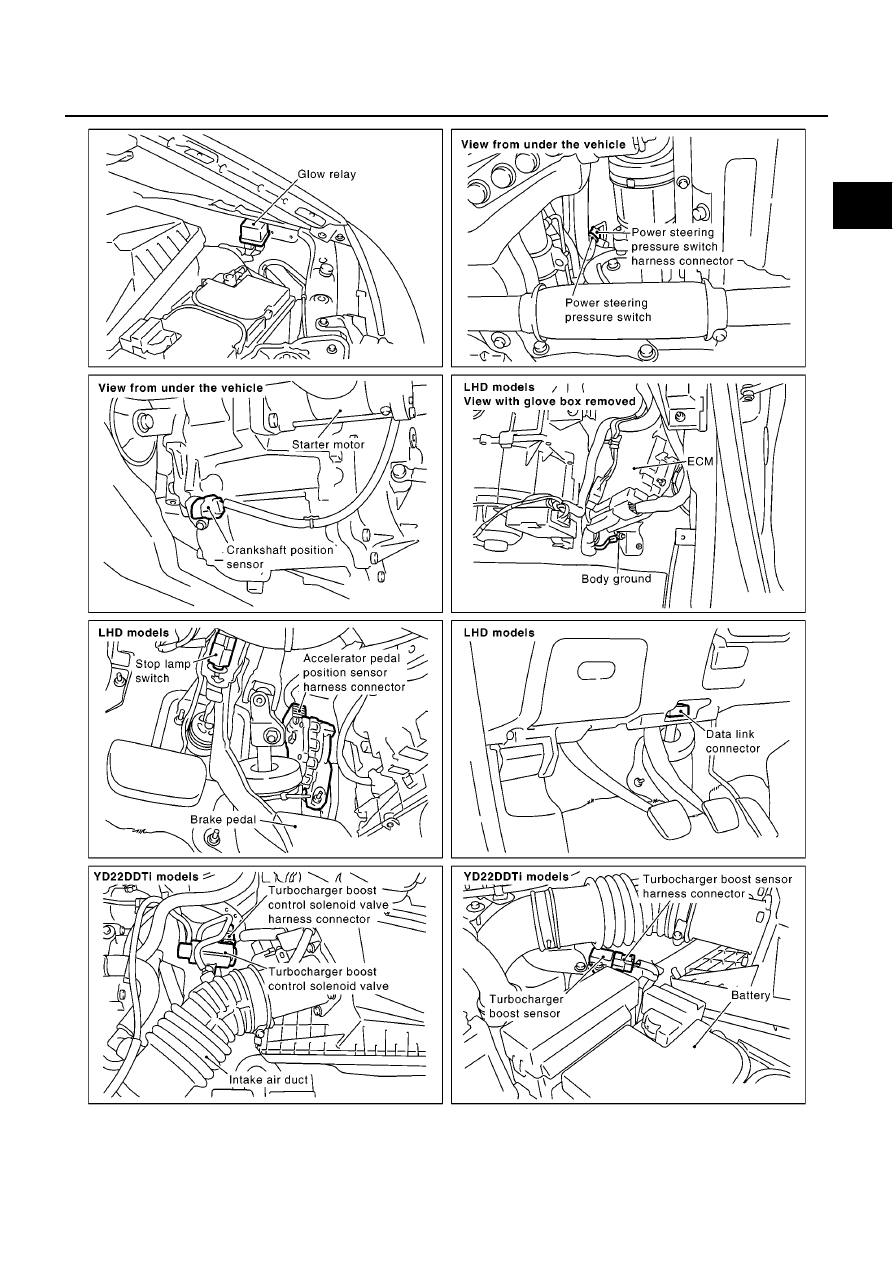

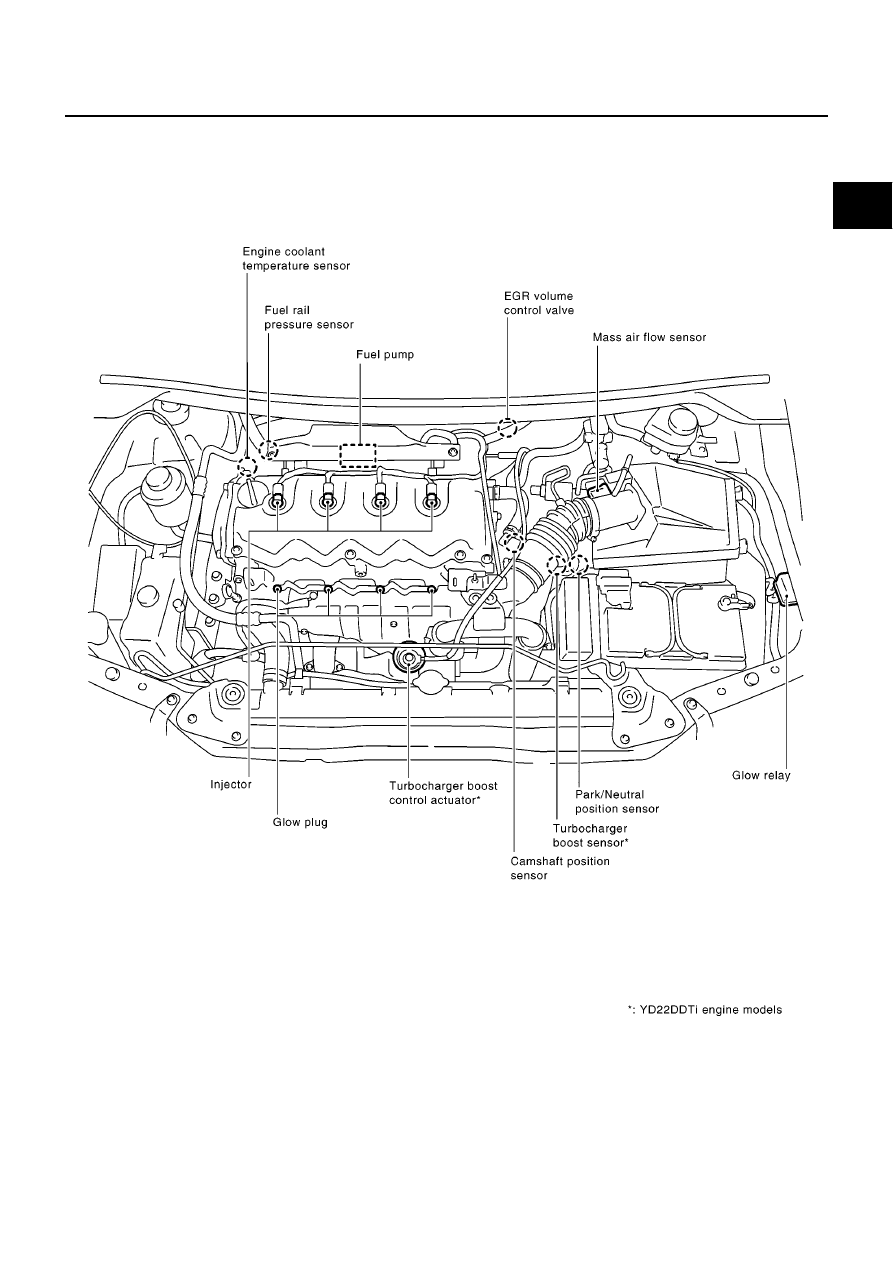

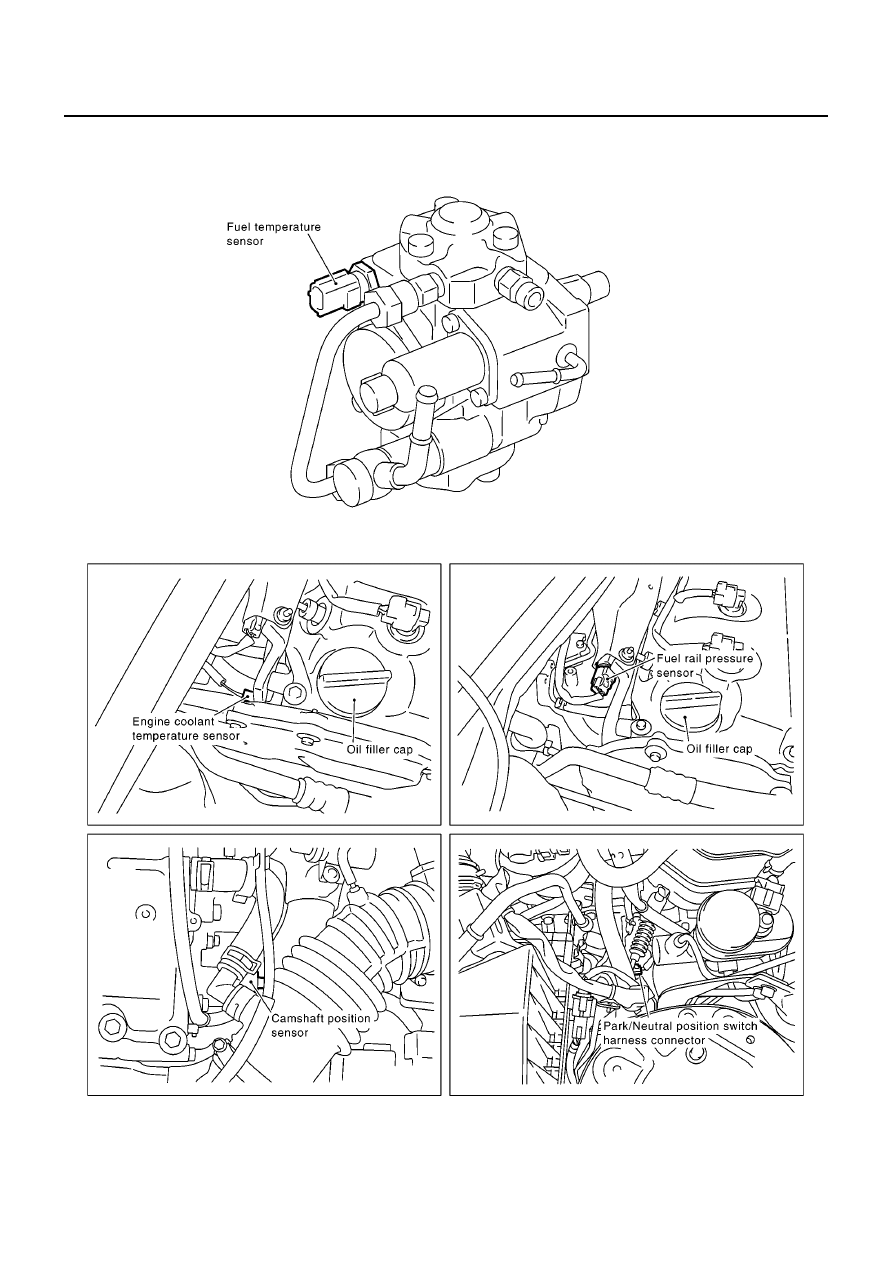

Engine Control Component Parts Location

EBS0138B

MBIB0918E

EC-980

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

MBIB0919E

TROUBLE DIAGNOSIS

EC-981

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

MBIB0920E

EC-982

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

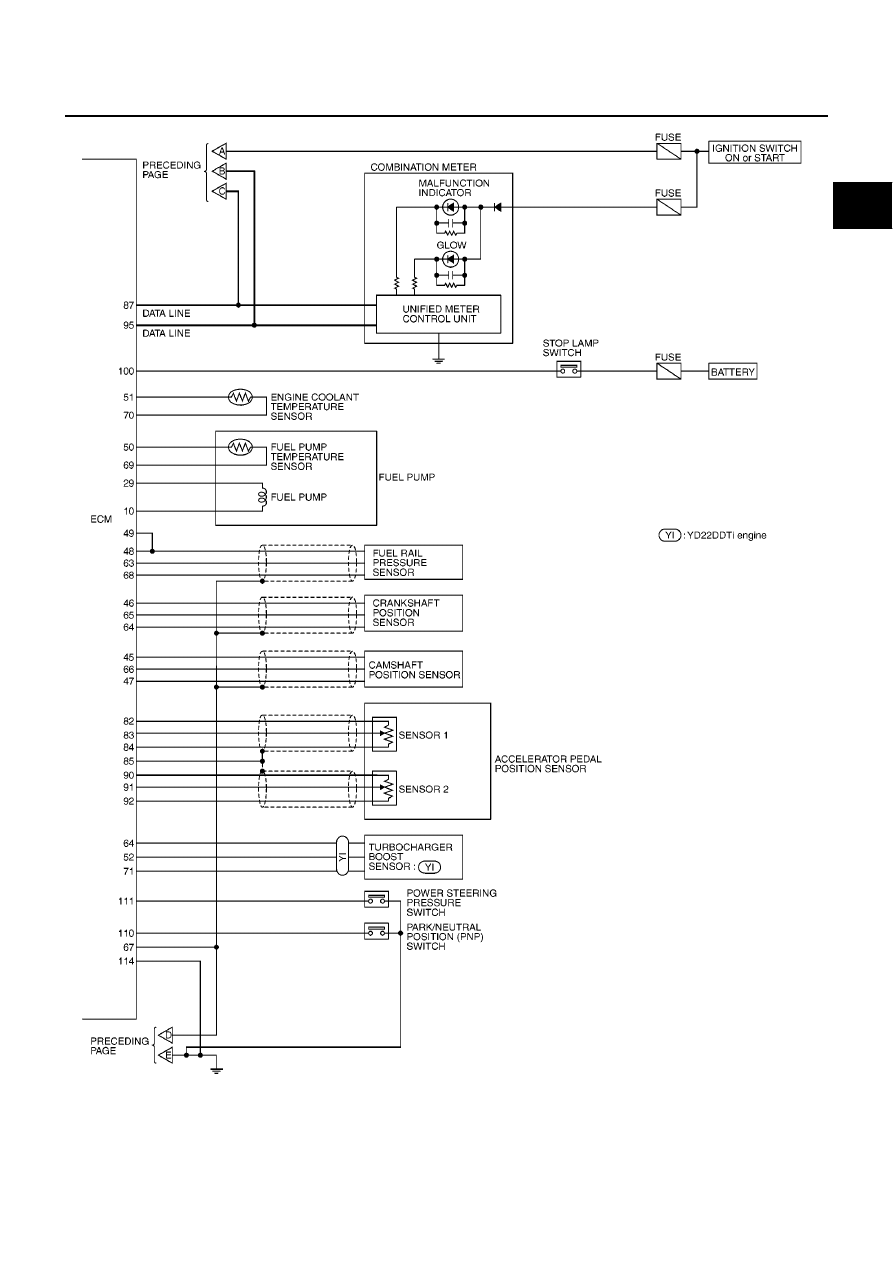

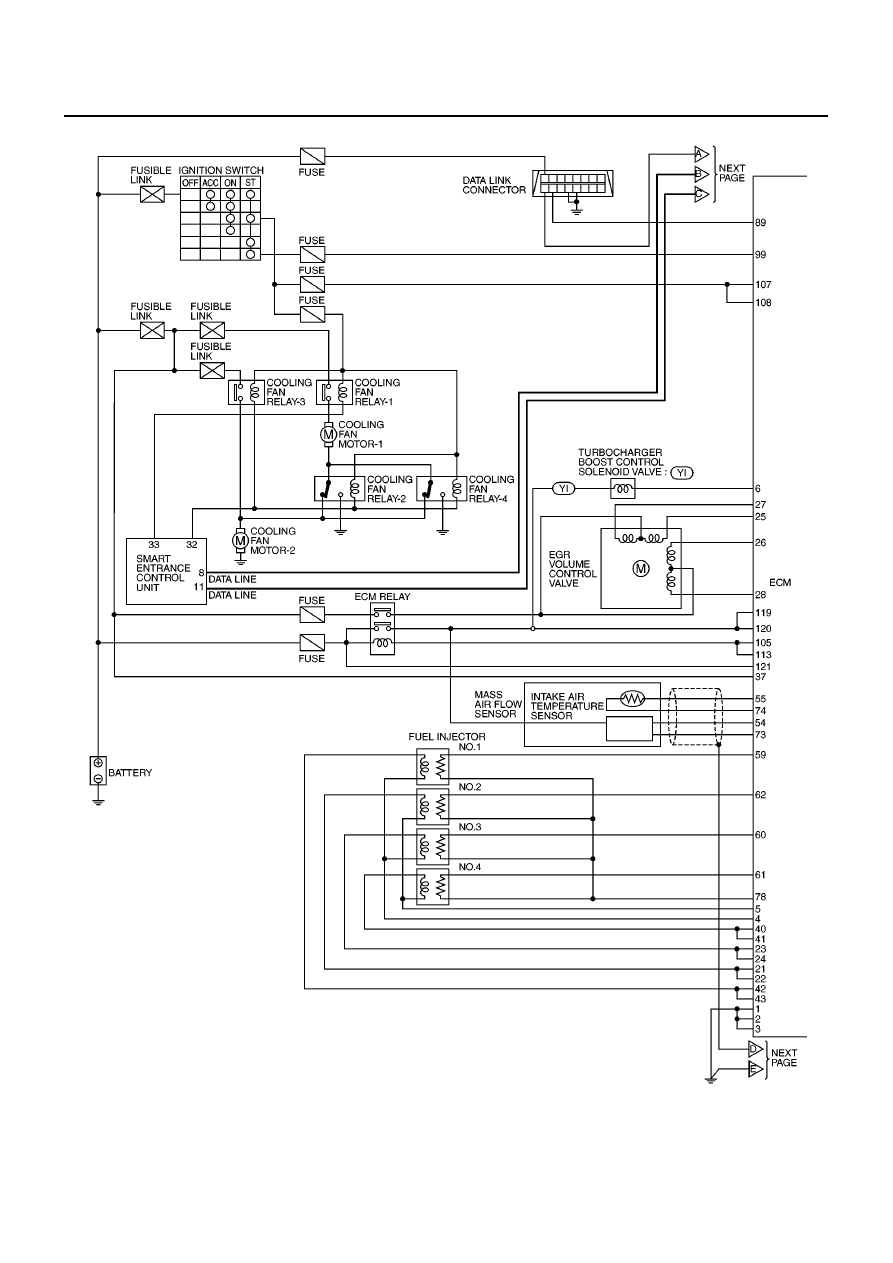

Circuit Diagram

EBS0138C

MBWA0630E

TROUBLE DIAGNOSIS

EC-983

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

YEC493A

EC-984

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

ECM Harness Connector Terminal Layout

EBS0138D

ECM Terminals And Reference Value

EBS0138E

PREPARATION

1.

ECM is located behind the glove box. For this inspection,
remove glove box.

2.

Remove ECM harness protector.

3.

When disconnecting ECM harness connector, loosen it with
levers as far as they will go as shown in the figure.

4.

Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

●

Use extreme care not to touch 2 pins at one time.

●

Data is for comparison and may not be exact.

ECM INSPECTION TABLE

Remarks: Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MBIB0045E

MBIB0909E

MBIB0145E

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

1
2
3

B
B
B

ECM ground

[Engine is running]

●

Idle speed

Approximately 0V

TROUBLE DIAGNOSIS

EC-985

[YD (WITH EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

4

5

O/B

B

Fuel injector power supply
(For cylinder No. 1 and 4)
Fuel injector power supply
(For cylinder No. 2 and 3)

[Engine is running]

●

Warm-up condition

●

Idle speed

5 - 10V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

5 - 10V

6

L

Turbocharger boost control

solenoid valve*

2

[Ignition switch ON]

●

Warm-up condition

●

Idle speed

0 - 12.5V

[Ignition switch ON]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0 - 12.5V

10

Y/L

Fuel pump power supply

[Engine is running]

●

Warm-up condition

●

Idle speed

0 - 12.5V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0 - 12.5V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0883E

MBIB0884E

MBIB0889E

MBIB0890E

MBIB0885E

MBIB0886E

EC-986

[YD (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

21
22
23
24

L
PU/W
L
PU/W

Fuel injector No. 2
Fuel injector No. 2
Fuel injector No. 3
Fuel injector No. 3

[Engine is running]

●

Warm-up condition

●

Idle speed

0 - 9V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0 - 9V

25
26
27
28

GY
W/L
OR/B
GY/B

EGR volume control valve

[Engine is running]

●

Warm-up condition

●

Idle speed

0.1 - 14V
(Voltage signals of each ECM ter-
minals differ according to the con-
trol position of EGR volume
control valve.)

29

L

Fuel pump

[Engine is running]

●

Warm-up condition

●

Idle speed

0.5 - 1.0V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0.5 - 1.0V

37

N/R

Glow relay

Refer to

EC-1227, "GLOW CONTROL SYSTEM"

.

40
41
42
43

B/P
PU/W
B/P
PU/W

Fuel injector No. 4
Fuel injector No. 4
Fuel injector No. 1
Fuel injector No. 1

[Engine is running]

●

Warm-up condition

●

Idle speed

0 - 9V

[Engine is running]

●

Warm-up condition

●

Engine speed is 2,000 rpm

0 - 9V

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage and Pulse Signal)

MBIB0881E

MBIB0882E

MBIB0887E

MBIB0888E

MBIB0881E

MBIB0882E
