Almera Tino V10 (2003 year). Manual - part 69

TROUBLE DIAGNOSIS

EC-123

[QG (WITH EURO-OBD)]

*: For A/T models.

NOTE:

●

Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

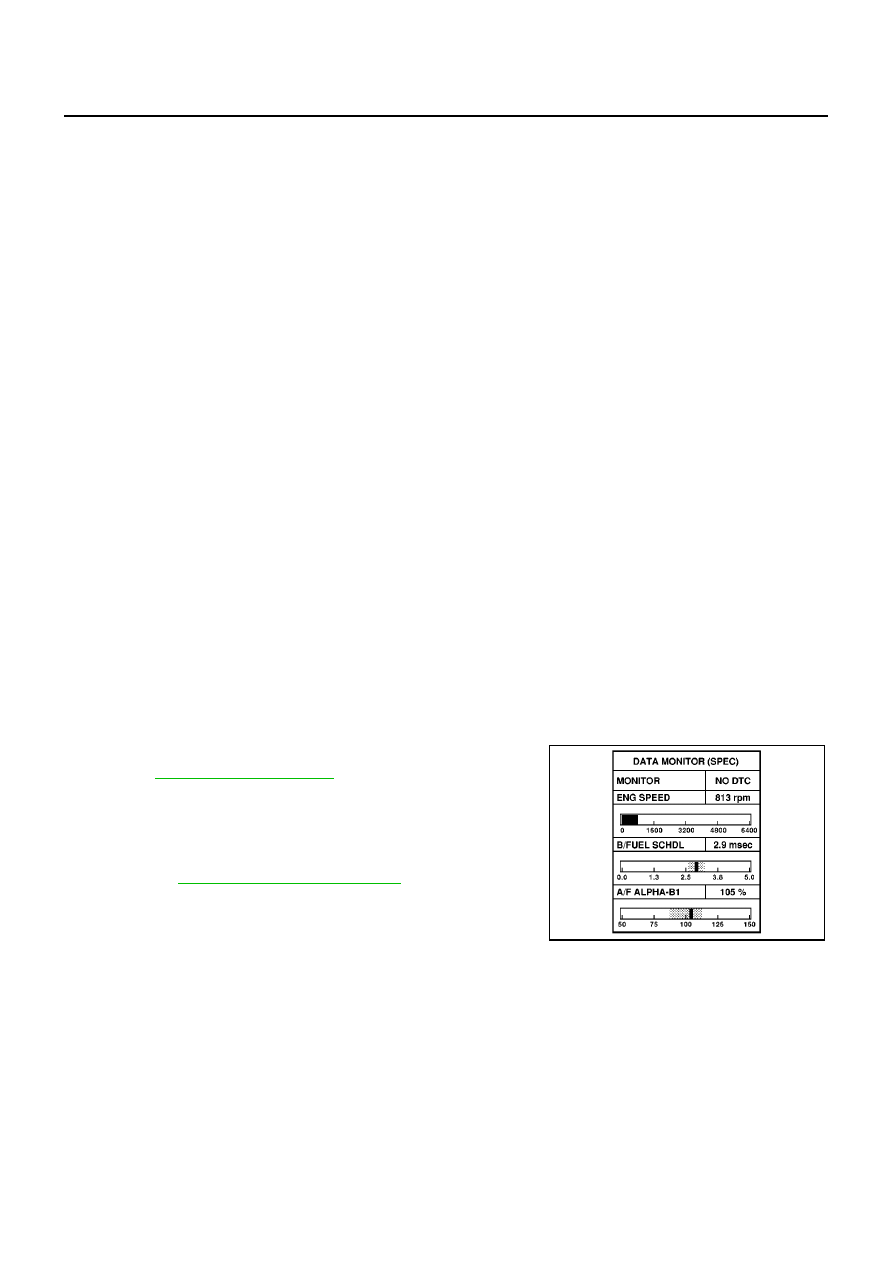

DATA MONITOR (SPEC) MODE
Monitored Item

*: For A/T models

NOTE:

●

Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.

AC PRESS SEN
[V]

●

The signal voltage from the refrigerant
pressure sensor is displayed.

Voltage [V]

●

Voltage, frequency, duty cycle or pulse
width measured by the probe.

●

Only “#” is displayed if item is
unable to be measured.

●

Figures with “#”s are temporary
ones. They are the same figures
as an actual piece of data which
was just previously measured.

Frequency
[msec], [Hz] or [%]

DUTY-HI

DUTY-LOW

PLS WIDTH-HI

PLS WIDTH-LOW

CAN COMM
[OK/NG]

●

Indicates the communication condition
of CAN communication line.

●

These items are not displayed in
“SELECTION FROM MENU”
mode.

CAN CIRC 1
[OK/UNKWN]

CAN CIRC 2
[OK/UNKWN]

CAN CIRC 3
[OK/UNKWN]

CAN CIRC 4
[OK/UNKWN]

CAN CIRC 5
[OK/UNKWN]

CAN CIRC 6
[OK/UNKWN]

CAN CIRC 7
[OK/UNKWN]

Monitored item

[Unit]

ECM

INPUT

SIG-

NALS

MAIN

SIG-

NALS

CAN

DIAG
SUP-

PORT

MNTR

Description

Remarks

Monitored item [Unit]

ECM
input

signals

Main

signals

Description

Remarks

ENG SPEED [rpm]

●

Indicates the engine speed computed
from the signal of the crankshaft position
sensor (POS).

MAS A/F SE-B1 [V]

●

The signal voltage of the mass air flow
sensor specification is displayed.

●

When engine is running specification
range is indicated.

B/FUEL SCHDL
[msec]

●

“Base fuel schedule” indicates the fuel
injection pulse width programmed into
ECM, prior to any learned on board cor-
rection.

●

When engine is running specification
range is indicated.

A/F ALPHA-B1 [%]

●

The mean value of the air-fuel ratio feed-
back correction factor per cycle is indi-
cated.

●

When engine is running specification
range is indicated.

●

This data also includes the data for the
air-fuel ratio learning control.

A/F ALPHA-B2 [%]

EC-124

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

ACTIVE TEST MODE
Test Item

*: Leaving cooling fan “OFF” with CONSULT-II while engine is running may cause the engine to overheat.

DTC & SRT CONFIRMATION MODE
SRT STATUS Mode

For details, refer to

EC-61, "SYSTEM READINESS TEST (SRT) CODE"

SRT Work Support Mode

This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

DTC Work Support Mode

M/T models

TEST ITEM

CONDITION

JUDGEMENT

CHECK ITEM (REMEDY)

FUEL INJEC-
TION

●

Engine: Return to the original
trouble condition

●

Change the amount of fuel injec-
tion using CONSULT-II.

If trouble symptom disappears, see
CHECK ITEM.

●

Harness and connectors

●

Fuel injectors

●

Heated oxygen sensor 1

IGNITION TIM-
ING

●

Engine: Return to the original
trouble condition

●

Timing light: Set

●

Retard the ignition timing using
CONSULT-II.

If trouble symptom disappears, see
CHECK ITEM.

●

Perform “Idle Air Volume Learn-
ing”.

POWER BAL-
ANCE

●

Engine: After warming up, idle
the engine.

●

A/C switch “OFF”

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Cut off each injector signal one at
a time using CONSULT-II.

Engine runs rough or dies.

●

Harness and connectors

●

Compression

●

Fuel injectors

●

Power transistor

●

Spark plugs

●

Ignition coils

COOLING FAN*

●

Ignition switch: ON

●

Turn the cooling fan “ON” and
“OFF” with CONSULT-II.

Cooling fan moves and stops.

●

Harness and connectors

●

Cooling fan relay

●

Cooling fan motor

ENG COOLANT
TEMP

●

Engine: Return to the original
trouble condition

●

Change the engine coolant tem-
perature using CONSULT-II.

If trouble symptom disappears, see
CHECK ITEM.

●

Harness and connectors

●

Engine coolant temperature sen-
sor

●

Fuel injectors

FUEL PUMP
RELAY

●

Ignition switch: ON (Engine
stopped)

●

Turn the fuel pump relay “ON”
and “OFF” using CONSULT-II
and listen to operating sound.

Fuel pump relay makes the operat-
ing sound.

●

Harness and connectors

●

Fuel pump relay

PURG VOL
CONT/V

●

Engine: After warming up, run
engine at 1,500 rpm.

●

Change the EVAP canister purge
volume control solenoid valve
opening percent using CON-
SULT-II.

Engine speed changes according to
the opening percent.

●

Harness and connectors

●

Solenoid valve

V/T ASSIGN
ANGLE

●

Engine: Return to the original
trouble condition

●

Change intake valve timing using
CONSULT-II.

If trouble symptom disappears, see
CHECK ITEM.

●

Harness and connectors

●

Intake valve timing control sole-
noid valve

TROUBLE DIAGNOSIS

EC-125

[QG (WITH EURO-OBD)]

A/T models

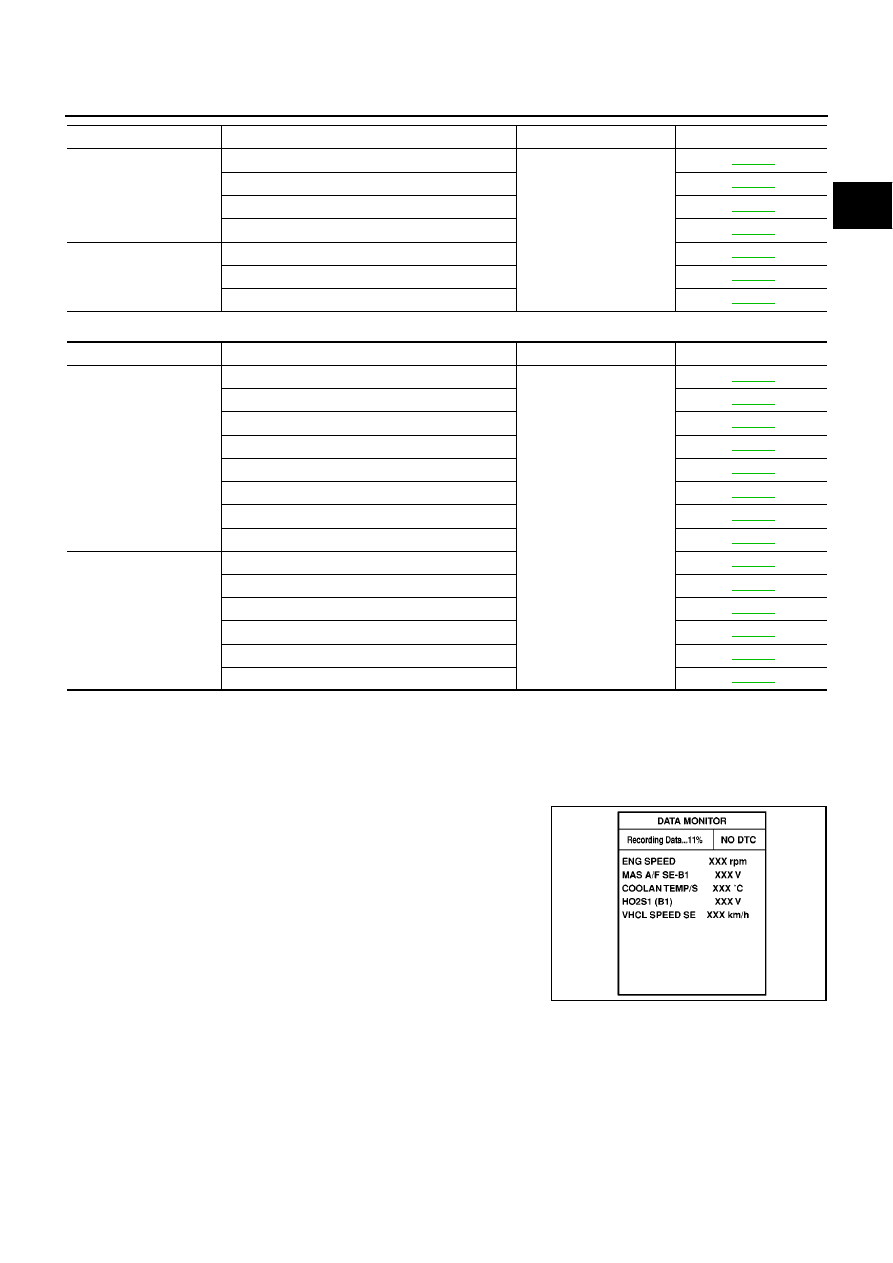

REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)
Description

CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.

“AUTO TRIG” (Automatic trigger):

●

The malfunction will be identified on the CONSULT-II screen
in real time.
In other words, DTC/1st trip DTC and malfunction item will be
displayed if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONI-
TOR” in “DATA MONITOR” screen is changed to “Recording
Data ... xx%” as shown at right, and the data after the mal-
function detection is recorded. Then when the percentage
reached 100%, “REAL-TIME DIAG” screen is displayed. If
“STOP” is touched on the screen during “Recording Data ...
xx%”, “REAL-TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the

Test mode

Test item

Condition

Reference page

HO2S1

HO2S1 (B1) P0133

Refer to corresponding
trouble diagnosis for
DTC.

HO2S1 (B1) P0134

HO2S1 (B1) P1143

HO2S1 (B1) P1144

H02S2

HO2S2 (B1) P0139

EC-262

HO2S2 (B1) P1146

EC-433

HO2S2 (B1) P1147

EC-452

Test mode

Test item

Condition

Reference page

HO2S1

HO2S1 (B1) P0133

Refer to corresponding
trouble diagnosis for
DTC.

HO2S1 (B1) P0134

HO2S1 (B1) P1143

HO2S1 (B1) P1144

HO2S1 (B2) P0153

HO2S1 (B2) P0154

HO2S1 (B2) P1163

HO2S1 (B2 P1164

H02S2

HO2S2 (B1) P0139

HO2S2 (B1) P1146

HO2S2 (B1) P1147

HO2S2 (B2 P0159

HO2S2 (B2) P1166

HO2S2 (B2) P1167

SEF705Y

EC-126

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

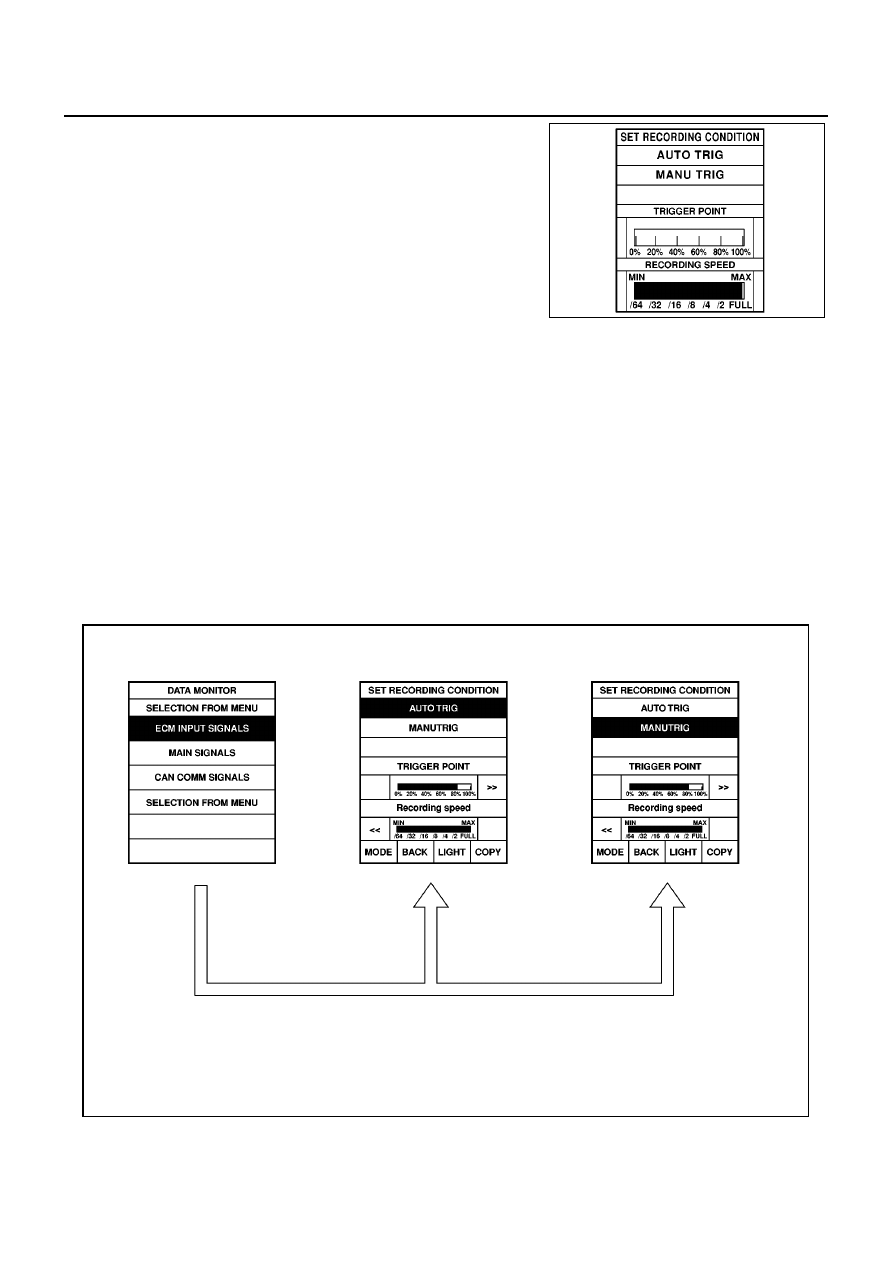

recording speed can be changed by “TRIGGER POINT” and
“Recording Speed”. Refer to CONSULT-II OPERATION MAN-
UAL.

“MANU TRIG” (Manual trigger):

●

DTC/1st trip DTC and malfunction item will not be displayed
automatically on CONSULT-II screen even though a malfunc-
tion is detected by ECM.
DATA MONITOR can be performed continuously even though
a malfunction is detected.

Operation

“AUTO TRIG”

●

While trying to detect the DTC/1st trip DTC by performing the “DTC Confirmation Procedure”, be sure
to select to “DATA MONITOR (AUTO TRIG)” mode. You can confirm the malfunction at the moment it is
detected.

●

While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, compo-
nents and harness in the “DTC Confirmation Procedure”, the moment a malfunction is found the DTC/
1st trip DTC will be displayed. (Refer to “Incident Simulation Tests” in “HOW TO PERPERFORM EFFI-
CIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”, GI-21.)

“MANU TRIG”

●

If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selecting “MANU TRIG” you can monitor and store the data. The data can be utilized for fur-
ther diagnosis, such as a comparison with the value for the normal operating condition.

SEF707X

PBIB0197E

TROUBLE DIAGNOSIS

EC-127

[QG (WITH EURO-OBD)]

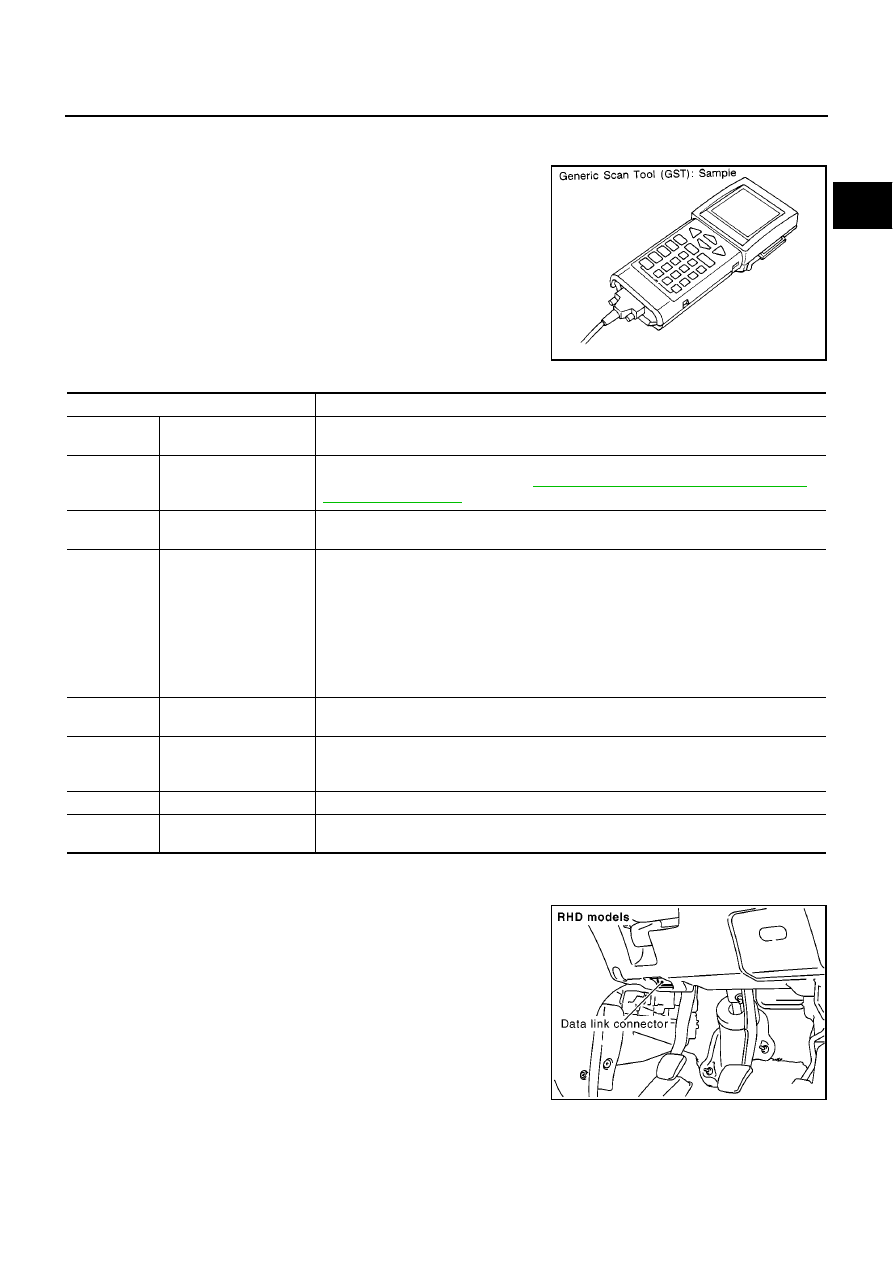

Generic Scan Tool (GST) Function

EBS00QH5

DESCRIPTION

Generic Scan Tool (OBDII scan tool) complying with ISO 15031-4
has 8 different functions explained below.
ISO9141 is used as the protocol.
The name “GST” or “Generic Scan Tool” is used in this service man-
ual.

FUNCTION

GST INSPECTION PROCEDURE

Turn ignition switch OFF.

Connect “GST” to data link connector, which is located under the
driver side dash panel near the fuse box cover.

Turn ignition switch ON.

SEF139P

Diagnostic test mode

Function

MODE 1

READINESS TESTS

This mode gains access to current emission-related data values, including analog inputs
and outputs, digital inputs and outputs, and system status information.

MODE 2

(FREEZE DATA)

This mode gains access to emission-related data value which were stored by ECM during
the freeze frame. For details, refer to

EC-60, "FREEZE FRAME DATA AND 1ST TRIP

FREEZE FRAME DATA"

MODE 3

DTCs

This mode gains access to emission-related power train trouble codes which were stored
by ECM.

MODE 4

CLEAR DIAG INFO

This mode can clear all emission-related diagnostic information. This includes:

●

Clear number of diagnostic trouble codes (MODE 1)

●

Clear diagnostic trouble codes (MODE 3)

●

Clear trouble code for freeze frame data (MODE 1)

●

Clear freeze frame data (MODE 2)

●

Reset status of system monitoring test (MODE 1)

●

Clear on board monitoring test results (MODE 6 and 7)

MODE 6

(ON BOARD TESTS)

This mode accesses the results of on board diagnostic monitoring tests of specific com-
ponents/systems that are not continuously monitored.

MODE 7

(ON BOARD TESTS)

This mode enables the off board test drive to obtain test results for emission-related
powertrain components/systems that are continuously monitored during normal driving
conditions.

MODE 8

—

This mode is not applicable on this vehicle.

MODE 9

(CALIBRATION ID)

This mode enables the off-board test device to request specific vehicle information such
as Vehicle Identification Number (VIN) and Calibration IDs.

MBIB1000E

EC-128

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

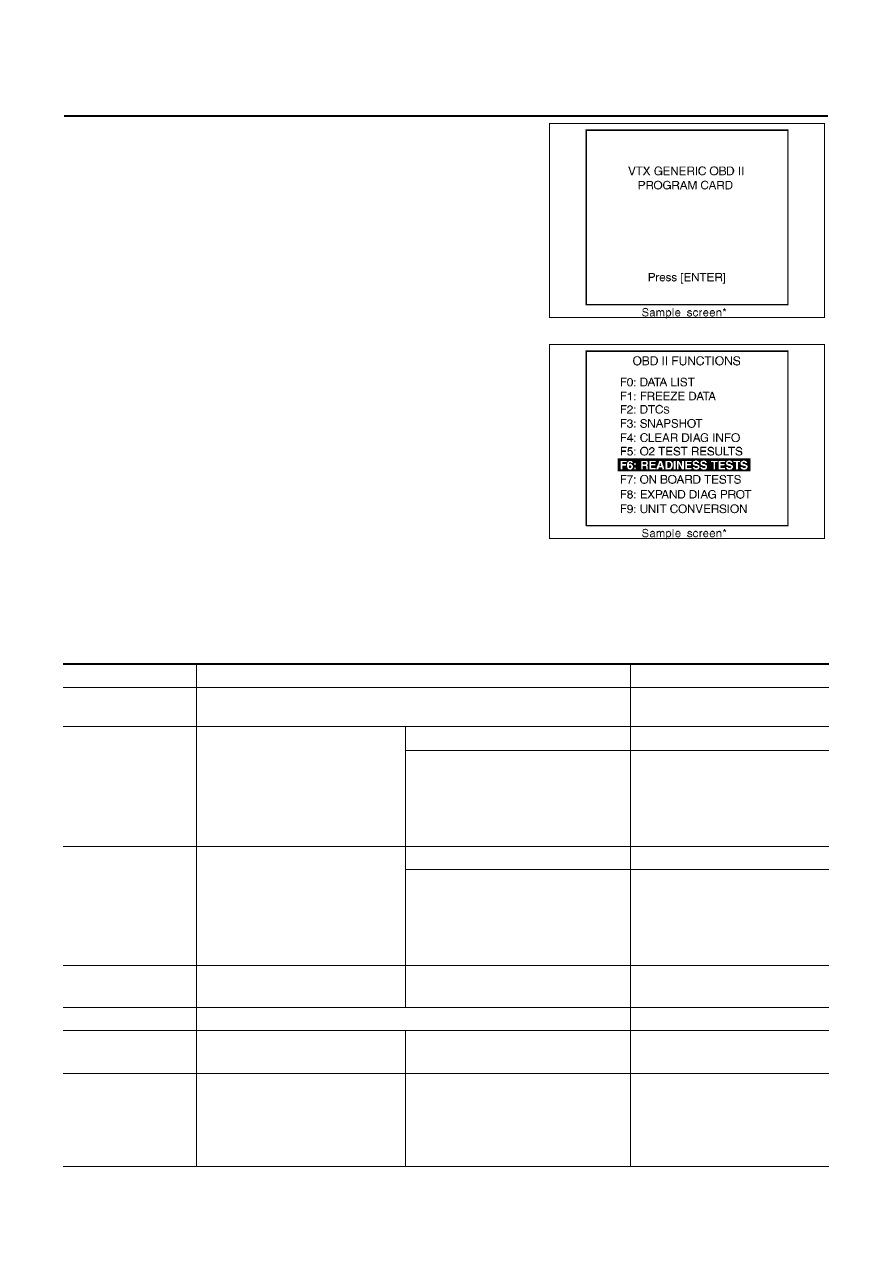

Enter the program according to instruction on the screen or in
the operation manual.

(*: Regarding GST screens in this section, sample screens are
shown.)

Perform each diagnostic mode according to each service proce-
dure.

For further information, see the GST Operation Manual of the
tool maker.

CONSULT-II Reference Value in Data Monitor Mode

EBS00QH6

Remarks:

●

Specification data are reference values.

●

Specification data are output/input values which are detected or supplied by the ECM at the connector.

* Specification data may not be directly related to their components signals/values/operations.
i.e. Adjust ignition timing with a timing light before monitoring IGN TIMING, because the monitor may show the specification data in

spite of the ignition timing not being adjusted to the specification data. This IGN TIMING monitors the data calculated by the ECM
according to the signals input from the camshaft position sensor and other ignition timing related sensors.

SEF398S

SEF416S

MONITOR ITEM

CONDITION

SPECIFICATION

ENG SPEED

●

Run engine and compare CONSULT-II value with the tachometer indica-
tion.

Almost the same speed as the
tachometer indication.

MAS A/F SE-B1

●

Engine: After warming up

●

Air conditioner switch: OFF

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

No-load

Idle

Approx. 1.0 - 1.7V

2,500 rpm

Approx. 1.5 - 2.1V

B/FUEL SCHDL

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

1.5 - 3.0 msec

2,000 rpm

1.2 - 3.0 msec

A/F ALPHA-B1

A/F ALPHA-B2

●

Engine: After warming up

Maintaining engine speed at 2,000
rpm

75% - 125%

COOLAN TEMP/S

●

Engine: After warming up

More than 70

C (158

HO2S1 (B1)

HO2S1 (B2)

●

Engine: After warming up

Maintaining engine speed at 2,000
rpm

0 - 0.3V

←→

Approx. 0.6 - 1.0V

HO2S2 (B1)

HO2S2 (B2)

●

Engine: After warming up

●

Keeping the engine speed
between 3,500 and 4,000 rpm
for one minute and at idle for
one minute under no load

Revving engine from idle to 3,000
rpm quickly.

0 - 0.3V

←→

Approx. 0.6 - 1.0V

TROUBLE DIAGNOSIS

EC-129

[QG (WITH EURO-OBD)]

HO2S1 MNTR (B1)

HO2S1 MNTR (B2)

●

Engine: After warming up

Maintaining engine speed at 2,000
rpm

LEAN

←→

RICH

Changes more than 5 times dur-
ing 10 seconds.

HO2S2 MNTR (B1)

HO2S2 MNTR (B2)

●

Engine: After warming up

●

Keeping the engine speed
between 3,500 and 4,000 rpm
for one minute and at idle for
one minute under no load

Revving engine from idle to 3,000
rpm quickly.

LEAN

←→

RICH

VEH SPEED SE

●

Turn drive wheels and compare CONSULT-II value with the speedometer
indication.

Almost the same speed as the
speedometer indication.

BATTERY VOLT

●

Ignition switch: ON (Engine stopped)

11 - 14V

ACCEL SEN1

ACCEL SEN2

●

Ignition switch: ON
(engine stopped)

Accelerator pedal: Fully released

0.35 - 0.67V

Accelerator pedal: Fully depressed

More than 3.9V

THRTL SEN1

THRTL SEN2

●

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

More than 0.36V

●

Shift lever:
D (A/T models)
1st (M/T models)

Accelerator pedal: Fully depressed

Less than 4.75V

START SIGNAL

●

Ignition switch: ON

→

START

→

OFF

→

OFF

CLSD THL POS

●

Ignition switch: ON

Accelerator pedal: Fully released

Accelerator pedal: Slightly depressed

OFF

AIR COND SIG

●

Engine: After warming up, idle
the engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates.)

P/N POSI SW

●

Ignition switch: ON

Shift lever:
P or N (A/T models)
Neutral (M/T models)

Shift lever: Except above

OFF

PW/ST SIGNAL

●

Engine: After warming up, idle
the engine

Steering wheel is in neutral position.
(Forward direction)

OFF

Steering wheel is turned.

LOAD SIGNAL

●

Ignition switch: ON

Rear window defogger switch is ON
and/or lighting switch is in 2nd.

Rear window defogger switch is OFF
and lighting switch is OFF.

OFF

IGNITION SW

●

Ignition switch: ON

→

OFF

→

OFF

→

HEATER FAN SW

●

Engine: After warming up, idle
the engine

Heater fan is operating.

Heater fan is not operating

OFF

BRAKE SW

●

Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

INJ PULSE-B1

INJ PULSE-B2

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

2.0 - 3.5 msec

2,000 rpm

1.5 - 3.5 msec

MONITOR ITEM

CONDITION

SPECIFICATION

EC-130

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

IGN TIMING

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

M/T: 8

°±

BTDC

A/T: 10

°±

BTDC

2,000 rpm

- 45

BTDC

CAL/LD VALUE

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

10% - 35%

2,500 rpm

10% - 35%

MASS AIRFLOW

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

1.0 - 4.0 g·m/s

2,500 rpm

5.0 - 10.0 g·m/s

PURG VOL C/V

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

2,000 rpm

15 - 30%

INT/V TIM (B1)

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

−

- 5

When revving engine up to 2,000 rpm
quickly

Approx. 0

- 30

INT/V SOL (B1)

●

Engine: After warming up

●

Shift lever:
N (A/T models)
Neutral (M/T models)

●

Air conditioner switch: OFF

●

No-load

Idle

0% - 2%

When revving engine up to 2,000 rpm
quickly

Approx. 0% - 60%

AIR COND RLY

●

Engine: After warming up, idle
the engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates)

FUEL PUMP RLY

●

For 1 seconds after turning ignition switch ON

●

Engine running or cranking

●

Except above conditions

OFF

THRTL RELAY

●

Ignition switch: ON

COOLING FAN

●

Engine: After warming up, idle
the engine

●

Air conditioner switch: OFF

Engine coolant temperature is 99

(210

F) or less

OFF

Engine coolant temperature is 100

(212

F) or more

MONITOR ITEM

CONDITION

SPECIFICATION

TROUBLE DIAGNOSIS

EC-131

[QG (WITH EURO-OBD)]

*1: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they differ
from ECM terminals voltage signal.
*2: These items are displayed with A/T models

Major Sensor Reference Graph in Data Monitor Mode

EBS00QH7

The following are the major sensor reference graphs in “DATA MONITOR” mode.

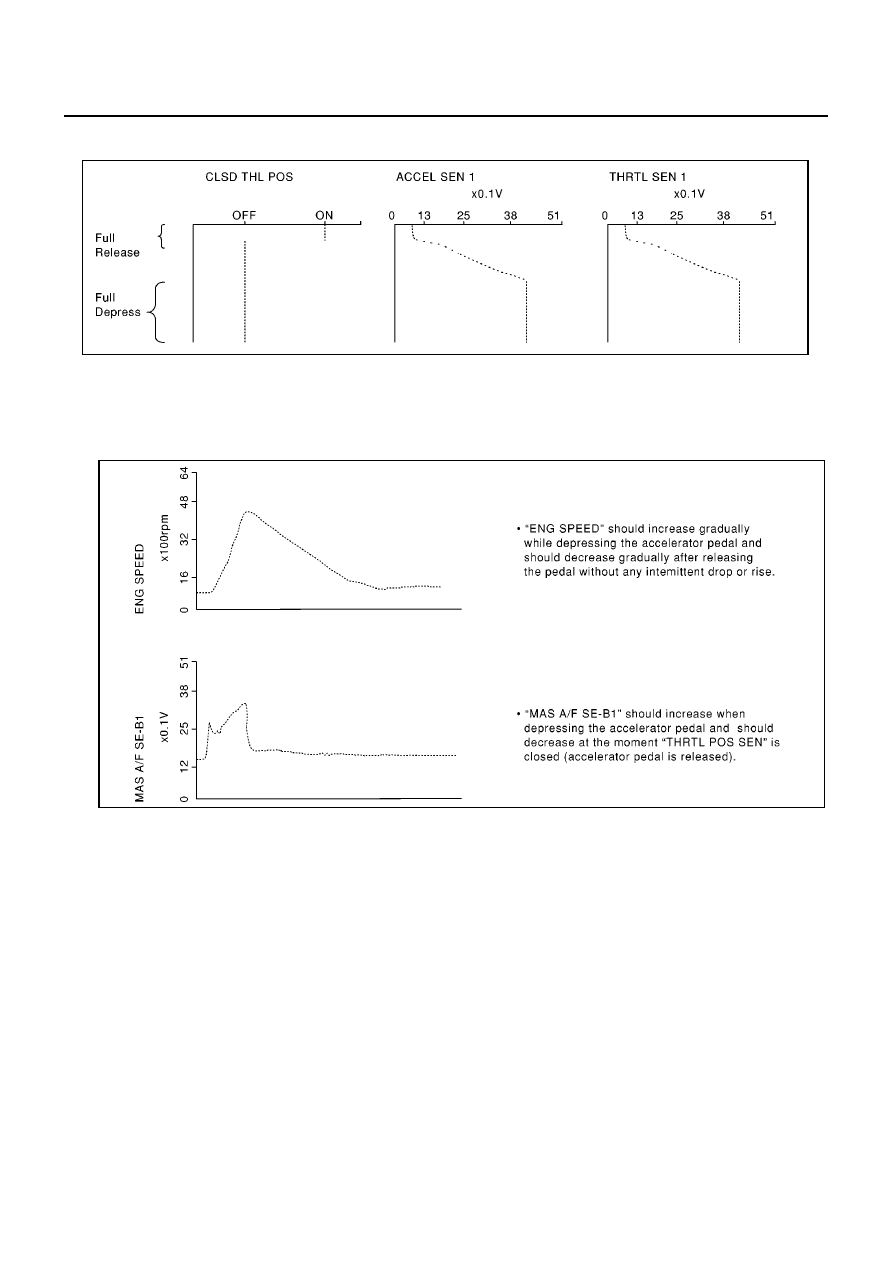

CLSD THL POS, ACCEL SEN 1, THRTL SEN 1

Below is the data for “CLSD THL POS”, “ACCEL SEN 1” and “THRTL SEN 1” when depressing the accelera-
tor pedal with the ignition switch “ON” and with selector lever in “D” position (A/T models) or with shift lever in
“1st” position (M/T models).

HO2S1 HTR (B1)

HO2S1 HTR (B2)

●

Engine: After warming up

●

Engine speed:
Below 3,200 rpm (A/T models)
Below 3,600 rpm (M/T models)

●

Engine speed:
Above 3,200 rpm (A/T models)
Above 3,600 rpm (M/T models)

OFF

HO2S2 HTR (B1)

HO2S2 HTR (B2)

●

Engine speed:
Below 3,600 rpm after the following conditions are met (A/T models).
Below 3,800 rpm after the following conditions are met (M/T models).

–

Engine: After warming up

–

Keeping the engine speed between 3,500 and 4,000 rpm for one minute
and at idle for one minute under no load

●

Engine speed:
Above 3,600 rpm (A/T models)
Above 3,800 rpm (M/T models)

OFF

TRVL AFTER MIL

●

Ignition switch: ON

Vehicle has traveled after MI has
turned ON.

0 - 65,280 km
(0 - 40,565 mile)

O2SEN HTR DTY

●

Engine coolant temperature when engine started: More than 80

(176

●

Engine speed:
Below 3,200 rpm (A/T models)
Below 3,600 rpm (M/T models)

Approx. 50%

AC PRESS SEN

●

Ignition switch: ON (Engine stopped)

Approx. 0V

●

Engine: Idle

●

Air conditioner switch: OFF

1.0 - 4.0V

VEH SPEED SE

●

Turn drive wheels and compare speedometer indication with the CON-
SULT-II value.

Almost the same speed as the
CONSULT-II value

CAN COMM

●

Ignition switch: ON

CAN CIRC 1

CAN CIRC 2

OK or UNKWN

CAN CIRC 3

OK or UNKWN

CAN CIRC 4

CAN CIRC 5

UNKWN

CAN CIRC 6

CAN CIRC 7

UNKWN

MONITOR ITEM

CONDITION

SPECIFICATION

EC-132

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS

The signal of “ACCEL SEN 1” and “THRTL SEN 1” should rise gradually without any intermittent drop or rise
after “CLSD THL POS” is changed from “ON” to “OFF”.

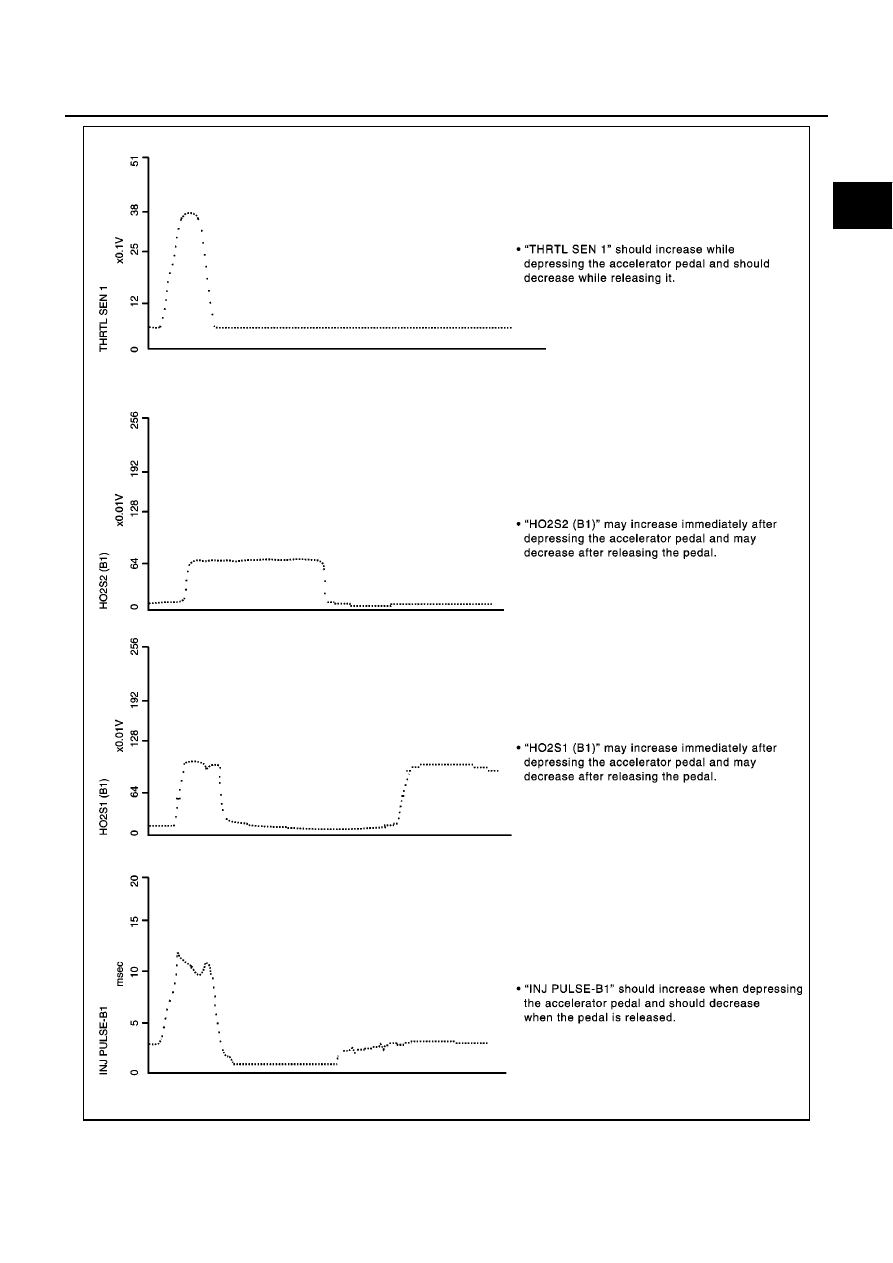

ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), HO2S1 (B1), INJ PULSE-B1

Below is the data for “ENG SPEED”, “MAS A/F SE-B1”, “THRTL SEN 1”, “HO2S2 (B1)”, “HO2S1 (B1)” and
“INJ PULSE-B1” when revving engine quickly up to 4,800 rpm under no load after warming up engine suffi-
ciently.
Each value is for reference, the exact value may vary.

PBIB0198E

SEF241Y

TROUBLE DIAGNOSIS

EC-133

[QG (WITH EURO-OBD)]

PBIB0668E

EC-134

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

PFP:00031

Description

EBS00QH8

The specification (SP) value indicates the tolerance of the value that is displayed in “DATA MONITOR (SPEC)”
mode of CONSULT-II during normal operation of the Engine Control System. When the value in “DATA MONI-
TOR (SPEC)” mode is within the SP value, the Engine Control System is confirmed OK. When the value in
“DATA MONITOR (SPEC)” mode is NOT within the SP value, the Engine Control System may have one or
more malfunctions.
The SP value is used to detect malfunctions that may affect the Engine Control System, but will not light the
MIL.
The SP value will be displayed for the following three items:

●

B/FUEL SCHDL (The fuel injection pulse width programmed into ECM prior to any learned on board cor-
rection)

●

A/F ALPHA-B1/B2 (The mean value of air-fuel ratio feedback correction factor per cycle)

●

MAS A/F SE-B1 (The signal voltage of the mass air flow sensor)

Testing Condition

EBS00QH9

●

Vehicle driven distance: More than 5,000 km (3,017 miles)

●

Barometric pressure: 98.3 - 104.3 kPa (1.003 - 1.064 kg/cm

, 14.25 - 15.12 psi)

●

Atmospheric temperature: 20 - 30

C (68 - 86

●

Engine coolant temperature: 75 - 95

C (167 - 203

●

Transmission: Warmed-up

●

Electrical load: Not applied

●

Engine speed: Idle

*1: For A/T models, after the engine is warmed up to normal operating temperature, drive vehicle until “FLUID
TEMP SE” (A/T fluid temperature sensor signal) indicates more than 60

C (140

F).

For M/T models, after the engine is warmed up to normal operating temperature, drive vehicle for 5 minutes.
*2: Rear window defogger switch, air conditioner switch, lighting switch are “OFF”. Steering wheel is straight
ahead.

Inspection Procedure

EBS00QHA

NOTE:
Perform “DATA MONITOR (SPEC)” mode in maximum scale display.

Perform

EC-87, "Basic Inspection"

Confirm that the testing conditions indicated above are met.

Select “B/FUEL SCHDL”, “A/F ALPHA-B1/B2” and “MAS A/F
SE-B1” in “DATA MONITOR (SPEC)” mode with CONSULT-II.

Make sure that monitor items are within the SP value.

If NG, go to

EC-135, "Diagnostic Procedure"

SEF601Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-135

[QG (WITH EURO-OBD)]

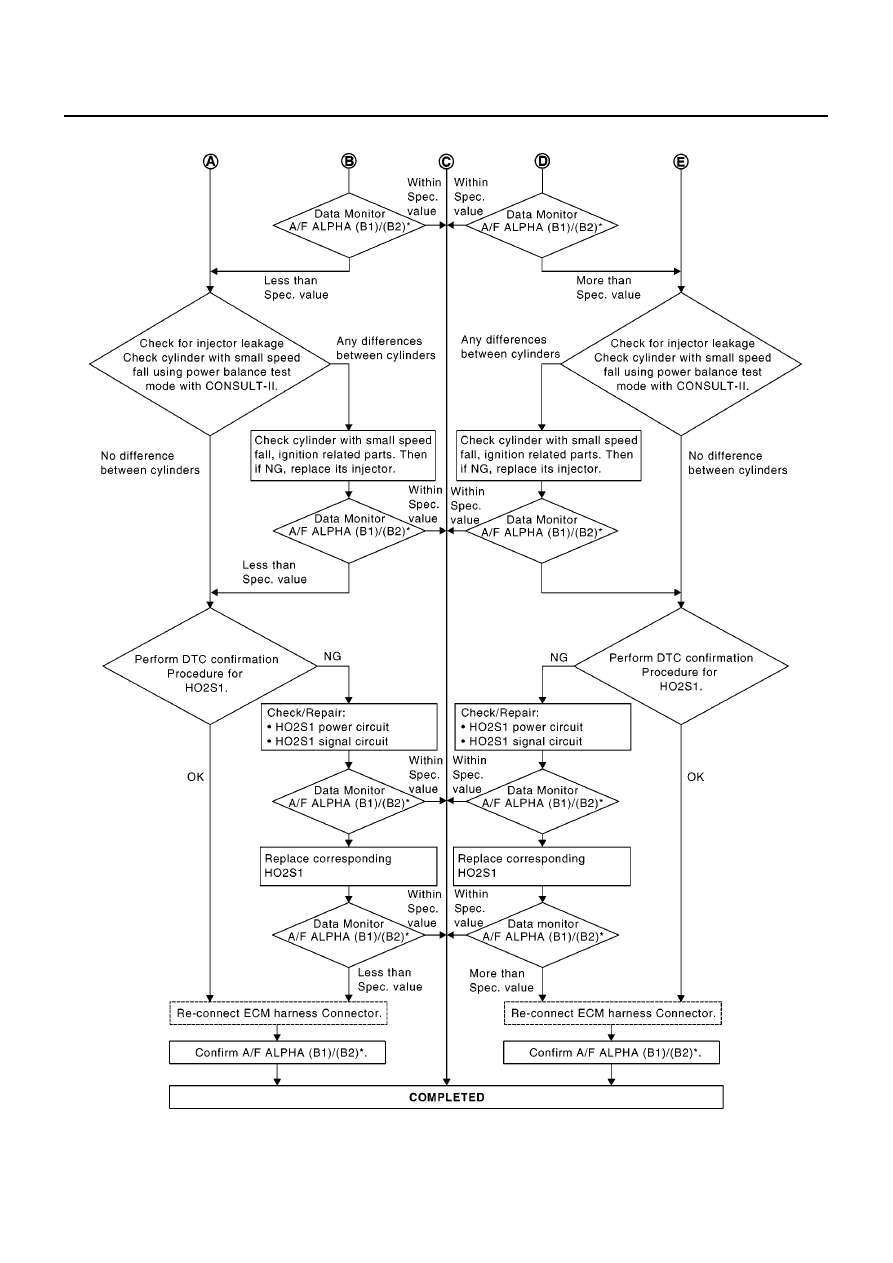

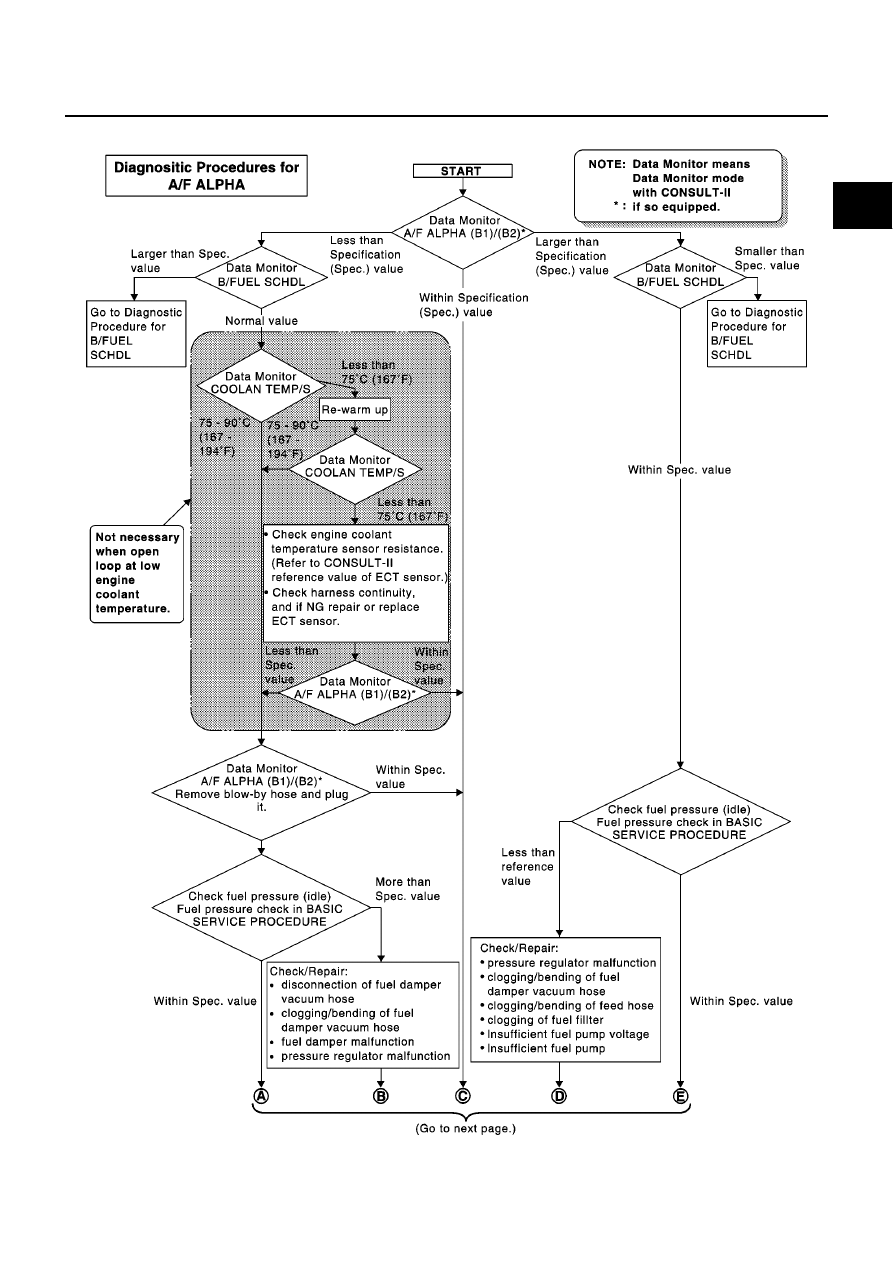

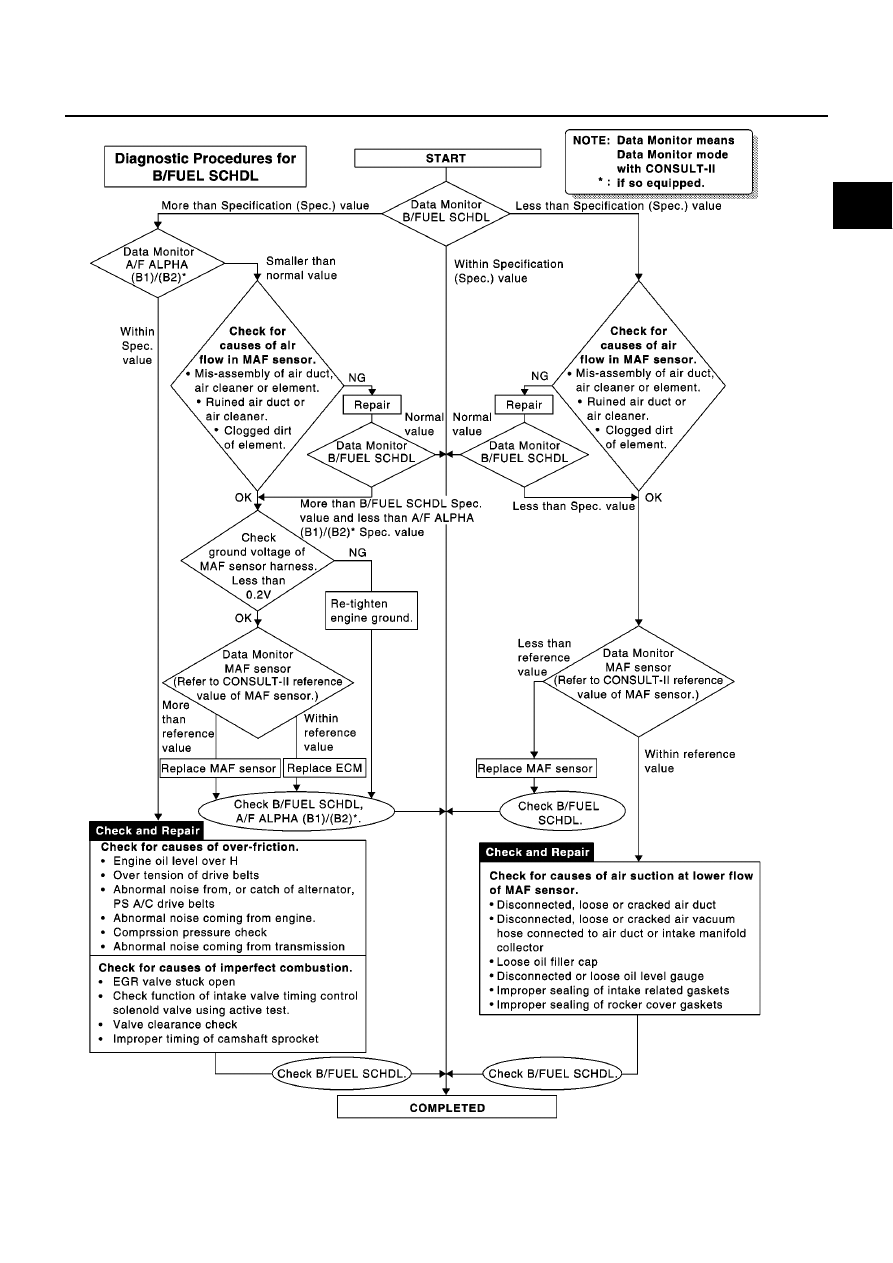

Diagnostic Procedure

EBS00QHB

SEF613ZD

EC-136

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

SEF768Z

TROUBLE DIAGNOSIS - SPECIFICATION VALUE

EC-137

[QG (WITH EURO-OBD)]

SEF615ZA

EC-138

[QG (WITH EURO-OBD)]

TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT

PFP:00006

Description

EBS00QHC

Intermittent incidents (I/I) may occur. In many cases, the malfunction resolves itself (the part or circuit function
returns to normal without intervention). It is important to realize that the symptoms described in the customer's
complaint often do not recur on (1st trip) DTC visits. Realize also that the most frequent cause of I/I occur-
rences is poor electrical connections. Because of this, the conditions under which the incident occurred may
not be clear. Therefore, circuit checks made as part of the standard diagnostic procedure may not indicate the
specific malfunctioning area.
Common I/I Report Situations

Diagnostic Procedure

EBS00QHD

INSPECTION START

Erase (1st trip) DTCs. Refer to

EC-68, "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMA-

TION"

>> GO TO 2.

CHECK GROUND TERMINALS

Check ground terminals for corroding or loose connection.
Refer to “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”, GI-21, “Incident
Simulation Tests”.
OK or NG

>> GO TO 3.

>> Repair or replace.

SEARCH FOR ELECTRICAL INCIDENT

Perform “HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT”, GI-21, “Incident
Simulation Tests”.
OK or NG

>> INSPECTION END

>> Repair or replace.

STEP in Work Flow

Situation

The CONSULT-II is used. The SELF-DIAG RESULTS screen shows time data other than “0” or “[1t]”.

III

The symptom described by the customer does not recur.

(1st trip) DTC does not appear during the DTC Confirmation Procedure.

The Diagnostic Procedure for PXXXX does not indicate the malfunctioning area.

Content .. 67 68 69 70 ..
