INSTRUMENT PANEL ASSEMBLY

Removal and Installation (Cont’d)

BT-25

YBT109

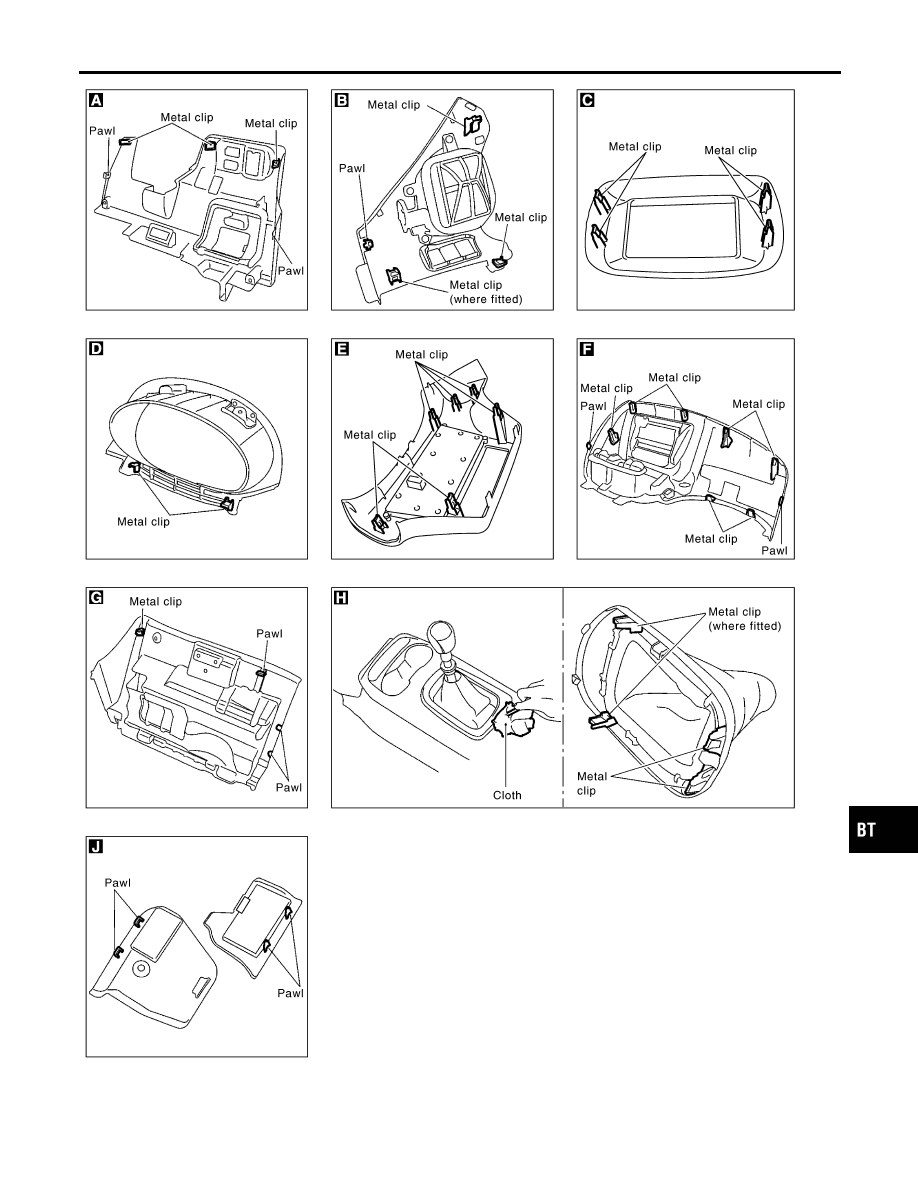

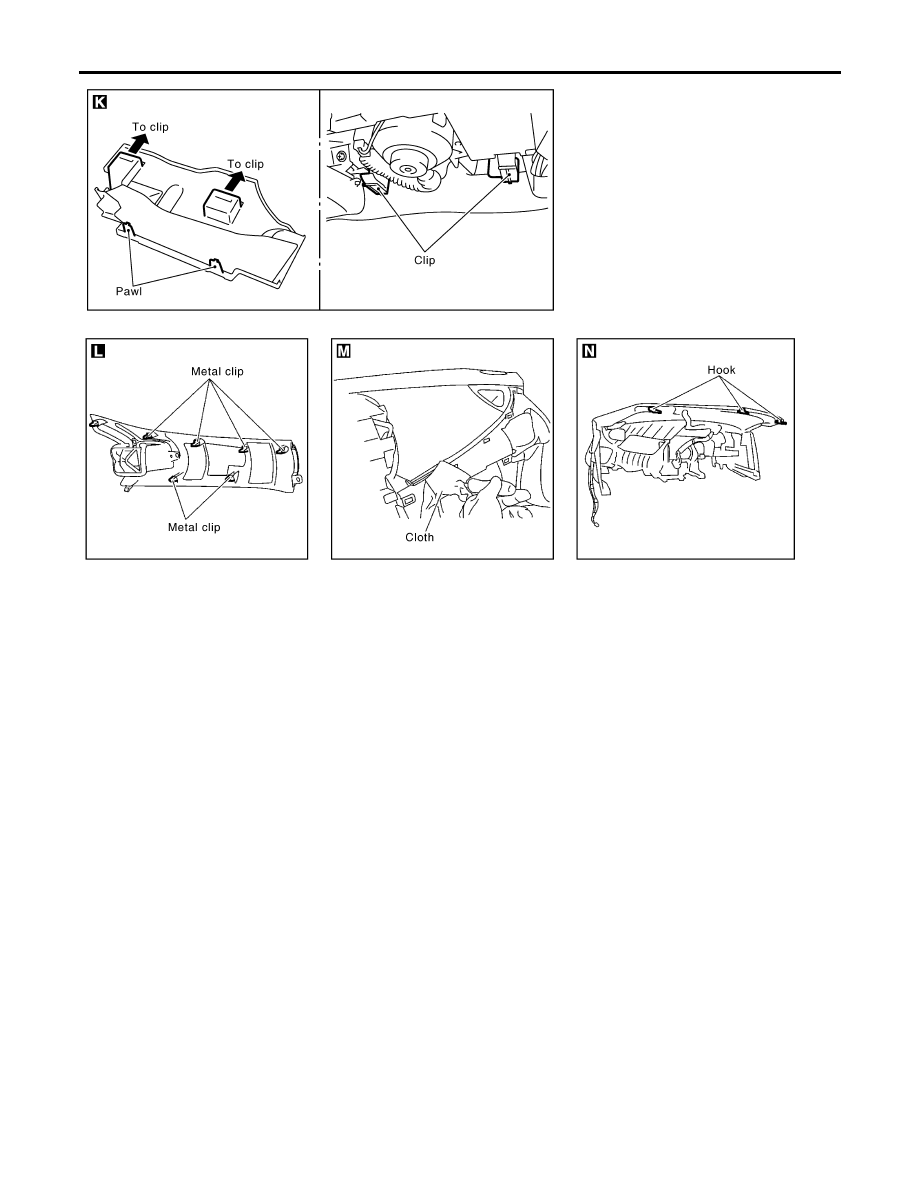

INSTRUMENT PANEL ASSEMBLY

Removal and Installation (Cont’d)

BT-26

Removal and Installation

NLBT0013

CAUTION:

I

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

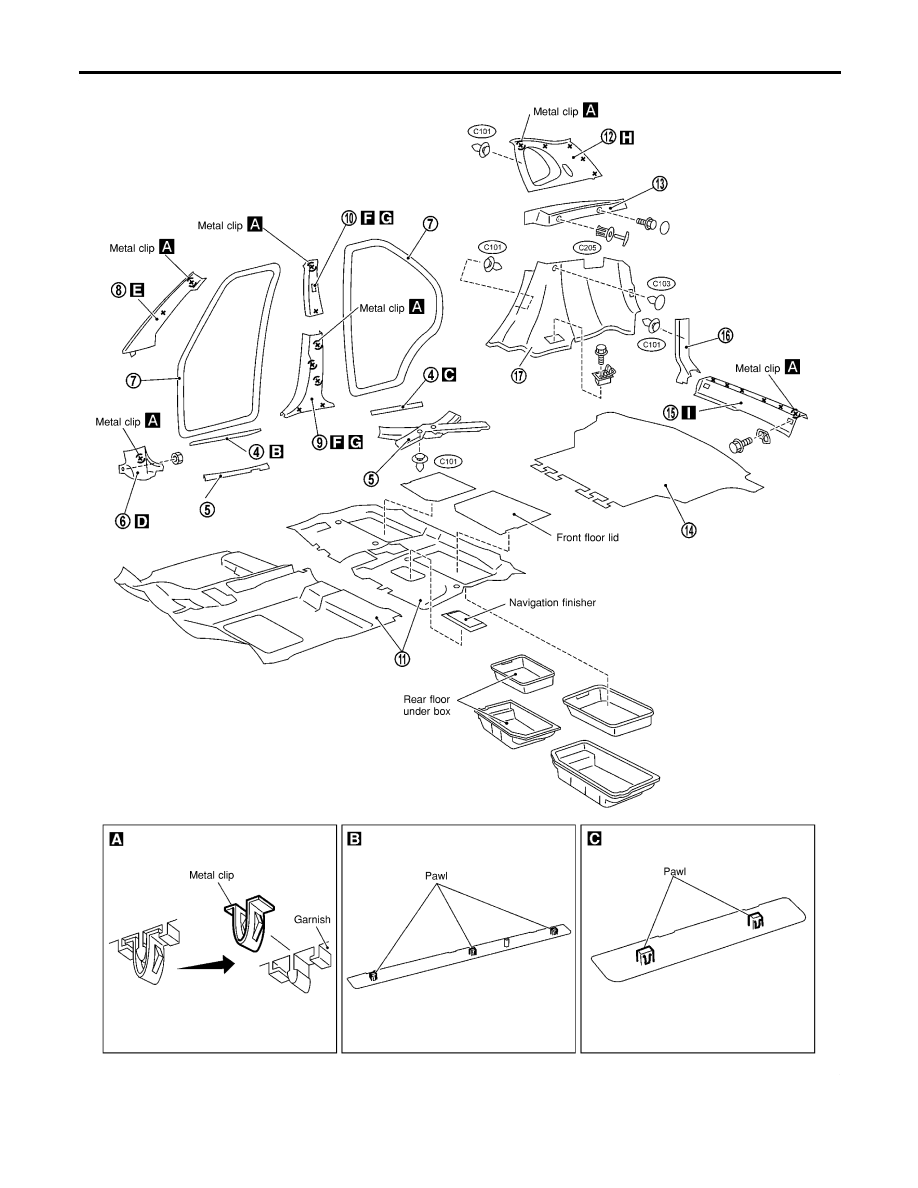

1. Remove front and rear seats. Refer to “FRONT SEAT” and “REAR SEAT” for details, BT-45 and BT-48.
2. Remove front and rear seat belts. Refer to RS-5 and RS-7, “Front Seat Belt” and “Rear Seat Belt” for

details.

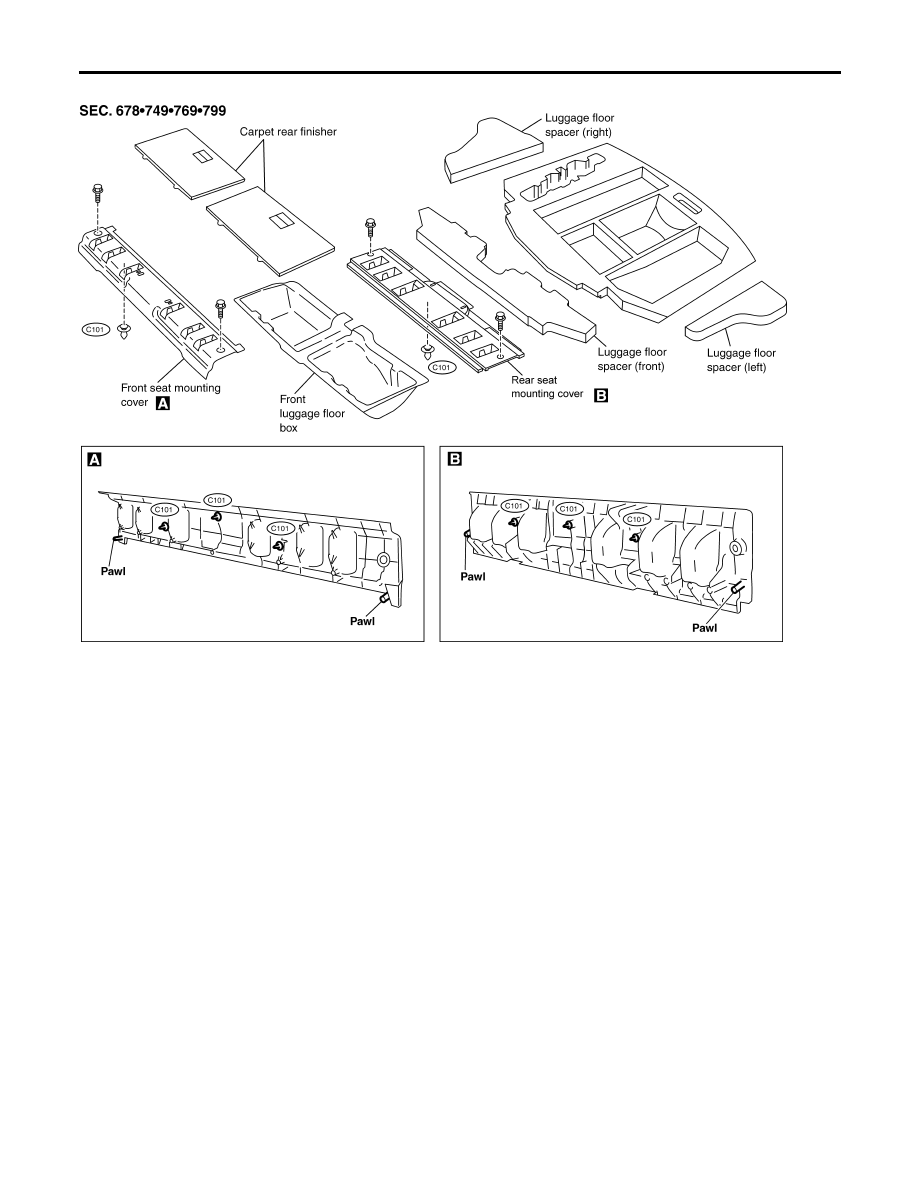

3. Remove carpet rear finish, front seat mounting cover and rear seat mounting cover. Refer to “LUGGAGE

ROOM TRIM” for details, BT-30.

4. Remove front and rear outer kicking plates.
5. Remove front and rear inner kicking plates.
6. Remove dash side finishers.
7. Remove front and rear body side welts.
8. Remove front pillar garnishes.
9. Remove center pillar lower garnishes.
10. Remove center pillar upper garnishes.
11. Remove front and rear room carpet.
12. Remove rear pillar garnish.
13. Remove rear parcel shelf side finish.
14. Remove luggage room carpet.
15. Remove luggage room rear plate.
16. Remove luggage room rear side plate.
17. Remove luggage room rear side lower finish.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SIDE AND FLOOR TRIM

Removal and Installation

BT-27

NBT107

SIDE AND FLOOR TRIM

Removal and Installation (Cont’d)

BT-28

NBT108

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

SIDE AND FLOOR TRIM

Removal and Installation (Cont’d)

BT-29

Removal and Installation

NLBT0016

NBT181

LUGGAGE ROOM TRIM

Removal and Installation

BT-30

Removal and Installation

NLBT0014

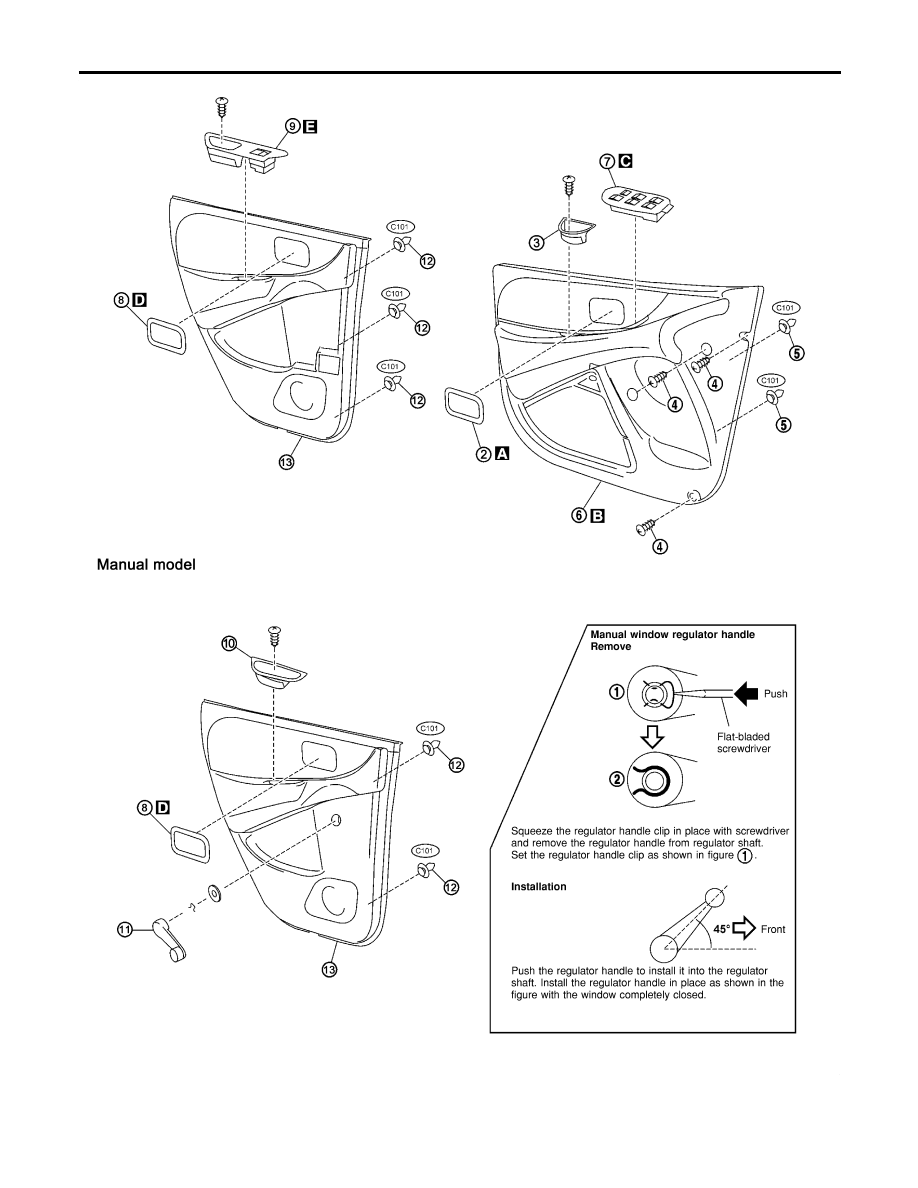

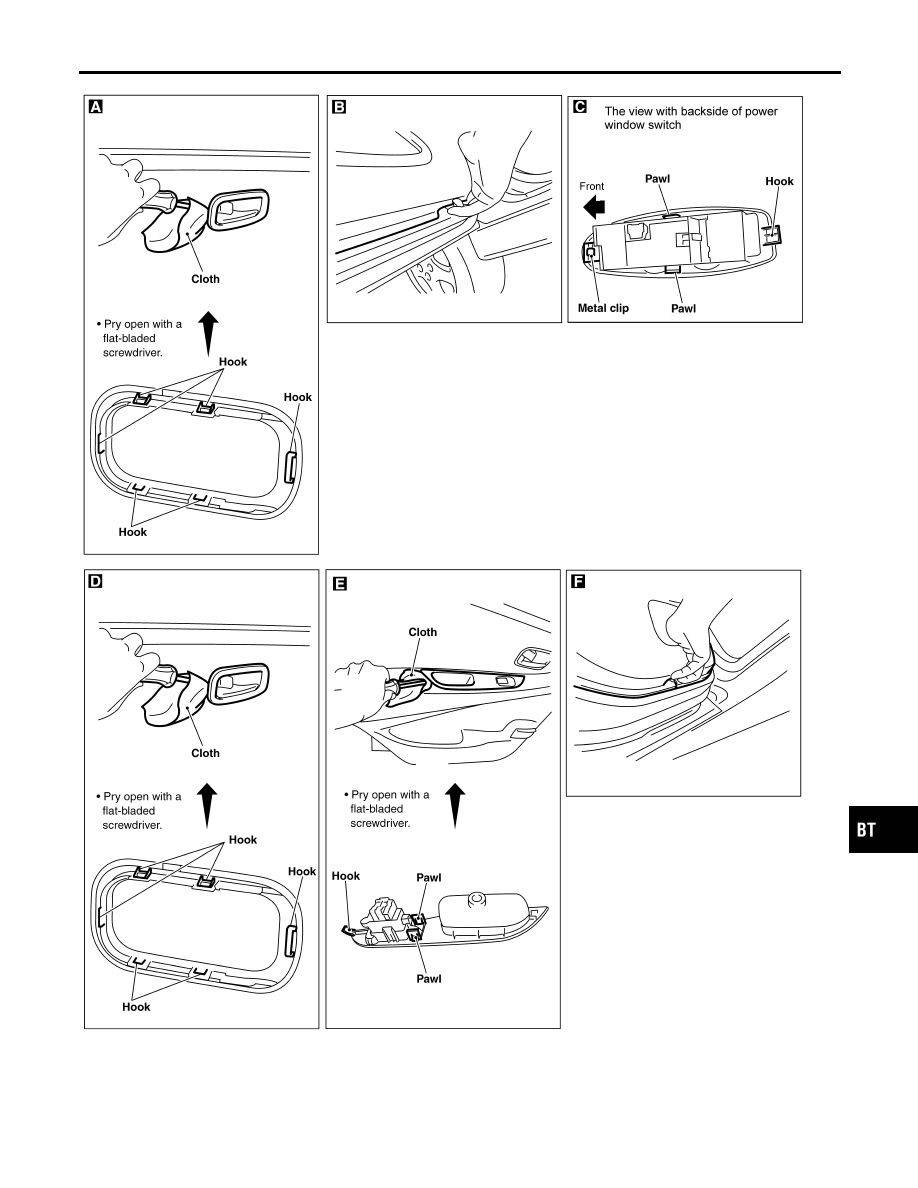

Front door finisher
1. Open the window.
2. Remove inside handle escutcheon.
3. Remove screw securing pull handle.
4. Remove screw securing door finisher.
5. Remove clips securing front door finisher.
6. Lift out front door finisher.
7. Remove power window switch by pushing from backside, then disconnect the connectors.
Rear door finisher
8. Remove inside handle escutcheon.
9. Remove screw securing power window switch finisher, then disconnect the connector. (Power window

model)

10. Remove screw securing pull handle. (Manual window model)
11. Remove window regulator handle. (Manual window model)
12. Remove clips securing rear door finisher.
13. Lift out rear door finisher.

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

DOOR TRIM

Removal and Installation

BT-31

NBT173

DOOR TRIM

Removal and Installation (Cont’d)

BT-32

NBT174

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

DOOR TRIM

Removal and Installation (Cont’d)

BT-33

Removal and Installation

NLBT0015

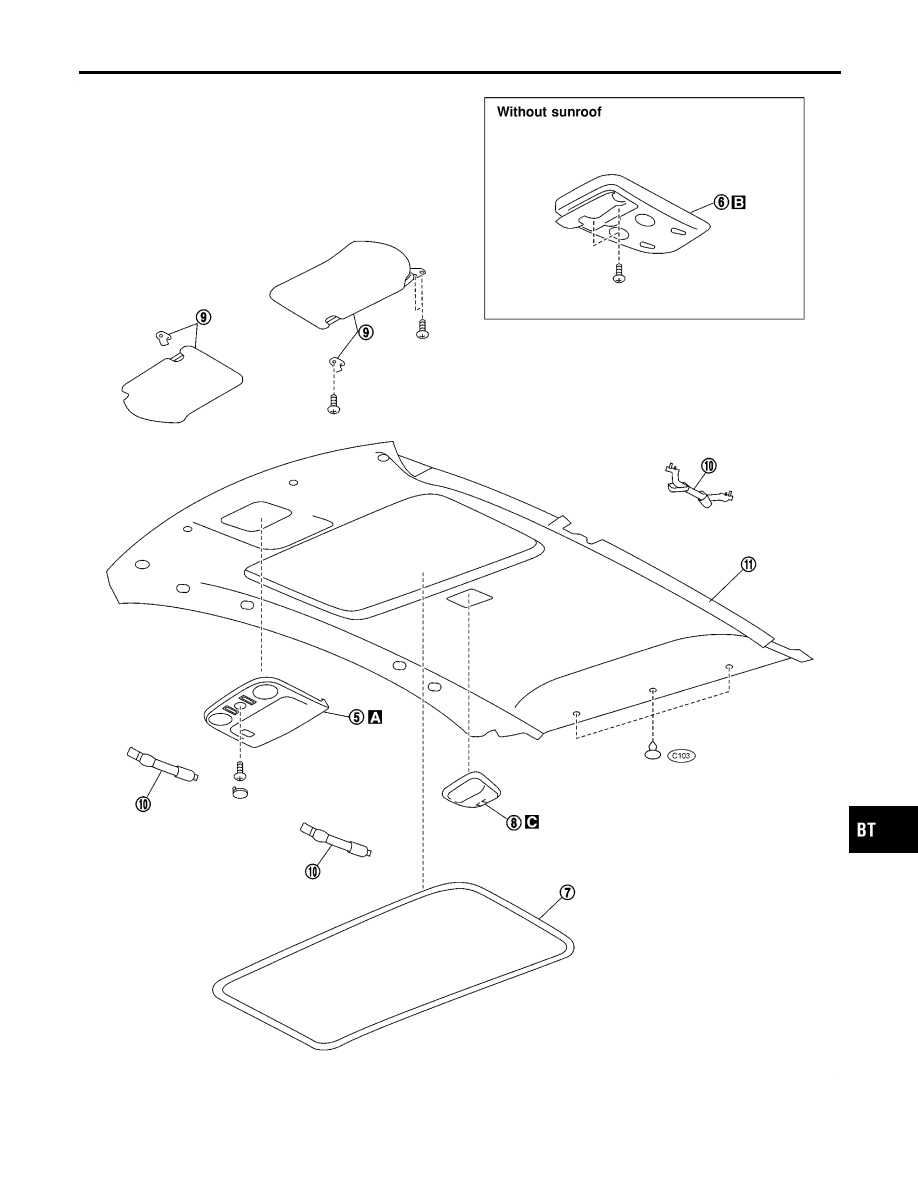

1. Remove rear seat.
2. Remove shoulder anchor bolts. Refer to RS-5, “Front Seat Belt” for details.

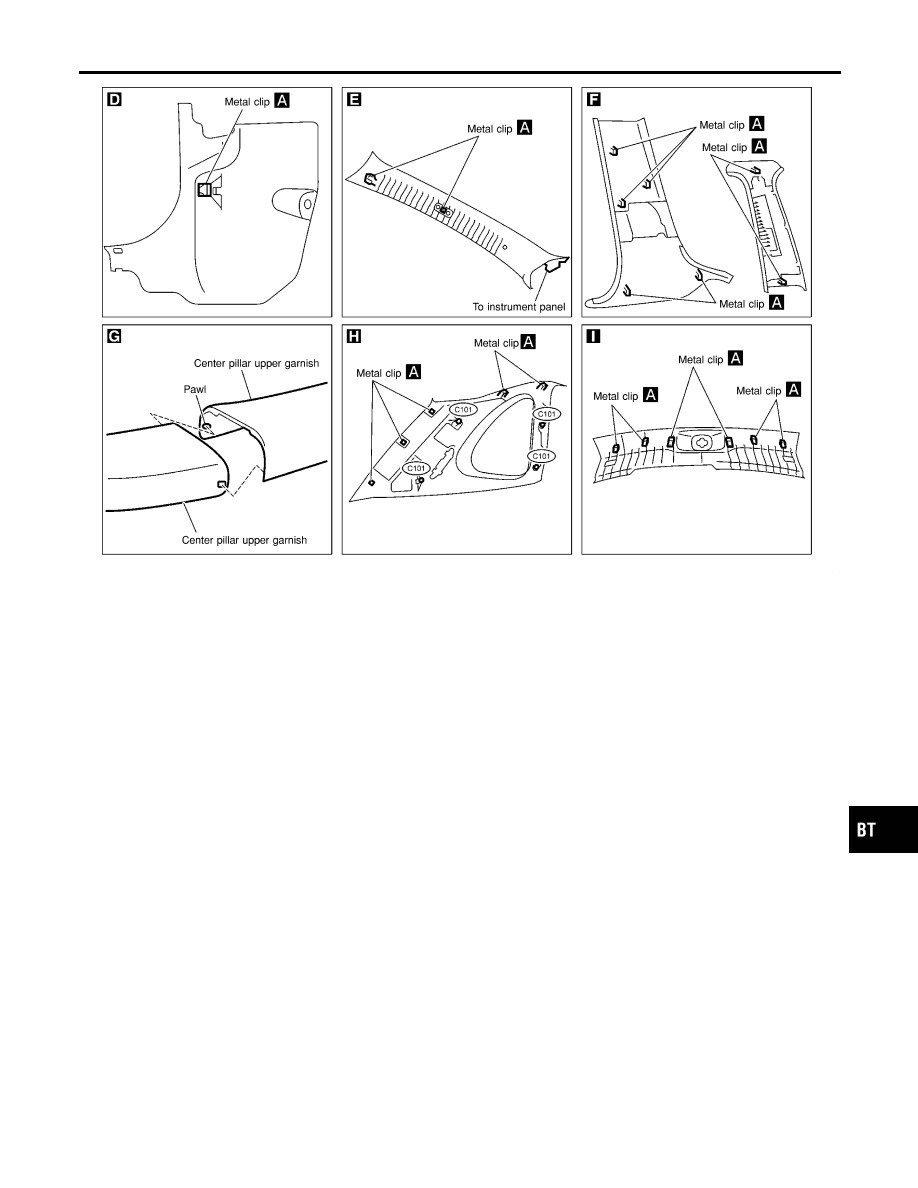

3. Remove front pillar garnishes, center pillar upper garnishes, center pillar lower garnishes and rear pillar

garnishes. Refer to “SIDE AND FLOOR TRIM” for details, BT-27.

4. Push back the front seat back.
5. Remove sunroof switch, then disconnect connectors. (Model with sunroof)
6. Remove front personal light then disconnect connector (Model without sunroof)
7. Remove sunroof welt. (Model with sunroof)

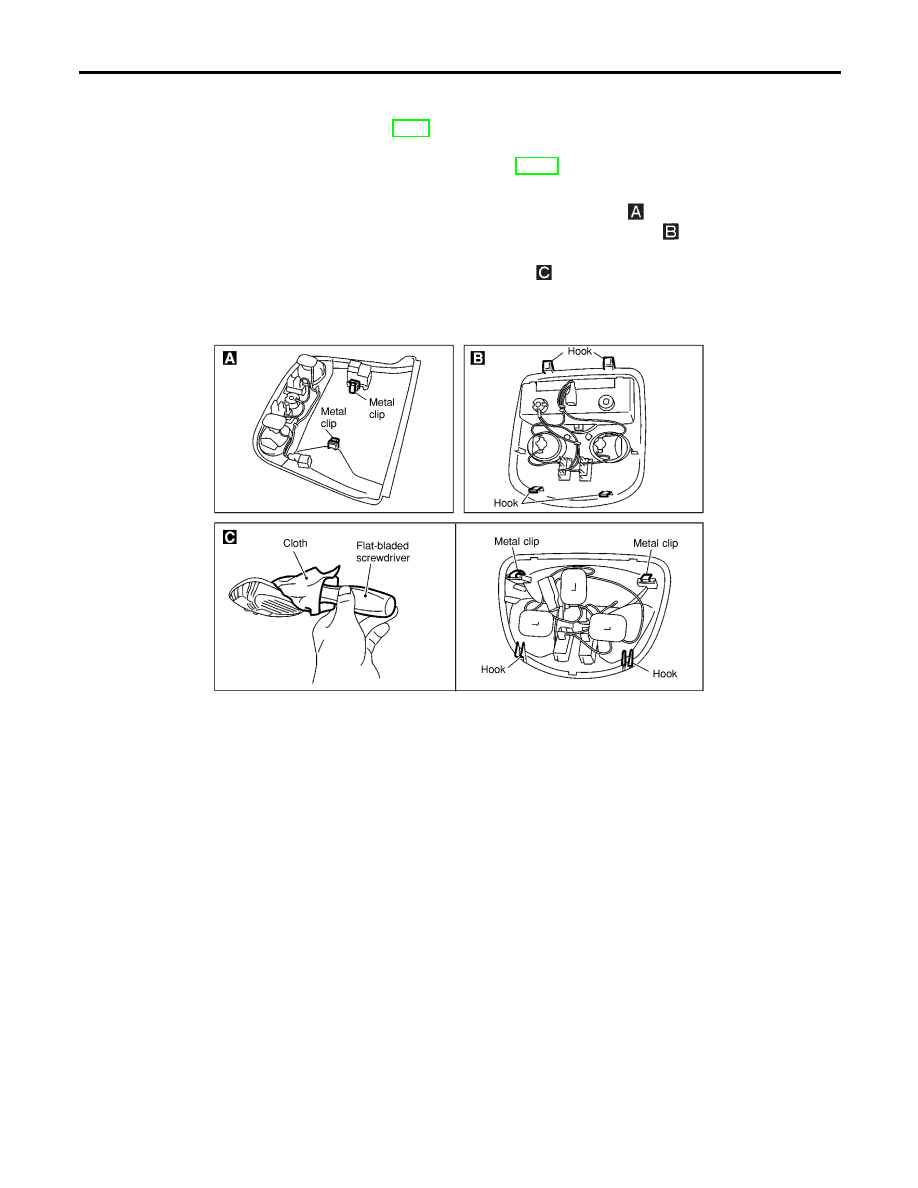

8. Remove interior lamp assembly, then disconnect connectors.
9. Remove sun visors.
10. Remove assist grips.
11. Remove clips securing headliner, then remove headliner from vehicle through back door side.

NBT113

ROOF TRIM

Removal and Installation

BT-34

NBT114

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

ROOF TRIM

Removal and Installation (Cont’d)

BT-35

Removal and Installation

NLBT0035

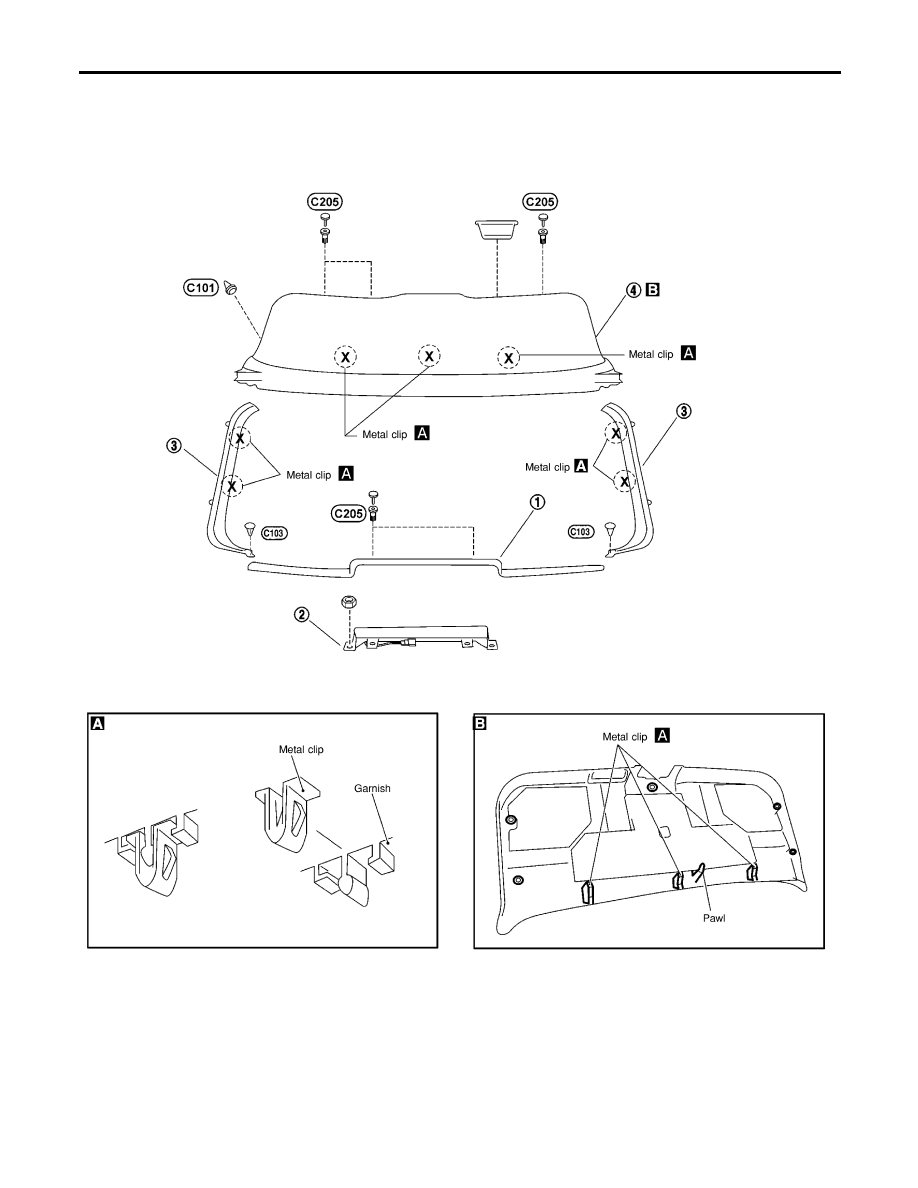

1. Remove back door upper finisher.
2. Remove high-mounted stop lamp.
3. Remove back door side finisher.
4. Remove back door finisher.

NBT115

BACK DOOR TRIM

Removal and Installation

BT-36

Removal and Installation

NLBT0017

NBT175

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

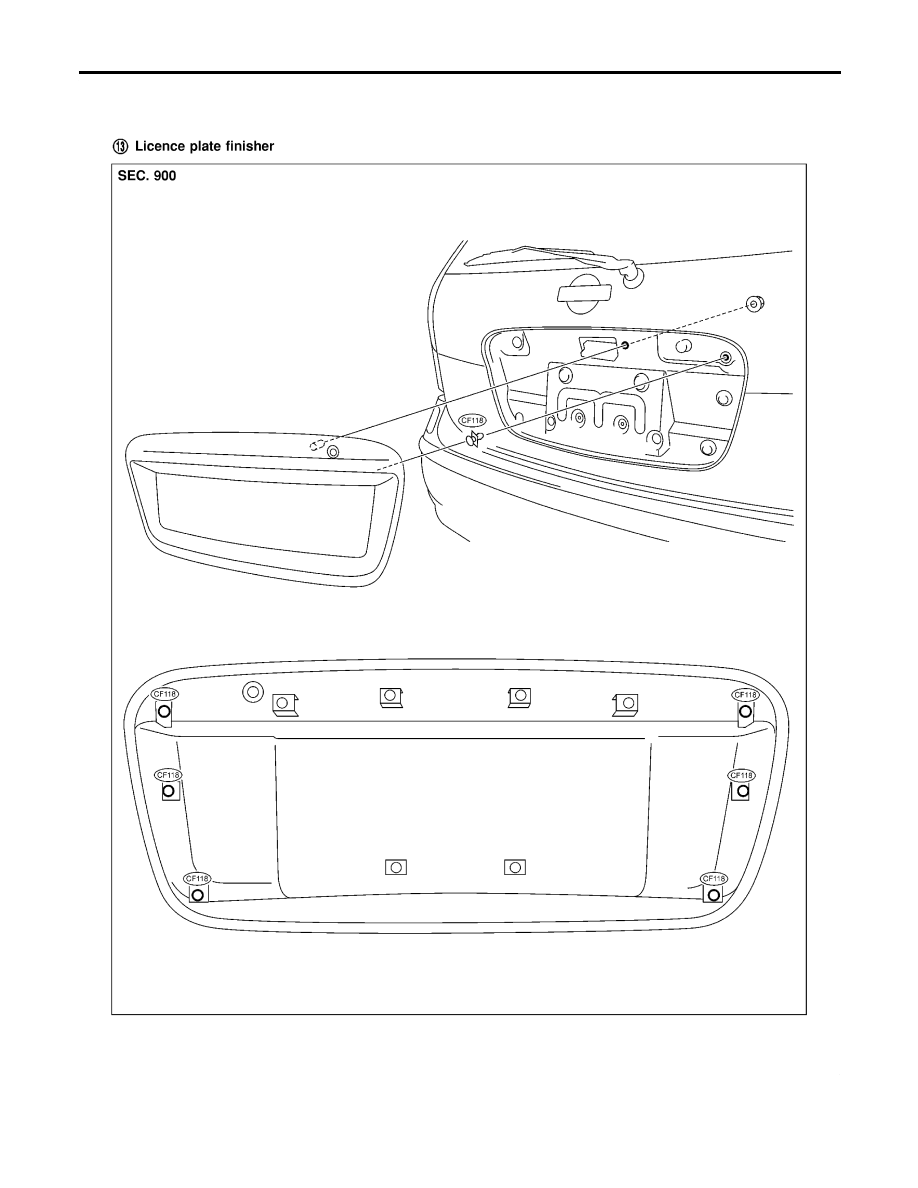

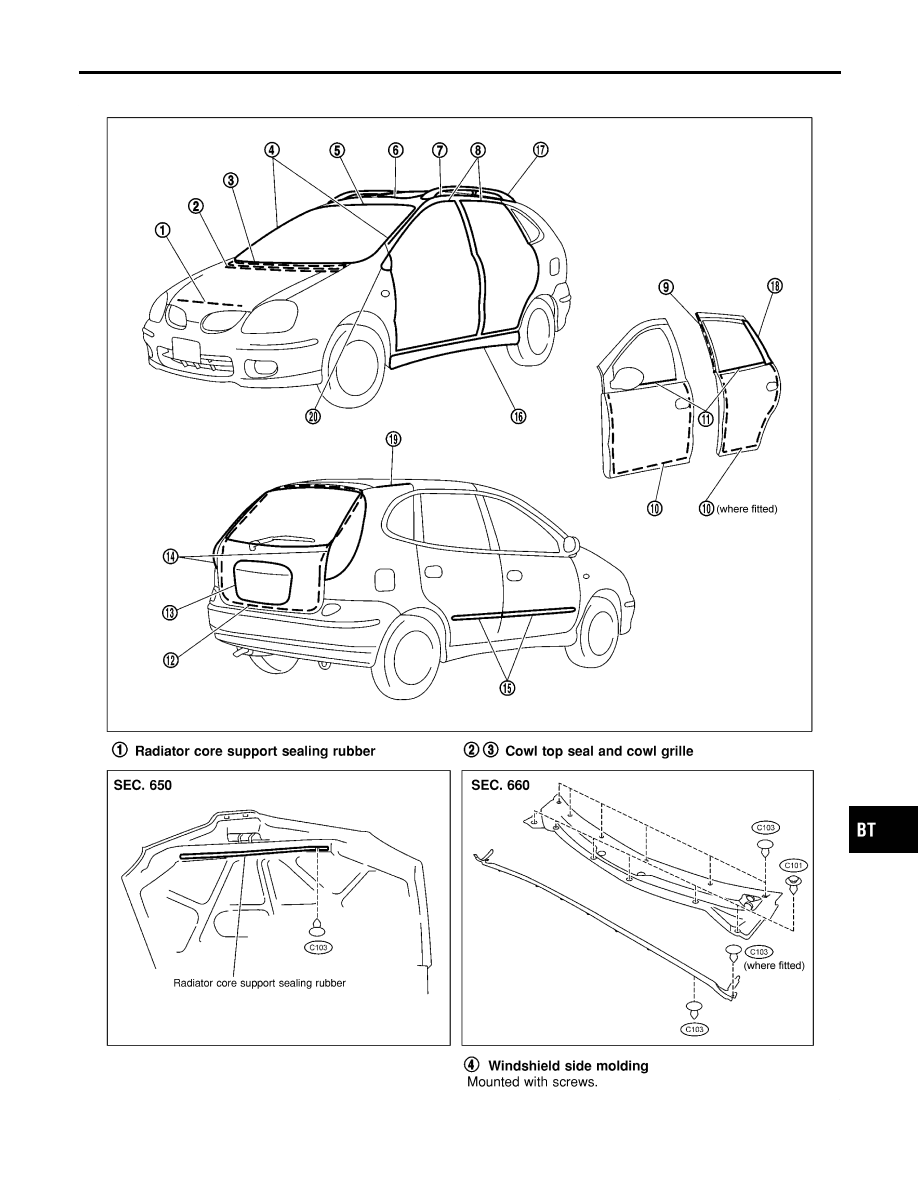

EXTERIOR

Removal and Installation

BT-37

NBT176

EXTERIOR

Removal and Installation (Cont’d)

BT-38

NBT119

GI

MA

EM

LC

EC

FE

CL

MT

AT

AX

SU

BR

ST

RS

HA

SC

EL

IDX

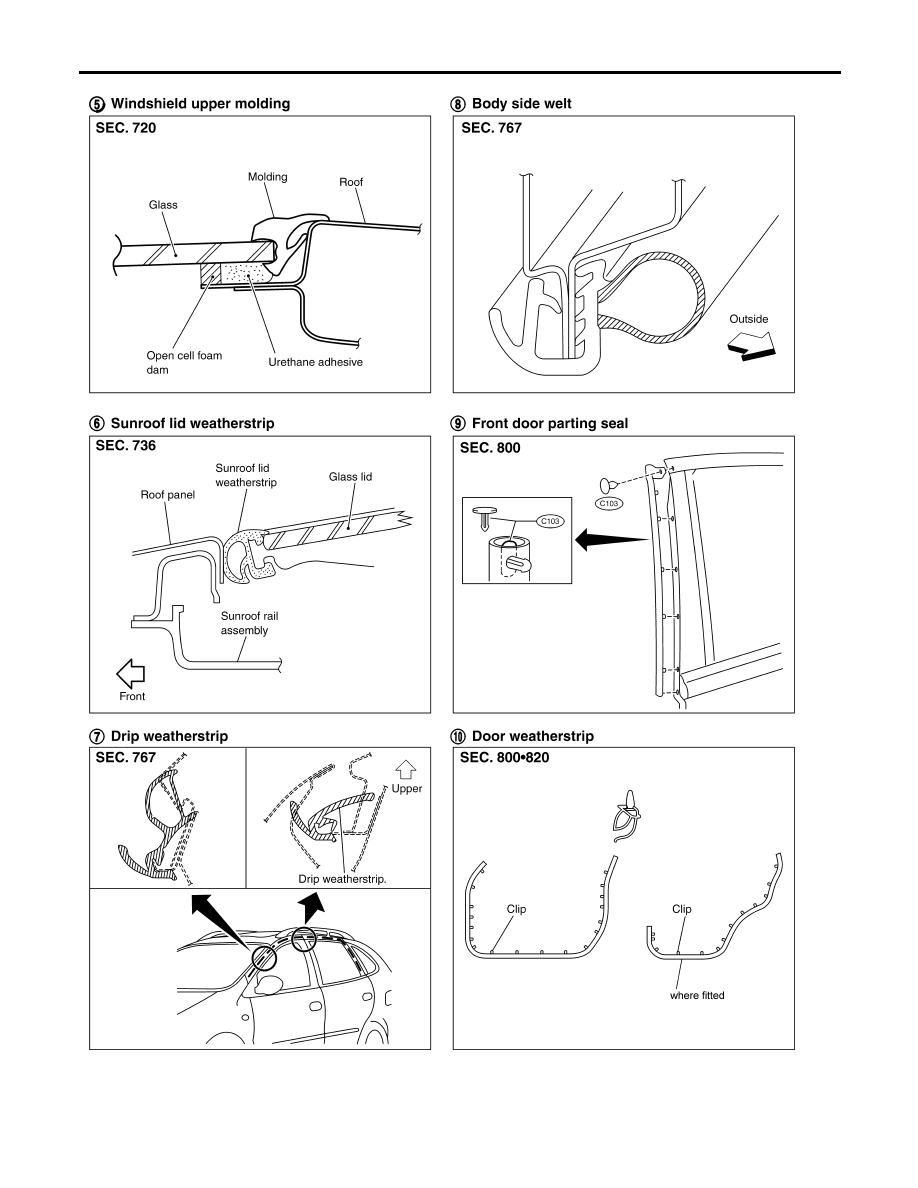

EXTERIOR

Removal and Installation (Cont’d)

BT-39

NBT120

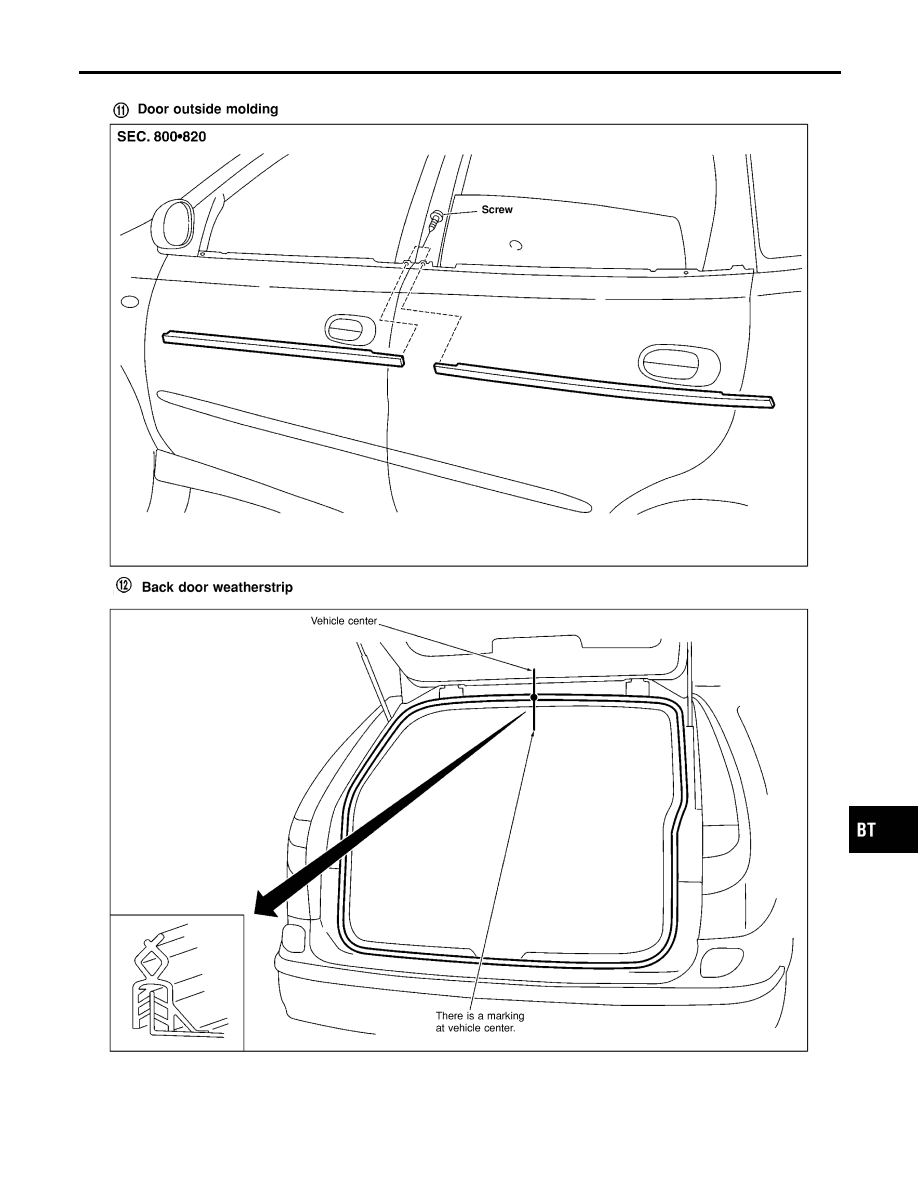

EXTERIOR

Removal and Installation (Cont’d)

BT-40
